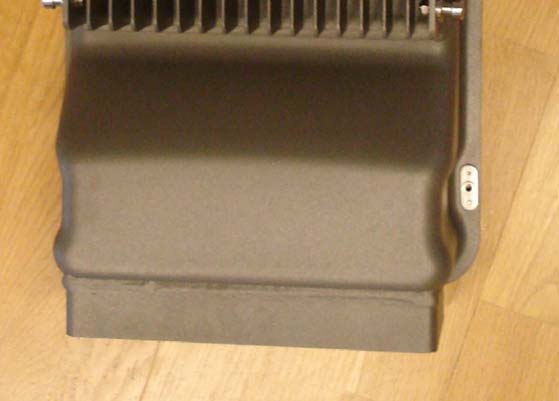

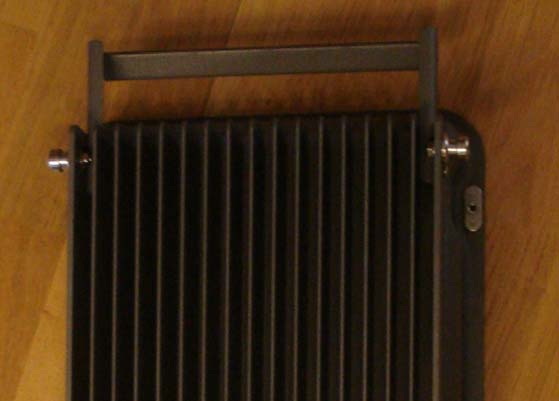

V5FDDS001Distributed Antenna System

Release15-01 Copyright©2015DeltaNode®Solutions Ltd. Sweden DeltaNode Solutions USERMANUAL DELTANODEUSERMANUAL ©DeltaNode Solutions 20151Revision 15-01 Contents 1Introduction.....................................................................................................................................2 1.1RF on fiber...............................................................................................................................2 2Installation guidelines.....................................................................................................................3 2.1Health and Safety....................................................................................................................3 2.2Installing the Master Unit........................................................................................................4 2.3Installing the Remote Units.....................................................................................................5 3System Description..........................................................................................................................8 3.1Purpose....................................................................................................................................8 3.2General....................................................................................................................................8 3.2.1Specifications:..................................................................................................................8 3.3Master Unit..............................................................................................................................9 3.3.1MFU–Master Frame Unit...............................................................................................9 3.3.2BIU–The Base Station Interface...................................................................................10 3.3.3FOI–The Fiber Optic Interface unit..............................................................................10 3.4Remote Unit..........................................................................................................................12 DELTANODEUSERMANUAL ©DeltaNode Solutions 20152Revision 15-01 Single mode fiber Angled connectors Optical loss <15dB 1Introduction Thisdocumentcontainsquickguidelines on how tooperatethe DeltaNodeFiber-DASconcept and how to installa Remote Uniton site, commission and maintain such a system for the life span of the entire installation. When other manufacturers have converted off-air repeaters into fiber-fed repeaters, DeltaNode has developed the concept from scratch with fiber distribution in mind fromthe start. This allows for extremely good radio performance and we are proud ofhavingthe best in class noise figure of less than 3dB for the whole system,antenna>remote unit>base stationinterface port. 1.1RF on fiber A fiber distributed antenna system (Fiber-DAS) is a very efficient way of transmitting radio signals over large distances. Up to about 25 km of fiber between the head-end and the remote unit is allowed,providingthat the radio access technology (RAN) do not suffer timing issues and that the fiber loss is within the specification. The main principle is to use an infra-red light source which is modulated with the combined radio signals that needs to be propagated. The fiber channel system is ultra wide-band, ranging from 88 MHz up to 2600 MHz and thus covering most types of radio communication systems such as FM broadcast, VHF communication radios (so called PMR systems), TETRA, GSM, CDMA, WCDMA and other radio access technologies that are available. The dynamic of thefiberis good enough to tolerate multi-carrier, multi-band and multi-operator solutions this way, but of course they all share the available dynamics and if thereare a very large number of carriersthe fiber attenuation needs to be looked at of course. Because most landmobile radio systems and cellular systems are using Frequency Division Duplex (FDD) this means that there needs to be either two separate fibers, one for the uplink (signals from the terminal towards the base station) and for the downlink (signals from theradio base station towards the terminal) or they may be multiplexed on the same fiber using different wavelengths. The most popular way is to usewave-length division multiplexing (WDM) which isthe normal configuration of the DeltaNode Fiber-DAS concept. However, separate UL/DL fibers can be used if it is necessary or desired. Because the modulation is analogue the system requires the fibers to be of single mode type. All connectors used in DeltaNode equipment for Fiber-DAS are of SC-APC type with a 7°angle. It is very important that all connectors in patches et cetera between the Master Unit (MU) and the Remote Unit (RU) areangled;otherwise reflections are caused which will cause problems with the quality of the signalsthroughouttheentire DASsystem. DELTANODEUSERMANUAL ©DeltaNode Solutions 20153Revision 15-01 2Installation guidelines 2.1Health and Safety DeltaNode DAS system is an advanced system and should be handled by skilled staff.DeltaNode is offering training of installation service providersin the case where this is necessary. Read all available documentation and warnings before handling the equipment!Equipment failures due to improper handling are normally notcovered by the product warranty! Respect all warning signs on the equipment andin the documentation.Make sure to only operate the equipment on frequencies allowed to use.Do not modify the equipment!The equipment contains a Class 3B laser and the equipment is Class 1.Never look into the Laser beam directly or indirectly, it is strong invisible light and may cause serious damage to human eyes! Always use protective hat on fiber and connector end when fiber is removed from socket!Always clean socket and connector after a fiber has been removed before you re-attach it again!…

Text truncated - open the document above for the full version.
