V6P-YTT001SUN SPECTRUM LIGHT

Energy Saving Lamp Introduction ● Instant start, flicker free ● Conserves natural resources by at least saving 80% electricity than incandescent bulbs. ● About 10 times lamp life than a standard incandescent bulb. Notice For Use ● Never use with the following fixtures: Dimming circuit Emergency lighting fixtures Electronic timer fixtures Direct current fixtures ● Use only at the rated voltage and frequency circuit. The power voltage must be in the range of 120V±10%. ● Use indoor only. Never use it where water may drop on the lamp or where the atmosphere is humid. ● Do not use in enclosed fixture, Or the lamp’s life would be shorten. ● Always turn off the switch when replacing or cleaning the lamp. Remove and install it by grasping only the plastic portion of the lamp. ● Added weight may cause instability of free-standing portable lamps in which the distance from the bottom of the base to top of the lamp hold dose not exceed 3 times minimum vase width. Use only with portable lamps which are provided with lamp shade. ● This product complies with Part 18 of the FCC Rules but may cause interference to Radios, television, wireless telephones, and remote controls. If interference occurs, move product away from the device or plug either into a different outlet. ● Low EMC or Radio Frequency Interference. The lamp has filter circuits for Cutting out Radio Frequency Interference (RFI) and Complies with Electromagnetic Compatibility (EMC); they give out no harmful Radio Frequency radiation which tends to interfere with Radio, TV, and telecommunication, Mobile phones etc. ● The lamps are designed to start at very low supply voltages down to about 108VAC and even lower if required, they are also designed to tolerate short term very high supply voltage surges up to 132VAC. These features are most important for developing area where the supply voltage can fluctuate widely. ● They have short circuit protection ,all plastic materials used are certified Fire Retardant, they can be safely operated in the temperature range of -15°C to +65°C. ● This product may cause interference to radio equipment and should not be installed near maritime safety communications equipments or other critical navigation or communication equipment operating between 0.45-30MHz

Circuit Block Diagram L Limited DC circuit FUSE Rectification Filter Oscillating component L A Circuit Circuit Circuit M Limited circuit N component P 110VAC 60Hz Input FREQ>40kHz

SHENZHEN KEWEITIAN TECHNOLOGY DEVELOPMENT CO., LTD East, 7 th Floor, Building No.1, Baimenqian Industrial Zone, Buji Town, Shenzhen, Guangdong Province, P. R. China. FCC ID: V6P-YTT001 Power of Attorney 2008-04-07 Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road To Whom It May Concern: We, the undersigned, hereby authorize Most Technoloyg Service Co., Ltd.(Mark Wen/General Manager) on our behalf, to apply to the Federal Communications Commission on our equipment. Any and all acts carried out by Most Technoloyg Service Co., Ltd.(Mark Wen/General Manager) on our behalf shall have the same effect as acts of our own. This authorization expries on Apr. 07, 2009. This is to advise that we are in full compliance with the Anti-Drug Abuse Act. We, SHENZHEN KEWEITIAN TECHNOLOGY DEVELOPMENT CO., LTD are not subject to a denial of federal benefits pursuant to Section 5301 of the Anti-Drug Act of 1988, 21 USC853a, and no party to the application is subject to a denial of fedral benefits pursuant to that section. Sincerely SHENZHEN KEWEITIAN TECHNOLOGY DEVELOPMENT CO., LTD Xie Rui (General Manager)

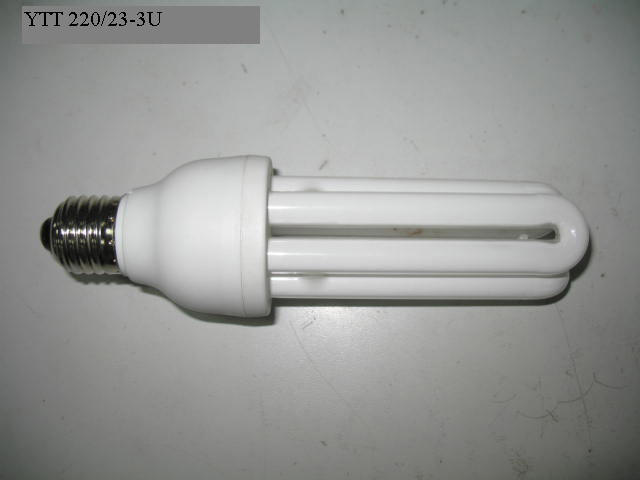

Label Drawing FCC ID: V6P-YTT001 Model Number: YTT 220/23-3U

Circuit Description Fuse: When input is shorted, it performs input shorted protect function. L1: Work together with to performs EMI function. D1 D1, D2,D3,D4: Performs rectification function. BG1, BG2, L2: Performs Oscillating function, let low frequency switch high frequency. C5, L3-21: When switching power, the C5 and L3 take place series resonance startup the lamp, then L3 restricting current.

Part List No. Model Spec. Remark 1 D1-7 1N4007-TO- 92 / For all model 2 BG1、 BG2 13001-TO92 / For all model 3.0±0.1mH For 23W 3 L3 EE19± 0.1mH 3.5±0.1mH For 20W, 18W 4 L1 / 5.0±0.1mH For all model 5 L2 JPP4 2T：7T：2T Ø10×6×5 For all model 6 CD1 CD11G 4.7μF/400V For all model C1、C4 CL11 473μF/400V For all model C2 CL11 102μF/1000V For all model C3 CL11 223μF/100V For all model 7 C5 CL11 392μF/1000V For all model R1 / 1/4W 470KΩ For all model R3、R4 / 1/4W 1.5Ω For all model R5、R6 / 1/4W 15Ω For all model 8 R2 / 1/4W 820KΩ For all model

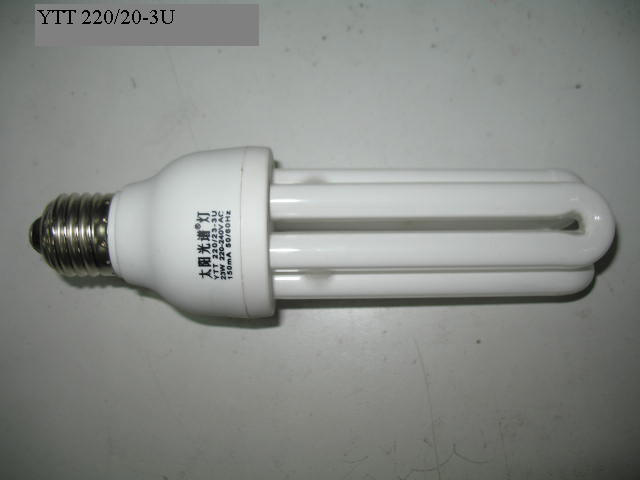

SHENZHEN MOST ELECTRONICS CO., LTD. Tel:(86) 755-26825180 Fax:(86) 755-86170310 Http:// www. szmost.com Email: [email protected] SHENZHEN KEWEITIAN TECHNOLOGY DEVELOPMENT CO., LTD FCC ID: V6P-YTT001 Cover Sheet Test Report Product Name: SUN SPECTRUM LIGHT Model No.: YTT 220/18-3U, YTT 220/20-3U, YTT 220/23-3U FCC ID: U6P-YTT001 Applicant: SHENZHEN KEWEITIAN TECHNOLOGY DEVELOPMENT CO.,LTD East, 7 th Floor, Building No.1, Baimenqian Industrial Zone, Buji Town, Shenzhen, Guangdong Province, P. R. China. Date Received: 4/05/2008 Date Tested: 4/07/2008 SHENZHEN MOST ELECTRONICS CO., LTD. Tel:(86) 755-26825180 Fax:(86) 755-86170310 Http:// www. szmost.com Email: [email protected] SHENZHEN KEWEITIAN TECHNOLOGY DEVELOPMENT CO., LTD FCC ID: V6P-YTT001 TABLE OF CONTENTS TABLE OF CONTENTS APPLICANT: SHENZHEN KEWEITIAN TECHNOLOGY DEVELOPMENT CO.,LTD FCC ID: V6P-YTT001 TEST REPORT CONTAINING: PAGE 1...........TEST EQUIPMENT LIST PAGE 3-9.........POWER LINE CONDUCTED INTERFERENC AND PLOTS PAGE 10-11.......RADIATION INTERFERENCE TEST DATA EXHIBIT INCLUDED: PAGE 1...........BLOCK DIAGRAM PAGE 2...........SCHEMATIC PAGE 3...........PART LIST PAGE 4...........USERS MANUAL PAGE 5...........LABEL SAMPLE PAGE 6...........LABEL LOCATION PAGE 7...........EXTERNAL PHOTOGRAPHS PAGE 8...........INTERNAL PHOTOGRAPHS PAGE 9...........OPERATIONAL DESCRIPTION PAGE 10..........TEST SET UP PHOTOGRAPHS SHENZHEN MOST ELECTRONICS CO., LTD. Tel:(86) 755-26825180 Fax:(86) 755-86170310 Http:// www. szmost.com Email: [email protected] SHENZHEN KEWEITIAN TECHNOLOGY DEVELOPMENT CO., LTD FCC ID: V6P-YTT001 Page 1 of 11 EMC Equipment List Test Equipment Manufacturer Model Serial No. Last Cal. Cal. Due EMI Test Receiver R&S ESCS 30 640101048 2007-06-08 2008-06-08 LISN R&S ESH2-Z5 640201028-02 2007-06-08 2008-06-08 EMI Test Receiver R&S ESMI 640201028 2007-06-08 2008-06-08 BiConiLog antenna ETS•Lindgren 3142B 00026414 2007-06-08 2008-06-08 Double ridge horn Antenna EMCO 3115 640201028-08 2007-06-08 2008-06-08 Chamber ETS•Lindgren RFSD-F-100 2693 2007-06-08 2008-06-08 Radio communication tester R&S CMU200 106389 2007-08-08 2008-08-08 Remark: Test Firm Name: CHINA CEPREI (HEADQUARTERS) LABORATORY Test Firm Address: NO 110 DONGGUANZHUANG ROAD, TIANHE DISTRICT, GUANGZHOU 510610, P.R. CHINA FCC Registered Test Site Number: 258518 SHENZHEN MOST ELECTRONICS CO., LTD. Tel:(86) 755-26825180 Fax:(86) 755-86170310 Http:// www. szmost.com Email: [email protected] SHENZHEN KEWEITIAN TECHNOLOGY DEVELOPMENT CO., LTD FCC ID: V6P-YTT001 Page 2 of 11 TEST PROCEDURE GENERAL: This report shall NOT be reproduced except in full without the written approval of MOST TECHNOLOGY SERVICE CO., LTD. The EUT was transmitting a test signal during the testing. POWER LINE CONDUCTED INTERFERENCE: The test procedure used was ANSI Standard C63.4-2003 using a 50ｕH LISN. Both Lines were observed. The bandwidth of the receiver was 10kHz with an appropriate sweep speed. The ambient temperature of the EUT was 25 °C with a humidity of 58%. RADIATION INTERFERENCE: The test procedure used was ANSI Standard C63.4-2003 using a ANRITSU spectrum analyzer with a pre-selector. The analyzer was calibrated in dB above a micro volt at the output of the antenna. The resolution bandwidth was 100 kHz and the video bandwidth was 300 kHz up to 1 GHz and 1 MHz with a video BW of 3 MHz above 1 GHz. The ambient temperature of the EUT was 25 °C with a humidity of 58%. FORMULA OF CONVERSION FACTORS: The Field Strength at 3m was established by adding the meter reading of the spectrum analyzer (which is set to read in units of dBuV) to the antenna correction factor supplied by the antenna manufacturer and cable loss. The antenna correction factors and cable loss are stated in terms of dB. The gain of the Pre-selector was accounted for in the Spectrum Analyzer Meter Reading. Example: Freq (MHz) METER READING + ACF + CABLE = FS 33 20 dBuV + 10.36 dB + 0.9 dB= 31.26 dBuV/m @ 3m ANSI STANDARD C63.4-2003 10.1.7 MEASUREMENT PROCEDURES: The EUT was placed on a table 80 cm high and with dimensions of 1m by 1.5m. The EUT was placed in the center of the table (1.5m side). The table used for radiated measurements is capable of continuous rotation. The spectrum was scanned from 30 MHz to 10th harmonic of the fundamental. Peak readings were taken in three (3) orthogonal planes and the highest readings were converted to average readings based on the duration of "ON" time. When an emission was found, the table was rotated to produce the maximum signal strength. At this point, the antenna was raised and lowered from 1m to 4m. The antenna was placed in both the horizontal and vertical planes. The situation was similar for the conducted measurement except that the table did not rotate. The EUT was setup as described in ANSI Standard C63.4-2003 10.1.7 with the EUT 40 cm from the vertical ground wall. SHENZHEN MOST ELECTRONICS CO., LTD. Tel:(86) 755-26825180 Fax:(86) 755-86170310 Http:// www. szmost.com Email: [email protected] SHENZHEN KEWEITIAN TECHNOLOGY DEVELOPMENT CO., LTD FCC ID: V6P-YTT001 Page 3 of 11 APPLICANT: SHENZHEN KEWEITIAN TECHNOLOGY DEVELOPMENT CO.,LTD FCC ID: V6P-YTT001 NAME OF TEST: POWER LINE CONDUCTED INTERFERENCE RULES PART NUMBER: 18.307 MINIMUM REQUIREMENTS: FREQUENCY LEVEL MHz ｕV 0.45-2.51 250 2.51-3.0 3000 3.0-30 250 TEST PROCEDURE: ANSI STANDARD C63.4-2003 For YTT 220/18-3U THE HIGHEST EMISSION READ FOR LINE 1 WAS 44.7dBｕV ＠ 465kHz. THE HIGHEST EMISSION READ FOR LINE 2 WAS 44.9dBｕV ＠ 470kHz. For YTT 220/20-3U THE HIGHEST EMISSION READ FOR LINE 1 WAS 43.8dBｕV ＠ 470kHz. THE HIGHEST EMISSION READ FOR LINE 2 WAS 44.6dBｕV ＠ 505kHz. For YTT 220/23-3U THE HIGHEST EMISSION READ FOR LINE 1 WAS 44.9dBｕV ＠ 545kHz. THE HIGHEST EMISSION READ FOR LINE 2 WAS 42.9dBｕV ＠ 480kHz. THE PLOTS ON THE NEXT PAGE REPRESENT THE EMISSIONS READ FOR POWER LINE CONDUCTED FOR THIS DEVICE. SHENZHEN MOST ELECTRONICS CO., LTD. Tel:(86) 755-26825180 Fax:(86) 755-86170310 Http:// www. szmost.com Email: [email protected] SHE…
