V7A-MA1XXBCBIOMETRIC ACCESS CONTROL TERMINAL

Cover Letter [23/07/2010] To whom it may concern, Request for Permanent Confidentiality Under FCC Part 15 Certification FCC ID: [V7A-MA1xxBC] Request is hereby submitted by [SAGEM Sécurité] to withhold permanently from public review certain portions of the application for equipment certification for the referenced FCC identifiers. This request for confidentiality is made pursuant to 47 CFR § 0.457(d) and 0.459 of the FCC Rules. In particular, the following sections of the application are to be kept permanently confidential and [SAGEM Sécurité] reserves the right to discern which parties can obtain access to these information: Schematics; filename is: “(MorphoAccess J-Dual) Schem” Parts list; filename is: “(MorphoAccess J-Dual) PartsLst” Block diagrams; filename is: “(MorphoAccess J-Dual) BlkDia” Operational Description; filename is: “(MorphoAccess J-Dual) OpDes” The rationale for request for confidentiality is as follows: This information represents intellectual property of [SAGEM Sécurité] and it is subject to competition. We have invested considerable time and materials in research and development to produce the referenced product. Disclosure of the permanently confidential portions of this application to competitors would not only give them significant competitive advantages in developing similar products, but would also disclose successful implementation of unpublished, leading edge technology developed by us. If you have questions or need further information, please contact the undersigned. Regards, [SANDRAZ Jean-Remi]

Cover Letter [21/05/2010] To whom it may concern, Request for Concession for Statement Under FCC Part 15 Certification FCC ID: [V7A- MA1xxBC] Request is hereby submitted by [SAGEM Sécurité] to only display FCC ID and not to display FCC statement on the product label, due to small size of the label. Label size cannot be increased due to small dimensions of product. FCC statement as given below is printed into user guide and installation guide: “This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.” If you have questions or need further information, please contact the undersigned. Regards, [SANDRAZ Jean-Remi]

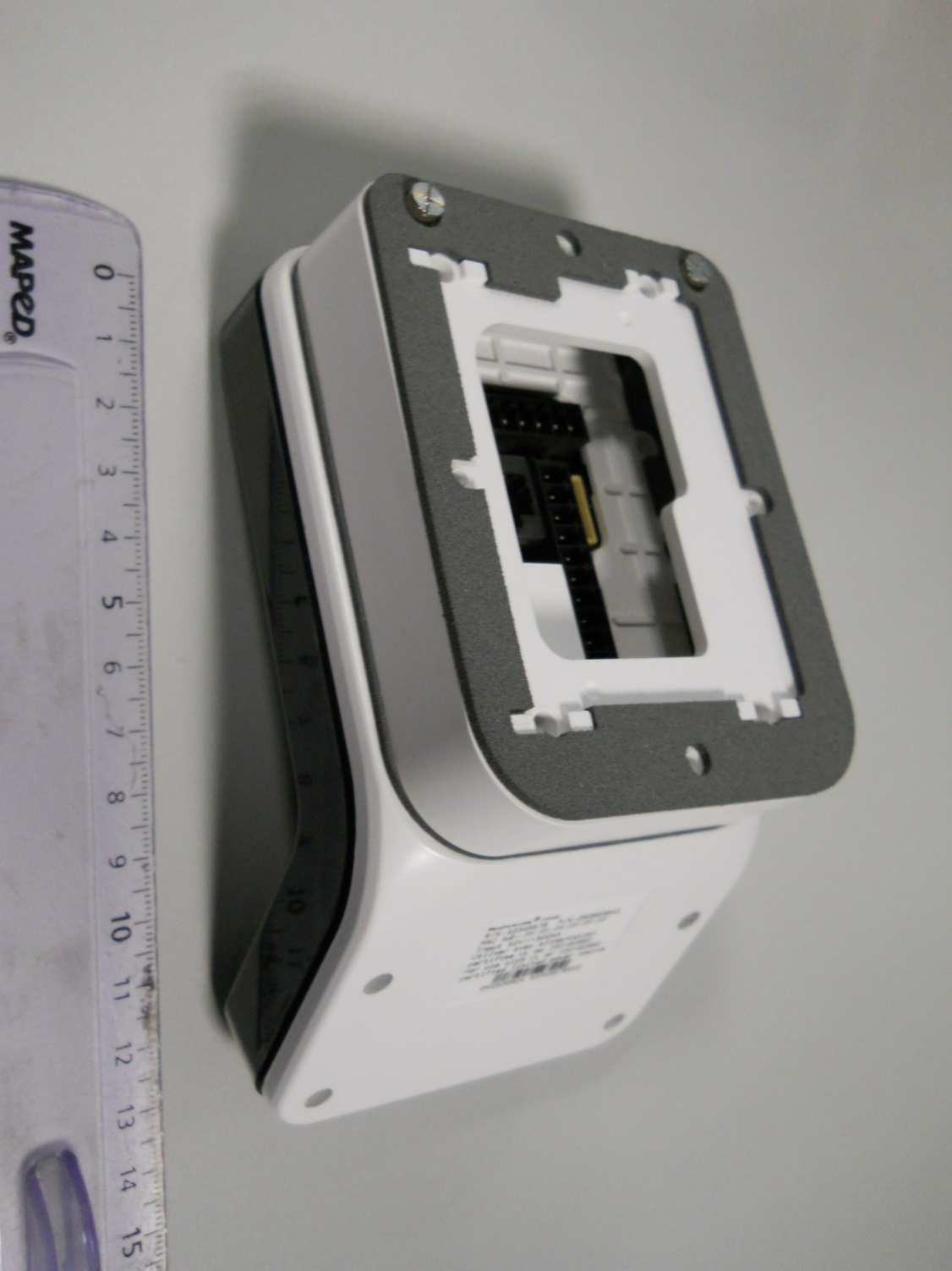

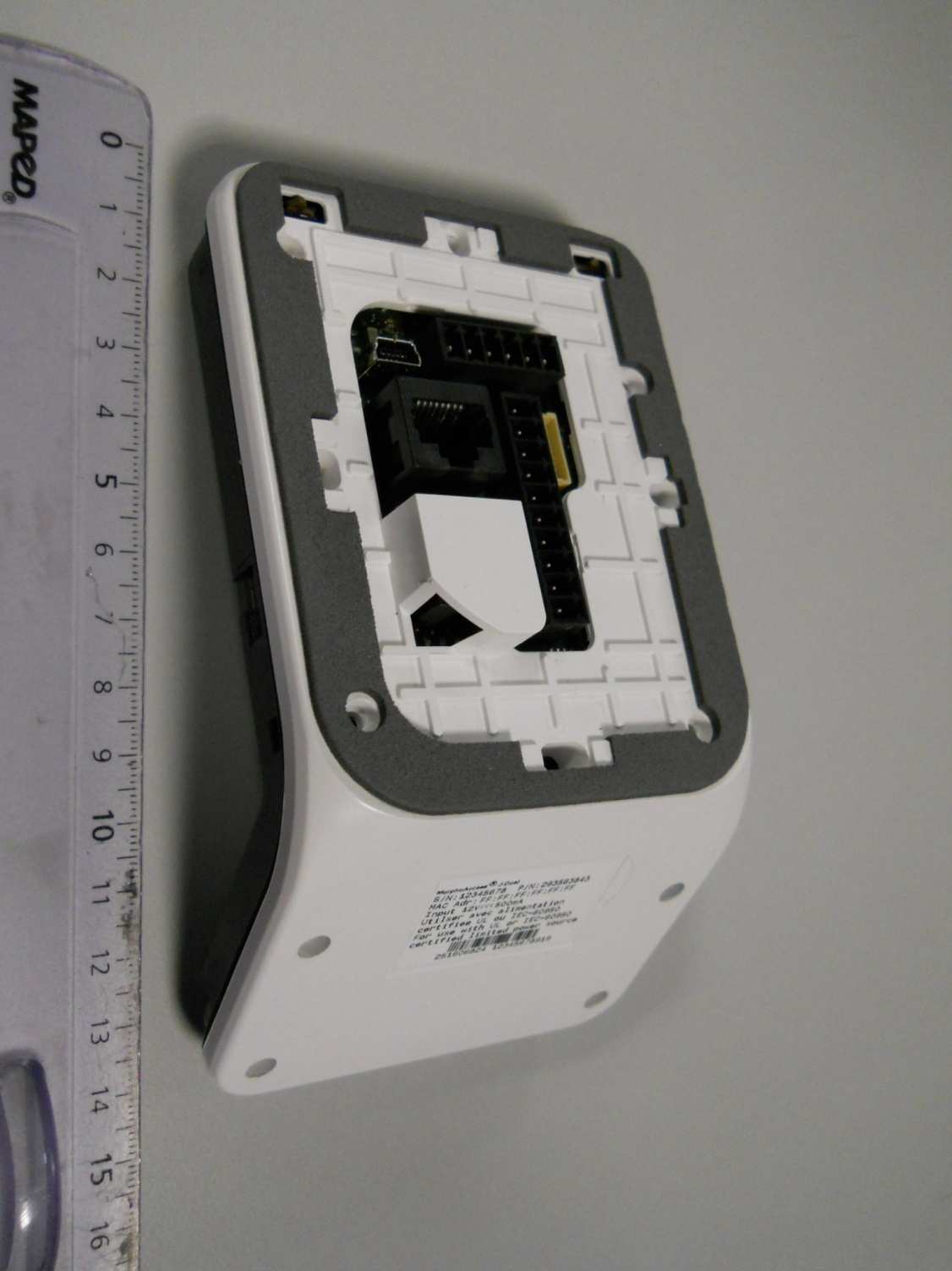

(MorphoAccess J-Dual) ExtPho.docx 1/4 ExtPho-1 : Front side of product without front cover (smoked glass) (MorphoAccess J-Dual) ExtPho.docx 2/4 ExtPho-2 : Front side of product with front cover (smoked glass) (MorphoAccess J-Dual) ExtPho.docx 3/4 ExtPho-3 : Rear side of product (connectors side) (MorphoAccess J-Dual) ExtPho.docx 4/4 ExtPho-4 : Rear side of product with spacer assembled (spacer is an option for assembly on wall)

(MorphoAccess J-Dual) LabelLoc.docx 1/1 LOCALIZATION of LABELS on products

(MorphoAccess J-Dual) LabelSmpl.docx 1/1

(MorphoAccess J-Dual) IntPho.docx 1/5 IntPho-1 : Front side of electronic board without shield cover (MorphoAccess J-Dual) IntPho.docx 2/5 IntPho-2 : Front side of electronic board with shield cover (MorphoAccess J-Dual) IntPho.docx 3/5 IntPho-3 : Rear side of electronic board (MorphoAccess J-Dual) IntPho.docx 4/5 IntPho-4 : Inside view of front case with antenna and light-guide. (MorphoAccess J-Dual) IntPho.docx 5/5 IntPho-5 : Inside view of product with electronic board positioned on front case and with CBM module (fingerprint recognition module) at the bottom

Z.I. Angers - Beaucouzé - 15, rue de la Claie - 49070 BEAUCOUZE - Siret : 344 545 645 00055 Tél. : 02 41 73 26 27 - Fax : 02 41 73 26 40 - E-mail : [email protected] - URL : www.emitech.fr Siège Social : 3, rue des Coudriers - CAP 78 - ZA de l’Observatoire - 78180 MONTIGNY LE BX S.A. au capital de 1 560 000 € - R.C.S. VERSAILLES 344 545 645 - APE 7112B R051-24-10-102014-2/A Ed. 1 “This report cancels and replaces the test report n° R051-24-10-102014-2/A Edition 0” RADIO test report according to standard: FCC Part 15 Equipment under test: BIOMETRIC ACCESS CONTROL TERMINAL MorphoAccess® J-Dual FCC ID: V7A-MA1XXBC Company: SAGEM SECURITE DISTRIBUTION: Mr COMBES Company: SAGEM SECURITE Number of pages: 25 including 3 annexes Technical Verification Ed. Date ModifiedWritten by Quality Approval pages Name Visa Name Visa 1 16-Jul-10 Rewriting L. BERTHAUD Duplication of this document is only permitted for an integral photographic facsimile. It includes the number of pages referenced here above. This document is the result of testing a specimen or a sample of the product submitted. It does not imply an assessment of the conformity of the whole manufactured products of the tested sample. R051-24-10-102014-2/A Ed. 1 PAGE 2 R051-24-10-102014-2-Ed.1-A-SB PRODUCT: BIOMETRIC ACCESS CONTROL TERMINAL Trademark: MorphoAccess® J-Dual Serial number : not communicated MANUFACTURER: SAGEM SECURITE COMPANY SUBMITTING THE PRODUCT: Company : SAGEM SECURITE Address : 18, Chaussée Jules César 95520 OSNY FRANCE Responsible : Mr COMBES DATE(S) OF TEST: 31 May 2010 01 June 2010 TESTING LOCATION: EMITECH ATLANTIQUE laboratory at ANGERS (49) FRANCE EMITECH ATLANTIQUE open area test site in LA POUEZE (49) FRANCE FCC Registration Number: 101696/FRN: 0006 6490 08 TESTED BY: L. BERTHAUD R051-24-10-102014-2/A Ed. 1 PAGE 3 R051-24-10-102014-2-Ed.1-A-SB CONTENTS TITLE PAGE 1. INTRODUCTION.......................................................................................................................... 4 2. PRODUCT DESCRIPTION .........................................................................................................4 3. NORMATIVE REFERENCE....................................................................................................... 4 4. TEST METHODOLOGY .............................................................................................................4 5. TESTS RESULTS SUMMARY.................................................................................................... 5 5.1. Intentional radiator (subpart C) ................................................................................................ 5 5.2. Unintentional radiator (subpart B) ........................................................................................... 5 6. MEASUREMENT OF RADIATED INTERFERENCE FIELD STRENGTH ....................... 6 7. CONDUCTED LIMITS ................................................................................................................ 8 Measurement on the mains power supply: ...................................................................................... 8 CURVE N°: 1.................................................................................................................................. 9 CURVE N°: 2................................................................................................................................ 10 CURVE N°: 3................................................................................................................................ 12 CURVE N°: 4................................................................................................................................ 13 8. RADIATED EMISSION LIMITS .............................................................................................. 14 9. OPERATION WITHIN THE BAND 13.110 – 14.010 MHZ ................................................... 16 ANNEX 1: CURVES........................................................................................................................ 19 ANNEX 2: PHOTOS OF THE EQUIPMENT UNDER TEST ................................................... 21 ANNEX 3: TEST SET UP ............................................................................................................... 24 R051-24-10-102014-2/A Ed. 1 PAGE 4 R051-24-10-102014-2-Ed.1-A-SB 1. INTRODUCTION This report presents the results of radio test carried out on the following equipment: BIOMETRIC ACCESS CONTROL TERMINAL MorphoAccess® J-Dual , in accordance with normative reference. 2. PRODUCT DESCRIPTION Class: B (residential environment) Utilization: biometric access control terminal Antenna type: incorporated antenna Power level, frequency range and channels characteristics are not user adjustable. The details pictures of the product and the circuit boards are joined with this file. 3. NORMATIVE REFERENCE The standards and testing methods related throughout this report are those listed below. They are applied on the whole test report even though the extensions (version, date and amendment) are not repeated. FCC Part 15 (2009) Code of Federal Regulations Title 47 - Telecommunication Chapter 1 - Federal Communications Commission Part 15 - Radio frequency devices Subpart C - Intentional Radiators ANSI C63.4 (03) American National Standard for Methods of measurement of Radio- Noise from low-voltage. Electrical and Electronic Equipment in the Range of 9 kHz to 40 GHz. 4. TEST METHODOLOGY Radio performance tests procedures given in part 15: Paragraph 33: frequency range of radiated measurements Paragraph 35: measurement detector functions and bandwidths Paragraph 107: conducted limits Paragraph 109: radiated emission limits Paragraph 203: antenna requirement Paragraph 207: conducted limits Paragraph 209: radiated emission limits; general requirements Paragraph 225: operation within the band 13.110 – 14.010 MHz R051-24-10-102014-2/A Ed. 1 PAGE 5 R051-24-10-102014-2-Ed.1-A-SB 5…
