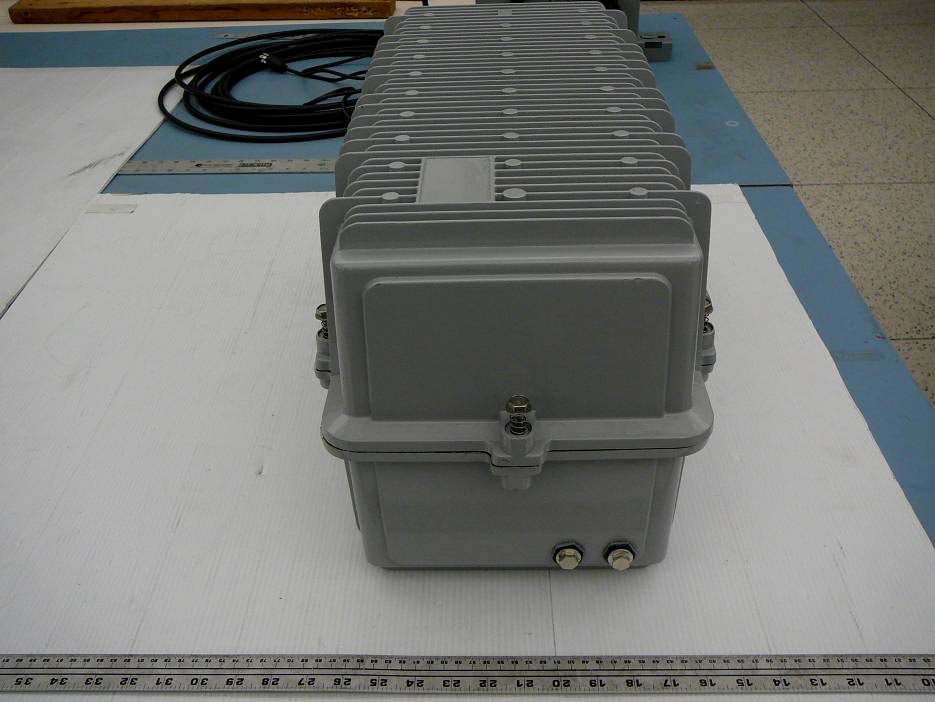

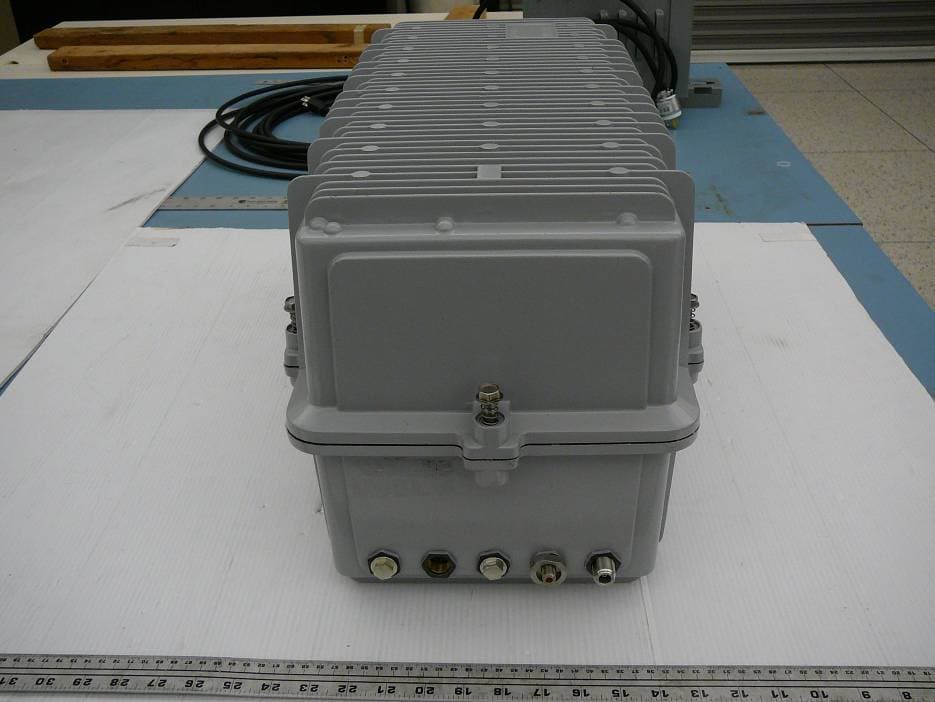

Public Wireless, Inc. FCC ID: V7DCM150D01 Report Number: R0912151-22 Page 52 of 60 FCC Part 22H Test Report 14 EXHIBIT C – EUT PHOTOGRAPHS 14.1 EUT - Top View 14.2 EUT– Side View (1) Public Wireless, Inc. FCC ID: V7DCM150D01 Report Number: R0912151-22 Page 53 of 60 FCC Part 22H Test Report 14.3 EUT– Side View (2) 14.4 Support Equipment - Top View Public Wireless, Inc. FCC ID: V7DCM150D01 Report Number: R0912151-22 Page 54 of 60 FCC Part 22H Test Report 14.5 Power Supply for EUT

Public Wireless, Inc. FCC ID: V7DCM150D01 Report Number: R0912151-22 Page 49 of 60 FCC Part 22H Test Report 12 EXHIBIT A - FCC ID LABELING REQUIREMENT 12.1 FCC ID Label Requirement FCC § 2.925 Identification of equipment (a) Each equipment covered in an application for equipment authorization shall bear a nameplate or label listing the following: (1) FCC Identifier consisting of the two elements in the exact order specified in §2.926. The FCC Identifier shall be preceded by the term FCC ID in capital letters on a single line, and shall be of a type size large enough to be legible without the aid of magnification. Example: FCC ID XXX123. XXX—Grantee Code 123—Equipment Product Code 12.2 FCC ID Label 12.3 FCC Label Location on EUT FCC ID: XXX-XXXXXX FCC ID: V7DCM150D01 Model: CM150D-01 RU Public Wireless Inc.

Public Wireless, Inc. FCC ID: V7DCM150D01 Report Number: R0912151-22 Page 55 of 60 FCC Part 22H Test Report 14.6 EUT – Top Side Cover Opened View No Module Voltage Used Remarks ① RF FWD AGC for W/G (RFAGC-WG) 6.5Vdc ② RF FWD Channel Selector (RFCHS) 6.5Vdc ③ Slave Optical Transceiver unit (SOU) 6.5Vdc ④ RU RVS Channel Selector (RRCHS) 6.5Vdc ⑤ RU RVS LNA for W/G (RRLNA-WG) 9Vdc ⑥ HPA 27Vdc ⑦ Front-End Filter Unit (FE-Duplexer) ⑧ PSUs 60-90VAC ⑨ NMS Controller 9Vdc ⑩ DC DC Converter 28 VDC ⑪ Surge Arrester Public Wireless, Inc. FCC ID: V7DCM150D01 Report Number: R0912151-22 Page 56 of 60 FCC Part 22H Test Report 14.7 EUT- Internal close view (1) - RF FWD AGC for W/G (RFAGC-WG) 14.8 EUT- Internal close view (2) -RF FWD Channel Selector (RFCHS) Public Wireless, Inc. FCC ID: V7DCM150D01 Report Number: R0912151-22 Page 57 of 60 FCC Part 22H Test Report 14.9 EUT- Internal close view (3) - Slave Optical Transceiver unit (SOU) 14.10 EUT- Internal close view (4) - RU RVS Channel Selector (RRCHS) Public Wireless, Inc. FCC ID: V7DCM150D01 Report Number: R0912151-22 Page 58 of 60 FCC Part 22H Test Report 14.11 EUT- Internal close view (5) - RU RVS LNA for W/G (RRLNA-WG) 14.12 EUT- Internal close view (6) – HPA Public Wireless, Inc. FCC ID: V7DCM150D01 Report Number: R0912151-22 Page 59 of 60 FCC Part 22H Test Report 14.13 EUT- Internal close view (7) - Front-End Filter Unit (FE-Duplexer) 14.14 EUT- Internal close view (8) – PSUs Public Wireless, Inc. FCC ID: V7DCM150D01 Report Number: R0912151-22 Page 60 of 60 FCC Part 22H Test Report 14.15 EUT- Internal close view (9) - NMS Controller 14.16 EUT- Internal close view (10) - DC DC Converter ***** END OF REPORT *****

Public Wireless, Inc. FCC ID: V7DCM150D01 Report Number: R0912151-22 Page 48 of 60 FCC Part 22H Test Report 11 FCC §1.1307(b)(1) & §2.1091 - RF EXPOSURE 11.1 Applicable Standard According to §1.1310 and §2.1091 (Mobile Devices) RF exposure is calculated. Limits for General Population/Uncontrolled Exposure Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Field Strength (A/m) Power Density (mW/cm 2 ) Averaging Time (minute) Limits for General Population/Uncontrolled Exposure 0.3-1.34 614 1.63 *(100) 30 1.34-30 824/f 2.19/f *(180/f 2 ) 30 30-300 27.5 0.073 0.2 30 300-1500 / / f/1500 30 1500-100,000 / / 1.0 30 Note: f = frequency in MHz * = Plane-wave equivalent power density 11.2 MPE Prediction Predication of MPE limit at a given distance, Equation from OET Bulletin 65, Edition 97-01 S = PG/4πR² Where: S = power density P = power input to antenna G = power gain of the antenna in the direction of interest relative to an isotropic radiator R = distance to the center of radiation of the antenna Maximum peak output power at antenna input terminal (dBm): 37.90 Maximum peak output power at antenna input terminal (mW): 6165.95 Prediction distance (cm): 40.0 Prediction frequency (MHz): 881.6 Antenna Gain, typical (dBi): 2.0 Maximum Antenna Gain (numeric): 1.585 Power density at predication frequency and distance (mW/cm 2 ): 0.486 MPE limit for uncontrolled exposure at predication frequency (mW/cm 2 ): 0.5877 Test Result For Downlink, the highest power density level at 40 cm is 0.486 W/cm², which is below the uncontrolled exposure limit of 0.5877mW/cm² at 881.6 MHz.

Note: This test report is prepared for the customer shown above and for the device described herein. It may not be duplicated or used in part without prior written consent from Bay Area Compliance Laboratories Corp. This report must not be used by the customer to claim product certification, approval, or endorsement by NVLAP*, NIST, or any agency of the Federal Government. * This report may contain data that are not covered by the NVLAP accreditation and are marked with an asterisk “*” (Rev.2) FCC PART 22H TEST AND MEASUREMENT REPORT For Public Wireless, Inc. 1325A McCandless Dr. Bldg. A, Milpitas, CA 95035, USA FCC ID: V7DCM150D01 Report Type: Original Report Product Type: Fiber Fed Repeater Test Engineer: Jack Liu Report Number: R0912151-22 Report Date: 2009-12-23 Reviewed By: Boni Baniqued Senior RF Engineer Prepared By: (11) Bay Area Compliance Laboratories Corp. 1274 Anvilwood Ave Sunnyvale, CA 94089, USA Tel: (408) 732-9162 Fax: (408) 732 9164 Public Wireless, Inc. FCC ID: V7DCM150D01 Report Number: R0912151-22 Page 2 of 60 FCC Part 22H Test Report TABLE OF CONTENTS 1 GENERAL INFORMATION ............................................................................................................................... 5 1.1 PRODUCT DESCRIPTION FOR EQUIPMENT UNDER TEST (EUT)........................................................................... 5 1.2 MECHANICAL DESCRIPTION.............................................................................................................................. 5 1.3 EUT PHOTO....................................................................................................................................................... 6 1.4 OBJECTIVE......................................................................................................................................................... 6 1.5 RELATED SUBMITTAL(S)/GRANT(S)................................................................................................................... 6 1.6 TEST METHODOLOGY........................................................................................................................................ 6 1.7 MEASUREMENT UNCERTAINTY.......................................................................................................................... 7 1.8 TEST FACILITY................................................................................................................................................... 7 2 SYSTEM TEST CONFIGURATION .................................................................................................................. 8 2.1 JUSTIFICATION................................................................................................................................................... 8 2.2 EUT EXERCISE SOFTWARE................................................................................................................................8 2.3 EQUIPMENT MODIFICATIONS............................................................................................................................. 8 2.4 POWER SUPPLY AND LINE FILTERS.................................................................................................................... 8 2.5 LOCAL SUPPORT EQUIPMENT LIST AND DETAILS.............................................................................................. 8 2.6 INTERFACE PORTS AND CABLING...................................................................................................................... 8 3 SUMMARY OF TEST RESULTS........................................................................................................................ 9 4 FCC §2.1046 & §22.913(A) – RF OUTPUT POWER ....................................................................................... 10 4.1 APPLICABLE STANDARD.................................................................................................................................. 10 4.2 TEST PROCEDURE............................................................................................................................................ 10 4.3 TEST ENVIRONMENTAL CONDITIONS............................................................................................................... 10 4.4 TEST EQUIPMENT LIST AND DETAILS.............................................................................................................. 10 4.5 SUMMARY OF TEST RESULTS........................................................................................................................... 11 5 FCC §2.1047 - MODULATION CHARACTERISTIC..................................................................................... 12 5.1 APPLICABLE STANDARD.................................................................................................................................. 12 5.2 TEST RESULT................................................................................................................................................... 12 6 FCC §2.1049 & §22.917 - OCCUPIED BANDWIDTH .................................................................................... 13 6.1 APPLICABLE STANDARD.................................................................................................................................. 13 6.2 TEST PROCEDURE............................................................................................................................................ 13 6.3 TEST ENVIRONMENTAL CONDITIONS............................................................................................................... 13 6.4 TEST EQUIPMENT LIST AND DETAILS.............................................................................................................. 13 6.5 SUMMARY OF TEST RESULTS........................................................................................................................... 14 7 FCC §2.1053 & §22.917 - SPUR…

Text truncated - open the document above for the full version.

Public Wireless, Inc. FCC ID: V7DCM150D01 Report Number: R0912151-22 Page 50 of 60 FCC Part 22H Test Report 13 EXHIBIT B - TEST SETUP PHOTOGRAPHS 13.1 Radiated Emissions – Above 1 GHz Front View 13.2 Radiated Emissions - Above 1 GHz Rear View Public Wireless, Inc. FCC ID: V7DCM150D01 Report Number: R0912151-22 Page 51 of 60 FCC Part 22H Test Report 13.3 Radiated Emissions – Below 1 GHz Front View 13.4 Radiated Emissions – Below 1 GHz Rear View
