V8VCES8120CLAll in one DVD Player

2-DIN DVD MULTIMEDIA STATION WITH 6.2-inch TOUCH PANEL CONTROL STATION MULTIMÉDIA DVD 2-DIN AVEC COMMANDE ÉCRAN TACTILE DE 6,2 pouces ESTACIÓN DVD MULTIMEDIA DOBLE DIN CON PANEL DE CONTROL TÁCTIL DE 6,2 pulgadas DVD MULTIMEDIA STATION WITH 7-inch TOUCH PANEL CONTROL STATION MULTIMÉDIA DVD AVEC COMMANDE ÉCRAN TACTILE DE 7 pouces ESTACIÓN DVD MULTIMEDIA CON PANEL DE CONTROL TÁCTIL DE 7 pulgadas VX401 VZ401 Owner’s manual & Installation manual Mode d’emploi et manuel d’installation Manual de instrucciones y de instalación  VX401/VZ401 English Owner’s Manual CLARION PRODUCT REGISTRATION INFORMATION For USA and Canada only www.clarion.com Dear Customer: Congratulations on your purchase of a Clarion mobile electronic product. We are confident that you’ll enjoy your Clarion experience. There are many benefits to registering your product. We invite you to visit our website at www.clarion.com to register your Clarion product. We have made product registration simple with our easy to use website. The registration form is short and easy to complete. Once you’re registered, we can keep you informed of important product information. Register at www.clarion.com - it’s easy to keep your Clarion product up to date. English VX401/VZ401  English Owner’s Manual Contents 1. FEATURES .........................................................................................................................4 Expanding Systems ...........................................................................................................4 2. PRECAUTIONS .................................................................................................................5 3. CONTROLS ....................................................................................................................... 7 Operational Panel ............................................................................................................... 7 Functions of Buttons .......................................................................................................... 8 Remote Control .................................................................................................................. 9 Functions of Remote Control Buttons................................................................................10 4. CAUTIONS ON HANDLING ..............................................................................................1 Operation panel ..................................................................................................................1 USB Port ............................................................................................................................1 Cleaning .............................................................................................................................1 Handling Discs ...................................................................................................................1 5. DVD VIDEO SYSTEM ........................................................................................................ 14 DVD Video Features ...........................................................................................................14 Discs ................................................................................................................................ 15 About the registered marks etc. ......................................................................................... 16 6. OPERATIONS ....................................................................................................................17 Basic Operations ................................................................................................................ 17 Radio Operations ...............................................................................................................0 DVD Video Player Operations ............................................................................................1 Sirius Satellite Radio Operations ........................................................................................9 7. ACCESSORIES .................................................................................................................1 iPod/iPhone Operations .....................................................................................................1 USB Operations .................................................................................................................  Bluetooth Audio Player Operations ....................................................................................4 HD Radio Operations .........................................................................................................8 AUX In/AV In Operations .................................................................................................... 40 Camera In Operations ........................................................................................................ 40 Setup Operations ...............................................................................................................41 8. TROUBLESHOOTING .......................................................................................................4 9. ERROR DISPLAYS ............................................................................................................ 46 10. SPECIFICATIONS ..............................................................................................................46 INSTALLATION/ WIRE CONNECTION GUIDE ...................................................48 4 VX401/VZ401 English Owner’s Manual 1. FEATURES Expanding Systems NOTE: The unit can receive analog, HD Radio (optional) and satellite radio (optional) broadcasts. The items listed outside the frames are the commercial products generally sold. Double Din 6.2” Touch Panel Control Motorized 7” Touch Panel Control DVD Video/CD-DA/MP3/WMA Playback Capability N…

Text truncated - open the document above for the full version.

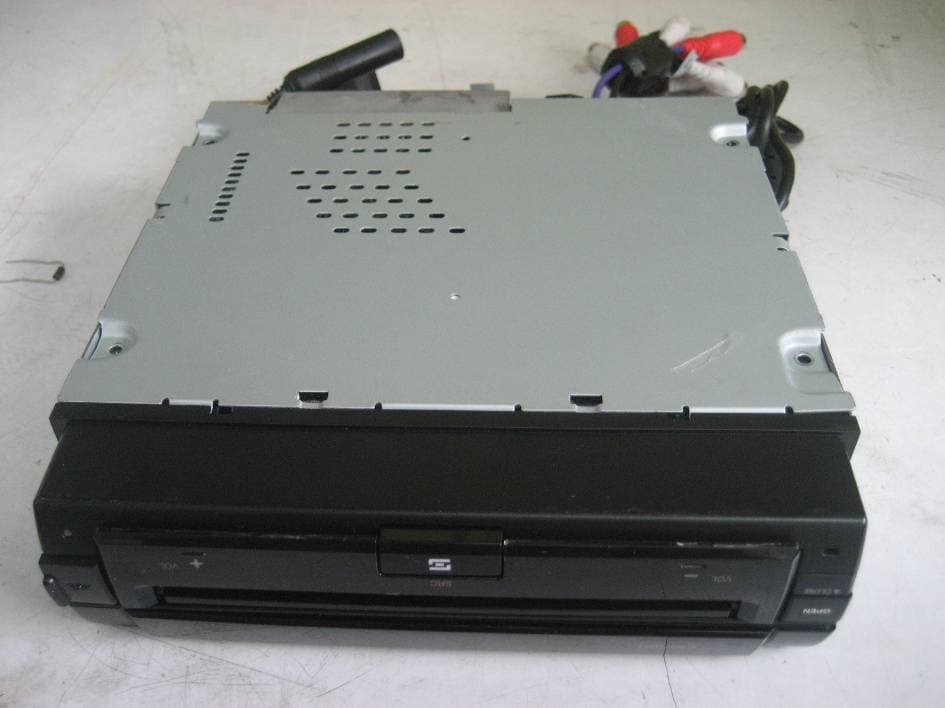

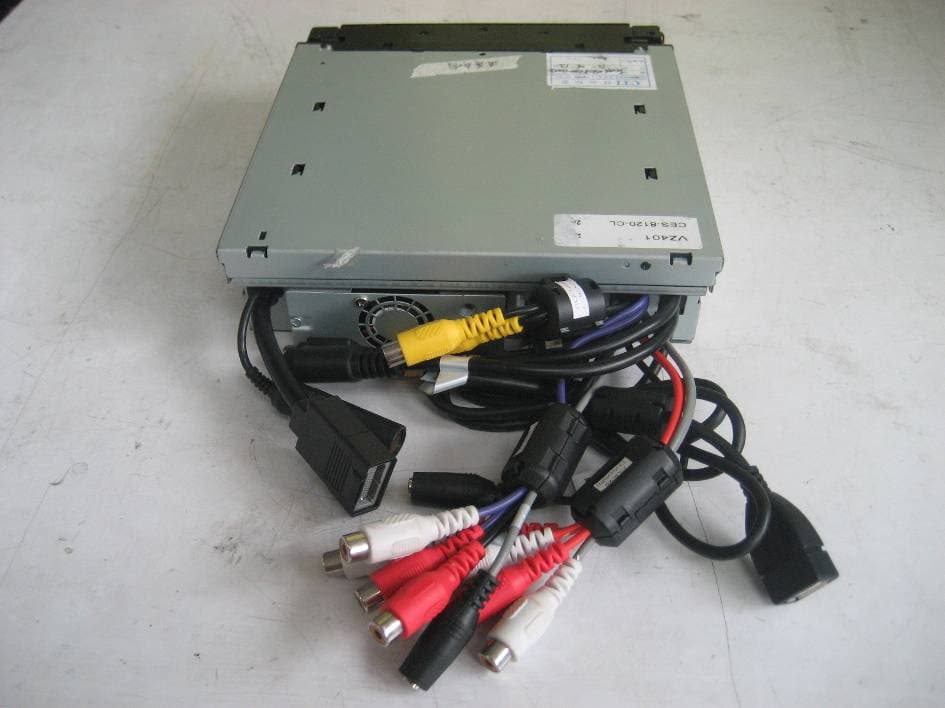

EXTERNAL PHOTOGRAPHS OF EUT

MODEL SERIAL NO. MANUFACTURED: EYS This device complies with Part 15 of the FCC rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. U.S. Patent Nos. 6,836,549; 6,381,747;7,050,698; 6,516,132;and 5,583,936. This product includes technology owned by Microsoft Corporation and cannot be used or distributed without a license from MSLGP. 1 AM 530-1710kHz / FM 87.9-107.9MHz Manufactured under license from Dolby Laboratories. “Dolby” and the double-D symbol are trademarks of Dolby Laboratories. S=1/1 MADE IN CHINA Clarion Co., Ltd. 12V 15Amax FCC ID : IC : Bluetooth QD ID : B015864 VZ401 V8VCES8120CL 8614A-CES8120CL TX-1068B CLARION CO.,LTD. 7-2,SHINTOSHIN,CHUO-KU,SAITAMA-SHI,SAITAMA-KEN,JAPAN THIS DEVICE COMPLIES WITH DHHS RULES 21 CFR CHAPTER I SUBCHAPTER J APPLICABLE AT DATE OF MANUFACTURE. The HD Radio Ready logo is proprietary trademark of iBiquity Digital Corp. Lable Location Info ID Lable

INTERNAL PHOTOGRAPHS OF EUT Internal View of EUT-1 Internal View of EUT-2 Internal View of EUT-3 Internal View of EUT-4 Internal View of EUT-5 Internal View of EUT-6 Internal View of EUT-7 Bluetooth PCB BT Antenna Location-1 BT Antenna Location-2

Report No. SZEE100608119730-1 Page 1 of 44 ELECTROMAGNETIC EMISSIONS COMPLIANCE REPORT INTENTIONAL RADIATOR CERTIFICATION Product Name : All in one DVD Player Model Number : VZ401 Trade Name : Clarion FCC ID : V8VCES8120CL Report Number : SZEE100608119730-1 Date : July 29, 2010 Prepared for: SKYPINE ELECTRONICS (SHENZHEN) CO., LTD 2/F, A Incubation Building, TaoHuaYuan High-tech Innovation Park, Baoan District, Shenzhen City TEL: +86-755-2794 8418 FAX: +86-755-2794 8503 Prepared by: CENTRE TESTING INTERNATIONAL Building C, Hongwei Industrial Zone, Baoan 70 District, Shenzhen, Guangdong, China TEL: +86-755-3368 3668 FAX: +86-755-3368 3385 This report shall not be reproduced, except in full, without the written approval of CENTRE TESTING INTERNATIONAL Building C, Hongwei Industrial Zone, Baoan 70 District, Shenzhen Standards Results 47 CFR FCC Part 15 Subpart C 15.247 PASS Report No. SZEE100608119730-1 Page 2 of 44 TABLE OF CONTENTS Description Page 1. CERTIFICATION INFORMATION ............................................................................................................ 4 2. TEST SUMMARY ..................................................................................................................................... 5 3. MEASUREMENT UNCERTAINTY ........................................................................................................... 5 4. PRODUCT INFORMATION ...................................................................................................................... 5 5. SYSTEM TEST CONFIGURATION........................................................................................................... 6 6. TABLE OF TEST MODE .......................................................................................................................... 7 7. TEST EQUIPMENT LIST.......................................................................................................................... 7 8. SUPPORT EQUIPMENT LIST ................................................................................................................. 8 9. 20DB BANDWIDTH MEASUREMENT .................................................................................................... 8 9.1. LIMITS .............................................................................................................................................. 8 9.2. BLOCK DIAGRAM OF TEST SETUP............................................................................................... 8 9.3. TEST PROCEDURE ........................................................................................................................ 8 9.4. TEST RESULT ................................................................................................................................. 8 10. CARRIER FREQUENCY SEPARATION............................................................................................ 11 10.1. LIMITS ............................................................................................................................................ 11 10.2. BLOCK DIAGRAM OF TEST SETUP............................................................................................. 11 10.3. TEST PROCEDURE ......................................................................................................................11 10.4. TEST RESULT ............................................................................................................................... 11 11. NUMBER OF HOPPING FREQUENCY ................................................................................................. 14 11.1. LIMITS ............................................................................................................................................ 14 11.2. BLOCK DIAGRAM OF TEST SETUP............................................................................................. 14 11.3. TEST PROCEDURE ......................................................................................................................14 11.4. TEST RESULT ............................................................................................................................... 14 12. TIME OF OCCUPANCY (DWELL TIME) ........................................................................................... 15 12.1. LIMITS ............................................................................................................................................ 15 12.2. BLOCK DIAGRAM OF TEST SETUP............................................................................................. 15 12.3. TEST PROCEDURE ......................................................................................................................15 Report No.SZEE100608119730-1 Page 3 of 44 12.4. TEST RESULT ............................................................................................................................... 15 13. MAXIMUM PEAK CONDUCTED OUTPUT POWER MEASUREMENT ........................................... 19 13.1. LIMITS ............................................................................................................................................ 19 13.2. BLOCK DIAGRAM OF TEST SETUP............................................................................................. 19 13.3. TEST PROCEDURE ......................................................................................................................19 13.4. TEST RESULT ............................................................................................................................... 19 14. BAND EDGE EMISSION MEASUREMENT ...................................................................................... 21 14.1. LIMITS ............................................................................................................................................ 21 14.2. BLOCK DIAGRAM OF TEST SETUP....................…

Text truncated - open the document above for the full version.

TEST SETUP PHOTO RADIATED EMISSION (30MHz-1GHz) RADIATED EMISSION (above 1GHz)
