V8VCNE6923ACar Navigation & Entertainment System

Contents Precautions ...................................................1 Opening Logo ................................................2 System Setup Menu, Controls and Indicators .......3 Main Menu Controls and Indicators TFT Monitor Operation Instruction........................4 Image setting Power ON/OFF (Radio Panel) Playing source selection Volume adjustment (Radio Panel) Aux-In Mode Camera Mode System Reset...........................................5 Mute......................................................5 Audio Control Menu ........................................5 Accessing the Equalizer setting Setup Audio Adjustment Accessing the General Setup Menu............... 6 Accessing the Video Setup Menu Accessing the Miscellaneous Menu............... 7 Accessing the Navigation Menu Tuner (FM/AM) Operation ................................ 7 Select FM/AM Band................................... 8 Auto Tuning Manual Tuning Storing Station Recalling a Station Auto Store (AS)..........................................8 Program Scan (PS)..................................... 9 DX and LOC Station Seeking (LOC) DVD Player Operation ........................................9 - 11 Insert/Eject Disc (Radio Panel) Reset the Loading Mechanism Accessing DVD Mode Using the touch Screen Controls Stopping and Pausing Playback Fast Forward/Fast Reverse Disc Setting Changing Subtitle Language DVD Playback Information Disc Symbol and General Disc Information CD/MP3/WMA/JPEG Operation .............................. 11 - 12 CD player user interface Playing CD files MP3/WMA Disc iPod Operation ...................................................12 - 13 Accessing iPod Mode Playback of Video on iPod USB Operation .................................................... 13 Bluetooth Operation .............................................. 13 - 17 Accessing Bluetooth Mode Bluetooth user interface Phonebook Bluetooth Setup Auto Connect Making a phone call Incoming Call and End Call Telephone and Information Specifications ..................................................... 18 Multi – Information ............................................... 18 - 23 Functional Icons Digital Clock Warning Display Outside Temperature Barometer Elevation Adjustment setting Fuel Economy Compass Range Speed Notes and Information Tire Pressure Monitor System (TPMS) ..................... 24 - 28 Normal Mode Display Abnormal Mode Display Warning Indicator Pressure High/Low First Stage Pressure High/Low Second Stage Accessing the Tire Exchange Mode Front and Rear Tire Exchange Mode (Parallel Change) Front and Rear Tire Exchange Mode (Cross Change) Spare Tire Exchange Mode Signal Loss System Check Mode Information Periodic Maintenance ......................................... 28 Steering Wheel Remote Control ............................ 29 Navigation ........................................................ 30 - 42 Understanding Map Page Acquiring Satellites About GPS Satellite Signals Finding your Destination using Address Finding your Destination using Intersection Finding your Destination using Recent Destination Finding your Destination using POI Nearby Finding your Destination using POI Using Longitude / Latitude Using Quick Menu Using My Favorite Using Route Info Voice Setting Volume Setting GPS Status Track Up / North Up Setting Auto / Day / Night Mode Setting\ POI Display Setting About Using Detail 2D / 3D View Quick Menu Alternative Route Scale Notes.................................................................43 Foreword Thank you for selecting Multi–Media System as your new entertainment system. This owner’s manual will add to your understanding and full enjoyment of the numerous fine features of this system. It contains information prepared to acquaint you with the proper way to operate and maintain your Multi-Media System for most pleasure. This system reserves the right to make changes in design and specifications. This owner’s manual has been written in compliance with existing laws and regulations, but some contents may contradict with recent / new amendments of the laws and regulations. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Statement: The changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. This equipment complies with FCC RF radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with a minimum distance of 20 centimeters between the radiator and your body. Throughout this owner’s manual the words WARNING and CAUTION appear. These serve as reminders for utmost care. Failure to follow instructions could result in damage to your Multi-Media System or to your vehicle. WARNING Indicates a strong possibility of severe personal injury or death if instructions are not followed. CAUTION Means hazards or unsafe practice that could cause minor personal injury or damage to your vehicle. You will also see other important symbols: NoteInformation Gives helpful information Precautions To avoid the risk of injury or accident, read the following precautions before operating the unit. On safety Comply with your local traffic rules and regulations. • While driving )Do not use the System Setup feature while driving, or perform any other function which could divert your attention from the road. )avoid watching or operating the monitor. Park your car in a safe place to watch the monitor and operate the unit. • While operating avoid )avoid inserting your hands, fingers or foreign object into the unit while the monitor is functioning. It may cause injury or damage to the unit. )Keep small articles out of the reach of children. • If your car was parked in direct …

Text truncated - open the document above for the full version.

SCS-F18: Project and Product Certification Representative Authorization Letter Page 1 of 2 Rev 2.0 2206 Ringwood Avenue San Jose, CA 95131 Tel: 408-526-1188 Fax: 408-526-1088 Email: [email protected] Project and Product Certification Representative Authorization Letter Revision History Reason for Amendment (current / obsolete) From To Approved Date Initial Release (current) 1.0 1.0 Nov-14-2006 Revised wording (current) 1.0 2.0 Sept–25-2007 SCS-F18: Project and Product Certification Representative Authorization Letter Page 2 of 2 Rev 2.0 SKYPINE ELECTRONICS (SHENZHEN) CO., LTD. 2011-4-29 To: SIEMIC, INC. 2206 Ringwood Avenue, San Jose, CA 95131 USA Dear Sir/Madam, Re: Project and Product Certification Representative Authorization Letter We, ______ SKYPINE ELECTRONICS (SHENZHEN) CO., LTD.________hereby authorize SIEMIC, INC. to act as a Certification Body for certifying for the following project(s): (Product description: Car Navigation & Entertainment System, model name: CNE-6923-A) We affirm that between SIEMIC and __ SKYPINE ELECTRONICS (SHENZHEN) CO., LTD.___, any difference in understanding, including test plan, measurement methods, applicable standards and relevant procedures and processes have been resolved prior to commencement of testing activities. Sincerely,

SCS-F19: Confidentiality Request Letter Rev 1.0 Nov 14, 2006 Confidentiality Request Letter Revision History Reason for Amendment (current / obsolete) From To Approved Date Initial Release (current) 1.0 1.0 Nov-14-2006 SCS-F19: Confidentiality Request Letter Rev 1.0 Nov 14, 2006 2011- 4-29 To: Federal Communications Commission Authorization and Evaluation Division Confidentiality Request regarding application for certification of FCC ID: V8VCNE6923A We hereby request confidential treatment of information accompanying this application as outlined below: Block Circuit Circuit Description The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that pursuant to Section 0.457 of the Rules, disclosure of this application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely, Client’s signature : Client’s name / title : Vice President Contact information / address: 2/F.A incubation Building,Taohua Yuan High-Tech innovation Park, Baoan District, Shenzhen City

FCC label information:

RF Exposures Evaluation For Maximum Permissible Exposure (MPE) evaluation of the product, the maximum power density at 20 cm from this transmitter shall be less than the General Population / Uncontrolled MPE limit in OET Bulletin 65. For the EUT of tested model CNE-6923-A, the measured maximum field strength measured (FS) was 85.23dBμV/m. The distance (D) between the antenna and the equipment under test (EUT) was 3 meters. From these data, the exposed power density at a distance (R) of 20cm from the center of radiation of the antenna can be calculated according to OET Bulletin 65 as follow: The radiated power = (FS*D) 2 / 30 = 0.0365mW The power density at 20 cm from the antenna = EIRP / = 0.0000199 mW cm -2 In the frequency range of 2.4-2.4835GHz, the MPE limit is 1.0 mWcm -2 for general population and uncontrolled exposure. As the measured power density at 20cm from the transmitter is lower than the MPE limit, the compliance to the MPE limit can be ensured by indicating the minimum 20cm separation between the transmitter's radiating structures and body of the user or nearby persons. The following RF exposure statement is proposed to be included in the user manual: “This equipment complies with FCC RF radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with a minimum distance of 20 centimeters between the radiator and your body.”

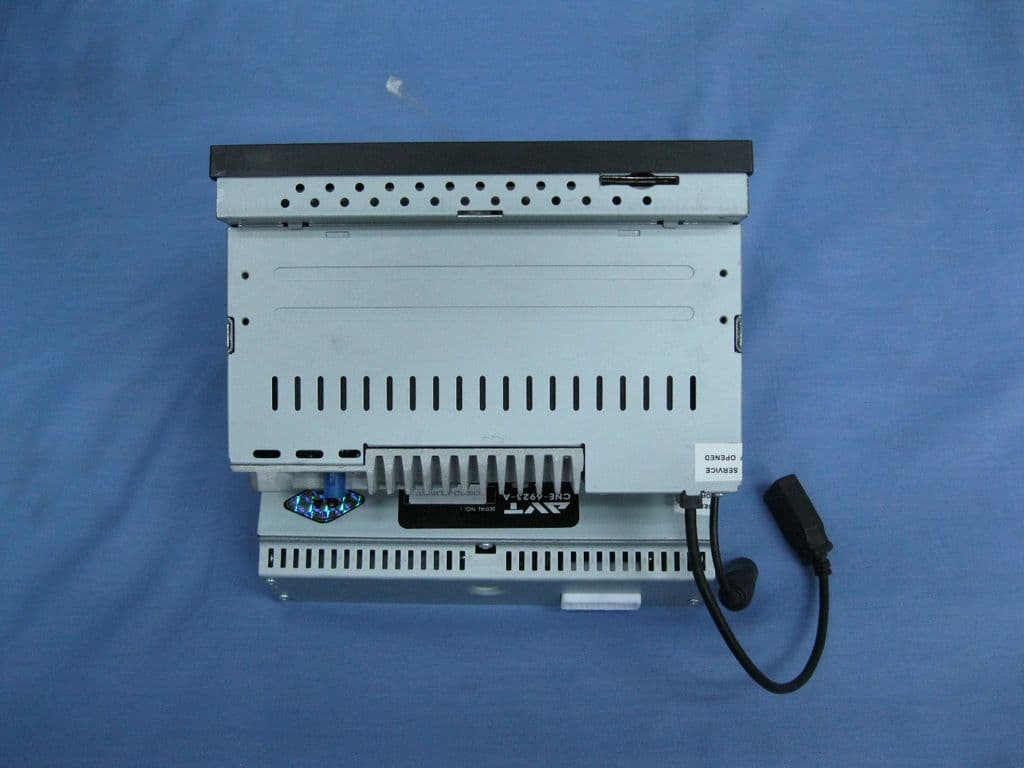

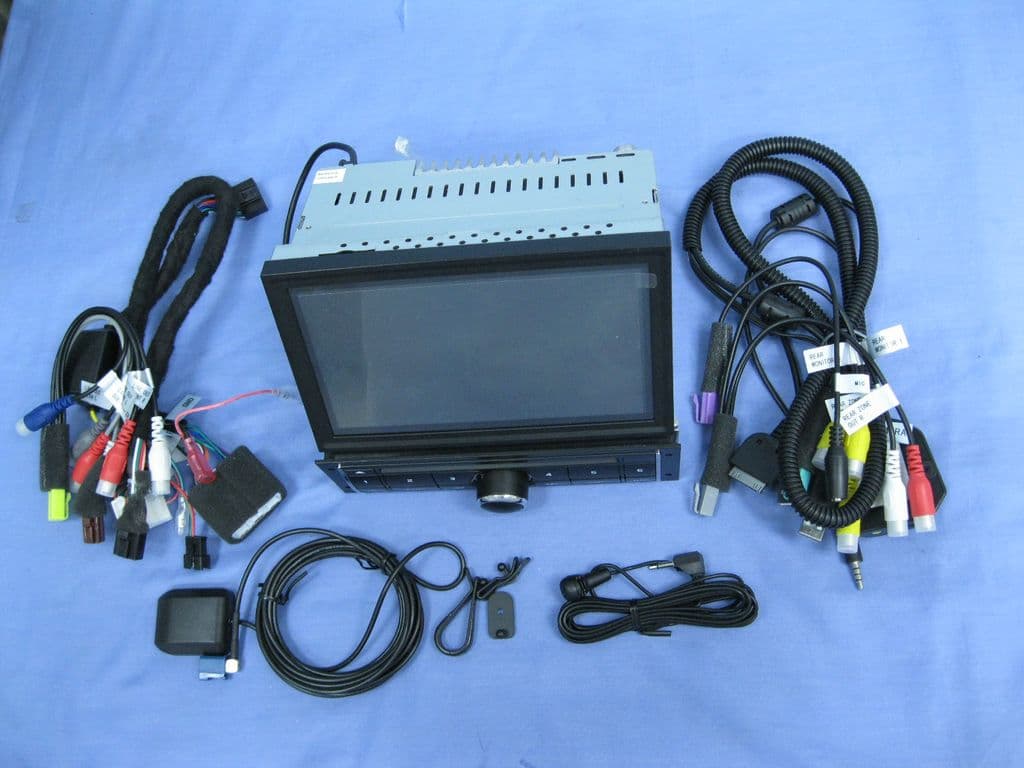

Report No. : EESZD04150001 Page 1 of 48 ELECTROMAGNETIC EMISSIONS COMPLIANCE REPORT INTENTIONAL RADIATOR CERTIFICATION Product Name : Car Navigation & Entertainment System Model Number : CNE-6923-A Technical Data : DC 12V Trade Name : N/A FCC ID : V8VCNE6923A Report Number : EESZD04150001 Date : Apr. 28, 2011 Regulations : See below Prepared for SKYPINE ELECTRONICS (SHENZHEN) CO., LTD. 2/F. A incubation Building, Taohua Yuan High-Tech innovation Park, Baoan Distrtict, Shenzhen City, China Prepared by CENTRE TESTING INTERNATIONAL (SHENZHEN) CORPORATION Building C, Hongwei Industrial Zone, Baoan 70 District, Shenzhen, Guangdong, China TEL: 86-755-3368 3362 FAX: 86-755-3368 3368 Check No.: 30000668 This report shall not be reproduced, except in full, without the written approval of CENTRE TESTING INTERNATIONAL (SHENZHEN) CORPORATION Building C, Hongwei Industrial Zone, Baoan 70 District, Shenzhen Standards Results 47 CFR FCC Part 15 Subpart C 15.247:2009 PASS Report No. : EESZD04150001 Page 2 of 48 TABLE OF CONTENTS 1. GENERAL INFORMATION .........................................................................................4 2. TEST SUMMARY........................................................................................................5 3. MEASUREMENT UNCERTAINTY ..............................................................................5 4. PRODUCT INFORMATION.........................................................................................6 5. SYSTEM TEST CONFIGURATION.............................................................................6 5.1 JUSTIFICATION.............................................................................................6 5.2 EUT EXERCISING SOFTWARE....................................................................7 6. TABLE OF TEST MODE .............................................................................................7 7. TEST EQUIPMENT LIST.............................................................................................8 8. SUPPORT EQUIPMENT LIST ....................................................................................8 9. 20DB BANDWIDTH MEASUREMENT........................................................................9 9.1 LIMITS............................................................................................................9 9.2 BLOCK DIAGRAM OF TEST SETUP............................................................9 9.3 TEST PROCEDURE.......................................................................................9 9.4 TEST RESULT................................................................................................9 10. CARRIER FREQUENCY SEPARATION.................................................................12 10.1 LIMITS........................................................................................................12 10.2 BLOCK DIAGRAM OF TEST SETUP........................................................12 10.3 TEST PROCEDURE...................................................................................12 10.4 TEST RESULT............................................................................................12 11. NUMBER OF HOPPING FREQUENCY ..................................................................15 11.1 LIMITS........................................................................................................15 11.2 BLOCK DIAGRAM OF TEST SETUP........................................................15 11.3 TEST PROCEDURE...................................................................................15 11.4 TEST RESULT............................................................................................15 12. TIME OF OCCUPANCY (DWELL TIME).................................................................16 13.1 LIMITS........................................................................................................16 12.2 BLOCK DIAGRAM OF TEST SETUP........................................................16 12.3 TEST PROCEDURE...................................................................................16 12.4 TEST RESULT............................................................................................16 13. MAXIMUM PEAK CONDUCTED OUTPUT POWER MEASUREMENT .................20 13.1 LIMITS........................................................................................................20 13.2 BLOCK DIAGRAM OF TEST SETUP........................................................20 13.3 TEST PROCEDURE...................................................................................20 13.4 TEST RESULT............................................................................................20 Report No. : EESZD04150001 Page 3 of 48 14. BAND EDGE EMISSION MEASUREMENT ............................................................23 14.1 LIMITS (FCC ‘s requirement)....................................................................23 14.2 BLOCK DIAGRAM OF TEST SETUP........................................................23 14.3 TEST PROCEDURE...................................................................................23 14.4 TEST RESULT............................................................................................23 15. SPURIOUS RF CONDUCTED EMISSIONS MEASUREMENT...............................25 15.1 LIMITS........................................................................................................25 15.2 BLOCK DIAGRAM OF TEST SETUP........................................................25 15.3 TEST PROCEDURE...................................................................................25 15.4 TEST RESULT............................................................................................25 16. RADIATED EMISSIONS MEASUREMENT ............................................................29 16.1 LIMITS................................................................................…

Text truncated - open the document above for the full version.
