V8VCNE8201BALPEntertainment Systems

Foreword Thank you for choosing this multi-media System as your new entertainment system .This onwer's manual will add to your understanding and full enjoyment of the numerous fine features of this system . This system reserves the right to make changes in design and specification . USER MANUAL AUDIO/VIDEO NAVIGATION - 1 - Warning: Changes or modifications to this unit not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: Reorient or relocate the receiving antenna. Increase the separation between the equipment and receiver. Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. Consult the dealer or an experienced radio/TV technician for help. This equipment complies with FCC RF radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with a minimum distance of 20 centimeters between the radiator and your body. USER MANUAL AUDIO/VIDEO NAVIGATION - 2 - 1. MAIN MENU(CONTROLS AND INDICATORS) This unit contain Radio , DVD , Navigation , Bluetooth , iPod, Rear view camera , SD, USB, AV IN, Setup ect. Touch icon on the main menu screen to enter the mode . There are 2 pages main menu ,as shown in figure 1 ：interface 1 is main menu ，display main function , Sliding page to flip over . Page no is shown where you are .Interface 2 is root menu and touch icon to enter corresponding function ; Touch the left upper return icon to exit main menu and back to working interface ; Single touch the icon beside return button to turn off screen. 1-1.Main Menu interface USER MANUAL AUDIO/VIDEO NAVIGATION - 3 - Icon Button Name Function description Navigation Inserting the Map card and touch to enter NAVI interface ,refer to the Navi users manual . Setup Touch to enter system setup . Radio Touch to enter Radio mode . DVD Playback When inserting a DVD disc DVD mode is entered and disc play begins . USB Playback Connect with USB , touch to enter USB mode . iPod Playback Touch to enter iPod playback interface . SD Card Playback Inserting SD card and touch to enter SD playback mode . Bluetooth Touch to enter Bluetooth mode USER MANUAL AUDIO/VIDEO NAVIGATION - 4 - AUX 1 An external audio/video device can be connected to this unit ,touch to enter AUX IN mode . ***Optional*** AUX 2 An external audio/video device can be connected to this unit ,touch to enter AUX IN mode . ***Optional*** Camera "Camera"mode is only available when the camera is connected and when backing -up.To install a rear view video camera ,connect the camera video input cable to the rear view camera output cable . 2. TUNNER ( FM/AM ) OPERATION Enter system main menu , touch the radio icon to enter radio mode ,touch other icon to exit ,the radio playback interface as shown in figure 1. ≤ Select FM/AM Band Touch the Band on the screen to change among the following bands: FM-1, FM-2, FM-3, AM-1。 ≤ Manual Tuning ● Press the icon ( ► ) to increase the tuning frequency one step at a time. ● Press the icon (◄ ) to decrease the tuning frequency one step at a time. ● Or touch directly on the Manual tuning display to locate your desired stations. USER MANUAL AUDIO/VIDEO NAVIGATION - 5 - ≤ Storing a Station Select a band ( If needed ), then select a station. Example: FM1 103.6MHz Touch and Hold for 3 seconds the desired preset number to store Radio station. ≤ Recalling a Station Select a Band ( If needed ). Touch On-screen preset buttons to select the corresponding stored stations or press the number button on the Radio panel. ≤ Auto Store ( AS ) Press AS icon on the screen to automatically scan and store all stations in current band. ≤ Preset Scan ( PS ) Touch the PS icon on the screen for scan the stations in the 6 preset channels in the current band. ≤ Scan Touch the Scan icon on the screen to automatically scan all stations in current band to preview stations. Press any to stop scanning and listen to the selected stations. USER MANUAL AUDIO/VIDEO NAVIGATION - 6 - USER MANUAL AUDIO/VIDEO NAVIGATION - 7 - ÿ 2-1. Radio interface Icon Button name Function description Home Button Touch to back to main menu . 10：30 System clock Display current time ,press to enter screensaver . Left Open Touch to open Hide button. Right Open Touch to open Radio Preset frequency list. Current frequency Current frequency, is the NO. in preset list .③ Playing Source change among the following bands: FM-1, FM-2, FM-3 and AM, preset 6 station each band . Program scan Press the PS button on the screen. Scan the stations in the 6 preset channels in the current band. Auto store Press AS button on the screen to automatically scan and store all stations in current band. activate/ deactivate Scan Mode Click on up/ down button to run number seeking the station ,Click on scroll pannel change to digit keyboard . seek up Touch to down a step of the current frequency . USER MANUAL AUDIO/VIDEO NAVIGATION - 8 - Icon Button name Function description seek down Touch to up a step of the current frequency Frequency scale Display current frequency and touch to select a new station . 3. iPod Operation Please Fist make sure of that your ipod/iphone con…

Text truncated - open the document above for the full version.

SCS-F18: Project and Product Certification Representative Authorization Letter Page 1 of 2 Rev 2.0 2206 Ringwood Avenue San Jose, CA 95131 Tel: 408-526-1188 Fax: 408-526-1088 Email: [email protected] Project and Product Certification Representative Authorization Letter Revision History Reason for Amendment (current / obsolete) From To Approved Date Initial Release (current) 1.0 1.0 Nov-14-2006 Revised wording (current) 1.0 2.0 Sept–25-2007 SCS-F18: Project and Product Certification Representative Authorization Letter Page 2 of 2 Rev 2.0 SKYPINE ELECTRONICS (SHEN ZHEN) CO., LTD. October 12, 2011 To: SIEMIC, INC. 2206 Ringwood Avenue, San Jose, CA 95131 USA Dear Sir/Madam, Re: Project and Product Certification Representative Authorization Letter We, SKYPINE ELECTRONICS (SHEN ZHEN) CO., LTD. hereby authorize SIEMIC, INC. to act as a Certification Body for certifying for the following project(s): NAME: Entertainment Systems MODEL: Alpha-Nav:AN5650NV Skypine: CNE-8201B-ALP We affirm that between SIEMIC and SKYPINE ELECTRONICS (SHEN ZHEN) CO., LTD. , any difference in understanding, including test plan, measurement methods, applicable standards and relevant procedures and processes have been resolved prior to commencement of testing activities. Sincerely, Client’s signature: Client’s name / title: Aaron Zheng Contact information / address : A1 BUILDING, NO.6 XINXING INDUSTRIAL PARK, XINHE VILLAGE, FUYONG TOWN, BAOAN, SHENZHEN, CHINA

SCS-F19: Confidentiality Request Letter Rev 1.0 Nov 14, 2006 Confidentiality Request Letter Revision History Reason for Amendment (current / obsolete) From To Approved Date Initial Release (current) 1.0 1.0 Nov-14-2006 SCS-F19: Confidentiality Request Letter Rev 1.0 Nov 14, 2006 SKYPINE ELECTRONICS (SHEN ZHEN) CO., LTD. October 12, 2011 To: Federal Communications Commission Authorization and Evaluation Division Confidentiality Request regarding application for certification of FCC ID: V8VCNE8201BALP We hereby request confidential treatment of information accompanying this application as outlined below: - Block – - Circuit - - Circuit Description The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that pursuant to Section 0.457 of the Rules, disclosure of this application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely, Client’s signature: Client’s name / title: Aaron Zheng Contact information / address: A1 BUILDING, NO.6 XINXING INDUSTRIAL PARK, XINHE VILLAGE, FUYONG TOWN, BAOAN, SHENZHEN, CHINA

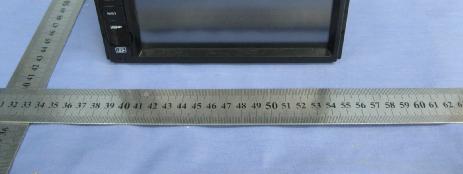

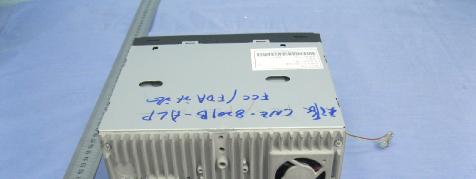

EXTERNAL PHOTOGRAPHS Front View of EUT Rear View of EUT TOP View of EUT

CNE-8201B-ALP 89x83mm 机身大贴纸 7-8201-1003-00-00 80g铜版纸过哑胶,背不干胶。 谭洁 2011.9.27 V8VCNE8201BALP

FCC ID : V8VCNE8201BALP This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: 1.This device may not cause harmful interference, and 2.This device must accept any interference received, including interference that may cause undesired operation. Label Contents

INTERNAL PHOTOGRAPHS Internal View of EUT-1 Internal View of EUT-2 Internal View of EUT-3 Internal View of EUT-4 Internal View of EUT-5 Internal View of EUT-6 Internal View of EUT-7 Internal View of EUT-8

RF Exposures Evaluation For Maximum Permissible Exposure (MPE) evaluation of the product, the maximum power density at 20 cm from this transmitter shall be less than the General Population / Uncontrolled MPE limit in OET Bulletin 65. For the EUT of tested model CNE-8201B-ALP, the measured maximum field strength measured (FS) was 79.21 dBμV/m. The distance (D) between the antenna and the equipment under test (EUT) was 3 meters. From these data, the exposed power density at a distance (R) of 20cm from the center of radiation of the antenna can be calculated according to OET Bulletin 65 as follow: The radiated power = (FS*D) 2 / 30 = 0.025mW The power density at 20 cm from the antenna = EIRP / = 4.98*10 -6 mW cm -2 In the frequency range of 2.4-2.4835GHz, the MPE limit is 1.0 mWcm -2 for general population and uncontrolled exposure. As the measured power density at 20cm from the transmitter is lower than the MPE limit, the compliance to the MPE limit can be ensured by indicating the minimum 20cm separation between the transmitter's radiating structures and body of the user or nearby persons. The following RF exposure statement is proposed to be included in the user manual: “This equipment complies with FCC RF radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with a minimum distance of 20 centimeters between the radiator and your body.”

Report No. : EESZD09130009 Page 1 of 44 ELECTROMAGNETIC EMISSIONS COMPLIANCE REPORT INTENTIONAL RADIATOR CERTIFICATION Product Name : Entertainment Systems Model Number : Alpha-Nav: AN5650NV Skypine: CNE-8201B-ALP Trade Name : Alpha-Nav, Skypine FCC ID : V8VCNE8201BALP Report Number : EESZD09130009 Date : October 9, 2011 Prepared for: SKYPINE ELECTRONICS (SHEN ZHEN) CO., LTD. A1 BUILDING, NO.6 XINXING INDUSTRIAL PARK, XINHE VILLAGE, FUYONG TOWN, BAOAN, SHENZHEN, CHINA Prepared by: CENTRE TESTING INTERNATIONAL Building C, Hongwei Industrial Zone, Baoan 70 District, Shenzhen, Guangdong, China TEL: +86-755-3368 3668 FAX: +86-755-3368 3385 Check No.: 11511285 This report shall not be reproduced, except in full, without the written approval of CENTRE TESTING INTERNATIONAL (SHENZHEN) CORPORATION Standards Results 47 CFR FCC Part 15 Subpart C 15.247:2010 PASS Report No. : EESZD09130009 Page 2 of 44 TABLE OF CONTENTS Description Page 1. CERTIFICATION INFORMATION...........................................................................................................4 2. TEST SUMMARY...................................................................................................................................5 3. MEASUREMENT UNCERTAINTY..........................................................................................................5 4. PRODUCT INFORMATION....................................................................................................................5 5. SYSTEM TEST CONFIGURATION..........................................................................................................6 6. TEST EQUIPMENT LIST........................................................................................................................7 7. SUPPORT EQUIPMENT LIST................................................................................................................7 8. 20DB BANDWIDTH MEASUREMENT...................................................................................................8 8.1. LIMITS...........................................................................................................................................8 8.2. BLOCK DIAGRAM OF TEST SETUP..............................................................................................8 8.3. TEST PROCEDURE.......................................................................................................................8 8.4. TEST RESULT...............................................................................................................................8 9. CARRIER FREQUENCY SEPARATION...............................................................................................11 9.1. LIMITS.........................................................................................................................................11 9.2. BLOCK DIAGRAM OF TEST SETUP............................................................................................11 9.3. TEST PROCEDURE.....................................................................................................................11 9.4. TEST RESULT.............................................................................................................................11 10. NUMBER OF HOPPING FREQUENCY............................................................................................14 10.1. LIMITS.........................................................................................................................................14 10.2. BLOCK DIAGRAM OF TEST SETUP............................................................................................14 10.3. TEST PROCEDURE.....................................................................................................................14 10.4. TEST RESULT.............................................................................................................................14 11. TIME OF OCCUPANCY (DWELL TIME)...............................................................................................15 11.1. LIMITS.........................................................................................................................................15 11.2. BLOCK DIAGRAM OF TEST SETUP............................................................................................15 11.3. TEST PROCEDURE.....................................................................................................................15 11.4. TEST RESULT.............................................................................................................................15 Report No. : EESZD06230008 Page 3 of 44 12. MAXIMUM PEAK CONDUCTED OUTPUT POWER MEASUREMENT............................................19 12.1. LIMITS.........................................................................................................................................19 12.2. BLOCK DIAGRAM OF TEST SETUP............................................................................................19 12.3. TEST PROCEDURE.....................................................................................................................19 12.4. TEST RESULT.............................................................................................................................19 13. BAND EDGE EMISSION MEASUREMENT......................................................................................21 13.1. LIMITS.........................................................................................................................................21 13.2. BLOCK DIAGRAM OF TEST SETUP............................................................................................21 13.3. TEST PROCEDURE.....................................................................................................................21 13.4. TEST RESULT..............................................…

Text truncated - open the document above for the full version.

Report No. : EESZD09130009 Page 38 of 44 APPENDIX 1 PHOTOGRAPHS OF TEST SETUP TEST SETUP OF RADIATED EMISSION (30MHz-1GHz) TEST SETUP OF RADIATED EMISSION (above 1GHz)
