V8VCNE8205CLAll in one DVD Player

2-DIN DVD MULTIMEDIA STATION WITH BUILT-IN NAVIGATION & 6.2" TOUCH PANEL CONTROL STATION MULTIMÉDIA DVD 2-DIN AVEC COMMANDE ÉCRAN TACTILE DE 6,2 pouces ESTACIÓN DVD MULTIMEDIA DOBLE DIN CON PANEL DE CONTROL TÁCTIL DE 6,2 pulgadas DVD MULTIMEDIA STATION WITH BUILT-IN NAVIGATION & 7" TOUCH PANEL CONTROL STATION MULTIMÉDIA DVD AVEC COMMANDE ÉCRAN TACTILE DE 7 pouces ESTACIÓN DVD MULTIMEDIA CON PANEL DE CONTROL TÁCTIL DE 7 pulgadas NX501 NZ501 Owner’s manual & Installation manual Mode d’emploi et manuel d’installation Manual de instrucciones y de instalación 1;B1=࣫㕢⠜䇈ᯢкLQGG CLARION PRODUCT REGISTRATION INFORMATION For USA and Canada only www.clarion.com Dear Customer: Congratulations on your purchase of a Clarion mobile electronic product. We are confident that you’ll enjoy your Clarion experience. There are many benefits to registering your product. We invite you to visit our website at www.clarion.com to register your Clarion product. We have made product registration simple with our easy to use website. The registration form is short and easy to complete. Once you’re registered, we can keep you informed of important product information. Register at www.clarion.com - it’s easy to keep your Clarion product up to date. 1;B1=࣫㕢⠜䇈ᯢкLQGG NX501/NZ501 3 English English Owner’s Manual Contents 1. FEATURES ·················································································································5 2. PRECAUTIONS··········································································································6 3. CAUTIONS ON HANDLING·······················································································8 Operation Panel ··········································································································8 USB Port ·····················································································································8 Cleaning ······················································································································8 Handling Discs ············································································································9 4. PANEL CONTROLS ·································································································10 NX501 Functions of Buttons·····················································································10 NZ501 Functions of Buttons·····················································································11 5. REMOTE CONTROL································································································13 Functions of Remote Control Buttons ······································································14 6. MAINMENU OPERATIONS ·····················································································16 Front Zone Source ····································································································16 Rear Zone Source ·····································································································16 7. DVD SYSTEM ··········································································································17 DVD Video Features··································································································17 Discs ·························································································································17 About the registered marks, etc. ··············································································18 8. DVD VIDEO PLAYER OPERATIONS·······································································19 Change DVD System Settings ··················································································19 Watching to a disc ····································································································19 Operate the DVD Player menu··················································································20 Operate the Video files Player menu·········································································22 9. DVD AUDIO PLAYER OPERATIONS ······································································24 Showing CD Player mode screen ·············································································24 Operate the CD Player menu ····················································································24 Listening To MP3/WMA ····························································································25 10. USB AUDIO OPERATIONS ···················································································28 Notes on using USB memories·················································································28 Select USB Audio mode ···························································································28 Playing MP3/WMA files in USB memory ··································································29 11. USB VIDEO OPERATIONS ····················································································31 Notes on using USB memories·················································································31 Select USB Video mode ···························································································31 Playing video files in USB memory ···········································································31 USB Video Menu Operations····················································································32 12. iPod/iPhone OPERATIONS···················································································33 Notes on using Apple iPod/iPhone ············································································33 Controlling the iPod/iPhone ·······················································································33 Selecti…

Text truncated - open the document above for the full version.

SCS-F18: Project and Product Certification Representative Authorization Letter Page 1 of 2 Rev 2.0 2206 Ringwood Avenue San Jose, CA 95131 Tel: 408-526-1188 Fax: 408-526-1088 Email: [email protected] Project and Product Certification Representative Authorization Letter Revision History Reason for Amendment (current / obsolete) From To Approved Date Initial Release (current) 1.0 1.0 Nov-14-2006 Revised wording (current) 1.0 2.0 Sept–25-2007 SCS-F18: Project and Product Certification Representative Authorization Letter Page 2 of 2 Rev 2.0 SKYPINE ELECTRONICS (SHEN ZHEN) CO.,LTD. To: SIEMIC, INC. 2206 Ringwood Avenue, San Jose, CA 95131 USA Dear Sir/Madam, Re: Project and Product Certification Representative Authorization Letter We, SKYPINE ELECTRONICS (SHEN ZHEN) CO.,LTD. hereby authorize SIEMIC, INC. to act as a Certification Body for certifying for the following project(s): All in One DVD Player , NX501 We affirm that between SIEMIC and SKYPINE ELECTRONICS (SHEN ZHEN) CO.,LTD. , any difference in understanding, including test plan, measurement methods, applicable standards and relevant procedures and processes have been resolved prior to commencement of testing activities. Sincerely, Client’s signature : Aaron Zheng Client’s name / title : Vice President Contact information / address : 2/F. A incubation Building, TaohuaYuan High-Tech innovation Park, Baoan District, ShenZhen City

SCS-F19: Confidentiality Request Letter Page 1 of 2 Rev 2.0 2206 Ringwood Avenue San Jose, CA 95131 Tel: 408-526-1188 Fax: 408-526-1088 Email: [email protected] Confidentiality Request Letter Revision History Reason for Amendment (current / obsolete) From To Approved Date Initial Release (current) 1.0 1.0 Nov-14-2006 Adding CFR 2.459 1.0 2.0 August – 11 - 2008 SCS-F19: Confidentiality Request Letter Page 2 of 2 Rev 2.0 SKYPINE ELECTRONICS (SHEN ZHEN) CO.,LTD. 2010-11-17 To: Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD - Block Diagram - Circut - Circuit description The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that pursuant to Section 0.457 & 0.459 of the Rules, disclosure of this application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely,

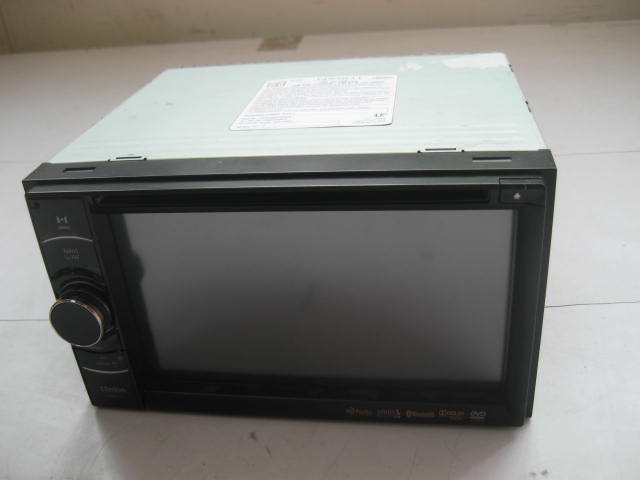

EXTERNAL PHOTOS OF EUT Front View of EUT Rear View of EUT

CES-8205-CL 1:1 机身大贴纸 技术说明： 1、大小65x75mm,红色外框线为刀模线。 2、材质，80g铜版纸,过哑胶。 3、内容印刷黑色:PANTONE Black C。 4、要求内容印刷正确、清晰，贴纸表面干净、整洁，不得有脏污、斑点、折痕； 切边务必整齐,不得歪斜。 7-8205-1003-00-00

INTERNAL PHOTOS OF EUT Internal View of EUT-1 Internal View of EUT-2 Bluetooth Module Internal View of EUT-3 Internal View of EUT-4 Bluetooth Module Internal View of EUT-5 Internal View of EUT-6 Antenna location Internal View of EUT-7 Internal View of EUT-8 Internal View of EUT-9

RF Exposures Evaluation For Maximum Permissible Exposure (MPE) evaluation of the product, the maximum power density at 20 cm from this transmitter shall be less than the General Population / Uncontrolled MPE limit in OET Bulletin 65. For the EUT of tested model IM-8213B, the measured maximum field strength measured (FS) was 93.1dBμV/m. The distance (D) between the antenna and the equipment under test (EUT) was 3 meters. From these data, the exposed power density at a distance (R) of 20cm from the center of radiation of the antenna can be calculated according to OET Bulletin 65 as follow: The radiated power = (FS*D) 2 / 30 = 0.612mW The power density at 20 cm from the antenna = EIRP / = 0.00012 mW cm -2 In the frequency range of 2.4-2.4835GHz, the MPE limit is 1.0 mWcm -2 for general population and uncontrolled exposure. As the measured power density at 20cm from the transmitter is lower than the MPE limit, the compliance to the MPE limit can be ensured by indicating the minimum 20cm separation between the transmitter's radiating structures and body of the user or nearby persons. The following RF exposure statement is proposed to be included in the user manual: “This equipment complies with FCC RF radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with a minimum distance of 20 centimeters between the radiator and your body.”

Report No. : SZEE101116119704-1 Page 1 of 41 ELECTROMAGNETIC EMISSIONS COMPLIANCE REPORT INTENTIONAL RADIATOR CERTIFICATION Product Name : All in one DVD Player Model Number : NX501 Trade Name : Clarion FCC ID : V8VCNE8205CL Report Number : SZEE101116119704-1 Date : January 20, 2011 Prepared for: SKYPINE ELECTRONICS (SHENZHEN) CO., LTD. 2/F, A Incubation Building, TaoHuaYuan High-tech Innovation Park, Baoan District, Shenzhen City Prepared by: CENTRE TESTING INTERNATIONAL Building C, Hongwei Industrial Zone, Baoan 70 District, Shenzhen, Guangdong, China TEL: +86-755-3368 3668 FAX: +86-755-3368 3385 This report shall not be reproduced, except in full, without the written approval of CENTRE TESTING INTERNATIONAL Building C, Hongwei Industrial Zone, Baoan 70 District, Shenzhen Standards Results 47 CFR FCC Part 15 Subpart C 15.247 PASS Report No. : SZEE101116119704-1 Page 2 of 41 TABLE OF CONTENTS Description Page 1. CERTIFICATION INFORMATION ............................................................................................................... 4 2. TEST SUMMARY ........................................................................................................................................ 5 3. MEASUREMENT UNCERTAINTY .............................................................................................................. 5 4. PRODUCT INFORMATION ......................................................................................................................... 5 5. SYSTEM TEST CONFIGURATION.............................................................................................................. 6 6. TEST EQUIPMENT LIST............................................................................................................................. 7 7. SUPPORT EQUIPMENT LIST .................................................................................................................... 7 8. 20DB BANDWIDTH MEASUREMENT ....................................................................................................... 8 8.1. LIMITS ................................................................................................................................................. 8 8.2. BLOCK DIAGRAM OF TEST SETUP.................................................................................................. 8 8.3. TEST PROCEDURE ........................................................................................................................... 8 8.4. TEST RESULT .................................................................................................................................... 8 9. CARRIER FREQUENCY SEPARATION ...................................................................................................11 9.1. LIMITS ............................................................................................................................................... 11 9.2. BLOCK DIAGRAM OF TEST SETUP................................................................................................ 11 9.3. TEST PROCEDURE ......................................................................................................................... 11 9.4. TEST RESULT .................................................................................................................................. 11 10. NUMBER OF HOPPING FREQUENCY................................................................................................ 13 10.1. LIMITS ............................................................................................................................................... 13 10.2. BLOCK DIAGRAM OF TEST SETUP................................................................................................ 13 10.3. TEST PROCEDURE ......................................................................................................................... 13 10.4. TEST RESULT .................................................................................................................................. 13 11. TIME OF OCCUPANCY (DWELL TIME)................................................................................................... 14 11.1. LIMITS ............................................................................................................................................... 14 11.2. BLOCK DIAGRAM OF TEST SETUP................................................................................................ 14 11.3. TEST PROCEDURE ......................................................................................................................... 14 11.4. TEST RESULT .................................................................................................................................. 14 Report No. : SZEE101116119704-1 Page 3 of 41 12. MAXIMUM PEAK CONDUCTED OUTPUT POWER MEASUREMENT .............................................. 18 12.1. LIMITS ............................................................................................................................................... 18 12.2. BLOCK DIAGRAM OF TEST SETUP................................................................................................ 18 12.3. TEST PROCEDURE ......................................................................................................................... 18 12.4. TEST RESULT .................................................................................................................................. 18 13. BAND EDGE EMISSION MEASUREMENT ......................................................................................... 20 13.1. LIMITS ............................................................................................................................................... 20 13.2. BLOCK DIAGRAM OF TEST SETUP................................................................................................ 2…

Text truncated - open the document above for the full version.

TEST SETUP PHOTOS TEST SETUP OF RADIATED EMISSION (30MHz-1GHz) TEST SETUP OF RADIATED EMISSION (above 1GHz)
