V8VCNE8216EAVXCar Multimedia

VM9424BT Operating Instructions 160 watts peak 40W x 4 Warning: Changes or modifications to this unit not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. This equipment complies with FCC RF radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with a minimum distance of 20 centimeters between the radiator and your body. iii VM9424BT CONTENTS Thank you for choosing a Jensen product. We hope you will find the instructions in this owner’s manual clear and easy to follow. If you take a few minutes to look through it, you’ll learn how to use all the features of your new Jensen VM9424BT Mobile Multimedia Receiver for maximum enjoyment. NOTE: NavMate navigation software instructions are included at the end of this manual. A separate NavMate Table of Contents is listed after this Contents section. Features ................................................................................................. 1 Optional Equipment .............................................................................. 3 Warnings ................................................................................................ 4 Controls and Indicators ........................................................................ 5 Remote Control ..................................................................................... 7 Using the TFT Monitor .......................................................................... 8 Standby Mode................................................................................... 8 Picture Adjustment............................................................................ 8 Parking Brake Inhibit......................................................................... 8 Operating Instructions .......................................................................... 9 Power On / Off .................................................................................. 9 Remote Control Functions ................................................................ 9 Audible Beep Confirmation ............................................................... 9 Mute/Line Mute ................................................................................. 9 Playing Source Selection .................................................................. 9 Volume Adjustment......................................................................... 11 Audio Control Menu ........................................................................ 11 System Reset ................................................................................. 12 Steering Wheel Control (SWC) ....................................................... 12 Setup Menu .......................................................................................... 13 Accessing Menu Items.................................................................... 13 Adjusting a Feature......................................................................... 14 Exiting the System Setup Menu...................................................... 19 Tuner Operation .................................................................................. 20 Accessing Radio Tuner Mode......................................................... 20 Tuner TFT Display .......................................................................... 20 Indicators/Controls .......................................................................... 20 Touch Buttons................................................................................. 20 Selecting FM/AM Band ................................................................... 21 Using Preset Stations ..................................................................... 22 Auto Store/Preset Scan (AS/PS) .................................................... 22 Local Radio Station Seeking (LOC) ................................................ 22 DVD/VCD Video Operation ................................................................. 23 Inserting a Disc ............................................................................... 23 Ejecting a Disc ................................................................................ 23 Resetting the Loading Mechanism.................................................. 23 Accessing DVD Mode ..................................................................... 23 DVD Playback On-Screen Controls ................................................ 24 iv VM9424BT Accessing the DVD Menu ............................................................... 25 Sectional Repeat Function (A-B) .................................................... 26 Direct Search .................................................................................. 26 VCD PBC - Play Back Control ........................................................ 26 Playback Information ...................................................................... 27 MPEG Playback On-Screen Controls ............................................. 27 General Disc Information ................................................................ 27 CD/DVD/MP3 Audio Operation ........................................................... 29 Accessing a USB Device ................................................................ 29 Accessing an SD Card.................................................................... 30 Accessing Disc Mode...................................................................... 30 Indicators/Controls .......................................................................... 31 Touch Screen Buttons .................................................................... 31 Direct Track Entry ........................................................................... 33 MP3/WMA File Requirements......................................................... 34 XM ® Radio Operation ....................…

Text truncated - open the document above for the full version.

SCS-F18: Project and Product Certification Representative Authorization Letter Page 1 of 2 Rev 2.0 2206 Ringwood Avenue San Jose, CA 95131 Tel: 408-526-1188 Fax: 408-526-1088 Email: [email protected] Project and Product Certification Representative Authorization Letter Revision History Reason for Amendment (current / obsolete) From To Approved Date Initial Release (current) 1.0 1.0 Nov-14-2006 Revised wording (current) 1.0 2.0 Sept–25-2007 SCS-F18: Project and Product Certification Representative Authorization Letter Page 2 of 2 Rev 2.0 SKYPINE ELECTRONICS (SHEN ZHEN) CO.,LTD. Jan. 25, 2011 To: SIEMIC, INC. 2206 Ringwood Avenue, San Jose, CA 95131 USA Dear Sir/Madam, Re: Project and Product Certification Representative Authorization Letter We, SKYPINE ELECTRONICS (SHEN ZHEN) CO., LTD. hereby authorize SIEMIC, INC. to act as a Certification Body for certifying for the following project(s): Car Multimedia, VM9424BT/ CNE-8216E-AVX We affirm that between SIEMIC and SKYPINE ELECTRONICS (SHEN ZHEN) CO.,LTD, any difference in understanding, including test plan, measurement methods, applicable standards and relevant procedures and processes have been resolved prior to commencement of testing activities. Sincerely, Client’s signature: Client’s name / title: Aaron Zheng /Vice President Contact information / address: A1 BUILDING, NO.6 XINXING INDUSTRIAL PARK XINHE VILLAGE, FUYONG TOWN, BAOAN, SHENZHEN, CHINA

SCS-F19: Confidentiality Request Letter Page 1 of 2 Rev 2.0 2206 Ringwood Avenue San Jose, CA 95131 Tel: 408-526-1188 Fax: 408-526-1088 Email: [email protected] Confidentiality Request Letter Revision History Reason for Amendment (current / obsolete) From To Approved Date Initial Release (current) 1.0 1.0 Nov-14-2006 Adding CFR 2.459 1.0 2.0 August – 11 - 2008 SCS-F19: Confidentiality Request Letter Page 2 of 2 Rev 2.0 SKYPINE ELECTRONICS (SHENZHEN) CO., LTD. Jan. 26, 2011 To: Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD Confidentiality Request regarding application for certification of FCC ID: V8VCNE8216EAVX We hereby request confidential treatment of information accompanying this application as outlined below: -Schematics - Detailed Block diagrams - Detailed Operational/Functional Description The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that pursuant to Section 0.457 & 0.459 of the Rules, disclosure of this application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely, Client’s signature: Client’s name / title: Aaron Zheng/ Vice President Contact information / address: A1 BUILDING, NO.6 XINXING INDUSTRIAL PARK XINHE VILLAGE, FUYONG TOWN, BAOAN, SHENZHEN, CHINA

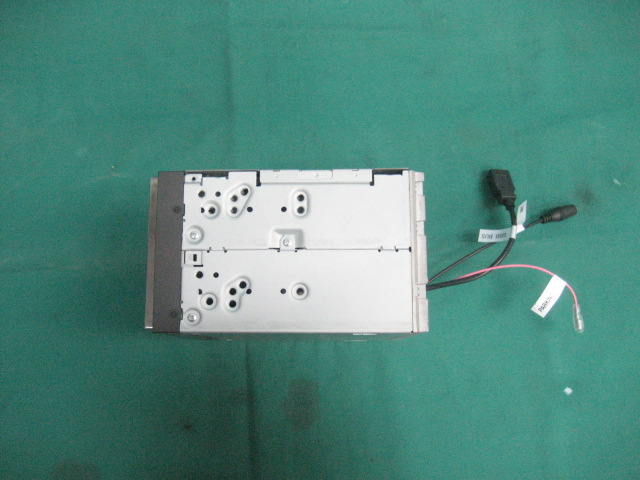

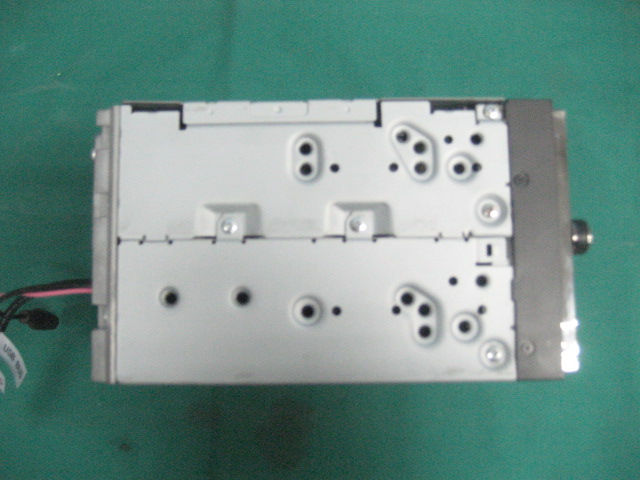

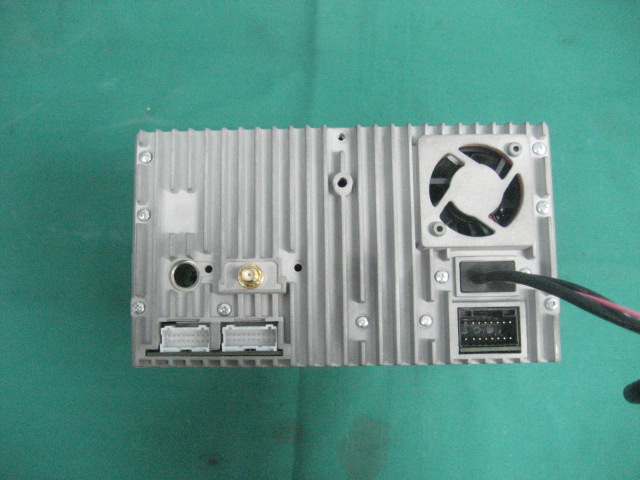

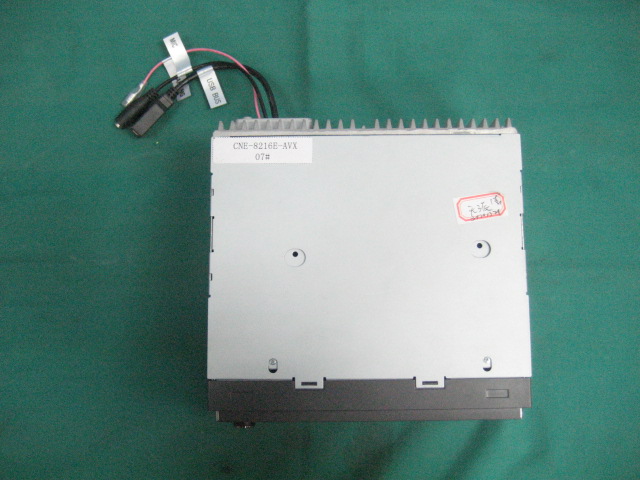

External Photos View of EUT-1 View of EUT-2 View of EUT-3 View of EUT-4 View of EUT-5 View of EUT-6

Label location: 机身大贴纸 7-8216-1002-00-00 1:1 技术说明： 1、大小142x110mm;红色外框线为刀模线。 2、材质，80g铜版纸,背不干胶。 3、要求内容正确，印刷清晰，无脏污，无折痕；切边整齐。 4、贴纸要求在-20°C～80°C高低环境下保存6小时，要求不变形，粘贴牢固， WWW.JENSEN.COM 1 1 0 M M 142MM WWW.JENSEN.COM AUDIO - VIDEO INPUT / OUTPUT POWER / SPEAKER HARNESS CUSTOM MADE IN CHINA AUDIOVOX CORPORATION HAUPPAUGE, N.Y. 11788 20-PIN AUDIO / VIDEO CONNECTOR FRONT RCA LINE OUTPUT: WHITE - LEFT, RED - RIGHT REAR RCA LINE OUTPUT: WHITE - LEFT, RED - RIGHT SUBWOOFER RCA LINE OUTPUT: BLUE - MONO HEADPHONE / MULTIZONE OUTPUT: WHITE - LEFT, RED: RIGHT CAMERA INPUT: YELLOW - VIDEO VIDEO OUTPUT 1 & 2: YELLOW - VIDEO AUDIO / VIDEO INPUT 2 (REAR CHASSIS): YELLOW - VIDEO, WHITE- LEFT, RED - RIGHT 18-PIN CONNECTOR XM RADIO: MALE 8-PIN DIN CONNECTOR (DATA CONTROL), WHITE - LEFT, RED - RIGHT STEERING WHEEL CONTROL: BLACK FEMALE 3.5MM CONNECTOR (SEE MANUAL FOR INTERFACE INFORMATION) AUDIO / VIDEO IN AUDIO / VIDEO INPUT 1 (FRONT 3.5MM) ACCESSORY USB INPUT - FEMALE PINK - PARKING BRAKE (-) NAVIGATION ANTENNA: FEMALE SMA CONNECTOR BLUETOOTH MICROPHONE INPUT - FEMALE 2.5MM CONNECTOR 16-PIN CONNECTOR RED - IGNITION ORANGE - ILLUMINATION (+) YELLOW - BATTERY (15 AMP ATM FUSE ONLY) BLACK - GROUND BROWN - AUDIO MUTE (-) GRAY - RIGHT FRONT (+) GRAY / BLACK - RIGHT FRONT(-) WHITE - LEFT FRONT (+) WHITE / BLACK - LEFT FRONT (-) VIOLET - RIGHT REAR (+) VIOLET / BLACK - RIGHT REAR (-) GREEN - LEFT REAR (+) GREEN / BLACK - LEFT REAR (-) BLUE - POWER ANTENNA CONTROL (500mA MAX) BLUE / WHITE - POWER AMP CONTROL (500mA MAX) GREEN / WHITE - REVERSE / BACK-UP (+) USE 4-OHM SPEAKERS ONLY VM9424BT AM-FM TUNER / NAV / DVD / USB / SD CARD / iPod / XM READY / BLUETOOTH RECEIVER W / 6.2” TFT 12VDC, NEGATIVE GROUND FAILURE TO WIRE CORRECTLY MAY CAUSE DAMAGE TO UNIT. FOR TECHNICAL ASSISTANCE CALL: 1.800.323.4815 FCC ID: V8VCNE8216EAVX CNE-8216E-AVX

INTERNAL PHOTOS Internal View of EUT-1 Internal View of EUT-2 Internal View of EUT-3 Internal View of EUT-4 Internal View of EUT-5 Internal View of EUT-6 Internal View of EUT-7 Internal View of EUT-8 Internal View of EUT-9 Internal View of EUT-10 This is the antenna

RF Exposures Evaluation For Maximum Permissible Exposure (MPE) evaluation of the product, the maximum power density at 20 cm from this transmitter shall be less than the General Population / Uncontrolled MPE limit in OET Bulletin 65. For the EUT of tested model VM9424BT/ CNE-8216E-AVX, the measured maximum field strength measured (FS) was 91.3 dBμV/m. The distance (D) between the antenna and the equipment under test (EUT) was 3 meters. From these data, the exposed power density at a distance (R) of 20cm from the center of radiation of the antenna can be calculated according to OET Bulletin 65 as follow: The radiated power = (FS*D) 2 / 30 = 0.405mW The power density at 20 cm from the antenna = EIRP / = 0.00008 mW cm -2 In the frequency range of 2.4-2.4835GHz, the MPE limit is 1.0 mWcm -2 for general population and uncontrolled exposure. As the measured power density at 20cm from the transmitter is lower than the MPE limit, the compliance to the MPE limit can be ensured by indicating the minimum 20cm separation between the transmitter's radiating structures and body of the user or nearby persons. The following RF exposure statement is proposed to be included in the user manual: “This equipment complies with FCC RF radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with a minimum distance of 20 centimeters between the radiator and your body.”

Report No. : SZEE101221119713 Page 1 of 40 ELECTROMAGNETIC EMISSIONS COMPLIANCE REPORT INTENTIONAL RADIATOR CERTIFICATION Product Name : Car Multimedia Model Number : VM9424BT/ CNE-8216E-AVX Trade Name : Jensen / SKYPINE FCC ID : V8VCNE8216EAVX Report Number : SZEE101221119713 Date : Jan. 20, 2011 Prepared for: SKYPINE ELECTRONICS (SHENZHEN) CO., LTD. A1 BUILDING, NO.6 XINXING INDUSTRIAL PARK XINHE VILLAGE, FUYONG TOWN, BAOAN, SHENZHEN CHINA Prepared by: CENTRE TESTING INTERNATIONAL Building C, Hongwei Industrial Zone, Baoan 70 District, Shenzhen, Guangdong, China TEL: +86-755-3368 3668 FAX: +86-755-3368 3385 This report shall not be reproduced, except in full, without the written approval of CENTRE TESTING INTERNATIONAL Building C, Hongwei Industrial Zone, Baoan 70 District, Shenzhen Standards Results 47 CFR FCC Part 15 Subpart C 15.247 PASS Report No. : SZEE101221119713 Page 2 of 40 TABLE OF CONTENTS Description Page 1. CERTIFICATION INFORMATION ............................................................................................................... 4 2. TEST SUMMARY ........................................................................................................................................ 5 3. MEASUREMENT UNCERTAINTY .............................................................................................................. 5 4. PRODUCT INFORMATION ......................................................................................................................... 5 5. SYSTEM TEST CONFIGURATION.............................................................................................................. 6 6. TEST EQUIPMENT LIST............................................................................................................................. 7 7. SUPPORT EQUIPMENT LIST .................................................................................................................... 7 8. 20DB BANDWIDTH MEASUREMENT ....................................................................................................... 8 8.1. LIMITS ................................................................................................................................................. 8 8.2. BLOCK DIAGRAM OF TEST SETUP.................................................................................................. 8 8.3. TEST PROCEDURE ........................................................................................................................... 8 8.4. TEST RESULT .................................................................................................................................... 8 9. CARRIER FREQUENCY SEPARATION ...................................................................................................11 9.1. LIMITS ............................................................................................................................................... 11 9.2. BLOCK DIAGRAM OF TEST SETUP................................................................................................ 11 9.3. TEST PROCEDURE ......................................................................................................................... 11 9.4. TEST RESULT .................................................................................................................................. 11 10. NUMBER OF HOPPING FREQUENCY................................................................................................ 13 10.1. LIMITS ............................................................................................................................................... 13 10.2. BLOCK DIAGRAM OF TEST SETUP................................................................................................ 13 10.3. TEST PROCEDURE ......................................................................................................................... 13 10.4. TEST RESULT .................................................................................................................................. 13 11. TIME OF OCCUPANCY (DWELL TIME)................................................................................................... 14 11.1. LIMITS ............................................................................................................................................... 14 11.2. BLOCK DIAGRAM OF TEST SETUP................................................................................................ 14 11.3. TEST PROCEDURE ......................................................................................................................... 14 11.4. TEST RESULT .................................................................................................................................. 14 Report No.SZEE100608119730-1 Page 3 of 40 12. MAXIMUM PEAK CONDUCTED OUTPUT POWER MEASUREMENT .............................................. 18 12.1. LIMITS ............................................................................................................................................... 18 12.2. BLOCK DIAGRAM OF TEST SETUP................................................................................................ 18 12.3. TEST PROCEDURE ......................................................................................................................... 18 12.4. TEST RESULT .................................................................................................................................. 18 13. BAND EDGE EMISSION MEASUREMENT ......................................................................................... 20 13.1. LIMITS ............................................................................................................................................... 20 13.2. BLOCK DIAGRAM OF TEST SETUP............................................................................................…

Text truncated - open the document above for the full version.

TEST SETUP PHOTOS TEST SETUP OF RADIATED EMISSION (30MHz-1GHz) TEST SETUP OF RADIATED EMISSION (above 1GHz)
