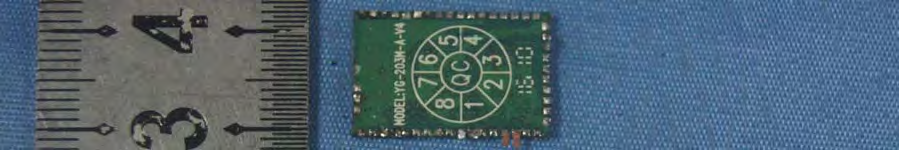

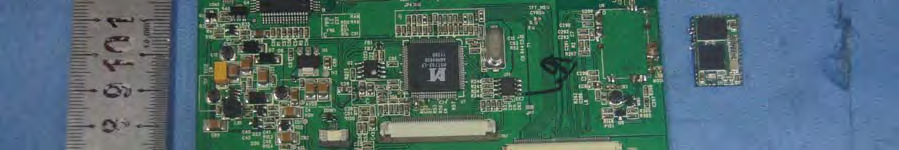

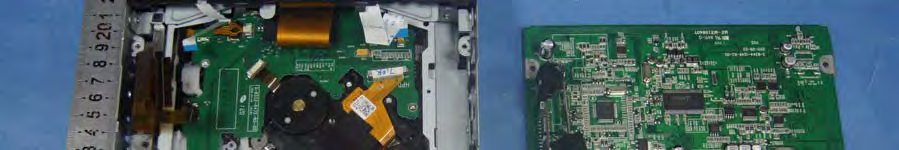

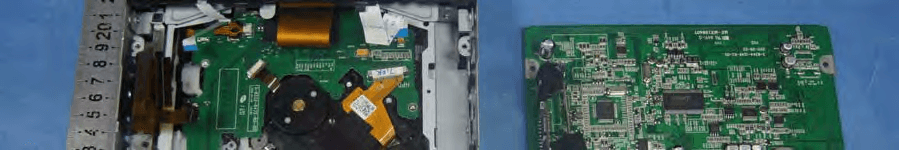

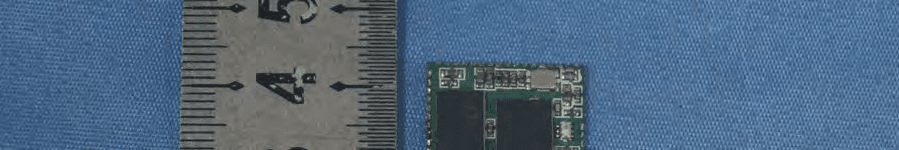

V8VCNE8518ALPEntertainment System

1 User manual 2 Thank you for using our products, you can get the operation method more clearly by this instruction. Important statements: 1. The object appearance may be different from what the manual shows, so please subject to our available products. 2. This manual is the detailed description of our products. The products improve matters would not be for further notice, we keep the right of final interpretation. Functions : ● Navigation multimedia entertainment system, standard installation size. ● HD screen. ● Fashion and brief interface ,easy for operation. ● Built-in DVD player, auto private loader. ● Built-in smart GPS navigation system.(optional) ● Built-in BT function, support hand free bluetooth. ● Automatic screen and slip mechanism, a variety of models for choose. ● IPOD,SD,USB port, AUX IN is available. ● Built-in FM/AM radio tuner, RDS function is optional. ● Built-in 4*45w amplifier output,4.1 track circuit output. ● For touch control. ● Built-in digital TV.(optional) ● Reversing visual function, help to monitor the backing up on video(camera need to be mixed separately) ● Convenient and practical: smart power saving,extend the battery playing time,avoid to affect driving at night. 3 Attention: please read the instructions carefully before installation, and we recommend the car audio distribution to install the machine. Please ask the professional to install the machine. Disassembly the machine unilaterally would damage the machine or cause accident。 Do not let the machine in humid environment and water to avoid accident or damage by short circuiting. Please do not operate the machine in driving. The driver should not watch programs and play the machine in driving. It is very dangerous! The products use automatic precision transmission components, please not push hard the machine or knock the TFT display screens. Please do not use hard thing on the screen to avoid damaging the screen. Attention :Please flameout the automobile and cut down the connection between ACC and B+ to avoid short circuit. This unit apply to vehicle-mounted 12V power supply system(need connect ground wire), please not use in 24V bus and lorry, it may breakdown the machine Please use original discs,the pirate disc may affect the lifetime of the machine. Please do not change the power fuses without professional.It is very dangerous to use the not suitable fuses. 4 Contents Basic operation ...................................................................................................................... 6 Power ON◆.................................................................................................................... 6 Power OFF◆................................................................................................................... 6 Enter m◆ain menu ........................................................................................................ 6 Function mode selection◆............................................................................................ 8 Volume adjustment◆...................................................................................................... 8 The definition of touch screen area operation◆......................................................... 8 System setup◆............................................................................................................... 8 System reset◆................................................................................................................ 8 Panel key operation instructions ......................................................................................... 8 The remote control operation instructions ....................................................................... 10 Function operation .............................................................................................................. 12 1、 Disc playing function operation ........................................................................ 12 Slot disc◆............................................................................................................... 12 Slot◆-out disc ........................................................................................................ 12 Restart disc loading◆........................................................................................... 12 DVD playing touch control◆................................................................................. 12 DVD playing information◆.................................................................................... 14 Search play◆ing .................................................................................................... 15 JPEG file playing◆................................................................................................ 15 ◆VCD playing touch control................................................................................ 16 ◆CD/MP3/WMA playing touch control................................................................ 16 2. Radio function operation ....................................................................................... 17 RDS Function◆...................................................................................................... 17 3． SD/USB playing function operation ..................................................................... 18 4、iPod playing function opreration ........................................................................... 20 5、TV function operation ............................................................................................. 21 6、AUX IN function opreation...................................................................................... 26 7、Camera function operation..................................................................................... 26 8、BT function operation ............................................................................................. 26 5 Pairing◆..........…

Text truncated - open the document above for the full version.

SKYPINE ELECTRONICS (SHEN ZHEN) CO., LTD. February 20, 2012 To: SIEMIC, INC. 2206 Ringwood Avenue, San Jose, CA 95131 USA Dear Sir/Madam, Re: Project and Product Certification Representative Authorization Letter We, ______ SKYPINE ELECTRONICS (SHEN ZHEN) CO., LTD.___hereby authorize SIEMIC, INC. to act as a Certification Body for certifying for the following project(s): Product Description: Entertainment System Model name: AN5700NV(CNE-8518-ALP) We affirm that between SIEMIC and _ SKYPINE ELECTRONICS (SHEN ZHEN) CO., LTD.__, any difference in understanding, including test plan, measurement methods, applicable standards and relevant procedures and processes have been resolved prior to commencement of testing activities. Sincerely, Client’s signature Client’s name / title: Aaron Zheng, Vice President Contact information / address: A1 Building, No.6 Xinxing Industrial Park, Xinhe Village, Fuyong Town, Baoan, Shenzhen City, China

SCS-F19: Confidentiality Request Letter Page 1 of 1 Rev 2.0 SKYPINE ELECTRONICS (SHEN ZHEN) CO., LTD. February 20, 2012 To: Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD Confidentiality Request regarding application for certification of FCC ID: V8VCNE8518ALP We hereby request confidential treatment of information accompanying this application as outlined below: - Block Diagram - Operational Description - Schematic The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that pursuant to Section 0.457 & 0.459 of the Rules, disclosure of this application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely, Client’s signature Client’s name / title: Aaron Zheng, Vice President Contact information / address: A1 Building, No.6 Xinxing Industrial Park, Xinhe Village, Fuyong Town, Baoan, Shenzhen City, China

FCC Certification label Sample

FCC Certification Label Location Sample Label location

Antenna Antenna

1. RF EXPOSURE 1.1. The Requirement System operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy levels in excess of the Commission’s guidelines. See Section 15.247(b)(4) and Section 1.1307(b)(1) 1.2. Limit For Maximum Permissible Exposure (MPE) Limits for General Population/ Uncontrolled Exposure F = frequency in MHz, * Plane-wave equivalent power density 1.3. MPE Calculations E(V/m) = 30 P G d  , Power Density: S( 2 mW/cm) = 2 377 E Where E = Electric Field (V/m) P = Peak Output Power (mW) G = Antenna Numeric Gain (numeric) = 10 x , x = Antenna Gain(dBi) /10 d = Separation Distance (cm) Frequency Range (MHz) Electric Field Strength (E) (V/m) Magnetic Field Strength (H) (A/m) Power Density (S) ( 2 mW/cm) Averaging Time 2 E, 2 H or S (minutes) 0.3-1.34 614 1.63 (100)* 30 1.34-30 824/f 2.19/f (180/f)* 30 30-300 27.5 0.073 0.2 30 300-1500 f/1500 30 1500-100,000 1.0 30 We can change the formula to: S = 2 30 377 PG d   or, d = 30 377 PG S   Because the EUT is belong to general population/uncontrolled exposure. So 1.3.1. We considering the limit of minimum separation distance (d) is 20cm, Maximum Output Power = 0.011mW Antenna Gain = 0(dBi) = 1(numeric) S = 2 30 377 PG d   = 0.000002 2 mW/cm < 1.0 2 mW/cm (limit) Calculated RF Exposure power density is 0.000002 2 mW/cm , less than the limit. 1.3.2. We considering the limit of power density (S) is 1.0 2 mW/cm , Maximum Output Power = 0.011mW Antenna Gain = 0(dBi) = 1(numeric) d = 30 377 PG S   = 0.03 cm < 20 cm Calculated RF Exposure separation distance is 0.03 cm, less than the minimum separation distance 1.3.3.FCC Radiation Exposure Statement This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. In order to avoid the possibility of exceeding the FCC radio frequency exposure limits, Human proximity to the antenna shall not be less than 20cm(8 inches) during normal operation. Proposed RF exposure safety information to include in User’s Manual.

Page 1 of 77 FCC ID: V8VCNE8518ALP ACCURATE TECHNOLOGY CO. LTD Report No.: ATE20120123 APPLICATION CERTIFICATION On Behalf of SKYPINE ELECTRONICS (SHEN ZHEN) CO., LTD. Entertainment System Model No.: AN5700NV(CNE-8518-ALP) FCC ID: V8VCNE8518ALP Prepared for : SKYPINE ELECTRONICS (SHEN ZHEN) CO., LTD. Address : A1 Building, No.6 Xinxing Industrial Park, Xinhe Village, Fuyong Town, Baoan District, Shenzhen City, China Prepared by : ACCURATE TECHNOLOGY CO. LTD Address : F1, Bldg. A, Changyuan New Material Port, Keyuan Rd. Science & Industry Park, Nanshan, Shenzhen, Guangdong P.R. China Tel: (0755) 26503290 Fax: (0755) 26503396 Report Number : ATE20120123 Date of Test : February 12-28, 2012 Date of Report : February 29, 2012 Page 2 of 77 FCC ID: V8VCNE8518ALP ACCURATE TECHNOLOGY CO. LTD Report No.: ATE20120123 TABLE OF CONTENTS Description Page Test Report Certification 1. GENERAL INFORMATION .......................................................................................................... 5 1.1. Description of Device (EUT)....................................................................................................................5 1.2. Description of Test Facility ......................................................................................................................6 1.3. Measurement Uncertainty.........................................................................................................................6 2. MEASURING DEVICE AND TEST EQUIPMENT ..................................................................... 7 3. OPERATION OF EUT DURING TESTING ................................................................................. 8 3.1. Operating Mode ........................................................................................................................................8 3.2. Configuration and peripherals ..................................................................................................................8 4. TEST PROCEDURES AND RESULTS ......................................................................................... 9 5. 20DB BANDWIDTH TEST............................................................................................................ 10 5.1. Block Diagram of Test Setup..................................................................................................................10 5.2. The Requirement For Section 15.247(a)(1) ............................................................................................10 5.3. EUT Configuration on Measurement .....................................................................................................10 5.4. Operating Condition of EUT ..................................................................................................................10 5.5. Test Procedure ........................................................................................................................................11 5.6. Test Result ..............................................................................................................................................11 6. CARRIER FREQUENCY SEPARATION TEST........................................................................ 15 6.1. Block Diagram of Test Setup..................................................................................................................15 6.2. The Requirement For Section 15.247(a)(1) ............................................................................................15 6.3. EUT Configuration on Measurement .....................................................................................................15 6.4. Operating Condition of EUT ..................................................................................................................15 6.5. Test Procedure ........................................................................................................................................16 6.6. Test Result ..............................................................................................................................................16 7. NUMBER OF HOPPING FREQUENCY TEST ......................................................................... 20 7.1. Block Diagram of Test Setup..................................................................................................................20 7.2. The Requirement For Section 15.247(a)(1)(iii) ......................................................................................20 7.3. EUT Configuration on Measurement .....................................................................................................20 7.4. Operating Condition of EUT ..................................................................................................................20 7.5. Test Procedure ........................................................................................................................................21 7.6. Test Result ..............................................................................................................................................21 8. DWELL TIME TEST ..................................................................................................................... 25 8.1. Block Diagram of Test Setup..................................................................................................................25 8.2. The Requirement For Section 15.247(a)(1)(iii) ......................................................................................25 8.3. EUT Configuration on Measurement .....................................................................................................25 8.4. Operating Condition of EUT ..................................................................................................................25 8.5. Test Procedure ....................................................................…

Text truncated - open the document above for the full version.

Radiated emissions test < 1GHz Radiated emissions test > 1GHz
