V93-POSIFCC1000SmartWave Contactless Card Reader

CC-1000 Specifications Payment Contactless Card Reader Contactless Interface - ISO 14443 type A/B - 13.56 MHz Payment Protocol - EMV L1(version 2.0.1) & L2 type approval - Visa Wave - Master PayPass -VISA level III middleware certified -SmartWave e-Purse for store value application (on line or off line transaction) e-Bonus Protocol - On line Coupon with PRM(POS Reference Modular) support Application compatibility - PC/SC compatible for USB interface Human Interface - 2 x 18 characters LCD display for multi language - 4 LED indicator ( Stand by, process, complete, fail) - Buzzer Processor - Fast, powerful 32-bit RISC microprocessor Memory - 64KB EEPROM can keep more than 2,000 transaction log files. - 256KB Flash memory Communication Capabilities - RS-232 port or USB port - SAM slot x 4 for multi payment gateway. Programming Features - Firmware update can download via RS-232 Power - Adapter 5V DC @ 500mA (optional) - RS-232 cable with power supply from POS terminal Federal Communication Commission Interference Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one of the following measures: . Reorient or relocate the receiving antenna. . Increase the separation between the equipment and receiver. . Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. . Consult the dealer or an experienced radio/TV technician for help. FCC Caution: To assure continued compliance, any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate this equipment. (Example - use only shielded interface cables when connecting to computer or peripheral devices). This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation.

Registration number: W6M21103-11324 FCC ID: V93-POSIFCC1000 Worldwide Testing Services (Taiwan) Co., Ltd. Appendix page 2 of 17 External Photos Registration number: W6M21103-11324 FCC ID: V93-POSIFCC1000 Worldwide Testing Services (Taiwan) Co., Ltd. Appendix page 3 of 17 Registration number: W6M21103-11324 FCC ID: V93-POSIFCC1000 Worldwide Testing Services (Taiwan) Co., Ltd. Appendix page 4 of 17 Registration number: W6M21103-11324 FCC ID: V93-POSIFCC1000 Worldwide Testing Services (Taiwan) Co., Ltd. Appendix page 5 of 17 Registration number: W6M21103-11324 FCC ID: V93-POSIFCC1000 Worldwide Testing Services (Taiwan) Co., Ltd. Appendix page 6 of 17 Registration number: W6M21103-11324 FCC ID: V93-POSIFCC1000 Worldwide Testing Services (Taiwan) Co., Ltd. Appendix page 7 of 17

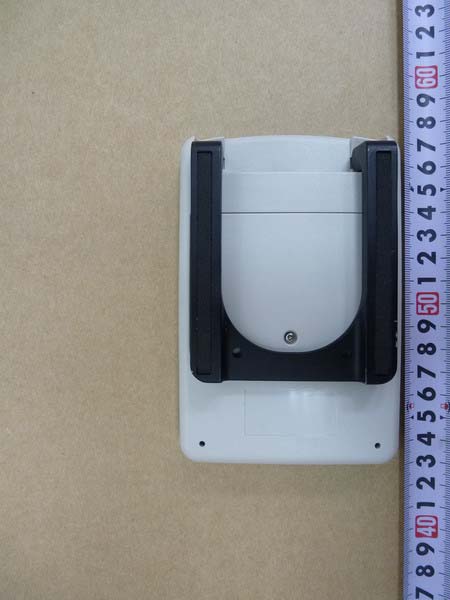

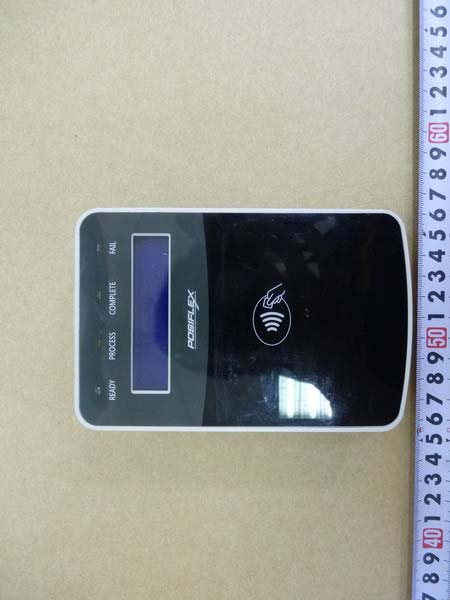

FCC ID label and location SmartWave Contactless Card Reader Model no. CC-1000 Brand name: POSIFLEX FCC ID: V93-POSIFCC1000

Registration number: W6M21103-11324 FCC ID: V93-POSIFCC1000 Worldwide Testing Services (Taiwan) Co., Ltd. Appendix page 8 of 17 Internal Photos Registration number: W6M21103-11324 FCC ID: V93-POSIFCC1000 Worldwide Testing Services (Taiwan) Co., Ltd. Appendix page 9 of 17 Registration number: W6M21103-11324 FCC ID: V93-POSIFCC1000 Worldwide Testing Services (Taiwan) Co., Ltd. Appendix page 10 of 17 Registration number: W6M21103-11324 FCC ID: V93-POSIFCC1000 Worldwide Testing Services (Taiwan) Co., Ltd. Appendix page 11 of 17

of Applicant: Posiflex Technology, Inc. Address: No.6, Wuquan Rd., Wugu Dist., New Taipei City 248, Taiwan (R.O.C.) Tested and Prepared by Worldwide Testing Services (Taiwan) Co., Ltd. FCC Registration No.: 930600 Industry Canada filed test laboratory Reg. No. IC 5679A-1 A2LA Accredited No.: 2732.01 Report No.: W6M21103-11324-P-15 6F, NO. 58, LANE 188, RUEY-KUANG RD., NEIHU TAIPEI 114, TAIWAN, R.O.C. TEL: 886-2-66068877 FAX: 886-2-66068879 E-mail: [email protected] FCC PART 15 SUBPART C TEST REPORT for SmartWave Contactless Card Reader Model No.: CC-1000 FCC ID: V93-POSIFCC1000 Registration number: W6M21103-11324-P-15 FCC ID: V93-POSIFCC1000 Worldwide Testing Services(Taiwan) Co., Ltd. Page 1 of 23 TABLE OF CONTENTS 1 General Information.........................................................................................................................2 1.1 Notes ...........................................................................................................................................2 1.2 Testing laboratory .......................................................................................................................3 1.2.1 Location ..................................................................................................................................3 1.2.2 Details of accreditation status ................................................................................................3 1.3 Details of approval holder...........................................................................................................4 1.4 Application details ......................................................................................................................4 1.5 General information of Test item................................................................................................4 1.6 Test standards .............................................................................................................................5 2 Technical test .....................................................................................................................................5 2.1 Summary of test results...............................................................................................................5 2.2 Test environment ........................................................................................................................5 2.3 Test Equipment List ....................................................................................................................6 2.4 General Test Procedure...............................................................................................................9 3 Test results (enclosure) ...................................................................................................................11 3.1 Output Power (Field Strength)..................................................................................................12 3.2 Out of Band Radiated Emissions ..............................................................................................13 3.3 Occupied bandwidth .................................................................................................................17 3.4 Frequency tolerance ..................................................................................................................18 3.5 Power Line Conducted Emission..............................................................................................19 Appendix...............................................................................................................................................23 Registration number: W6M21103-11324-P-15 FCC ID: V93-POSIFCC1000 Worldwide Testing Services(Taiwan) Co., Ltd. Page 2 of 23 1 General Information 1.1 Notes The purpose of conformity testing is to increase the probability of adherence to the essential requirements or conformity specifications, as appropriate. The complexity of the technical specifications, however, means that full and thorough testing is impractical for both technical and economic reasons. Furthermore, there is no guarantee that a test sample which has passed all the relevant tests conforms to a specification. Neither is there any guarantee that such a test sample will interwork with other genuinely open systems. The existence of the tests nevertheless provides the confidence that the test sample possesses the qualities as maintained and that is performance generally conforms to representative cases of communications equipment. The test results of this test report relate exclusively to the item tested as specified in 1.5. The test report may only be reproduced or published in full. Reproduction or publication of extracts from the report requires the prior written approval of the Worldwide Testing Services(Taiwan) Co., Ltd. Tester: April 7, 2011 Rick Chen Date WTS-Lab. Name Signature Technical responsibility for area of testing: April 7, 2011 Chang Tse-Ming Date WTS Name Signature Registration number: W6M21103-11324-P-15 FCC ID: V93-POSIFCC1000 Worldwide Testing Services(Taiwan) Co., Ltd. Page 3 of 23 1.2 Testing laboratory 1.2.1 Location OATS No.5-1, Lishui, Shuang Sing Village, Wanli Dist., New Taipei City 207, Taiwan (R.O.C.) Company Worldwide Testing Services(Taiwan) Co., Ltd. 6F, NO. 58, LANE 188, RUEY-KUANG RD. NEIHU, TAIPEI 114, TAIWAN R.O.C. Tel : 886-2-66068877 Fax : 886-2-66068879 1.2.2 Details of accreditation status Accredited testing laboratory A2LA accredited number: 2732.01 FCC filed test laboratory Reg. No. 930600 Industry Canada filed test laboratory Reg. No. IC 5679A-1 Test location, where different from Worldwide Testing Services (Taiwan) Co., Ltd. : Name: ./. Accredited number: ./. Street: ./. Town: ./. Country: ./. Telephone: ./. Fax: ./. Registration number: W6M21103-11324-P-15 FCC ID: V93-POSIFCC1000 Worldwide Testing Services(Taiwan) Co., Ltd. Page 4 of 23 1.3 Details of a…
