V9N950325700V1WIRELESS BASE 5-USER RADIO TX

SON150 Wireless DECT7 Base Station Manual 7340 SW Durham Road, Portland, OR 97224 USA Phone: 800-833-4558, 503-684-7080, Fax 503-620-2943 www.soneticscorp.com • e-mail: [email protected] Table of Contents Overview .................................................................................................................... 1 Contents in Box .......................................................................................................... 2 Accessories (not included) ......................................................................................... 2 Features ..................................................................................................................... 3 Wireless DECT Communications ............................................................................ 3 Mounting ................................................................................................................... 4 Option 1: Window Glue Mount .............................................................................. 4 Option 2: Fixed mount with Feet ........................................................................... 4 Option 3: Desk ........................................................................................................ 4 Antennas .................................................................................................................... 5 Duck Antenna ......................................................................................................... 5 Accessory Antennas ............................................................................................... 6 Power ......................................................................................................................... 7 Option 1: DC Jack Power ........................................................................................ 7 Option 2: Digital Intercom Power .......................................................................... 7 Modular Plug Installation .......................................................................................... 8 Connecting to an Intercom ........................................................................................ 9 Radio Transmit ....................................................................................................... 9 Intercom Only ........................................................................................................ 9 Examples: ............................................................................................................. 10 LED Indicators .......................................................................................................... 11 Top Indicators ...................................................................................................... 11 Front Indicators .................................................................................................... 11 Paring ....................................................................................................................... 12 Full-Duplex Paring ................................................................................................ 12 Listen Only Paring ................................................................................................ 12 PC Programming ...................................................................................................... 13 Locating the USB Port .......................................................................................... 13 Installation of the Sonetics Configurator Windows Program .............................. 13 Troubleshooting....................................................................................................... 14 Service Contact: ................................................................................................... 14 Specifications ........................................................................................................... 16 DECT Specifications .............................................................................................. 17 Important Safety Information.................................................................................. 18 General Communication Privacy Notice .............................................................. 18 Sonetics Standard Limited Warranty ....................................................................... 23 1 | Page Overview Wireless base stations support the RF connections of Sonetics wireless communication systems. Housed in a compact rugged case, the Multiple-User Base Station maintains digital communication with up to five Sonetics wireless headsets in full duplex(like a conference call) with each able to activate a radio PTT remotely thru the Sonetics Digital Intercoms. For additional users, the wireless base has the ability to have up to 100 users in listen only mode for use in applications like tour groups. The listen only users also have the ability to take turns to talk with the rest of the group. Sonetics DECT7 operating on the 1.9GHz, the base station provides secure, interference-free, full-duplex communication, and wide band up to 7kHz with Sonetics wireless headsets up to a 1,600-foot line-of-sight radius. With an internal and external antenna, the wireless base configures the user’s application for best wireless results. Multiple base stations can be combined with one or more intercom units to support up to 60 users in a single local digital audio network. USB programmable enables the site administrator extended control like adding channels and specific connection profiles. 2 | Page Contents in Box Base Station 1 ea x Wireless Base Station Antenna 1 ea x Duck Antenna 1 ea x Duck Antenna Mount Manual and Reference 1 ea x Quick Reference Guide 1 ea x Manual Power 1 ea x AC Wall Adaptor 1 ea x DC Power Cable 1 ea x in-line Fuse Holder & Fuse Accessories 1 ea x Intercom Interface…

Text truncated - open the document above for the full version.

7340 SW Durham Road.• Portland, Oregon U.S.A. 97224 • 503/684-7080 • Fax 503/620-2943 Attention: FCC Application Examiner Agust 27. 2014 Federal Communications Commission Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 Applicant: Sonetics Corporation FRN: 0017391640 FCC ID: V9N950325700V1 FCC Part 15 Certification Model Reference: SON 150 To whom it may concern, We the undersigned, hereby authorize Eurofins Product Service GmbH to act in our behalf in all matters relating to the application process of FCC ID: V9N950325700V1 including the signing of all documents related to these matters. (Ref. Model: SON150) Any and all acts carried out by Eurofins Product Service GmbH shall have the same effect as acts of our own. We also hereby certify that no party to this application is subject to a denial of benefits, including FCC benefits pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U. S. C 862. Sincerely, ______________________________________________ (Signature) Michael Heade Quality Assurance and Compliance Engineer Sonetics Corporation Phone: 800-833-4558 ext. 122 Direct: 503-608-3422 Email: [email protected]

7340 SW Durham Road.• Portland, Oregon U.S.A. 97224 • 503/684-7080 • Fax 503/620-2943 Attention: FCC Application Examiner December 16. 2014 Federal Communications Commission Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 Re: Request for Permanent Confidentiality Applicant: Sonetics Corporation (FRN: 0017391640) FCC ID: V9N950325700V1 FCC Part 15 Certification (Ref. Model SON150) To whom it may concern, Permanent Confidentiality Request Request is hereby submitted by Sonetics Corporation to withhold permanently from public review certain portions of the application for equipment certification for the referenced FCC identifiers. This request for confidentiality is made pursuant to 47 CFR 0.457(d) and 0.459 of the FCC Rules. In particular, the following sections of the application are to be kept permanently confidential: • Schematics • Detailed Block diagrams • Detailed Operational/Functional Description • Parts list Rationale for request for Permanent Confidentiality: Although Sonetics Corporation has plans to market the product to strictly to Professional and Industrial Users, Sonetics Corporation has invested considerable time and materials in research and development to produce the referenced product. Disclosure of the permanently confidential portions of this application to competitors would not only give them significant competitive advantages in developing similar products, but would also disclose successful implementation of unpublished, leading edge technology developed by us. The documents identified above are not normally released to the general public or users. Furthermore, Sonetics has signed a nondisclosure agreement with our supplier related to design information related to co-developed componentry and firmware and is forbidden to disseminate related design information to the public. Additional Justification Notes: (1) The technical information defined in this confidentiality request is not otherwise released to the public. (2) The device contains a module and co-developed proprietary firmware and the Applicant has signed a nondisclosure agreement with the module Supplier that prohibits technical and trade data disclosure to general public without written consent of the module supplier of which consent has not been granted to applicant. If you have questions or need further information, please contact the undersigned. Sincerely, 7340 SW Durham Road.• Portland, Oregon U.S.A. 97224 • 503/684-7080 • Fax 503/620-2943 Michael Heade Quality Assurance and Compliance Engineer Sonetics Corporation Phone: 800-833-4558 ext. 122 Direct: 503-608-3422 Email: [email protected]

7340 SW Durham Road.• Portland, Oregon U.S.A. 97224 • 503/684-7080 • Fax 503/620-2943 Attention: FCC Application Examiner December 16. 2014 Federal Communications Commission Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 Re: Request for Short Term Confidentiality Applicant: Sonetics Corporation (FRN: 0017391640) FCC ID: V9N950325700V1 FCC Part 15 Certification (Ref. Model SON150) To whom it may concern, Short Term Confidentiality Request Request is hereby submitted by Sonetics Corporation to withhold from public review for a period of 45 days from the date of the Grant of Equipment Authorization and prior to marketing, certain portions of the application for equipment certification for the referenced FCC identifiers. This request for confidentiality is made pursuant to 47 CFR 0.457(d) and 0.459 of the FCC Rules. In particular, the following sections of the application are to be kept confidential for a period of 45 days from the date of Authorization: • external photos, • internal photos • test setup photos, • user’s manual, Justification/Rationale for Short term confidentiality: Disclosure of the short-term confidential portions of this application during the period of importation and/or distribution would reveal key aspects of proprietary technology to competitors and diminish the value of our investment in product research and development. The documents identified are not normally released to the general public or users. Product is serviced only by licensee or designated technicians. If you have questions or need further information, please contact the undersigned. Sincerely, Michael Heade Quality Assurance and Compliance Engineer Sonetics Corporation Phone: 800-833-4558 ext. 122 Direct: 503-608-3422 Email: [email protected]

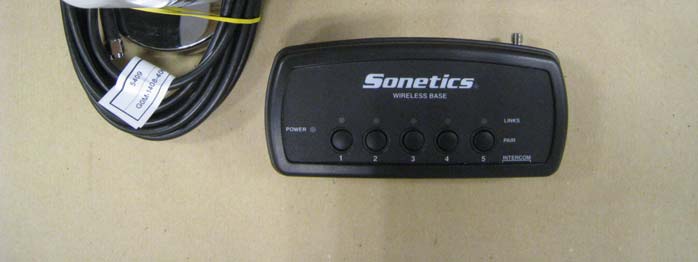

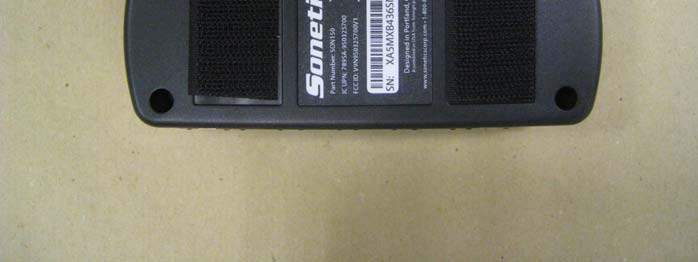

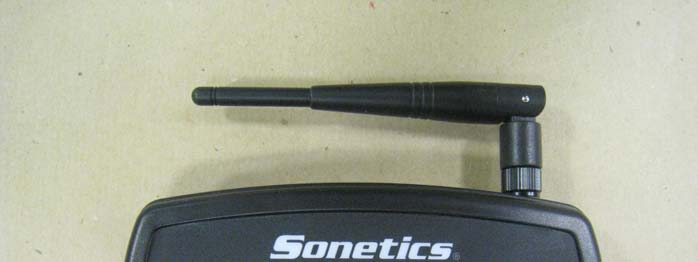

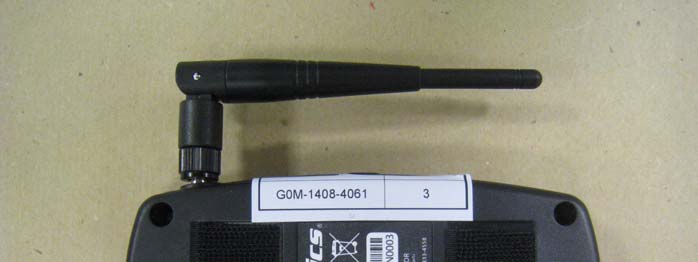

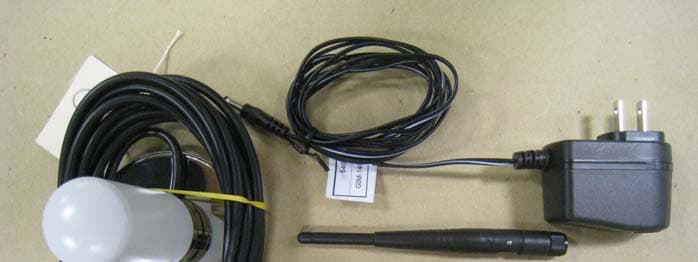

External Photos page 1 Model No.:SON150 FCC ID: V9N950325700V1 IC: 7895A-950325700 Project No.: G0M-1408-4061 External Photos page 2 Model No.:SON150 FCC ID: V9N950325700V1 IC: 7895A-950325700 Project No.: G0M-1408-4061 External Photos page 3 Model No.:SON150 FCC ID: V9N950325700V1 IC: 7895A-950325700 Project No.: G0M-1408-4061

Due to limited space on product for marking, the following statements are included in the product user manual: This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including iincluding interference that may cause undesired operation. Due to limited space on product for marking, the following statements are included in the product user manual: This device complies with Industry Canada license-exempt RSS standard(s). Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this d(2) this device must accept any interference, including interference that may cause undesired operation of the device. Ce dispositif est conforme à la norme CNR d'Industrie Canada applicable aux appareils radio exempts de licence. Son fonctionnement est sujet aux deux conditions suivantes: (1) le dispositif ne doit pas produire de brouillage préjudiciable, et (2) ce dispositif doit accepter tout brouillage reçu, y compris un brouillage susceptible de provoquer un fonctionnement indésirable. Design and assembly location Serial number barcode F C C I D Number M o d el number ICCrossed out garbage bin Product serial number M a n ufacturer Name

Internal Photos page 1 Model No.:SON150 FCC ID: V9N950325700V1 IC: 7895A-950325700 Project No.: G0M-1408-4061

7340 SW Durham Road.• Portland, Oregon U.S.A. 97224 • 503/684-7080 • Fax 503/620-2943 Declaration concerning Antenna Specification It is hereby declared that the product Model No.: SON150 FCC ID: V9N950325700V1 fulfills the requirement in FCC test relating to the antenna type. The device specified above confirms to the FCC recommendations for internal antenna type described below: Model No. of antenna: (if applicable) Type of antenna: Simple 1.3 inch inverted F antenna built directly into the PCB traces Peak Gain of the antenna: 0 dBi Frequency range: 1920 MHz to 1930 MHz The described mounting of the antenna is fixed internally to the radio module. The base has a provision to use of an external antenna through a unique reverse SMA type connector (with diversity switch control) between the internal antenna and external antenna. (See attached declaration for external antenna). Company name: Sonetics Corporation Address: 7340 SW Durham Road City: Portland State: Oregon ZIP / Postal code: 97224 Country: USA Place: Multnomah County, Portland Oregon Date: 9/19/2014 Michael Heade (Compliance Engineer)

7340 SW Durham Road.• Portland, Oregon U.S.A. 97224 • 503/684-7080 • Fax 503/620-2943 Declaration concerning Antenna Specification It is hereby declared that the product Model No.: SON150 FCC ID: V9N950325700V1 fulfills the requirement in FCC test relating to the antenna type. The device specified above confirms to the FCC recommendations for external antenna type described below: Model No. of antenna: 114-0138-00 (Laird TRA6927M3NW-001) Type of antenna: Vehicle Mount, Omnidirectional, Phantom Antenna 3.3” High Radome with unique connector. Peak Gain of the antenna: 5.5 dBi (Aprox. 2.5 dBi if additional loss of approximately 3.0 dBi cable loss through 12’ RG8 cable is subtracted). Frequency range: 1710 MHz to 1990 MHz The described mounting of the antenna is fitted with a unique antenna reverse SMA type connector to the radio module. Company name: Sonetics Corporation Address: 7340 SW Durham Road City: Portland State: Oregon ZIP / Postal code: 97224 Country: USA Place: Multnomah County, Portland Oregon Date: 9/19/2014 Michael Heade (Compliance Engineer)

7340 SW Durham Road.• Portland, Oregon U.S.A. 97224 • 503/684-7080 • Fax 503/620-2943 Declaration concerning Antenna Specification It is hereby declared that the product Model No.: SON150 FCC ID: V9N950325700V1 fulfills the requirement in FCC test relating to the antenna type. The device specified above confirms to the FCC recommendations for external antenna type described below: Model No. of antenna: 521-0014-00 (L-Com HG1903RD-RSP) Type of antenna: Omnidirectional rubber duck antenna 5.2” long with unique connector. Peak Gain of the antenna: 3.0 dBi Frequency range: 1850 MHz to 1990 MHz The described mounting of the antenna is with a unique antenna reverse SMA type connector directly to the radio module. Company name: Sonetics Corporation Address: 7340 SW Durham Road City: Portland State: Oregon ZIP / Postal code: 97224 Country: USA Place: Multnomah County, Portland Oregon Date: 9/19/2014 Michael Heade (Compliance Engineer)

Test Report No.: G0M-1408-4061-TFC091ME-V01 Eurofins Product Service GmbH Storkower Str. 38c, D-15526 Reichenwalde, Germany Page 1 of 13 RF-EXPOSURE ASSESSMENT REPORT FCC 47 CFR Part 2.1091 Industry Canada RSS-102 RF-Exposure evaluation of mobile equipment Report Reference No. ..................... : G0M-1408-4061-TFC091ME-V01 Testing Laboratory ......................... : Eurofins Product Service GmbH Address............................................. : Storkower Str. 38c 15526 Reichenwalde Germany Accreditation ..................................... : A2LA Accredited Testing Laboratory, Certificate No.: 1983.01 FCC Filed Test Laboratory, Reg.-No.: 96970 IC OATS Filing assigned code: 3470A Applicant’s name ............................ : Sonetics Corporation Address............................................. : 7340 SW Durham Road OR 97224 Portland USA Test specification: Standard ........................................... : 47 CFR 1.1310 / 47 CFR 2.1091 / 47 CFR 2.1093 OET Bulletin 65:1997 RSS-102, Issue 4:2010 Safety Code 6:2009 Equipment under test (EUT): Product description DECT 6.0 Base Station Model No. SON150 Additional Model(s) None Brand Name(s) Sonetics Corporation Hardware version SON150 Rev A (See Addition Information) Firmware / Software version Rev A (See Addition Information) FCC-ID: V9N950325700V1 IC: 7895A-950325700 Test result Passed Test Report No.: G0M-1408-4061-TFC091ME-V01 Eurofins Product Service GmbH Storkower Str. 38c, D-15526 Reichenwalde, Germany Page 3 of 13 Additional comments: Test Report No.: G0M-1408-4061-TFC091ME-V01 Eurofins Product Service GmbH Storkower Str. 38c, D-15526 Reichenwalde, Germany Page 4 of 13 Version History Version Issue Date Remarks Revised by 01 2014-12-15 Initial Release Test Report No.: G0M-1408-4061-TFC091ME-V01 Eurofins Product Service GmbH Storkower Str. 38c, D-15526 Reichenwalde, Germany Page 5 of 13 REPORT INDEX 1 EQUIPMENT (TEST ITEM) DESCRIPTION 6 1.1 Reference Documents 7 1.2 Radiation Sources 8 2 RESULT SUMMARY 9 3 RF-EXPOSURE CLASSIFICATIONS 10 4 ASSESSMENT 11 4.1 MPE Assessment – 47 CFR 2.1091 / RSS-102 11 Test Report No.: G0M-1408-4061-TFC091ME-V01 Eurofins Product Service GmbH Storkower Str. 38c, D-15526 Reichenwalde, Germany Page 6 of 13 1 Equipment (Test item) Description Description DECT 6.0 Base Station Model SON150 Additional Model(s) None Brand Name(s) Sonetics Corporation Serial number None Hardware version SON150 Rev A (See Addition Information) Software / Firmware version Rev A (See Addition Information) FCC-ID V9N950325700V1 IC 7895A-950325700 Equipment type End product Test Report No.: G0M-1408-4061-TFC091ME-V01 Eurofins Product Service GmbH Storkower Str. 38c, D-15526 Reichenwalde, Germany Page 7 of 13 1.1 Reference Documents Document type Document No. Issued by Date Test Report G0M-1408-4061-TFC15DFP-V01 Eurofins Product Service GmbH 2014-12-15 Test Report No.: G0M-1408-4061-TFC091ME-V01 Eurofins Product Service GmbH Storkower Str. 38c, D-15526 Reichenwalde, Germany Page 8 of 13 1.2 Radiation Sources Mode # Description UPCS Frequency range [MHz] 1921.536 – 1928.448 MHz Channels 5 Modulations GFSK Maximum conducted power [dBm] 17.95 Maximum transmission duty cycle [%] 21 Antenna gain [dBi] 3.0 Antenna diameter [cm] 13.3 Test Report No.: G0M-1408-4061-TFC091ME-V01 Eurofins Product Service GmbH Storkower Str. 38c, D-15526 Reichenwalde, Germany Page 9 of 13 2 Result Summary FCC 47 CFR Part 2.1091, IC RSS-102 Product Specific Standard Section Requirement Result Remarks 47 CFR 2.1091 Maximum permissible exposure @ 20cm below limit PASS RSS-102 2.5.2 Maximum permissible exposure @ 20cm below limit PASS Remarks: Test Report No.: G0M-1408-4061-TFC091ME-V01 Eurofins Product Service GmbH Storkower Str. 38c, D-15526 Reichenwalde, Germany Page 10 of 13 3 RF-Exposure Classifications Device Types Fixed A fixed device is defined as a device physically secured at one fixed location and cannot be easily re-located. Mobile A mobile device is defined as a transmitting device designed to be used in other than fixed locations and to generally be used in such a way that a separation distance of at least 20 centimeters is normally maintained between the transmitter's radiating structure(s) and the body of the user or nearby persons. (47 CFR 2.1091) Portable A portable device is defined as a transmitting device designed to be used so that the radiating structure(s) of the device is/are within 20 centimeters of the body of the user. (47 CFR 2.1093) Exposure Categories Occupational / Controlled Limits apply in situations in which persons are exposed as a consequence of their employment provided those persons are fully aware of the potential for exposure and can exercise control over their exposure. Limits for occupational/controlled exposure also apply in situations when an individual is transient through a location where occupational/controlled limits apply provided he or she is made aware of the potential for exposure. General population / uncontrolled Exposures apply in situations in which the general public may be exposed, or in which persons that are exposed as a consequence of their employment may not be fully aware of the potential for exposure or cannot exercise control over their exposure. Test Report No.: G0M-1408-4061-TFC091ME-V01 Eurofins Product Service GmbH Storkower Str. 38c, D-15526 Reichenwalde, Germany Page 11 of 13 4 Assessment 4.1 MPE Assessment – 47 CFR 2.1091 / RSS-102 MPE Assessment acc. to 47 CFR 2.1091 / IC RSS-102 Verdict: PASS Assessment according to reference Reference Method FCC OET Bulletin 65 / RSS-102 & Safety Code 6 Device type mobile Exposure category General public IC Limits – Occupational / Controlled Exposure Frequency range [MHz] Electric field strength [V/M] Magnetic field strength [A/M] Power density [W/m 2 ] Averaging time [min] 0.003 – 1.0 600 4.9 N/A 6 1 – 10 600/f 4.9/f N/A 6 10 – 30 60 4.9/f N/A 6 30 – 300 60 0.163 10.0* 6 300 – 1500 3.54·f 0.5 0.0094·f 0.5 f/30 6 1500 - 15000 137 0.364 5…

Text truncated - open the document above for the full version.

Test Report No.: G0M-1408-4061-TFC15DFP-V01 Eurofins Product Service GmbH Storkower Str. 38c, D-15526 Reichenwalde, Germany Page 1 of 157 FCC TEST REPORT FCC 47 CFR Part 15D Unlicensed Personal Communication Service Devices Industry Canada RSS-213 2GHz License-exempt Personal Communications Service Devices (LE-PCS) Report Reference No. ..................... : G0M-1408-4061-TFC15DFP-V01 Testing Laboratory ......................... : Eurofins Product Service GmbH Address............................................. : Storkower Str. 38c 15526 Reichenwalde Germany Accreditation ..................................... : A2LA Accredited Testing Laboratory, Certificate No.: 1983.01 FCC Filed Test Laboratory, Reg.-No.: 96970 IC OATS Filing assigned code: 3470A Applicant’s name ............................ : Sonetics Corporation Address............................................. : 7340 SW Durham Road OR 97224 Portland USA Test specification: Standard ........................................... : 47 CFR Part 15D 47 CFR Part 15C 47 CFR Part 15B RSS-213, Issue 2, 2005-12 RSS-Gen, Issue 3, 2010-12 ANSI C63.17:2006 ANSI C63.4:2003 Equipment under test (EUT): Product description DECT 6.0 Base Station Model No. SON150 Additional Model(s) None Brand Name(s) Sonetics Corporation Hardware version SON150 Rev A (See Addition Information) Firmware / Software version Rev A (See Addition Information) FCC-ID: V9N950325700V1 IC: 7895A-950325700 Test result Passed Test Report No.: G0M-1408-4061-TFC15DFP-V01 Eurofins Product Service GmbH Storkower Str. 38c, D-15526 Reichenwalde, Germany Page 3 of 157 Additional comments: Test Report No.: G0M-1408-4061-TFC15DFP-V01 Eurofins Product Service GmbH Storkower Str. 38c, D-15526 Reichenwalde, Germany Page 4 of 157 Version History Version Issue Date Remarks Revised by 01 2014-12-15 Initial Release Test Report No.: G0M-1408-4061-TFC15DFP-V01 Eurofins Product Service GmbH Storkower Str. 38c, D-15526 Reichenwalde, Germany Page 5 of 157 REPORT INDEX 1 EQUIPMENT (TEST ITEM) DESCRIPTION 7 1.1 Photos - Equipment external 9 1.2 Photos - Equipment internal 12 1.3 Photos – Test setup 13 1.4 Supporting Equipment Used During Testing 14 1.5 Test Modes 15 1.6 Test Equipment Used During Testing 16 1.7 Sample emission level calculation 17 2 RESULT SUMMARY 18 3 TEST CONDITIONS AND RESULTS 20 3.1 Test Conditions and Results – Coordination with fixed microwave service 20 3.2 Test Conditions and Results – Cross reference to subpart B 21 3.3 Test Conditions and Results – AC power line conducted emissions 22 3.4 Test Conditions and Results – Antenna requirement 25 3.5 Test Conditions and Results – Digital modulation 26 3.6 Test Conditions and Results – Occupied Bandwidth 27 3.7 Test Conditions and Results – Emission Bandwidth 31 3.8 Test Conditions and Results – Peak transmit power 34 3.9 Test Conditions and Results – Power spectral density 42 3.10 Test Conditions and Results – Frequency stability 45 3.11 Test Conditions and Results – Transmitter in-band unwanted emissions 51 3.12 Test Conditions and Results – Transmitter out-of-band emissions 55 3.13 Test Conditions and Results – Receiver spurious emissions 122 3.14 Test Conditions and Results – Automatic discontinuation of Transmission 132 3.15 Test Conditions and Results – Radiofrequency radiation exposure 133 3.16 Test Conditions and Results – Monitoring threshold 134 3.17 Test Conditions and Results – LIC confirmation 136 3.18 Test Conditions and Results – LIC selection 137 3.19 Test Conditions and Results – Monitoring antenna 138 3.20 Test Conditions and Results – Monitoring time 140 3.21 Test Conditions and Results – Monitoring bandwidth 141 3.22 Test Conditions and Results – Monitoring reaction time 142 3.23 Test Conditions and Results – Access criteria test interval 144 Test Report No.: G0M-1408-4061-TFC15DFP-V01 Eurofins Product Service GmbH Storkower Str. 38c, D-15526 Reichenwalde, Germany Page 6 of 157 3.24 Test Conditions and Results – Access criteria functional test 146 3.25 Test Conditions and Results – Acknowledgements 150 3.26 Test Conditions and Results – Maximum spectral occupancy 152 3.27 Test Conditions and Results – Fair access 153 3.28 Test Conditions and Results – Frame period and Jitter 154 3.29 Test Conditions and Results – Frame and TDMA repetition stability 156 Test Report No.: G0M-1408-4061-TFC15DFP-V01 Eurofins Product Service GmbH Storkower Str. 38c, D-15526 Reichenwalde, Germany Page 7 of 157 1 Equipment (Test item) Description Description DECT 6.0 Base Station Model SON150 Additional Model(s) None Brand Name(s) Sonetics Corporation Serial number None Hardware version SON150 Rev A (See Addition Information) Software / Firmware version Rev A (See Addition Information) FCC-ID V9N950325700V1 IC 7895A-950325700 Equipment type End Product Radio type DECT Fixed Part Number of Radios 1 transceivers is built into the device Radio technology DECT 6.0 Operating frequency range 1921.536 - 1928.448MHz Assigned frequency band 1920 - 1930MHz Number of RF channels 5 Supported slots even and odd Number of time slots 12 x Tx + 12 x RX = 24 Channels F 0 Ch:0 / 1928.448MHz F 1 Ch:1 / 1926.720MHz F 2 Ch:2 / 1924.992MHz F 3 Ch:3 / 1923.264MHz F 4 Ch:4 / 1921.536MHz Main test frequencies F LOW Ch:4 / 1921.536MHz F MID Ch:2 / 1924.992MHz F HIGH Ch:0 / 1928.448MHz Modulations GFSK Emission designator F7D Nominal emission bandwidth 1.42 MHz Channel spacing 1728 kHz Spectrum access Listen before transmit Nominal lower threshold N/A Nominal upper threshold -60 dBm Number of antennas 2 per transceiver Test Report No.: G0M-1408-4061-TFC15DFP-V01 Eurofins Product Service GmbH Storkower Str. 38c, D-15526 Reichenwalde, Germany Page 8 of 157 Antenna 1 Type integrated Model printed f antenna Manufacturer see Manufacturer Gain 0 dBi Antenna 2 Type external dedicated Model HG1930RD-RSP Manufacturer L-Com Gain 3 dBi Antenna 3 Type external dedicated Model TRA6927M3NW001 Manufacturer Laird Gain 5.5 dBi - 2.6dB cable loss = 2.9 dBi net gain Manufacture…

Text truncated - open the document above for the full version.

TSup Photos page 1 Model No.:SON150 FCC ID: V9N950325700V1 IC: 7895A-950325700 Project No.: G0M-1408-4061
