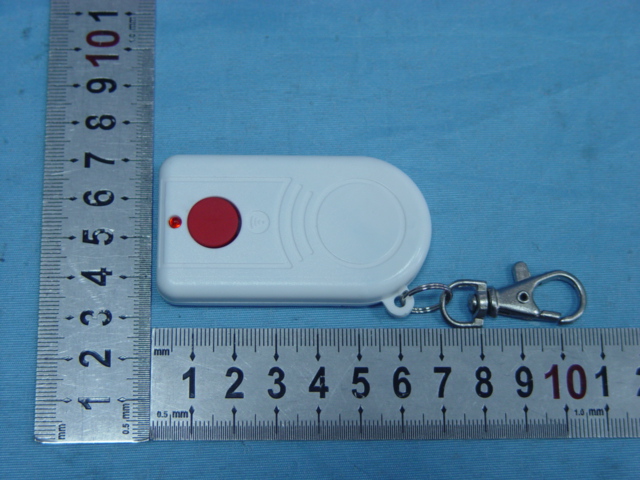

VABRBL6TXRemote Light Controller

Remote Control Light Remote Control Light can be instantly stacked up anywhere you need light, supplies instant powerful light anywhere without wires or electricity. It can be fixed without any tools/ electricity/ wiring or cords. It can be used 2- ways tap on or use remote. It is portable and can be used as a flashlight, just lift light out of cradle and take it with you. It can be used in closet /pantry /cabinets/ bathroom /kitchen/ basement/garage, etc. Main Product Features: A. Bright light, which is built with 5 powerful super bright LED bulbs. B. Plastic cradle which can hold the light inside. It can be stuck anywhere by the strong original 3M sticker at the back of the bracket/cradle. C. Powerful key chain remote control turns light on and off from over 30 feet away. Technical Information: --Uses 4 ̄ “AA” batteries for the light and 1 ̄ “23A 12V” battery for the remote controller. --Light Rated Voltage: 6 V. Remote controller Rated Voltage: 12V --Light Rated current or power: 300 mA --Frequency: 315 MHz --Remote control distance: 30 feet --Weight: 250 grams --Dimension: light diameter: 11 cm, remote controller: 6.50 x 3.50x1.00 cm Before using for the first time As you unwrap the product you can familiarize yourself with it and the attachments. How to use --Put 4 “AA” batteries inside the battery cover of light. --Put the light into the cradle. --Remove the upper protective paper of the 3M sticker at the back of the cradle. --Stick the cradle to any smoothly surface where you need light. --You can tap the cover to turn on/off the light or you can use the remote controller up to 30 ft. away turn on/off the light. --You can remove the light from the cradle and use it as a flashlight. FCC Statement 1. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation. 2. Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment.

ANT 3.9V Stabilizing Circuit Encode 315 MHz RF Oscillator 1 s time-delay DC 12V Power Supply

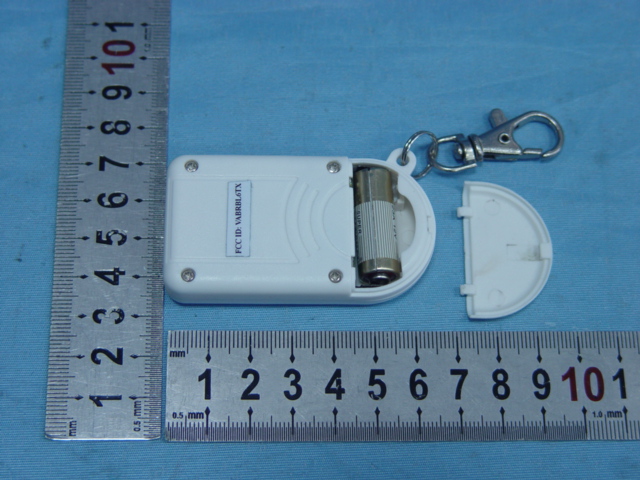

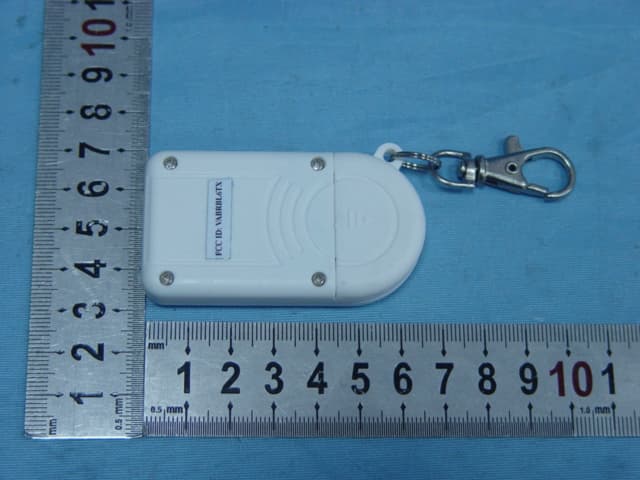

ID label & location info. ID label location FCC ID: VABRBL6TX

TX Operation Description Transmit Frequency: 315MHz Modulation Type: ASK Press power switch SW1, the device goes into working mode. X1 and Q1 are RF oscillator with 315 MHz. IC1 is an encoder. IC2 is for time-delay. Pin 8 of IC1 output encoded signals to the RF oscillator. L1 transmits at 315 MHz. At the same time, IC2 counts transmission time. IC2 outputs 0 level at pin LED to stop Q2 working. When time reaches 1 s, IC2 output 1 level at pin LED, Q2 switches on. This leads to RF oscillator to stop transmission. This way controls transmission time 1 s max.

Page 1 of 28 FCC ID: VABRBL6TX ACCURATE TECHNOLOGY CO. LTD REPORT NO. ATE20070941 APPLICATION CERTIFICATION On Behalf of JEWELITE (H.K.) LIMITED Remote Control Model No.: RBL-6 FCC ID: VABRBL6TX Prepared for : JEWELITE (H.K.) LIMITED Address : Suite 2512, 25 th Floor, Bank of America Plaza, 555 Renmin Zhong Road, Guangzhou, 510145, China Prepared by : ACCURATE TECHNOLOGY CO. LTD Address : F1, Bldg. A, Changyuan New Material Port, Keyuan Rd. Science & Industry Park, Nanshan, Shenzhen, Guangdong P.R. China Tel: (0755) 26503290 Fax: (0755) 26503396 Report Number : ATE20070941 Date of Test : April 20, 2007 Date of Report : April 25, 2007 Page 2 of 28 FCC ID: VABRBL6TX ACCURATE TECHNOLOGY CO. LTD REPORT NO. ATE20070941 TABLE OF CONTENTS Description Page Test Report Certification 1. GENERAL INFORMATION .......................................................................................................... 4 1.1. Description of Device (EUT)....................................................................................................................4 1.2. Description of Test Facility ......................................................................................................................4 1.3. Measurement Uncertainty.........................................................................................................................4 2. MEASURING DEVICE AND TEST EQUIPMENT ..................................................................... 5 3. THE FIELD STRENGTH OF RADIATION EMISSION ............................................................ 6 3.1. Block Diagram of Test Setup....................................................................................................................6 3.2. The Field Strength of Radiation Emission Measurement Limits..............................................................6 3.3. Configuration of EUT on Measurement ...................................................................................................7 3.4. Operating Condition of EUT ....................................................................................................................7 3.5. Test Procedure ..........................................................................................................................................7 3.6. The Field Strength of Radiation Emission Measurement Results ............................................................8 4. 20DB OCCUPIED BANDWIDTH ................................................................................................ 10 4.1. Block Diagram of Test Setup..................................................................................................................10 4.2. The Bandwidth of Emission Limit According To FCC Part 15 Section 15.231(c) ................................10 4.3. EUT Configuration on Measurement .....................................................................................................11 4.4. Operating Condition of EUT ..................................................................................................................11 4.5. Test Procedure ........................................................................................................................................11 4.6. Measurement Result ...............................................................................................................................12 5. RELEASE TIME MEASUREMENT............................................................................................ 13 5.1. Block Diagram of Test Setup..................................................................................................................13 5.2. Release Time Measurement According To FCC Part 15 Section 15.231(a) ..........................................13 5.3. EUT Configuration on Measurement .....................................................................................................14 5.4. Operating Condition of EUT ..................................................................................................................14 5.5. Test Procedure ........................................................................................................................................14 5.6. Measurement Result ...............................................................................................................................15 6. AVERAGE FACTOR MEASUREMENT .................................................................................... 16 6.1. Block Diagram of Test Setup..................................................................................................................16 6.2. Average factor Measurement according to ANSI 63.4: 2003.................................................................16 6.3. EUT Configuration on Measurement .....................................................................................................17 6.4. Operating Condition of EUT ..................................................................................................................17 6.5. Test Procedure ........................................................................................................................................17 6.6. Measurement Result ...............................................................................................................................18 APPENDIX I ( TEST CURVES) (9 pages) Page 3 of 28 FCC ID: VABRBL6TX ACCURATE TECHNOLOGY CO. LTD REPORT NO. ATE20070941 Test Report Certification Applicant : JEWELITE (H.K.) LIMITED Manufacturer : JEWELITE (H.K.) LIMITED EUT Description : Remote Control (A) MODEL NO.: RBL-6 (B) SERIAL NO.: N/A (C) POWER SUPPLY: 12V DC (“23AE” battery Type ̄1) Measurement Procedure Used: FCC Rules and Regulations Part 15 Subpart C Section 15.231: 2006 & ANSI 63.4: 2003 The device described above is tested by ACCURATE TECHNOLOGY CO. LTD to determine the maximum emission levels e…
