VAWSMT-CW230WiMAX CPE

SMT-CW230 User’s Guide Rev 0.8 1 / 39 User ’ s Guide SMT-CW230 JAN. 2010 SMT-CW230 User’s Guide Rev 0.8 2 / 39 FCC Compliance Information This device complies with Part 15 of FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received including interference that may cause undesired operation. RF Radiation Exposure Statement This equipment complies with FCC RF Radiation Exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with a minimum distance of 20cm between the radiator and your body. This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter Warnings This equipment has been tested and found to comply with limits for a class B digital device, pursuant to Part 15, 27 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment can generates, uses, and radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. Of this equipment does cause unacceptable interference to radio and television reception, which can be determined by turning the equipment off and on the user is encouraged to try to correct the interference by one or more of the following measures. z Reorient or relocate the receiving antenna. z Increase the separation between the equipment and receiver. z Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. z Consult the dealer or an experienced Radio/TV technician for help. Caution Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. SMT-CW230 User’s Guide Rev 0.8 3 / 39 Contents 1. Product Introduction...............................................................................................................................................................5 1.1 Overview .........................................................................................................................................................................5 1.2 Key Features ...................................................................................................................................................................5 2. Product Configuration ............................................................................................................................................................ 6 2.1 Product Configuration ...................................................................................................................................................... 6 2.2 Product Appearance......................................................................................................................................................... 6 3. Product Installation & Setup ...................................................................................................................................................7 3.1 Initial Settings .................................................................................................................................................................7 3.2 Product Connection & Installation ......................................................................................................................................7 4. SMT-CW230 Web Setup Screen................................................................................................................................................. 8 4.1 SMT-CW230 Function Configuration ..................................................................................................................................... 8 4.2 Web Server Access.......................................................................................................................................................... 8 5. Web CM................................................................................................................................................................................ 9 5.1 Simple Setting................................................................................................................................................................. 9 5.1.1 System Setting......................................................................................................................................................... 9 5.1.2 IP Setting ............................................................................................................................................................... 10 5.1.3 Wireless Setting.......................................................................................................................................................11 5.1.4 Security Setting.......................................................................................................................................................12 5.2 Internet Setting............................................................................................................................................................. 14 5.2.1 LAN........................................................................................................................................................................ 14 5.2.2 WAN........................................................................................................................................................................15 5.2.3 LAN DHCP Info ..................................................................................................................................................…

Text truncated - open the document above for the full version.

SK telesys Co., Ltd 8~12F, Chorim Bldg. 6-3, Sunae-Dong, Bundang-Gu, Seongnam, Gyeonggi-Do, 463-825 DATE : 2010. 02. 04 Federal Communications Commission Authorization and Evaluation Division Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 U.S.A To Whom it may concern : We, the undersigned, hereby authorize NEMKO KOREA CO., LTD. to act on our behalf in all matters relating to application for equipment authorization, including the signing of all documents relating to these matters. Any and all acts carried out by NEMKO KOREA CO., LTD. on our behalf shall have the same effect as acts of our own. We also hereby certify that no party to this application is subject to a denial of benefits, including FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988.21U.S.C.853(a). Sincerely, Seung-Moon, Lee / Deputy General Manager SK telesys Co., Ltd.

SK telesys Co., Ltd 8~12F, Chorim Bldg. 6-3, Sunae-Dong, Bundang-Gu, Seongnam, Gyeonggi-Do, 463-825 Federal Communications Commission Authorization and Evaluation Division Confidentiality Request regarding application for certification of FCC ID: VAWSMT-CW230 Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, we hereby request confidential treatment of information accompanying this application as outlined below: Block Diagram, Circuit Diagrams, Parts List and Operational Description The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that pursuant to Section 0.457 of the Rules, disclosure of this application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely, Seung-Moon, Lee / Deputy General Manager SK telesys Co., Ltd.

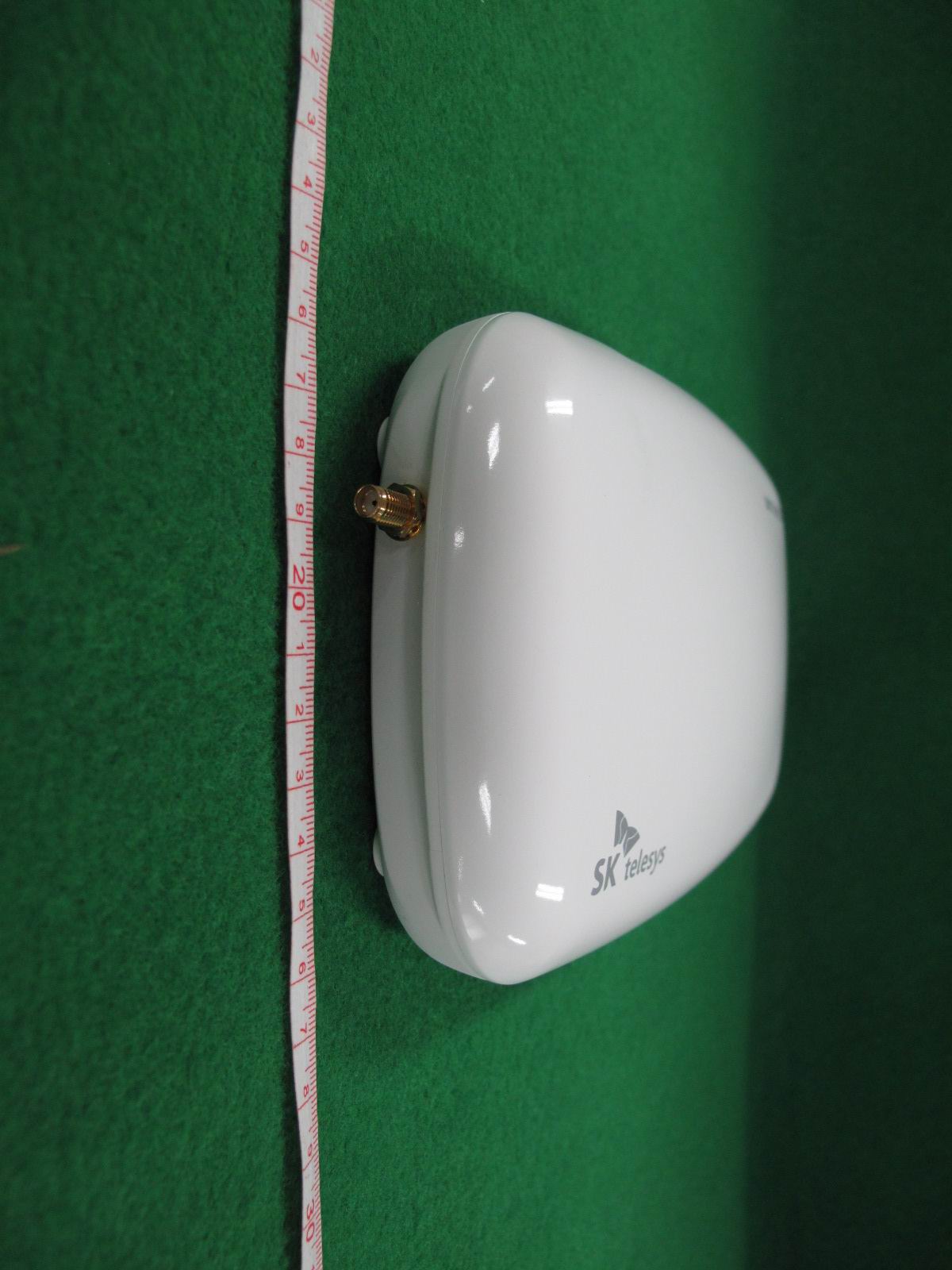

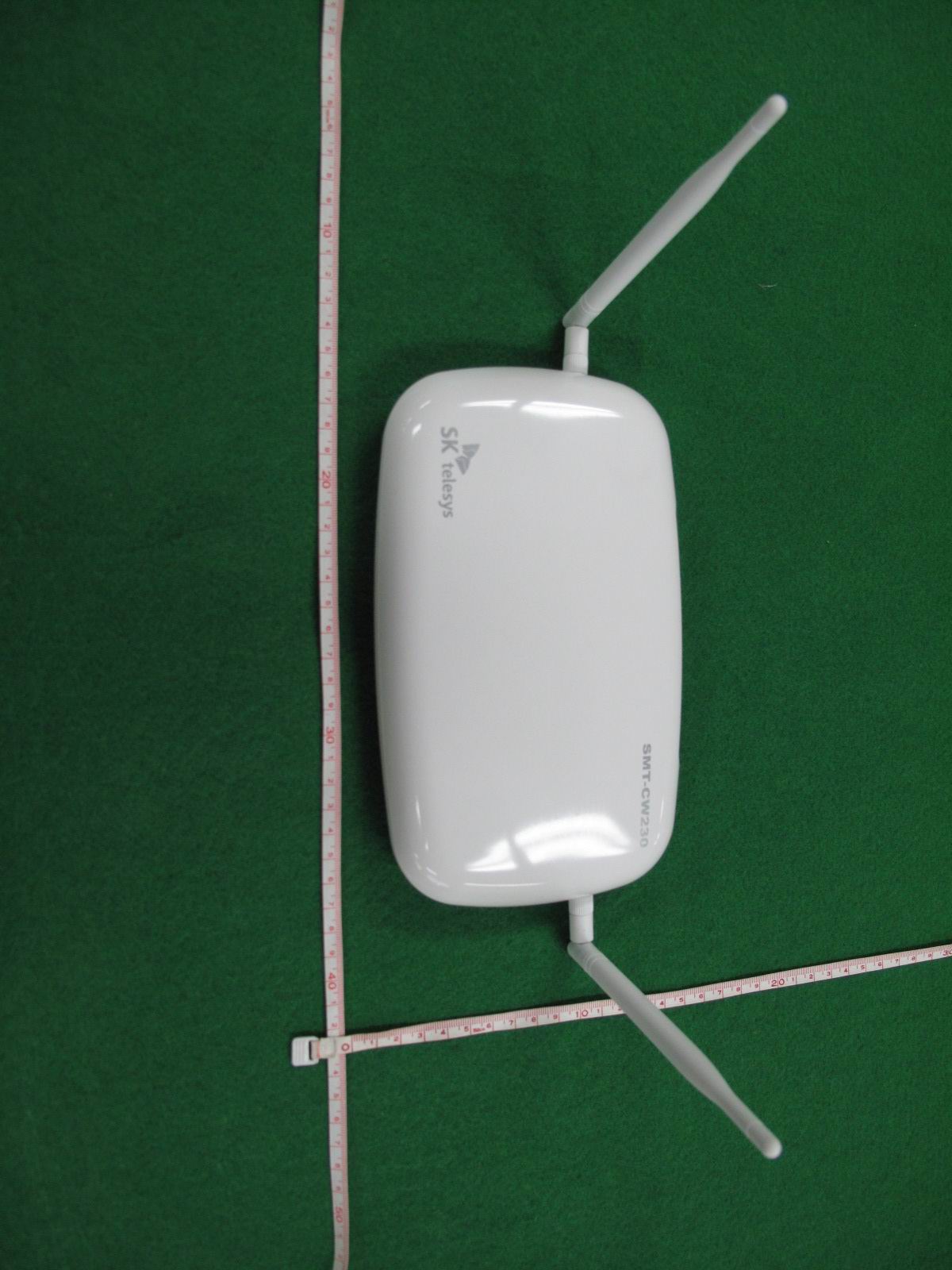

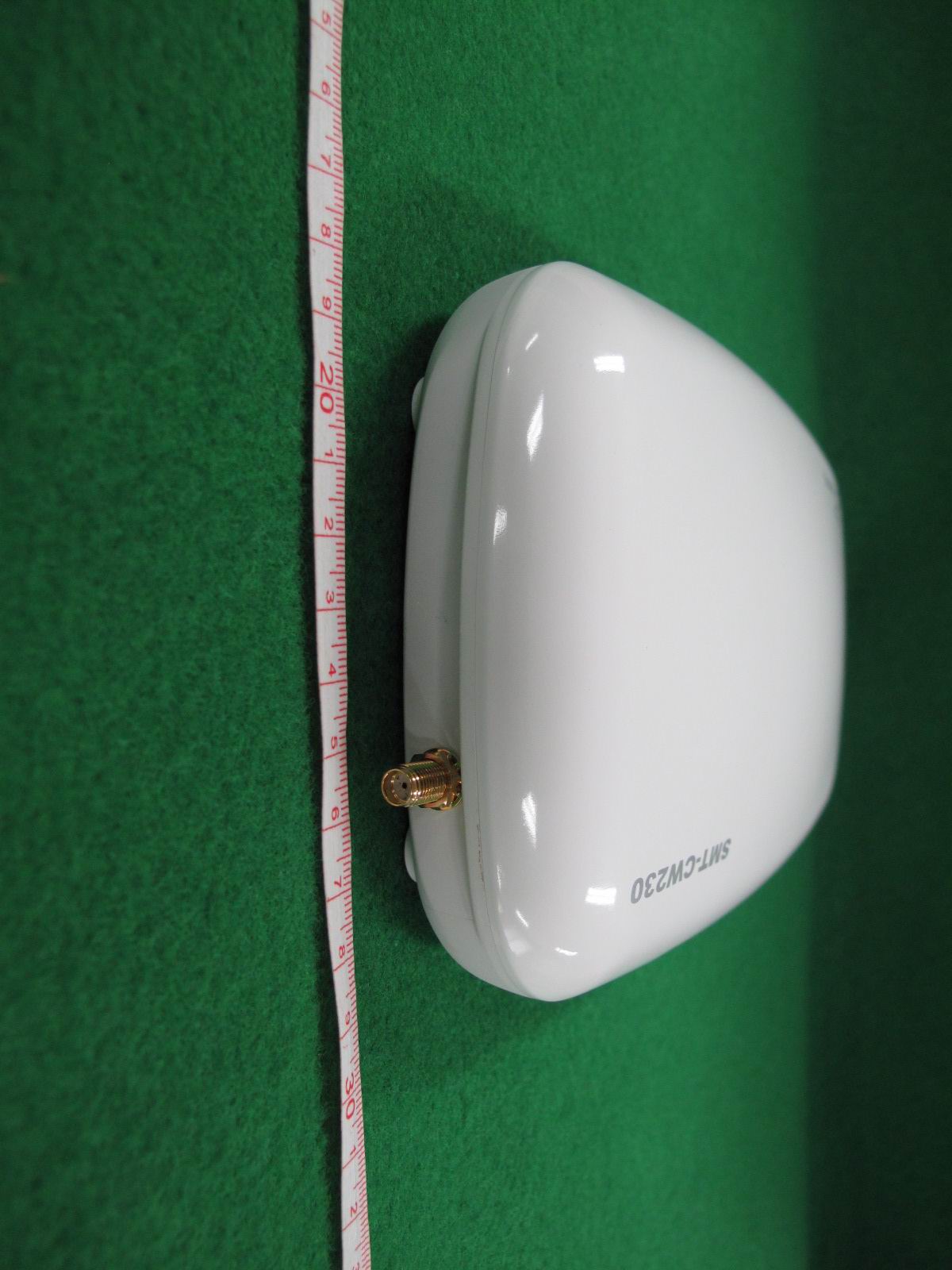

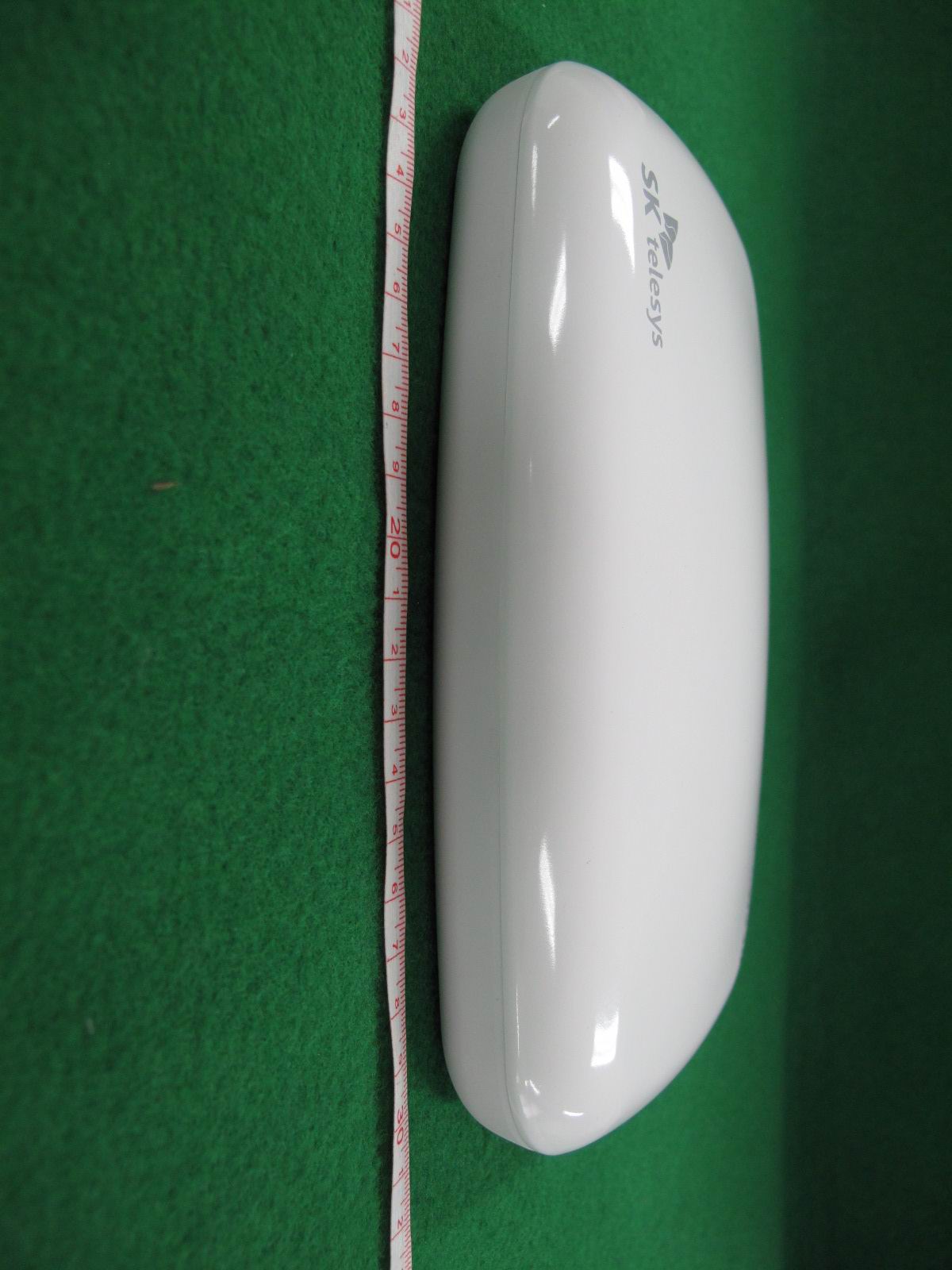

Test Report No.: NK-10-R-012-1 FCC Certification SK telesys Co., Ltd. FCC ID :VAWSMT-CW230 Page 109 of 123 APPENDIX C – EUT PHOTOGRAPHS Front View of EUT Test Report No.: NK-10-R-012-1 FCC Certification SK telesys Co., Ltd. FCC ID :VAWSMT-CW230 Page 110 of 123 Rear View of EUT Test Report No.: NK-10-R-012-1 FCC Certification SK telesys Co., Ltd. FCC ID :VAWSMT-CW230 Page 111 of 123 Left Side View of EUT Test Report No.: NK-10-R-012-1 FCC Certification SK telesys Co., Ltd. FCC ID :VAWSMT-CW230 Page 112 of 123 Right Side View of EUT Test Report No.: NK-10-R-012-1 FCC Certification SK telesys Co., Ltd. FCC ID :VAWSMT-CW230 Page 113 of 123 Bottom Side View of EUT

Test Report No.: NK-10-R-012-1 FCC Certification SK telesys Co., Ltd. FCC ID :VAWSMT-CW230 Page 107 of 123 Appendix A - Labelling Requirement The sample label shown shall be permanently affixed at a conspicuous location on the device and be readily visible to the user at the time of purchase. Labelling Requirements

Test Report No.: NK-10-R-012-1 FCC Certification SK telesys Co., Ltd. FCC ID :VAWSMT-CW230 Page 114 of 123 InSide View of EUT Test Report No.: NK-10-R-012-1 FCC Certification SK telesys Co., Ltd. FCC ID :VAWSMT-CW230 Page 115 of 123 Main Board Front Side View of EUT Test Report No.: NK-10-R-012-1 FCC Certification SK telesys Co., Ltd. FCC ID :VAWSMT-CW230 Page 116 of 123 Main Board Rear Side View of EUT Test Report No.: NK-10-R-012-1 FCC Certification SK telesys Co., Ltd. FCC ID :VAWSMT-CW230 Page 117 of 123 WiMAX Module Front Side View of EUT Test Report No.: NK-10-R-012-1 FCC Certification SK telesys Co., Ltd. FCC ID :VAWSMT-CW230 Page 118 of 123 WiMAX Module Rear Side View of EUT Test Report No.: NK-10-R-012-1 FCC Certification SK telesys Co., Ltd. FCC ID :VAWSMT-CW230 Page 119 of 123 WiMAX Module Front Side View of EUT-without Shield can Test Report No.: NK-10-R-012-1 FCC Certification SK telesys Co., Ltd. FCC ID :VAWSMT-CW230 Page 120 of 123 WLAN Front Side View of EUT-without Shield can Test Report No.: NK-10-R-012-1 FCC Certification SK telesys Co., Ltd. FCC ID :VAWSMT-CW230 Page 121 of 123 WLAN Rear Side View of EUT-without Shield can Test Report No.: NK-10-R-012-1 FCC Certification SK telesys Co., Ltd. FCC ID :VAWSMT-CW230 Page 122 of 123 WiMAX Antenna View of EUT Test Report No.: NK-10-R-012-1 FCC Certification SK telesys Co., Ltd. FCC ID :VAWSMT-CW230 Page 123 of 123 ● Diplexer View of EUT

Prediction of MPE limit at a given distance(WiMAX) Equation from page 18 of OET Bulletin 65, Edition 97-01where: S = power density P = power input to the antennaG = power gain of the antenna in the direction of interest relative to an isotropic radiatorR = distance to the center of radiation of the antenna Mi k tt t t i tt il 30 55 (dB ) 2 4 R PG S π = Maximum peak output power at antenna input terminal: 30.55 (dBm) Maximum peak output power at antenna input terminal: 1135.010816 (mW) Antenna gain(typical): 5.9 (dBi) Maximum antenna gain: 3.89045145 (numeric) Prediction distance: 20 (cm) Prediction frequency: 2312.5 (MHz) MPE limit for uncontrolled exposure at prediction frequency: 1 (mW/cm^2) Power density at prediction frequency: 0.878476 (mW/cm^2) 8.784764927 (W/m^2) Maximum allowable antenna gain: 6.462698554 (dBi) Antenna Gain Margin of Compliance: 0.562698554 (dB) Maximum Distance: 18.74541536 (cm) 2 4 R PG S π = Prediction of MPE limit at a given distance(WLAN) Equation from page 18 of OET Bulletin 65, Edition 97-01where: S = power density P = power input to the antennaG = power gain of the antenna in the direction of interest relative to an isotropic radiatorR = distance to the center of radiation of the antenna Mi k tt t t i tt il 11 48 (dB ) 2 4 R PG S π = Maximum peak output power at antenna input terminal: 11.48 (dBm) Maximum peak output power at antenna input terminal: 14.06047524 (mW) Antenna gain(typical): -2.77 (dBi) Maximum antenna gain: 0.528445252 (numeric) Prediction distance: 20 (cm) Prediction frequency: 2437 (MHz) MPE limit for uncontrolled exposure at prediction frequency: 1 (mW/cm^2) Power density at prediction frequency: 0.001478 (mW/cm^2) 0.014781896 (W/m^2) Maximum allowable antenna gain: 25.53269855 (dBi) Antenna Gain Margin of Compliance: 28.30269855 (dB) Maximum Distance: 0.768944629 (cm) 2 4 R PG S π =

Test Report No.: NK-10-R-012-2 FCC Certification SK telesys Co., Ltd. FCC ID :VAWSMT-CW230 Page 2 of 66 TABLE OF CONTENTS 1. Scope 4 2. Introduction (Site Description) 5 3. Test Conditions & EUT Information 6 3.1 Operation During Test 6 3.2 Support Equipment 6 3.3 Setup Drawing 7 3.4 EUT Information 8 4. Summary of Test Results 9 5. Recommendation / Conclusion 10 6. Antenna Requirements 10 7. Description of Test 11 7.1 Conducted Emissions 11 7.2 Radiated Emissions 12 7.3 6 dB Bandwidth 13 7.4 Maximum Peak Output Power 13 7.5 Peak Power Spectral Density 14 7.6 Conducted Spurious Emissions 14 8. Test Data 15 8.1 Conducted Emissions 15 8.2 Radiated Emissions 18 8.3 6 dB Modulated Bandwidth 19 8.4 Peak Power Output 23 8.5 Power Spectral Density 24 8.6 Conducted Spurious Emissions 28 8.7 Radiated Spurious Emissions 37 Test Report No.: NK-10-R-012-2 FCC Certification SK telesys Co., Ltd. FCC ID :VAWSMT-CW230 Page 3 of 66 9 Accuracy of Measurement 47 10. Test Equipment 49 Appendix A: Labelling Requirement 50 Appendix B: Photographs of Test Set-up 51 Appendix C: EUT Photographs 53 Test Report No.: NK-10-R-012-2 FCC Certification SK telesys Co., Ltd. FCC ID :VAWSMT-CW230 Page 4 of 66 1. SCOPE Measurement and determination of electromagnetic emissions (EME) of radio frequency devices including intentional and/or unintentional radiators for compliance with the technical rules and regulations of the Federal Communications Commission under FCC part 15. Responsible Party : Contact Person : Manufacturer : SK telesys Co., Ltd. Mr. Seung Moon Lee Tel No. : +82 31 786 5764 SK telesys Co., Ltd. 10F Chorim Bldg. 6-3, Sunae-Dong, Bundang-Gu, Seongnam-Si z FCC ID: VAWSMT-CW230 z Model: SMT-CW230 z Brand Name: SK telesys z EUT Type: WiMAX CPE z Classification: FCC part 15 Digital modulation Transmitter z Applied Standard: FCC 47 CFR Part 15 subpart C z Test Procedure(s): ANSI C63.4 (2003) z Dates of Test: Jan. 14, 2010 ~ Feb. 07, 2010 z Place of Tests: Nemko Korea Co., Ltd. Test Report No.: NK-10-R-012-2 FCC Certification SK telesys Co., Ltd. FCC ID :VAWSMT-CW230 Page 5 of 66 2. INTRODUCTION The measurement procedure described in American National Standard for Methods of Measurement of Radio-Noise Emissions from Low-Voltage Electrical and Electronic Equipment in the Range of 9kHz to 40GHz (ANSI C63.4-2003) was used in determining radiated and conducted emissions emanating from SK telesys Co., Ltd. FCC ID : VAWSMT-CW230. These measurement tests were conducted at Nemko Korea Co., Ltd. EMC Laboratory . The site address is 300-2, Osan-Ri, Mohyeon-Myeon, Cheoin-Gu, Yongin-Si, Gyeonggi-Do, KOREA. The area of Nemko Korea Corporation Ltd. EMC Test Site is located in a mountain area at 80 kilo-meters (48 miles) southeast and Incheon International Airport (Incheon Airport), 30 kilometers (18miles) south-southeast from central Seoul. It is located in the valley surrounded by mountains in all directions where ambient radio signal conditions are quiet and a favorable area to measure the radio frequency interference on open field test site for the computing and ISM devices manufactures. The detailed description of the measurement facility was found to be in compliance with the requirements of §2.948 according to ANSI C63.4 2003. Fig. 1. The map above shows the Seoul in Korea vicinity area. The map also shows Nemko Korea Corporation Ltd. EMC Lab. and Incheon Airport. Nemko Korea Co., Ltd. EMC Lab. 300-2, Osan-Ri, Mohyeon-Myeon, Cheoin-Gu, Yongin-Si, Gyeonggi-Do, KOREA 449-852 Tel)+82-31-322-2333 Test Report No.: NK-10-R-012-2 FCC Certification SK telesys Co., Ltd. FCC ID :VAWSMT-CW230 Page 6 of 66 3. TEST CONDITIONS & EUT INFORMATION 3.1 Operation During Test The EUT was measured at WLAN Traffic mode with the maximum output power in accordance with the manufacturer’s specifications. Power setting level Test frequency 2412 MHz 2437 MHz 2462 MHz 802.11b Mode Power Level 3 3 5 Data rate 11 11 11 802.11g Mode Power Level 3 3 5 Data rate 54 54 54 3.2 Support Equipment WiMAX CPE (EUT) SK telesys Co., Ltd. FCC ID: VAWSMT-CW230 S/N: N/A AC Adaptor Ktec® Model : KSAC0500200W1US 1.8 m shielded power cable FCC Verification S/N: N/A Test Report No.: NK-10-R-012-2 FCC Certification SK telesys Co., Ltd. FCC ID :VAWSMT-CW230 Page 7 of 66 3.3 Setup Drawing WiMAX CPE (EUT) AC Adaptor WLAN AC Power Cable I/O Cable LAN Test Report No.: NK-10-R-012-2 FCC Certification SK telesys Co., Ltd. FCC ID :VAWSMT-CW230 Page 8 of 66 3.4 EUT Information (WLAN part) The EUT is the SK telesys Co.,Ltd WiMAX CPE FCC ID: VAWSMT-CW230. Specifications: Category: WiMAX CPE Model Name: SMT-CW230 Brand Name: SK telesys Frequency of Operation 2412MHz ~ 2462MHz Power Output (Conducted) 11.48 dBm (0.014 W) Channels 11 channel Data Rate 802.11b Mode :11/5.5/2/1 802.11g Mode : 54/48/36/24/18/12/9/6 Antenna Gain (Max) -2.77 dBi Spreading 802.11b :DSSS 802.11 g : OFDM Modulations BPSK, QPSK, 16QAM, 64QAM Temperature Range -20 °C ~ +50 °C Voltage Input :AC 100~240V output :5.0 Vdc Adapter Dimensions (W x H x D) 246 mm X 128 mm x 43 mm Weight 56.5 g (Without Adapter) Remarks: - Test Report No.: NK-10-R-012-2 FCC Certification SK telesys Co., Ltd. FCC ID :VAWSMT-CW230 Page 9 of 66 4. SUMMARY OF TEST RESULTS The EUT has been tested according to the following specification: Name of Test FCC Paragraph No. Result Remark Conducted Emission 15.107 15.207 Complies Radiated Emission 15.109 15.205 15.209 Complies 6 dB Bandwidth 15.247(a)(2) Complies Peak Power Output 15.247(b)(3) Complies Power Spectral Density 15.247(e) Complies Conducted Spurious Emission 15.247(d) Complies Radiated Spurious Emission 15.247(d) Complies Maximum Permissible Exposure 1.1307(b) Complies Test Report No.: NK-10-R-012-2 FCC Certification SK telesys Co., Ltd. FCC ID :VAWSMT-CW230 Page 10 of 66 5. RECOMMENDATION/CONCLUSION The data collected shows that the SK telesys WiMAX CPE FCC ID: VAWSMT-CW230 is in compliance with Part 15 Subpart C 15.247 of the FCC Rules. 6. ANTENNA REQUIREMENTS §15.203 of the FCC Rule…

Text truncated - open the document above for the full version.

Test Report No.: NK-10-R-012-1 FCC Certification SK telesys Co., Ltd. FCC ID :VAWSMT-CW230 Page 108 of 123 Appendix B – Photographs of Test Set-up z Radiated Test Picture z Temperature Test
