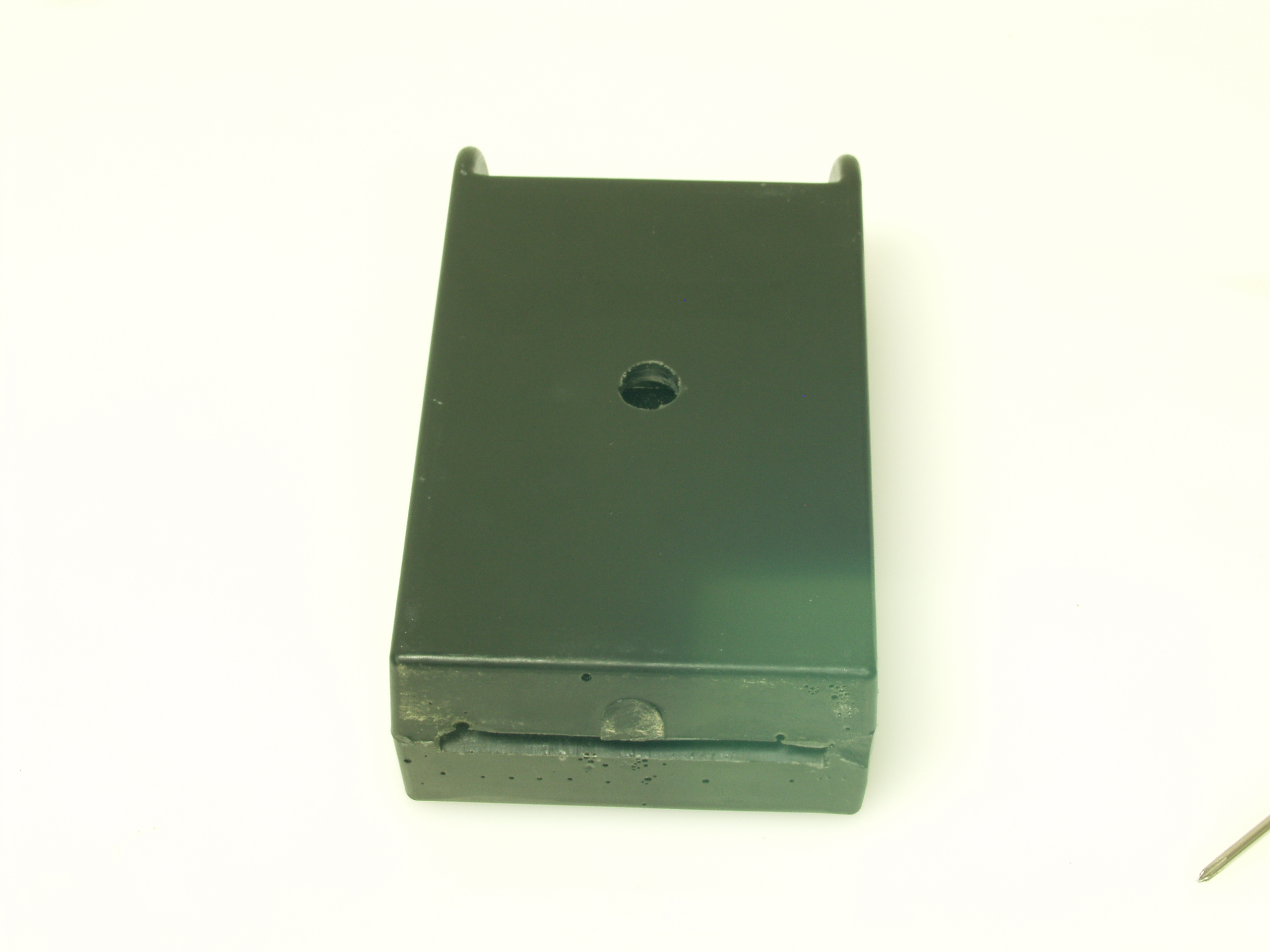

VBB-JT0705256USB1Wireless Strap Monitor - Transmitter

Quatitée # Description #Pièce Manufacturier 1 Ic 1 MICRO MCHC908QT2CDWE FREESCALE 1 IC 2 RF DEVICES T5754-6AQ ATMEL 1 IC3 RF AMPLI. SGA-2286Z SIRENZA 1 IC4 V. REF. 1.2V LM285D-1-2 TEXAS INS. 1 D1 DIODE H.S. 1N4148W-TP M.C.C. 1 R SW REED SW CM5-2319 SRC DEVICE 1 XTAL 13.56 MHZ -40C CS10-13.560MABJ-UT CITIZEN 1 C1 150 μF TANT. B45197A1157K409 EPCOS 1 C2 22 PF. CER. ECJ-OEC1H220D PANASONIC 2 C3,C6 68 NF. CER ECJ-0EB1A683K ‘’ 1 C4 12 PF. CER ECJ-0EC1H120J `` 1 C5 33 PF. CER ECJ-0EC1H330J `` 2 C7,C8 220 PF. CER. ECJ-0EC1H221J `` 1 C9 100 PF. CER. ECJ-0EC1H101J `` 1 C10 1000 PF. CER ECJ-0EB1H102K `` 1 C11 1 μF. CER . ECJ-1VF1A105Z `` 1 R1 100K RESIST. MCR10EZHF1003 ROHM 1 R2 3 K `` MCR10EZHF3001 `` 1 R3 10 K `` MCR10EZHF1002 `` 1 R4 10 ohm `` MCR10EZHF10R0 `` 2 L1,L2 68 NH. INDUCT. ELJ-RF68NGFB PANASONIC 1 BAT 2400 MAH. 3.6V TL-5903/P TADIRAN 1 CON. .1’’ R. ANGLE 22-28-8021 MOLEX/WAL. revision 01-06 2007 C2 de 8 Pf remplacé par capacitor de 22 pf

file://///Nemko01/Shares/projects/YR7/Johny%20Tiedown/NEX-86202%20-%2010971/Submissions/Pieces%20pour%20Com-Usb.txt Pieces pour Com-Usb johnytiedown ver. Smt Quantitée Ident. Description #Pièce Manufacturier 1 ic 1 MCU MC908JB8JDWE FREESCALE 1 ic 2 Radio 433.92 TH71102ENE MELEXIS 1 IC 3 RTC CLOCK DS1302ZN+ DALLAS 1 IC 4 32X8 EEPROM 25LC256-i/Sn MICROCHIP 1 T 1 LNA TRANS. BFP420E6327 INFINEON 1 D1 DIODE SIGNAL IN4148TPMSCT MICRO-COMMERCIAL 1 X1 XTAL 23.51222MHZ ECS-235.122-CDX-0378 ECS 1 X2 XTAL 6.00 MHZ ECS-60-32-5PXDN-TR ECS 1 X3 XTAL 32768 HZ CMJ206T32.768KDZB-UT CITIZEN 1 SAW SAW FILTER B39431B3760Z810 EPCOS 1 CERFIL FILTRE 110KHZ SFECV10M7KA00-R0 MURATA 1 CERDIS DISCRIMINATEUR CDSCB10M7GA135-R0 MURATA 1 BUZZER BUZZER 2.73 KHZ ST-04BH SOBERTON 2 C1,C8 CAP 27PF NPO ECJ-1VC1H270J PANASONIC 1 C2 Cap 100μf tan. B5197A3107K409 Kemet 4 C3,C10,C11,C17 CAP 1NF NPO ECJ-1VC1H102J PANASONIC 1 C4 CAP 10 NF X7R ECJ-1VB1E103K '' 1 C6 CAP 4.7PF NPO GRM1885C1H4R7CZ01D MURATA 1 C7,C12 CAP 2.2PF NPO GRM1885C1H2R2CZ01D '' 1 C9 CAP 33PF NPO ECJ-1VC1H330J PANASONIC 1 C13 CAP 7PF NPO ECJ-1VC1H070D '' 3 C15,C19,C22 CAP 390 PF NPO ECJ-1VC1H391J '' 1 C16 CAP 1,5NF X7R ECJ-1VB1H152K '' 1 C18 CAP 2,7PF NPO GRM1885C1H2R7CZ01D MURATA 2 C29,C21 CAP 15PF NPO ECJ-1VC1H150J PANASONIC 2 C23,C24 CAP 20PF NPO GRM1885C1H200JA01D MURATA 1 C25 Cap 10μf X5R ECJ-1VB0J106M Panasonic 1 C26 CAP .1μF Y5V ECJ-1VF1C104Z '' 7 CB1,2,3,4,5,7,8 CAP 330PF NPO ECJ-1VC1H331J '' 2 CB6,CB9 CAP 33NF X7R ECJ-1VB1E333K '' 1 L1 INDUCT 33 NH ELJ-RE33NJFA '' 1 L2 INDUCT 22 NH ELJ-RE22NJFA '' 2 L3,L4 INDUCT 68 NH ELJ-RE68NJFA '' 1 L5 INDUCT 15 NH ELJ-RE15NJFA '' 2 L6,L7 INDUCT 100 NH ELJ-RER10JFA '' 1 R1 RES. 10 MG MCR10EZHJ106 ROHM 1 R2 RES 560 OHM MCR10EZHF5600 ROHM file://///Nemko01/Shares/projects/YR7/Johny%20Tiedown...2%20-%2010971/Submissions/Pieces%20pour%20Com-Usb.txt (1 of 2)6/5/2007 9:37:45 AM file://///Nemko01/Shares/projects/YR7/Johny%20Tiedown/NEX-86202%20-%2010971/Submissions/Pieces%20pour%20Com-Usb.txt 1 R3 RES 56 K MCR10EZHF5602 ROHM 1 R4 RES 47 OHM MCR10EZHF47R0 ROHM 1 R5 RES 1 MG MCR10EZHF1004 ROHM 1 R6 RES 330 K MCR10EZHF3303 ROHM 1 R7 RES 10 K MCR10EZHF1002 ROHM 1 R8 RES 10 OHM MCR10EZHF10R0 ROHM 1 S5 6pos HEADER 22-28-8060 mOLEX/WALDOM 1 MINI-USB CONNECT USB 54819-0519 '' '' 1 P295 BATTERIE LITHIUM ML1220/F1AE PANASONIC 1 RG174U CABLE 50 OHM 4 POUCES RG174U BELDEN ------------------------------------------------------------------------ >> C5 et C14 sont non installés >> Les program holes sont des trous via seulement de 40 mil.diametre contrairement au prototype fourni qui lui a des headers. Information suplémentaire: Jean-Marc Mandeville Tech. 819-762-4165 [email protected] file://///Nemko01/Shares/projects/YR7/Johny%20Tiedown...2%20-%2010971/Submissions/Pieces%20pour%20Com-Usb.txt (2 of 2)6/5/2007 9:37:45 AM

www.nemko.com FCC Part 15 Subpart C, 15.231 : June 2006 Test Report: 86202-1R1TRFWL Applicant: Johny Tiedown Inc 176, 13e Rue Rouyn-Noranda, QC Canada J9X 2H8 Apparatus: JT0705256USB1 FCC ID: VBB-JT0705256USB1 In Accordance With: FCC Part 15 Subpart C, 15.231 Periodic operation in the band 40.66-40.70MHz and above 70 MHz. Tested By: Nemko Canada Inc. 303 River Road Ottawa, Ontario K1V 1H2 Authorized By: Jason Nixon, Telecom Specialist Date: July 25, 2007 Total Number of Pages: 18 Nemko Canada Inc. REPORT SUMMARY Report Number: 86202-1R1TRFWL FCC ID: VBB-JT0705256USB1 Specification: FCC Part 15 Subpart C, 15.231 Page 2 of 18 Report Summary These tests were conducted on a sample of the equipment for the purpose of demonstrating compliance with Part 15, Subpart C. Radiated tests were conducted in accordance with ANSI C63.4-2003. Radiated emissions are made on an open area test site. A description of the test facility is on file with the FCC. The assessment summary is as follows: Apparatus Assessed: JT0705256USB1 Specification: FCC Part 15 Subpart C, 15.231 Compliance Status: Complies Exclusions: None Non-compliances: None Report Release History: Original Release Author: Heng Lin EMC / Wireless Specialist Note that the results contained in this report relate only to the items tested and were obtained in the period between the date of initial receipt of samples and the date of issue of the report. This test report has been completed in accordance with the requirements of ISO/IEC 17025. Nemko Canada Inc. authorizes the applicant to reproduce this report provided it is reproduced in its entirety and for use by the company’s employees only. Any use which a third party makes of this report, or any reliance on or decisions to be made based on it, are the responsibility of such third parties. Nemko Canada Inc. accepts no responsibility for damages, if any, suffered by any third party as a result of decisions made or actions based on this report. Nemko Canada Inc. REPORT SUMMARY Report Number: 86202-1R1TRFWL FCC ID: VBB-JT0705256USB1 Specification: FCC Part 15 Subpart C, 15.231 Page 3 of 18 TABLE OF CONTENTS Report Summary......................................................................................................................................... 2 Section 1 : Equipment Under Test............................................................................................................. 4 1.1 Product Identification .................................................................................................................................4 1.2 Samples Submitted for Assessment............................................................................................................4 1.3 Technical Specifications of the EUT ..........................................................................................................4 Section 2 : Test Conditions......................................................................................................................... 5 2.1 Specifications .............................................................................................................................................5 2.2 Deviations From Laboratory Test Procedures ............................................................................................5 2.3 Test Environment .......................................................................................................................................5 2.4 Test Equipment...........................................................................................................................................5 Section 3 : Observations ............................................................................................................................. 6 3.1 Modifications Performed During Assessment ............................................................................................6 3.2 Record Of Technical Judgements ...............................................................................................................6 3.3 EUT Parameters Affecting Compliance .....................................................................................................6 3.4 Test Deleted................................................................................................................................................6 3.5 Additional Observations .............................................................................................................................6 Section 4 : Results Summary ..................................................................................................................... 7 4.1 FCC Part 15 Subpart C : Test Results ........................................................................................................8 Appendix A : Test Results .......................................................................................................................... 9 Clause 15.231(a) Conditions for intentional radiators to comply with periodic operation ....................................9 Clause 15.231(b) Radiated Emissions .................................................................................................................12 Clause 15.231(c) 20dB Bandwidth ......................................................................................................................16 Appendix B : Setup Photographs ............................................................................................................ 17 Appendix C : Block Diagram of Test Setups .......................................................................................... 18 Nemko Canada Inc. SECTION 1 : EQUIPMENT UNDER TEST Report Number: 86202-1R1TRFWL FCC ID: VBB-JT0705256USB1 Specification: FCC Part 15 Subpart C, 15.231 Page 4 of 18 Section 1 : Equipment Under Test 1.1 Product Identification The Equipment Under Test was identified as follows: JT0705256US…

Text truncated - open the document above for the full version.

Spurious Emissions Setup:
