• The test results reported in this test report shall refer only to the sample actually tested and shall not refer or be deemed to refer to bulk from which such a sample may be said to have been obtained. • This report shall not be reproduced except in full without prior authorization from Intertek Testing Services Hong Kong Limited. • For Terms And Conditions of the services, it can be provided upon request. • The evaluation data of the report will be kept for 3 years from the date of issuance. Intertek Testing Services Hong Kong Ltd. 2/F., Garment Centre, 576 Castle Peak Road, Kowloon, Hong Kong. Tel: (852) 2173 8888 Fax: (852) 2785 5487 Website: www.hk.intertek-etlsemko.com Asia Bright Industrial (Hong Kong) Co., Ltd. Application For Certification (FCC ID: QJ4AS-CF125-R) Superregenerative Receiver 0702905 BH/ Sandy Lee May 02, 2007 INTERTEK TESTING SERVICES FCC ID: QJ4AS-CF125-R i LIST OF EXHIBITS INTRODUCTION EXHIBIT 1: General Description EXHIBIT 2: System Test Configuration EXHIBIT 3: Emission Results EXHIBIT 4: Equipment Photographs EXHIBIT 5: Product Labelling EXHIBIT 6: Technical Specifications EXHIBIT 7: Instruction Manual EXHIBIT 8: Miscellaneous Information INTERTEK TESTING SERVICES FCC ID: QJ4AS-CF125-R ii MEASUREMENT/TECHNICAL REPORT Asia Bright Industrial (Hong Kong) Co., Ltd. - MODEL: AS-CF125N-R FCC ID: QJ4AS-CF125-R This report concerns (check one:) Original Grant X Class II Change _____ Equipment Type: Superregenerative Receiver (example: computer, printer, modem, etc.) Deferred grant requested per 47 CFR 0.457(d)(1)(ii)? Yes No X If yes, defer until: date Company Name agrees to notify the Commission by: date of the intended date of announcement of the product so that the grant can be issued on that date. Transition Rules Request per 15.37? Yes No X If no, assumed Part 15, Subpart B for unintentional radiator - the new 47 CFR [04-05-05 Edition] provision. Report prepared by: Ho Wai Kin, Ben Intertek Testing Services Hong Kong Ltd. 2/F., Garment Ce...

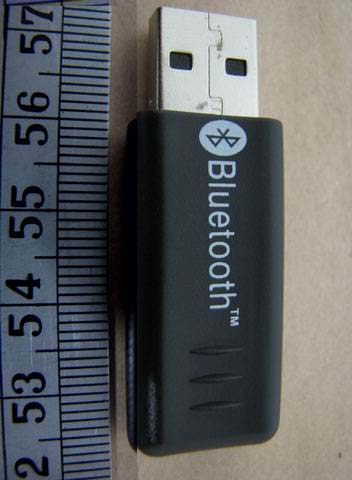

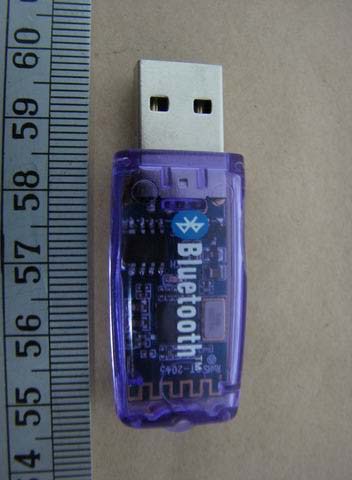

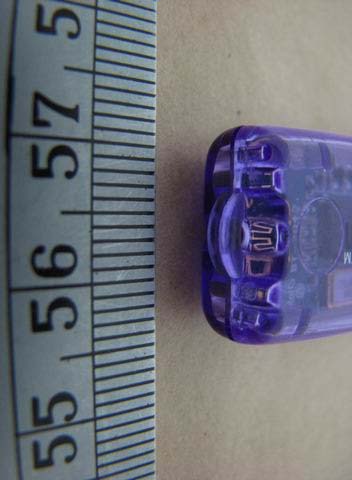

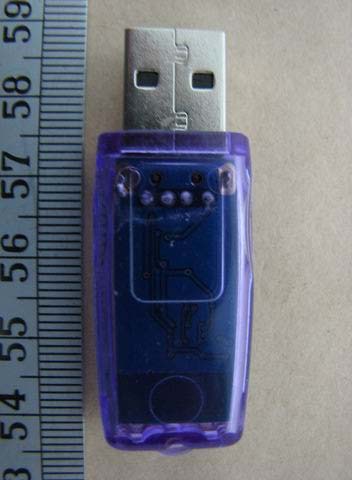

Report No.: 0702905 On mode AC mains ‘L’ Ctrl No.: N/A PAGE 1 Tested By:Hong Report :0702905 Scan Settings (1 Range) |--------- Frequencies -----------||----------- Receiver Settings ------------| Start Stop Step IF BW Detector M-Time Atten Preamp OpRge 150k 30M 5k 10k PK+AV 10ms AUTO LN OFF 60dB Final Measurement: x QP / + AV Meas Time: 1 s Subranges: 16 Acc Margin: 20dB Transducer No. Start Stop Name 2 1 9k 30M EW0700 12 9k 30M EW0090 0 10 20 30 40 50 60 70 80 90 dBuV 100 0.15 MHz 30110 F15Q F15A Report No.: 0702905 On mode AC mains ‘L’ Ctrl No.: N/A Tested By:Hong, Report No.:0702905 Scan Settings (1 Range) |--------- Frequencies -----------||----------- Receiver Settings ------------| Start Stop Step IF BW Detector M-Time Atten Preamp OpRge 150k 30M 5k 10k PK+AV 10ms AUTO LN OFF 60dB Final Measurement Results: Frequency QP Level QP Limit MHz dBuV dBuV 0.15000 53.9 66.0 0.21000 44.0 63.2 0.39000 42.4 58.0 0.48000 42.3 56.4 0.56500 41.3 56.0 1.07500 39.8 56.0 1.10000 39.8 56.0 1.55000 36.7 56.0 2.13000 33.5 56.0 3.02500 28.6 56.0 Frequency AV Level AV Limit MHz dBuV dBuV no Results * limit Report No.: 0702905 On mode AC mains ‘N’ Ctrl No.: N/A PAGE 1 Tested By:Hong, Report No.:0702905 Scan Settings (1 Range) |--------- Frequencies -----------||----------- Receiver Settings ------------| Start Stop Step IF BW Detector M-Time Atten Preamp OpRge 150k 30M 5k 10k PK+AV 10ms AUTO LN OFF 60dB Final Measurement: x QP / + AV Meas Time: 1 s Subranges: 16 Acc Margin: 20dB Transducer No. Start Stop Name 2 1 9k 30M EW0700 12 9k 30M EW0090 0 10 20 30 40 50 60 70 80 90 dBuV 100 0.15 MHz 30 110 F15Q F15A Report No.: 0702905 On mode AC mains ‘N’ Ctrl No.: N/A Tested By:Hong, Report No.:0702905 Scan Settings (1 Range) |--------- Frequencies -----------||----------- Receiver Settings ------------| Start Stop Step IF BW Detector M-Time Atten Preamp OpRge 150k 30M 5k 10k PK+AV 10ms AUTO LN OFF 60dB Final Measurement Results: Frequency QP Level QP Limit MHz dBuV dBuV 0.15000 56.0 66.0 ...
| # | Rule Parts | Frequency Range | Power Output |
|---|---|---|---|
| 1 | 15C | 2.40 GHz - 2.48 GHz | 910.00 µW |
Test Setup FCC ID : QJ4AS-CF125-R Radiated - front Radiated - rear RADIATED Model No.: AS-CF125N-R Job No.: 0702905 RADIATED Model No.: AS-CF125N-R Job No.: 0702905
Test Setup FCCID : QJ4AS-CF125-R Conduct Photo - 1 Conduct Photo - 2 Test Setup FCCID : QJ4AS-CF125-R Conduct Photo - 3
GENERAL INFORMATION Model:AS-CF125N FCC ID : QJ4AS-CF125-R for Receiver FCC ID : QJ4AS-CF125-T for Transmitter This remote control is designed to separately control your ceiling fan speed and light brightness. There are two buttons (fan and light) to control the fan speed and light. The fan button will control fan speeds (Hi、Med、Low) The light dimmer button will control the light. INSTALLATION AND OPERATING INSTRUCTIONS Warning : Changes or modifications to this unit not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. ! QUALIFIED PERSON ONLY CARRIES OUT INSTALLATION. ONLY INSTALL TO CONCRETE CEILING 1. SETTING THE CODE The unit has 16 different code combinations to set the codes. Perform these steps: A. Setting the codes on the transmitter. a. Remove battery cover. Press firmly below arrow and slide battery cover off. b. Slide code switches to your choice of up or down position.(Factory setting is all up).Do not use the position use a small screwdriver or ball point pen to slide firmly up or down (Figure 1). c. Replace battery cover on transmitter. B. Setting code on the receiver. a. Slide code switches to the same positions as set on your transmitter (Figure 2). 2. INSTALLING RECEVIER IN CEILING FAN A. Safety precautions: WARNING:HIGH VOLTAGE! Please use a qualified and licensed electrician. Household electrical power can cause serious injury or death. Disconnect source of electrical power to the ceiling fan by removing fuse or switching off circuit breaker. Do not use with solid state ceiling fans. Electrical wiring must meet all local and National Electrical Code requirements. Electrical source and fan must be 115/120 volts,60HZ.Maximum fan motor amps: 1.0 and maximum light watts:300 incandescent only. B. Installing receiver in fan: MOTOR AC -L LIGHT AC-N COM ANTENNA . 3. OPERATING TRANSMITTER: A. Install 9 volt battery (not included). To prevent damage to transmitter ,remove the battery if not ...
CONFIDENTIAL 55 44 33 22 11 D D C C B B A A Sizeof PCB Part No. 品名規格 Department Auther VersionSheet DateDesign Name Schematic Function Name Moxa Systems Co., Ltd. Block Diagram 1.1 W341 Custom 217 Tuesday, April 17, 2007 1199003410100 W341-LX System Abel Sizeof PCB Part No. 品名規格 Department Auther VersionSheet DateDesign Name Schematic Function Name Moxa Systems Co., Ltd. Block Diagram 1.1 W341 Custom 217 Tuesday, April 17, 2007 1199003410100 W341-LX System Abel Sizeof PCB Part No. 品名規格 Department Auther VersionSheet DateDesign Name Schematic Function Name Moxa Systems Co., Ltd. Block Diagram 1.1 W341 Custom 217 Tuesday, April 17, 2007 1199003410100 W341-LX System Abel External RTC L4978 Debug Port +3.3V@2A AMS 1117 +1.8V@900mA +3.3V +3.3V IO +3.3V +5V +5V +5V +5V WLANST1ST2ST3ST4ST5 W341 Ver:1.0 USB P0 USB P1 USB P2 UART 2 UART 3 UART 4 UART 5 L4978 +5V@2A +3.3V SD Connector USB Host SW_Button(H/W Reset) MOXA CPU O.S Linux/Win CE Vcore 1.8V ARM 9 LED Indicator SD/MMC Interface USB HUB Line Driver [ SN65C3243 ] x 1[ SN75HVD07D ] x 2 DB-9 Port 1 Line Driver [ SN65C3243 ] x 1[ SN75HVD07D ] x 2 DB-9 Port 2 Port 1 Port 2 Line Driver [ SN65C3243 ] x 1[ SN75HVD07D ] x 2 DB-9 Port 3 RS-232RS-422RS-485 Line Driver [ SN65C3243 ] x 1[ SN75HVD07D ] x 2 DB-9 Port 4 Port 3 Port 4 RS-232RS-422RS-485 RS-232RS-422RS-485 Reset IC RXD0RXD1RXD2RXD3TXD0TXD1TXD2 TXD3 UART 0 SW_LED +5V/+3.3V RTL8201CP10 / 100 PHYRealTek RJ-45 TXFR MII # 0 TPS3823 Extension Bus SDRAM 64/128M Flash 16/32M EEPROM I2C USB Interface DC Input12V~48V Bridge +3.3V Buzzer USB Wireless LAN +5V LT3724+3.9V For GPRS Module Digital Out GPIO 22 Relay XTAL 32.768KHz XTAL 32.768KHzXTAL 12MHzOSC 14.7456MHzXTAL 30MHz XTAL 25MHz XTAL 24MHz XTAL 40MHz
