VBO-LLC7260

Philips Lighting North America Corporation

CityTouch OLC

Click to zoom

Application Details

Equipment Class: PCB - PCS Licensed Transmitter
Date of Grant: Jan 21, 2015
Application Purpose: Original Equipment
Date of Application: Jan 21, 2015
Equipment Note: CityTouch OLC
Frequency Range: 1852.40000000 - 1907.60000000
Company: Philips Lighting North America Corporation
Country: United States

Documents & Files

Select a file to view

Users Manual

Cover Letter(s)

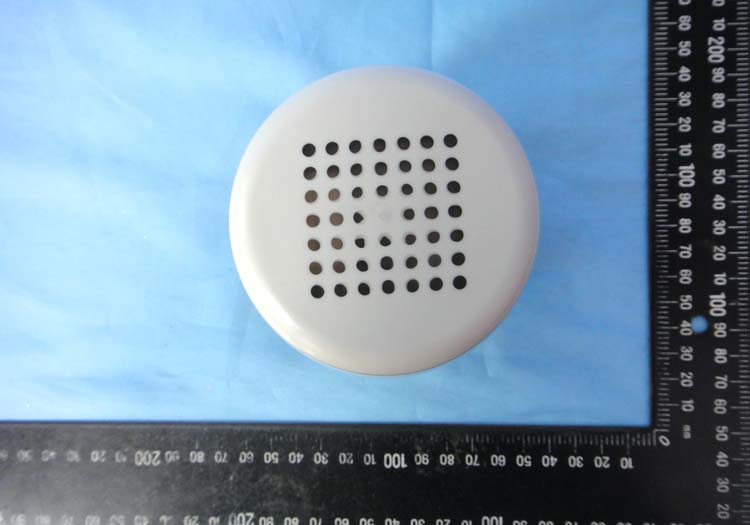

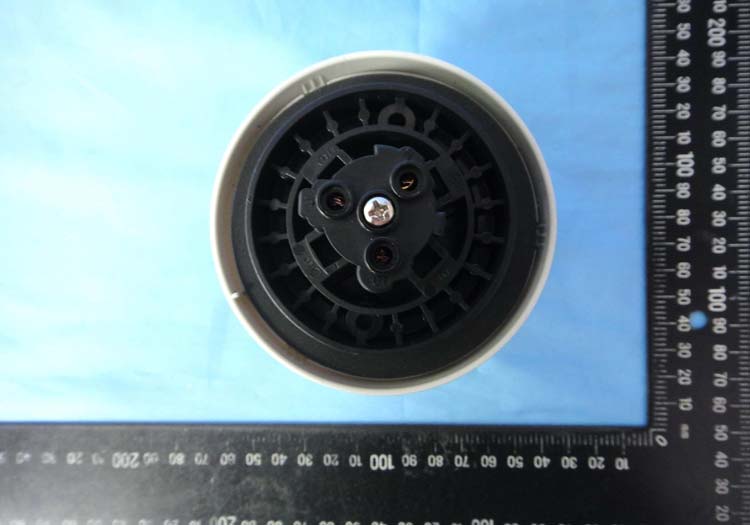

External Photos

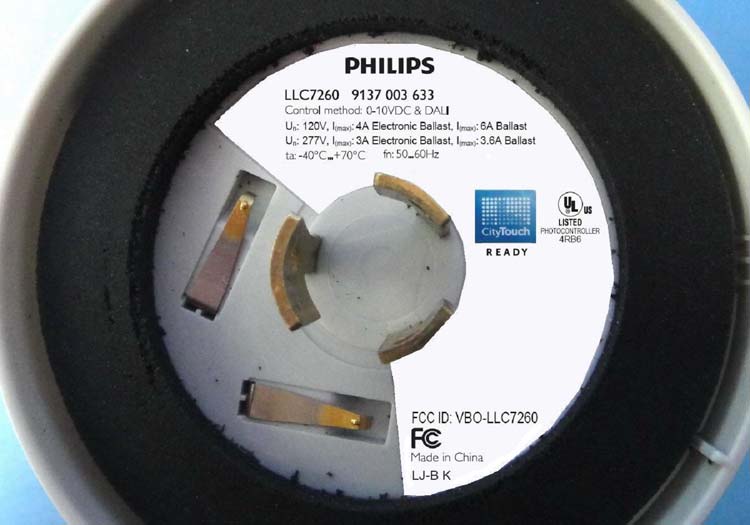

ID Label/Location Info

Internal Photos

RF Exposure Info

Test Report

Test Setup Photos

Technical Specifications

#	Rule Parts	Frequency Range	Power Output	Emission	Tolerance
6	24E	1.85 GHz - 1.91 GHz	454.00 mW	4M17F9W	2.5 ppm

Confidentiality

Long Term

Grant Notes

Power out is conducted at the antenna terminal. This device is to be used only for mobile and fixed applications. The antenna(s) used for this transmitter must be installed to provide a separation distance of at least 20 cm from all persons and must not be co-located or operating in conjunction with any other antenna or transmitter, except in accordance with FCC multi-transmitter evaluation. End-Users must be provided with transmitter operation conditions for satisfying RF exposure compliance. For mobile and fixed operating configurations the antenna gain, including cable loss, must not exceed 6.43 dBi at 850 MHz and 3.0 dBi at 1900 MHz as defined in 2.1091 for satisfying RF exposure compliance. Under no conditions may an antenna gain be used that would exceed the ERP and/or EIRP power limits as specified in Part 22, and 24.
