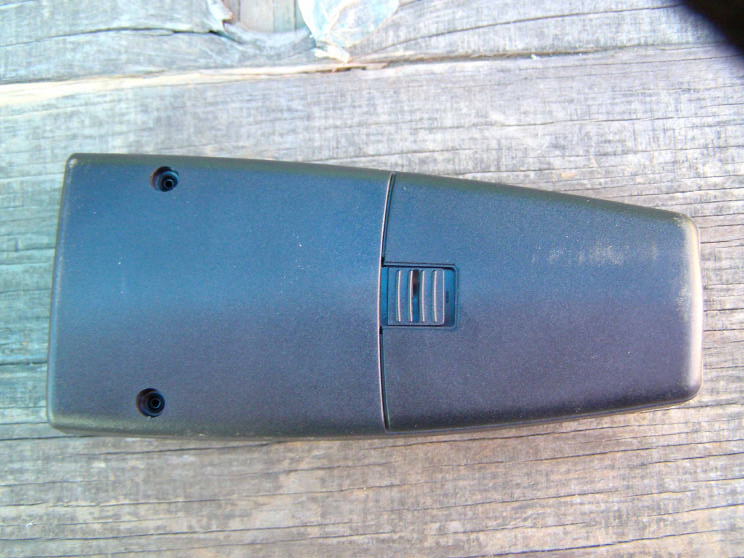

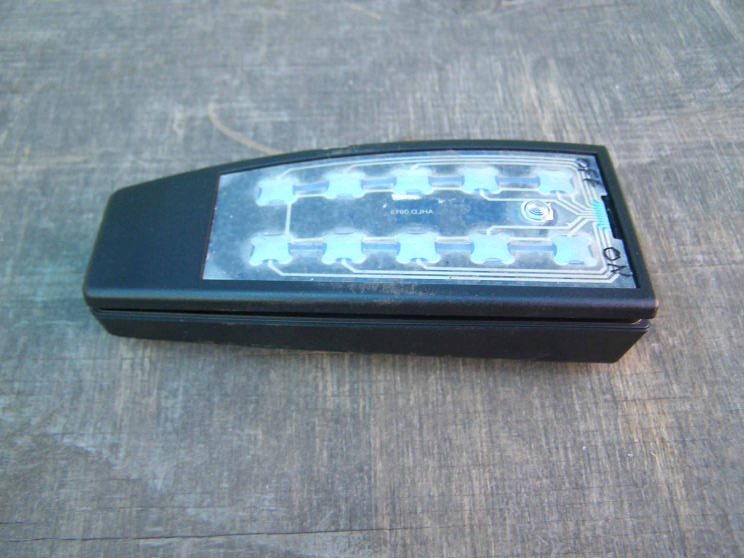

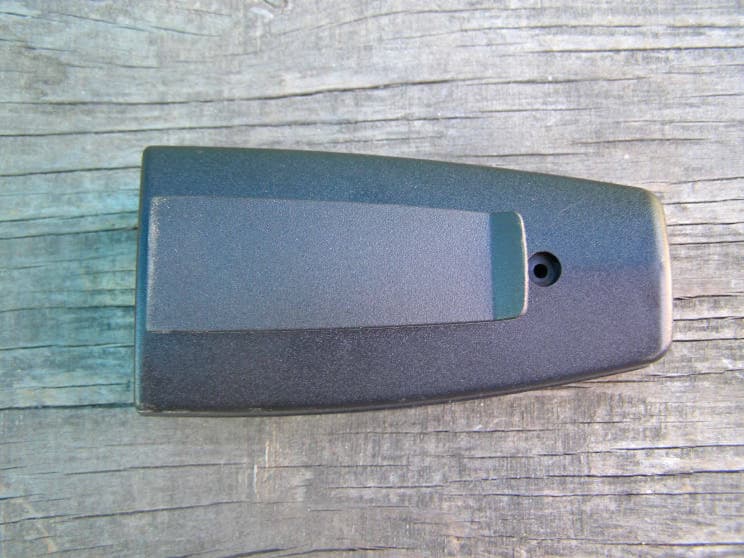

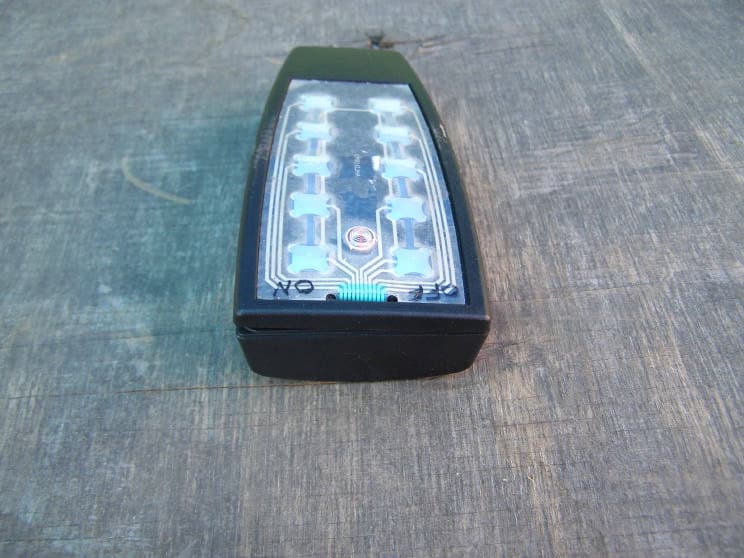

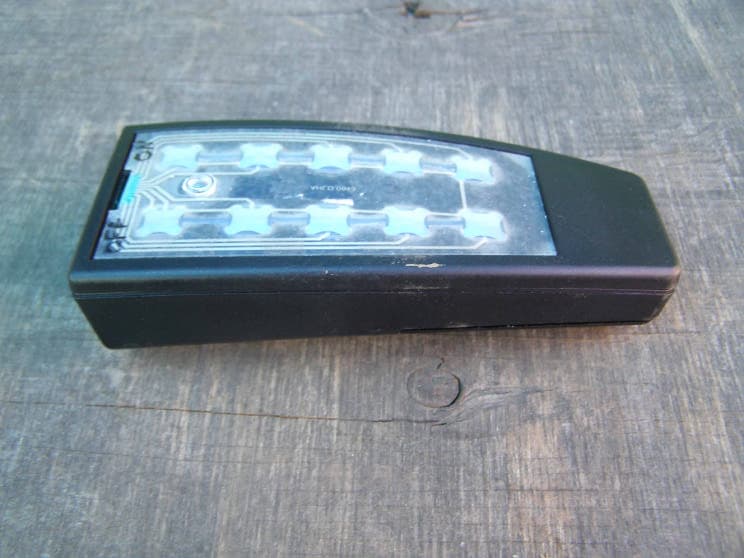

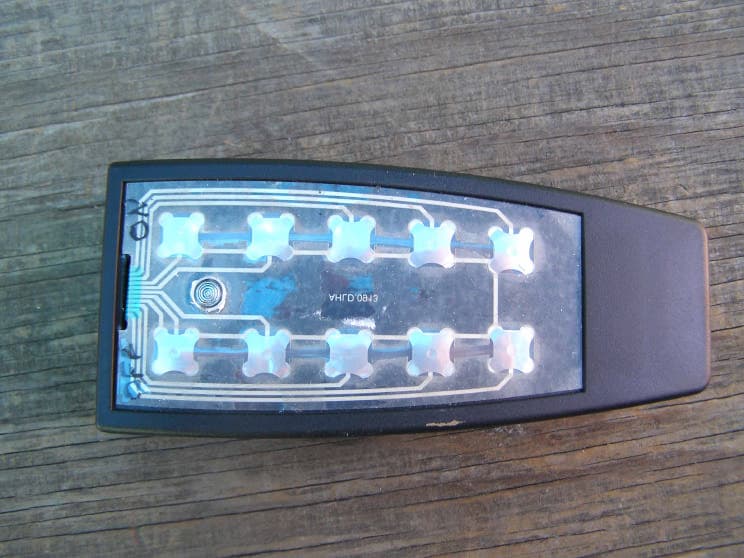

VBWTF5Compact Keypad Remote Control

Scott McCutchan From: Scott McCutchan [[email protected]] Sent: Thursday, June 14, 2007 12:46 PM To: '[email protected]' Cc: '[email protected]' Subject: FCC ID: VBWTF5 6/14/2007 Mr. Fujimoto: In order for processing of this certification application (FCC ID: VBWTF5) to continue, the following issue(s) will have to be addressed: 1) Please provide a letter from the applicant, stating that the application for the subject equipment has not been submitted to another TCB for certification. The item(s) indicated above must be submitted before processing can continue on the above referenced application. Failure to provide the requested information within 60 days of the original e-mail date may result in application dismissal and forfeiture of the filing fee. Also, please note that partial responses increase processing time and should not be submitted. Please upload responses and/or exhibits to the electronic filing website. Your correspondence number is VBWTF5-1. Best regards, Scott McCutchan Operations Manager Compatible Electronics TCB

Correspondence by Project Project Number: Correspondence NumberMemo VBWTF5-1 1. The TCB Submittal Letter has been uploaded. -341418277

FCC ID: VBWTF5 This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may cause harmful interference and (2) This device must accept any interference received, including any interference that may cause undesired operation. TF5 Radio Transmitter 433MHz Miratron, Inc. Portland, OR, USA FCC ID: VBWTF5SM This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may cause harmful interference and (2) This device must accept any interference received, including any interference that may cause undesired operation. TF5 Radio Transmitter 433MHz Miratron, Inc. Portland, OR, USA CMD16-XXXX XXXXXX T5 Large Label Placement FCC ID: VBWTF5 This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may cause harmful interference and (2) This device must accept any interference received, including any interference that may cause undesired operation. TF5 Radio Transmitter 433MHz Miratron, Inc. Portland, OR, USA

Report Number: B70516D1 FCC Part 15 Subpart B and FCC Section 15.231 Test Report Compact Keypad Remote Control Model: T-5 Brea Division 114 Olinda Drive Brea, CA 92823 (714) 579-0500 Agoura Division 2337 Troutdale Drive Agoura, CA 91301 (818) 597-0600 Silverado Division 19121 El Toro Road Silverado, CA 92676 (949) 589-0700 Lake Forest Division 20621 Pascal Way Lake Forest, CA 92630 (949) 587-0400 Page 1 of 16 FCC PART 15, SUBPART B and C TEST REPORT for COMPACT KEYPAD REMOTE CONTROL MODEL: T-5 Prepared for MIRATRON, INC. 16420 SW 72ND AVENUE PORTLAND, OREGON 97224 Prepared by:_____________________ KYLE FUJIMOTO Approved by:____________________ JAMES ROSS COMPATIBLE ELECTRONICS INC. 114 OLINDA DRIVE BREA, CALIFORNIA 92823 (714) 579-0500 DATE: MAY 23, 2007 REPORT APPENDICES TOTAL BODY A B C D E PAGES 16 2 2 2 12 12 46 This report shall not be reproduced except in full, without the written approval of Compatible Electronics. Report Number: B70516D1 FCC Part 15 Subpart B and FCC Section 15.231 Test Report Compact Keypad Remote Control Model: T-5 Brea Division 114 Olinda Drive Brea, CA 92823 (714) 579-0500 Agoura Division 2337 Troutdale Drive Agoura, CA 91301 (818) 597-0600 Silverado Division 19121 El Toro Road Silverado, CA 92676 (949) 589-0700 Lake Forest Division 20621 Pascal Way Lake Forest, CA 92630 (949) 587-0400 Page 2 of 16 TABLE OF CONTENTS Section / Title PAGE GENERAL REPORT SUMMARY 4 SUMMARY OF TEST RESULTS 4 1. PURPOSE 5 2. ADMINISTRATIVE DATA 6 2.1 Location of Testing 6 2.2 Traceability Statement 6 2.3 Cognizant Personnel 6 2.4 Date Test Sample was Received 6 2.5 Disposition of the Test Sample 6 2.6 Abbreviations and Acronyms 6 3. APPLICABLE DOCUMENTS 7 4. DESCRIPTION OF TEST CONFIGURATION 8 4.1 Description Of Test Configuration - EMI 8 4.1.1 Cable Construction and Termination 9 5. LISTS OF EUT, ACCESSORIES AND TEST EQUIPMENT 10 5.1 EUT and Accessory List 10 5.2 EMI Test Equipment 11 6. TEST SITE DESCRIPTION 12 6.1 Test Facility Description 12 6.2 EUT Mounting, Bonding and Grounding 12 7. TEST PROCEDURES 13 7.1 Radiated Emissions (Spurious and Harmonics) Test 13 7.2 Radiated Emissions (Spurious and Harmonics) Test (continued) 14 7.3 Bandwidth of the Fundamental 15 8. CONCLUSIONS 16 Report Number: B70516D1 FCC Part 15 Subpart B and FCC Section 15.231 Test Report Compact Keypad Remote Control Model: T-5 Brea Division 114 Olinda Drive Brea, CA 92823 (714) 579-0500 Agoura Division 2337 Troutdale Drive Agoura, CA 91301 (818) 597-0600 Silverado Division 19121 El Toro Road Silverado, CA 92676 (949) 589-0700 Lake Forest Division 20621 Pascal Way Lake Forest, CA 92630 (949) 587-0400 Page 3 of 16 LIST OF APPENDICES APPENDIX TITLE A Laboratory Recognitions B Modifications to the EUT C Additional Models Covered Under This Report D Diagrams, Charts, and Photos • Test Setup Diagrams • Radiated Emissions Photos • Antenna and Effective Gain Factors E Data Sheets LIST OF FIGURES FIGURE TITLE 1 Plot Map And Layout of Radiated Site Report Number: B70516D1 FCC Part 15 Subpart B and FCC Section 15.231 Test Report Compact Keypad Remote Control Model: T-5 Brea Division 114 Olinda Drive Brea, CA 92823 (714) 579-0500 Agoura Division 2337 Troutdale Drive Agoura, CA 91301 (818) 597-0600 Silverado Division 19121 El Toro Road Silverado, CA 92676 (949) 589-0700 Lake Forest Division 20621 Pascal Way Lake Forest, CA 92630 (949) 587-0400 Page 4 of 16 GENERAL REPORT SUMMARY This electromagnetic emission test report is generated by Compatible Electronics Inc., which is an independent testing and consulting firm. The test report is based on testing performed by Compatible Electronics personnel according to the measurement procedures described in the test specifications given below and in the "Test Procedures" section of this report. The measurement data and conclusions appearing herein relate only to the sample tested and this report may not be reproduced without the written permission of Compatible Electronics, unless done so in full. This report must not be used to claim product endorsement by NVLAP, NIST or any other agency of the U.S. Government. Device Tested: Compact Keypad Remote Control Model: T-5 S/N: N/A Product Description: See Expository Statement Modifications: The EUT was not modified in order to meet the specifications. Manufacturer: Miratron, Inc. 16420 SW 72nd Avenue Portland, Oregon 97224 Test Date: May 9, 10, 16, 2006 Test Specifications : EMI requirements CFR Title 47, Part 15 Subpart B; and Subpart C, Sections 15.205, 15.209 and 15.231 Test Procedure: ANSI C63.4 Test Deviations: The test procedure was not deviated from during the testing. SUMMARY OF TEST RESULTS TEST DESCRIPTION RESULTS 1 Conducted RF Emissions, 150 kHz - 30 MHz This test was not performed because the EUT is battery powered only and does not connect to the AC public mains. 2 Radiated RF Emissions, 10 kHz - 4400 MHz Complies with the Class B limits of CFR Title 47, Part 15, Subpart B; and Subpart C, sections 15.205, 15.209, and 15.231. Report Number: B70516D1 FCC Part 15 Subpart B and FCC Section 15.231 Test Report Compact Keypad Remote Control Model: T-5 Brea Division 114 Olinda Drive Brea, CA 92823 (714) 579-0500 Agoura Division 2337 Troutdale Drive Agoura, CA 91301 (818) 597-0600 Silverado Division 19121 El Toro Road Silverado, CA 92676 (949) 589-0700 Lake Forest Division 20621 Pascal Way Lake Forest, CA 92630 (949) 587-0400 Page 5 of 16 1. PURPOSE This document is a qualification test report based on the Electromagnetic Interference (EMI) tests performed on the Compact Keypad Remote Control Model: T-5. The EMI measurements were performed according to the measurement procedure described in ANSI C63.4. The tests were performed in order to determine whether the electromagnetic emissions from the equipment under test, referred to as EUT hereafter, are within the Class B specification limits defined by CFR Title 47, Part 15, Subpart B; and Subpart C, sections 15.205, 15.209, and 15.231. Report Number: B70516D1 FCC Part 15 Subpart…

Text truncated - open the document above for the full version.

Ref Lvl 92 dB  V Ref Lvl 92 dB  V RF Att 10 dB A Unit dB  V RBW 1 MHz VBW 1 MHz IN1 TRG SWT 100 ms Center 433.92 MHz10 ms/ P0 TDS 09.May 2007 14:50 1VIEW1AP 0 10 20 30 40 50 60 70 80 -8 92 11 Delta 1 [T1] 0.04 dB -50.609218 ms 1 [T1] 17.77 dB  V 186.881764 ms 1 [T1] 0.04 dB -50.609218 ms D1 54 dB  V Date: 9.MAY.2007 14:50:33 Plot showing Entire Pulse Train only shows up once per 100 mS Ref Lvl 92 dB  V Ref Lvl 92 dB  V RF Att 10 dB A Unit dB  V RBW 1 MHz VBW 1 MHz IN1 TRG P0 TDS SWT 60 ms Center 433.92 MHz6 ms/ 1VIEW1AP 09.May 2007 14:52 0 10 20 30 40 50 60 70 80 -8 92 1 1 Delta 1 [T1] 1.50 dB 50.741483 ms 1 [T1] 17.60 dB  V 136.322645 ms 1 [T1] 1.50 dB 50.741483 ms D1 54 dB  V Date: 9.MAY.2007 14:52:13 Time of One Pulse Train = 50.741483 mS Ref Lvl 92 dB  V Ref Lvl 92 dB  V RF Att 10 dB A Unit dB  V RBW 1 MHz VBW 1 MHz IN1 TRG SWT 20 ms Center 433.92 MHz2 ms/ P0 TDS 1VIEW1AP 09.May 2007 14:55 0 10 20 30 40 50 60 70 80 -8 92 1 1 Delta 1 [T1] -0.16 dB 5.210421 ms 1 [T1] 18.04 dB  V 136.482966 ms 1 [T1] -0.16 dB 5.210421 ms D1 54 dB  V Date: 9.MAY.2007 14:55:30 Time of First Pulse = 5.210421 mS Ref Lvl 92 dB  V Ref Lvl 92 dB  V RF Att 10 dB A Unit dB  V RBW 1 MHz VBW 1 MHz IN1 TRG SWT 20 ms Center 433.92 MHz2 ms/ P0 TDS 1VIEW1AP 09.May 2007 14:56 0 10 20 30 40 50 60 70 80 -8 92 1 1 Delta 1 [T1] -0.45 dB 280.561122  s 1 [T1] 19.06 dB  V 141.813627 ms 1 [T1] -0.45 dB 280.561122  s D1 54 dB  V Date: 9.MAY.2007 14:56:09 Time of the small pulses = 280.561122 uS Ref Lvl 92 dB  V Ref Lvl 92 dB  V RF Att 10 dB A Unit dB  V RBW 1 MHz VBW 1 MHz IN1 TRG SWT 20 ms Center 433.92 MHz2 ms/ P0 TDS 1VIEW1AP 09.May 2007 14:57 0 10 20 30 40 50 60 70 80 -8 92 1 1 Delta 1 [T1] -1.42 dB -521.042084  s 1 [T1] 17.05 dB  V 143.777555 ms 1 [T1] -1.42 dB -521.042084  s D1 54 dB  V Date: 9.MAY.2007 14:57:06 Time of the medium pulses = 521.042084 uS Ref Lvl 92 dB  V Ref Lvl 92 dB  V RF Att 10 dB A Unit dB  V RBW 1 MHz VBW 1 MHz IN1 TRG SWT 20 ms Center 433.92 MHz2 ms/ P0 TDS 1VIEW1AP 09.May 2007 14:57 0 10 20 30 40 50 60 70 80 -8 92 1 1 Delta 1 [T1] 0.86 dB 1.963928 ms 1 [T1] 16.49 dB  V 143.897796 ms 1 [T1] 0.86 dB 1.963928 ms D1 54 dB  V Date: 9.MAY.2007 14:57:38 Time of Pulses 6 through 9 = 1.96392 mS each Ref Lvl 92 dB  V Ref Lvl 92 dB  V RF Att 10 dB A Unit dB  V RBW 1 MHz VBW 1 MHz IN1 TRG SWT 20 ms Center 433.92 MHz2 ms/ P0 TDS 1VIEW1AP 09.May 2007 14:58 0 10 20 30 40 50 60 70 80 -8 92 1 1 Delta 1 [T1] -0.44 dB 1.162325 ms 1 [T1] 18.28 dB  V 152.234469 ms 1 [T1] -0.44 dB 1.162325 ms D1 54 dB  V Date: 9.MAY.2007 14:58:25 Time of the 10 th Pulse = 1.162325 mS A Unit dB  V P0 TDS Ref Lvl 92 dB  V Ref Lvl 92 dB  V RF Att 20 dB TRG SWT 40 ms Center 433.92 MHz4 ms/ RBW 1 MHz VBW 1 MHz IN1 1VIEW1AP 09.May 2007 15:04 0 10 20 30 40 50 60 70 80 -8 92 D1 54 dB  V T1 Date: 9.MAY.2007 15:04:08 Number of Pulses in first 40 mS # of small pulses = 19 # of medium pulses = 4 (does not include the special individual pulses) A Unit dB  V Ref Lvl 92 dB  V Ref Lvl 92 dB  V RF Att 20 dB TRG RBW 1 MHz VBW 1 MHz IN1 P0 TDS SWT 30 ms Center 433.92 MHz3 ms/ 1VIEW1AP 09.May 2007 15:24 0 10 20 30 40 50 60 70 80 -8 92 1 1 Delta 1 [T1] -0.94 dB 2.164329 ms 1 [T1] 19.93 dB  V 48.216433 ms 1 [T1] -0.94 dB 2.164329 ms D1 54 dB  V T1 T2 Date: 9.MAY.2007 15:24:13 Number of Pulses after 40 mS # of small pulses = 10 # of medium pulses = 2 Time of Last Pulse = 2.164329 mS Total On Time = 5.210421 mS + (280.561122 uS * 29) + (521.042084 uS * 6) + (1.96392 mS * 4) + 1.162325 mS + 2.164329 mS = 27.66 mS = 27.66% Duty Cycle
