VCMXQ019Transmitter for Vehicle Toy

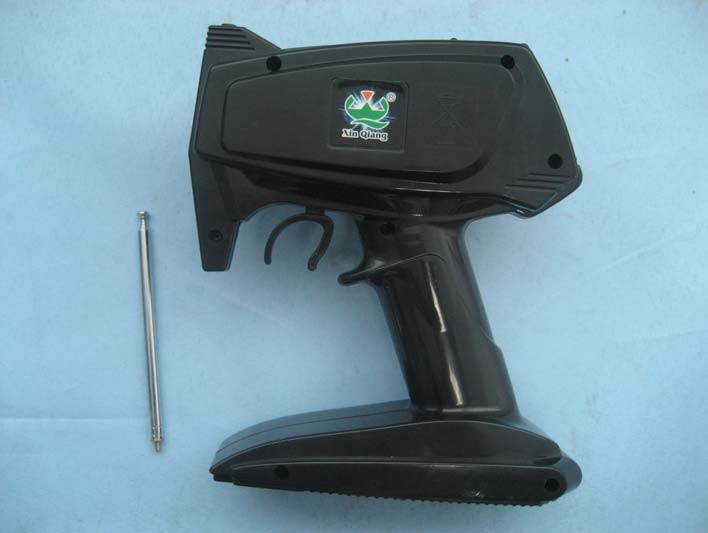

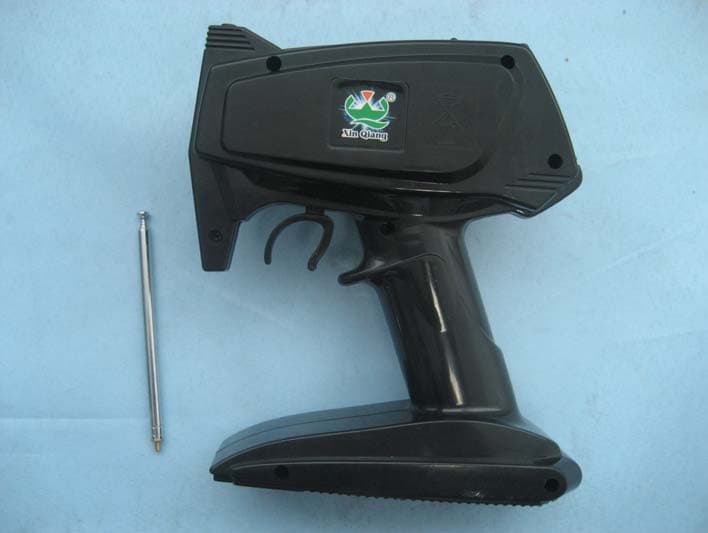

TOP VIEW OF TESTED SAMPLE BOTTOM VIEW OF TESTED SAMLE

FCC ID: VCMXQ019 This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

INTERIOR VIEW OF TX -1 INTERIOR VIEW OF TX -2

Operation Description The IC1 reads input commands (L/R/B/F/T), and encodes them to digital codes. The codes are sent to RF oscillator, and then modulates 49.86MHz carry frequency signal to achieve AM signal. The radio frequency of the transmitter is based on standard 49.86MHz AM citizen’s band. It generates low power 49.86MHz AM carrier frequency via major components of Q1, TX, C3, C4, R4, and L1 etc. Please note that the Value of the components may vary. Please see the Attached schematics for more detail. The AM signal (via capacitor C4) is passed to RF amplifier (Q2, C5, C6 and L2), which amplifies the signal and then couples the signal into the antenna (ANT) via components C7, L3.

Report No. STEE070426420001 Page 1 of 18 ELECTROMAGNETIC EMISSIONS COMPLIANCE REPORT INTENTIONAL RADIATOR CERTIFICATION TO FCC PART 15 SUBPART C REQUIREMENT of Controller MODEL No.: XQ019, XQ006, XQ009, XQ013, XQ014, XQ062, XQ067, XQ057, XQ043, XQ073 BRAND NAME: N/A FCC ID: VCMXQ019 REPORT NO: STEE070426420001 ISSUE DATE: May 11, 2007 Prepared for XQ Toys Laimei Industrial District, Chenghai Shantou City, Guangdong, China Prepared by CENTRE TESTING INTERNATIONAL 1F., BUILDING C,HONGWEI INDUSTRIAL ZONE, BAOAN 70 DISTRICT, SHENZHEN, CHINA TEL: 86-755-3368 3668 FAX: 86-755-3368 3385 This report shall not be reproduced, except in full, without the written approval of CENTRE TESTING INTERNATIONAL Report No. STEE070426420001 Page 2 of 18 VERIFICATION OF COMPLIANCE Applicant: XQ TOYS Laimei Industrial District, Chenghai Shantou City, Guangdong, China Product Description: Controller Brand Name: N/A Model Number: XQ019, XQ006, XQ009, XQ013, XQ014, XQ062, XQ067, XQ057, XQ043, XQ073 Serial Number: N/A File Number: STEE070426420001 Date of Test: May 10, 2007 We hereby certify that: The above equipment was tested by Centre Testing International (CTI), The test data, data evaluation, test procedures, and equipment configurations shown in this report were made in accordance with the procedures given in ANSI C63.4 (2003) and the energy emitted by the sample EUT tested as described in this report is in compliance with conducted and radiated emission limits of FCC Rules Part 15.227. The test results of this report relate only to the tested sample identified in this report. Approved By Q.A. Manager CENTRE TESTING INTERNATIONAL Report No. STEE070426420001 Page 3 of 18 Table of Contents 1. GENERAL INFORMATION ..........................................................................................4 1.1 PRODUCT DESCRIPTION...........................................................................................................4 1.2 RELATED SUBMITTAL(S) / GRANT (S)......................................................................................4 1.3 TEST METHODOLOGY..............................................................................................................4 1.4 TEST FACILITY.........................................................................................................................4 1.5 SPECIAL ACCESSORIES............................................................................................................4 1.6 EQUIPMENT MODIFICATIONS...................................................................................................4 2. SYSTEM TEST CONFIGURATION .............................................................................5 2.1 EUT CONFIGURATION.............................................................................................................5 2.2 EUT EXERCISE.........................................................................................................................5 2.3 TEST PROCEDURE....................................................................................................................5 2.4 LIMITATION..............................................................................................................................6 2.5 CONFIGURATION OF TESTED SYSTEM.....................................................................................7 3. SUMMARY OF TEST RESULTS ..................................................................................7 4. DESCRIPTION OF TEST MODES ...............................................................................7 5. CONDUCTED EMISSIONS TEST (NOT APPLICABLE IN THIS REPORT)........7 5.1 MEASUREMENT PROCEDURE: ..................................................................................................7 5.2 TEST SET-UP (BLOCK DIAGRAM OF CONFIGURATION)..........................................................7 5.3 MEASUREMENT EQUIPMENT USED:.........................................................................................8 5.4 MEASUREMENT RESULT: .........................................................................................................8 5.5 CONDUCTED MEASUREMENT PHOTOS:...................................................................................8 6. RADIATED EMISSION TEST .......................................................................................8 6.1 MEASUREMENT PROCEDURE...................................................................................................8 6.2 TEST SET-UP (BLOCK DIAGRAM OF CONFIGURATION)..........................................................9 6.4 FIELD STRENGTH CALCULATION...........................................................................................10 7. OCCUPIED BANDWIDTH...........................................................................................13 7.1 MEASUREMENT PROCEDURE.................................................................................................13 7.2 TEST SET-UP (BLOCK DIAGRAM OF CONFIGURATION)........................................................13 7.3 MEASUREMENT EQUIPMENT USED:.......................................................................................13 7.4 MEASUREMENT RESULTS: .....................................................................................................13 APPENDIX 1 PHOTOGRAPHS OF TEST SETUP ..........................................................14 APPENDIX 2 PHOTOGRAPHS OF EUT ..........................................................................16 Report No. STEE070426420001 Page 4 of 18 1. GENERAL INFORMATION 1.1 Product Description The Controller. Model: XQ019, XQ006, XQ009, XQ013, XQ014, XQ062, XQ067, XQ057, XQ043, XQ073 (referred to as the EUT in this report). The EUT is a short range, lower power. It designed as an “Input Device”. It is designed by way of utilizing the FSK modulation achieves the system operating. A major technical descriptions of EUT is described as following: A). Oper…

Text truncated - open the document above for the full version.

TEST SETUP OF RADIATED EMISSION
