VDQCYBER80211802.11b/g VoIP WiFi SIP Phone

Table of Contents 1: Get started. . . . . . . . . . . . . . . . . . . . . .3 1. Standard package contents . . . . . . . . . . .3 2. Phone specification . . . . . . . . . . . . . . . . . 3 3. Phone description . . . . . . . . . . . . . . . . . . 4 4. Installing & removing the battery . . . . . . . 5 5. Charging the battery . . . . . . . . . . . . . . . . 6 6. Powering the Cyber phone on & off . . . . 7 7. Display indicators & icons . . . . . . . . . . . . 8 8. Shortcut menu . . . . . . . . . . . . . . . . . . . . . 9 9. Main Menu icons . . . . . . . . . . . . . . . . . . . 10 2: Configuring your phone. . . . . . . .11 1. Important information you should know first . . . . . . . . . . . . . . . . . . . . . . . . . 11 2. Connecting your phone to an AP . . . . . . .13 3. Connecting your phone to an SIP . . . . . . 14 3: Basic call functions. . . . . . . . . . . .15 1. Making a IP to IP call (via direct IP) . . . . . 15 2. Making a SIP to SIP call (via SIP server). 16 3. Making a call (via SIP server to landline or GSM mobile phone) . . . . . . . . . . . . . . 17 4. Speed dial . . . . . . . . . . . . . . . . . . . . . . . . 18 5. Answering a call . . . . . . . . . . . . . . . . . . . 18 6. Mute/Un-mute a call . . . . . . . . . . . . . . . . .18 7. Hold . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18 4: Menu. . . . . . . . . . . . . . . . . . . . . . . . . . .20 i Messages . . . . . . . . . . . . . . . . . . . . . .20 1) Keypad legends. . . . . . . . . . . . . . . . . 21 2) Create . . . . . . . . . . . . . . . . . . . . . . . . 22 3) Inbox . . . . . . . . . . . . . . . . . . . . . . . . .23 4) Outbox . . . . . . . . . . . . . . . . . . . . . . . 25 5) Chat . . . . . . . . . . . . . . . . . . . . . . . . . 26 ii Contacts . . . . . . . . . . . . . . . . . . . . . . .27 1) Add . . . . . . . . . . . . . . . . . . . . . . . . . . 28 2) Edit . . . . . . . . . . . . . . . . . . . . . . . . . . 28 3) Delete . . . . . . . . . . . . . . . . . . . . . . . . 29 4) View Entry . . . . . . . . . . . . . . . . . . . . 29 5) Speed Dial . . . . . . . . . . . . . . . . . . . . 29 iii Call Log . . . . . . . . . . . . . . . . . . . . . . .30 1) Missed calls . . . . . . . . . . . . . . . . . . . 31 2) Incoming calls. . . . . . . . . . . . . . . . . . 31 3) Outgoing calls . . . . . . . . . . . . . . . . . . 31 8. New calls . . . . . . . . . . . . . . . . . . . . . . . . . 18 9. Rejecting a call . . . . . . . . . . . . . . . . . . . . 19 10. Silencing the incoming ring tone . . . . . . . 19 11. Call waiting . . . . . . . . . . . . . . . . . . . . . . . 19 12. Conference call . . . . . . . . . . . . . . . . . . . . 19 1 iv Settings . . . . . . . . . . . . . . . . . . . . . . .32 1) Clock . . . . . . . . . . . . . . . . . . . . 34 2) W allpaper . . . . . . . . . . . . . . . . . 36 3) Ring tones . . . . . . . . . . . . . . . . 36 4) Message tones . . . . . . . . . . . . . 37 5) Ring Volume . . . . . . . . . . . . . . . 37 6) Receiver volume . . . . . . . . . . . 37 7) Alert mode . . . . . . . . . . . . . . . . 38 8) Message View . . . . . . . . . . . . . 38 9) Brightness . . . . . . . . . . . . . . . . 38 10) Key backlight . . . . . . . . . . . . . 39 11) Auto key lock . . . . . . . . . . . . . . 39 12) Key tone . . . . . . . . . . . . . . . . . 39 13) DTMF tone . . . . . . . . . . . . . . . 39 14) Screen Banner . . . . . . . . . . . . 40 15) Factory reset . . . . . . . . . . . . . . 40 16) Software upgrade . . . . . . . . . . 41 v: Configuration . . . . . . . . . . . . . . . . . . . . . . .45 1) SIP settings . . . . . . . . . . . . . . . . 46 2) IP settings. . . . . . . . . . . . . . . . . 49 3) W LAN settings . . . . . . . . . . . . . .52 vi: Information . . . . . . . . . . . . . . . . . . . . . . . .56 1) SIP information . . . . . . . . . . . . . 56 2) IP information . . . . . . . . . . . . . . 56 3) W LAN information. . . . . . . . . . . 56 4) General information . . . . . . . . . 56 5. Web configurator. . . . . . . . . . . . . .57 6. Glossary. . . . . . . . . . . . . . . . . . . .67 7. Health and safety information. . .68 8. FCC Declaration. . . . . . . . . . . . . . .71 2 1. Get Started 1: Standard Package Contents Pleas e check carefully if you have the items mentioned below: 1: W iFi Phone x 01 2: USB Charger x 01 3: USB Cable x 01 4. Battery x 01 5. User’s Manual x 01 6. Lanyard Strap *Actual contents may vary. 2: Phone Specifications Dimensions: 96(L) x 65(W ) x 16(H) Dimension in mm. Weight: 65g (without battery) 80g (with battery) Battery: 650 mAh Li-ion, 3.7v Charger Input: 100-240v – 50-60Hz 0.2A Charger Weight:50g Charging Time:3 hours Standby Time: 48 hours depending on the network Talking Time: 2 hours depending on the network 3 TheCYBERPHONEis a 802.11b/g VoIP W iFi SIP Phone. Get Started Get Started 4 3: Phone Description Earpiece OLED screen Right Soft Key End / Power key Number keys Silent mode key Left soft key Volume up key Volume down key Switch input method key / keypad lock. Talk / Call key 5 W ay joystick USB Port Battery cover door Loop for Lanyard Speaker hole 5-Way Joystick 1 2 3 4 5 – Push down to select an option Battery cover door release button Mic Scroll left for system info In the idle screen, scroll joystick right for shortcut menus Push up to scroll on the side bar menus Push down to scroll on the side bar menus 4: Installing and Removing the battery 1. Push and hold the battery door button down. 2.W hile the button is pushed down, push from the top and slide the battery door cover outwards. Battery Contact point 3.To remove, lift the battery out from here 4.To install the battery, ensure that the contact points are aligned. 5.Insert the direction shown in the diagram FIRST. Re-attac h the battery door. Get Started *Please refer to page.69 for more information on your battery. 5 Get Started 6 5: Charging the battery 2.Insert the charger into your wall power outlet. 1.Plug the USB cable into the charger or to a computer USB port. 3.Locate the USB port at the bottom of yo…

Text truncated - open the document above for the full version.

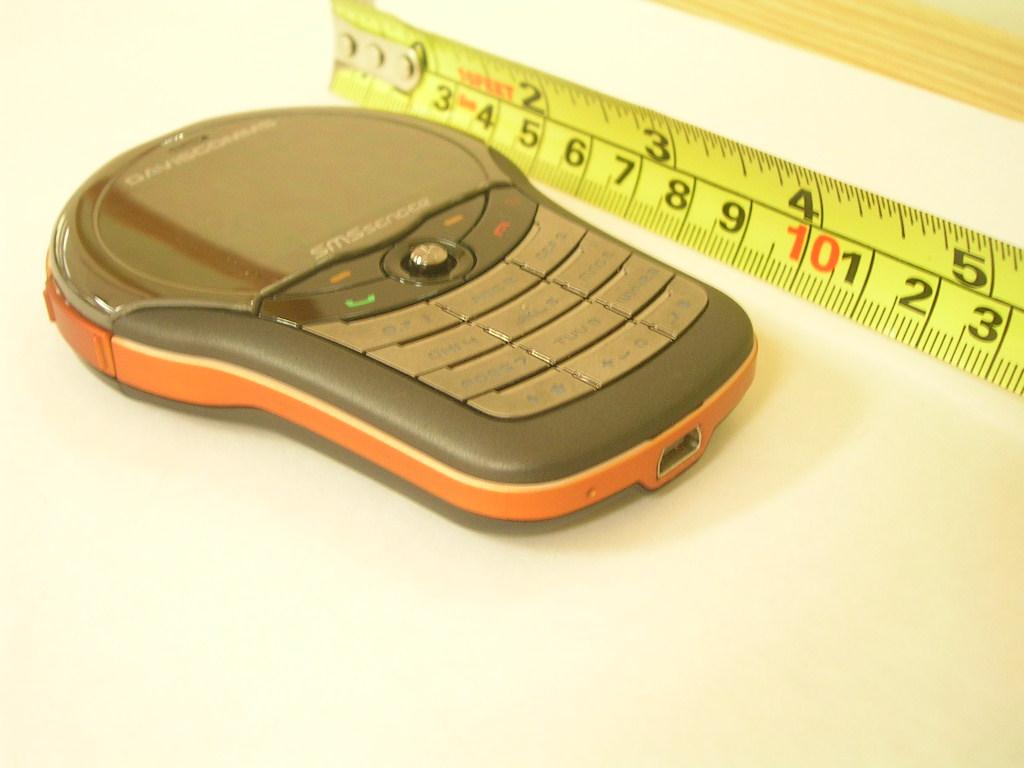

1 Daviscomms (S) Pte Ltd 802.11b/g VoIP WiFi SIP PHONE [ Model : CYBERPHONE xx ] [ FCC ID : VDQCYBER80211 EUT PHOTOGRAPHS Front View Rear View 56S070446 56S070446

FCC LABEL & POSITIONANNEX B Daviscomms (S) Pte LtdPage 110 of 111 802.11b/g VoIP WiFi SIP PHONE [ Model : CYBERPHONE xx ] [ FCC ID : VDQCYBER80211 ] Test Report No.56S070446/05 dated 22 Jun 2007 Labelling requirements per Section 2.925 & 15.19 The label shown will be permanently affixed at a conspicuous location on the device and be readily visible to the user at the time of purchase. Sample Label Physical Location of FCC Label on EUT

1 Daviscomms (S) Pte Ltd 802.11b/g VoIP WiFi SIP PHONE [ Model : CYBERPHONE xx ] [ FCC ID : VDQCYBER80211 ] EUT PHOTOGRAPHS Internal View 56S070446 2 Daviscomms (S) Pte Ltd 802.11b/g VoIP WiFi SIP PHONE [ Model : CYBERPHONE xx ] [ FCC ID : VDQCYBER80211 ] EUT PHOTOGRAPHS Main Board–Top View 56S070446 3 Daviscomms (S) Pte Ltd 802.11b/g VoIP WiFi SIP PHONE [ Model : CYBERPHONE xx ] [ FCC ID : VDQCYBER80211 ] EUT PHOTOGRAPHS MainBoard–Bottom View 56S070446 4 Daviscomms (S) Pte Ltd 802.11b/g VoIP WiFi SIP PHONE [ Model : CYBERPHONE xx ] [ FCC ID : VDQCYBER80211 ] EUT PHOTOGRAPHS RF Module Circuit with RF Shield Removed 56S070446 RF Antenna RFModule 5 Daviscomms (S) Pte Ltd 802.11b/g VoIP WiFi SIP PHONE [ Model : CYBERPHONE xx ] [ FCC ID : VDQCYBER80211 ] EUT PHOTOGRAPHS Power Adapter-Front View Power Adapter-Rear View 56S070446 56S070446

Test Report No. 56S070446/01 dated 12 Jun 2007 Note: This report is issued subject to TÜV SÜD PSB's "Terms and Conditions Governing Technical Services". The terms and conditions governing the issue of this report are set out as attached within this report. LA-2007-0380-A LA-2007-0380-A-1 LA-2007-0381-F LA-2007-0382-B LA-2007-0383-G LA-2007-0384-G LA-2007-0385-E LA-2007-0386-C The results reported herein have been performed in accor dance with the laboratory’s terms of accreditation under the Singapore Accreditation Council - Singapore Laboratory Accreditation Scheme. Tests/Calibrations marked "Not SAC-SINGLAS Accredited" in this Report are not included in the SAC-SINGLAS Accreditation Schedule for our laboratory. Laboratory: TÜV SÜD PSB Pte. Ltd. Testing Group No.1 Science Park Drive Singapore 118221 Phone : +65-6885 1333 Fax : +65-6776 8670 E-mail: [email protected] www.tuv-sud-psb.sg Co. Reg : 199002667R Regional Head Office: TÜV SÜD Asia Pacific Pte. Ltd. 3 Science Park Drive #04-01/05 The Franklin Singapore 118223 Page 1 of 83 COMPLIANCE REPORT ON TESTING IN ACCORDANCE WITH SAR (SPECIFIC ABSORPTION RATE) REQUIREMENTS Supplement C (Edition 01-01) FCC OET Bulletin 65 (Edition 97-01) OF A 802.11b/g VoIP WiFi SIP PHONE [ Model : CYBERPHONE xx ] TEST FACILITY TÜV SÜD PSB Pte. Ltd, Telecoms & EMC, Testing Group, 1 Science Park Drive, Singapore 118221 PREPARED FOR Mr. Chong Soon Keen Daviscomms (S) Pte Ltd Blk 70, Ubi Crescent, #01-07, Ubi Techpark Singapore 408570 Tel : (65) 65471127Fax : (65) 65471129 QUOTATION NUMBER 56Q0700202 JOB NUMBER 56S070446 TEST PERIOD 07-Jun-2007 – 08-Jun-2007 PREPARED BYAPPROVED BY ____________________ Gary Ng Ah Chye Team Leader ____________________ Daniel Yeo Product Manager Test Report No. 56S070446/01 dated 12 Jun 2007 Daviscomms (S) Pte LtdPage 2 of 83 802.11b/g VoIP WiFi SIP PHONE [ Model : CYBERPHONE xx ] TABLE OF CONTENTS TEST SUMMARY PRODUCT DESCRIPTION TEST RESULTS ANNEX A- TEST INSTRUMENTATION & GENERAL PROCEDURES ANNEX B- EUT PHOTOGRAPHS / DIAGRAMS Test Setup EUT Photographs ANNEX C- TISSUE SIMULANT DATA SHEETS ANNEX D- SAR VALIDATION RESULTS ANNEX E- MEASUREMENT UNCERTAINTY ANNEX F- SAR PROBE CALIBRATION CERTIFICATES ANNEX G- REFERENCES Test Report No. 56S070446/01 dated 12 Jun 2007 Daviscomms (S) Pte LtdPage 3 of 83 802.11b/g VoIP WiFi SIP PHONE [ Model : CYBERPHONE xx ] TEST SUMMARY The product was tested in accordance with the following standards. Test Results Summary Test StandardsDescriptionPass / Fail x Supplement C (Edition 01-01) to FCC OET Bulletin 65 (Edition 97-01) x ANSI/IEEE Standard C95.1-1993 SAR Measurement Device at head phantom Pass * SAR Measurement Body Worn Configuration Only Pass * Note: 1. The worst-case SAR value was found to be0.3530W/kg which is lower than the maximum limit of 1.60 W/kg, over 1g of tissue. * Based on spatial peak uncontrolled exposure / general population level: Head: 1.60 W/kg, over 1g of tissue. Body: 1.60 W/kg, over 1g of tissue. Modifications No modification was made. Test Report No. 56S070446/01 dated 12 Jun 2007 Daviscomms (S) Pte LtdPage 4 of 83 802.11b/g VoIP WiFi SIP PHONE [ Model : CYBERPHONE xx ] DEVICE DESCRIPTION DEVICE DESCRIPTION DescriptionThe Equipment Under Test (EUT) is a 802.11b/g VoIP WiFi SIP PHONE. Manufacturer Daviscomms (Malaysia) Sdn Bhd Plot 18, Lorong Perusahaan Maju 1, Kawasan Perusahaan Perai 4, 13600 Perai, Malaysia. Device CategoryMobile Device Exposure EnvironmentGeneral Population /Uncontrolled exposure Test Device TypeProduction Unit Brand NameDAVISCOMMS ModelCYBERPHONE xx Serial NumbersCW1Xxxxxxx ~ CW1Xxxxxxx xx – (the 1 st TWO xx represents the year & the month of the product manufactured) xxxx – (the next FOUR xx represents, serial numbers) FCC IDVDQCYBER80211 DEVICE OPERATING CONFIGURATION Operating Frequencies Channel 01 (2.412GHz) Channel 06 (2.437GHz) Channel 11 (2.462GHz) Operating Temperature Tolerance (-10a 50) Degree Celsius Operating Voltage Tolerance (3.4 - 4.2) Volt DC Continuous Transmission Tolerance The EUT shall cause no problem after transmitting for 5 hours. Rated Output Power 16dBmr 2dBm, Maximum (802.11b) Antenna TypeSMT Chip Antenna EUT Crest Factor8.3 Input Power650mAh lithium ion battery AccessoriesHand Phone with Ear Piece only. Test Report No. 56S070446/01 dated 12 Jun 2007 Daviscomms (S) Pte LtdPage 5 of 83 802.11b/g VoIP WiFi SIP PHONE [ Model : CYBERPHONE xx ] DEVICE OPERATING CONDITION DEVICE OPERATING CONDITION For every SAR measurement, the EUT was set to maximum output power level using fully charged battery. TEMPERATURE AND HUMIDITY Head Measurement Ambient Temperature: 24r 1 0 C Tissue Temperature: 23r 1 0 C Humidity:58% to 62% Body Measurement Ambient Temperature: 23r 1 0 C Tissue Temperature: 23r 1 0 C Humidity:55% to 60% Test Report No. 56S070446/01 dated 12 Jun 2007 Daviscomms (S) Pte LtdPage 6 of 83 802.11b/g VoIP WiFi SIP PHONE [ Model : CYBERPHONE xx ] TEST RESULTS The measurement results were obtained with the EUT tested in the conditions described in this report (Annex A). Table 1 - SAR Test Results – Device at head phantom Phantom Configuration Antenna Position Device Test Positions SAR (W/kg), over 1g Tissue Device Test Channel & Frequency Channel: 1 2412MHz Channel: 6 2437MHz Channel: 11 2462MHz Left Side of Head fixedCheek / Touch0.22900.20600.1670 Ear / Tilt0.28800.24900.2030 Right Side of Head fixedCheek / Touch0.28700.35300.2300 Ear / Tilt0.26900.25800.2280 Conducted Output Power (dBm) Before Test16.917.217.5 Conducted Output Power (dBm) After Test16.616.917.1 Remarks: 1. All modes of operations were investigated and the worst-case SAR levels are reported. 2. A fully charged lithium ion battery was used for each mode of operation. 3. For the worst-case SAR value was found to be0.3530W/Kg (over a 1g tissue) atChannel 6 which is lower than the maximum limit of 1.60 W/Kg, please refer to the above table. 4. The SAR limit of 1.60W/Kg (Spatial Peak level for Uncontrolled Exposure / General Population) is based on the Tes…

Text truncated - open the document above for the full version.

Test Report No. 56S070446/05 dated 22 Jun 2007 Note: This report is issued subject to TÜV SÜD PSB's "Terms and Conditions Governing Technical Services". The terms and conditions governing the issue of this report are set out as attached within this report. LA-2007-0380-A LA-2007-0380-A-1 LA-2007-0381-F LA-2007-0382-B LA-2007-0383-G LA-2007-0384-G LA-2007-0385-E LA-2007-0386-C The results reported herein have been performed in accordance with the laboratory’s terms of accreditation under the Singapore Accreditation Council - Singapore Laboratory Accreditation Scheme. Tests/Calibrations marked "Not SAC-SINGLAS Accredited" in this Report are not included in the SAC-SINGLAS Accreditation Schedule for our laboratory. Laboratory: TÜV SÜD PSB Pte. Ltd. Testing Group No.1 Science Park Drive Singapore 118221 Phone : +65-6885 1333 Fax : +65-6776 8670 E-mail: [email protected] www.tuv-sud-psb.sg Co. Reg : 199002667R Regional Head Office: TÜV SÜD Asia Pacific Pte. Ltd. 3 Science Park Drive #04-01/05 The Franklin Singapore 118223Page 1 of 111 FORMAL REPORT ON TESTING IN ACCORDANCE WITH FCC Parts 15B & C : 2006 OF A 802.11b/g VoIP WiFi SIP PHONE [ Model : CYBERPHONE xx ] [ FCC ID : VDQCYBER80211 ] TEST FACILITY TÜV SÜD PSB Pte Ltd, Telecoms & EMC, Testing Group, 1 Science Park Drive, Singapore 118221 FCC REG. NO.90937 (3m & 10m OATS) 99142 (10m Anechoic Chamber) 871638 (5m Anechoic Chamber) 325572 (10m Anechoic Chamber) IND. CANADA REG. NO.IC 4257 (3m and 10m Anechoic Chambers) PREPARED FORDaviscomms (S) Pte Ltd Blk 70 Ubi Crescent #01-07, Ubi Techpark Singapore 408570 Tel :65 65471127Fax : 65 65471129 QUOTATION NUMBER56Q0700202 JOB NUMBER56S070446 TEST PERIOD30 May 2007 – 19 Jun 2007 PREPARED BYAPPROVED BY ____________________ Quek Keng Huat Associate Engineer ____________________ Lim Cher Hwee Assistant Vice President Daviscomms (S) Pte LtdPage 2 of 111 802.11b/g VoIP WiFi SIP PHONE [ Model : CYBERPHONE xx ] [ FCC ID : VDQCYBER80211 ] Test Report No.56S070446/05 dated 22 Jun 2007 TABLE OF CONTENTS TEST SUMMARY PRODUCT DESCRIPTION SUPPORTING EQUIPMENT DESCRIPTION EUT OPERATING CONDITIONS CONDUCTED EMISSION TEST RADIATED EMISSION TEST SPECTRUM BANDWIDTH (6dB BANDWIDTH MEASUREMENT) TEST MAXIMUM PEAK POWER TEST RF CONDUCTED SPURIOUS EMISSIONS TEST BAND EDGE COMPLIANCE (CONDUCTED) TEST BAND EDGE COMPLIANCE (RADIATED) TEST PEAK POWER SPECTRAL DENSITY TEST MAXIMUM PERMISSIBLE EXPOSURE (MPE)TEST ANNEX A- EUT PHOTOGRAPHS / DIAGRAMS ANNEX B- FCC LABEL & POSITION ANNEX C- USER MANUAL, TECHNICAL DESCRIPTION, BLOCK & CIRCUIT DIAGRAMS Daviscomms (S) Pte LtdPage 3 of 111 802.11b/g VoIP WiFi SIP PHONE [ Model : CYBERPHONE xx ] [ FCC ID : VDQCYBER80211 ] Test Report No.56S070446/05 dated 22 Jun 2007 TEST SUMMARY The product was tested in accordance with the customer's specifications. Test Results Summary Test StandardDescriptionPass / Fail FCC Part 15: 2006 15.107(a), 15.207Conducted EmissionsPass 15.109(a), 15.205, 15.209 Radiated Emissions (Spurious Emissions inclusive Restricted Bands Requirement) Pass 15.247(a)(2)Spectrum Bandwidth (6dB Bandwidth Measurement) Pass 15.247(b)(3)Maximum Peak PowerPass 15.247(d)RF Conducted Spurious EmissionsPass 15.247(d)Band Edge Compliance (Conducted)Pass 15.247(d)Band Edge Compliance (Radiated)Pass 15.247(e)Peak Power Spectral DensityPass 1.1310Maximum Permissible Exposure Refer to page 99 for details Daviscomms (S) Pte LtdPage 4 of 111 802.11b/g VoIP WiFi SIP PHONE [ Model : CYBERPHONE xx ] [ FCC ID : VDQCYBER80211 ] Test Report No.56S070446/05 dated 22 Jun 2007 TEST SUMMARY Notes 1.The channels as listed below, under the different configurations were tested for 802.11b WLAN. Transmit ChannelFrequency (GHz)ModulationData Rate Channel 12.412DBPSK1Mbps Channel 62.437DBPSK1Mbps Channel 112.462DBPSK1Mbps Channel 12.412DQPSK2Mbps Channel 62.437DQPSK2Mbps Channel 112.462DQPSK2Mbps Channel 12.412CCK5.5Mbps Channel 62.437CCK5.5Mbps Channel 112.462CCK5.5Mbps Channel 12.412CCK11Mbps Channel 62.437CCK11Mbps Channel 112.462CCK11Mbps 2. The channels as listed below, under the different configurations were tested for 802.11g WLAN. Transmit ChannelFrequency (GHz)ModulationData Rate Channel 12.412BPSK9Mbps Channel 62.437BPSK9Mbps Channel 112.462BPSK9Mbps Channel 12.412QPSK18Mbps Channel 62.437QPSK18Mbps Channel 112.462QPSK18Mbps Channel 12.41216QAM36Mbps Channel 62.43716QAM36Mbps Channel 112.46216QAM36Mbps 16QAM Channel 12.41264QAM54Mbps Channel 62.43764QAM54Mbps Channel 112.46264QAM54Mbps 3. All the measurements in section 15.247 were done based on conducted measurements. 4. The EUT is a Class B device when in non-transmitting state and meets the FCC Part15B Class B requirements. 5.Alltest measurement procedures are according to ANSI C63.4: 2003. Daviscomms (S) Pte LtdPage 5 of 111 802.11b/g VoIP WiFi SIP PHONE [ Model : CYBERPHONE xx ] [ FCC ID : VDQCYBER80211 ] Test Report No.56S070446/05 dated 22 Jun 2007 TEST SUMMARY Modifications 1.The EUT was brought to compliance to Radiated Emissions test by adding a ferrite choke on the USB cable which bears the part number: K5a RH10.5*5.5*20. Daviscomms (S) Pte LtdPage 6 of 111 802.11b/g VoIP WiFi SIP PHONE [ Model : CYBERPHONE xx ] [ FCC ID : VDQCYBER80211 ] Test Report No.56S070446/05 dated 22 Jun 2007 PRODUCT DESCRIPTION Description:The Equipment Under Test (EUT) isa802.11b/g VoIP WiFi SIP PHONE. Manufacturer: Daviscomms (S) Pte Ltd Blk 70 Ubi Crescent #01-07, Ubi Techpark Singapore 408570 Model Number: CYBERPHONE xx FCC ID:VDQCYBER80211 Serial Number: CW1Xxxxxxx Microprocessor: AT76C902 Operating / Transmitting Frequency : 2.412GHz - 2.462GHz Clock / Oscillator Frequency : 32kHz (RTC Clock), 78MHz (System clock), 40MHz (Crystal oscillator) Modulation: 802.11b WLAN DBPSK @ 1Mbps DQPSK @ 2Mbps CCK @ 5.5Mbps CCK @ 11Mbps 802.11g WLAN BPSK @ 9Mbps QPSK @ 18Mbps 16QAM @ 36Mbps 64QAM @ 54Mbps Antenna Gain: 1.9dBi Port / Connectors: 1 x USB port Rated Input Power: 3.7V, 650mAh-Li-ion battery 100V -240V, 43Hz – 63Hz, 0.2A Accessories:Li-ion battery…

Text truncated - open the document above for the full version.

RADIATED EMISSION TEST Radiated Emissions Test Setup (Front View) Radiated Emissions Test Setup (Rear View) CONDUCTED EMISSION TEST Conducted Emissions Test Setup (Front View) Conducted Emissions Test Setup (Rear View) SPECTRUM BANDWIDTH (6dB BANDWIDTH MEASUREMENT) TEST Spectrum Bandwidth (6dB Bandwidth Measurement)Test Setup MAXIMUM PEAK POWER TEST RF CONDUCTED SPURIOUS EMISSIONS TEST RF Conducted Spurious EmissionsTest Setup BAND EDGE COMPLIANCE (CONDUCTED) TEST BAND EDGE COMPLIANCE (RADIATED) TEST Band Edge Compliance (Radiated)Test Setup PEAK POWER SPECTRAL DENSITY TEST Peak Power Spectral DensityTest Setup
