VEVLFRDP-5100DuoPass

DuoPASS TERMIANL USER MANUAL V1.0 DuoPASS Terminal User Manual # # FCC ID: VEVLFRDP-5100 Note: This device complies with Part 15 of the FCC Rules. Operation is subjected to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation CAUTION: Changes or modifications not expressly approved by the party responsible for compliance could void the use's authority to operate the equipment. Note: This equipment has been tested and found to comply with the limits for a Class B device, pursuant to Part 15 for the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequencies energy and, if not installation and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: -- Reorient or relocate the receiving antenna. -- Increase the separation between the equipment and receiver. -- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. -- Consult the dealer or an experienced radio/TV technician for help. EC R&TTE Declaration of Conformity We Name : LAMPUSTECH Co., Ltd. Address : 4F, Samgong Bldg. 58-7 Banpo4-dong, Seocho-gu, Seoul 137-803, Korea declares that the following product Product Name: TouChecker+ / TC-200 Manufacture’s Name: LAMPUSTECH Co., Ltd. Manufacture’s Address: 4F Samgong Bldg. 58-7 Banpo4-dong, Seocho-gu, Seoul 137-803, Korea Conforms to the technical regulations applicable to the product within the scope of the Low Voltage Directive 73/23/ECC, the EMCDirective 89/336/ECC and the R&TTE Directive 99/5/EC: LVD EN 60950-1:2001 EN 50364:2001 EMCD EN 301 489-1 V1.4.1 (2002-08) EN 301 489-3 V1.4.1 (2002-08) R&TTED EN 300 330-1 V1.5.1 (2006-04) EN 300 330-2 V1.3.1 (2006-04) Seoul, Korea August 01, 2007 Yu-Jin Kim Place Date Signature/President 1 DuoPASS Terminal User Manual 1. DuoPASS Briefs DuoPASS, newly launched Price Competitive Fingerprint Identification device of Lampustech Co., Ltd., is the very fingerprint identification device (or RF card reader device) with wide applicable scope which needs the user identification, like Access Control, Time & Attendance, Dining Count, Membership Management and Student Management and so on. DuoPASS, with diverse I/O, provides optimal solutions in various purposes needed. Armed with LCD sized 16 x 2, 12 basic keys and 4 additional function Keys, 3 color LED, this device would provide convenient and user friendly environment for the users. And it could be applied for diverse division with its embedded communication ports like 1 RS232, 1 RS485, 1 Wiegand, 1 optional TCP/IP and 1 Relay for lock control and 1 external Sensor input for Exit Button. G 2. Specific Features 2.1 Specific Features Exit Door Control, Time & Attendance, Overtime Labor Management Four function keys available for the Time & Attendance could be used flexibly in programming the customized Software. One Terminal could be applicable for many kinds of functions. Available for both STAND ALONE and Network with ACU and PC It is possible to use DuoPASS as a STAND ALONE or network with ACU, and when using the ACU network system the PROTOCOLs like Wiegand/RS232/RS485 available. Moreover the bundle Software could make it possible to connect to PC directly thru RS232/RS485 and TCP/IP optionally. And the RTC and Log Management Function(8000 times) enables Access Control and Time & Attendance without ACU. 2.2 Functionality -User Management ¾User registration ¾User Deletion ¾Registered User referring ¾ID registration referring ¾Registered ID list referring 2 DuoPASS Terminal User Manual -System Management ¾Time/Date setting and referring of the embedded Timer ¾Device Number setting(1~255) ¾Relay working time for lock setting(0~99) ¾Identification Combination setting(Finger, CARD ONLY, CARD or KEY etc) -Others ¾Exit button ¾ Relay Output(Lock Control) 3. System Manager Mode This mode is for the job of User registration and deletion, system set up. To enter into the mode, press “0”key while pressing “ESC”key. System Password Input ත Input the registered 4~8digits of System Password then press “ENT”.. Initial System Password is set as “1111” from the factory. MANAGER PASSWORD If Password is wrong, the below would be displayed.. MANAGER PASSWORD Sorry! Mismatch If Password is right, System Menu goes back and displayed as below. 1. REGISTRATION 2. SYSTEM In above menu if you select ‘1. REGISTRATION’, System Menu would be displayed as below.. 1. USER 2. PASSWD 3. TIME 4. TID NO 3 DuoPASS Terminal User Manual 3.1 Menu 1-1 User Registration In system menu 1.REGISTRATION ೸1. USER select Enter into process for registration as below ሪ͑3.1.1 PIN (Only)User 1. PIN or CARD 2. FINGER ත Select “1. PIN or CARD” goes to next ත Input ID (1~8 digit) for registration and ‘ENT’. If ID already exist in system ‘DUPLICATED PIN’ would be displayed. It is available to register PIN user continuously. PUT PIN or CARD PUT PIN or CARD OK! USER PIN IN ත To close registration processing, Press ‘ESC’ then would be return to previous menu 1. USER 2. PASSWD 3. TIME 4. TID NO ሪ͑3.1.2 CARD User 1. PIN or CARD 2. FINGER ත Select ‘1. PIN or CARD’ goes to next ත To close registration processing, Press ‘ESC’ then would be return to previous menu ත Get Card approach to Terminal If Card # already exist in system, ‘DUPLICATED CARD’ would be displayed It is available to register continuously. PUT PIN or CARD PUT PIN or CARD OK! CARD ID IN 1. USER 2. PA…

Text truncated - open the document above for the full version.

RFID Reader Wiegand Data Data

LAMPUSTECH CO., LTD. 4F, Samgong Bldg., 58-7, Banpo4-dong, Seocho-gu, Seoul, 137-803, South Korea TEL: +82-2-594-6071, FAX: +82-2-594-6076 Federal Communications Commission Equipment Authorization Division, Application Processing Branch 7435 Oakland Mills Road Columbia, MD21046 TO WHOM IT MAY CONCERN Pursuant to Paragraphs §0.457 and 0.459 of the Commission's Rules (47 C.F.R) and Section §552(b)(4) of the Freedom of Information Act, LAMPUSTECH CO., LTD. requests confidentiality for the following products: FCC ID Number Product Title / Model VEVLFRDP-5100 DuoPass/ DP-5100 For the product stated above, we request that the following information be held confidential: 1) Schematic diagrams 2) Bill of materials (Part List) No other items submitted as part of the equipment authorization filing process are deemed confidential. The above exhibits contain LAMPUSTECH CO., LTD. trade secrets and proprietary information that could be of benefit to our competitors regarding the design of our products. This material is not customarily available to the general public and we request that it be withheld from public inspection. Sincerely, Chang-Won Kwon / General Manager

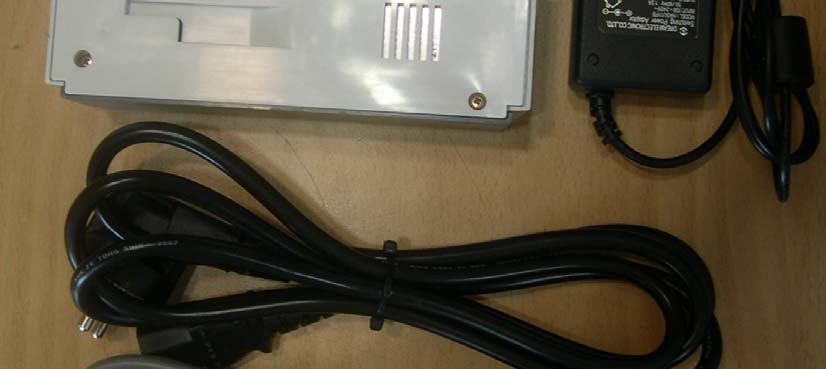

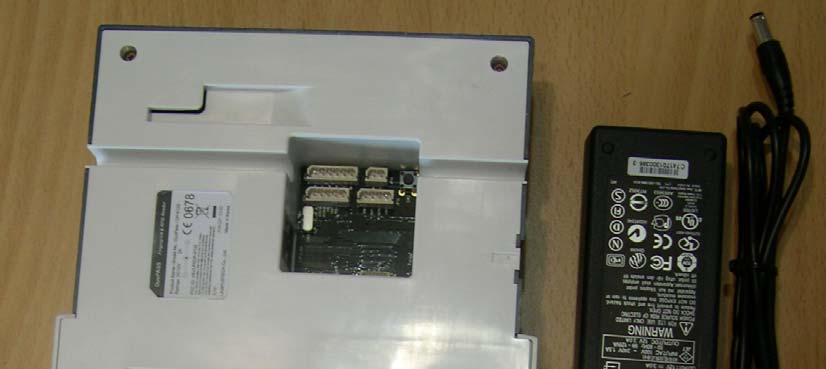

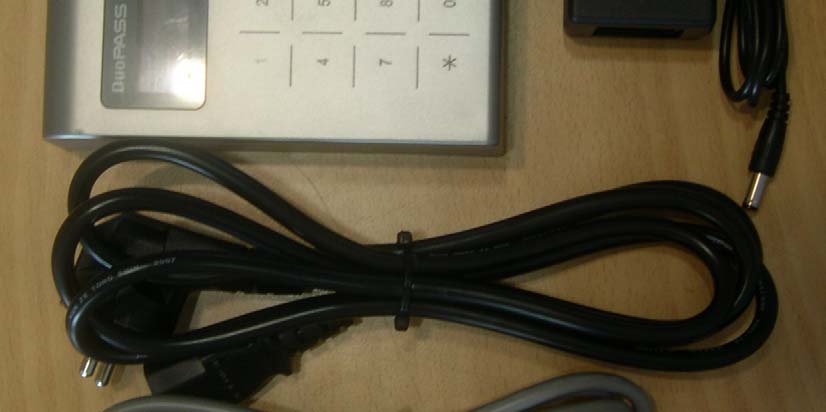

SK TECH CO., LTD. Page 1 of 2 SKTTRT-070808-021 FCC ID: VEVLFRDP-5100 External Photographs of EUT <Photograph 1: Front View> SK TECH CO., LTD. Page 2 of 2 SKTTRT-070808-021 FCC ID: VEVLFRDP-5100 <Photograph 2: Rear View>

ID Label Location & Sample LABEL LOCATION: Label will be attached on the REAR of the product LABEL Drawing

SK TECH CO., LTD. Page 1 of 6 SKTTRT-070808-021 FCC ID:VEVLFRDP-5100 Internal Photographs of EUT <Photograph 1: Cover removed> <Photograph 2: RF Board View> SK TECH CO., LTD. Page 2 of 6 SKTTRT-070808-021 FCC ID:VEVLFRDP-5100 <Photograph 3: Fingerprinter Identification Module > SK TECH CO., LTD. Page 3 of 6 SKTTRT-070808-021 FCC ID:VEVLFRDP-5100 <Photograph 4: Main Board > SK TECH CO., LTD. Page 4 of 6 SKTTRT-070808-021 FCC ID:VEVLFRDP-5100 <Photograph 5: TCP/IP Module > SK TECH CO., LTD. Page 5 of 6 SKTTRT-070808-021 FCC ID:VEVLFRDP-5100 <Photograph 6: Key-pad Board > SK TECH CO., LTD. Page 6 of 6 SKTTRT-070808-021 FCC ID:VEVLFRDP-5100 <Photograph 7: LCD display module >

1/2 Operational Description This product, DP-5100 is the fingerprint identification device (or RF card reader device) with wide applicable scope which needs the user identification, like Access Control, Time & Attendance, Dining Count, Membership Management and Student Management and so on. Model DP-5100, with diverse I/O, provides optimal solutions in various purposes needed. This device is composed of LCD sized 16 x 2, 12 basic keys and 4 additional function Keys, 3 color LED. And it could be applied for diverse division with its embedded communication ports like 1 RS232, 1 RS485, 1 Wiegand, 1 optional TCP/IP and 1 Relay for lock control and 1 external Sensor input for Exit Button. This device is the stand-alone and TCP/IP with the fingerprint reader / RF-ID reader and controller designed for use with various applications requiring physical door access control and time & attendance. It utilizes optical fingerprint scanning and RF-ID technology for superior image quality and product reliability. - Exit Door Control, Time & Attendance, Overtime Labor Management Four function keys available for the Time & Attendance could be used flexibly in programming the customized Software. One Terminal could be applicable for many kinds of functions. - Available for both STAND ALONE and Network with ACU and PC It is possible to use DuoPASS as a STAND ALONE or network with ACU, and when using the ACU network system the PROTOCOLs like Wiegand/RS232/RS485 available. Moreover the bundle Software could make it possible to connect to PC directly thru RS232/RS485 and TCP/IP optionally. And the RTC and Log Management Function(8000 times) enables Access Control and Time & Attendance without ACU. - Functionality - User Management ¾ User registration ¾ User Deletion ¾ Registered User referring ¾ ID registration referring ¾ Registered ID list referring - System Management ¾ Time/Date setting and referring of the embedded Timer ¾ Device Number setting(1~255) ¾ Relay working time for lock setting(0~99) ¾ Identification Combination setting(Finger, CARD ONLY, CARD or KEY etc) 2/2 - Others ¾ Exit button ¾ Relay Output(Lock Control) The following is a system configuration about the the operation flow.

SK TECH CO., LTD. Page 1 of 18 Report No. : SKTTRT-070808-021 FCC ID: VEVLFRDP-5100 FCC-Certificate of Compliance Test Report No.: SKTTRT-070808-021 KOLAS No.: KT191 Applicant: LAMPUSTECH Co., Ltd. Applicant Address: 4F, Samgong Bldg., 58-7, Banpo4-dong, Seocho-gu, Seoul, 137-803, South Korea Manufacturer: LAMPUSTECH Co., Ltd. Manufacturer Address: 4F, Samgong Bldg., 58-7, Banpo4-dong, Seocho-gu, Seoul, 137-803, South Korea Equipment Under Test: DuoPass FCC ID: VEVLFRDP-5100 Model No.: DP-5100 Receipt No.: SKTEU07-0585 Date of receipt: June 14, 2007 Date of Issue: Aug. 08, 2007 Location of Testing: SK TECH CO., LTD. 820-2, Wolmoon-Ri, Wabu-Up, Namyangju-Si, Kyunggi-Do, Korea Test Procedure: ANSI C63.4 / 2003 Test Specification: 47CFR, Part 15 Subpart C Equipment Class: DXX - Part 15 Low Power Communication Device Transmitter Test Result: The above-mentioned device has been tested and passed. Tested & Reported by: Seong-Baek, Ko 2007. 08. 08 Approved by: Jong-Soo, Yoon 2007. 08. 08 Signature Date Signature Date Other Aspects: Abbreviations: · OK, Pass = passed · Fail = failed · N/A = not applicable ☞ ¾ This test report is not permitted to copy partly and entirely without our permission. ¾ This test result is dependent on only equipment to be used. ¾ This test result is based on a single evaluation of submitted samples of the above mentioned. ¾ This test report is the accredited testing items by Korea Laboratory Accreditation Scheme, which signed the ILAC-MRA. SK TECH CO., LTD. Page 2 of 18 Report No. : SKTTRT-070808-021 FCC ID: VEVLFRDP-5100 >> CONTENTS << 1. GENERAL ··························································································································· 3 2. TEST SITE ··························································································································· 3 2.1 Location ······················································································································ 3 2.2 List of Test and Measurement Instruments ································································· 4 2.3 Test Date ····················································································································· 4 2.4 Test Environment ········································································································ 4 3. DESCRIPTION OF The EQUIPMENT UNDER TEST ················································ 5 3.1 Rating and Physical Characteristics ··········································································· 5 3.2 Submitted Documents ································································································· 5 3.3 Equipment Modifications ··························································································· 5 4. MEASUREMENT CONDITIONS ··················································································· 6 4.1 Description of test configuration ················································································ 6 4.2 List of Peripherals ·······································································································6 4.3 Uncertainty ················································································································· 6 5. TEST AND MEASUREMENTS ························································································ 7 5.1 ANTENNA REQUIREMENT ···················································································· 7 5.1.1 Regulation ············································································································ 7 5.1.2 Result ···················································································································7 5.2 RADIATED EMISSIONS ··························································································· 8 5.2.1 Regulation ············································································································ 8 5.2.2 Measurement Procedure ······················································································ 9 5.2.3 Calculation of the filed strength limits below 30 MHz ····································· 10 5.2.4 Test Results ·········································································································11 Table 1: Field strength below 30 MHz································································································ 11 Table 2: Field strength above 30 MHz ································································································ 11 Figure 1: Plot of the Bandedge ········································································································· 12 5.3 FREQUENCY TOLERANCE OF CARRIER SIGNAL ······································ 13 5.3.1 Regulation ·········································································································· 13 5.3.2 Measurement Procedure ···················································································· 13 5.3.3 Test Results ········································································································ 14 5.4 CONDUCTED EMISSIONS ···················································································· 15 5.4.1 Regulation ·········································································································· 15 5.4.2 Measurement Procedure ···················································································· 15 5.4.3 Test Results ········································································································ 16 Table 3: Measured Values of the Conducted Emissions······································································16 Figure 2: Plot of the Conducted Emissions ······················································································· 17 …

Text truncated - open the document above for the full version.

SK TECH CO., LTD. Page 1 of 3 SKTTRT-070808-021 FCC ID: VEVLFRDP-5100 Test set up photos <Radiated Emissions - Front View> <Radiated Emissions - Rear View> SK TECH CO., LTD. Page 2 of 3 SKTTRT-070808-021 FCC ID: VEVLFRDP-5100 <Conducted Emissions - Front View> <Conducted Emissions - Rear View> SK TECH CO., LTD. Page 3 of 3 SKTTRT-070808-021 FCC ID: VEVLFRDP-5100 <Frequency Tolerance of Carrier Signal – Chamber Closed> <Frequency Tolerance of Carrier Signal – Chamber Opened>
