VF9DANARDANA Diabecare Insulin Pump

DANA Diabecare IISR User Manual DANA Diabecare IISR User Manual Co n t e n t s USER SETTING 1. HOUR DISPLAY TYPE : 12 2. LOCK : On 3. BUTTON SCROLL : On 4. SOUND MODE : R/V 5. DISPLAY SET 6. EXTENDED MENU 7. STRIP CHECK 8. EXIT DISPLAY SET 1. LCD ON TIME(S) : 60 2. EL ON TIME(S) : 10 3. LANGUAGE : KO 4. EXIT EXTENDED MENU 1. EXTENDED BOLUS : On 2. UTILITY : Off 3. NO CARBO MODE : Off 4. EXIT STRIP CHECK STRIP CHECK E R R O R STRIP CHECK O K g

RM 612, Starwood Plaza, 5439-1 Sangdaewon-Dong, Jungwon-Gu, Sungnam-City, Kyunggi-Do, Korea TEL No : +82-31-737-0850 FAX No : +82-31-737-0851 July 16, 2007 Federal Communications Commision Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 In re : SOOIL Development Co., Ltd. FCC ID : VF9DANAR Request for Confidentiality Gentlemen : In accordance with 0.457 and 0.459 of CFR 47, SOOIL Development Co., Ltd. Here by requests confidentiality of the Schematics, Block diagram, Part list and Operational description of the attached test report. These documents contain detailed system and equipment description and related information about the product which SOOIL Development Co., Ltd. Considers to be proprietary, confidential, and a custom design and, otherwise, would not release to the general public. Since this design is a basis from which future technological products will evolve, SOOIL Development Co., Ltd. Considers that this information would be of benefit to its competitors, and that the disclosure of the information in these documents would give competitors an unfair advantage in the market. Sincerely, Geun-Sang Lim / General manager

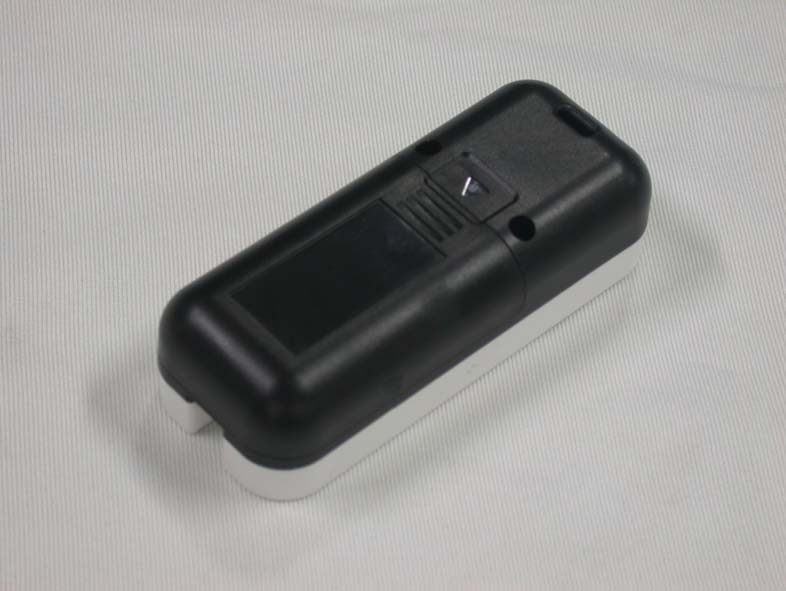

BWS TECH Inc. #611-1 Maesan-Ri,Mohyeon-Myeon, Cheoin-Gu, Yongin-Si, Gyeonggi-Do 449-853, Korea 1 1 of 1 FCC test report SOOIL Development Co., Ltd. SOOIL Development Co., Ltd. Bluetooth / DANA R Appendix 3. External Photographs of EUT

BWS TECH Inc. #611-1 Maesan-Ri,Mohyeon-Myeon, Cheoin-Gu, Yongin-Si, Gyeonggi-Do 449-853, Korea 1 1 of 1 FCC test report SOOIL Development Co., Ltd. SOOIL Development Co., Ltd. Bluetooth / DANA R Appendix 2. FCC ID Label and location Product Label Sample with FCC ID Label information Following is a sample copy of the label that will be placed on the rear cabinet of the product. The FCC identifier is marked in the product label. The warning statement and information to the user are described in the user manual. Label Location The label shown above shall be permanently affixed at a conspicuous location on the device and be readily visible to the user at the time purchase.(Labeling requirements per 2.925)

BWS TECH Inc. #611-1 Maesan-Ri,Mohyeon-Myeon, Cheoin-Gu, Yongin-Si, Gyeonggi-Do 449-853, Korea 1 1 of 3 FCC test report SOOIL Development Co., Ltd. SOOIL Development Co., Ltd. Bluetooth / DANA R Appendix 4. Internal Photographs of EUT BWS TECH Inc. #611-1 Maesan-Ri,Mohyeon-Myeon, Cheoin-Gu, Yongin-Si, Gyeonggi-Do 449-853, Korea 2 2 of 3 FCC test report SOOIL Development Co., Ltd. SOOIL Development Co., Ltd. Bluetooth / DANA R BWS TECH Inc. #611-1 Maesan-Ri,Mohyeon-Myeon, Cheoin-Gu, Yongin-Si, Gyeonggi-Do 449-853, Korea 3 3 of 3 FCC test report SOOIL Development Co., Ltd. SOOIL Development Co., Ltd. Bluetooth / DANA R

Report No: BWS-07-EF-0038 Page Number : BWS TECH Inc. FCC Test Report Data of Issue : July 16, 2007 1 of 31 FCC test report SOOIL Development Co., Ltd. RF MEASUREMENT REPORT CERIFICATION OF COMPLIANCE PRODUCT : DANA Insulin Pump MODEL/TYPE NO : DANA R FCC ID : VF9DANAR TRADE NAME : APPLICANT NAME : SOOIL Development Co., Ltd. 111-1, Heukseck-dong, Dongjak-gu, Seoul, 156-070, Korea Attn. : Geun-Sang Lim / general manager FCC CLASSIFICATION : DTS Part 15 Digital Transmission System FCC RULE PART(S) : FCC Part 15 Subpart C Section 15.247 FCC PROCEDURE : Certification DATES OF TEST : June 22, 2007 ~ June 29, 2007 DATES OF ISSUE : July 16, 2007 TEST REPORT No. : BWS-07-EF-0038 TEST LAB. : BWS TECH Inc. (Registration No. : 553281) This Digital Transmission System has been tested in accordance with the measurement procedures specified in ANSI C63.4-2003 at the BWS TECH/EMC Test Laboratory and has been shown to be complied with the electromagnetic radiated emission limits specified in FCC Rule Part 15.247. I attest to the accuracy of data. All measurement herein was performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. The results of testing in this report apply to the product/system, which was tested only. Other similar equipment will not necessarily produce the same results due to production tolerance and measurement uncertainties. TABLE OF CONTENTS TABLE OF CONTENTS Pages July 16, 2007 (Date) Reviewed by TaeHyun, Nam July 16, 2007 (Date) Tested by HyunSup, Jin BWS TECH Inc. www.bws.co.kr #611-1 Maesan-Ri, Mohyeon-Myeon, Cheoin-Gu, Yongin-Si, Gyeonggi-Do 449-853, Korea TEL: +82 31 333 5997 FAX: +82 31 333 0017 Report No: BWS-07-EF-0038 Page Number : BWS TECH Inc. FCC Test Report Data of Issue : July 16, 2007 2 of 31 FCC test report SOOIL Development Co., Ltd. TABLE OF CONTENTS 1. General Information 3 2. Description of Test Facility 4 3. Product Information 5 4. Description of Tests 6 5. Test Condition 8 6. Test Results 9 7. Test Equipment List 31 Appendix 1. Test Setup Photos Appendix 2. FCC ID Label and location Appendix 3. External Photos of EUT Appendix 4. Internal Photos of EUT Appendix 5. Block Diagram Appendix 6. Schematics Appendix 7. Operational Description Appendix 8. Part list Appendix 9. User Manual Appendix 10. Statement request Report No: BWS-07-EF-0038 Page Number : BWS TECH Inc. FCC Test Report Data of Issue : July 16, 2007 3 of 31 FCC test report SOOIL Development Co., Ltd. FCC TEST REPORT Scope – Measurement and determination of electromagnetic emission(EME) of radio frequency devices including intentional radiators and/or unintentional radiators for compliance with the technical rules and regulations of the U.S Federal Communications Commission(FCC) 1. General Information Applicant Manufacturer z EUT Type : Insulin Pump z Model Number : DANA R z FCC Identifier : VF9DANAR z S/N : Prototype z Freq. Range : 2400MHz ~ 2483.5MHz z Number of Channels : 79 z Modulation Method : FHSS (Frequency Hopping Spread Spectrum) z FCC Rule Part(s) : Part 15 Subpart C Section 15.247 z Test Procedure : ANSI C63.4-2000 z Dates of Tests : June 26, 2007 z Place of Tests : BWS TECH Inc. EMC Testing Lab (FCC Registration Number : 553281) #611-1 Maesan-Ri, Mohyeon-Myeon, Cheoin-Gu, Yongin-Si, Gyeonggi-Do 449-853, Korea TEL: +82 31 333 5997 FAX: +82 31 333 0017 z Test Report No. : BWS-07-EF-0038 Company Name : SOOIL Development Co., Ltd. Company Address : 111-1, Heukseck-dong, Seoul, 156-070, Korea Phone/Fax : +82-02-2824-2133 / +82-02-2823-0735 Company Name : SOOIL Development Co., Ltd. Company Address : 111-1, Heukseck-dong, Seoul, 156-070, Korea Phone/Fax : +82-02-2824-2133 / +82-02-2823-0735 Report No: BWS-07-EF-0038 Page Number : BWS TECH Inc. FCC Test Report Data of Issue : July 16, 2007 4 of 31 FCC test report SOOIL Development Co., Ltd. 2. Description of Test Facility The measurement for radiated emission test were practiced at the open area test site of BWS TECH Inc. Measurement for conducted emission test were practiced at the semi EMC Anechoic Chamber test site of BWS TECH Inc. facility located at #611-1 Maesan-Ri, Mohyeon-Myeon, Cheoin-Gu, Yongin-Si, Gyeonggi-Do 449-853, Korea. The site is constructed in conformance with the requirements of the ANSI C63.4-2003 and CISPR Publication 16. The BWS TECH measurement facility has been filed to the Commission with the FCC for 3 and 10-meter site configurations. Detailed description of test facility was found to be in compliance with the requirements of Section 2.948 FCC Rules according to the ANSI C63.4-1993 and registered to the Federal Communications Commission (Registration Number : 553281 ). The measurement procedure described in American National Standard for Method of Measurement of Radio-Noise Emission from Low-Voltage Electrical and Electronic Equipment in the Range of 9kHz to 40GHz (ANSI C.63.4-2003) was used in determining radiated emissions from the Sooil Development Co., Ltd. Model : DANA R. Report No: BWS-07-EF-0038 Page Number : BWS TECH Inc. FCC Test Report Data of Issue : July 16, 2007 5 of 31 FCC test report SOOIL Development Co., Ltd. 3. Product Information 3.1 Equipment Description The Equipment Under Test (EUT) is RF transmitter by the SOOIL Development Co., Ltd. Model : DANA R. (FCC ID : VF9DANAR). The DANA R is portable Insulin pump. 3.2 General Specification Item Specification Transmitter (DANA IIR) Dimensions 75 mm X 45 mm X 19 mm Weight 65 g Power 3.6 Vdc (Lithium Battery 1/2 AA Size ) Signaling Modulation FHSS / GFSK Frequency Range 2400MHz ~ 2483.5MHz Number of Channel 79 Channel separation 1 MHz Type of antenna Integral Antenna Antenna gain (dBi) 4.03 dBi Receiver (DANA R) Dimensions 80 mm X 33 mm X 19 mm Weight 55 g Power 3.6 Vdc (Lithium Battery 1/2 AA Size ) Signaling Modulation FHSS / GFSK Frequency Range 2400MHz ~ 2483.5MHz Number of…

Text truncated - open the document above for the full version.

BWS TECH Inc. #611-1 Maesan-Ri,Mohyeon-Myeon, Cheoin-Gu, Yongin-Si, Gyeonggi-Do 449-853, Korea 1 1 of 1 FCC test report SOOIL Development Co., Ltd. SOOIL Development Co., Ltd. Bluetooth / DANA R Appendix 1. Test Setup Photos
