VFM-NSKYS108CDMA MOBILE PHONE

S108 User Guide 1 Welcome Thank you for your selecting this mobile phone. Connect to the world with S108 CDMA mobile phone. Sophisticated features give you every practical advantage in today’s world of fast paced communication. Please read this manual detailedly before use. S108 User Guide 2 FCC Interference Statement The device complies with Part 15 of FCC rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference. (2) This device must accept any interference received, including interference that may cause undesired operations. This device has been tested and found to comply with the limits for a Class B digital device pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This device generates, uses, and can radiate radio frequency energy, and if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this device does cause harmful interference to radio/television reception, which can be determined by turning the device off and on, the user is encouraged to try to correct the interference by one or more of the following measures: – Reorient or relocate the receiving antenna. – Increase the separation between the equipment and the receiver. – Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. – Consult the dealer or an experienced radio/TV technician for help. WARNING: Changes or modifications to this unit not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. SAR Information • This device complies with Part 24 of the FCC Rules. • This device meets government requirements for exposure to radio waves. This device is a radio transmitter and receiver. It is designed and manufactured not to exceed limits for exposure to radio frequency (RF) energy. These limits are part of comprehensive guidelines and establish permitted levels of RF energy for the population. The guidelines were developed and confirmed by independent scientific organizations through periodic and thorough evaluation of scientific studies. The limits include a substantial safety margin designed to assure the safety of all persons, regardless of age and health. The exposure standard for device employs a unit of measurement known as the Specific Absorption Rate, or SAR. Under the guidelines for your device, the SAR limit is 1.6 W/kg .The highest SAR value for this device when tested for use at the ear is 0.111 W/kg and when worn on the body is 0.541 W/kg. S108 User Guide 3 Contents Welcome ........................................................................................................................... 1 Contents............................................................................................................................ 3 1. Essential information..................................................................................................... 6 1.1 Safety guidelines.................................................................................................. 6 1.1.1 Traffic regulations....................................................................................... 6 1.1.2 Switch off your phone at filling stations and sensitive areas ...................... 6 1.1.3 Switch off your phone on aircraft................................................................ 6 1.1.4 Switch off your phone in the hospital ......................................................... 6 1.1.5 Pacemakers and medical implants ............................................................ 7 1.1.6 Other medical devices ............................................................................... 7 1.1.7 Follow mandatory signs ............................................................................. 7 1.1.8 Emergency calls......................................................................................... 7 1.1.9 Electronic devices ...................................................................................... 7 1.2 Care and maintenance information ...................................................................... 8 2. Handset guide ...............................................................................................................9 2.1 Keypad................................................................................................................. 9 2.1.1 Power /End key.......................................................................................... 9 2.1.2 Send key.................................................................................................... 9 2.1.3 Function keys............................................................................................. 9 2.1.4 Four ways navigation key ........................................................................ 10 2.1.6 # (hash) key ............................................................................................. 10 2.1.7 * (star) key................................................................................................ 10 2.1.8 Numeric keys ........................................................................................... 10 2.1.9 Volume key (up and down key in navigation key) .................................... 10 2.2 Idle mode screen ................................................................................................11 2.2.1 Screen indicators and icons ......................................................................11 2.2.2 Idle mode screen events .......................................................................... 12 2.3 Installing Battery and RUIM card ...................................................................…

Text truncated - open the document above for the full version.

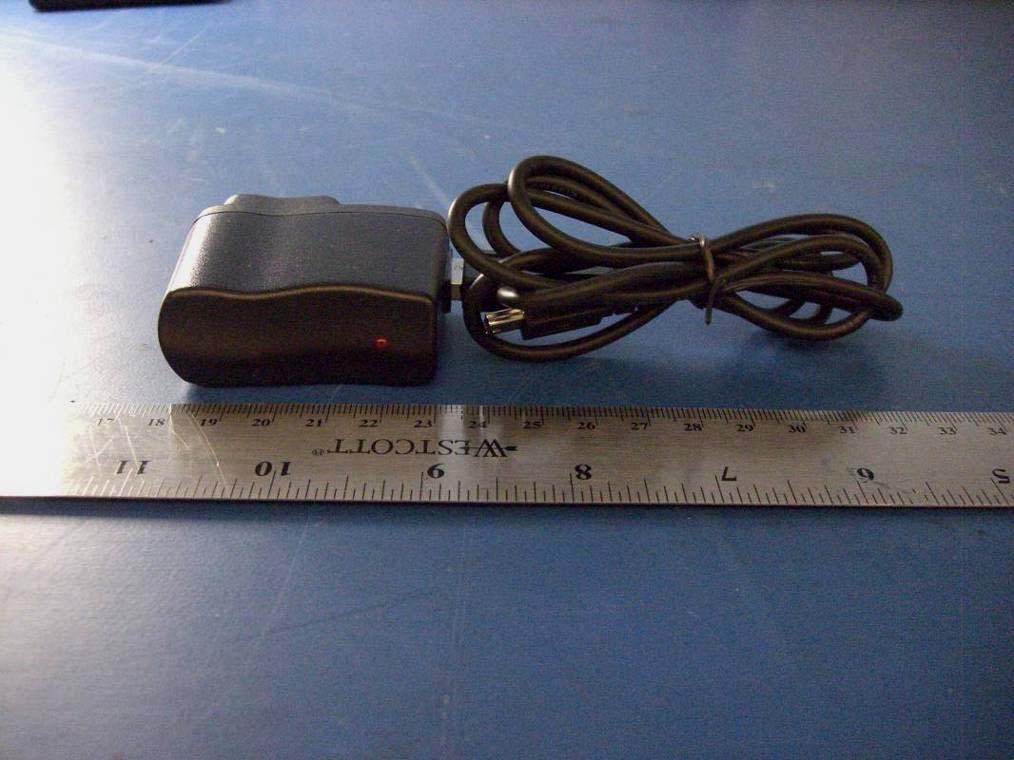

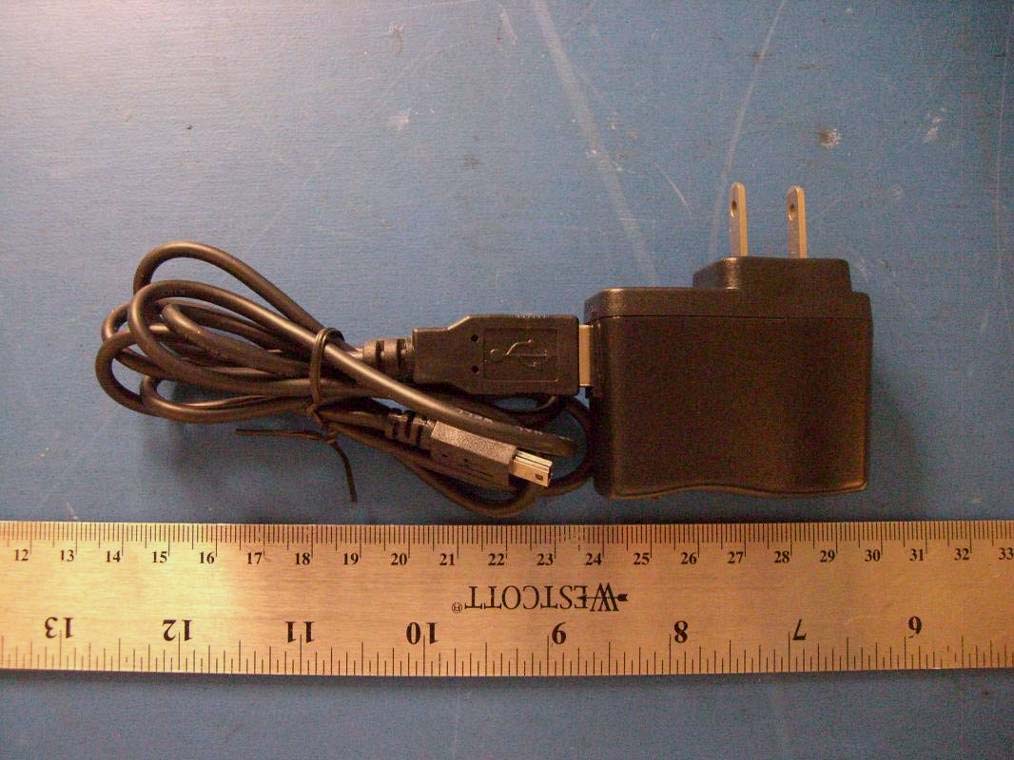

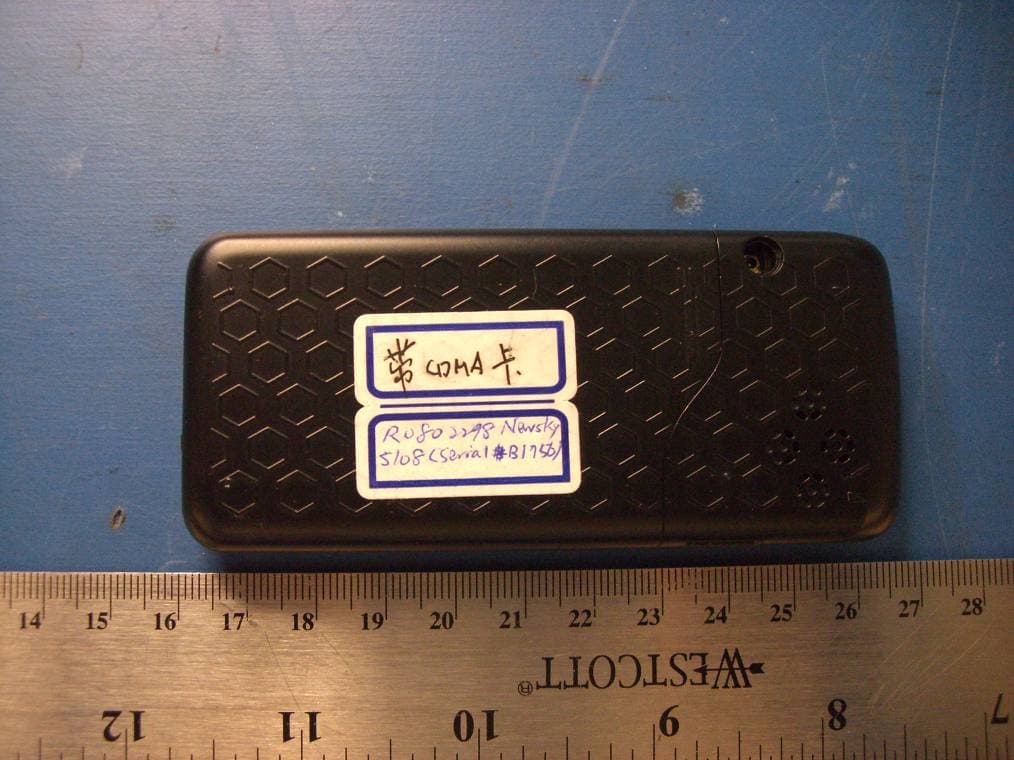

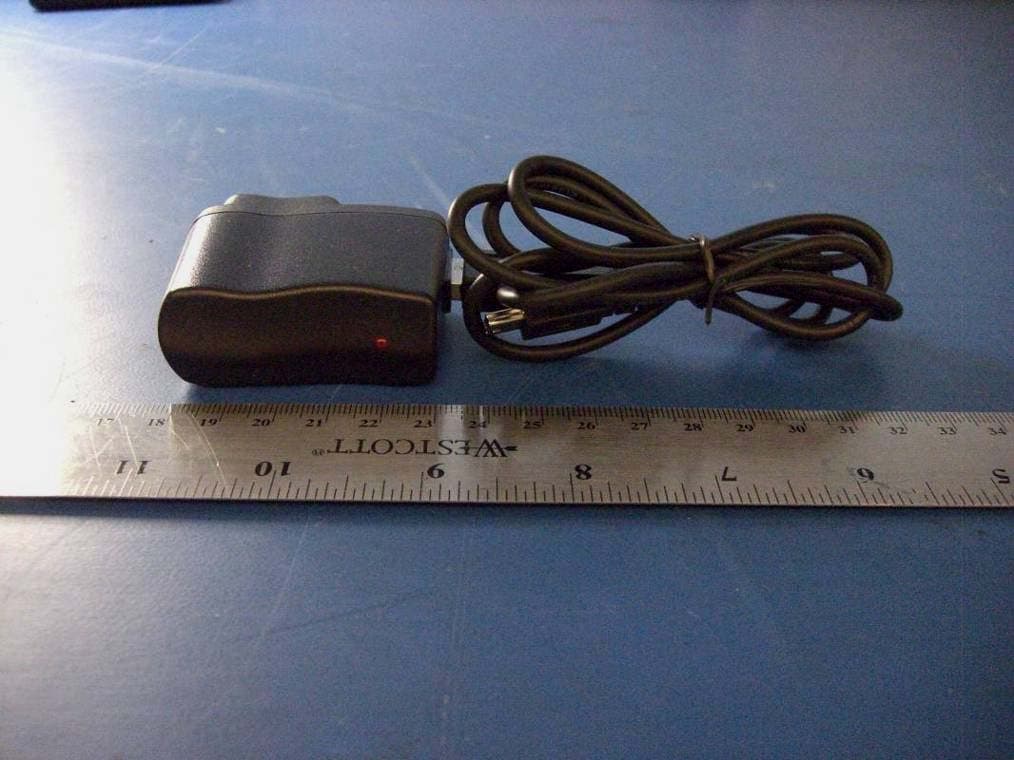

Hangzhou Newsky Technology Co., Ltd FCC ID: VFM-NSKYS108 Report No.: R0802298-22 Page 31 of 37 FCC Part 22H Report EXHIBIT C - EUT PHOTOGRAPHS EUT – Front View EUT – Back View Hangzhou Newsky Technology Co., Ltd FCC ID: VFM-NSKYS108 Report No.: R0802298-22 Page 32 of 37 FCC Part 22H Report EUT – Port View EUT – Side View Hangzhou Newsky Technology Co., Ltd FCC ID: VFM-NSKYS108 Report No.: R0802298-22 Page 33 of 37 FCC Part 22H Report Battery Charger View 1 Battery Charger View 2

Hangzhou Newsky Technology Co., Ltd FCC ID: VFM-NSKYS108 Report No.: R0802298-22 Page 29 of 37 FCC Part 22H Report EXHIBIT A - FCC ID LABELING AND WARNING STATEMENT FCC § 2.925 Identification of equipment (a) Each equipment covered in an application for equipment authorization shall bear a nameplate or label listing the following: (1) FCC Identifier consisting of the two elements in the exact order specified in §2.926. The FCC Identifier shall be preceded by the term FCC ID in capital letters on a single line, and shall be of a type size large enough to be legible without the aid of magnification. Example: FCC ID XXX123. XXX—Grantee Code 123—Equipment Product Code Proposed Label Location on EUT Back View of EUT, Battery Compartment / Proposed FCC ID Location FCC ID: VFM-NSKYS108

Hangzhou Newsky Technology Co., Ltd FCC ID: VFM-NSKYS108 Report No.: R0802298-22 Page 34 of 37 FCC Part 22H Report EUT Internal – Cover Off With Battery View EUT Internal – Cover off View battery removed Hangzhou Newsky Technology Co., Ltd FCC ID: VFM-NSKYS108 Report No.: R0802298-22 Page 35 of 37 FCC Part 22H Report Battery View EUT Internal – PCB Solder Side View Hangzhou Newsky Technology Co., Ltd FCC ID: VFM-NSKYS108 Report No.: R0802298-22 Page 36 of 37 FCC Part 22H Report EUT Internal PCB Component Side View with Keyboard & Display EUT Internal PCB Component Side, Keyboard Removed Hangzhou Newsky Technology Co., Ltd FCC ID: VFM-NSKYS108 Report No.: R0802298-22 Page 37 of 37 FCC Part 22H Report EUT Internal PCB Component Side, RF Shielding Removed ***** END OF REPORT *****

Note: This test report is for the customer shown above and their specific product only. It may not be duplicated or used in part without prior written consent from Bay Area Compliance Laboratories Corp. This report must not be used by the customer to claim product certification, approval, or endorsement by NVLAP, NIST, or any agency of the Federal Government SAR EVALUATION REPORT For Hangzhou Newsky Technology Co., Ltd. West 408-410, Building A, National Science Park of Zhejiang University No. 525, Xixi Road, Hangzhou, China FCC ID: VFM-NSKYS108 MODEL: S108 Report Type: Original Report Product Name: CDMA Mobile Phone Test Engineer: Victor Zhang Report Number: R0802298-SAR Report Date: 2008-03-25 Reviewed By: Boni Baniqued Sr. RF Engineer Prepared By: Bay Area Compliance Laboratories Corp. (BACL) 1274 Anvilwood Ave. Sunnyvale, CA 94089, USA Tel: (408) 732-9162 Fax: (408) 732 9164 Hangzhou Newsky Technology Co., Ltd. FCC ID: VFM- NSKYS108 Report No.: R0802298-SAR SAR Evaluation Report Page 2 of 60 DECLARATION OF COMPLIANCE SAR EVALUATION Rule Part(s): CFR 47 §2.1093 Test Procedure(s): FCC OET Bulletin 65 C; IEEE 1528-2003 Device Category: Exposure Category: Portable Device General Population/Uncontrolled Exposure Device Type: CDMA Mobile Phone Modulation Type: CDMA 1x TX Frequency Range: 824 - 849 MHz Maximum Conducted Power Tested: 230 mw Antenna Type(s) Tested: Interval Antenna Battery Type (s) Tested: BL-5C: 3.7Vdc/1040mAH 0.111 W/kg Head Liquid Max. SAR Level(s) Measured: 0.541 W/kg Body liquid Cellular Band This wireless device has been shown to be capable of compliance for localized specific absorption rate (SAR) for General Population/Uncontrolled Exposure limits specified in ANSI/IEEE Standards and has been tested in accordance with the measurement procedures specified in FCC OET 65 Supplement C. The results and statements contained in this report pertain only to the device(s) evaluated. Tested By: Victor Zhang Testing Engineer Bay Area Compliance Laboratories Corp. EUT Photo Hangzhou Newsky Technology Co., Ltd. FCC ID: VFM- NSKYS108 Report No.: R0802298-SAR SAR Evaluation Report Page 3 of 60 TABLE OF CONTENTS REFERENCE, STANDARDS, AND GUILDELINES ....................................................................................................... 4 SAR LIMITS......................................................................................................................................................................... 5 EUT DESCRIPTION ............................................................................................................................................................ 6 EUT PHOTO......................................................................................................................................................................... 6 FACILITIES AND ACCREDITATION ............................................................................................................................. 7 TEST FACILITY..................................................................................................................................................................... 7 DESCRIPTION OF TEST SYSTEM................................................................................................................................... 8 MEASUREMENT SYSTEM DIAGRAM.................................................................................................................................... 10 SYSTEM COMPONENTS....................................................................................................................................................... 11 EUT TEST STRATEGY AND METHODOLOGY.......................................................................................................... 19 TEST POSITIONS FOR DEVICE OPERATING NEXT TO A PERSON’S EAR................................................................................ 19 CHEEK/TOUCH POSITION................................................................................................................................................... 20 EAR/TILT POSITION............................................................................................................................................................ 20 TEST POSITIONS FOR BODY-WORN AND OTHER CONFIGURATIONS...................................................................................... 21 SAR EVALUATION PROCEDURE......................................................................................................................................... 22 DASY4 SAR EVALUATION PROCEDURE........................................................................................................................... 23 TESTING EQUIPMENT .................................................................................................................................................... 25 EQUIPMENTS LIST & CALIBRATION INFO........................................................................................................................... 25 SAR MEASUREMENT SYSTEM VERIFICATION ...................................................................................................... 26 SYSTEM ACCURACY VERIFICATION................................................................................................................................... 26 SAR MEASUREMENT RESULTS ................................................................................................................................... 27 SAR BODY WORST-CASE TEST DATA...............................................................................................................................27 APPENDIX A – MEASUREMENT UNCERTAINTY .................................................................................................... 28 APPENDIX B – PROBE CALIBRATION CERTIFICATES ......................................................................................... 30 AP…

Text truncated - open the document above for the full version.

Hangzhou Newsky Technology Co., Ltd. FCC ID: VFM- NSKYS108 Report No.: R0802298-SAR SAR Evaluation Report Page 40 of 60 Hangzhou Newsky Technology Co., Ltd. FCC ID: VFM- NSKYS108 Report No.: R0802298-SAR SAR Evaluation Report Page 41 of 60 Hangzhou Newsky Technology Co., Ltd. FCC ID: VFM- NSKYS108 Report No.: R0802298-SAR SAR Evaluation Report Page 42 of 60 Hangzhou Newsky Technology Co., Ltd. FCC ID: VFM- NSKYS108 Report No.: R0802298-SAR SAR Evaluation Report Page 43 of 60 Hangzhou Newsky Technology Co., Ltd. FCC ID: VFM- NSKYS108 Report No.: R0802298-SAR SAR Evaluation Report Page 44 of 60 Hangzhou Newsky Technology Co., Ltd. FCC ID: VFM- NSKYS108 Report No.: R0802298-SAR SAR Evaluation Report Page 45 of 60 APPENDIX D - TEST SYSTEM VERIFICATIONS SCANS Liquid Measurement Result Testing was performed by Victor Zhang on 2008-2-29 Simulant Freq [MHz] Parameters Liquid Temp [ºC] Target Value Measured Value Deviation [%] Limits [%] εr 22 41.5 41.5 0 ±5 σ 22 0.90 0.89 – 1.11 ±5 Head 835 1g SAR 22 9.5 10.8 1.37 ±10 Hangzhou Newsky Technology Co., Ltd. FCC ID: VFM- NSKYS108 Report No.: R0802298-SAR SAR Evaluation Report Page 46 of 60 Test Laboratory: Bay Area Compliance Laboratories Corp. (BACL) System Performance Check D835 Head Dipole 900 MHz; Type: D900V2; Serial: D900V2 - SN: 122 Communication System: CW; Frequency: 835 MHz; Duty Cycle: 1:1 Medium parameters used: f = 835 MHz; σ = 0.89 mho/m; ε r = 41.5; ρ = 1000 kg/m 3 Phantom section: Flat Section DASY4 Configuration: • Probe: ET3DV6 - SN1604; ConvF(6.82, 6.82, 6.82); Calibrated: 8/28/2007 • Sensor-Surface: 4mm (Mechanical Surface Detection) • Electronics: DAE3 Sn456; Calibrated: 11/8/2007 • Phantom: SAM with CRP; Type: Twin SAM; Serial: TP-1032 • Measurement SW: DASY4, V4.6 Build 23; Post processing SW: SEMCAD, V1.8 Build 161 d=15mm, Pin=0.5W/Area Scan (61x121x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (interpolated) = 5.72 mW/g d=15mm, Pin=0.5W/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 86.5 V/m; Power Drift = -0.0259 dB Peak SAR (extrapolated) = 8.03 W/kg SAR(1 g) = 5.4 mW/g; SAR(10 g) = 3.5 mW/g Maximum value of SAR (measured) = 5.87 mW/g 0 dB = 5.87 mW/g Hangzhou Newsky Technology Co., Ltd. FCC ID: VFM- NSKYS108 Report No.: R0802298-SAR SAR Evaluation Report Page 47 of 60 APPENDIX E - EUT SCANS Test Laboratory: Bay Area Compliance Lab Corp. (BACL) 1.5 cm Separation to the Flat Phantom with Headset (Middle Channel) Hangzhou Newsky Technology; Type: CDMA Mobile Phone; Serial: 00000007 Communication System: CDMA 835; Frequency: 836.52 MHz; Duty Cycle: 1:1 Medium parameters used (interpolated): f = 836.52 MHz; σ = 0.96 mho/m; ε r = 55.9; ρ = 1000 kg/m 3 Phantom section: Flat Section DASY4 Configuration: • Probe: ET3DV6 - SN1604; ConvF(6.47, 6.47, 6.47); Calibrated: 8/28/2007 • Sensor-Surface: 4mm (Mechanical Surface Detection) • Electronics: DAE3 Sn456; Calibrated: 11/8/2007 • Phantom: SAM with CRP; Type: Twin SAM; Serial: TP-1032 • Measurement SW: DASY4, V4.6 Build 23; Post processing SW: SEMCAD, V1.8 Build 161 1.5 cm separation to the flat phantom with headset 2/Area Scan (81x101x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (interpolated) = 0.680 mW/g 1.5 cm separation to the flat phantom with headset 2/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 15.2 V/m; Power Drift = -0.042 dB Peak SAR (extrapolated) = 0.658 W/kg SAR (1 g) = 0.541 mW/g; SAR (10 g) = 0.230 mW/g Maximum value of SAR (measured) = 0.589 mW/g Plot # 1 Hangzhou Newsky Technology Co., Ltd. FCC ID: VFM- NSKYS108 Report No.: R0802298-SAR SAR Evaluation Report Page 48 of 60 Test Laboratory: Bay Area Compliance Laboratories Corp. (BACL) Left Head Cheek (Middle Channel) Hangzhou Newsky Technology; Type: CDMA Mobile Phone; Serial: 00000007 Communication System: CDMA 835; Frequency: 836.52 MHz; Duty Cycle: 1:1 Medium parameters used (interpolated): f = 836.52 MHz; σ = 0.89 mho/m; ε r = 41.5; ρ = 1000 kg/m 3 Phantom section: Left Section DASY4 Configuration: • Probe: ET3DV6 - SN1604; ConvF(6.82, 6.82, 6.82); Calibrated: 8/28/2007 • Sensor-Surface: 4mm (Mechanical Surface Detection) • Electronics: DAE3 Sn456; Calibrated: 11/8/2007 • Phantom: SAM with CRP; Type: Twin SAM; Serial: TP-1032 • Measurement SW: DASY4, V4.6 Build 23; Post processing SW: SEMCAD, V1.8 Build 161 Left Head Cheek/Area Scan (71x91x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (interpolated) = 0.120 mW/g Left Head Cheek/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 9.86 V/m; Power Drift = -0.005 dB Peak SAR (extrapolated) = 0.153 W/kg SAR (1 g) = 0.111 mW/g; SAR (10 g) = 0.076 mW/g Maximum value of SAR (measured) = 0.120 mW/g 0 dB = 0.120mW/g Plot #2 Hangzhou Newsky Technology Co., Ltd. FCC ID: VFM- NSKYS108 Report No.: R0802298-SAR SAR Evaluation Report Page 49 of 60 Test Laboratory: Bay Area Compliance Laboratories Corp. (BACL) Left Head Tilt (Middle Channel) Hangzhou Newsky Technology; Type: CDMA Mobile Phone; Serial: 00000007 Communication System: CDMA 835; Frequency: 836.52 MHz; Duty Cycle: 1:1 Medium parameters used (interpolated): f = 836.52 MHz; σ = 0.89 mho/m; ε r = 41.5; ρ = 1000 kg/m 3 Phantom section: Left Section DASY4 Configuration: • Probe: ET3DV6 - SN1604; ConvF(6.82, 6.82, 6.82); Calibrated: 8/28/2007 • Sensor-Surface: 4mm (Mechanical Surface Detection) • Electronics: DAE3 Sn456; Calibrated: 11/8/2007 • Phantom: SAM with CRP; Type: Twin SAM; Serial: TP-1032 • Measurement SW: DASY4, V4.6 Build 23; Post processing SW: SEMCAD, V1.8 Build 161 Left Head Tilt/Area Scan (61x91x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (interpolated) = 0.049 mW/g Left Head Tilt/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 9.32 V/m; Power Drift = -0.0137 dB Peak SAR (extrapolated) = 0.115 W/kg SAR (1 g) = 0.091 mW/g; SAR (10 g) = 0.055 mW/g Maximum value of SAR (measured) = 0.105 mW/g 0 dB = 0.105mW…

Text truncated - open the document above for the full version.

Note: This test report is for the customer shown above and their specific product only. It may not be duplicated or used in part without prior written consent from Bay Area Compliance Laboratories Corp. This report must not be used by the customer to claim product certification, approval, or endorsement by NVLAP or any agency of the U.S. Government . FCC PART 22H MEASUREMENT AND TEST REPORT For Hangzhou Newsky Technology Co., Ltd. 4/F, Building A, Zhejiang University Science Park, 525 Xixi Road. Hangzhou, Zhejiang 310013, China FCC ID: VFM-NSKYS108 Model: S108 Report Type: Original Report Product Type: CDMA Mobile Phone Test Engineer: James Ma Report Number: R0802298-22 Testing Date(s): 2008-03-12 to 2008-03-14 Report Date: 2008-03-14 Reviewed By: Boni Baniqued Sr. RF Engineer Prepared By: (12) Bay Area Compliance Laboratories Corp. (BACL) 1274 Anvilwood Ave. Sunnyvale, CA 94089 Tel: (408) 732-9162 Fax: (408) 732 9164 Hangzhou Newsky Technology Co., Ltd FCC ID: VFM-NSKYS108 Report No.: R0802298-22 Page 2 of 37 FCC Part 22H Report TABLE OF CONTENTS GENERAL INFORMATION.......................................................................................................................................4 PRODUCT DESCRIPTION FOR EQUIPMENT UNDER TEST (EUT) .....................................................................................4 MECHANICAL DESCRIPTION.........................................................................................................................................4 OBJECTIVE...................................................................................................................................................................5 RELATED SUBMITTAL(S)/GRANT(S).............................................................................................................................5 TEST METHODOLOGY..................................................................................................................................................5 MEASUREMENT UNCERTAINTY....................................................................................................................................5 TEST FACILITY.............................................................................................................................................................6 TEST SETUP BLOCK DIAGRAM FOR RADIATED EMISSIONS TESTS..................................................................................7 SYSTEM TEST CONFIGURATION ..........................................................................................................................8 JUSTIFICATION.............................................................................................................................................................8 EQUIPMENT MODIFICATIONS.......................................................................................................................................8 LOCAL SUPPORT EQUIPMENT LIST AND DETAILS........................................................................................................8 POWER SUPPLY AND LINE FILTERS..............................................................................................................................8 SUMMARY OF TEST RESULTS ...............................................................................................................................9 §2.1047 - MODULATION CHARACTERISTICS ...................................................................................................10 APPLICABLE STANDARD............................................................................................................................................10 §1.1307(B) (1) & §2.1093 - RF EXPOSURE..............................................................................................................11 APPLICABLE STANDARD............................................................................................................................................11 TEST RESULT.............................................................................................................................................................11 §2.1046, §22.913 – RF OUTPUT POWER ................................................................................................................12 APPLICABLE STANDARD............................................................................................................................................12 TEST PROCEDURE......................................................................................................................................................12 TEST EQUIPMENT LIST AND DETAILS.........................................................................................................................12 ENVIRONMENTAL CONDITIONS..................................................................................................................................12 TEST RESULTS...........................................................................................................................................................13 LOW CHANNEL..........................................................................................................................................................14 MIDDLE CHANNEL.....................................................................................................................................................14 HIGH CHANNEL..........................................................................................................................................................15 §2.1053 & §22.917- SPURIOUS RADIATED EMISSIONS ....................................................................................16 APPLICABLE STANDARD............................................................................................................................................16 TEST PROCEDURE........................…

Text truncated - open the document above for the full version.

Hangzhou Newsky Technology Co., Ltd FCC ID: VFM-NSKYS108 Report No.: R0802298-22 Page 30 of 37 FCC Part 22H Report EXHIBIT B - TEST SETUP PHOTOGRAPHS Radiated Emissions – Front View Radiated Emissions – Rear View
