VFYZYM-GMB-21-XBluetooth GPS Receiver

ZYM-GMB21-3 1 of 1 ZYM-GMB21-3 Bluetooth GPS RECEIVER 2006-12-28 revision V1.0 ZHENGYUAN Technology,.Inc NO.1,zhengyuan Road,Economic Development Zone,Jiaxing City,Zhejiang Province,China Phone: 0086-573-3651818 Web: www.zydq.com All Right Reserved ZYM-GMB21-3 2 of 2 CONTENTS 1. Introduction...................................................................... 3 2. Main Feature......................................................................3 3. Technical Specifications........................................................4 3.1 Electrical Characteristics........................................................4 3.2 Environmental Characteristics................................................4 3.3 Physical Characteristics.........................................................5 3.4 Hardware Description.........................................................5 3.5 LED indicator..................................................................5 4. Operation manual..................................................................6 4.1 Battery install..................................................................6 4.2 charge..........................................................................6 4.3 Switch machine...................................................................6 4.4 Bluetooth connection..........................................................6 5. Appendix A Bluetooth connection Explanation...........................8 ZYM-GMB21-3 3 of 3 1. Introduction ZYM-GMB21-3 Bluetooth GPS receiver is Globe Position System Receiver with Bluetooth wireless technology. The ZYM-GMB21-3 GPS receiver integrates Bluetooth module into GPS device, and can connect with PDA, LAPTOP though Bluetooth module. And also have the ability to connect the equipment which have no Bluetooth function though a specialty wire. When you choose Suitable navigation software, you can apply to personal, vehicle tracking, and marine navigation. 2. Main Feature 2.1. Build in high performance SiRFstarIII chipset. 2.2. Bluetooth Spec v2.0+EDR Compliant. 2.2. Supports the blue tooth serial port communication protocol (SPP). 2.3. Low power consumption. 2.4. Three LED lights, Indicating the Bluetooth, GPS, charge status & battery level. 2.5. Support Standard NMEA-0183, Baud Rate is 4800(default) 2.6. The design tends to miniaturization and humanistic, easy for carrying and splendid in design. 2.7. Use the compatible Nokia handset lithium battery，Fit for Nok3100/ 1100/ 2300/ 3105/ 3120/ 6108/ 6230/ 6600/ 6680/ 6820/ 7600/ 7610/ n70. ZYM-GMB21-3 4 of 4 3. Technical Specifications 3.1. Electrical Characteristics 3.1.1 General 1). Frequency：L1, 1575.42 MHz. 2). C/A code：1.023 MHz chip rate. 3). Channels：20 3.1.2 Accuracy (Open Sky) 1). Position: <10m 90% no SA. 2). Velocity: 0.1 m/sec no SA. 3). Time: 1 second synchronized GPS time 4.1.2 Accuracy (Open Sky) 1). Position：10 meters, 2D RMS. 2). 7 meters 2D RMS, WAAS corrected. 3). 1-5 meters, DGPS corrected. 4). Time 1 microsecond synchronized to GPS time. 3.1.3 Acquisition Rate (Open sky, stationary requirements) 1). Hot start：1 sec., average. 3). Warm start：38 sec., average. 4). Cold start：48 sec., average. 3.1.4 Dynamic Conditions 1). Altitude : 18,000 meters (<60,000 feet) Max 2). Velocity：736 m/s (<1,000 knots) Max 3). Acceleration：4 G, Max 4). Jerk：20 meters/second, Max 3.1.5 RF interface 1). Minimum signal tracked: -159dBm 3.1.6 Bluetooth performance 1). Bluetooth Spec v2.0+EDR Complian. 2). Class 2 type Output Power ZYM-GMB21-3 5 of 5 3). RF interface: -71dBm(Error rate≤0.1％) 3.2. Environmental Characteristics: 1). Operating Temperature Range: -10°C～+55°C 2). Storage Temperature Range: -20°C～+85°C 3). Humidity: ≦95% 3.3. Physical Characteristics 1) Active Size: 65.6(D)×39.4(W)×17.5(H)(mm) 2) Weight: less than 10 g 3) Packing list： 1. Main engine １ 2. Charge lithium battery １ 3. User’s manual(Contains a disc) １ 4. Travel battery charger １ 5. Travel power supply/Cigarette adapter １ 3.4. Hardware Description ZYM-GMB21-3 6 of 6 3.5. LED indicator LED Status Description lamp fast disconnected Blue lamp slow connected On GPS unnavigated Yellow lamp slow GPS navigated Green on Charging off Fully charged Red & Green Red LED lamp faster battery is poor 4. Operation manual 4.1. Battery install Takes down the battery top plate, loads the battery in the battery cavity, again on box battery top plate. 4.2. charge The use travel battery charger is the product power supply, this time the green LED shines, demonstrated the present product is being at the charge condition. When charge conclusion, the green green LED lantern festival extinguishes, this time may tear off the battery charger. 4.3. Switch machine This product power source pressed key belongs guards against the vibration design, the user presses the POWER key 1 second then to be possible to complete the starting process, this time the blue color LED lamp quickly dodges prompts the user to complete the starting process. The user may long press the POWER key for 1 second to close the GPS module work (this time product to be at low power condition, connects bluetooth equipment to be able to stimulate the GPS module automatically power source power supply), if presses the POWER key to maintain for 2 seconds, then the system can close the system power supply. 4.4. Bluetooth connection 4.4.1 Connect PDA which Integrates the blue tooth equipment ZYM-GMB21-3 7 of 7 1) start GMB21-3. 2) Refers to PDA's bluetooth user's manual, connects PDA with GMB21-3, when connection needs to input pairs the password, may input “0000”, until prompts the blue tooth whether has to establish the COM connection, the choice is“YES”. 3) Inspects the serial communication port which the blue tooth uses (majority of PDA to tacitly approve for COM6). 4) Turns on the appropriate navigation software, chooses the correct COM port, set baudrate to 4800 then may use normally. 4.4.2 Connect to Laptop which Installs the bluetooth adapter 1) start GMB2…

Text truncated - open the document above for the full version.

ZYM-GMB21-3 1 of 1 ZYM-GMB21-3 Bluetooth GPS RECEIVER 2006-12-28 revision V1.0 ZHENGYUAN Technology,.Inc NO.1,zhengyuan Road,Economic Development Zone,Jiaxing City,Zhejiang Province,China Phone: 0086-573-3651818 Web: www.zydq.com All Right Reserved ZYM-GMB21-3 2 of 2 CONTENTS 1. Introduction...................................................................... 3 2. Main Feature......................................................................3 3. Technical Specifications........................................................4 3.1 Electrical Characteristics........................................................4 3.2 Environmental Characteristics................................................4 3.3 Physical Characteristics.........................................................5 3.4 Hardware Description.........................................................5 3.5 LED indicator..................................................................5 4. Operation manual..................................................................6 4.1 Battery install..................................................................6 4.2 charge..........................................................................6 4.3 Switch machine...................................................................6 4.4 Bluetooth connection..........................................................6 5. Appendix A Bluetooth connection Explanation...........................8 ZYM-GMB21-3 3 of 3 1. Introduction ZYM-GMB21-3 Bluetooth GPS receiver is Globe Position System Receiver with Bluetooth wireless technology. The ZYM-GMB21-3 GPS receiver integrates Bluetooth module into GPS device, and can connect with PDA, LAPTOP though Bluetooth module. And also have the ability to connect the equipment which have no Bluetooth function though a specialty wire. When you choose Suitable navigation software, you can apply to personal, vehicle tracking, and marine navigation. 2. Main Feature 2.1. Build in high performance SiRFstarIII chipset. 2.2. Bluetooth Spec v2.0+EDR Compliant. 2.2. Supports the blue tooth serial port communication protocol (SPP). 2.3. Low power consumption. 2.4. Three LED lights, Indicating the Bluetooth, GPS, charge status & battery level. 2.5. Support Standard NMEA-0183, Baud Rate is 4800(default) 2.6. The design tends to miniaturization and humanistic, easy for carrying and splendid in design. 2.7. Use the compatible Nokia handset lithium battery，Fit for Nok3100/ 1100/ 2300/ 3105/ 3120/ 6108/ 6230/ 6600/ 6680/ 6820/ 7600/ 7610/ n70. ZYM-GMB21-3 4 of 4 3. Technical Specifications 3.1. Electrical Characteristics 3.1.1 General 1). Frequency：L1, 1575.42 MHz. 2). C/A code：1.023 MHz chip rate. 3). Channels：20 3.1.2 Accuracy (Open Sky) 1). Position: <10m 90% no SA. 2). Velocity: 0.1 m/sec no SA. 3). Time: 1 second synchronized GPS time 4.1.2 Accuracy (Open Sky) 1). Position：10 meters, 2D RMS. 2). 7 meters 2D RMS, WAAS corrected. 3). 1-5 meters, DGPS corrected. 4). Time 1 microsecond synchronized to GPS time. 3.1.3 Acquisition Rate (Open sky, stationary requirements) 1). Hot start：1 sec., average. 3). Warm start：38 sec., average. 4). Cold start：48 sec., average. 3.1.4 Dynamic Conditions 1). Altitude : 18,000 meters (<60,000 feet) Max 2). Velocity：736 m/s (<1,000 knots) Max 3). Acceleration：4 G, Max 4). Jerk：20 meters/second, Max 3.1.5 RF interface 1). Minimum signal tracked: -159dBm 3.1.6 Bluetooth performance 1). Bluetooth Spec v2.0+EDR Complian. 2). Class 2 type Output Power ZYM-GMB21-3 5 of 5 3). RF interface: -71dBm(Error rate≤0.1％) 3.2. Environmental Characteristics: 1). Operating Temperature Range: -10°C～+55°C 2). Storage Temperature Range: -20°C～+85°C 3). Humidity: ≦95% 3.3. Physical Characteristics 1) Active Size: 65.6(D)×39.4(W)×17.5(H)(mm) 2) Weight: less than 10 g 3) Packing list： 1. Main engine １ 2. Charge lithium battery １ 3. User’s manual(Contains a disc) １ 4. Travel battery charger １ 5. Travel power supply/Cigarette adapter １ 3.4. Hardware Description ZYM-GMB21-3 6 of 6 3.5. LED indicator LED Status Description lamp fast disconnected Blue lamp slow connected On GPS unnavigated Yellow lamp slow GPS navigated Green on Charging off Fully charged Red & Green Red LED lamp faster battery is poor 4. Operation manual 4.1. Battery install Takes down the battery top plate, loads the battery in the battery cavity, again on box battery top plate. 4.2. charge The use travel battery charger is the product power supply, this time the green LED shines, demonstrated the present product is being at the charge condition. When charge conclusion, the green green LED lantern festival extinguishes, this time may tear off the battery charger. 4.3. Switch machine This product power source pressed key belongs guards against the vibration design, the user presses the POWER key 1 second then to be possible to complete the starting process, this time the blue color LED lamp quickly dodges prompts the user to complete the starting process. The user may long press the POWER key for 1 second to close the GPS module work (this time product to be at low power condition, connects bluetooth equipment to be able to stimulate the GPS module automatically power source power supply), if presses the POWER key to maintain for 2 seconds, then the system can close the system power supply. 4.4. Bluetooth connection 4.4.1 Connect PDA which Integrates the blue tooth equipment ZYM-GMB21-3 7 of 7 1) start GMB21-3. 2) Refers to PDA's bluetooth user's manual, connects PDA with GMB21-3, when connection needs to input pairs the password, may input “0000”, until prompts the blue tooth whether has to establish the COM connection, the choice is“YES”. 3) Inspects the serial communication port which the blue tooth uses (majority of PDA to tacitly approve for COM6). 4) Turns on the appropriate navigation software, chooses the correct COM port, set baudrate to 4800 then may use normally. 4.4.2 Connect to Laptop which Installs the bluetooth adapter 1) start GMB2…

Text truncated - open the document above for the full version.

Bluetooth Qualified Product Listing Notice Bluetooth Qualified Product Listing Notice BQB: Mike Lu BQB: Mike Lu SGS Taiwan Ltd. SGS Taiwan Ltd. No. 134, Wu Kung Road, Wu-Ku Industrial Zone, Taipei Hsien, Taiwan No. 134, Wu Kung Road, Wu-Ku Industrial Zone, Taipei Hsien, Taiwan Number of annexes: 1 Number of annexes: 1 Applicant details Applicant details Applicant Applicant KINGJON TECHNOLOGY (HK) CO., LIMITED KINGJON TECHNOLOGY (HK) CO., LIMITED Person responsible Person responsible Jason Chen Jason Chen Address Shop F21A ,1/F,Commercial Podium, Sincere house,83 Argyle Street, Mong Kok, Kowloon, Hong KONG. Phone Fax +852-28763890 +852-25270888 URL http://www.kingjon.come-mail [email protected] Product identification Brand name KINGJON Product name BlueCore4-External Module Hardware versions 1.0 Product ID GL-6B Product category Hardware Integrated Component Software versions 1.0 Description Bluetooth Module Reference documents Bluetooth specifications Version 2.0 Test Case Reference List TCRL Release date: 2006-08-01 Addendum Release date: N/A Qualification Program Reference Document Version 1.0 and 1 st Addendum dated 2004-04-23 Version 1.0 and 2 nd Addendum dated 2006-11-02 Bluetooth Product Listing identification Assessment date 2007-01-30 QPLN Ref. No Q11307_GL6B_SGS Listing date 2007-01-30 This notice is an essential part of the Bluetooth Qualification program and shows the acceptance of this product as a qualified Bluetooth product. On the basis of the reviewed submitted compliance folder for the above mentioned product, I certify that the product has passed all requirements to be listed as qualified Pre-tested Component in accordance to section 6.2.1 of the PRD. Taipei, 2007-01-30 Original is signed Place, date Signature Bluetooth is a trademark owned by Bluetooth SIG, Inc., U.S.A. and licensed to the member whose qualified product is listed in this certificate. Third-party brands and names are the property of their respective owners. Page 1 of 3 Annex 1 to Bluetooth Qualified Product Listing Notice 1) Covered Functionality The covered functionality of this product is defined as follows: 1.- RF part as defined in Volume 2,Part A of the Bluetooth Core Specification, Version 2.0 (Class 2 Operation) including all mandatory and optional features except Table1/8~9. (Associate PICS capabilities RF.ICS/2.0.E.0). In addition, RF covered functionality applies under the following conditions: - Normal temperature: 25 o C - Temperature range: -20 o c to +55 o c - Nominal voltage: +3.30V - Voltage range: +3.0V to +3.6V - Oscillator: Internal - Antenna: External - Maximum Antenna gain: 0.0 dBi 2.- BB part as defined in Volume 2,Part B of the Bluetooth Core Specification, Version 2.0 a nd specified in the covered functionality of the Software Integrated Component(Bluetooth Identifier: B02400). 3.- LMP part as defined in Volume 2,Part C of the Bluetooth Core Specification Version 2.0 a nd specified in the covered functionality of the Software Integrated Component(Bluetooth Identifier: B02400) 4.- L2CAP part as defined in Volume 3,Part A of the Bluetooth Core Specification Version 2.0 including all mandatory and optional features ( Associate PICS L2CAP.ICS/1.2.3) excluding: Table 3/10~11. 5.- SDP part as defined in Volume 3,Part B of the Bluetooth Core Specification Version 2.0 including all mandatory and optional features ( Associate PICS SDP.ICS/1.2.2 ). 6.- GAP part as defined in Volume 3,Part C of the Bluetooth Core Specification Version 2.0 including all mandatory and optional features ( Associate PICS GAP.ICS/1.2.4 ). 7.- RFCOMM with TS07.10 as defined in Part F1 of the Bluetooth Core Specification Version 2.0 and specified in the covered functionality of the Software Integrated Component(Bluetooth Identifier: B02400). 8.- Serial Port Profile (SPP),as defined in Part K.5 of the Bluetooth Core specification version 2.0 and specified in the covered functionality of the Software Integrated Component(Bluetooth Identifier: B02400) (Associated PICS capabilities SPP.ICS/1.1.1) 9.- HCI as defined in Volume 2, Part E of the Bluetooth Core Specification Version 2.0 with all mandatory and all optional features except Table 14/6~7. Associated PICS capabilities (HCI/ICS/2.0.E.2) referred. 10. - UART Transport Layer as defined in Bluetooth Vol. 4, Part A to the Bluetooth Specification Version 2.0. 11. - USB Transport Layer as defined in Bluetooth Vol. 4, Part C to the Bluetooth Specification Version 2.0. Bluetooth is a trademark owned by Bluetooth SIG, Inc., U.S.A. and licensed to the member whose qualified product is listed in this certificate. Third-party brands and names are the property of their respective owners. Page 2 of 3 2) Hardware Reference Platform The module was tested with a transit board for the pin/footprint converter ,antenna connection and mounted on the CSR Casira which given the necessary interfaces for testing. 3) Notes The covered functionality is applicable when implemented the guidelines provided by the manufacturer in the Reference Note and technical specification available from the manufacturer. When this component is integrated in another product, re-testing of RF performance may be considered in accordance with the latest BTAB RF guideline. 4) Integrated Pre-tested Components The product integrates the following pre-tested components: Bluetooth Identifier: B01867 Product ID: BC4-EXT Product Type: Hardware Integrated Component Bluetooth Identifier: B02400 Product ID: UnifiedStack2.0 Product Type: Software Integrated Component 5) Revision history Date Reference Comment 2007-01-30 Q11307_GL6B_SGS (ver1.0) First issue Bluetooth is a trademark owned by Bluetooth SIG, Inc., U.S.A. and licensed to the member whose qualified product is listed in this certificate. Third-party brands and names are the property of their respective owners. Page 3 of 3

1 Lucy Tsai 寄件者: Iris Lin [[email protected]] 寄件日期: 2007年8月31日星期五 上午 12:28 收件者: Lucy Tsai 主旨: Re: FW: Zhejiang Zhengyuan Electric Co., Ltd., FCC ID: VFYZYM-GMB-21-X, Assessment NO.: AN07T7025, Notice#1 Exhibit-C-Test_Rep ort.rev.2.pd... Exhibit-F-Setup_Ph otos.rev.2.p... Exhibit-G-Schemati cs_rev.pdf (... Exhibit-A-Block_Di agram_rev.pd... Exhibit-H-External_ Photos.rev.... Exhibit-B-Internal_ Photos.rev.... Bluetoothe Core certificate.PD... Dear Lucy, Sorry for the late response. Please refer to the answers as following. Q#1: There are two FCC ID listed in the test report as VFYZYM-GMB-21-X in cover page and ZYM-GMB-21-X on each report head. According to the other exhibits, ZYM-GMB-21-X should be the model no. If then, please revise test report. Ans. Please refer to the updated report, internal photo, external photo with correct ID as attachment. Q#2: According to user manual page 5, the packing list, a USB cable is also supplied. Neither the test report nor external photos, both did not specify whether it was verified during the test. Please explain Ans. This USB cable is connected with a cigar-lighter of a car without PC. We have add test data and setup photo for the condition. Please refer to the attached report and setup photo. Q#3: Channel separation for channel 79 recorded in page 32 is different from the test plot, please revise. Ans. Please refer to the page 27 data in the test report for the correct channel. Q#4: Please provide the schematic and block diagram for Bluetooth portion of this device. Ans. Please refer to the updated blaock and schematics as attachment. Q#5: Please provide confirmation of Bluetooth CORE compliance or the following FCC 15.247 items for Bluetooth devices: Is the hopping sequence pseudorandom, based on the technical description? Is each channel used equally on average, based on the technical description? Does the associated system receiver have a compliant input bandwidth, based on the measured 20 dB emission bandwidth? Does the associated system receiver have the ability to hop in synchronization with the transmitter, based on the technical description? 15.247(g) Does the design of the frequency hopping system allow it to comply with all pertinent requirements when presented with a lengthy data stream? 15.247(h) Does the frequency hopping system comply with the non-coordination requirement? Ans. Please refer to the attached Bluetooth core certificate. ELECTRONICS TESTING CENTER, TAIWAN IRIS LIN (???) TEL: 886-2-26023052 ext.10 FAX: 886-2-26010910

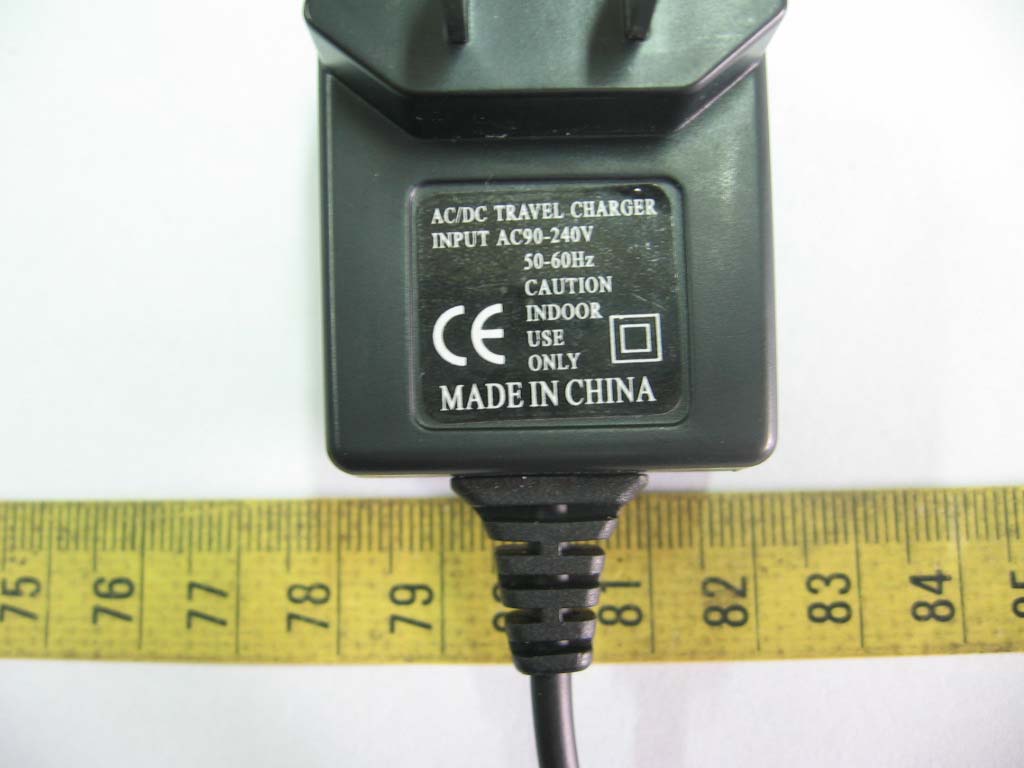

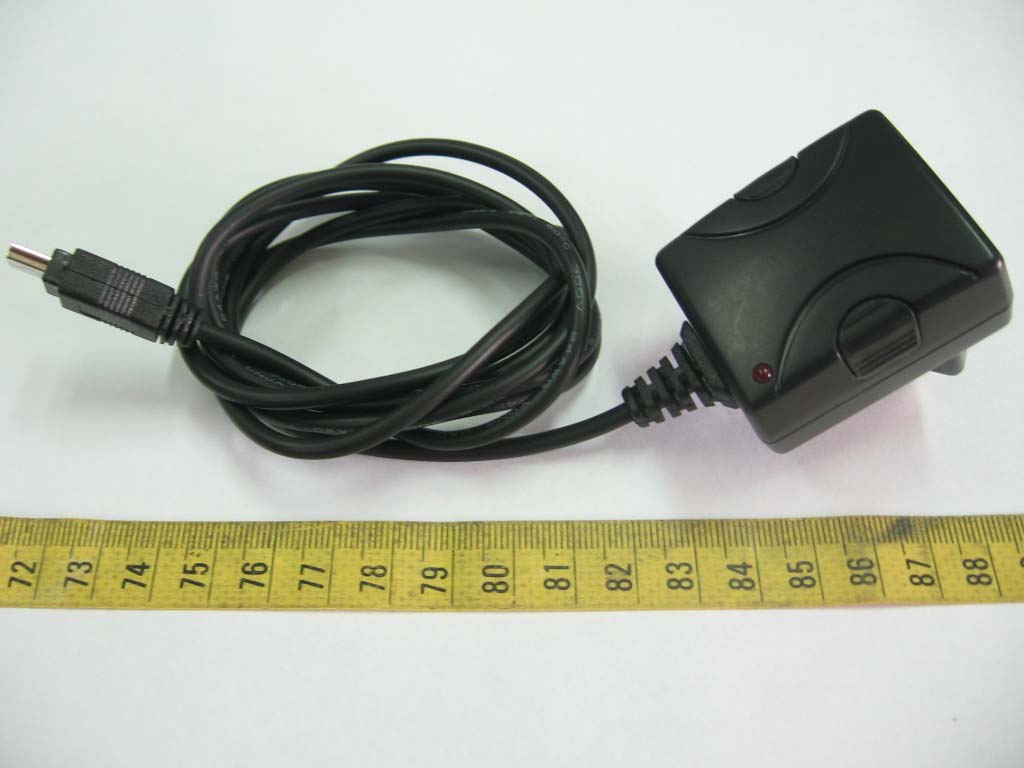

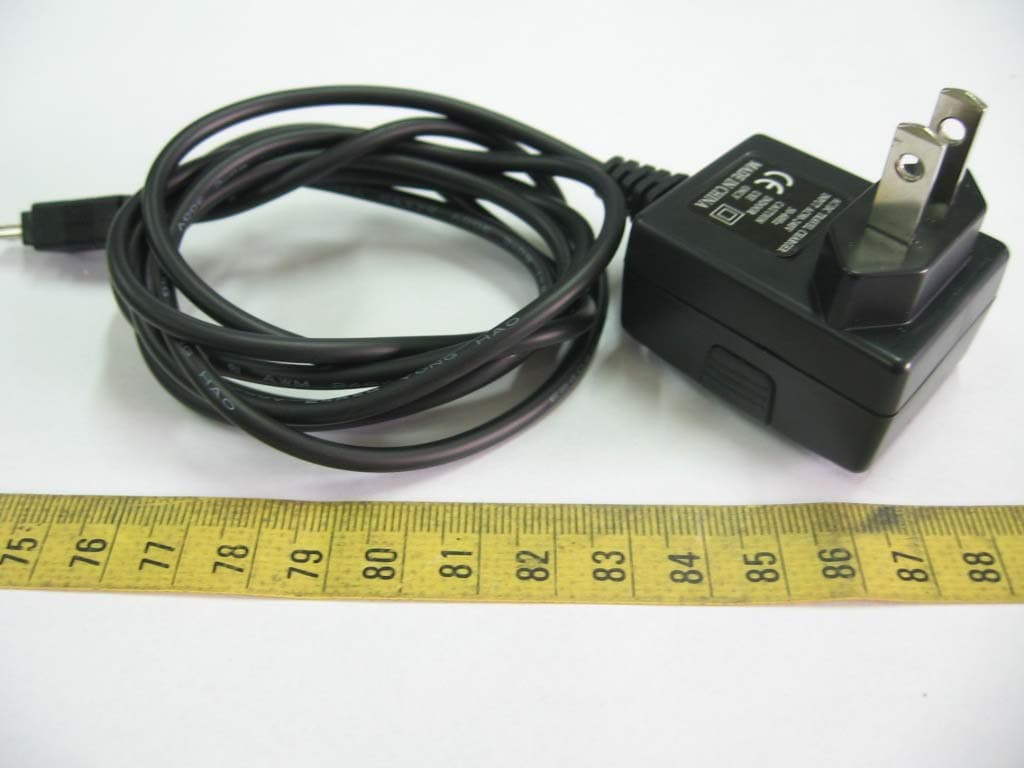

ETC Report No. : 07-05-RBF-096-04 FCC ID.: VFYZYM-GMB-21-X Rev. No 2.1 CONSTRUCTED PHOTOS of EUT A. EUT Top View of EUT Bottom View of EUT ETC Report No. : 07-05-RBF-096-04 FCC ID.: VFYZYM-GMB-21-X Rev. No 2.1 CONSTRUCTED PHOTOS of EUT Side View of EUT Side View of EUT ETC Report No. : 07-05-RBF-096-04 FCC ID.: VFYZYM-GMB-21-X Rev. No 2.1 CONSTRUCTED PHOTOS of EUT Front View of EUT Rear View of EUT ETC Report No. : 07-05-RBF-096-04 FCC ID.: VFYZYM-GMB-21-X Rev. No 2.1 CONSTRUCTED PHOTOS of EUT Internal View of EUT Battery ETC Report No. : 07-05-RBF-096-04 FCC ID.: VFYZYM-GMB-21-X Rev. No 2.1 CONSTRUCTED PHOTOS of EUT B. Adaptor Top View of Adaptor Bottom View of Adaptor ETC Report No. : 07-05-RBF-096-04 FCC ID.: VFYZYM-GMB-21-X Rev. No 2.1 CONSTRUCTED PHOTOS of EUT Top View of Adaptor Bottom View of Adaptor

Model : ZYM-GMB-21-X FCC ID : VFYZYM-GMB-21-X 25 mm 13mm

Model : ZYM-GMB-21-X FCC ID : VFYZYM-GMB-21-X 25 mm 10mm

ETC Report No. : 07-05-RBF-096-04 FCC ID.: VFYZYM-GMB-21-X Rev. No 2.1 CONSTRUCTED PHOTOS of EUT Component View of PCB Solder View of PCB ETC Report No. : 07-05-RBF-096-04 FCC ID.: VFYZYM-GMB-21-X Rev. No 2.1 CONSTRUCTED PHOTOS of EUT Internal View of Adaptor ETC Report No. : 07-05-RBF-096-04 FCC ID.: VFYZYM-GMB-21-X Rev. No 2.1 CONSTRUCTED PHOTOS of EUT Component View of Adaptor’s PCB Solder View of Adaptor’s PCB

Rev. No 1.0 FCC Part 15 EMI TEST REPORT of E.U.T. : Bluetooth GPS Receiver Model : ZYM-GMB-21-X FCC ID : VFYZYM-GMB-21-X for APPLICANT : Zhejiang Zhengyuan Electric Co., Ltd. ADDRESS : No. 1 Zhengyuan Rd, Tanghui Industrial Zone, Jiaxing, Zhejiang Province Test Performed by ELECTRONICS TESTING CENTER, TAIWAN NO.34, LIN 5, DINGFU TSUEN, LINKOU SHIANG TAIPEI COUNTY, TAIWAN, 24442, R.O.C. Tel:(02)26023052 Fax:(02)26010910 http://www.etc.org.tw ; e-mail : [email protected] Report Number : 07-05-RBF-096-04 ETC Report No. : 07-05-RBF-096-04 FCC ID.: VFYZYM-GMB-21-X Rev. No 1.0 TEST REPORT CERTIFICATION Applicant : Zhejiang Zhengyuan Electric Co., Ltd. No. 1 Zhengyuan Rd, Tanghui Industrial Zone, Jiaxing, Zhejiang Province Manufacture : Zhejiang Zhengyuan Electric Co., Ltd. No. 1 Zhengyuan Rd, Tanghui Industrial Zone, Jiaxing, Zhejiang Province Description of Device : a) Type of EUT : Bluetooth GPS Receiver b) Trade Name : Zhengyuan c) Model No. : ZYM-GMB-21-X d) Power Supply : I/P: 90-240Vac 50-60Hz; O/P: 5Vdc 3.7V 900mAh Battery Regulation Applied : FCC Rules and Regulations Part 15 Subpart C (2006) I HEREBY CERTIFY THAT: The data shown in this report were made in accordance with the procedures given in ANSI C63.4, and the energy emitted by the device was founded to be within the limits applicable. I assume full responsibility for accuracy and completeness of these data. Note: 1. The result of the testing report relate only to the item tested. 2. The testing report shall not be reproduced expect in full, without the written approval of ETC. Issued Date : Aug. 31, 2007 Test Engineer : ( Vincent Chang ) Approve & Authorized Signer : Will Yauo, Manager EMC Dept. II of ELECTRONICS TESTING CENTER, TAIWAN ETC Report No. : 07-05-RBF-096-04 FCC ID.: VFYZYM-GMB-21-X Rev. No 1.0 Table of Contents Page 1 GENERAL INFORMATION........................................................................................................1 1.1 Product Description........................................................................................................................1 1.2 Characteristics of Device.................................................................................................................1 1.3 Test Methodology...........................................................................................................................1 1.4 Test Facility....................................................................................................................................1 2 PROVISIONS APPLICABLE........................................................................................................2 2.1 Definition........................................................................................................................................2 2.2 Requirement for Compliance...........................................................................................................3 2.3 Restricted Bands of Operation.........................................................................................................5 2.4 Labeling Requirement......................................................................................................................6 2.5 User Information.............................................................................................................................6 3 SYSTEM TEST CONFIGURATION............................................................................................7 3.1 Justification.....................................................................................................................................7 3.2 Devices for Tested System..............................................................................................................7 4 RADIATED EMISSION MEASUREMENT...............................................................................8 4.1 Applicable Standard........................................................................................................................8 4.2 Measurement Procedure.................................................................................................................8 4.3 Measuring Instrument....................................................................................................................10 4.4 Radiated Emission Data.................................................................................................................11 4.4.1 Tx Portion................................................................................................................................11 4.4.2 Radiated Emissions in Restricted Bands.....................................................................................14 4.4.3 Other Emissions.......................................................................................................................15 4.5 Field Strength Calculation..............................................................................................................16 4.6 Photos of Radiation Measuring Setup............................................................................................17 5 CONDUCTED EMISSION MEASUREMENT.........................................................................20 5.1 Standard Applicable......................................................................................................................20 5.2 Measurement Procedure...............................................................................................................20 5.3 Conducted Emission Data.............................................................................................................21 5.4 Result Data Calculation.................................................................................................................24 5.5 Conducted Measurement Equipment.............................................................................................24 5.6 Photos of Conductio…

Text truncated - open the document above for the full version.

ETC Report No. : 07-05-RBF-096-04 FCC ID.: VFYZYM-GMB-21-X Sheet 17 of 42 Sheets Rev. No 2.1 4.6 Photos of Radiation Measuring Setup Charge & Operation Mode ETC Report No. : 07-05-RBF-096-04 FCC ID.: VFYZYM-GMB-21-X Sheet 18 of 42 Sheets Rev. No 2.1 Operation Mode ETC Report No. : 07-05-RBF-096-04 FCC ID.: VFYZYM-GMB-21-X Sheet 19 of 42 Sheets Rev. No 2.1 Car Charge Mode
