September 25, 2007 Timco Engineering Inc. 849 NW State Road 45 Newberry, FL 32669 Applicant: Honeywell FM&T LLC 2000 East 95th Street Kansas City, MO 64141 Re: Confidentiality for submittal information regarding FCC ID number VGKSSSEXT PRODUCT: Low power Transmitters operated under part 15.249. Dear Sirs: Honeywell FM&T LLC requests that the material in the Schematics, Operational Description, block diagram, and parts list be withheld from public disclosure in accordance with Section 0.459 of the Commissions Rules, 47 C.F.R. 0.459, following grant of the application. In support of this request, Honeywell FM&T LLC submits the following: CONFIDENTIAL FILES Schematics Conf Schem SSSEXT.pdf Block diagram Conf BlkDia SSSEXT.pdf Operational Description Conf OpDes SSSEXT.pdf 1. Identification of the specific information for which confidential treatment is sought: The materials set fourth in the Operational Description, block diagram, parts list, and Schematics, which are segregated, from the non-confidential exhibits of the application, are those for which confidentiality is sought. 2. Identification of the Commission proceeding in which the information was submitted or a description of the circumstances giving rise to the submission: The proceeding is that involving the application for equipment authorization (certification) under FCC ID No: VGKSSSEXT 3. Explanation of the degree to which the information is commercial or financial, or contains a trade secret or is privileged: This material includes a detailed theory of operation, circuit diagrams, and schematic. As such, this material is treated as highly confidential business information. ROGERS LABS, INC. 4405 West 259 th Terrace Louisburg, KS 66053 4. Explanation of the degree to which the information concerns a service that is subject to competition: The material for which confidentiality is sought is employed in the design and manufacture of this transmitting equipment that is offered on a highly competitive basis. Customers for this equipment have a variety of competing sources. 5. Explanation of how disclosure of the information could result in substantial competitive harm: Disclosure would, in effect, give away the fruits of the labors of Honeywell FM&T LLC’s engineering personnel, who have designed the equipment and the manufacturing process. Disclosure would also offer competitors additional unwarranted insight into the state of the product development, thereby allowing competitors an advantage, not available to Honeywell FM&T LLC 6. Identification of any measures taken by the submitting party to prevent unauthorized disclosure: The information for which confidential treatment is sought is kept confidential by Honeywell FM&T LLC and not made available to third parties except pursuant to non-disclosure agreements. 7. Identification of whether the information is available to the public and the extent of any previous disclosure of the information to third parties: To the knowledge of those preparing this application, the information has not been disclosed publicly heretofore. While the general theory of operation of this equipment has been the subject of numerous disclosures in industry and standards groups as well as in rule making proceedings of the FCC, the protection sought is narrowly drawn and pertains to certain specific implementations of this radio technology. 8. Justification of the period during which the submitting party asserts that the material should not be available for public disclosure: This material should not be disclosed for at least 25 years. While improvements in design are made relatively frequently, disclosure of the design information would lead to insights into both design and manufacturing techniques that could have an adverse competitive effect for many years to come. This equipment is designed for commercial, industrial, and governmental applications. As such, unlike most consumer equipment, this equipment could be used for more than a decade in some cases. As such, it is important that the design not be made available to unauthorized persons who might attempt to use knowledge of the design to compromise the applications for which the equipment will be employed. Should you require any further information, please contact the undersigned. Thank you for your consideration in this matter. Sincerely, Scot Rogers

September 25, 2007 Timco Engineering Inc. Federal Communications Commission 849 NW State Road 45 Equipment Approval Services Newberry, FL 32669 P.O. Box 35815, Pittsburgh, PA 15251-3315 Applicant: Honeywell FM&T LLC Equipment: FCC ID: VGKSSSEXT 2000 East 95th Street CORES number: 0016 6647 24 Kansas City, MO 64141 FCC Rules: Parts 2, 15.249 Gentlemen: The 731 form and application have been electronically submitted and any attachments will be up loaded to your web site to be used in obtaining a grant of certification. Confidentiality is requested as outlined below. Short-term Pursuant to DA 04-1705 of the Commission’s pubic notice, we request short-term confidential treatment for the following information until 45 days after the Grant Date of Equipment Authorization in order to ensure sensitive business information remains confidential until the actual marketing of the device: External Photos ExtPho SSSEXT.pdf Internal Photos IntPho SSSEXT.pdf Test Setup Photos Tsup SSSEXT.pdf User Manual UserMan SSSEXT.pdf Permanent Honeywell FM&T LLC requests that the material in the Parts List, Schematics, block diagram, and Operational Description be withheld from public disclosure in accordance with Section 0.459 of the Commissions Rules, 47 C.F.R. 0.459, following grant of the application. It is requested that the information contained in the operational description, block diagram, parts list, and schematics of the application be held confidential per Section 0.459. A statement of confidentiality will be attached with the application at the time of submittal. Schematics Conf Schem SSSEXT.pdf Block diagram Conf BlkDia SSSEXT.pdf Operational Description Conf OpDes SSSEXT.pdf Should you require any further information, please contact the undersigned. Thank you for your consideration in this matter. Sincerely, Scot Rogers Rogers Labs, Inc. Enclosures ROGERS LABS, INC. 4405 West 259 th Terrace Louisburg, KS 66053 Phone / Fax (913) 837-3214

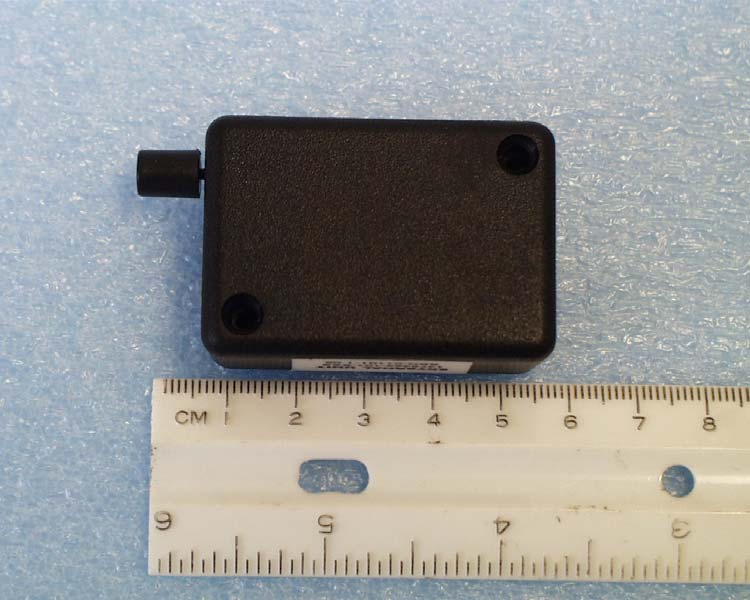

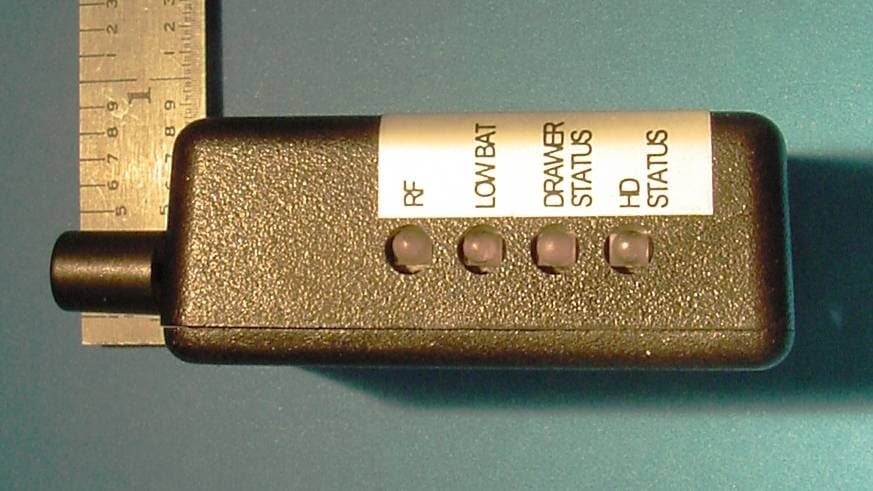

ROGERS LABS, INC. Honeywell FM&T LLC 4405 West 259 th Terrace MODEL: External Tx FCC ID#: VGKSSSEXT Louisburg, KS 66053 Test #:070712A SN: BBN-01102-I 06 Phone/Fax: (913) 837-3214 Test to: CFR47, 2, 15.249 Page 1 of 2 ExtPho SSSEXT 9/25/2007 External photographs of equipment under test. ROGERS LABS, INC. Honeywell FM&T LLC 4405 West 259 th Terrace MODEL: External Tx FCC ID#: VGKSSSEXT Louisburg, KS 66053 Test #:070712A SN: BBN-01102-I 06 Phone/Fax: (913) 837-3214 Test to: CFR47, 2, 15.249 Page 2 of 2 ExtPho SSSEXT 9/25/2007

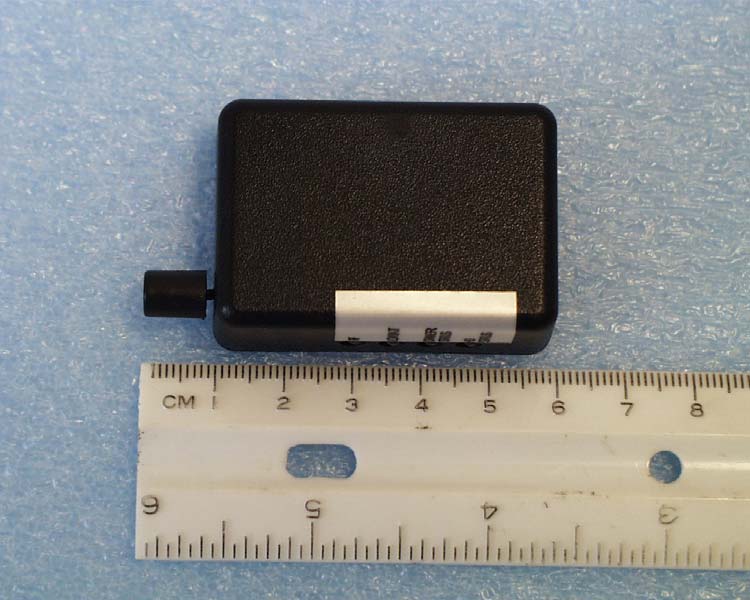

ROGERS LABS, INC. Honeywell FM&T LLC 4405 West 259 th Terrace MODEL: External Tx FCC ID#: VGKSSSEXT Louisburg, KS 66053 Test #:070712A SN: BBN-01102-I 06 Phone/Fax: (913) 837-3214 Test to: CFR47, 2, 15.249 Page 1 of 1 LabelSmpl SSSEXT 9/25/2007 FCC/IC ID label and location. Label Placement

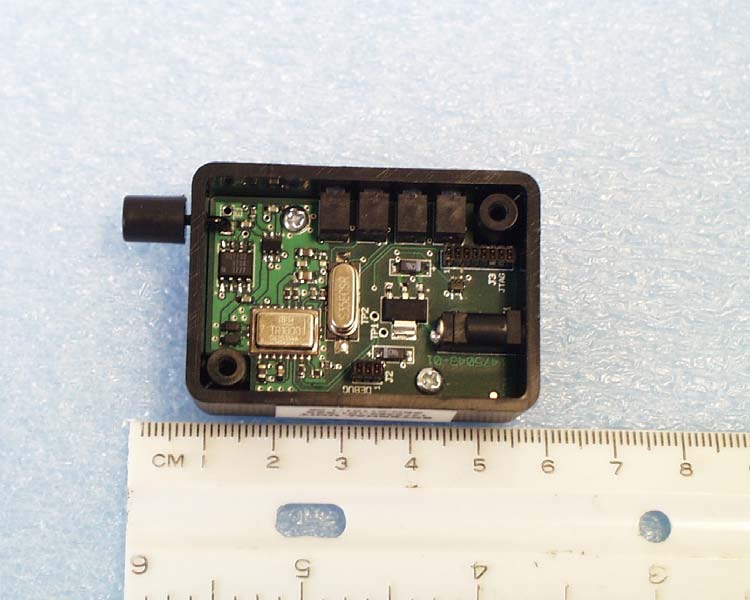

ROGERS LABS, INC. Honeywell FM&T LLC 4405 West 259 th Terrace MODEL: External Tx FCC ID#: VGKSSSEXT Louisburg, KS 66053 Test #:070712A SN: BBN-01102-I 06 Phone/Fax: (913) 837-3214 Test to: CFR47, 2, 15.249 Page 1 of 2 IntPho SSSEXT 9/25/2007 Photograph showing PCB location inside case ROGERS LABS, INC. Honeywell FM&T LLC 4405 West 259 th Terrace MODEL: External Tx FCC ID#: VGKSSSEXT Louisburg, KS 66053 Test #:070712A SN: BBN-01102-I 06 Phone/Fax: (913) 837-3214 Test to: CFR47, 2, 15.249 Page 2 of 2 IntPho SSSEXT 9/25/2007

ROGERS LABS, INC. Honeywell FM&T LLC 4405 West 259 th Terrace MODEL: External Tx FCC ID#: VGKSSSEXT Louisburg, KS 66053 Test #:070712A SN: BBN-01102-I 06 Phone/Fax: (913) 837-3214 Test to: CFR47, 2, 15.249 Page 1 of 1 TunPro SSSEXT 9/25/2007 Each units functionality is tested and judged with a pass/fail criteria during production. Units meeting the criteria continue through production and others are returned for diagnostics or disposal.

ROGERS LABS, INC. Honeywell FM&T LLC 4405 West 259 th Terrace MODEL: External Tx FCC ID#: VGKSSSEXT Louisburg, KS 66053 Test #:070712A SN: BBN-01102-I 06 Phone/Fax: (913) 837-3214 Test to: CFR47, 2, 15.249 Page 1 of 1 RFExp SSSEXT 9/25/2007 HoneywellModel:External Tx Unit MPE CalculatorMPE uses EIRP for calculation. EIRP is based on TX power added to the antenna gain in dBi. dBi = dB gain compared to an isotropic radiator. S = power density in mW/cm^2 Antenna Gain (dBi)0 Output PowerdBd + 2.17 = dBidBi to dBd2.2 Tx Frequency (MHz)916.5Average (Watts)0.0006Antenna Gain (dBd)-2.17 Cable Loss (dB)0.0(dBm)-2.22Antenna minus cable (dBi)0.00 Calculated ERP (mw) 0.364EIRP = Po(dBM) + Gain (dB) Calculated EIRP (mw) 0.600Radiated (EIRP) dBm-2.218 ERP = EIRP - 2.17 dB Occupational Limit Radiated (ERP) dBm-4.388 3.05500 mW/cm 2 General Public Limit 0.61100 mW/cm 2 Frequency (MHz)Occupational LimitPublic Limit 300-1,500f / 300f / 1500 1,500-10,000N/AN/A Frequency (MHz) Occupational Limit @ Tx Freq (mW/cm^2) Public Limit @ Tx Freq (mW/cm^2) 300-1,5003.0550.611 1,500-10,00051 EIRPDistanceDistanceSDistance milliwattscminchesmW/c m 2 Feet 0.600100.0039.370.000003.280839895 0.60090.0035.430.000012.952755906 0.60080.0031.500.000012.624671916 0.60070.0027.560.000012.296587927 0.60060.0023.620.000011.968503937 0.60050.0019.690.000021.640419948 0.60040.0015.750.000031.312335958 0.60030.0011.810.000050.984251969 0.60020.007.870.000120.656167979 0.60010.003.940.000480.32808399 0.6009.003.540.000590.295275591 0.6008.003.150.000750.262467192 0.6007.002.760.000970.229658793 0.6006.002.360.001330.196850394 0.6005.001.970.001910.164041995 0.6004.001.570.002980.131233596 0.6003.001.180.005310.098425197 0.6002.000.790.011940.065616798 0.6001.000.390.047750.032808399 0.6000.900.350.058950.029527559 0.6000.800.310.074600.026246719 0.6000.700.280.097440.022965879 0.6000.600.240.132630.019685039 0.6000.500.200.190990.016404199 0.6000.400.160.298420.01312336 0.6000.350.140.389770.01148294 0.6000.300.120.530520.00984252 0.6000.280.110.609010.009186352 0.6000.200.081.193660.00656168 0.6000.150.062.122070.00492126 0.6000.130.052.825240.004265092 Frequency (MHz) Occupational Limit minimum Distance (cm / inches) Public Limit minimum distance (cm / inches) 300-1,5000.13 / 0.050.28 / 0.11 1,500-10,000N/AN/A FCC radio frequency radiation exposure limits per 1.1310 FCC radio frequency radiation exposure limits per 1.1310 Power density (S) EIRP ------- = mW/cm^2 4 π r^2 r (cm) EIRP (mW)

NVLAP Lab Code 200087-0 ROGERS LABS, INC. Honeywell FMT. LLC 4405 West 259 th Terrace MODEL: External Tx Unit FCC ID: VGKSSSEXT Louisburg, KS 66053 Test #: 070712A SN: BBN-01102-I 06 Phone/Fax: (913) 837-3214 Test to: FCC Parts 2 and 15.249 Page 1 of 25 Report Revision 1 SSSEXT TstRpt 9/25/2007 APPLICATION FOR GRANT of CERTIFICATION REPORT FOR MODEL: External Tx Unit PN 1475 383-101-SSS FOR HONEYWELL FMT. LLC 2000 East 95th Street Kansas City, MO 64141-6159 Test Report Number 070712A Authorized Signatory Scot D. Rogers NVLAP Lab Code 200087-0 ROGERS LABS, INC. Honeywell FMT. LLC 4405 West 259 th Terrace MODEL: External Tx Unit FCC ID: VGKSSSEXT Louisburg, KS 66053 Test #: 070712A SN: BBN-01102-I 06 Phone/Fax: (913) 837-3214 Test to: FCC Parts 2 and 15.249 Page 2 of 25 Report Revision 1 SSSEXT TstRpt 9/25/2007 TEST REPORT For APPLICATION of CERTIFICATION For HONEYWELL FMT. LLC 2000 East 95th Street Kansas City, MO 64141-6159 Phone: (816) 997-4556 Mr. Leonard H Moore Compliance Engineer Model: External Tx Unit Low Power Transmitter Frequency: 916.5 MHz FCC ID: VGKSSSEXT Test Date: July 12, 2007 Certifying Engineer: Scot D. Rogers ROGERS LABS, INC. 4405 West 259th Terrace Louisburg, KS 66053 Phone: (913) 837-3214 FAX: (913) 837-3214 This report shall not be reproduced except in full, without the written approval of the laboratory. This report must not be used by the client to claim product endorsement by NVLAP, NIST, or any agency of the U.S. Government. Rogers Labs, Inc. 4405 West 259 th Terrace Louisburg, KS 66053 Telephone / Fax (913) 837-3214 NVLAP Lab Code 200087-0 ROGERS LABS, INC. Honeywell FMT. LLC 4405 West 259 th Terrace MODEL: External Tx Unit FCC ID: VGKSSSEXT Louisburg, KS 66053 Test #: 070712A SN: BBN-01102-I 06 Phone/Fax: (913) 837-3214 Test to: FCC Parts 2 and 15.249 Page 3 of 25 Report Revision 1 SSSEXT TstRpt 9/25/2007 Table of Contents TABLE OF CONTENTS.................................................................................................... 3 FORWARD....................................................................................................................... 5 OPINION / INTERPRETATION OF RESULTS................................................................. 5 EQUIPMENT FUNCTION AND CONFIGURATION.......................................................... 5 Equipment Function .................................................................................................................................................5 Equipment Configuration ........................................................................................................................................5 LIST OF TEST EQUIPMENT ............................................................................................ 6 ENVIRONMENTAL CONDITIONS.................................................................................... 6 CFR47 2.1033(B) APPLICATION FOR CERTIFICATION................................................ 7 CFR47 15 SUBPART C - INTENTIONAL RADIATORS................................................... 7 CFR47 15.203 ANTENNA REQUIREMENTS................................................................... 8 CFR47 15.205 RESTRICTED BANDS OF OPERATION REQUIREMENTS.................... 8 CFR47 15.205 Emissions Data in Restricted Bands ..............................................................................................8 CFR47 15.205 Summary of Results for Radiated Emissions in Restricted Bands .............................................9 CFR47 15.207 CONDUCTED EMISSIONS LIMITS; GENERAL REQUIREMENTS ........ 9 CFR47 15.207 AC Line Conducted EMI ................................................................................................................9 Figure one AC Line Conducted Emissions Plot of Line 1.........................................................10 Figure two AC Line Conducted Emissions Plot of Line 2 ........................................................10 CFR47 15.207 Conducted Emissions Data (7 Highest Emissions) .......................................................................11 CFR47 15.207 Summary of Results for AC Line Conducted General Emissions...............................................11 Statement of Modifications and Deviations............................................................................................................11 CFR47 15.209 RADIATED EMISSIONS LIMITS; GENERAL REQUIREMENTS............. 12 CFR47 15.209 General Radiated EMI....................................................................................................................12 Figure three Peak Radiated Emissions taken at 1 meter in screen room. ..................................13 Figure four Peak Radiated Emissions taken at 1 meter in screen room.....................................13 Figure five Peak Radiated Emissions taken at 1 meter in screen room. ....................................14 NVLAP Lab Code 200087-0 ROGERS LABS, INC. Honeywell FMT. LLC 4405 West 259 th Terrace MODEL: External Tx Unit FCC ID: VGKSSSEXT Louisburg, KS 66053 Test #: 070712A SN: BBN-01102-I 06 Phone/Fax: (913) 837-3214 Test to: FCC Parts 2 and 15.249 Page 4 of 25 Report Revision 1 SSSEXT TstRpt 9/25/2007 Figure six Peak Radiated Emissions taken at 1 meter in screen room.......................................14 Figure seven Peak Radiated Emissions taken at 1 meter in screen room. .................................15 CFR47 15.209 General Radiated Emissions Data .................................................................................................15 Statement of Modifications and Deviations............................................................................................................15 CFR47 15.209 Summary of Results for General Radiated Emissions .................................................................15 15.249 OPERATION IN THE BAND 902 - 928 MHZ ........................................................ 16 Figure eight Occupied Ba…

Text truncated - open the document above for the full version.

ROGERS LABS, INC. Honeywell FM&T LLC 4405 West 259 th Terrace MODEL: External Tx FCC ID#: VGKSSSEXT Louisburg, KS 66053 Test #:070712A SN: BBN-01102-I 06 Phone/Fax: (913) 837-3214 Test to: CFR47, 2, 15.249 Page 1 of 2 TSup SSSEXT 9/25/2007 Test setup photographs for External Unit ROGERS LABS, INC. Honeywell FM&T LLC 4405 West 259 th Terrace MODEL: External Tx FCC ID#: VGKSSSEXT Louisburg, KS 66053 Test #:070712A SN: BBN-01102-I 06 Phone/Fax: (913) 837-3214 Test to: CFR47, 2, 15.249 Page 2 of 2 TSup SSSEXT 9/25/2007
