VH6ZWRX07Electromyograph

USER MANUAL C OD . ZW04 REV 10 04/10/05 Pag. 1 ZEROWIRE MULTICHANNEL ELECTROMYOGRAPH USER MANUAL This device complies with Part 15 of the FCC Rules. Operation is subject to the following two con- ditions: (1) this device may not cause harmful interference, and (2) this device must accept any in- terference received, including interference that may cause undesired operation. Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. USER MANUAL C OD . ZW04 REV 10 04/10/05 Pag. 2 1. INTRODUCTION ........................................................................................................................ 2 2. DESTINATION AND CLASSIFICATION................................................................................ 3 2.1 H OW TO USE IT ....................................................................................................................... 4 3. ZEROWIRE SYSTEM COMPONENTS ................................................................................... 5 3.1 W IRELESS ELECTRODES ......................................................................................................... 6 3.2 B ASE UNIT ............................................................................................................................. 7 3.3 D OCKING MODULE ................................................................................................................. 8 4. ZEROWIRE SYSTEM USE ........................................................................................................ 9 4.1 ANALOG MODE...................................................................................................................... 9 4.1.1 Supported external devices............................................................................................. 10 4.1.2 Layout of cable connections........................................................................................... 11 4.2 D IGITAL MODE ..................................................................................................................... 12 4.2.1 External trigger .............................................................................................................. 13 4.2.1.1 Trig in..................................................................................................................................14 4.2.1.2 Trig out................................................................................................................................14 4.2.2 Supported external devices............................................................................................. 14 4.3 LED STATUS INDICATORS .................................................................................................... 15 4.4 P REGELLED ELECTRODES ..................................................................................................... 15 4.5 E LECTRODES BATTERY RECHARGE ...................................................................................... 15 4.6 LED INDICATOR DURING CHARGING .................................................................................... 16 4.7 W ARNINGS ........................................................................................................................... 16 4.8 P IEZORESISTIVE SENSORS ..................................................................................................... 18 5. SYSTEM MAINTENANCE ...................................................................................................... 20 5.1 REPAIRABLE PARTS.............................................................................................................. 20 5.2 R EPLACEMENT OF ELECTRODE BATTERY ............................................................................. 20 5.2.1 Module identification ..................................................................................................... 21 5.3 W ARNINGS ABOUT ELECTRODES BATTERY ........................................................................... 21 5.4 W ARNINGS FOR BATTERY DISPOSAL ..................................................................................... 22 5.5 W ARNINGS FOR DEVICE DISPOSAL ........................................................................................ 22 5.6 R EPLACEMENT OF WORN PARTS ........................................................................................... 22 5.7 Z ERO W IRE CLEANING .......................................................................................................... 23 5.8 REFERENCES........................................................................................................................ 23 6. TECHNICAL SPECIFICATIONS ........................................................................................... 24 6.1 S UITABILITY ......................................................................................................................... 26 USER MANUAL C OD . ZW04 REV 10 04/10/05 Pag. 3 1. INTRODUCTION ZeroWire system is an innovative multi-channel wireless surface electromyographic system. The leading specifications of this new system are: • Wireless and low-power electrodes for a quick patient set-up and for movements performed in total freedom; • Digital transmission of the EMG signal; • Receiver device equipped with analog and digital (USB port) data output; • Developed with high integration “SMD” technology; • Compatible with ISM standard – low power devices (ETSI, FCC, JAPAN); • Designed to be integrated with lab equipment for multipurpose acquisition systems. 2. D ESTINATION AND CLASSIFICATION ZeroWire is a system for the data collection of biologic signals; the main system feature is the absence of cables between the transmitters on the patient and the data receiver/recording unit. This allows the acquisition of EMG signal while patient is free to move. This feature is ve…

Text truncated - open the document above for the full version.

VH6ZWRX07 BLOCK DIAGRAM

Etichetta prodotto elettromiografo Cod. ZW03 Rev. 1 10.01.2006 Data prima emissione Zero Wire Pag. 1 di 1 Istruzioni di compilazione etichetta 1 inserire il codice di vendita del prodotto 2 inserire il numero di lotto di produzione 3 inserire il numero di serie del prodotto AURION Viale Certosa 191, 20151 Milano (Italy) Zero Wire EMG 0051 0° 45° 85 AC/DC FRIWO cod. FW7555M/09 EXT. TRIGGER ANALOG OUTPUT USB REF. LOT. S.N. 9V – 0,25A Preparato da: Dario Bettinelli Rivisto da: Dario Bettinelli Approvato da: Roberto Assente Data: 26.04.2006 Data: 26.04.2006 Data: 26.04.2006 FCC ID: VH6ZWRX07 This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

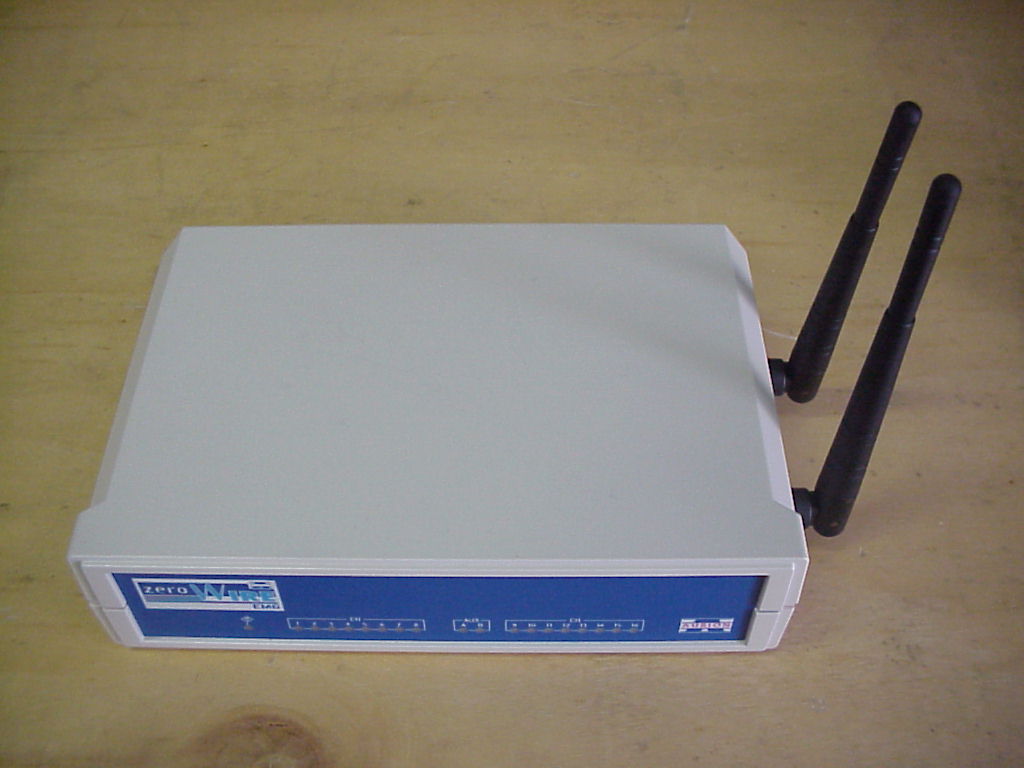

NOTICE: The results of tests and checks reported in this Test Report refer exclusively to the samples tested and described in the Report itself. This report shall not be reproduced partially or in its entirety without the written approval of IMQ S.p.A. IMQ S.p.A. - Via Quintiliano, 43 – I-20138 MILANO Telecommunications & Telematics for Transports Lab. TEST REPORT Ref. No.ARSH00182/1 Date: 2007-10-26 Measurements performed in accordance with: FCC Rules : Code of Federal Regulations (CFR) no. 47 - PART 15 – RADIO FREQUENCY DEVICES PRODUCT : ELECTROMYOGRAPH TESTED MODEL : ZEROWIRE FCC ID. : VH6ZWRX07 APPLICANT : AURION S.r.l. – Viale Certosa, 191– 20151 MILANO MANUFACTURER: AURION S.r.l. – Viale Certosa, 191– 20151 MILANO TRADEMARK : AURION OTHER INFORMATION Testing dates : 2007-09-24 ÷ 2007-10-10 Tested samples No.:1 Testing Laboratory : IMQ S.p.A. Via Quintiliano, 43 I-20138 MILANO Tested by : R. Radice Signature: Date :2007-10-26 Checked by: R. Colombo (EMC and R&TTE Lab. deputy) Signature: Date :2007-10-26 Revision Sheet Release No. Date Revision Description Rev. 0 2007-10-26 Test Results and Evaluation Report T E L E C O M M U N I C A T I O N S & T E L E M A T I C S F O R T R A N S P O R T S L A B O R A T O R Y TT&T Laboratory Test Report N. ARSH00182/1 Date 2007-10-26 page 2 of 60 T E L E C O M M U N I C A T I O N S & T E L E M A T I C S F O R T R A N S P O R T S L A B O R A T O R Y CONTENTS 1General Description of Equipment under Test ........................ 1-3 1.1 APPLICANT............................................................................... 1-3 1.2 MANUFACTURER..................................................................... 1-3 1.3 EQUIPMENT CLASSIFICATION ............................................... 1-3 1.4 BASIC DESCRIPTION OF EQUIPMENT UNDER TEST .......... 1-4 1.5 FEATURE OF EQUIPMENT UNDER TEST.............................. 1-5 2Test Configuration of Equipment under Test .......................... 2-6 2.1 ENVIRONMENTAL CONDITIONS ............................................ 2-6 2.2 DESCRIPTION OF SUPPORT EQUIPMENT............................ 2-6 2.3 INTERFACE IDENTIFICATION AND CONNECTION DIAGRAM OF TEST SYSTEM.......................................................................... 2-7 3Operation of Equipment under Test ......................................... 3-8 3.1 OPERATING TEST CONDITIONS............................................ 3-8 4Tests Identification and Results ............................................... 4-9 4.1 METHODS OF MEASUREMENT ............................................ 4-11 4.2 FREQUENCY RANGE INVESTIGATED ................................. 4-11 5Measurements and Tests Data................................................ 5-12 6Additional Technical Information............................................ 6-53 6.1 ELECTROMAGNETICALLY RELEVANT COMPONENTS: .... 6-53 6.2 RFI SUPPRESSION DEVICES: .............................................. 6-53 6.3 EMI PROTECTION DEVICES: ................................................ 6-53 7Technical Documentation........................................................ 7-54 8Photographic Documentation ................................................. 8-55 8.1 EUT IDENTIFICATION ............................................................ 8-55 8.2 TEST SET-UP ......................................................................... 8-58 9Measurement and Test Equipment Instrumentation............. 9-60 TT&T Laboratory Test Report N. ARSH00182/1 Date 2007-10-26 page 3 of 60 T E L E C O M M U N I C A T I O N S & T E L E M A T I C S F O R T R A N S P O R T S L A B O R A T O R Y 1 GENERAL DESCRIPTION OF EQUIPMENT UNDER TEST 1.1 APPLICANT NAME AURION S.r.l. ADDRESS Viale Certosa, 191– 20151 MILANO COUNTRY Italy 1.2 MANUFACTURER NAME AURION S.r.l. ADDRESS Viale Certosa, 191– 20151 MILANO COUNTRY Italy 1.3 EQUIPMENT CLASSIFICATION According to the definition 15.3 (o) EUT is a Intentional Radiator operating within the bands 2400-2483,5 MHz soit shall fulfil provisions of 47CFR Part 15 Subpart C – Intentional radiators – and Section 15.247. TT&T Laboratory Test Report N. ARSH00182/1 Date 2007-10-26 page 4 of 60 T E L E C O M M U N I C A T I O N S & T E L E M A T I C S F O R T R A N S P O R T S L A B O R A T O R Y 1.4 BASIC DESCRIPTION OF EQUIPMENT UNDER TEST Parameters Value Type of equipment :
ELECTROMYOGRAPH Model :
ZEROWIRE FCC ID. :
VH6ZWRX07 Trade Name
AURION Data cable :
/ Telecom cable :
/ Power supply type :
1/N AC 100-240 V Power supply AC power input cable :
/ DC power input cable :
/ TT&T Laboratory Test Report N. ARSH00182/1 Date 2007-10-26 page 5 of 60 T E L E C O M M U N I C A T I O N S & T E L E M A T I C S F O R T R A N S P O R T S L A B O R A T O R Y 1.5 FEATURE OF EQUIPMENT UNDER TEST Power specification
3 V dc Operating frequency:
2402 ÷2480 MHz (125 Channels) Maximum RF output power:
< 1W Modulation:
FSK Bitrate
1M bps Main SW identification
/ Main HW Board identification
/ Peripherals included (for system application)
None Interfaces :
None Integrated interfaces :
None AC adapter:
None TT&T Laboratory Test Report N. ARSH00182/1 Date 2007-10-26 page 6 of 60 T E L E C O M M U N I C A T I O N S & T E L E M A T I C S F O R T R A N S P O R T S L A B O R A T O R Y 2 TEST CONFIGURATION OF EQUIPMENT UNDER TEST 2.1 ENVIRONMENTAL CONDITIONS TEST CONDITIONSMEASURED Ambient Temperature 20 ÷25 °C Relative Humidity 50 ÷60 % Atmospheric Pressure 900 ÷1000 mbar 2.2 DESCRIPTION OF SUPPORT EQUIPMENT Here following the details concerning equipment needed for correct operation or loading of the EUT: EQUIPMENT MANUFACTURER MODEL None ---------- ------------ TT&T Laboratory Test Report N. ARSH00182/1 Date 2007-10-26 page 7 of 60 T E L E C O M M U N I C A T I O N S & T E L E M A T I C S F O R T R A N S P O R T S L A B O R A T O R Y 2.3 INTERFACE IDENTIFICATION AND CONNECTION DIAGRAM OF TEST SYSTEM #Interface Description Maximum length Ref. Document 1 Enclosure Plastic surface / / 2 AC…
