VH9KDC500Mobile POS

1 KDC500 User Manual Rev 1.0 September 2015 KDC User Manual INTRODUCTION 2 Revision 1.0 Copyright®2012-2015, KOAMTAC, Inc. Table of Contents 1. INTRODUCTION ................................................................................ 9 1.1 Specification .................................................................................................................... 10 1.2 Package ............................................................................................................................ 12 1.3 Characteristics ................................................................................................................. 13 1.4 Scan Buttons ................................................................................................................... 14 1.5 Secure Touch Pinpad ..................................................................................................... 14 2. INSTALLATION ................................................................................ 16 2.1 Bluetooth Pairing ........................................................................................................... 16 3. OPERATING YOUR KDC500 ........................................................ 18 3.1 Getting Started ............................................................................................................... 18 Charge KDC500 Battery ........................................................................................................................... 18 3.2 Basics ................................................................................................................................ 18 Read barcodes .............................................................................................................................................. 18 Read NFC Tag (MIFARE) .......................................................................................................................... 19 Read Magnetic-Stripe Card .................................................................................................................... 19 Read IC Card ................................................................................................................................................. 19 4. WARRANTY ...................................................................................... 21 5. CONTACT INFORMATION ........................................................... 23 KDC User Manual INTRODUCTION 3 Revision 1.0 Copyright®2012-2015, KOAMTAC, Inc. List of Figures Figure 1 - KDC500 Overview ................................................................................................................................... 13 KDC User Manual INTRODUCTION 4 Revision 1.0 Copyright®2012-2015, KOAMTAC, Inc. COPYRIGHT, LICENSE, and WARNING PAGE Copyright  2002-2015 by KOAMTAC, Inc. All rights reserved. No part of this publication may be reproduced or used in any form, or by any electrical or mechanical means, without permission in writing from KOAMTAC, Inc. The material in this manual is subject to change without notice. KOAMTAC reserves the right to make changes to any product to improve reliability, function, or design. KOAMTAC does not assume any product liability arising out of, or in connection with, the application or use of any product, circuit, or application described herein. Follow all warnings and instructions marked on manual and units. Use only the power source specified in this manual or marked on the units. Certain KDC products may be covered by the following issued US patents numbers 7769917, 7954710, 8126399, 8295368, 8346979, 8347366, 8371506, 8483614, 8832323; Korea patents numbers 10-1383407, 10-1354252 and may be patent pending elsewhere, UK publication GB2492615, Korea publication 1020120128598. KDC ® is a registered trademark and property of KOAMTAC, Inc. KoamTac ® is a registered trademark and property of KOAMTAC, Inc. KTSync ® is a registered trademark and property of KOAMTAC, Inc. TO PREVENT FIRE OR SHOCK HAZARD, DO NOT EXPOSE THIS UNIT TO ANY TYPE OF MOISTURE. DO NOT LOOK DIRECTLY INTO LASER OR POINT THE LASER INTO ANOTHER PERSON’S EYES. EXPOSURE TO THE BEAM MAY CAUSE EYE DAMAGE. CAUTION: Changes or modifications not expressly approved by the manufacturer responsible for compliance could void the user’s authority to operate the equipment. KDC User Manual INTRODUCTION 5 Revision 1.0 Copyright®2012-2015, KOAMTAC, Inc. Regulatory Compliance US FCC ID: VH9KDC500 This equipment has been tested and found to comply with the limits of a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation; if this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: 1. Reorient / Relocate the receiving antenna. 2. Increase the separation between the equipment and receiver. 3. Connect the equipment into an outlet on a different circuit than the receiver. 4. Consult with the dealer or an experienced radio/TV technician for help. Change or modification not expressly approved by the party responsible for Compliance could void the user’s authority to operate the equipment WARNING: This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation KDC …

Text truncated - open the document above for the full version.

SCS-F18: Project and Product Certification Representative Authorization Letter Page 2 of 2 Rev 5.0 September 10, 2015 To: SIEMIC, INC. 775 Montague Expressway, Milpitas, CA 95035 USA Dear Sir/Madam, Re: Product Certification Representative Authorization Letter We, AISOLUTION CO., LTD. hereby authorize SIEMIC, Inc. to act as a Certification Body for certifying for the following project(s): Mobile POS /KDC500 FCC ID: VH9KDC500 Sincerely, KITAE, LEE / Assistant Director AISOLUTION CO., LTD. 28-4, Samyang-ro 29-gil, Gangbuk-gu, Seoul, Republic of Korea

SCS-F19: Confidentiality Request Letter Page 2 of 2 Rev 4.0 September 10, 2015 To: Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD Subject: Permanent Confidentiality Request for FCC ID: VH9KDC500 We hereby request confidential treatment of information accompanying this application as outlined below: - Block Diagram - Circuit Diagram - Operational Description The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that pursuant to Section 0.457 & 0.459 of the Rules, disclosure of this application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely, KITAE, LEE / Assistant Director AISOLUTION CO., LTD. 28-4, Samyang-ro 29-gil, Gangbuk-gu, Seoul, Republic of Korea

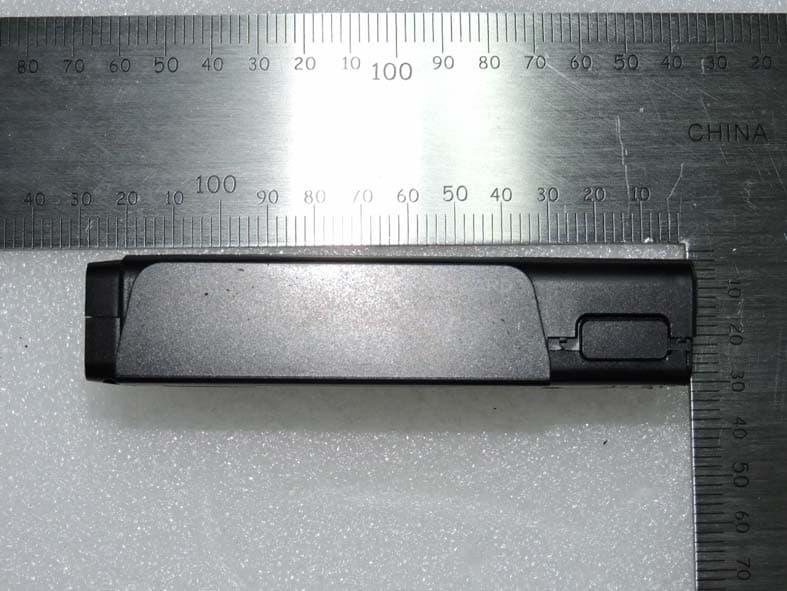

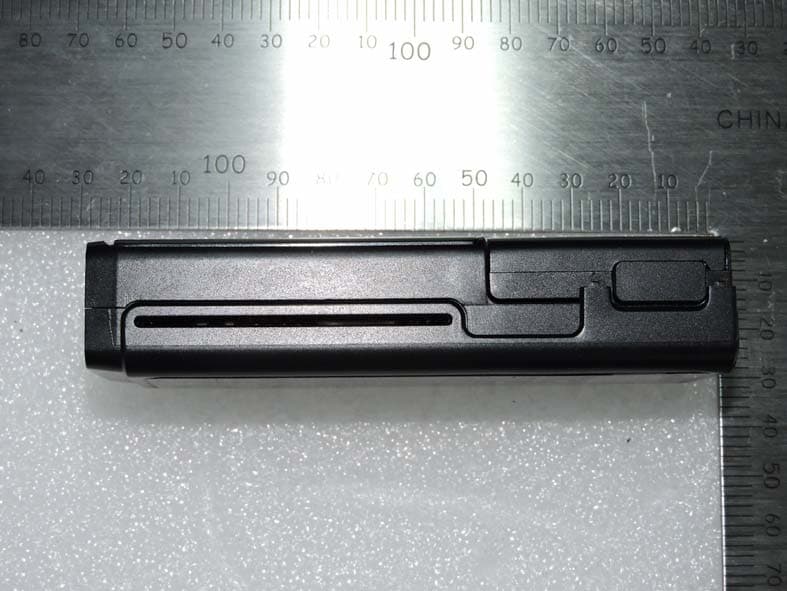

Appendix C. External Photographs Report no. ETLT150819.0063, Page C1 of C3 Head Office: #371-51, Gasan-dong, Geumcheon-gu, Seoul, 153-803, Korea Tel : 82-2-858-0786 Fax : 82-2-858-0788 Open site: #499-1, Sagot-ri, Seosin-myeon, Hwaseong-si, Gyeonggi-do, 445-882, Korea ETLQP-21-F40-0 FCC ID:VH9KDC500 Front view of EUT Rear view of EUT Appendix C. External Photographs Report no. ETLT150819.0063, Page C2 of C3 Head Office: #371-51, Gasan-dong, Geumcheon-gu, Seoul, 153-803, Korea Tel : 82-2-858-0786 Fax : 82-2-858-0788 Open site: #499-1, Sagot-ri, Seosin-myeon, Hwaseong-si, Gyeonggi-do, 445-882, Korea ETLQP-21-F40-0 FCC ID:VH9KDC500 Top view of EUT Bottom view of EUT Appendix C. External Photographs Report no. ETLT150819.0063, Page C3 of C3 Head Office: #371-51, Gasan-dong, Geumcheon-gu, Seoul, 153-803, Korea Tel : 82-2-858-0786 Fax : 82-2-858-0788 Open site: #499-1, Sagot-ri, Seosin-myeon, Hwaseong-si, Gyeonggi-do, 445-882, Korea ETLQP-21-F40-0 FCC ID:VH9KDC500 Side view of EUT

Appendix A. FCC ID Label and Location Report no. ETLT150819.0063, Page A1 of A1 Head Office: #371-51, Gasan-dong, Geumcheon-gu, Seoul, 153-803, Korea Tel : 82-2-858-0786 Fax : 82-2-858-0788 Open site: #499-1, Sagot-ri, Seosin-myeon, Hwaseong-si, Gyeonggi-do, 445-882, Korea ETLQP-21-F40-0 FCC ID:VH9KDC500 Product Label Sample with FCC Label information Following is a sample copy of the label that will be placed on the rear cabinet of the product. The FCC ID Label and compliance statement are marked in the product label. The warning statement and Information to the User are described in the user manual. AISOLUTION CO., LTD. Mobile POS FCC ID : VH9KDC500 Model No. : KDC500 Serial No. : Proto type This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation. Manufacturer: AISOLUTION CO., LTD. Made in Korea Label Location The label shown shall be permanently affixed at a conspicuous location on the device and be readily visible to the user at the time purchase.(Labeling requirements per 2.925) Label here

Appendix D. Internal Photographs Report no. ETLT150819.0063, Page D1 of D10 Head Office: #371-51, Gasan-dong, Geumcheon-gu, Seoul, 153-803, Korea Tel : 82-2-858-0786 Fax : 82-2-858-0788 Open site: #499-1, Sagot-ri, Seosin-myeon, Hwaseong-si, Gyeonggi-do, 445-882, Korea ETLQP-21-F40-0 FCC ID:VH9KDC500 Inside view of EUT Appendix D. Internal Photographs Report no. ETLT150819.0063, Page D2 of D10 Head Office: #371-51, Gasan-dong, Geumcheon-gu, Seoul, 153-803, Korea Tel : 82-2-858-0786 Fax : 82-2-858-0788 Open site: #499-1, Sagot-ri, Seosin-myeon, Hwaseong-si, Gyeonggi-do, 445-882, Korea ETLQP-21-F40-0 FCC ID:VH9KDC500 Top side view of main board Bluetooth PART RFID PART Appendix D. Internal Photographs Report no. ETLT150819.0063, Page D3 of D10 Head Office: #371-51, Gasan-dong, Geumcheon-gu, Seoul, 153-803, Korea Tel : 82-2-858-0786 Fax : 82-2-858-0788 Open site: #499-1, Sagot-ri, Seosin-myeon, Hwaseong-si, Gyeonggi-do, 445-882, Korea ETLQP-21-F40-0 FCC ID:VH9KDC500 Bottom side view of main board Appendix D. Internal Photographs Report no. ETLT150819.0063, Page D4 of D10 Head Office: #371-51, Gasan-dong, Geumcheon-gu, Seoul, 153-803, Korea Tel : 82-2-858-0786 Fax : 82-2-858-0788 Open site: #499-1, Sagot-ri, Seosin-myeon, Hwaseong-si, Gyeonggi-do, 445-882, Korea ETLQP-21-F40-0 FCC ID:VH9KDC500 Top side view of sub main board Appendix D. Internal Photographs Report no. ETLT150819.0063, Page D5 of D10 Head Office: #371-51, Gasan-dong, Geumcheon-gu, Seoul, 153-803, Korea Tel : 82-2-858-0786 Fax : 82-2-858-0788 Open site: #499-1, Sagot-ri, Seosin-myeon, Hwaseong-si, Gyeonggi-do, 445-882, Korea ETLQP-21-F40-0 FCC ID:VH9KDC500 Bottom side view of sub main board Appendix D. Internal Photographs Report no. ETLT150819.0063, Page D6 of D10 Head Office: #371-51, Gasan-dong, Geumcheon-gu, Seoul, 153-803, Korea Tel : 82-2-858-0786 Fax : 82-2-858-0788 Open site: #499-1, Sagot-ri, Seosin-myeon, Hwaseong-si, Gyeonggi-do, 445-882, Korea ETLQP-21-F40-0 FCC ID:VH9KDC500 View of keypad board Appendix D. Internal Photographs Report no. ETLT150819.0063, Page D7 of D10 Head Office: #371-51, Gasan-dong, Geumcheon-gu, Seoul, 153-803, Korea Tel : 82-2-858-0786 Fax : 82-2-858-0788 Open site: #499-1, Sagot-ri, Seosin-myeon, Hwaseong-si, Gyeonggi-do, 445-882, Korea ETLQP-21-F40-0 FCC ID:VH9KDC500 View of BT antenna View of RFID antenna Appendix D. Internal Photographs Report no. ETLT150819.0063, Page D8 of D10 Head Office: #371-51, Gasan-dong, Geumcheon-gu, Seoul, 153-803, Korea Tel : 82-2-858-0786 Fax : 82-2-858-0788 Open site: #499-1, Sagot-ri, Seosin-myeon, Hwaseong-si, Gyeonggi-do, 445-882, Korea ETLQP-21-F40-0 FCC ID:VH9KDC500 View of scanner inside Top side view of scanner main Appendix D. Internal Photographs Report no. ETLT150819.0063, Page D9 of D10 Head Office: #371-51, Gasan-dong, Geumcheon-gu, Seoul, 153-803, Korea Tel : 82-2-858-0786 Fax : 82-2-858-0788 Open site: #499-1, Sagot-ri, Seosin-myeon, Hwaseong-si, Gyeonggi-do, 445-882, Korea ETLQP-21-F40-0 FCC ID:VH9KDC500 Bottom side view of scanner main Appendix D. Internal Photographs Report no. ETLT150819.0063, Page D10 of D10 Head Office: #371-51, Gasan-dong, Geumcheon-gu, Seoul, 153-803, Korea Tel : 82-2-858-0786 Fax : 82-2-858-0788 Open site: #499-1, Sagot-ri, Seosin-myeon, Hwaseong-si, Gyeonggi-do, 445-882, Korea ETLQP-21-F40-0 FCC ID:VH9KDC500 View of Rechargeable Li-ion battery

Appendix J. Radio Frequency Exposure Report no. ETLT150819.0063, Page J1 of J1 Head Office: #371-51, Gasan-dong, Geumcheon-gu, Seoul, 153-803, Korea Tel : 82-2-858-0786 Fax : 82-2-858-0788 Open site: #499-1, Sagot-ri, Seosin-myeon, Hwaseong-si, Gyeonggi-do, 445-882, Korea ETLQP-21-F40-0 FCC ID:VH9KDC500 Standard Applicable: According to §1.1307(b)(1), systems operating under the provisions of this section shall be operated in a manner that ensure that the public is not exposed to radio frequency energy level in excess of the Commission’s guideline. This is a Portable device with its physical nature to be used nearby, the distance between radiating structure and human is less than 20 cm. As per KDB 447498 D01, The 1-g and 10-g SAR test exclusion thresholds for 100 MHz to 6 GHz at test separation distances ≤ 50 mm are determined by: [(max. power of channel, including tune-up tolerance, mW) / (min. test separation distance, mm)] * [√f(GHz)] ≤ 3.0 for 1-g SAR and ≤ 7.5 for 10-g extremity SAR, where f (GHz) is the RF channel transmit frequency in GHz Power and distance are rounded to the nearest mW and mm before calculation The result is rounded to one decimal place for comparison Measurement Result: This is a portable device and the Max peak output power is (3.98 mW) lower than the threshold given and derived as above, where = 3.98 (mW) / 5 (mm) * √2.402 (GHz) = 1.23 < 3.00 As the result of calculation result indicates, the RF exposure generating from given transmitter (transmitter employed digital modulation) can be excluded from SAR measurement, and is deemed compliant with RF exposure as per FCC. Type of Modulation Frequency [MHz] Output Power [dBm] Ta r g e t power [dBm] Allowed tolerance [dB] Max tune up power [dBm] Max tune up power [mW] Separation distance [mm] RF exposure Limit BDR 2 402 5.58 4.00 ± 2.00 6.00 3.98 5 1.23 3.00 2 441 5.24 3.50 ± 2.00 5.50 3.55 5 1.11 3.00 2 480 4.91 3.00 ± 2.00 5.00 3.16 5 1.00 3.00 EDR 2 402 3.51 2.00 ± 2.00 4.00 2.51 5 0.78 3.00 2 441 2.90 1.00 ± 2.00 3.00 2.00 5 0.62 3.00 2 480 2.39 0.50 ± 2.00 2.50 1.78 5 0.56 3.00

Report no. ETLT150819.0063, Page 2 of 58 Head Office: #371-51, Gasan-dong, Geumcheon-gu, Seoul, 153-803, Korea Tel : 82-2-858-0786 Fax : 82-2-858-0788 Open site: #499-1, Sagot-ri, Seosin-myeon, Hwaseong-si, Gyeonggi-do, 445-882, Korea ETLQP-21-F40-0 FCC TEST REPORT FCC ID: VH9KDC500 Table of Contents FCC Measurement Report 1. Introduction 2. Product Information 3. Description of Tests 4. Test Condition 5. Test Results 5.1 Summary of Test Results 5.2 Channel Bandwidth and Frequency Separation 5.3 Maximum Peak Output Power 5.4 Bandwidth of Frequency Band Edges 5.5 Number of Hopping Channels 5.6 Time of Occupancy (Dwell time) 5.7 Spurious Emissions 5.8 Conducted Emissions Test 5.9 Radio Frequency Exposure 6. Sample Calculation 7. List of test Equipment used for Measurement Report no. ETLT150819.0063, Page 3 of 58 Head Office: #371-51, Gasan-dong, Geumcheon-gu, Seoul, 153-803, Korea Tel : 82-2-858-0786 Fax : 82-2-858-0788 Open site: #499-1, Sagot-ri, Seosin-myeon, Hwaseong-si, Gyeonggi-do, 445-882, Korea ETLQP-21-F40-0 FCC TEST REPORT FCC ID: VH9KDC500 FCC MEASUREMENT REPORT Scope – Measurement and determination of electromagnetic emission (EME) of radio frequency devices including intentional radiators and/or unintentional radiators for compliance with the technical rules and regulations of the U.S Federal Communications Commission(FCC) General Information  EUT Type : Mobile POS  Model Number : KDC500  S/N : NONE  Freq. Range : 2 402 MHz - 2 480 MHz  Number of Channels : 79  Modulation Technique : FHSS (GFSK (BDR), 8DPSK (EDR))  Frequency Channel : 2 402 MHz to 2 480 MHz and Channel Spacing 1 MHz (79 Ch)  Air Data Rate : BDR (1 Mbps), EDR (2 Mbps, 3 Mbps)  Antenna Type : Chip Antenna (Integral)  Antenna Gain : 3.14 dBi max  RF Power : 3.61 mW  Environmental of Tests : Temperature: (25.4 ± 2.3) °C Humidity: (51 ± 9) % R.H. Atmospheric Pressure: (100.5 ± 0.3) kPa  FCC Rule Part(s) : FCC Part 15 Subpart C  Test Procedure : ANSI C63.10-2009  EQUIPMENT CLASS : DSS (Part 15 Spread Spectrum Transmitter)  Place of Tests : ETL Inc. Testing Lab. (FCC Designation Number : KR0022) Radiated Emission test 1; #499-1, Sagot-ri, Seosin-myeon, Hwaseong-si, Gyeonggi-do, 445-882, Korea Radiated Emission test 2 and Conducted Emission test; #371-51, Gasan-dong, Geumcheon-gu, Seoul, 153-803, Korea Applicant Name : AISOLUTION CO., LTD. Address : 28-4, Samyang-ro 29-gil, Gangbuk-gu, Seoul, South Korea Attention : KITAE, LEE / Assistant Director Report no. ETLT150819.0063, Page 4 of 58 Head Office: #371-51, Gasan-dong, Geumcheon-gu, Seoul, 153-803, Korea Tel : 82-2-858-0786 Fax : 82-2-858-0788 Open site: #499-1, Sagot-ri, Seosin-myeon, Hwaseong-si, Gyeonggi-do, 445-882, Korea ETLQP-21-F40-0 FCC TEST REPORT FCC ID: VH9KDC500 1. INTRODUCTION The measurement test for radiated and conducted emission test was conducted at the ETL Inc. The site is constructed in conformance with the requirements of the ANSI C63.10-2009 and CISPR Publication 16. The ETL has site descriptions on file with the FCC for 3 m and 10 m site configurations. Detailed description of test facility was found to be in compliance with FCC Rules according to the ANSI C63.10-2009 and registered to the Federal Communications Commission (FCC Designation Number : KR0022). The measurement procedure described in American National Standard for Method of Measurement of Radio- Noise Emission from Low-Voltage Electrical and Electronic Equipment in the Range of 9 kHz to 40 GHz (ANSI C63.10-2009) was used in determining radiated and conducted emissions from the AISOLUTION CO., LTD. Model: KDC500 Report no. ETLT150819.0063, Page 5 of 58 Head Office: #371-51, Gasan-dong, Geumcheon-gu, Seoul, 153-803, Korea Tel : 82-2-858-0786 Fax : 82-2-858-0788 Open site: #499-1, Sagot-ri, Seosin-myeon, Hwaseong-si, Gyeonggi-do, 445-882, Korea ETLQP-21-F40-0 FCC TEST REPORT FCC ID: VH9KDC500 2. PRODUCT INFORMATION 2.1 Equipment Description The Equipment Under Test (EUT) is the Mobile POS (model: KDC500). The model KDC500 is basic model that was tested. 2.2 General Specification Item Specification Main Processor 120 MHz ARM Cortex-M4 Memory 1 MB program flash, 128 kB RAM, 32-byte secure key storage, 8 MB user data flash Display 128 x 64 monochrome Keypad Secure Touch Pinpad (15 buttons) + 2 Scan buttons for barcode module ‘0’ to ‘9’, Up/Fn, Down/Menu, Cancel, Clear and Enter Battery Lithium-Ion 3.7 V DC, 4.18 Wh Charging Micro-USB, Charging Cradle or Wireless Charging Mag-Stripe Reader Track 1/2/3, Bi-directional, ISO 7810, 7811, 7813 Smart Card Reader EMV L1 and L2, SAM Contactless and NFC ISO 14443, MIFARE, Felica, MasterCard PayPass, Visa PayWave Security PCI PTS V4 Encryption For PIN : T-DES (128-bit) For Card data : T-DES (128-bit), AES (128-bit) Key Management DUKPT Key Injection Key Loader OS compatibility All major OS Barcode Scanner Optional - 1D/2D Interfaces Bluetooth (V2.1 + EDR, Class 2, SPP/MFi), USB to Serial (Micro USB port) Dimensions 49 mm (W) x 117 mm (L) x 25 mm (H) (1.93” x 4.6” x 0.98”) Weight 5.6 oz (160 grams) Drop Spec 4 feet (1.22 M) Report no. ETLT150819.0063, Page 6 of 58 Head Office: #371-51, Gasan-dong, Geumcheon-gu, Seoul, 153-803, Korea Tel : 82-2-858-0786 Fax : 82-2-858-0788 Open site: #499-1, Sagot-ri, Seosin-myeon, Hwaseong-si, Gyeonggi-do, 445-882, Korea ETLQP-21-F40-0 FCC TEST REPORT FCC ID: VH9KDC500 Item Specification Operating Temperature (82.5 ± 50.5) °F ((22.5 ± 22.5) °C) Storage Temperature (54.5 ± 58.5) °F ((12.5 ± 32.5) °C) Humidity (45 ± 40) % R.H. (non condensing) NFC ASK 13.56 MHz PCB Pattern Antenna High Internal Frequency NFC X-tal: 27.12 MHz Report no. ETLT150819.0063, Page 7 of 58 Head Office: #371-51, Gasan-dong, Geumcheon-gu, Seoul, 153-803, Korea Tel : 82-2-858-0786 Fax : 82-2-858-0788 Open site: #499-1, Sagot-ri, Seosin-myeon, Hwaseong-si, Gyeonggi-do, 445-882, Korea ETLQP-21-F40-0 FCC TEST REPORT FCC ID: VH9KDC500 3. DESCRIPTION OF TESTS The tests documented in this report were performed in accordance with ANSI C…

Text truncated - open the document above for the full version.

Appendix B. Test Setup Photographs Report no. ETLT150819.0063, Page B1 of B4 Head Office: #371-51, Gasan-dong, Geumcheon-gu, Seoul, 153-803, Korea Tel : 82-2-858-0786 Fax : 82-2-858-0788 Open site: #499-1, Sagot-ri, Seosin-myeon, Hwaseong-si, Gyeonggi-do, 445-882, Korea ETLQP-21-F40-0 FCC ID:VH9KDC500 Conducted Emission Test Setup Appendix B. Test Setup Photographs Report no. ETLT150819.0063, Page B2 of B4 Head Office: #371-51, Gasan-dong, Geumcheon-gu, Seoul, 153-803, Korea Tel : 82-2-858-0786 Fax : 82-2-858-0788 Open site: #499-1, Sagot-ri, Seosin-myeon, Hwaseong-si, Gyeonggi-do, 445-882, Korea ETLQP-21-F40-0 FCC ID:VH9KDC500 Radiated Emission Test Setup (Below 30 MHz) Appendix B. Test Setup Photographs Report no. ETLT150819.0063, Page B3 of B4 Head Office: #371-51, Gasan-dong, Geumcheon-gu, Seoul, 153-803, Korea Tel : 82-2-858-0786 Fax : 82-2-858-0788 Open site: #499-1, Sagot-ri, Seosin-myeon, Hwaseong-si, Gyeonggi-do, 445-882, Korea ETLQP-21-F40-0 FCC ID:VH9KDC500 Radiated Emission Test Setup (Below 1 GHz) Appendix B. Test Setup Photographs Report no. ETLT150819.0063, Page B4 of B4 Head Office: #371-51, Gasan-dong, Geumcheon-gu, Seoul, 153-803, Korea Tel : 82-2-858-0786 Fax : 82-2-858-0788 Open site: #499-1, Sagot-ri, Seosin-myeon, Hwaseong-si, Gyeonggi-do, 445-882, Korea ETLQP-21-F40-0 FCC ID:VH9KDC500 Radiated Emission Test Setup (Above 1 GHz)
