VHS-EWDC2Lightning Switch LVDC Wire-In System Extender

Page 1 of 2 L-INST-LVDC SE 092707 LOW VOLTAGE DC SYSTEM EXTENDER INSTALLATION Install Switches in a Fraction of the Time ... at a Fraction of the Cost TM How System Extenders Work A Lightning ® System Extender acts as a "Repeater" to help your Transmitter's coded signals to reach the desired Receiver(s). The System Extender will repeat any Lightning ® coded signal that it hears. However, only the particular Receiver(s) that have already been "trained" to react to a coded signal will respond to the signal. One or more System Extenders can be used to extend the range of a system and/or to increase the probability of "hitting" Receivers that have been marginally receiving the desired signal. There are two kinds of System Extender: 120V AC Plug-In and Low-Voltage DC Wire-In. These instructions are for the Low Voltage DC Wire-In System Extender. The Low Voltage System Extender will operate on any DC voltage between 6-30 V. This low voltage is defined by agencies such as Underwriters Laboratories as “inherently safe”, so the Low Voltage System Extender can be mounted almost anywhere. You can provide the System Extender with power from an “AC Adapter” that plugs into or is wired into AC power, or you can use a “Power Pack” that incorporates a DC power supply. You can also use batteries or any other source of DC power that you find convenient for your application. The Low Voltage System Extender can be used with either of two different housings: A small rectangular housing or a hemispherical housing. Either one will perform satisfactorily. The difference between the two housings is strictly cosmetic. The hemispherical version looks like a small smoke detector and is designed to mount on a ceiling. The rectangular housing is designed to be used for all other applications. Installing System Extenders If you need to extend the range of a Lightning Switch ® system, the ideal location for the System Extender is usually at the center of the array of Transmitter(s) and Receiver(s). For instance, if the system includes one Transmitter and one Receiver, you would want to locate the Extender about halfway between the two. This approach requires that power be available at the location that you wish to install the Extender. However, even if no power is available anywhere between the Transmitter and the Receiver, (such as between a house and a barn, dock, or detached garage) you can still improve the range and “hit rate” of your system by taking advantage of the exceptional receive/transmit capability of the System Extender. You can do this by wiring a System Extender into electrical power near either the Receiver (preferred) or Transmitter (secondary method). If the System Extender is near the Receiver, its extremely sensitive circuitry will enable it to hear faint signals that might be missed by the Receiver, and the Extender will then retransmit the ID Code to the nearby Receiver. Similarly, because the Lightning ® System Extender transmits the ID Code at a higher signal strength than the Lightning ® Transmitter does, the range and hit probability will both be increased when the Extender repeats a signal that it hears from a nearby Transmitter. Maximizing System Performance There are several things you can do in order to achieve maximum system performance. 1. Mount it up high. The Low Voltage DC System Extender is ideally suited for mounting on or above a ceiling. Regardless of line-of-sight obstructions, a System Extender that is mounted higher generally performs better than one that is mounted relatively low. 2. Try to position the System Extender where it has the fewest obstructions between it and the Transmitters and Receivers that it services. Although the coded radio signal will penetrate walls and even metal plates, each obstruction reduces the signal strength at least a little. For example, you wouldn't want to mount the Extender behind a heavy metal object like a refrigerator. 3. If your system is particularly large or if a great deal of RF noise is present, you might consider adding one or more additional System Extenders. Since a System Extender will repeat any valid ID Lightning ® Code, whether that code comes from a Transmitter or another System Extender, you can "chain" two or more System Extenders to create a very large and highly efficient system. Installing more than one System Extender Each System Extender comes from the factory ready to use - just wire it in and you're ready to go. But if you use more than one System Extender in the same system, you should "Set Up" the Extenders so they’ll work more efficiently together. To do this, simply wire in the new System Extender, wait 5 seconds for it to initialize and then press the "Set Up" button one time. The new Extender will check if any other System Extenders are already present and the entire system will self-adjust for optimal performance. It’s not necessary to press the "Set Up" button again on System Extenders that had already been installed. ® Page 2 of 2 L-INST-LVDC SE 092707 10 Year Limited Warranty Lightning ® products are warranted by PulseSwitch Systems, LC to be free of defects in materials and workmanship at the time of sale within 10 years of the delivery of the product. Our obligation under this warranty is limited to, at our sole option, the repair, replacement or refund of the original purchase price of any product proved to be defective within 10 years from the date of delivery. The defective product must be returned to us by the purchaser and must be accompanied with the original proof of purchase. This limited warranty applies to home use only and does not cover damage from any commercial use or from neglect, misuse, contamination, alteration, accident or abnormal conditions of operation or handling, including failures caused by use outside of the product's specifications, or normal wear and tear of mechanical components. This warranty covers the original purchaser only and is not transferable. This warranty is valid o…

Text truncated - open the document above for the full version.

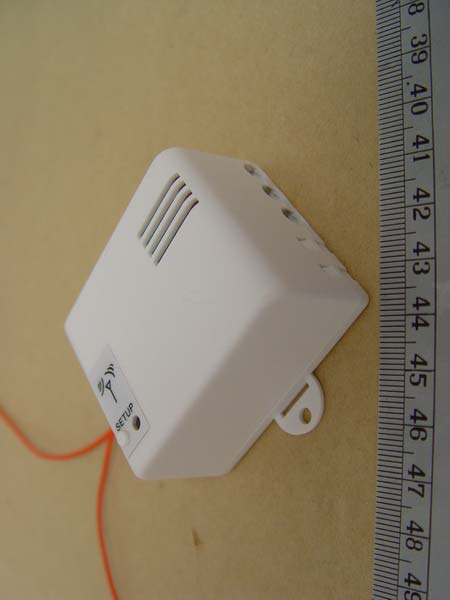

Registration number: W6M20709-8562-P-15 FCC ID: VHS-EWDC2 ETS Product Service (Taiwan) Co., Ltd. Appendix 16 of 25 External Photos Registration number: W6M20709-8562-P-15 FCC ID: VHS-EWDC2 ETS Product Service (Taiwan) Co., Ltd. Appendix 17 of 25

Lightning Switch LVDC Wire-In System Extender Professional Grade 6-30V DC Model Number: E-WDC2 Product Number: E-WDCP2 www.LightningSwitch.com PulseSwitch Systems • Norfolk, VA USA FCC ID: VHS-EWDC2 IC: 5759A-EWDC2 Made in Taiwan Lightning Switch LVDC Wire-In System Extender Professional Grade 6-30V DC Model Number: E-WDC2 Product Number: E-WDCP2 www.LightningSwitch.com PulseSwitch Systems • Norfolk, VA USA FCC ID: VHS-EWDC2 IC: 5759A-EWDC2 Made in Taiwan Appendix A：FCC & IC ID Label Appendix B：FCC & IC ID Label location (show the back side of the case) Size of Label : Length 46mm * Width 22mm

Registration number: W6M20709-8562-P-15 FCC ID: VHS-EWDC2 ETS Product Service (Taiwan) Co., Ltd. Appendix 18 of 25 Internal Photos Registration number: W6M20709-8562-P-15 FCC ID: VHS-EWDC2 ETS Product Service (Taiwan) Co., Ltd. Appendix 19 of 25 Registration number: W6M20709-8562-P-15 FCC ID: VHS-EWDC2 ETS Product Service (Taiwan) Co., Ltd. Appendix 20 of 25 Registration number: W6M20709-8562-P-15 FCC ID: VHS-EWDC2 ETS Product Service (Taiwan) Co., Ltd. Appendix 21 of 25 Registration number: W6M20709-8562-P-15 FCC ID: VHS-EWDC2 ETS Product Service (Taiwan) Co., Ltd. Appendix 22 of 25

of Applicant: PulseSwitch Systems Address: 427 W 35th Street Norfolk, VA 23508 USA Tested and Prepared by ETS Product Service (Taiwan) Co., Ltd. FCC Registration No.: 930600 Industry Canada filed test laboratory Reg. No. IC 5679 A2LA Accredited No.: 2300.01 PTCRB Accredited Type Certification Test House FCC ID: VHS-EWDC2 Report No.: W6M20709-8562-P-15 6F, NO. 58, LANE 188, RUEY-KUANG RD., NEIHU TAIPEI 114, TAIWAN, R.O.C. TEL: 886-2-66068877 FAX: 886-2-66068879 E-mail: [email protected] FCC TEST REPORT for Lightning Switch LVDC Wire-In System Extender Model No.: E-WDC2 Registration number: W6M20709-8562-P-15 FCC ID: VHS-EWDC2 ETS Product Service (Taiwan) Co., Ltd. Page 1 of 21 TABLE OF CONTENTS 1 G ENERAL INFORMATION 2 1.1 NOTES 2 1.2 TESTING LABORATORY 3 1.2.1 Location 3 1.2.2 Details of accreditation status 3 1.3 D ETAILS OF APPROVAL HOLDER 3 1.4 A PPLICATION DETAILS 4 1.5 TEST ITEM 4 1.6 TEST STANDARDS 5 2 TECHNICAL TEST 5 2.1 SUMMARY OF TEST RESULTS 5 2.2 TEST ENVIRONMENT 5 2.3 TEST MODE 5 2.4 TEST EQUIPMENT UTILIZED 6 2.5 GENERAL TEST PROCEDURE 8 3 TEST RESULTS (ENCLOSURE) 9 3.1 TRANSMISSION REQUIREMENTS 10 3.1.1 Limit of Transmission Time 10 3.1.2 Active Time 10 3.2 O UTPUT POWER (FIELD STRENGTH) 11 3.3 O UT OF BAND RADIATED EMISSIONS 12 3.4 TRANSMITTER RADIATED EMISSIONS IN RESTRICTED BANDS 13 3.5 S PURIOUS EMISSION RADIATED 14 3.6 C HANNEL BANDWIDTH 16 3.7 A NTENNA REQUIREMENT 17 3.8 DUTY CYCLE 18 3.9 RADIATED EMISSION FROM RECEIVER PART 19 3.10 C ONDUCTED MEASUREMENT AT (AC) POWER LINE 21 Registration number: W6M20709-8562-P-15 FCC ID: VHS-EWDC2 ETS Product Service (Taiwan) Co., Ltd. Page 2 of 21 1 General Information 1.1 Notes The purpose of conformity testing is to increase the probability of adherence to the essential requirements or conformity specifications, as appropriate. The complexity of the technical specifications, however, means that full and thorough testing is impractical for both technical and economic reasons. Furthermore, there is no guarantee that a test sample which has Passed all the relevant tests conforms to a specification. Neither is there any guarantee that such a test sample will interwork with other genuinely open systems. The existence of the tests nevertheless provides the confidence that the test sample possesses the qualities as maintained and that is performance generally conforms to representative cases of communications equipment. The test results of this test report relate exclusively to the item tested as specified in 1.5. The test report may only be reproduced or published in full. Reproduction or publication of extracts from the report requires the prior written approval of the ETS Product Service (Taiwan) Co., Ltd. Tester: October 11, 2007 Jay Chaing Date ETS-Lab. Name Signature Technical responsibility for area of testing: October 11, 2007 Steven Chuang Date ETS Name Signature Registration number: W6M20709-8562-P-15 FCC ID: VHS-EWDC2 ETS Product Service (Taiwan) Co., Ltd. Page 3 of 21 1.2 Testing laboratory 1.2.1 Location OATS No.5-1, Shuang Sing Village, LiShuei Rd., Wanli Township, Taipei County 207, Taiwan (R.O.C.) Company ETS Product Service (Taiwan) Co., Ltd. 6F, NO. 58, LANE 188, RUEY-KUANG RD. NEIHU, TAIPEI 114, TAIWAN R.O.C. Tel : 886-2-66068877 Fax : 886-2-66068879 1.2.2 Details of accreditation status Accredited testing laboratory A2LA accredited number: 2300.01 FCC filed test laboratory Reg. No. 930600 Industry Canada filed test laboratory Reg. No. IC 5679 PTCRB Accredited Type Certification Test House Town: ./. Country: ./. Telephone: ./. Fax: ./. 1.3 Details of approval holder Name : PulseSwitch Systems Street : 427 W 35th Street Norfolk, Town : ./. Country : VA 23508 USA Telephone : 1-757-624-2134 Fax : 1-757-624-2128 Registration number: W6M20709-8562-P-15 FCC ID: VHS-EWDC2 ETS Product Service (Taiwan) Co., Ltd. Page 4 of 21 1.4 Application details Date of receipt of test item : October 2, 2007 Date of test : from October 3, 2007 to October 5, 2007 1.5 Test item Description of test item : Lightning Switch LVDC Wire-In System Extender Type identification : E-WDC2 Brand name : Lightning Switch Multi-listing model number : ./. Transmitting frequency : 433.92 MHz Operation mode : simplex Voltage supply : 6 ~ 30 VDC (If the device is using battery, please check if the device is tested under fresh battery condition.) Highest clock frequency : 433.92 MHz Antenna type : PCB antenna Photos : see Annex Manufacturer (if applicable) Name : ./. Street : ./. Town : ./. Country : ./. Additional information : ./. Registration number: W6M20709-8562-P-15 FCC ID: VHS-EWDC2 ETS Product Service (Taiwan) Co., Ltd. Page 5 of 21 1.6 Test standards Technical standard : FCC RULES PART 15 SUBPART B / SUBPART C § 15.231 (a) (2007-05) IC RULES RSS-210 and ISSUE No.: 7, June 2007 2 Technical test 2.1 Summary of test results No deviations from the technical specification(s) were ascertained in the course : of the tests performed. or The deviations as specified in 3 were ascertained in the course of the tests … performed. 2.2 Test environment Temperature : 23 o C Relative humidity content : 20 ... 75 % Air pressure : 86 ... 103 kPa Details of power supply : 6 ~ 30 VDC 2.3 Test Mode This EUT is the portable device. So the EUT was tested on three different axes. Please see assessment test results as section 3 of this test report. Registration number: W6M20709-8562-P-15 FCC ID: VHS-EWDC2 ETS Product Service (Taiwan) Co., Ltd. Page 6 of 21 2.4 Test equipment utilized No. Test equipment Type Serial No. Manufacturer Cal. Date Next Cal. Date ETSTW-CE 001 EMI TEST RECEIVER ESHS10 842121/013 R&S 2007/10/15 2008/10/14 ETSTW-CE 002 PREREULATOR MODE DC POWER SUPPLY None None Function Test ETSTW-CE 003 AC POWER SOURCE APS-9102 D161137 GW Function Test ETSTW-CE 004 ZWEILEITER-V- NETZNACHBILDUNG TWO- LINE V-NETWORK ESH3-Z5 840731/011 R&S 2007/10/15 2008/10/14 ETSTW-CE 005 Line-Impedance Stabilisation Network NNBM 8126D 137 Schwarzbeck 2007/10/15 2008/10/14 ETSTW-CE 006 I…
