VKV-F36N3.65GHz MIMO miniPCI Radio

Dbii Networks Limited
3.65GHz MIMO miniPCI Radio - FCC ID VKV-F36N - Dbii Networks Limited
Click to zoom

Application Details

Equipment Class
TNB - Licensed Non-Broadcast Station Transmitter
Date of Grant
Nov 26, 2012
Application Purpose
Original Equipment
Date of Application
Nov 11, 2012
Equipment Note
3.65GHz MIMO miniPCI Radio
Frequency Range
3663.40000000 - 3663.40000000
Company
Dbii Networks Limited
Country
United States

Documents & Files

Select a file to view

Users Manual

↗

Cover Letter(s)

↗
↗
↗
↗
↗
↗
↗

External Photos

↗

ID Label/Location Info

↗
↗

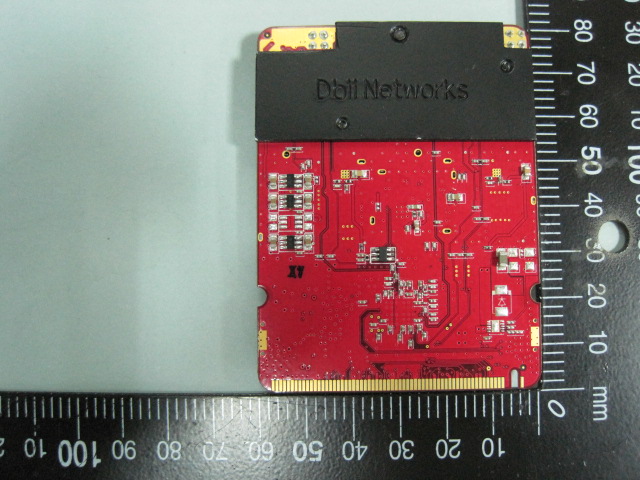

Internal Photos

↗

RF Exposure Info

↗
↗

Test Report

↗
↗

Test Setup Photos

↗

Document Text

Text extracted from the exhibit documents filed with the FCC. Open a document above to read the original.

Users Manual

User Manual F36N-PRO is a high power miniPCI card to be used in outdoor wireless systems. Please follow the following instruction while using this card. This card is meant to be operated (and used) by system integrators who are aware of the regulatory requirements in the area it is being used. The following installation instructions need to be followed while using the card Installation Instructions 1) Before inserting the card in a host PC board, please power down the host PC board first 2) The antenna ports (MMCX connector) should be connected to the appropriate load or antenna before powering up the host board. Lack of Antenna (or load) while the F36N-PRO is powered up will cause severe damage to the card 3) Please make sure any person handling the card with bare hands follows proper ESD precautions. Improper handling could cause ESD damage. 4) The card should not be tampered or modified in any way. Tampering or modification could cause the card to fail standard test 3.65GHz Statement This equipment is subject to the registrations rules of Section 90.1331 for restrictions on the operation of base and fixed stations. It can only be sold and marketed to licensees and cannot be sold to the general public. The license holder is responsible, prior to operation, to register the device in the ULS database and only operate the equipment at the registered fixed location and not at any other location IMPORTANT NOTE: FCC Radiation Exposure Statement: The antenna used for this transmitter must be kept at a separation distance of at least 20cm from all persons and must not be co-located or operating in conjunction with any other antenna or transmitter Dbii Ltd, 16F-3, 482 Zhongxiao East Rd, Sec 5, Taipei 11083 Taiwan Email: [email protected] Ph: +886.2.2346.3318, Fax: +886.2.2346.2751 www.dbii.com

Cover Letter(s)

Power of Attorney Date: 2011/9/29 Dear Sir, I hereby have entrusted the following person to be a proxy regarding application for Type certification. Sporton International Inc. Address : No.8, Lane 724, Bo-ai St., Jhubei City, HsinChu County 302, Taiwan, R.O.C. Name : Leo Huang Job Title : Manager e-mail : [email protected] I am therefore responsible for the contents of the application. Brand name and model type of the specified radio equipment: Dbii / F36N-PRO FCC ID: VKV-F36N Product name: 3.65GHz MIMO miniPCI Radio Sincerely, Applicant’s company name : Dbii Ltd Applicant’s company address : 16F-3, 482 Zhongxiao East Rd, Sec 5, Taipei 11083 Taiwan Rammohan Malasani [email protected] +1(760) 536 8036 Dbii Ltd Dbii Ltd, 16F-3, 482 Zhongxiao East Rd, Sec 5, Taipei 11083 Taiwan Email: [email protected] Ph: +886.2.2346.3318, Fax: +886.2.2346.2751 www.dbii.com

Cover Letter(s)

Professionally Installed Declaration Date: 2011/9/29 FCC ID:VKV-F36N To whom it may concern, Dbii Networks addresses the following items to ensure that the above referenced equipment is professionally installed: 1. The F36N-PRO will only be sold by Dbii Networks, Inc or one of its authorized dealers. Dbii Networks, Inc and its authorized dealers will be under strict marketing control and will only market and sell the F36N-PRO to professionals. 2. Professional installation is required for the F36N-PRO and will be performed only by someone knowledgeable of its use. Dbii Networks, Inc will ensure that the F36N-PRO is only marketed and sold to professionals. 3. The F36N-PRO is not sold to the general public and is sold only for industrial or commercial use by professional installers. Sincerely, Applicant’s company name : Dbii Ltd Applicant’s company address : 16F-3, 482 Zhongxiao East Rd, Sec 5, Taipei 11083 Taiwan Rammohan Malasani [email protected] +1(760) 536 8036 Dbii Ltd Dbii Ltd, 16F-3, 482 Zhongxiao East Rd, Sec 5, Taipei 11083 Taiwan Email: [email protected] Ph: +886.2.2346.3318, Fax: +886.2.2346.2751 www.dbii.com

Cover Letter(s)

Power of Attorney Date: 2011/9/29 Dear Sir, I hereby have entrusted the following person to be a proxy regarding application for Type certification. Sporton International Inc. Address : No.8, Lane 724, Bo-ai St., Jhubei City, HsinChu County 302, Taiwan, R.O.C. Name : Leo Huang Job Title : Manager e-mail : [email protected] I am therefore responsible for the contents of the application. Brand name and model type of the specified radio equipment: Dbii / F36N-PRO FCC ID: VKV-F36N Product name: 3.65GHz MIMO miniPCI Radio Sincerely, Applicant’s company name : Dbii Ltd Applicant’s company address : 16F-3, 482 Zhongxiao East Rd, Sec 5, Taipei 11083 Taiwan Rammohan Malasani [email protected] +1(760) 536 8036 Dbii Ltd Dbii Ltd, 16F-3, 482 Zhongxiao East Rd, Sec 5, Taipei 11083 Taiwan Email: [email protected] Ph: +886.2.2346.3318, Fax: +886.2.2346.2751 www.dbii.com

Cover Letter(s)

Professionally Installed Declaration Date: 2011/9/29 FCC ID:VKV-F36N To whom it may concern, Dbii Networks addresses the following items to ensure that the above referenced equipment is professionally installed: 1. The F36N-PRO will only be sold by Dbii Networks, Inc or one of its authorized dealers. Dbii Networks, Inc and its authorized dealers will be under strict marketing control and will only market and sell the F36N-PRO to professionals. 2. Professional installation is required for the F36N-PRO and will be performed only by someone knowledgeable of its use. Dbii Networks, Inc will ensure that the F36N-PRO is only marketed and sold to professionals. 3. The F36N-PRO is not sold to the general public and is sold only for industrial or commercial use by professional installers. Sincerely, Applicant’s company name : Dbii Ltd Applicant’s company address : 16F-3, 482 Zhongxiao East Rd, Sec 5, Taipei 11083 Taiwan Rammohan Malasani [email protected] +1(760) 536 8036 Dbii Ltd Dbii Ltd, 16F-3, 482 Zhongxiao East Rd, Sec 5, Taipei 11083 Taiwan Email: [email protected] Ph: +886.2.2346.3318, Fax: +886.2.2346.2751 www.dbii.com

Cover Letter(s)

Page No. : 19 Module Approval Request Letter Subject: Module Approval Date: 2011/9/29 FCC ID: VKV-F36N Dear Reviewer, We, Sporton International Inc., are authorized by Dbii Networks Limited to have their state-of-the-art 3.65GHz MIMO miniPCI Radio approved under module approval authorization. The application of this module is specified to mobile host equipment. The requirements regulated in Public Notice DA00-1407 have been fulfilled and clearly explained below. 1. The requirement of RF shielding: The shielding of the radio portion can be demonstrated in exhibition External Photo. 2. The requirement of buffered inputs: Buffered data inputs stage has been integrated in chip AR922x. 3. The requirement of power supply regulation: The part number of the power regulator is AME88052EFTZ 2.0V. 4. The requirements of section 15.203 and 15.204(C): The requirements of antenna connector and spurious emission have been fulfilled. Please reference the exhibition Test Report. 5. The requirement of stand-alone test configuration: Please reference exhibition Test Configuration Photo for the stand-alone test configuration. 6. The requirement of labeling: The instruction on the labeling rule of the end product has been stated in the users manual of this module. Please also see the exhibition Label Sample. 7. The requirement of compliance on specific rule or operating requirements: The required FCC rule has been fulfilled and all the instructions for maintaining compliance has been clearly stated in the Users Manual. 8. The requirement of RF exposure: Please refer exhibition RF Exposure for the compliance of MPE RF exposure rule. Please do not hesitate to contact me for any questions of this request letter. Thank you. Company name : Sporton International Inc. Company Address : No.8, Lane 724, Bo-ai St., Jhubei City, Hsinchu County 302, Taiwan, R.O.C. Signature : Name : Leo Huang Job Title : Manager

External Photos

Report No.: 192719 SPORTON International Inc. PAGE NUMBER : A1 OF A3 TEL : 886-2-2696-2468 ISSUED DATE : Oct. 11, 2011 FAX : 886-2-2696-2255 Photographs of EUT Report No.: 192719 SPORTON International Inc. PAGE NUMBER : A2 OF A3 TEL : 886-2-2696-2468 ISSUED DATE : Oct. 11, 2011 FAX : 886-2-2696-2255 Report No.: 192719 SPORTON International Inc. PAGE NUMBER : A3 OF A3 TEL : 886-2-2696-2468 ISSUED DATE : Oct. 11, 2011 FAX : 886-2-2696-2255

ID Label/Location Info

The label locates on the bottom of module. EUT Size: 80mm*60mm Label sample as below: Label Here

ID Label/Location Info

The label locates on the bottom of module. EUT Size: 80mm*60mm Label sample as below: Label Here

Internal Photos

Report No.: 192719 SPORTON International Inc. PAGE NUMBER : A1 OF A3 TEL : 886-2-2696-2468 ISSUED DATE : Oct. 11, 2011 FAX : 886-2-2696-2255 Photographs of EUT Report No.: 192719 SPORTON International Inc. PAGE NUMBER : A2 OF A3 TEL : 886-2-2696-2468 ISSUED DATE : Oct. 11, 2011 FAX : 886-2-2696-2255 Report No.: 192719 SPORTON International Inc. PAGE NUMBER : A3 OF A3 TEL : 886-2-2696-2468 ISSUED DATE : Oct. 11, 2011 FAX : 886-2-2696-2255

RF Exposure Info

FCC Test Report Report No. : FR192719 SPORTON INTERNATIONAL INC. Page No. : 70 of 79 TEL : 886-2-2696-2468 Report Version : Rev. 01 FAX : 886-2-2696-2255 FCC ID VKV-F36N 4 Maximum Permissible Exposure 4.1 Maximum Permissible Exposure 4.1.1 Limit of Maximum Permissible Exposure Limits for Occupational / Controlled Exposure Frequency Range (MHz) Electric Field Strength (E) (V/m) Magnetic Field Strength (H) (A/m) Power Density (S) (mW/ cm²) Averaging Time |E|²,|H|² or S (minutes) 0.3-3.0 614 1.63 (100)* 6 3.0-30 1842 / f 4.89 / f (900 / f)* 6 30-300 61.4 0.163 1.0 6 300-1500 F/300 6 1500-100,000 5 6 Limits for General Population / Uncontrolled Exposure Frequency Range (MHz) Electric Field Strength (E) (V/m) Magnetic Field Strength (H) (A/m) Power Density (S) (mW/ cm²) Averaging Time |E|²,|H|² or S (minutes) 0.3-1.34 614 1.63 (100)* 30 1.34-30 824/f 2.19/f (180/f)* 30 30-300 27.5 0.073 0.2 30 300-1500 F/1500 30 1500-100,000 1.0 30 Note 1: f = frequency in MHz ; *Plane-wave equivalent power density Note 2: For the applicable limit, see FCC 1.1310 4.1.2 MPE Calculation Method E (V/m) = d GP30 Power Density: Pd (W/m 2 ) = 377 E 2 E = Electric field (V/m) P = RF output power (W) G = EUT Antenna numeric gain (numeric) d = Separation distance between radiator and human body (m) The formula can be changed to Pd = 2 d377 GP30   FCC Test Report Report No. : FR192719 SPORTON INTERNATIONAL INC. Page No. : 71 of 79 TEL : 886-2-2696-2468 Report Version : Rev. 01 FAX : 886-2-2696-2255 FCC ID VKV-F36N 4.1.3 Result of Maximum Permissible Exposure Maximum Permissible Exposure - Power Setting 1 (Ant No. 1) Worst Case Mode Abbreviations Test Freq. (FX) Total Cond. Power (dBm) Dir. Gain (dBi) EIRP Power (dBm) User and EUT Min. Distance (cm) Power Density (mW/cm 2 ) Power Density Limit (mW/cm 2 ) OFDM-2TX-5 F1 20.44 15.01 35.45 20 0.6982 1 OFDM-2TX-5 F2 20.02 15.01 35.03 20 0.6338 1 OFDM-2TX-5 F3 20.01 15.01 35.02 20 0.6323 1 OFDM-2TX-10 F1 20.88 15.01 35.89 20 0.7726 1 OFDM-2TX-10 F2 20.69 15.01 35.70 20 0.7395 1 OFDM-2TX-10 F3 19.73 15.01 34.74 20 0.5929 1 OFDM-2TX-20 F2 20.63 15.01 35.64 20 0.7294 1 Test Result Complied Note 1: antenna no., directional gain and power setting define in test report clause 1.1.2 and 2.3. Note 2: worst case mode abbreviations and test frequency define in test report clause 2.1 and 2.2. Note 3: worst case RF conducted test define in test report clause 2.4. Note 4: EUT have 2 transmitter outputs (port 1 - port 2).

RF Exposure Info

FCC Test Report Report No. : FR192719 SPORTON INTERNATIONAL INC. Page No. : 70 of 79 TEL : 886-2-2696-2468 Report Version : Rev. 01 FAX : 886-2-2696-2255 FCC ID VKV-F36N 4 Maximum Permissible Exposure 4.1 Maximum Permissible Exposure 4.1.1 Limit of Maximum Permissible Exposure Limits for Occupational / Controlled Exposure Frequency Range (MHz) Electric Field Strength (E) (V/m) Magnetic Field Strength (H) (A/m) Power Density (S) (mW/ cm²) Averaging Time |E|²,|H|² or S (minutes) 0.3-3.0 614 1.63 (100)* 6 3.0-30 1842 / f 4.89 / f (900 / f)* 6 30-300 61.4 0.163 1.0 6 300-1500 F/300 6 1500-100,000 5 6 Limits for General Population / Uncontrolled Exposure Frequency Range (MHz) Electric Field Strength (E) (V/m) Magnetic Field Strength (H) (A/m) Power Density (S) (mW/ cm²) Averaging Time |E|²,|H|² or S (minutes) 0.3-1.34 614 1.63 (100)* 30 1.34-30 824/f 2.19/f (180/f)* 30 30-300 27.5 0.073 0.2 30 300-1500 F/1500 30 1500-100,000 1.0 30 Note 1: f = frequency in MHz ; *Plane-wave equivalent power density Note 2: For the applicable limit, see FCC 1.1310 4.1.2 MPE Calculation Method E (V/m) = d GP30 Power Density: Pd (W/m 2 ) = 377 E 2 E = Electric field (V/m) P = RF output power (W) G = EUT Antenna numeric gain (numeric) d = Separation distance between radiator and human body (m) The formula can be changed to Pd = 2 d377 GP30   FCC Test Report Report No. : FR192719 SPORTON INTERNATIONAL INC. Page No. : 71 of 79 TEL : 886-2-2696-2468 Report Version : Rev. 01 FAX : 886-2-2696-2255 FCC ID VKV-F36N 4.1.3 Result of Maximum Permissible Exposure Maximum Permissible Exposure - Power Setting 1 (Ant No. 1) Worst Case Mode Abbreviations Test Freq. (FX) Total Cond. Power (dBm) Dir. Gain (dBi) EIRP Power (dBm) User and EUT Min. Distance (cm) Power Density (mW/cm 2 ) Power Density Limit (mW/cm 2 ) OFDM-2TX-5 F1 20.44 15.01 35.45 20 0.6982 1 OFDM-2TX-5 F2 20.02 15.01 35.03 20 0.6338 1 OFDM-2TX-5 F3 20.01 15.01 35.02 20 0.6323 1 OFDM-2TX-10 F1 20.88 15.01 35.89 20 0.7726 1 OFDM-2TX-10 F2 20.69 15.01 35.70 20 0.7395 1 OFDM-2TX-10 F3 19.73 15.01 34.74 20 0.5929 1 OFDM-2TX-20 F2 20.63 15.01 35.64 20 0.7294 1 Test Result Complied Note 1: antenna no., directional gain and power setting define in test report clause 1.1.2 and 2.3. Note 2: worst case mode abbreviations and test frequency define in test report clause 2.1 and 2.2. Note 3: worst case RF conducted test define in test report clause 2.4. Note 4: EUT have 2 transmitter outputs (port 1 - port 2).

Test Report

FCC Test Report Report No. : FR192719 SPORTON INTERNATIONAL INC. Page No. : 2 of 79 TEL : 886-2-2696-2468 Report Version : Rev. 01 FAX : 886-2-2696-2255 FCC ID VKV-F36N TABLE OF CONTENTS 1 GENERAL DESCRIPTION .................................................................................................................... 5 1.1 Product Information ................................................................................................................................ 5 1.2 Accessories and Support Equipment ..................................................................................................... 8 1.3 EMI Suppression Device(s)/Modifications .............................................................................................. 8 1.4 Testing Applied Standards ..................................................................................................................... 8 1.5 Testing Information ................................................................................................................................. 9 1.6 Measurement Uncertainty ...................................................................................................................... 9 2 TEST CONFIGURATION ..................................................................................................................... 10 2.1 Worst Case Modulation Configuration ................................................................................................. 10 2.2 Test Frequencies Configuration ........................................................................................................... 10 2.3 Worst Case Power Setting Parameter ................................................................................................. 11 2.4 The Worst Case RF Conducted Test Configuration ............................................................................ 11 2.5 The Worst Case Radiated Test (Above 1GHz) Configuration ............................................................. 12 2.6 Worst Case Radiated Test (Below 1GHz) Configuration ..................................................................... 13 2.7 Worst Case AC Line Conducted Test Configuration ............................................................................ 13 2.8 Test Setup Diagram ............................................................................................................................. 14 3 TRANSMITTER TEST RESULT .......................................................................................................... 17 3.1 AC Line Conducted Emissions ............................................................................................................. 17 3.2 Occupied Bandwidth ............................................................................................................................ 21 3.3 EIRP Power and EIRP Power Density ................................................................................................. 24 3.4 Transmitter Radiated Spurious Emissions ........................................................................................... 32 3.5 Transmitter Conducted Spurious Emissions ........................................................................................ 53 3.6 Spectrum Mask Emissions ................................................................................................................... 63 3.7 Frequency Tolerance ........................................................................................................................... 68 4 MAXIMUM PERMISSIBLE EXPOSURE ............................................................................................. 70 4.1 Maximum Permissible Exposure .......................................................................................................... 70 5 TEST EQUIPMENT AND CALIBRATION DATA ................................................................................ 72 6 CERTIFICATION OF TAF ACCREDITATION ..................................................................................... 74 APPENDIX A. TEST PHOTOS ........................................................................................................................ 75 APPENDIX B. PHOTOGRAPHS OF EUT ....................................................................................................... 79 FCC Test Report Report No. : FR192719 SPORTON INTERNATIONAL INC. Page No. : 3 of 79 TEL : 886-2-2696-2468 Report Version : Rev. 01 FAX : 886-2-2696-2255 FCC ID VKV-F36N SUMMARY OF TEST RESULT Conformance Test Specifications Report Clause FCC Rule Description Measured Limit Result 3.1 15.107 AC Line Conducted Emissions Average level: 44.45dBuV under 11.55dB FCC 15.207 limits Complied 3.2 2.1049 Occupied Bandwidth (Maximum for each channel bandwidth) 5MHz: 5.35MHz 10MHz: 10.27MHz 20MHz: 17.77MHz Information only Complied 3.3 90.1321 EIRP Power (Maximum for each channel bandwidth) 5MHz: 35.45dBm 10MHz: 35.89dBm 20MHz: 35.64dBm 5MHz: 37dBm 10MHz: 40dBm 20MHz: 43dBm Complied 3.3 90.1321 EIRP Power Density (Maximum for each channel bandwidth) 5MHz: 29.85dBm/MHz 10MHz: 27.34dBm/MHz 20MHz: 24.08dBm/MHz 30dBm/MHz Complied 3.4 90.1321 Transmitter Radiated Spurious Emissions 69.54dBuV/m margin 12.66dB -13dBm/MHz or 82.2 dBuV/m @ 3m Complied 3.5 2.1051 Transmitter Conducted Spurious Emissions -52.75dBm margin 36.75dB -16dBm/1MHz @ single port Complied - 2.1033 Emission Types D1D Information only Complied 3.6 90.210 Spectrum Mask Emissions Device complies with spectral mask – refer to test data Mask B Complied 3.7 90.213 Frequency Tolerance 5.90 ppm To be specified in the station authorization Complied 4 2.1091 Maximum Permissible Exposure 0.7726 mW/cm 2 1 mW/cm 2 Complied FCC Test Report Report No. : FR192719 SPORTON INTERNATIONAL INC. Page No. : 4 of 79 TEL : 886-2-2696-2468 Report Version : Rev. 01 FAX : 886-2-2696-2255 FCC ID VKV-F36N REVISION HISTORY REPORT NO. VERSION DES…

Text truncated - open the document above for the full version.

Test Report

FCC Test Report Report No. : FR192719 SPORTON INTERNATIONAL INC. Page No. : 2 of 79 TEL : 886-2-2696-2468 Report Version : Rev. 01 FAX : 886-2-2696-2255 FCC ID VKV-F36N TABLE OF CONTENTS 1 GENERAL DESCRIPTION .................................................................................................................... 5 1.1 Product Information ................................................................................................................................ 5 1.2 Accessories and Support Equipment ..................................................................................................... 8 1.3 EMI Suppression Device(s)/Modifications .............................................................................................. 8 1.4 Testing Applied Standards ..................................................................................................................... 8 1.5 Testing Information ................................................................................................................................. 9 1.6 Measurement Uncertainty ...................................................................................................................... 9 2 TEST CONFIGURATION ..................................................................................................................... 10 2.1 Worst Case Modulation Configuration ................................................................................................. 10 2.2 Test Frequencies Configuration ........................................................................................................... 10 2.3 Worst Case Power Setting Parameter ................................................................................................. 11 2.4 The Worst Case RF Conducted Test Configuration ............................................................................ 11 2.5 The Worst Case Radiated Test (Above 1GHz) Configuration ............................................................. 12 2.6 Worst Case Radiated Test (Below 1GHz) Configuration ..................................................................... 13 2.7 Worst Case AC Line Conducted Test Configuration ............................................................................ 13 2.8 Test Setup Diagram ............................................................................................................................. 14 3 TRANSMITTER TEST RESULT .......................................................................................................... 17 3.1 AC Line Conducted Emissions ............................................................................................................. 17 3.2 Occupied Bandwidth ............................................................................................................................ 21 3.3 EIRP Power and EIRP Power Density ................................................................................................. 24 3.4 Transmitter Radiated Spurious Emissions ........................................................................................... 32 3.5 Transmitter Conducted Spurious Emissions ........................................................................................ 53 3.6 Spectrum Mask Emissions ................................................................................................................... 63 3.7 Frequency Tolerance ........................................................................................................................... 68 4 MAXIMUM PERMISSIBLE EXPOSURE ............................................................................................. 70 4.1 Maximum Permissible Exposure .......................................................................................................... 70 5 TEST EQUIPMENT AND CALIBRATION DATA ................................................................................ 72 6 CERTIFICATION OF TAF ACCREDITATION ..................................................................................... 74 APPENDIX A. TEST PHOTOS ........................................................................................................................ 75 APPENDIX B. PHOTOGRAPHS OF EUT ....................................................................................................... 79 FCC Test Report Report No. : FR192719 SPORTON INTERNATIONAL INC. Page No. : 3 of 79 TEL : 886-2-2696-2468 Report Version : Rev. 01 FAX : 886-2-2696-2255 FCC ID VKV-F36N SUMMARY OF TEST RESULT Conformance Test Specifications Report Clause FCC Rule Description Measured Limit Result 3.1 15.107 AC Line Conducted Emissions Average level: 44.45dBuV under 11.55dB FCC 15.207 limits Complied 3.2 2.1049 Occupied Bandwidth (Maximum for each channel bandwidth) 5MHz: 5.35MHz 10MHz: 10.27MHz 20MHz: 17.77MHz Information only Complied 3.3 90.1321 EIRP Power (Maximum for each channel bandwidth) 5MHz: 35.45dBm 10MHz: 35.89dBm 20MHz: 35.64dBm 5MHz: 37dBm 10MHz: 40dBm 20MHz: 43dBm Complied 3.3 90.1321 EIRP Power Density (Maximum for each channel bandwidth) 5MHz: 29.85dBm/MHz 10MHz: 27.34dBm/MHz 20MHz: 24.08dBm/MHz 30dBm/MHz Complied 3.4 90.1321 Transmitter Radiated Spurious Emissions 69.54dBuV/m margin 12.66dB -13dBm/MHz or 82.2 dBuV/m @ 3m Complied 3.5 2.1051 Transmitter Conducted Spurious Emissions -52.75dBm margin 36.75dB -16dBm/1MHz @ single port Complied - 2.1033 Emission Types D1D Information only Complied 3.6 90.210 Spectrum Mask Emissions Device complies with spectral mask – refer to test data Mask B Complied 3.7 90.213 Frequency Tolerance 5.90 ppm To be specified in the station authorization Complied 4 2.1091 Maximum Permissible Exposure 0.7726 mW/cm 2 1 mW/cm 2 Complied FCC Test Report Report No. : FR192719 SPORTON INTERNATIONAL INC. Page No. : 4 of 79 TEL : 886-2-2696-2468 Report Version : Rev. 01 FAX : 886-2-2696-2255 FCC ID VKV-F36N REVISION HISTORY REPORT NO. VERSION DES…

Text truncated - open the document above for the full version.

Test Setup Photos

FCC Test Report Report No. : FR192719 SPORTON INTERNATIONAL INC. Page No. : 75 of 79 TEL : 886-2-2696-2468 Report Version : Rev. 01 FAX : 886-2-2696-2255 FCC ID VKV-F36N Appendix A. Test Photos Transmitter Radiated Spurious Emissions (Below 1GHz) Transmitter Radiated Spurious Emissions (Below 1GHz) FCC Test Report Report No. : FR192719 SPORTON INTERNATIONAL INC. Page No. : 76 of 79 TEL : 886-2-2696-2468 Report Version : Rev. 01 FAX : 886-2-2696-2255 FCC ID VKV-F36N Transmitter Radiated Spurious Emissions (Above 1GHz) Transmitter Radiated Spurious Emissions (Above 1GHz) FCC Test Report Report No. : FR192719 SPORTON INTERNATIONAL INC. Page No. : 77 of 79 TEL : 886-2-2696-2468 Report Version : Rev. 01 FAX : 886-2-2696-2255 FCC ID VKV-F36N Transmitter Radiated Spurious Emissions FCC Test Report Report No. : FR192719 SPORTON INTERNATIONAL INC. Page No. : 78 of 79 TEL : 886-2-2696-2468 Report Version : Rev. 01 FAX : 886-2-2696-2255 FCC ID VKV-F36N AC Line Conducted Emissions AC Line Conducted Emissions

Contact Information

Applicant

Rammohan Malasani(CEO)
[email protected]760 536 8036Fax: 760 859 3132

Test Firm

Sporton International Inc.Alex Chen
[email protected]886-3-327-3456Fax: 886-3-327-0973

Technical Specifications

#Rule PartsFrequency RangePower OutputEmissionTolerance
393.66 GHz - 3.66 GHz3.66 W17M8D1D5.9 ppm
Modular Type
Single Modular Approval
Confidentiality
Long Term
Grant Notes
Output power listed is EIRP. This device must be professionally installed into fixed categorised host devices where a minimum separation distance of at least 20 cm between the radiating part and all persons must be assured during normal operating conditions. The antenna co-location requirements of �1.1307(b)(3) must be addressed at the time of installation. Users and installers must be provided with antenna installation instructions and transmitter operating conditions for satisfying RF exposure compliance.
