MET Laboratories TCB - Samples Agent Authorization Letter 2015-10-19 MET Laboratories, Inc. 914 West Patapsco Avenue Baltimore, MD 21230 RE: LETTER OF AGENT AUTHORIZATION To Whom It May Concern: We, the undersigned, hereby authorize Most Technology Service Co., Ltd. to act on our behalf in all matters relating to application for equipment authorization, including the signing of all documents relating to these matters. We also hereby certify that no party to the application authorized hereunder is subject to the denial of benefits, including FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C.853(a). This agreement expires one year from the current date. Sincerely, Name: Winny Mak Position: Company Name: Plastoform Industries Ltd. Address: Rm. 902-4 Seapower Center, 73 Lei Muk Road, Kwai Chung, Hong Kong E-Mail: [email protected]

Declaration statement Letter 2015-10-19 MET Laboratories, Inc. 914 West Patapsco Avenue Baltimore, MD 21230 RE: Declaration statement Letter To Whom It May Concern: We hereby declare that (Recover Outlier Speaker Walnut / KSNYBTS) fulfill the requirements of 47 CFR Part 15C Section 15.247(g) & 15.247(h). Compliance for section 15.247(g) According to Bluetooth Core Specification, the Bluetooth system transmits the packet with the pseudorandom hopping frequency with a continuous data and the short burst transmission from the Bluetooth system is also transmitted under the frequency hopping system with the pseudorandom hopping frequency system. Compliance for section 15.247(h) According to Bluetooth Core specification, the Bluetooth system incorporates with an adaptive system to detect other user within the spectrum band so that it individually and independently to avoid hopping on the occupied channels. According to the Bluetooth Core specification, the Bluetooth system is designed not have the ability to coordinated with other FHSS System in an effort to avoid the simultaneous occupancy of individual hopping frequencies by multiple transmitter. Please contact me if there is any information you may need. Sincerely, Name: Winny Mak Position: Company Name: Plastoform Industries Ltd. Address: Rm. 902-4 Seapower Center, 73 Lei Muk Road, Kwai Chung, Hong Kong E-Mail: [email protected]

MET Laboratories TCB - Samples Long Term Confidentiality Request Letter 2015-10-19 MET Laboratories, Inc. 914 West Patapsco Avenue Baltimore, MD 21230 RE: CONFIDENTIALITY REQUEST FOR (Recover Outlier Speaker Walnut / OUTLIER) To Whom It May Concern: This letter serves as an official request for confidentiality under sections 0.457 and 0.459 of CFR 47. We have requested that the - e.g. Block diagram - e.g. SCH - e.g. Operational Description required to be submitted with this application be permanently withheld from public review. SPECIFY REASON FOR REQUEST (i.e. the above documents are company proprietary information that could never get into the possession of your competition). Please contact me if there is any information you may need. Sincerely, Name: Winny Mak Position: Company Name: Plastoform Industries Ltd. Address: Rm. 902-4 Seapower Center, 73 Lei Muk Road, Kwai Chung, Hong Kong E-Mail: [email protected]

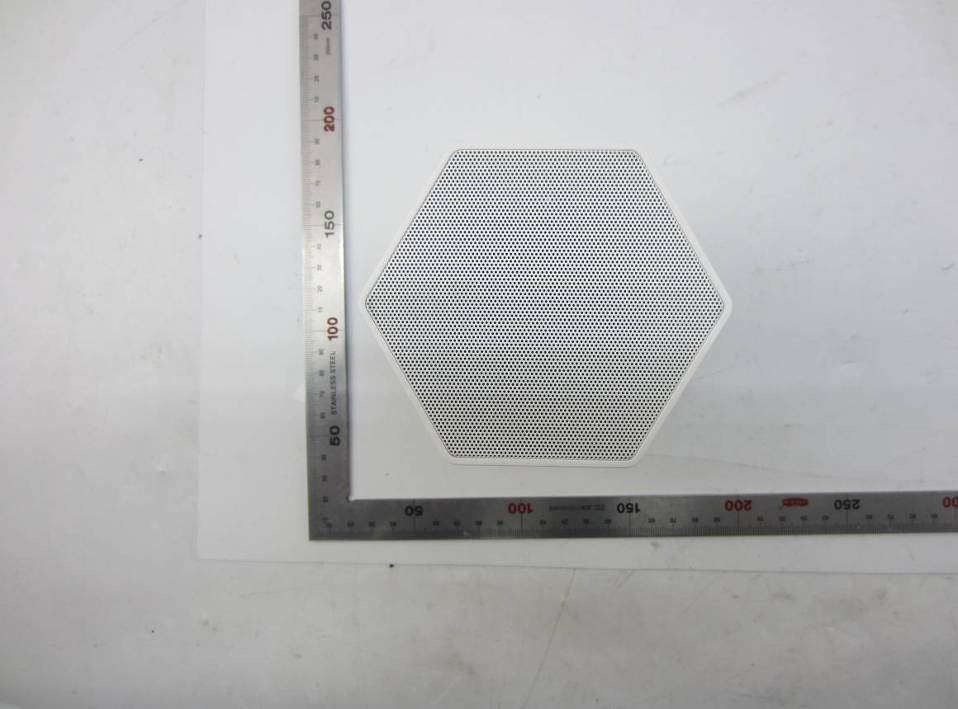

Model No.: OUTLIER FRONT VIEW OF SAMPLE BACK VIEW OF SAMPLE Model No.: OUTLIER LEFT VIEW OF SAMPLE RIGHT VIEW OF SAMPLE Model No.: OUTLIER TOP VIEW OF SAMPLE BOTTOM VIEW OF SAMPLE Model No.: OUTLIER PHOTO OF THE ENTIRE SAMPLE PHOTO OF THE ENTIRE SAMPLE

Model: OUTLIER FC C ID: VL5-OUT IC: 9092A-OUT Produc t : Recover Outlier Speaker Walnut Input: 5 V 500m A Made in China 1 2 3 1 2 3 4 5 6 1 2 3 4 1 2 3 4 5 6 Note: material : 30 degree silicon; adhesive double side tape; Part should be fulfill the banned and restricted substances requirement which specified in ESPP- 3001 DIMENSION ARE IN MILLIMETER TOLERANCE: 0<L<=4 `0.1 4<L<=16 `0.2 16<L<=63 `0.3 63<L<=250 `0.4 250<L `0.5 SCALE 1.000 MODEL Diddy MATERIAL (COLOR) silicon polish/ WHITE DESCRIPTION:rubber foot Diddy PART NO.R06-00776-01 PLASTOFORM INDUSTRIES LTD. SHEET 1/1 VER DRAWN BYCHECKED BYAPPROVED BY A4 A3 A2 A1 A0 2015-08-07MP yczhou ITEMDATERELEASE DESCRIPTIONSIGN. A4 SIZE 4

Model No.: OUTLIER Page 1 of 4 INTERNAL PHOTO OF SAMPLE – 1 BATTERY PHOTO OF SAMPLE – 2 Model No.: OUTLIER Page 2 of 4 BATTERY PHOTO OF SAMPLE – 3 INTERNAL PHOTO OF SAMPLE – 4 Model No.: OUTLIER Page 3 of 4 INTERNAL PHOTO OF SAMPLE – 5 INTERNAL PHOTO OF SAMPLE – 6 Model No.: OUTLIER Page 4 of 4 INTERNAL PHOTO OF SAMPLE – 7 INTERNAL PHOTO OF SAMPLE – 8

Report No.: MTE/DYY/A15101384 Page 1 of 51 TEST REPORT For Applicant: Plastoform Industries Ltd. Address: Rm. 902-4 Seapower Center, 73 Lei Muk Road, Kwai Chung, Hong Kong Product Name: Recover Outlier Speaker Walnut Model Name: OUTLIER Brand Name: N/A FCC ID: VL5-OUT Report No.: MTE/DYY/A15101384 Date of Issue: Oct. 21, 2015 Issued by: Most Technology Service Co., Ltd. Address : No.5, 2nd Langshan Road, North District, Hi-tech Industrial Park, Nanshan, Shenzhen, Guangdong, China Tel : 86-755-8602 6850 Fax : 86-755-2601 6850 The report consists 51 pages in total. It may be duplicated completely for legal use with the approval of the applicant. It should not be reproduced except in full, without the written approval of our laboratory. The client should not use it to claim product endorsement by MOST. The test results in the report only apply to the tested sample. The test report shall be invalid without all the signatures of testing engineers, reviewer and approver. Report No.: MTE/DYY/A15101384 Page 2 of 51 TABLE OF CONTENTS 1. VERIFICATION OF CONFORMITY.................................................................4 2. GENERAL INFORMATION...................................................................................5 2.1 Product Information................................................................................................................5 2.2 Objective................................................................................................................................5 2.3 Test Standards and Results....................................................................................................6 2.4 Environmental Conditions.......................................................................................................6 3. TEST METHODOLOGY........................................................................................7 3. 1TEST FACILITY......................................................................................................................7 3.2 GENERAL TEST PROCEDURES..........................................................................................7 4. SETUP OF EQUIPMENT UNDER TEST..............................................................8 4.1 SETUP CONFIGURATION OF EUT.......................................................................................8 4.2 SUPPORT EQUIPMENT........................................................................................................8 4.3 TEST EQUIPMENT LIST........................................................................................................9 5. 47 CFR Part 15 C Requirements........................................................................10 5.1 RF EXPOSURE....................................................................................................................10 5.1.1 Applicable Standard...........................................................................................................10 5.1.2 Measurement Result.........................................................................................................10 5.2 ANTENNA REQUIREMENT..................................................................................................11 5.2.1 Applicable Standard...........................................................................................................11 5.2.2 Evaluation Criteria..............................................................................................................11 5.2.3 Result: Compliance............................................................................................................11 5.3 AC Power Line Conducted Emission....................................................................................12 5.3.1Requirement.......................................................................................................................12 5.3.2 Block Diagram of Test Setup.............................................................................................12 5.3.3 Test procedure...................................................................................................................12 5.3.4 Test Result.........................................................................................................................12 5.4 Radiated Emission...............................................................................................................15 5.4.1Requirement.......................................................................................................................15 5.4.2 Test Configuration..............................................................................................................15 5.4.3 Test Procedure:.................................................................................................................16 5.4.4 Test Result.........................................................................................................................17 5.5 Conducted Peak Output Power............................................................................................24 5.5.1 Requirement......................................................................................................................24 5.5.2 Block Diagram of Test Setup.............................................................................................24 5.5.3 Test Procedure..................................................................................................................24 5.5.4 Test Result.........................................................................................................................24 5.6 20dB Emission Bandwidth....................................................................................................28 5.6.1 Test Requirement..............................................................................................................28 5.6.2 Test Procedure......................…

Text truncated - open the document above for the full version.

Model No.: OUTLIER CONDUCTED EMISSION TEST SETUP CE TEST SETUP Model No.: OUTLIER RE TEST SETUP RE TEST SETUP
