VL7ARDM201142Energy Saving Lamp

USERMANUAL APPLICATION Restaurants Hotels Homes Supermarkets Offices Stores PRECAUTIONS 1.Neveruseonasourcevoltagethatfluctuates6%aboveor10%belowthelamp’sratedvoltage. 2.Neverdisassembleormodify-anychangescouldvoidtheuser’sauthoritytooperatethis device. 3.Donotholdtheglasstubewhileinstalling. 4.Notforuseintotallyenclosedfixtures. 5.Riskofelectricshock-donotusewheredirectlyexposedtowater. 6.Thisdeviceisnotintendedf orusewithemergencyexitfixturesoremergencyexitlights. 7. Thisproductcouldproducinterferencewhen usednear aTV,Radio,Wirelessremotecontrol ormaritimesafetycommunications equipment orothercriticalnavigationorcommunication equpmentoperatingbetween 0.45-30MHz. finterferenceshouldoccur, movethelampaway fromthea pp liancea distanceofthree feetor more ,Or,Plugthelamportheapplianceintoa differentoutlet. 8.Topreventburns,donottouch thebulbduringoperationorimmediatelyafterswitchingoff. 9.Notforusewithdimmers,electronictimerorphotocelloroccupancysensor. 10.Neveruseincircumstancesuchasloworhightemperatureandhighmoisture. 11.Unsuitablefoapplicationswherethelampmustbeturnedonandofffrequently. FEATURES 1/4Powerconsumptioncomparedwithstandardbulb 1/4Heatradiationcomparedwithstandardbulb Softandbrisklight RatingVoltage:120V Rating Frequency:60Hz 12. r t Reliable starting temperature -5 °C Product Name: ENERGY SAVING LAMP S: I This device complies with Part 18 of FCC rules. Model Name:DAR-2 3 W

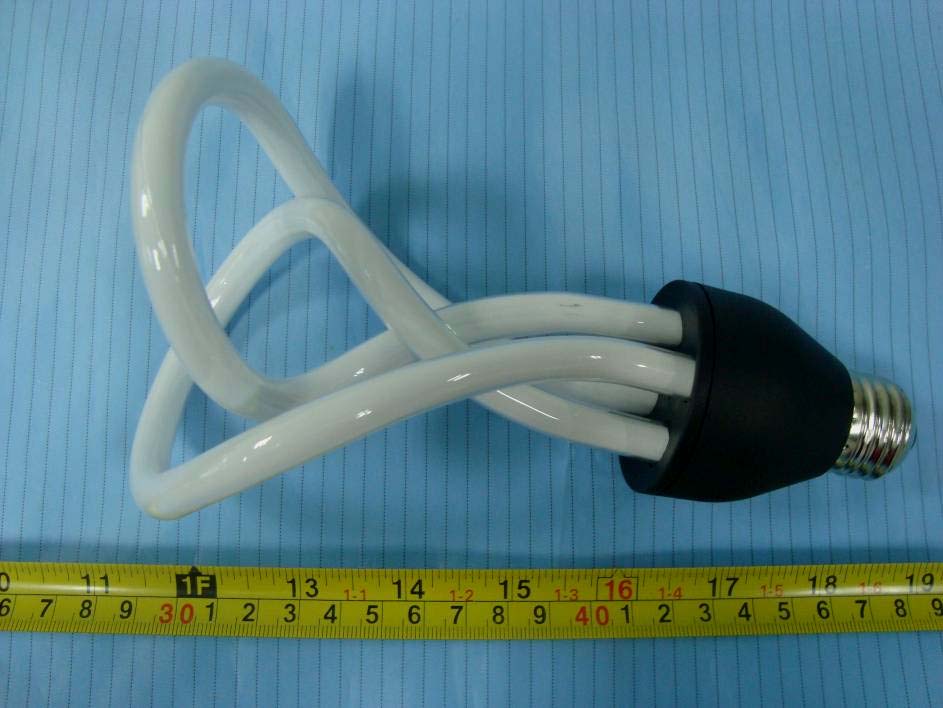

EXHIBIT B - EUT EXTERNAL PHOTOGRAPH EUT View

EXHIBIT A - FCC ID LABEL AND LOCATION FCC ID Label FCC ID Label Location Specifications: Text is Black or white in color and is left justified. Labels are printed in indelible ink on permanent adhesive backing or silk-screened onto the EUT or shall be affixed at a conspicuous location on the EUT. Label here

Circuit Description Fuse：When input is shorted, it performs input shorted protect function. L1、C3：Work together with to perform EMI function. D1、D2、D3、D4：Performs rectification function. Q1、Q2：Performs Oscillating function, let low frequency switch high f L2、C5、C6、C7：When switching power, the L2 and C7 take place series resonance startup the lamp, then L2 restricting current. requency(40kHz-50kHz).

1 2 3 4 ABCD 4 3 2 1 D C BA D 1 D 2 D 3 D 4 D 5 C 3 C 7 C 4 C 6 C 1 C 5 R 1 R 3 R 4 R 5 R 6 R 2 T 1 T 2 L 2 P T C L a m p B . . . L 1 AC 120 V 60Hz F U C 2 D 6 D 7

Note: This test report is prepared for the customer shown above and for the device described herein. It may not be duplicated or used in part without prior written consent from Bay Area Compliance Laboratories Corp. This report must not be used by the customer to claim product certification, approval, or endorsement by NVLAP*, or any agency of the Federal Government. * This report contains data that are not covered by the NVLAP accreditation and are marked with an asterisk “★” (Rev.2) FCC PART 18 MEASUREMENT AND TEST REPORT For Suzhou Daming Electric Co., Ltd. Weixi Village, Weitang Town, Xiangcheng District, Suzhou, Jiangsu, China FCC ID: VL7ARDM201142 Report Type: Original Report Product Type: Energy Saving Lamp Test Engineer: Sugar Lei Report Number: RSZ11040752 Report Date: 2011-06-08 Reviewed By: Lisa Zhu EMC Engineer Prepared By: Bay Area Compliance Laboratories Corp. (Shenzhen) 6/F, the 3rd Phase of WanLi Industrial Building, ShiHua Road, FuTian Free Trade Zone Shenzhen, Guangdong,China Tel: +86-755-33320018 Fax: +86-755-33320008 Suzhou Daming Electric Co., Ltd. FCC ID: VL7ARDM201142 Report No.: RSZ11040752 Page 2 of 13 FCC Part 18 Test Report TABLE OF CONTENTS GENERAL INFORMATION ...................................................................................................................................... 3 PRODUCT DESCRIPTION FOR EQUIPMENT UNDER TEST (EUT) .................................................................................... 3 OBJECTIVE................................................................................................................................................................... 3 RELATED SUBMITTAL(S)/GRANT(S) ............................................................................................................................ 3 TEST METHODOLOGY.................................................................................................................................................. 3 TEST FACILITY............................................................................................................................................................ 3 SYSTEM TEST CONFIGURATION ......................................................................................................................... 5 JUSTIFICATION............................................................................................................................................................. 5 EUT EXERCISE SOFTWARE.......................................................................................................................................... 5 SPECIAL ACCESSORIES................................................................................................................................................ 5 EQUIPMENT MODIFICATIONS....................................................................................................................................... 5 EXTERNAL I/O CABLE................................................................................................................................................. 5 CONFIGURATION OF TEST SETUP................................................................................................................................. 5 BLOCK DIAGRAM OF TEST SETUP................................................................................................................................6 FCC §18.307 - AC LINE CONDUCTED EMISSIONS ............................................................................................. 7 MEASUREMENT UNCERTAINTY................................................................................................................................... 7 EUT SETUP................................................................................................................................................................. 7 EMI TEST RECEIVER SETUP........................................................................................................................................ 8 TEST PROCEDURE........................................................................................................................................................ 8 TEST EQUIPMENT LIST AND DETAILS.......................................................................................................................... 8 TEST RESULTS SUMMARY........................................................................................................................................... 8 TEST DATA.................................................................................................................................................................. 8 FCC §18.305 – FIELD STRENGTH ......................................................................................................................... 11 MEASUREMENT UNCERTAINTY................................................................................................................................. 11 EUT SETUP............................................................................................................................................................... 11 EMI TEST RECEIVER SETUP AND SPECTRUM ANALYZER SETUP............................................................................... 12 TEST PROCEDURE...................................................................................................................................................... 12 CORRECTED AMPLITUDE CALCULATION................................................................................................................... 12 TEST EQUIPMENT LIST AND DETAILS........................................................................................................................ 12 TEST DATA................................................................................................................................................................ 12 Su…

Text truncated - open the document above for the full version.

EXHIBIT D - TEST SETUP PHOTOGRAPHS AC Line Conduction Emissions - Front View AC Line Conduction Emissions - Side View Radiated Emissions - Front View Radiated Emissions - Rear View
