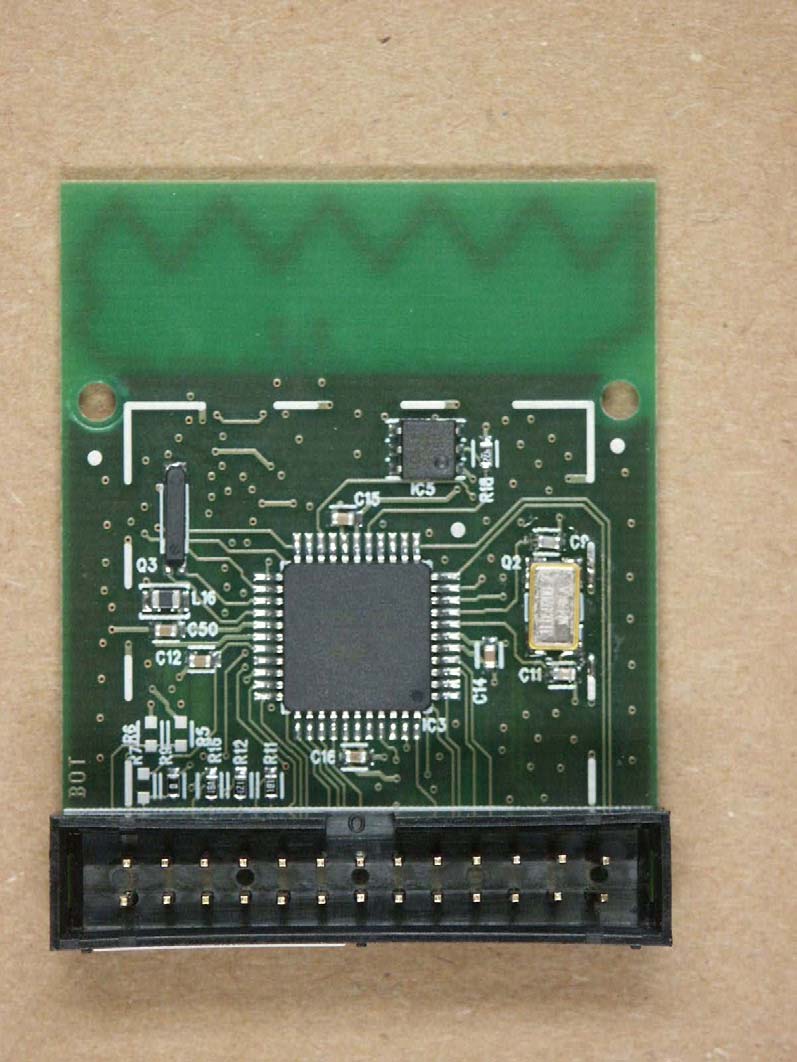

Radiomodule RF-Modem-CC1020 Hardware-Version 1.0 Software-Version 2.13 (06-22-2007) FFC ID: VLA-RFM16109 (in process of application) Topview Bottomview Abstract The module is driven by 3.3 Voltage DC (min. 2.7V, max. 3.6V). With a maximum power consumption of 30mA and built-in power management the module is suitable for battery-driven applications. The RF-Modem was designed to be attached to a suitable main-board which provides the necessary 3.3V via a power regulator and converts the low-voltage signals of the module. The module is not suitable for “Stand-Alone” applications. Communication with the module can be established via two serial ports (LVL, 19200 Baud) and the radio link. Mixed communication is also possible. Via the second serial port further peripherals may be connected. The frequency of the radio link is in the 915MHz-Range (ISM, USA). The module is a narrow band system and operates conform to norms ARIB STD T-67. Depending on the demands of the application the internal microcontroller from Atmel can be programmed to drive a series of I/O-ports. Some of the I/O-ports may be used as analog input as well. Communication takes place via a custom protocol, called GPIO. The enduser has no access to the configuration or programming of the microcontroller resp. the radio link. 08/23/07taskit GmbH Seelenbinderstr.33 - 12555 Berlin - Germany 1 Radiomodule RF-Modem-CC1020 Statements according to FCC Statement according to FCC part 15.19: This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Statement according to FCC part 15.21: Modifications not expressly approved by this company could void the user's authority to operate the equipment. Statement according to FCC part 15.105: Note: This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instruction manual, may cause harmful interference to radio communications. Operation of this equipment in a residential area is likely to cause harmful interference in which case the user will be required to correct the interference at his own expense. NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: . Reorient or relocate the receiving antenna. . Increase the separation between the equipment and receiver. . Connect the equipment into an outlet on a circuit different from that to which the receiver isconnected. . Consult the dealer or an experienced radio/TV technician for help. If the FCC identification number is not visible when the module is installed inside another device, then the outside of the device into which the module is installed must also display a label referring to the enclosed module. This exterior label can use wording such as the following: “Contains Transmitter Module FCC ID: VLA-RFM16109” or “Contains FCC ID: VLA-RFM16109.” Any similar wording that expresses the same meaning may be used. 08/23/07taskit GmbH Seelenbinderstr.33 - 12555 Berlin - Germany 2 Radiomodule RF-Modem-CC1020 Technical Data(US-Version) Common: Dimensions: L: 51mm, B: 40mm, H(PCB): 4mm, H(w. connector) 12mm Max. Humidity: 85% Working Temperature Range: -10°C bis +70°C Operating Voltage: min. 2.7V, max. 3.6V Interface-Levels: min. 0V, max. 3.6V (LVL) Transmitter: RF-Frequency: 915Mhz RF-Output Rating: min. -20dBm, max. +5dBm Antenna Type: λ 1 / 4 – PCB-“Stub“ (onboard printed F-Type), Gain ca. +/- 0dB Used Signal Type: digital, 1-Channel Modulation: Manchester /GFSK Frequency Deviation: 50kHz Data Rate via HF: 19200 Baud gross / 9600 bps net Receiver: Receiver Type: Superhet RF-Frequency: 915Mhz Intermediate Frequency: 50kHz Channel Width: 50Khz Filter Bandwidth: 25kHz Maximum Deviation (f 0 ): 4.95kHz Input Sensitivity: -110dBm Data Rate via RF: 19200 Baud gross / 9600 bps net Pin Assignment Connector: Two-row pinheader, 26-way, RM 2.54 08/23/07taskit GmbH Seelenbinderstr.33 - 12555 Berlin - Germany 3
taskit GmbH Seelenbinderstr.33 - 12555 Berlin - Germany Date:08-22-2007 Federal Communications Commission Authorization and Evaluation Division Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 To whom it may concern: We, the undersigned, hereby authorize ETS Product Service AG to act on our behalf in all matters relating to applications for equipment authorization RF-Modem-CC1020 (FCC-ID: VLA-RFM16109), including the signing of all documents relating to these matters. Any and all acts carried out by ETS Product Service AG on our behalf shall have the same effect as acts of our own. We also hereby certify that no party to this application is subject to a denial of benefits, including FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 862. Andreas Helmig taskit GmbH
taskit GmbH Seelenbinderstr.33 - 12555 Berlin - Germany Date:08-22-2007 Federal Communications Commission Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 Request for Confidentiality taskit GmbH FCC ID: VLA-RFM16109 FCC Part 15 Certification Gentlemen, In accordance with 0.459 of CFR 47, taskit GmbH hereby requests confidentiality of all RFM- CC1020_Schem.pdf, RFM-CC1020_PartsLst.pdf, RFM-CC1020_OpDes.pdf attachments for the subject application. These documents contain detailed system and equipment description and related information about the product which taskit GmbH considers to be proprietary, confidential and a custom design and otherwise would not release to the general public. Since the design is a basis from which future technological products will evolve, taskit GmbH considers that this information would be of benefit to its competitors and that the disclosure of the information in these documents would give competitors an unfair advantage in the market. Sincerely, Andreas Helmig taskit GmbH
Request for limited modular approval taskit GmbH FCC ID: VLA-RFM16109 FCC Part 15 Certification Gentlemen, Dear Application Examiner, the taskit GmbH module FCC ID: VLA-RFM16109 is seeking FCC authorization as a modular transmitter. The requirement of the FCC Public notice DA00-1407 are met. The following requirements are fulfilled: 1. The modular transmitter must have its own RF shielding The module has its own RF shielding. It is connected to the ground layer of the PCB. 2. The modular transmitter must have buffered modulation/data inputs The module has a memory management unit which is part of the onboard microcontroller. It buffers the data inputs from the serial line. 3. The modular transmitter must have its own power supply regulation The IC does not contain an own voltage regulation. It is only shipped in external devices produced by taskit GmbH itself. These devices will have a power regulation, which will guard a stabilized voltage in case of changes in the supply voltage VCC (for example caused by temperature changes or other effects) of the module. 4. The modular transmitter must comply with the antenna requirements of Section 15.203 and 15.204c The transmitter shall only be used with the tested internal antenna. The antenna is Federal Communications Commission Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 Berlin, 11.09.07 integrated in the PCB-Layout. The use of an external antenna is not possible. The antenna complies to requirements in Section 15.203 and 15.204c. 6. The modular transmitter must be equipped with either a permanently affixed label or must be capable of electronically displaying its FCC identification number. The FCC ID is permanently fixed on a label on the module, and, if the FCC identification number is not visible when the module is installed inside another device, then the outside of the device into which the module is installed must also display a label referring to the enclosed module. This exterior label can use wording such as the following: “Contains Transmitter Module FCC ID: VLA-RFM16109” or “Contains FCC ID: VLA-RFM16109” Any similar wording that expresses the same meaning may be used. Similar detail instructions are given in the product Users Guide. This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation. 7. The modular transmitter must comply with any specific rule or operating requirements applicable to the transmitter and the manufacturer must provide adequate instructions along with the module to explain any such requirements. The EUT is compliant with all applicable FCC rules. Detail instructions are given in the product Users Guide. 8. The modular transmitter must comply with any applicable RF exposure requirements. This OEM module is approved for use in products operating as mobile and portable transmitting device with respect to 15.249. There are no special conditions for satisfying RF exposure compliance for this very low power transmitter. Sincerely, Andreas Helmig Technical Advisor taskit GmbH
ETS Product Service AG Registration number: G0M20706-1486-C-1 Page 2 of 6 ETS Product Service AG Registration number: G0M20706-1486-C-1 Page 3 of 6
ETS Product Service AG Registration number: G0M20706-1486-C-1 Page 2 of 6 ETS Product Service AG Registration number: G0M20706-1486-C-1 Page 3 of 6
ETS PRODUCT SERVICE AG TEST - REPORT FCC RULES PART 15 / SUBPART C §15.249 FCC ID: VLA-RFM16109 Test report no.: G0M20706-1486-C-1 Certificate # 1983.01 ETS STORKOWER STRASSE 38C, D-15526 REICHENWALDE B. BERLIN PRODUCT SERVICE AG PHONE +49-33631-888 00 FAX +49-33631-888 660 ETS Product Service AG Registration number: G0M20706-1486-C-1 Page 1 of 24 TABLE OF CONTENTS 1 General information 1.1 Notes 1.2 Testing laboratory 1.3 Details of approval holder 1.4 Application details 1.5 Test item 1.6 Test standards 2 Technical test 2.1 Summary of test results 2.2 Test environment 2.3 Test equipment utilized 2.4 General Test Procedure 3 Test Results 3.1 Output Power 3.2 RF Exposure Compliance Requirements 3.3 Radiated Emissions 3.4 Antenna requirement 3.5 20 dB Bandwitdh 3.6 Conducted Measurement ETS Product Service AG Registration number: G0M20706-1486-C-1 Page 2 of 24 1 General Information 1.1 Notes The purpose of conformity testing is to increase the probability of adherence to the essential requirements or conformity specifications, as appropriate. The complexity of the technical specifications, however, means that full and thorough testing is impractical for both technical and economic reasons. Furthermore, there is no guarantee that a test sample which has passed all the relevant tests conforms to a specification. Neither is there any guarantee that such a test sample will interwork with other genuinely open systems. The existence of the tests nevertheless provides the confidence that the test sample posseses the qualities as maintained and that is performance generally conforms to representative cases of communications equipment. The test results of this test report relate exclusively to the item tested as specified in 1.5. The test report may only be reproduced or published in full. Reproduction or publication of extractes from the report requires the prior written approval of the ETS PRODUCT SERVCIE AG. Tester: 09.08.2007 D. Hoppe Date ETS-Lab. Name Signature Technical responsibility for area of testing: 09.08.2007 N.Kaspar Date ETS Name Signature ETS Product Service AG Registration number: G0M20706-1486-C-1 Page 3 of 24 1.2 Testing laboratory 1.2.1 Location ETS Product Service AG Storkower Straße 38c D-15526 Reichenwalde b. Berlin Germany Telefon : +49 33631 888 00 Telefax : +49 33631 888 660 1.2.2 Details of accreditation status ACCREDITED TESTING LABORATORY DAR-REGISTRATION NUMBER: DAT-P-201/96 A CCREDITED COMPETENT BODY BNETZA-REGISTRATION NUMBER: BNetzA-zS-026/96 FCC FILED TEST LABORATORY REG. NO. 96970 B LUETOOTH QUALIFICATION TEST FACILITY (BQTF) Accredited by Bluetooth Qualification Review Board INDUSTRY CANADA FILED TEST LABORATORY REG. NO. IC 3470 A2LA ACCREDITED Certificate Number #1983.01 1.3 Details of approval holder Name : Taskit GmbH Street : Seelenbinder Str. 33 Town : 12555 Berlin Country : Deutschland Telephone : +49 30 611295-26 Fax : +49 30 611295-11 Contact : Hr. A. Helmig Telephone : +49 30 611295-26 ETS Product Service AG Registration number: G0M20706-1486-C-1 Page 4 of 24 1.4 Application details Date of receipt of application : 20.06.2007 Date of receipt of test item : 20.06.2007 Date of test : 20.06.2007 - 07.08.2007 1.5 Test item Description of test item : RF-Modem-CC1020 Type identification : 16.109.01 Serial number : without Photos : See Appendix A Technical data Frequency band : 902 MHz - 928 MHz Frequency : 915.6 MHz Antenna : internal Antenna type : on board printed F-type Power supply : 3.30 V DC Operating mode : simplex Type of modulation : F3D Manufacturer: (if applicable) Name : ./. Street : ./. Town : ./. Country : ./. ETS Product Service AG Registration number: G0M20706-1486-C-1 Page 5 of 24 1.6 Test standards Technical standard : FCC RULES PART 15 / SUBPART C § 15.249 2 Technical test 2.1 Summary of test results No deviations from the technical specification(s) were ascertained in the course : of the tests performed. or The deviations as specified in 2.5 were ascertained in the course of the tests performed. 2.2 Test environment Temperature : 25° C Relative humidity content : 20 ... 75 % Air pressure : 86 ... 103 kPa Details of power supply : 3.30 V DC Extrem conditions parameters: : test voltage - extreme min.: 2.70 V DC max: 3.60 V DC Additional information : none ETS Product Service AG Registration number: G0M20706-1486-C-1 Page 6 of 24 2.3 Test equipment utilized No. Test equipment Type Manufacturer ETS 0001 ESD Gun SESD 30000 Schlöder ETS 0002 Test receiver ESVP R & S ETS 0003 Diode Power Sensor NRV-Z2 R & S ETS 0004 Spektrum- and Network- Analyzer FSMS 26 R & S ETS 0005 RF amplifier matrix RSU-ETS-CTR6 ETS ETS 0006 HP-Filter H1G04G01 Microwave ETS 0007 Horn antenna AT 4004 ar ETS 0008 Antenna Loop antenna Siemens ETS 0009 Comb Generator Emitter CGE 02 York EMC Services ETS 0011 Antenna (van Veen/Frame) HM020Z3 R & S ETS 0012 Biconical Antenna HK 116 R & S ETS 0013 LPD Antenna HL 223 R & S ETS 0014 Log Periodical Antenna HL 025 R & S ETS 0015 Log Periodical Antenna HL 025 R & S ETS 0016 Precision antenna kit VHAP Schwarzbeck ETS 0017 Precision antenna kit UHAP Schwarzbeck ETS 0018 Horn antenna BBHA 9120 D Schwarzbeck ETS 0019 Horn antenna BBHA 9120 D Schwarzbeck ETS 0020 Antenna DP 21 MEB ETS 0021 Antenna DP 3 MEB ETS 0022 Antenna SAS-200/ 521 A.H. Systeme+D65 ETS 0023 Antenna DP 1 MEB ETS 0024 Antenna mast AF 2 MEB ETS 0025 Antenna mast AF 2 MEB ETS 0026 Tripod Heinrich Deisel ETS 0027 Tripod Heinrich Deisel ETS 0028 Tripod STA 2 C. Lorenz AG ETS 0029 Tripod Berlebach ETS 0030 Biconical Antenna HK 116 R & S ETS 0031 Turn table DS 412 Heinrich Deisel ETS 0032 Controller HD 050 Heinrich Deisel ETS 0033 Calibr. Set CDN 3x Adaptor 50-150 Ohm ETS ETS 0034 RF Generator/ Amplifier SMLR R & S ETS 0035 RF Generator/ Amplifier SMLM R & S ETS 0036 Zirc. Antenna 3102 EMCO ETS 0037 Zirc. Antenna 3102L EMCO ETS 0038 RF amplifier 150L Amplifier Research ETS 0039 Absorbing clamp MDS 21 R & S ETS 0040 Artificial Mains Network ESH3-Z5 R & S ETS 0041 T-Artificia…
Text truncated - open the document above for the full version.
EMI voltage test in the ac-mains according to FCC part 15 EUT:RF-Modem-CC1020 Manufacturer:Taskit GmbH Operating Condition:Unom: 120 VAC (AC/DC adaptor), Tnom: 23°C Test Site:ETS Operator:Mr. Marquardt Test Specification:V-Network: ESH2-Z5 (L1) Comment:model: 16.109.01 -10 0 10 20 30 40 50 60 70 Level [dBμV] 150k300k500k 700k1M2M3M 4M6M10M30M Frequency [Hz] MES FCCp15_pre PK MES FCCp15_pre AV LIM FCCp15_QP_01 Voltage QP Limit LIM FCCp15_AV_01 Voltage AV Limit Page 1/1 07.08.2007 08:37 FCCp15 EMI voltage test in the ac-mains according to FCC part 15 EUT:RF-Modem-CC1020 Manufacturer:Taskit GmbH Operating Condition:Unom: 120 VAC (AC/DC adaptor), Tnom: 23°C Test Site:ETS Operator:Mr. Marquardt Test Specification:V-Network: ESH2-Z5 (N) Comment:model: 16.109.01 -10 0 10 20 30 40 50 60 70 Level [dBμV] 150k300k500k 700k1M2M3M 4M6M10M30M Frequency [Hz] MES FCCp15_pre PK MES FCCp15_pre AV LIM FCCp15_QP_01 Voltage QP Limit LIM FCCp15_AV_01 Voltage AV Limit Page 1/1 07.08.2007 08:24 FCCp15
ETS Product Service AG Registration number: G0M20706-1486-C-1 Page 4 of 6 ETS Product Service AG Registration number: G0M20706-1486-C-1 Page 5 of 6 ETS Product Service AG Registration number: G0M20706-1486-C-1 Page 6 of 6
| # | Rule Parts | Frequency Range | Power Output |
|---|---|---|---|
| 1 | 15C | 915 MHz - 915.6 MHz | - |
