VLE15032-PPL-BPropel High Speed Racing Car

Styles and colors may slightly vary. Please read this instruction manual as it contains valuable information on how to properly drive and care for your micro high speed RC car. AGES 8 AND UP CHOKING HAZARD - Small parts. Not suitable for children under 3 years. ©2011 Rooftop Brands TM All rights reserved Conforms to safety requirements of ASTM, CPSIA and FCC. Made in China Tel: + (1) 949-566-9573 • www.rooftopbrands.com WARNING! • Choking/Cutting Hazard. Small parts not suitable for children under 8 years of age. • Keep hands, hair, jewelry and loose clothing away from the wheels any time the transmitter power is turned to the ON position. • Turn off the transmitter when not in use. • New alkaline transmitter batteries are recommended for maximum performance. • Parental supervision recommended at all times. • To avoid interference with each other, do not use remote control vehicles with the same frequency in the same area. • Do not break the antenna and be careful not to point it near your eyes or the eyes of others as serious injury may result. CARE AND MAINTENANCE • Remove the batteries from the transmitter when it is not used for an extended period of time. • Gently wipe the controller and car with a damp cloth to clean. Do not use soap or solvents as they can damage the surface. • Keep the car and transmitter away from direct heat or strong sunlight. • Do not submerge the car or transmitter into water, they both will be damaged beyond repair. • Parental guidance is recommended when installing/replacing the batteries or charging. • Always select a safe place to play. Never operate your vehicle in the street. • Do not operate your vehicle on sand as damage to the vehicle may result. FCC Part 15 B Notice CAUTION: Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: • Reorient or relocate the receiving antenna. • Increase the separation between the equipment and receiver. • Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. • Consult the dealer or an experienced radio/TV technician for help. BATTERY WARNINGS • Do not mix old and new batteries. • Do not mix alkaline, standard (carbon-zinc) and rechargeable batteries (Nickel Metal Hydride). • Do not attempt to recharge non-rechargeable batteries. • Rechargeable batteries are to be removed from the product before being charged (if removable). • Rechargeable batteries are only to be charged under adult supervision. • Exhausted batteries should be removed immediately and must be recycled or disposed of properly according to state or local government ordinances and regulations. • Do not allow conductive materials such as rings, bracelets, or keys to touch the batteries, otherwise a short circuit may cause the batteries and/or the conductive material to overheat and cause burns. • Only batteries of the same or equivalent type as recommended are to be used. • Batteries are to be inserted with the correct polarity (refer to included diagrams). • Do not dispose batteries in a fire as batteries may leak or explode. INITIAL SETUP: CHARGING THE CAR: CAR DIAGRAM: REMOTE CONTROL DIAGRAM: GETTING STARTED: Micro high-speed car x 1Controller x 1Cones x 20Antenna x 1Instruction Manual x 1 1. Turn on the Power Switch on the base of the car as well as the controller. A red LED indicates you are ready to go. 2. Use the Left / Right and the Forward / Reverse levers to control your vehicle. 3. If the vehicle deviates, adjust the Direction Lever on the base of the car accordingly. 4. If your vehicle tends to lean forward or backward without touching the Forward / Reverse lever, use the Forward Trim or Reverse Trim to balance the car accordingly. 5. Your car is set to automatically run on Manual Shift when turned ON. Press the Automatic button to change to Auto Mode. A red light will illuminate the button indicating that the car is now in Auto Mode. 6. When using in Manual Shift mode, use the lower left trigger to Shift UP and the lower right trigger to Shift DOWN for complete speed control. Your car has 5 Manual Shift Speed modes. TRICKS AND STUNTS: The Micro High Speed RC Car is capable of performing various tricks and stunts. UNDERSTANING THE JUMP! 1. In Manual Mode, Shift UP to the maximum Speed and then push and hold up the Forward Lever to speed up the car. This will also help in lifting the car in an upward direction. 2. Releasing the Forward Lever will start balancing the car for an easy landing or shorter jump. A. Jumping across platforms or over obstacles. Holding up and releasing the Forward / Reverse lever allows for control of the car whe in a jump B. 360 º Jump Tip: Controlling the Speed of the car is the most important aspect of perfecting your jumps and tricks. Speeding up a little while landing provides for a smoother landing as well. Use platforms, ramps, tubes and other props of different heights, shapes and sizes for a variety of stunts, tricks and jumps. However, it is important that you grasp the Speed Control and the skill of Jumping first. A. Charging with the Remote Controller Access the charging pin located on the …

Text truncated - open the document above for the full version.

Request for Confidentiality Date: __10.13.2011______ Subject: Confidentiality Request for: ____VLE15032-PPL-B_____ Pursuant to FCC 47 CRF 0.457(d) and 0.459 and IC RSP-100, Section 10, the applicant requests that a part of the subject FCC application be held confidential. Type of Confidentiality Requested Exhibit Short Term Permanent Block Diagrams Short Term External Photos Short Term Permanent* 1 Internal Photos Short Term Permanent Operation Description/Theory of Operation Short Term Permanent Parts List & Placement/BOM Short Term Permanent Tune-Up Procedure Short Term Permanent Schematics Short Term Test Setup Photos Short Term Permanent* User’s Manual *Note: ______(Insert Explanation as Necessary)______ _Asian Express Holdings Limited______ has spent substantial effort in developing this product and it is one of the first of its kind in industry. Having the subject information easily available to "competition" would negate the advantage they have achieved by developing this product. Not protecting the details of the design will result in financial hardship. Permanent Confidentiality: The applicant requests the exhibits listed above as permanently confidential be permanently withheld from public review due to materials that contain trade secrets and proprietary information not customarily released to the public. Short-Term Confidentiality: The applicant requests the exhibits selected above as short term confidential be withheld from public view for a period of ___(specify number of days not to exceed 180 ) 2 ___ days from the date of the Grant of Equipment Authorization and prior to marketing. This is to avoid premature release of sensitive information prior to marketing or release of the product to the public. Applicant is also aware that they are responsible to notify ACB in the event information regarding the product or the product is made available to the public. ACB will then release the documents listed above for public disclosure pursuant to FCC Public Notice DA 04-1705. NOTE for Industry Canada Applications: The applicant understands that until such time that IC distinguishes between Short Term and Permanent Confidentiality, either type of marked exhibit above will simply be marked Confidential when submitted to IC. Sincerely, 1 - The asterisked items (*) require further justification before permanent confidentiality will be allowed. These also currently require review by the FCC under their Permit-But-Ask policy before the grant is issued and can delay completion of an application. Further justification should be added to the note above. One such example for a potted device would be: “The EUT is FULLY potted using a non-removable epoxy based material. Removal of potting material causes irreparable damage to internal circuitry. See photographs exhibits that outline the device before and after potting.” 2 - Please refer to http://acbcert.com/documents/misc-docs/Memo-Short-Term-Vs-Standard-Confidentiality.pdf for complete details. By: ____Bob Cheng__________________ (Signature/Title 3 ) (Print name) 3 - Must be signed by applicant contact given for applicant on the FCC site, or by the authorized agent if an appropriate authorized agent letter has been provided. Letters should be placed on appropriate letterhead.

Authority to Act as Agent Date: ___10.13.2011_____ American Certification Body, Inc. 6731 Whittier Avenue Suite C110 McLean, VA 22101 To Whom It May Concern: SGS-CSTC Standards Technical Services Co., Ltd. (SGS) Shenzhen Branch is authorized to act on our behalf, until otherwise notified, for applications to American Certification Body, Inc. (ACB). We certify that we are not subject to denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 862. Further, no party, as defined in 47 CFR 1.2002 (b), to the application is subject to denial of federal benefits, that includes FCC benefits. Thank you, Agency Agreement Expiration Date: ___12 months_____ By: _ ___ _____Bob Cheng ____________ (Signature 1 ) (Print name) Title: _____Production Manager_____________________ On behalf of: ______Asian Express Holdings Limited____________________ (Company Name) Telephone: ________0755-22158751__________________ 1 - Must be signed by applicant contact given for applicant on the FCC site, or by the authorized agent if an appropriate authorized agent letter has been provided. Letters should be placed on appropriate letterhead.

Model Confirmation Letter We, Asian Express Holdings Limited (Company name)certify the product:Propel High Speed Racing Car And item No.:15032-PPL-B-R;15032-PPL-BK Their electrical circuit design, layout, components used and internal wiring are identical, Only the Item number and Color are different. Agency Agreement Expiration Date: __ 12 months_____ By: _________Bob Cheng______________ (Signature 1 ) (Print name) Title: _______Production_Manager______________ On behalf of: __________Asian Express Holdings Limted _______________ (Company Name) Telephone: _______0755－22158751___________________

Request for Supercede TO: Federal Communication Commission Please kindly be notified that we, ASIAN EXPRESS HOLDINGS LTD herein request to supercede the FCC ID: VLE15032-PPL-B for the following reason: 1. The original report has omited information about the age of our product apply for. We are willing to correct it and replace the report. Please kindly permit the supercede. Thank you. Sincerely, Name / Title: Bob Cheng Company: Asian Express Holdings Limited Tel: 0755-22158751

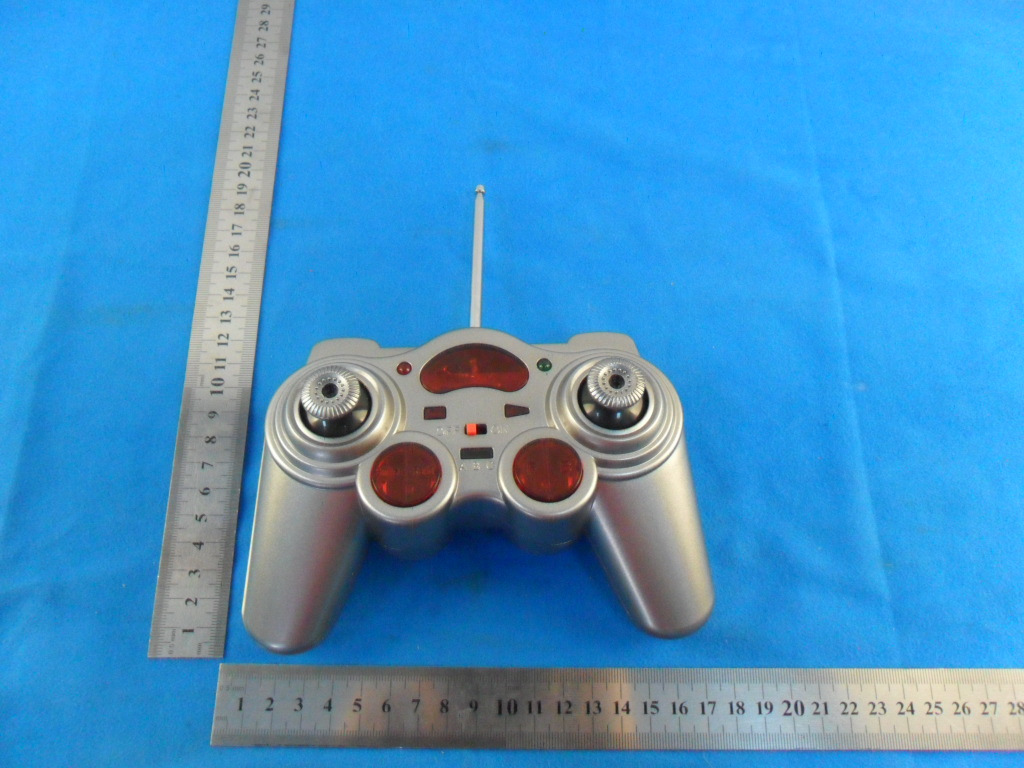

1 Photographs - EUT Constructional Details

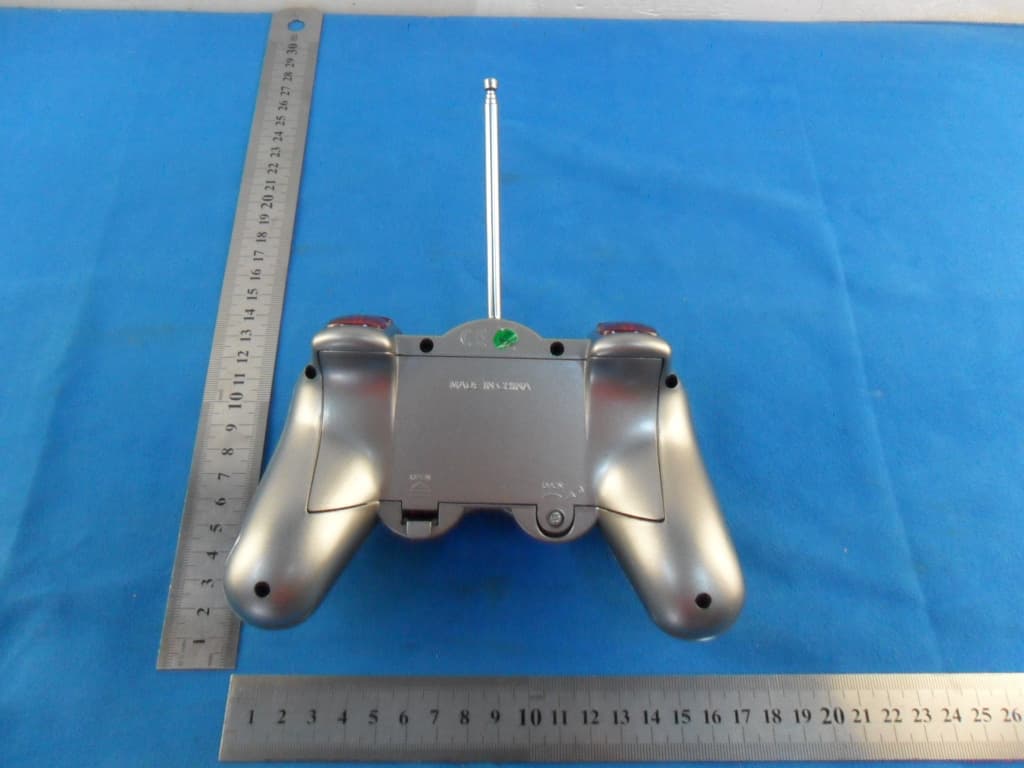

1 Photographs - EUT Constructional Details

Report No.: SZEM111000405802 Page : 1 of 11 Authorized Signature: Jack Zhang EMC Laboratory Manager The manufacturer should ensure that all products in series production are in conformity with the product sample detailed in this report. If the product in this report is used in any configuration other than that detailed in the report, the manufacturer must ensure the new system complies with all relevant standards. Any mention of SGS International Electrical Approvals or testing done by SGS International Electrical Approvals in connection with, distribution or use of the product described in this report must be approved by SGS International Electrical Approvals in writing. The report must not be used by the client to claim product certification, approval, or endorsement by NVLAP, NIST, or any agency of the federal government. All test results in this report can be traceable to National or International Standards. “This document is issued by the Company subject to its General Conditions of Service printed overleaf, available on request or accessible at www.sgs.com/terms_and_conditions.htm and, for electronic format documents, subject to Terms and Conditions for Electronic Documents at www.sgs.com/terms_e-document.htm . Attention is drawn to the limitation of liability, indemnification and jurisdiction issues defined therein. Any holder of this document is advised that information contained hereon reflects the Company’s findings at the time of its intervention only and within the limits of Client’s instructions, if any. The Company’s sole responsibility is to its Client and this document does not exonerate parties to a transaction from exercising all their rights and obligations under the transaction documents. This document cannot be reproduced except in full, without prior written approval of the Company. Any unauthorized alteration, forgery or falsification of the content or appearance of this document is unlawful and offenders may be prosecuted to the fullest extent of the law. Unless otherwise stated the results shown in this test report refer only to the sample(s) tested and such sample(s) are retained for 90 days only.” SGS-CSTC Standards Technical Services Ltd. No. 1 W orkshop, M-10, Middle section, Science & Technology Park, Shenzhen, Guangdong, China 518057 Telephone: +86 (0) 755 2601 2053 Fax: +86 (0) 755 2671 0594 Email: [email protected] FCC REPORT Application No. : SZEM1110004058ET Applicant: ASIAN EXPRESS HOLDINGS LTD Product Name: Propel High Speed Racing Car Operation Frequency: 27.145MHz FCC ID: VLE15032-PPL-B Standards: FCC PART 15, SUBPART C: 2010 Section 15.227 Date of Receipt: 2011-10-11 Date of Test: 2011-10-11 to 2011-10-24 Date of Issue: 2011-11-03 Test Result : PASS * * In the configuration tested, the EUT complied with the standards specified above. This report supersedes our previous report SZEM111000405801, issued on 2011-10-31, which is hereby deemed null and void. “This document is issued by the Company subject to its General Conditions of Service printed overleaf, available on request or accessible at www.sgs.com/terms_and_conditions.htm and, for electronic format documents, subject to Terms and Conditions for Electronic Documents at www.sgs.com/terms_e-document.htm . Attention is drawn to the limitation of liability, indemnification and jurisdiction issues defined therein. Any holder of this document is advised that information contained hereon reflects the Company’s findings at the time of its intervention only and within the limits of Client’s instructions, if any. The Company’s sole responsibility is to its Client and this document does not exonerate parties to a transaction from exercising all their rights and obligations under the transaction documents. This document cannot be reproduced except in full, without prior written approval of the Company. Any unauthorized alteration, forgery or falsification of the content or appearance of this document is unlawful and offenders may be prosecuted to the fullest extent of the law. Unless otherwise stated the results shown in this test report refer only to the sample(s) tested and such sample(s) are retained for 90 days only.” Report No.: SZEM111000405802 Page : 2 of 11 SGS-CSTC Standards Technical Services Ltd. 2 Contents Page 1 COVER PAGE ..............................................................................................................................................1 2 CONTENTS....................................................................................................................................................... 2 3 TEST SUMMARY............................................................................................................................................. 3 4 GENERAL INFORMATION............................................................................................................................. 4 4.1 CLIENT INFORMATION...................................................................................................................................... 4 4.2 GENERAL DESCRIPTION OF E.U.T. .................................................................................................................... 4 4.3 E.U.T. ENVIRONMENT AND TEST MODES........................................................................................................... 4 4.4 TEST LOCATION............................................................................................................................................... 5 4.5 OTHER INFORMATION REQUESTED BY THE CUSTOMER....................................................................................... 5 4.6 TEST FACILITY................................................................................................................................................. 5 4.7 TEST INSTRUMENTS LIST.............................................................................................................................…

Text truncated - open the document above for the full version.

1 Photographs - Test Setup (Test item No.: 15032-PPL-B-R) Radiated Emission Occupied bandwidth
