VLEPL1170-TRemote Controller for Toy

USER MANUAL THIS PACKAGE CONTAINS: Colors and styles may slightly vary. WARNING: Never leave product charging unattended for extended periods of time. Always disconnect helicopter from charger immediately after the helicopter is fully charged. Please refer to enclosed safety instructions. Made in China Conforms to safety requirements of ASTM, CPSIA and FCC. Spare Parts Instruction Manual 11 Helicopter AIR COMBAT 2.4Ghz Motion Controlled Battling Helicopter PROPEL RC™ and AIR COMBAT TM are trademarks of Rooftop Brands. 15760 W Hardy Rd Suite 400 Houston Texas 77060 tel: 949.566.9573 © 2013 Rooftop Brands™. All Rights Reserved. www.propelrc.com . USB charging cord Controller CHOKING HAZARD - Small parts. Not suita ble for child ren under 3 years. CHOKING HAZARD - Pièces de petite. taille N’est pas conçu pour des enfants de moins de 3 ans. PELIGRO DE ASFIXIA - Partes pequeñas. No apto para niños menores de 3 años. AVERTISSEMENT : WARNING! ¡ADVERTENCIA! 1 TABLE OF CONTENTS Features.......................................................................................... 1 Remote Battery Installation....................................................................... 2 Charging the Helicopter............................................................................ 2 Helicopter diagram, Remote Control diagram..................................................... 3 Preparing for Flight ............................................................................. 3 How to Sync your Helicopter ...................................................................... 4 Flying Tips......................................................................................... 4 Understanding Helicopter Trim Adjustments...................................................... 4 Basic Flight Controls.............................................................................. 5 Interactive Battle Modes..........................................................................6 Helicopter Warning And Safety Precautions.......................................................6 Part Replacement Instructions.................................................................... 7 Contents.......................................................................................... 7 Air Combat Propeller System....................................................................... 7 Replacing the Upper Propeller Blade............................................................. ..8 Replacing the Bottom Propeller Blade..............................................................8 Battery Warnings................................................................................. 9 Care and Maintenance..............................................................................9 FCC Information................................................................................... 9 FEATURES • Advanced motion control technology gives you more real-flight maneuvers and battle action than ever before! • Using advanced infrared battling technology Air Combat copters “dog-fight” in Mid-air. • With each successful “hit” side-lights illuminate and the copter performs a spin. • After three strikes, the defeated players copter automatically spirals to the ground-game over! Reset your copter and get back into the battle! • Realistic lights, sound and vibration feedback keeps players engaged • On board 2.4Ghz digital spread spectrum allows up to 8 Players to battle simultaneously. 2 Thank you for purchasing the AIR COMBAT™ 2.4Ghz Motion Controlled Battling Helicopter from Propel RC. Please read this instruction booklet carefully as it contains valuable information on how to properly fly and care for your helicopter. REMOTE CONTROL BATTERY INSTALLATION 1. Twist off the battery cover from the remote control. 2. Install 4 “AAA” alkaline batteries as shown in the diagram. 3. Replace the battery cover. Battery Compartment (4 “AAA” batteries) CHARGING THE HELICOPTER 1. Make sure the helicopter’s power switch is in the “OFF” position and plug the USB charging cord into the charging socket of the helicopter(see diagram A ). IMPORTANT: Do not force the charging head into helicopter charging socket. If it doesn't go in easily try turning the head in the opposite direction. 2. Connect the helicopter charging cord to your computer’s USB port (see diagram B). IMPORTANT: Never use this charging socket with any other USB port then your personal computer or a Propel Brand USB wall charger. You may purchase a Propel USB wall charger at www.propelrc.com 3. A SOLID red LED Light will appear on the USB jack that is plugged into your computers USB socket. When charging is complete the red LED light will disappear and you are ready to play. IMPORTANT: If the red LED light is flashing rapidly this means that the charging socket connection is not inserted properly or the Helicopter “OFF/ON” switch is in the ON position and needs to be turned off for charging. 4. The charging time will vary depending on the amount of charge already stored in your battery. The average charging time for the battery is approximately 30-40 minutes. IMPORTANT: ALWAYS REMEMBER TO UNPLUG YOUR CHARGING CORD WHEN NOT IN USE! Charging socket is located on the underside of the helicopter next to the power switch. Charging cord connects as indicated. Indicator light on charger stays on until charging is complete. B.A.C. IMPORTANT: ALWAYS DISCONNECT CHARGER CORD AFTER CHARGING. NEVER LEAVE CHARGER CONNECTED TO HELICOPTER OVERNIGHT OR FOR EXTENDED PERIODS OF TIME. Battery Cover - AAA + + AAA - + AAA - - AAA + A solid Red LED light will appear on USB when helicopter is charging Trim Controls UNDERSTANDING HELICOPTER TRIM ADJUSTMENTS If your helicopter’s nose rotates to the left or right uncontrollably, you may need to utilize the TRIM buttons. If your helicopter over-rotates CLOCKWISE (to the right), push and release the LEFT trim button repeatedly until the turning stops and proper flight is ma…

Text truncated - open the document above for the full version.

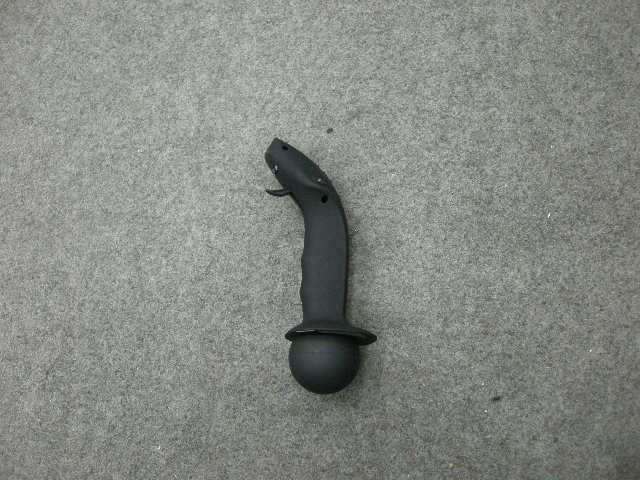

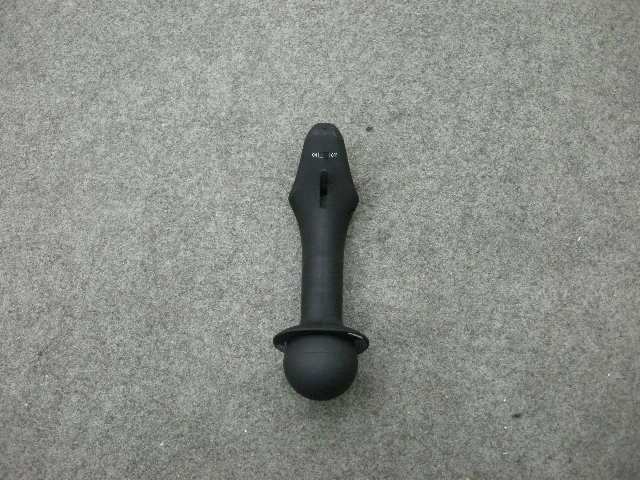

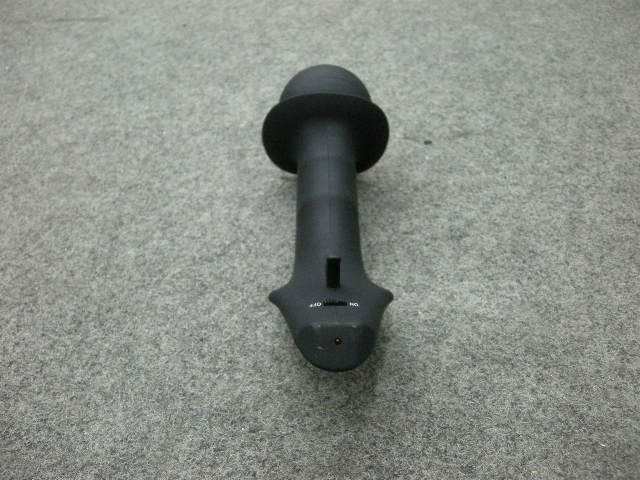

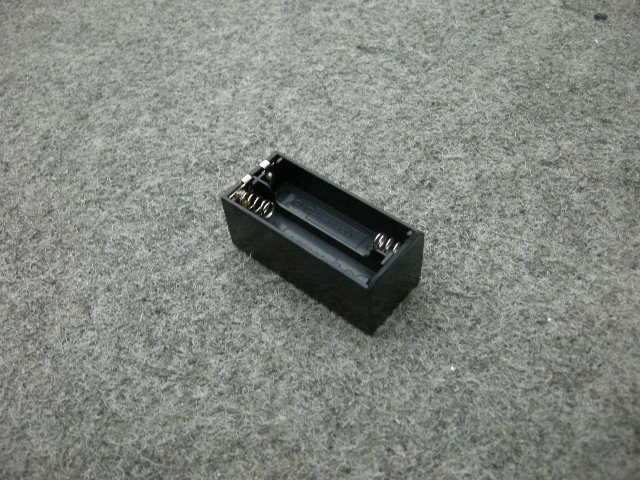

External Photo Front View of the product Rear View of the product Top View of the product Bottom view of the product Side View of the product Side View of the product Battery Compartment Battery Cover

Remark: We will print the FCC ID by Pad Printing.

Internal Photo Inner view of product Inner view of product Inner Circuit Top View Inner Circuit Bottom View Inner Circuit Top View Inner Circuit Bottom View Inner Circuit Top View Inner Circuit Bottom View Antenna

BUREAU VERITAS TESTREPORTNo:(5213)200-0472 To: ASIANEXPRESSHOLDINGLTD. TESTREPORT ,-------------,----------------------, To: FolderNo.: bobicl.net.cn Attn:BobCheng Address: 4F,-4,No.669JingpingRd.,ZhongheCity, TaiPeicounty235,Taiwan Fax:61675805-2633 E-mail: Factoryname: Location: Attn: Address: Fax: E-mail: AirCombatwithFlightStick ModelNo.:PL-1170!PL-1171!PL-1172!PL-1173!PL-1174 Theresultsgiveninthisreportarerelatedtothetestedspecimenofthedescribedelectricalapparatus. Product: SampleNo: (5213)200-0472 Testdate: July30,2013 TestRequested:FCCPart15- 2011 TestMethod: ANSIC63.4- 2009 FCC10:VLEPL1170-T AuthorizedSignature: CONCLUSION:ThesubmittedsamplewasfoundtoCOMPLYwithrequirementofFCCPart15SubpartC. BUREAUVERITASHONGKONGLlMITED- KowloonBayOffice 1/FPacificTradeCentre, 2 KaiHingRoad,KowloonBay, Kowloon,HONGKONG Tel:+85223310888 Fax:+85223310889 www.cps.bureauveritas.com ThisreportlSIntendedfor yourexclusiveuseAnycopyingor replicationof thisreportto or for anyotherpersonor entity.or use of ournameor trademark,is perrruttedonlywithOUTpriorwrittenpermission.Ourreportis firmedto thetestsamplesIdentified herem.Theresultsset forthin thisreportarenotnecessarilyindicativeor representativeof thestatisticalqualityor characteristicsof thelot fromwlucha testsamplewastakenOfanysimilaror identicalproductunlessspecificallyandexpresslynoted.Ourreport includesall of thetestsrequestedby youandtheresultsthereofYoushallhavethirtydaysfromreceiptof thisreportto request additionaltestingof thesamplesor to notifyus of anyerrorsor OmiSSIOnsrelatingto ourreport,provided,however,suchnotice shallbe in writingandshallspecificallyaddresstheissueyouwishto raise.A failureto raisesuchissuewithintheprescnbedtime shallconstituteyourunqualifiedacceptanceof thecompletenessof thisreport,thetestsconductedandthecorrectnessof thereport contents. Page1 of20 TEST REPORT No: (5213)200-0472 BUREAU VERITAS HONG KONG LIMITED – Kowloon Bay Office 1/F Pacific Trade Centre, 2 Kai Hing Road, Kowloon Bay, Kowloon,HONG KONG Tel: +852 2331 0888 Fax: +852 2331 0889 www.cps.bureauveritas.com This report is intended for your exclusive use. Any copying or replication of this report to or for any other person or entity, or use of our name or trademark, is permitted only with our prior written permission. Our report is limited to the test samples identified herein. The results set forth in this report are not necessarily indicative or representative of the statistical quality or characteristics of the lot from which a test sample was taken or any similar or identical product unless specifically and expressly noted. Our report includes all of the tests requested by you and the results thereof. You shall have thirty days from receipt of this report to request additional testing of the samples or to notify us of any errors or omissions relating to our report, provided, however, such notice shall be in writing and shall specifically address the issue you wish to raise. A failure to raise such issue within the prescribed time shall constitute your unqualified acceptance of the completeness of this report, the tests conducted and the correctness of the report contents. Page 2 of 20 Test Result Summary EMISSION TEST Test requirement: FCC Part 15 - 2011 Test Condition Test Method Test Result Pass Failed Radiated Emission Test, 9kHz to 40GHz ANSI C63.4 Report Revision & Sample Re-submit History: -- TEST REPORT No: (5213)200-0472 BUREAU VERITAS HONG KONG LIMITED – Kowloon Bay Office 1/F Pacific Trade Centre, 2 Kai Hing Road, Kowloon Bay, Kowloon,HONG KONG Tel: +852 2331 0888 Fax: +852 2331 0889 www.cps.bureauveritas.com This report is intended for your exclusive use. Any copying or replication of this report to or for any other person or entity, or use of our name or trademark, is permitted only with our prior written permission. Our report is limited to the test samples identified herein. The results set forth in this report are not necessarily indicative or representative of the statistical quality or characteristics of the lot from which a test sample was taken or any similar or identical product unless specifically and expressly noted. Our report includes all of the tests requested by you and the results thereof. You shall have thirty days from receipt of this report to request additional testing of the samples or to notify us of any errors or omissions relating to our report, provided, however, such notice shall be in writing and shall specifically address the issue you wish to raise. A failure to raise such issue within the prescribed time shall constitute your unqualified acceptance of the completeness of this report, the tests conducted and the correctness of the report contents. Page 3 of 20 Location of the test laboratory Radiated and Conducted emissions measurements are investigated and taken pursuant to the procedures of ANSI C63.4 – 2009. An Open Area Test Site and Full Anechoic Chamber (FCC Listed Site, Registration No. 642151) are set up for investigation and located at : BUREAU VERITAS HONG KONG LIMITED, EMC CENTRE No. 2106-2107, 21/F., Westin Centre, 26 Hung To Road, Kwun Tong, Kowloon, Hong Kong List of measuring equipment Radiated Emission EQUIPMENT MANUFACTURER MODEL NO. SERIAL NO. CALIBRATION DUE EMI TEST RECEIVER R&S ESCI 100379 28-JAN-2014 SPECTRUM ANALYZER R&S R3127 111000909 29-JAN-2014 BILOG ANTENNA SCHAFFNER CBL6112D 25229 12-SEP-2013 HORN ANTENNA SCHWARZBECK BBHA9120D 9120D-692 12-SEP-2013 PREAMLIFIER SCHWARZBECK BBV9718 9718-152 15-OCT-2013 OPEN AREA TEST SITE BVCPS N/A N/A 08-JUL-2014 ANECHOIC CHAMBER ALBATROSS M-CDC 80374004499B 05-FEB-2014 COAXIAL CABLE SUHNER N/A N/A 07-NOV-2013 COAXIAL CABLE HUBER + SUHNER RG214 N/A 24-SEP-2013 Remarks:- N/A : Not Applicable or Not Available The measurement instrumentation uncertainty would be taking into consideration on each of the test result TEST REPORT No: (5213)200-0472 BUREAU VERITAS HONG KONG LIMITED – Kowloon Bay Office 1/F Pacific Trade Centre, 2 Kai Hing Road, Kowloon Bay, Kowloo…

Text truncated - open the document above for the full version.

Test Set Up Photo
