VLEPL1280-RSonic Drone HD Helicopter

WARNING: Never leave product charging unattended for extended periods of time. Always disconnect HD Sonic Drone from charger immediately after the HD Sonic Drone is fully charged. Please refer to enclosed safety instructions. INSTRUCTION BOOKLET Colors and styles may slightly vary. Made in China Conforms to safety requirements of ASTM, CPSIA and FCC. ©2014 Rooftop Brands™ All rights reserved Tel: + (1) 949-566-9573 • www.propelrc.com CHOKING HAZARD - Small parts. Not suitable for children under 3 years. WARNING! PACKAGE CONTAINS: 2.4G Wireless ControllerInstruction BookletSpare PartsHD Sonic Drone FCC Part 15 B Notice CAUTION: Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: • Reorient or relocate the receiving antenna. • Increase the separation between the equipment and receiver. • Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. • Consult the dealer or experienced radio/TV technician for help. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions : (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. 15 HD SONIC DRONE 2.4GHz Quadrocopter With HD Camera BC Thank you for purchasing the HD Sonic Drone 2.4Ghz Quadrocopter. Please read this instruction booklet as it contains valuable information on how to properly fly and care for your HD Sonic Drone. FEATURES • Wide Range Digital Radio Allows Flight Range Up to 200 Meters! • Invesense TM 6axis Gyro for Extremely Stable Flight and Maneuverability • Patented Switch-Blade TM Technology Allows You to Operate in 3ch or 4ch Modes for beginner to advanced pilots. • Push Button 360 Aerial Stunts • On Board Camera Records High-Definition Video and Captures Still Pictures with the push of button • Sonic Sensors Pulse the Earth for Assisted Landing • Digital Controller, Replaceable Li-poly Battery and Additional Replacement Parts Included. REMOTE CONTROL BATTERY INSTALLATION 1. Slide off the battery cover from the back of the controller. 2. Install 6 “AA” alkaline batteries into the controller as shown in diagram A. 3. Replace the battery cover. 4. Turn over the controller and turn the on/off switch to the on position to check for an LCD screen. If the LCD screen turns on you have installed your batteries properly. Battery Compartment (6 “AA” batteries) TABLE OF CONTENTS Features............................................................................................................ 2 Remote Battery Installation....................................................................................... 2 Charging the HD Sonic Drone Battery............................................................................ 2 HD Sonic Drone Battery Installation...............................................................................2 HD Sonic Drone Diagram, Remote Diagram......................................................................3 Syncing Your HD Sonic Drone......................................................................................4 Preparing For Flight...............................................................................................4 Flying Tips..........................................................................................................4 Recognizing the Front and Back of the HD Sonic Drone.........................................................5 Forward / Backward Trim.......................................................................................... 5 Banking Left / Right Trim.......................................................................................... 6 Turning Left / Right Trim........................................................................................... 6 Throttle Speed Trim................................................................................................ 6 3/4 Channel Select................................................................................................. 7 Speed Select button............................................................................................... 7 Automatically Landing button....................................................................................7 4 Channel Flight Control........................................................................................... 8 3 Channel Flight Control........................................................................................... 9 360 ̊ Stunt rolls...................................................................................................10 Using Your on Board Camera And Video Recorder..............................................................11 Formatting Your Micro SD Card..................................................................................11 Taking Digital Photos.............................................................................................11 Recording Videos...................................................................…

Text truncated - open the document above for the full version.

Dec19,2014 Equipment Authorization Division Office id Engineering and Technology Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 Dear Sirs: Asian Express Holdings Limited requests acceptance of the labeling proposal described below for Sonic Drone HD bearing FCC identifier VLEPL1280-R. The subject Sonic Drone HD models as shown in figure 1, authorized under FCC Part 15 Class C figure 1 It is because the surface of the device does not enough to indicate the FCC statement. For this reason, Asian Express Holdings Limited proposes those statements is showing on the user manual and the device is carrying the FCC ID number only. The figure2 is showing the FCC ID location. figure 2 Sincerely, Asian Express Holdings Limited ------------------------------- Bob Cheng Sourcing Manager

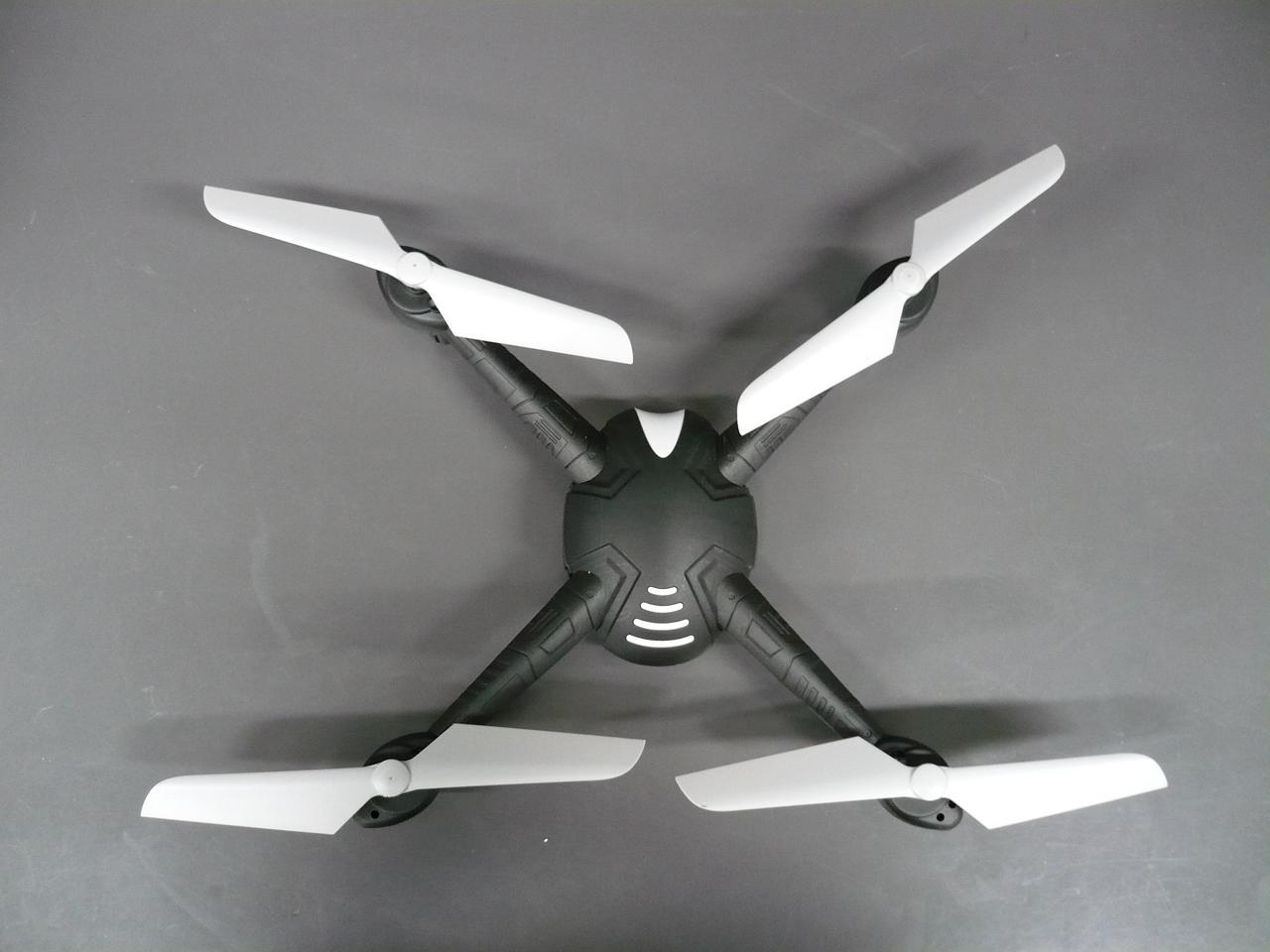

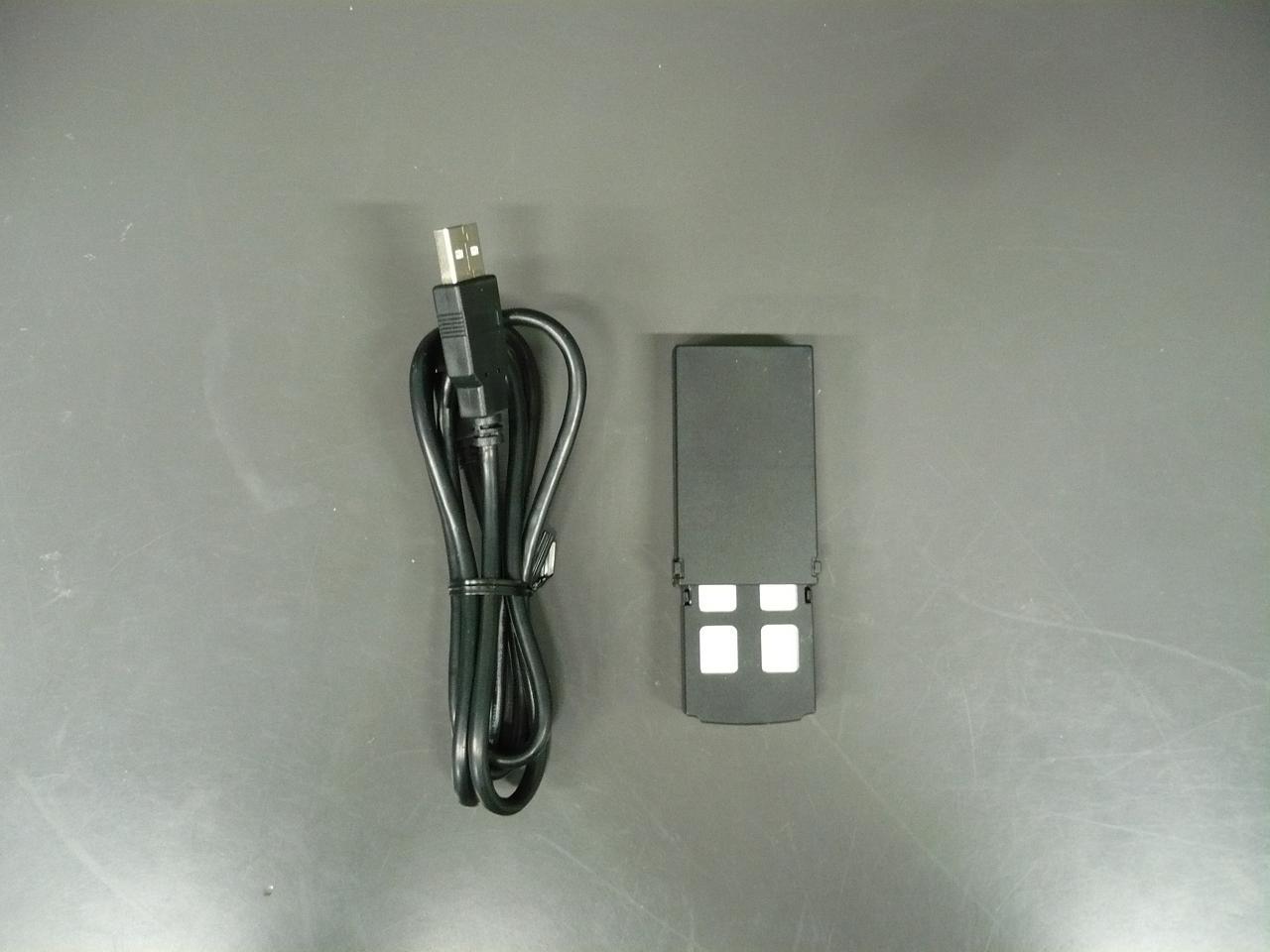

External Photo

FCC ID:VLEPL1280-R

Internal Photo

TEST REPORT Report No. : AS0076327(3) Date : 23 Dec 2014 For and on behalf of CMA Industrial Development Foundation Limited Authorized Signature : Page 1 of 36 Mr. WONG Lap-pong, Andrew Manager Electrical Division FCC ID: VLEPL1280-R Application No. : LS046023(4) Applicant : Asian Express Holdings Limited 4F,-4, No.669 Jingping Rd., Zhonghe City, TaiPei county 235 Taiwan R.O.C, Taiwan Client : Asian Express Holdings Limited Rm804 Sino Centre,582-592 Nathan Road, Mongkok, Kowloon, Hong Kong. Sample Description : One(1) item of submitted sample stated to be Sample Description Model No. Sonic Drone HD PL-1280 / PL-1281 / PL-1282 / PL-1283 / PL-1284 / PL-1285 / PL-1286 / PL-1287 / PL-1288 / PL-1289 Sample registration No. : RS052000-001 Radio Frequency : 2407MHz – 2472 MHz Transceiver Rating : 3.7V rechargeable battery No. of submitted sample : Two (2) piece (s) Date Received : 01 Dec 2014 Test Period : 02 Dec 2014 to 15 Dec 2014. Test Requested : FCC Part 15 Certificate Test Method : 47 CFR Part 15 (10-1-12 Edition), ANSI C63.4 – 2009 Test Engineer : Mr. LEUNG Shu-kan, Ken Test Result : See attached sheet(s) from page 2 to 36. Conclusion : The submitted sample was found to comply with requirement of FCC Part 15 Subpart B and C. Remark : All ten models are the same in circuitry and components; and therefore model PL- 1280 was chosen to be the representative of the test sample. The difference between the tested model and the declared model(s) is/are the Model no. TEST REPORT Report No. : AS0076327(3) Date : 23 Dec 2014 Page 2 of 36 FCC ID: VLEPL1280-R Table of Contents 1 General Information ................................................................................................................................... 3 1.1 General Description ............................................................................................................................ 3 1.2 Location of the test site ....................................................................................................................... 4 1.3 List of measuring equipment............................................................................................................... 5 1.4 List of supporting equipment .............................................................................................................. 5 1.5 Measurement Uncertainty ................................................................................................................... 6 2 Description of the radiated emission test ................................................................................................... 7 2.1 Test Procedure .................................................................................................................................... 7 2.2 Test Result .......................................................................................................................................... 8 2.3 Radiated Emission Measurement Data ............................................................................................... 9 3 Description of the Line-conducted Test ................................................................................................... 14 3.1 Test Procedure .................................................................................................................................. 14 3.2 Test Result ........................................................................................................................................ 14 3.3 Graph and Table of Conducted Emission Measurement Data .......................................................... 14 4 Photograph ............................................................................................................................................... 15 4.1 Photographs of the Test Setup for Radiated Emission and Conducted Emission ............................. 15 4.2 Photographs of the External and Internal Configurations of the EUT .............................................. 15 5 Supplementary document ......................................................................................................................... 16 5.1 Bandwidth ......................................................................................................................................... 16 5.2 Duty cycle ......................................................................................................................................... 16 5.3 Transmission time ............................................................................................................................. 16 5.4 Power Spectral Density ..................................................................................................................... 16 5.5 Average on time ................................................................................................................................ 16 6 Appendices ............................................................................................................................................... 17 TEST REPORT Report No. : AS0076327(3) Date : 23 Dec 2014 Page 3 of 36 FCC ID: VLEPL1280-R 1 General Information 1.1 General Description The equipment under test (EUT) is a transceiver for Sonic Drone HD. The EUT is power by 3.7V rechargeable battery. It operates at 2407MHz – 2472MHz. When it switchs on and received radio signal, it will take the corresponding action. The brief circuit description is listed as follows: - U4 and its associated circuit act as RF circuit - U1, U2 and its associated circuit act as MCU - Y1 and its associated circuit act as oscillator - IC2, IC3 and its associated circuit act as power regulator - M1, M2, M3, M4 and its associated circuit act as motor - D2, D6 and its associated circuit act as LED TEST REPORT Report No. : AS0076327(3) Date : 23 Dec 2014 Page 4 of 36 FCC ID: VLEPL1280-R 1.2 Location of the test site FCC Registered Test Site N…

Text truncated - open the document above for the full version.

TEST REPORT Report No. : AS0076327(3) Date : 23 Dec 2014 Tested by: Reviewed by: Mr. LEUNG Shu-kan, Ken Mr. WONG Lap-pong, Andrew Page 30 of 36 FCC ID: VLEPL1280-R A6. Conducted Emission Measurement Date TEST REPORT Report No. : AS0076327(3) Date : 23 Dec 2014 Tested by: Reviewed by: Mr. LEUNG Shu-kan, Ken Mr. WONG Lap-pong, Andrew Page 31 of 36 FCC ID: VLEPL1280-R A6. Conducted Emission Measurement Date TEST REPORT Report No. : AS0076327(3) Date : 23 Dec 2014 Tested by: Reviewed by: Mr. LEUNG Shu-kan, Ken Mr. WONG Lap-pong, Andrew Page 32 of 36 FCC ID: VLEPL1280-R A6 Conducted Emission Measurement Date

TEST REPORT Report No. : AS0076327(3) Date : 23 Dec 2014 Tested by: Reviewed by: Mr. LEUNG Shu-kan, Ken Mr. WONG Lap-pong, Andrew Page 33 of 36 FCC ID: VLEPL1280-R A7. Band Edge Lower edge (Peak measurement) Lower edge (Average measurement) TEST REPORT Report No. : AS0076327(3) Date : 23 Dec 2014 Tested by: Reviewed by: Mr. LEUNG Shu-kan, Ken Mr. WONG Lap-pong, Andrew Page 34 of 36 FCC ID: VLEPL1280-R A7. Band Edge Higher edge (Peak measurement) Higher edge (Average measurement)

TEST REPORT Report No. : AS0076327(3) Date : 23 Dec 2014 Tested by: Reviewed by: Mr. LEUNG Shu-kan, Ken Mr. WONG Lap-pong, Andrew Page 35 of 36 FCC ID: VLEPL1280-R A8. 20dB Bandwidth Plot Bandwidth 1 (2407MHz) Bandwidth 2 (2452MHz) TEST REPORT Report No. : AS0076327(3) Date : 23 Dec 2014 Tested by: Reviewed by: Mr. LEUNG Shu-kan, Ken Mr. WONG Lap-pong, Andrew Page 36 of 36 FCC ID: VLEPL1280-R A8. 20dB Bandwidth Plot Bandwidth 3 (2472MHz) ***** End of Report *****

Test Setup Photo Front view (30MHz – 1GHz) Rear view (30MHz – 1GHz) Front view (9kHz – 30MHz) Rear view (9kHz – 30MHz) Front view (1GHz – 25GHz) Rear view (1GHz – 25GHz) Front view (Charging) Rear view (Charging) Conducted emission (Front view) Conducted emission (Rear view) Conducted emission (Side view)
