VLEPL1281-TController of Sonic HD Drone

Made in China Conforms to safety requirements of FCC. 15760 West Hardy Road Suite 400 Houston Texas 77060 tel: 949.566.9573 © 2015 Rooftop Brands™. All Rights Reserved. www.propelrc.com. CHOKING HAZARD - Small parts. Not suitable for children under 3 years. WARNING! 15 WARNING: Never leave product charging unattended for extended periods of time. Always disconnect the battery from charger immediately after the battery is fully charged. Please refer to enclosed safety instructions. INSTRUCTION BOOKLET PACKAGE CONTAINS: Colors and styles may slightly vary. FCC Part 15 B Notice CAUTION: Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: • Reorient or relocate the receiving antenna. • Increase the separation between the equipment and receiver. • Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. • Consult the dealer or experienced radio/TV technician for help. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions : (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. 2.4G Wireless ControllerInstruction ManualSpare PartsUSB Card ReaderHD Video Drone HD VIDEO DRONE 2.4GHz Quadrocopter With HD Camera and Altitude Stabilization Technology PROPEL USB Charging Cord & Li-Poly Rechargeable Battery INDUSTRY CANADA NOTICE: CANADA ONLY. This device complies with Industry Canada licence-exempt RSS standard(s). Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of the device. Le présent appareil est conforme aux CNR d'Industrie Canada applicables aux appareils radio exempts de licence. L'exploitation est autorisée aux deux conditions suivantes : (1) l'appareil ne doit pas produire de brouillage, et (2) l'utilisateur de l'appareil doit accepter dout brouillage radioélectrique subi, même si le brouillage est susceptible d'en compromettre le fonctionnement. C Adapter B DE IMPORTANT: ALWAYS REMEMBER TO UNPLUG YOUR CHARGING CORD WHEN NOT IN USE! Li-Poly Battery TABLE OF CONTENTS Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2 Remote Control Battery Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2 Charging the HD Video Drone’s Li-Poly Battery . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2 HD Video Drone Battery Installation. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2 HD Video Drone Diagram. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3 Remote Control Diagram . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3 Flight Preparation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4 Syncing Your HD Video Drone . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4 Now You Are Ready To Fly . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5 Recognizing The Front & Back Of The HD Video Drone . . . . . . . . . . . . . . . . . . . . . . . . 5 How to Start/Stop Rotors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5 Speed Select Button . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5 Auto Land Button . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5 Adjusting the Trim Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5 3 Channel VS 4 Channel Flying . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6 3 Channel Flight Control . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6 4 Channel Flight Control . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7 Flight Practice . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7 Adjusting The Trim . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8 Calibrating The HD Video Drone . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9 How To Perform 360º Stunt Rolls . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10 Using Your On-Board Camera And Video Recorder. . . . . . . . . . . . . . . . . . . . . . . . . . . . 11 Testing /trouble Shooting The Camera Before Flight. . . . . . . . . . . . . . . . . . . . . . . . . . 12 Removing Your Micro SD Card . . . . . . . . . . . . . . . . . …

Text truncated - open the document above for the full version.

Date: Jul 23, 2015 To whom it may concern: We the undersigned, hereby authorize CMA Industrial Development Foundation Limited (Andrew Wong) to act on our behalf in all manners relating to application for equipment authorization, including signing of all documents relating to those matters. Any and all acts carried out by authorize CMA Industrial Development Foundation Limited on our behalf shall have the same affect as acts of our own. Sincerely, Name: Bob Cheng Title: Sourcing Manager Company Name: Asian Express Holdings Limited

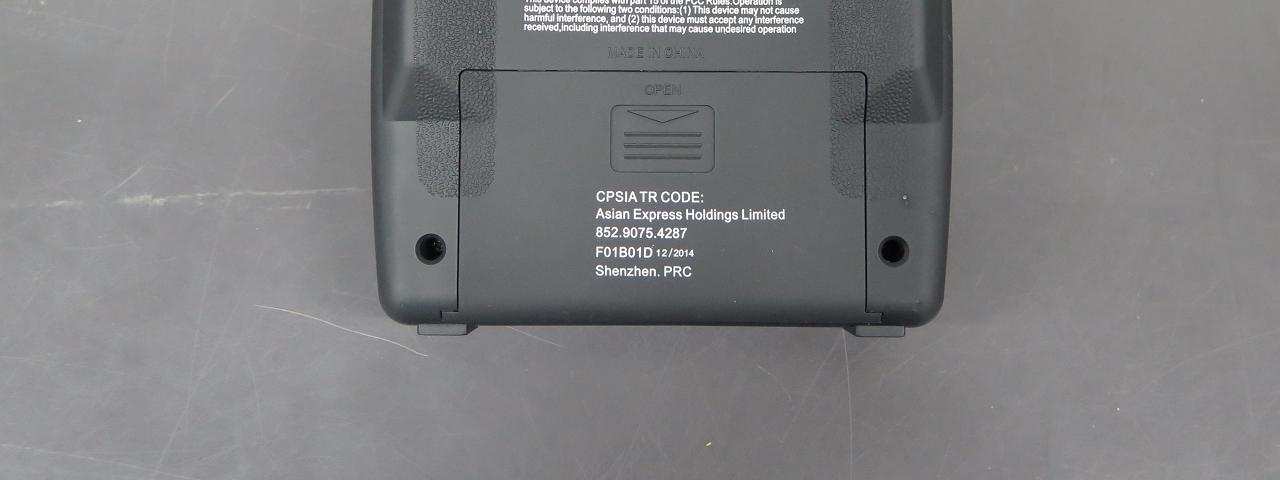

External Photo

16.5 mm 8 mm 21.3 mm 28.9 mm 11.2mm 4.2mm FCC ID : VLEPL1281-R Trade name: PROPELModel number: PL-1280

Internal Photo

TEST REPORT Report No. : AT0046034(6) Date : 20 Jul 2015 For and on behalf of CMA Industrial Development Foundation Limited Authorized Signature : Page 1 of 32 Mr. WONG Lap-pong, Andrew Manager Electrical Division FCC ID: VLEPL1281-T Application No. : LT021849(2) Applicant : Asian Express Holdings Limited 4F,-4, No.669 Jingping Rd., Zhonghe City, TaiPei county 235 Taiwan R.O.C, Taiwan Client : Asian Express Holdings Limited Room 1702, Sino Centre,582-592 Nathan Road, Mongkok, Kowloon, Hong Kong. Sample Description : One(1) item of submitted sample stated to be Sample Description Model No. Sonic HD Drone / HD Video Drone PL-1280 / PL-1281 / PL-1282 / PL-1283 / PL-1284 / PL-1285 / PL-1286 / PL-1287 / PL-1288 / PL-1289 Sample registration No. : RT024355-006, RT028844-001 Radio Frequency : 2405MHz – 2475 MHz Transceiver Rating : 6 x 1.5V AA size batteries No. of submitted sample : Four (4) set(s) Date Received : 20 May 2015, 19 Jun 2015 Test Period : 04 Jun 2015 to 07 Jul 2015. Test Requested : FCC Part 15 Certificate Test Method : 47 CFR Part 15 (10-1-14 Edition), ANSI C63.4 – 2009 Test Engineer : Mr. LEUNG Shu-kan, Ken Test Result : See attached sheet(s) from page 2 to 32. Conclusion : The submitted sample was found to comply with requirement of FCC Part 15 Subpart B and C. TEST REPORT Report No. : AT0046034(6) Date : 20 Jul 2015 Page 2 of 32 FCC ID: VLEPL1281-T Remark : All ten models are the same in circuitry and components; and therefore model PL- 1280 was chosen to be the representative of the test sample. The difference between the tested model and the declared model(s) is/are the Model no. and Color TEST REPORT Report No. : AT0046034(6) Date : 20 Jul 2015 Page 3 of 32 FCC ID: VLEPL1281-T Table of Contents 1 General Information ................................................................................................................................... 4 1.1 General Description ............................................................................................................................ 4 1.2 Location of the test site ....................................................................................................................... 5 1.3 List of measuring equipment............................................................................................................... 6 1.4 Measurement Uncertainty ................................................................................................................... 7 2 Description of the radiated emission test ................................................................................................... 8 2.1 Test Procedure .................................................................................................................................... 8 2.2 Test Result .......................................................................................................................................... 9 2.3 Radiated Emission Measurement Data ............................................................................................. 10 3 Description of the Line-conducted Test ................................................................................................... 14 3.1 Test Procedure .................................................................................................................................. 14 3.2 Test Result ........................................................................................................................................ 14 3.3 Graph and Table of Conducted Emission Measurement Data .......................................................... 14 4 Photograph ............................................................................................................................................... 15 4.1 Photographs of the Test Setup for Radiated Emission and Conducted Emission ............................. 15 4.2 Photographs of the External and Internal Configurations of the EUT .............................................. 15 5 Supplementary document ......................................................................................................................... 16 5.1 Bandwidth ......................................................................................................................................... 16 6 Appendices ............................................................................................................................................... 17 TEST REPORT Report No. : AT0046034(6) Date : 20 Jul 2015 Page 4 of 32 FCC ID: VLEPL1281-T 1 General Information 1.1 General Description The equipment under test (EUT) is a controller for Sonic HD Drone. The EUT is power by 6 x 1.5V AA size batteries. It operates at 2405MHz – 2475MHz. There are buttons and two joysticks. When the buttons are pressed or joysticks are moved, there are radio signals transmitting to receiver. The brief circuit description is listed as follows: - IC2 and its associated circuit act as RF module - IC3, IC4 and its associated circuit act as Power regulator - U1, U2 and its associated circuit act as RF module - RW2, POT2 and its associated circuit act as copter control - X1 and its associated circuit act as oscillator TEST REPORT Report No. : AT0046034(6) Date : 20 Jul 2015 Page 5 of 32 FCC ID: VLEPL1281-T 1.2 Location of the test site FCC Registered Test Site Number: 552221 Radiated emissions measurements are investigated and taken pursuant to the procedures of ANSI C63.4 – 2009. A Semi-Anechoic Chamber Testing Site is set up for investigation and located at: Ground Floor, Yan Hing Centre, 9 – 13 Wong Chuk Yeung Street, Fo Tan, Shatin, New Territories, Hong Kong. Conducted emissions measurements are investigated and also taken pursuant to the procedures of ANSI C63.4 – 2009. A shielded room is located at : Ground Floor, Yan Hing Centre, 9 – 13 Wong Chuk Yeung Street, Fo Tan, Shatin, New Territories, Hong Kong. TEST REPORT Report No. : AT…

Text truncated - open the document above for the full version.

TEST REPORT Report No. : AT0046034(6) Date : 20 Jul 2015 Tested by: Reviewed by: Mr. LEUNG Shu-kan, Ken Mr. WONG Lap-pong, Andrew Page 31 of 32 FCC ID: VLEPL1281-T A6. 20dB Bandwidth Plot Bandwidth 1 (2405MHz) Bandwidth 2 (2445MHz) TEST REPORT Report No. : AT0046034(6) Date : 20 Jul 2015 Tested by: Reviewed by: Mr. LEUNG Shu-kan, Ken Mr. WONG Lap-pong, Andrew Page 32 of 32 FCC ID: VLEPL1281-T A6. 20dB Bandwidth Plot Bandwidth 3 (2475MHz) ***** End of Report *****

TEST REPORT Report No. : AT0046034(6) Date : 20 Jul 2015 Tested by: Reviewed by: Mr. LEUNG Shu-kan, Ken Mr. WONG Lap-pong, Andrew Page 29 of 32 FCC ID: VLEPL1281-T A5. Band Edge Lower edge (Peak measurement) Lower edge (Average measurement) TEST REPORT Report No. : AT0046034(6) Date : 20 Jul 2015 Tested by: Reviewed by: Mr. LEUNG Shu-kan, Ken Mr. WONG Lap-pong, Andrew Page 30 of 32 FCC ID: VLEPL1281-T A5. Band Edge Higher edge (Peak measurement) Higher edge (Average measurement)

Test Setup Photo Front view (30MHz – 1GHz) Rear view (30MHz – 1GHz) Front view (9kHz – 30MHz) Rear view (9kHz – 30MHz) Front view (1GHz – 25GHz) Rear view (1GHz – 25GHz)
