UNDERSTANDING TRIM ADJUSTMENTS Turn Left/Right Trim • If your car cannot run straightly, you may need to utilize the LEFT AND RIGHT TRIM buttons. • From time to time you may have to adjust the LEFT AND RIGHT TRIM to left and right to ensure the car will fun straight and respond accurately to control commands. Forward/Backward Trim • If your car is moving forwards or backwards automatically, you may need to adjust the FORWARD/BACKWARD TRIM buttons. • From time to time you may have to adjust the FORWARD/BACKWARD TRIM to ensure the car will stay and respond accurately to your commands. WARNING DO NOT USE YOUR URBAN RENEGADE IN FOUL WEATHER! TROUBLESHOOTING Before sending your car in for repair, please check for a solution below. Problem Car will not move Car does not respond properly to remote control Car loses connection to remote control Car battery has fully charged, but slower than normal Possible Cause(s) Weak batteries; no batteries Car and remote not sync properly Another RC car may be transmitting on the same radio frequency Using car in a small enclosed area Using car indoors Low batteries in Transmitter or Vehicle Driving car for too long at high speeds, causing motor to overheat Solution Install new batteries in remote control and charging car battery Refer to sync section to re sync your car and remote Move to a new location where no other RC cars are present Move outdoors to a large open area Install new batteries in remote control or charging your car Let car sit still for 10-15 minutes Thank you for choosing Propel RC TM Urban Renegade TM . With proper care, your new Urban Renegade will provide you with many hours of enjoyment. Please read this instruction manual completely before using the product for the first time, and then keep this manual in a handy place for future reference. Colors and styles may slightly vary. 14 SAFETY WARNINGS! • Improper use of batteries may lead to overheating, breakage or leaking. - Do not mix old and new batteries. - Do not mix different battery brands. - Install batteries with correct polarity. The flat side (negative terminal) of the battery should rest against the spring. - Remove dead batteries immediately. - Avoid liquids, which can short circuit the batteries. - The car or remote will become unresponsive when batteries are low, at which point you should replace all batteries with new ones. - Remove the batteries if you will not use the car for a long time. • Avoid using near furniture or glass to prevent damage to these objects. • Do not use car on roads where real cars are in use. Serious physical harm or death may result. • Do not use car in areas crowded with people as this may result in harm to car and/or people. Choose a safe location free of people and real cars. • Do not use car during a storm or when lightning or thunder are present. • Do not use in a wet , sandy or muddy environment as car may become damaged. • Do not bend the antenna. It may break, exposing sharp metal that can cause injury. • Do not pull on any wires that are part of the car. Such action may cause the wires to break and the car to malfunction. • Keep fingers, hair and clothes away from the car’s spinning tires. Failure to do so may result in physical injury. • Never aim the car at other people. • Do not throw the car or purposely hit it with any object. • Store car in a cool environment, away from high-temperature sources such as fires, stoves, radiators, etc. • This car has no user-serviceable parts. Do not attempt to modify components or circuit board. FCC Part 15 B Notice CAUTION: Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: • Reorient or relocate the receiving antenna. • Increase the separation between the equipment and receiver. • Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. • Consult the dealer or experienced radio/TV technician for help. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions : (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. URBAN RENEGADE High Speed Racer INSTRUCTION MANUAL Made in China Conforms to safety requirements of ASTM, CPSIA and FCC. PROPEL RC™ and Urban Renegade TM are trademarks of Rooftop Brands. 15760 W Hardy Rd Suite 400 Houston Texas 77060 tel: 949.566.9573 © 2013 Rooftop Brands™. All Rights Reserved. www.propelrc.com . SET-UP 1. Installing the battery into the car when the battery fully charged. Pull off the battery cover lock on the bottom of the car (see diagram B). Connect the battery power plug (the 3-wire plug) into the car socket. The battery plug and the car’s socket fit only one way. Dot not force them (see illustration C). then lock the battery cover properly. 2. Installing the batteries into the remote controller. Open the battery cover on the bottom of the remote control (see diagram D). Insert 4 “AA” battery (not included) into the battery component, ensuring to match polarity and replace the battery cover…

Text truncated - open the document above for the full version.

Revision: 080408A Power of Attorney (DATE)July 25, 2013 To whom it may concern: We, the undersigned, Asian Express Holding Limietd, hereby authorize Bureau Veritas (Hong Kong) Limited, Mr. Keith Yeung to act on our behalf in all matters relating to all processes required in the FCC part 15 approval and any communication needed with the national authority. Any and all acts carried out by Bureau Veritas (Hong Kong) Limited, Mr. Keith Yeung on our behalf shall have the same effects as acts of our own. If you have any questions regarding the authorization, please do not hesitate to contact us. Thank you! Sincerely yours, (Sign the name and date) ------------------------------------------------------------------- Name: Bob Cheng Title: Sourcing Manager Tel.: 0755-28369894 Fax: 61675805-2633 Mail: [email protected]

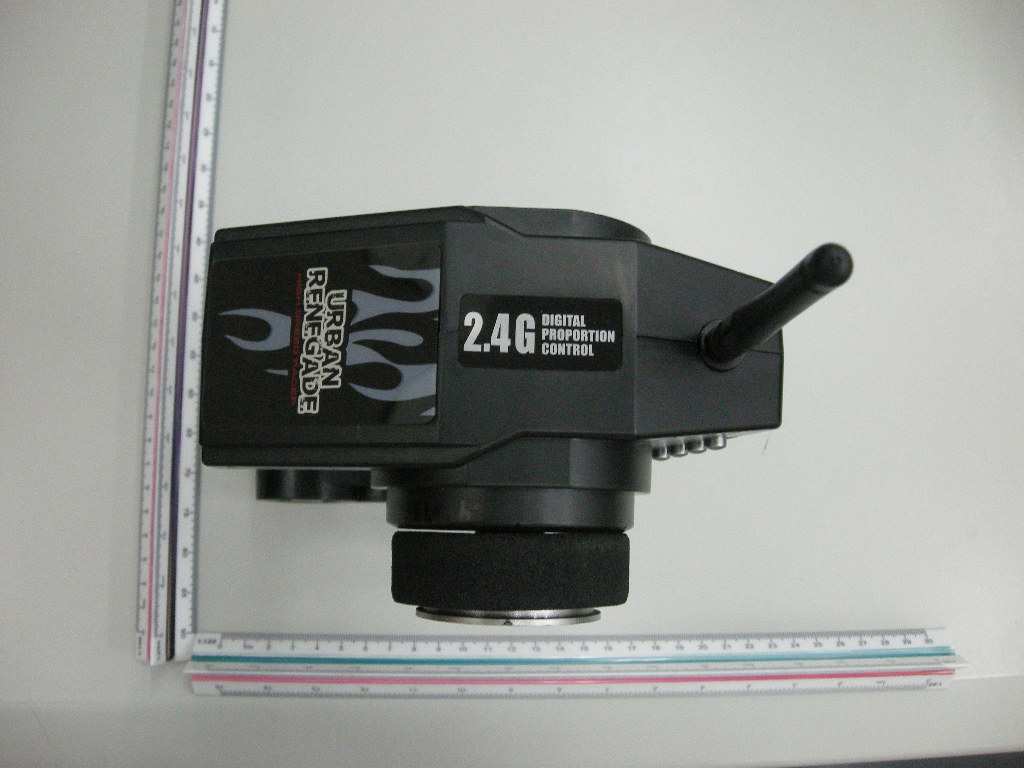

Transmitter： Remark: We will print the FCC ID on the transmitter by Pad Printing.
