VLPMW101AMWireless Media Player

ibiza Rhapsody™ Rhapsody ® Owner's Manual Version 1.0 Revision Date: September 22nd, 2007 © Copyright 2007 Haier America Trading LLC. All rights reserved. Information in this documentation has been ca refully checked and is believed to be accura te. However, this information is subje ct to change without notice, and Haier assumes no responsibility for any inaccuracies that may be contained in this documentation. In no event will Haier be lia ble for direct, indirect, special, incidental, or consequential damages resulting from any defect or omission in this technical note, even if advised of the possi bility of such damages. In the interest of continued product development, Haier reserves the right to make improvements to this documentation and the p roducts it describes at any time, without notice or obligation. The trademarks, logos, and service marks ("Ma rks") displayed in this document are the property of Haier or other third parties. You are not permitted to use the Marks without the prior written consent of Haier or such thir d party which may own the Marks. “ibiza” and the ibiza logo are tr ademarks or registered trademarks of Haier America Trading LLC. Rhapsody ® and the Rhapsody logo are registered trademarks of RealNetworks, Inc. The Bluetooth ® word mark and logos are owned by the Bluetooth SIG, Inc. and any use of such marks by Varia Mobile, LLC. is under license. Windows XP, Windows Vista, Microsoft, Windows, and Windows Media are either registered trademar ks or trademark of Microsoft Corporation in the United States and/or other countrie s. "America Online", "AOL", and the AOL triangle logo are trademarks or regi stered trademarks of America Online, Inc. Published by Haier America Trading LLC., 1356 Broadway, New York, NY 10018. Phone: (212) 594-3330. Fax2125943311 Printed in China iii 1 The Basi cs ..............................................................................1 Power Modes: On, Idle, and Off .................................................1 Operating the Controls...............................................................2 A Tour of ibiza .............................................................................2 Touchpad Tips and Tricks .........................................................9 Text-Ent ry ..................................................................................10 2 Activating Your Rhap sody Membership ............................13 3 Installing So ftware ...............................................................14 4 Importing Media ...................................................................15 Importing Music (R ipping CDs) ...............................................15 Transferring Your Music Library to ibiza ................................16 Adding Media to the Rhapsody Li brary ..................................17 5 Playing Media....................................................................... 18 Playing Mu sic ........................................................................... 18 Playing Vi deos.......................................................................... 21 Playing Pod casts ...................................................................... 22 6 Listening to FM Radio ......................................................... 24 Playing the Radio ..................................................................... 24 7 Rhapsody Ch annels ............................................................ 28 Accessing Ch annels ................................................................ 28 Listening to Channels .............................................................. 28 Adding Ch annels ...................................................................... 29 8 Connecting to th e Intern et .................................................. 30 Enabling Wi reless .................................................................... 30 Using the Conn ect Butto n ....................................................... 31 Contents iv Familiar Ne tworks .....................................................................32 Wireless Se curity ......................................................................34 9 Downloading Media..............................................................38 Downloading Music ..................................................................38 Downloading Podcast s ............................................................42 10 Copying Media......................................................................46 Copying Music from CDs ......................................................... 46 Copying Videos fr om Your PC.................................................47 11 Playlists.................................................................................48 12 Downloading and Viewing Photos......................................53 Downloading Photos ................................................................53 Viewing Photos .........................................................................54 13 Airskins .................................................................................55 About Airskins .......................................................................... 55 Changing Your Airski n............................................................. 56 Downloading Ne w Airski ns ..................................................... 56 14 Using the We b Brow ser....................................................... 57 15 Listening via Bluetooth ® ..................................................... 58 Enabling Bluetooth .................................................................. 58 Connecting to a New Bluetooth Device .................................. 59 Connecting to Fa miliar D evice ................................................ 59 Disabling Blue tooth.................................................................. 60 16 Troubleshooting ...................................................…

Text truncated - open the document above for the full version.

Non-Conformities FCC ID: VLPMW101AM (CKC CS Ref # E07-000087-FCC-01) The items listed below represent requests for infor mation following review of this application for cer tification under United States (FCC) regulations. . Further question may arise pending review of responses to t hese items. OK # Non-Conformity or Comment Submitted Response Respondent / Date of Response X 1 The FCC logo is a compliance mark reserved for Declaration of Conformity. Please remove this mark as it does not apply to the Certification of your equipment. Please provide updated labels. A revised label has been uploaded CKC Labs / 10/26/ 07 X 2 In the test report on page 5, the frequency ran ge and number of channels listed for the equipment appears to be only for one mode. Please consider revising this section to include all operational mo des of the equipment. No response necessary to this item. Report updated CKC Labs 11/8/07 X 3 On page 6 of the test report, there is no perip heral equipment listed for testing. This device has a USB port for connection to a host computer. Please clarify why testing was not performed with a representative host system. Please clarify how testing performed repre sents the worst case Test laboratory states that the radio equipment is disabled during USB transfer mode. Customer states this fact and clarified that the plug charger is only able to be used with the transmitter during operation; that a USB computer connection triggers the transmitter to be disabled by the software CKC Labs 11/8/07 X 4 The equipment class listed for this equipment i s DSS, however the equipment was tested under DSS (2402-2488) and DTS (2412-2462 ) rules. Please confirm proper equipment class. Please list both DSS (2402-2488) and DTS (2412-2462) on the application form CKC Labs / 10/26/07 RF exposure concerns X 5 The first page of the RF exposure report lists compliance to FCC part 15E, please clarify test specification employed. A revised SAR report has been uploaded. CKC Labs / 10/26/07 X 6 It is unclear from the documentation supplied w hether this equipment has simultaneous transmission of both the 802.11 and Bl uetooth device. Please provided an updated operational description which c larifies this. Additionally, please confirm whether simultaneous t ransmission was investigated during SAR testing. The SAR report see ms to indicate testing only on the 802.11 equipment with the Bluetooth tur ned off. Please explain. A revised operational description has been uploaded. CKC Labs / 10/26/07 X 7 Please confirm SAR test setup; RF Exposure repo rt indicates testing with a belt clip, however the test setup photos indicate t esting without accessories. The exposure reports incorrectly indicated that the device uses a belt CKC Labs / 10/26/07 Please explain. clip. Corrected reports have been uploaded. X 8 Please confirm whether belt clip contains metal . No belt clip has been approved for use with this device. CKC Labs / 10/26/07 X 9 Please confirm whether there are any other acce ssories approved for use with this product, eg lanyards, pouches, etc. The only accessory currently approved is a silicone rubber cover which ships with the device. CKC Labs / 10/26/07

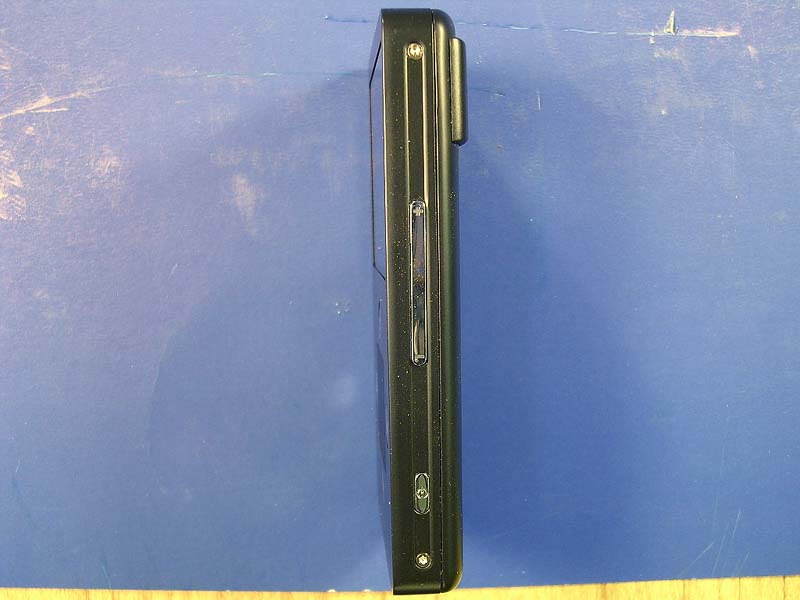

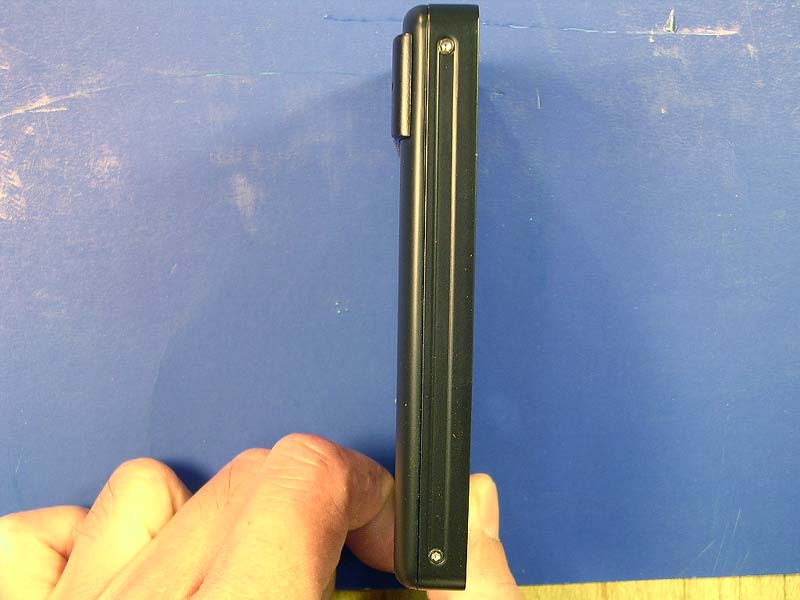

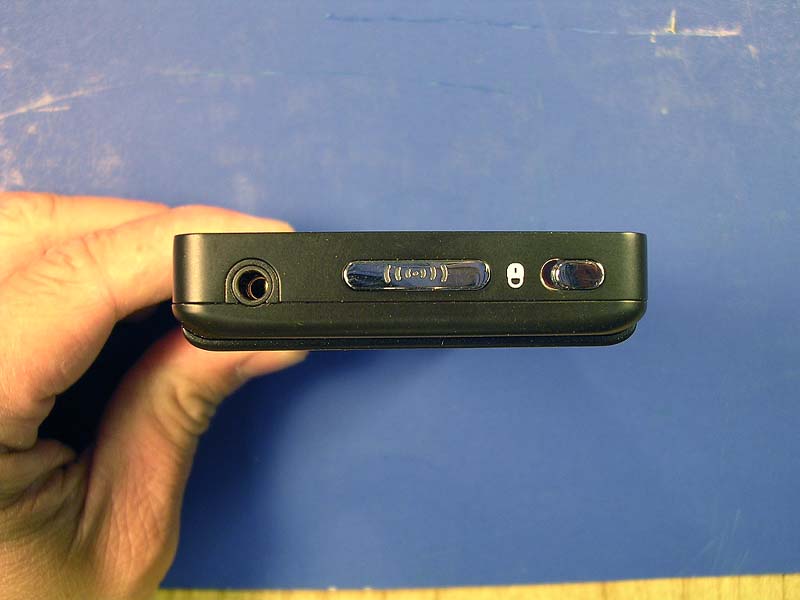

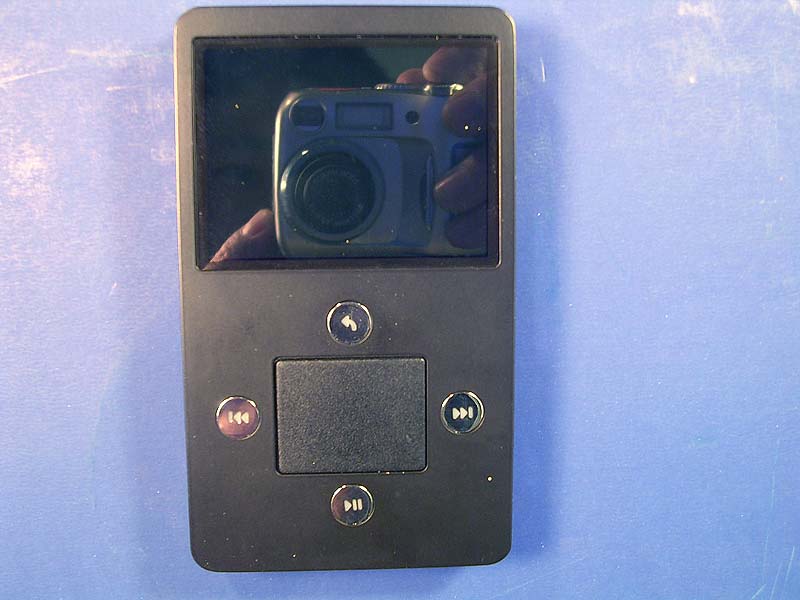

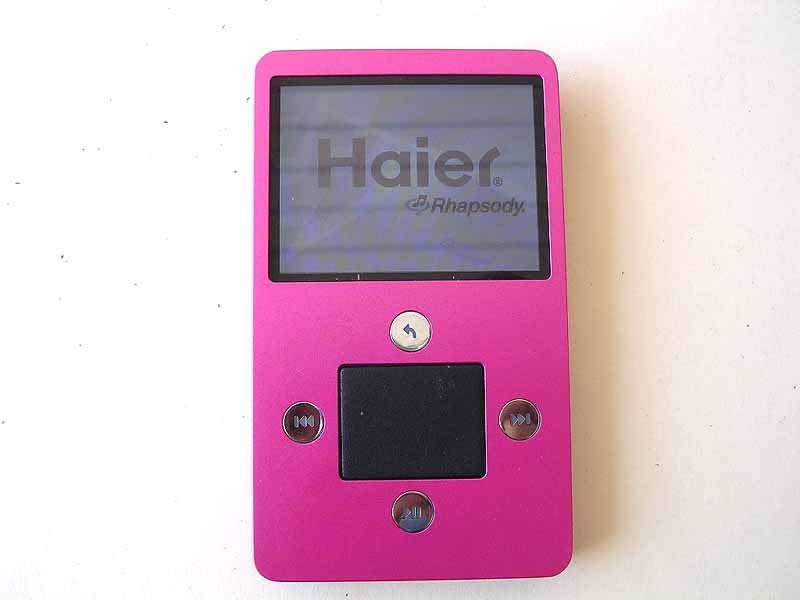

EUT front EUT back EUT top EUT bottom EUT side 1 EUT side 2

Sample label – showing rear cover of device.

EUT exposed EUT exposed 2 EUT hard drive removed PCB back_scrollpad PCB back_scrollpad removed PCB front pcb_front1 pcb_front2 pcb_front3 pcb_front4 pcb_front5 pcb_front6 pcb_front7 pcb_back1 pcb_back2 pcb_back3 pcb_back4 pcb_back5 pcb_back6 802_11b_g antenna blue tooth antenna anteanna front close up antenna back close up

© 2007 RF Exposure Lab, LLC This report shall not be reproduced except in full without the written approval of RF Exposure Lab, LLC. 2867 Progress Place, Suite 4D • Escondido, CA 92029 • U.S.A. TEL (760) 737-3131 • FAX (760) 737-9131 http://www.rfexposurelab.com CERTIFICATE OF COMPLIANCE SAR EVALUATION Haier America Trading, LLC Dates of Test: August 29-30, 2007 The Haier Building Test Report Number: SAR.20070805 1356 Broadway Revision B New York, NY 10018 This wireless mobile and/or portable device has been shown to be compliant for localized specific absorption rate (SAR) for uncontrolled environment/general exposure limits specified in ANSI/IEEE Std. C95.1-1999 and had been tested in accordance with the measurement procedures specified in IEEE 1528-2003, OET Bulletin 65 Supp. C, RSS-102 and Safety Code 6 (See test report). I attest to the accuracy of the data. All measurements were performed by myself or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualifications of all persons taking them. RF Exposure Lab, LLC certifies that no party to this application has been denied FCC benefits pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 853(a). Jay M. Moulton Vice President Certificate # 2387.01 FCC ID: VLPMW101AM IC Certificate: 7333A-MW101AM Model(s): MW101AM WLAN Module: Murata Model: LBWA18HLCZ Bluetooth Module: Murata Model: LBMA465HG3-A06 Test Sample: Pre-Production same as Production Serial No.: 00000156 Equipment Type: Wireless Embedded Media Player Classification: Portable Transmitter Next to Body TX Frequency Range: 2412 – 2462 MHz Frequency Tolerance: ± 25 ppm Maximum RF Output: 2450 MHz – 14.5 dBm Peak Conducted Signal Modulation: DSSS, OFDM Antenna Type (Length): WLAN – Internal Antenna Locate on Right Side by LCD Battery: Xwoda Model: 300-048 Application Type: Certification FCC Rule Parts: Part 15C Industry Canada:RSS-102 FCC ID: VLPMW101AM © 2007 RF Exposure Lab, LLC Page 2 of 89 This report shall not be reproduced except in full without the written approval of RF Exposure Lab, LLC. Table of Contents 1. Introduction ...........................................................................................................................3 SAR Definition [5]......................................................................................................................3 2. SAR Measurement Setup .....................................................................................................4 Robotic System .........................................................................................................................4 System Hardware .....................................................................................................................4 System Description ...................................................................................................................4 E-Field Probe ............................................................................................................................5 3. Robot Specifications .............................................................................................................7 4. Probe and Dipole Calibration ................................................................................................8 5. Phantom & Simulating Tissue Specifications........................................................................9 SAM Phantom ...........................................................................................................................9 Brain & Muscle Simulating Mixture Characterization ................................................................9 Device Holder ...........................................................................................................................9 6. Definition of Reference Points.............................................................................................10 Ear Reference Point................................................................................................................10 Device Reference Points ........................................................................................................10 7. Test Configuration Positions ...............................................................................................11 Positioning for Cheek/Touch [5] ..............................................................................................11 Positioning for Ear / 15 ̊ Tilt [5]................................................................................................12 Body Worn Configurations ......................................................................................................13 8. ANSI/IEEE C95.1 – 1999 RF Exposure Limits [2]...............................................................14 Uncontrolled Environment.......................................................................................................14 Controlled Environment .......................................................................................................... 14 9. Measurement Uncertainty ...................................................................................................15 10. System Validation ........................................................................................................... 16 Tissue Verification...................................................................................................................16 Test System Verification ......................................................................................................... 16 11. SAR Test Data Summary ................................................................................................17 Procedures Used To Establish Test Signal.........................................................................…

Text truncated - open the document above for the full version.

Page 1 of 170 Report No: FC07-071A ADDENDUM TO HAIER AMERICA LLC TEST REPORT FC07-071 FOR THE WIFI AND BLUETOOTH ENABLED MEDIA PLAYER, MW101AM FCC PART 15 SUBPART C SECTIONS 15.247, 15.207 & 15.209, SUBPART B SECTIONS 15.107 & 15.109, CLASS B AND RSS-210 ISSUE 7 TESTING DATE OF ISSUE: NOVEMBER 5, 2007 PREPARED FOR: Haier America Trading Company, LLC Haier Building 1356 Broadway New York, New York 10018 PREPARED BY: Mary Ellen Clayton CKC Laboratories, Inc. 5046 Sierra Pines Drive Mariposa, CA 95338 P.O. No.: W.O. No.: 4971 86173 Date of test: August 27 - November 1, 2007 Report No.: FC07-071A This report contains a total of 170 pages and may be reproduced in full only. Partial reproduction may only be done with the written consent of CKC Laboratories, Inc. The results in this report apply only to the items tested, as identified herein. Page 2 of 170 Report No: FC07-071A TABLE OF CONTENTS Administrative Information .............................................................................................3 Approvals .........................................................................................................................3 FCC to Canada Standard Correlation Matrix ...................................................................4 Conditions During Testing ...............................................................................................4 FCC 15.31(m) Number Of Channels ...............................................................................5 FCC 15.33(a) Frequency Ranges Tested .........................................................................5 FCC 15.203 Antenna Requirements ................................................................................5 EUT Operating Frequency ...............................................................................................5 Equipment Under Test (EUT) Description ......................................................................6 Equipment Under Test .....................................................................................................6 Peripheral Devices ...........................................................................................................6 Report of Emissions Measurements.................................................................................7 Testing Parameters ...........................................................................................................7 FCC 15.107 – AC Conducted Emissions .........................................................................9 FCC 15.109 – Radiated Emissions ..................................................................................44 FCC 15.207 – AC Conducted Emissions .........................................................................65 FCC 15.209/15.247(d) – Antenna Conducted Spurious Emissions .................................94 FCC 15.209/15.247(d) – OATS Radiated Spurious Emissions .......................................97 FCC Part 15.247(a)(1) Channel Frequency Separation ...................................................129 FCC Part 15.247(a)(1) Occupied Bandwidth...................................................................131 FCC Part 15.247(a)(1) 20dB Bandwidth .........................................................................134 FCC Part 15.247(a)(1)(iii) Average Time of Occupancy ................................................138 FCC Part 15.247(a)(2) –6dB Bandwidth .........................................................................147 FCC Part 15.247(b)(3) RF Power Output ........................................................................151 FCC Part 15.247(e) Power Spectral Density ...................................................................155 Bandedge..........................................................................................................................160 RSS-210 99% Bandwidth ................................................................................................165 Page 3 of 170 Report No: FC07-071A ADMINISTRATIVE INFORMATION DATE OF TEST: August 27 – November 1, 2007 DATE OF RECEIPT: August 27, 2007 REPRESENTATIVE: Chris Doughty, Synapse Product Development, LLC MANUFACTURER: Haier America Trading Company, LLC Haier Building 1356 Broadway New York, New York 10018 TEST LOCATION: CKC Laboratories, Inc. 110 Olinda Place Brea, CA 92823 22116 23 rd Drive S.E. Suite A Bothell, WA 98021-4412 TEST METHOD: ANSI C63.4 (2003), RSS-210 Issue 7 and RSS GEN Issue 2 PURPOSE OF TEST: Original Report: To perform the testing of the WiFi and Bluetooth Enabled Media Player, MW101AM with the requirements for FCC Part 15 Subpart C Sections 15.247, 15.207 & 15.209, Subpart B Sections 15.107 & 15.109 Class B and RSS-210 devices. Addendum A: To clarify the frequency ranges and number of channels on page 5 with no new testing and to add FCC 15.107 and 15.109 data with new testing to conform to ANSI C63.4 test setup. APPROVALS Steve Behm, Director of Engineering Services QUALITY ASSURANCE: TEST PERSONNEL: Joyce Walker, Quality Assurance Administrative Manager Eddie Wong, EMC Engineer Katie Molina, Senior EMC Engineer/Lab Manager Ryan Rutledge, EMC Test Technologist Page 4 of 170 Report No: FC07-071A FCC TO CANADA STANDARD CORRELATION MATRIX Canadian Standard Canadian Section FCC Standard FCC Section Test Description RSS GEN 7.1.4 47CFR 15.203 Antenna Connector Requirements RSS GEN 7.2.1 47CFR 15.35(c) Pulsed Operation RSS GEN 7.2.2 47CFR 15.207 AC Mains Conducted Emissions Requirement RSS 210 2.1 47CFR 15.215(c) Frequency Stability Recommendation RSS 210 2.2 47CFR 15.205 Restricted Bands of Operation RSS 210 2.6 47CFR 15.209 General Radiated Emissions Requirement RSS 210 A8.1 47CFR 15.247(a)(1) Definition of FHSS RSS 210 A8.1 47CFR 15.247(h) Incorporation of Intelligence RSS 210 A8.1(1) 47CFR 15.247(a)(1) Minimum Channel Bandwidth RSS 210 A8.1(1) 47CFR 15.247(g) Hopping Sequence RSS 210 A8.1(2) 47CFR 15.247(a)(1) Carrier Separati…

Text truncated - open the document above for the full version.

Page 145 of 170 Report No: FC07-071A Page 146 of 170 Report No: FC07-071A Average events occurred in every 30 seconds (44 + 48 + 57 +60 +47)/ 5 =51.2 events/ 30sec 51.2 / 30 = 1.7 events per second. Each Events = 2.5 msec 79 channels x 0.4 sec = 31.6 secs. 31.6 sec x 1.7 event/sec = 53.7 events occurred in 31.6 second, Total on time = 53.7 event x 2.5 ms/event = 134.25 mS = 0.13 sec. The limit is: The average time of occupancy on any channel shall not be greater than 0.4 seconds within a period of 0.4 seconds multiplied by the number of hopping channels employed Page 147 of 170 Report No: FC07-071A FCC Part 15.247(a)(2) –6dB Bandwidth Test Equipment Equipment Asset # Manufacturer Model Serial # Cal Date Cal Due Spectrum Analyzer 02672 Agilent E4446A US44300438 010307 010309 24” SMA Cable (White) P05183 Pasterneck 35591-48 1-40GHz_white 011107 011109 Test Conditions: The EUT is placed on the test bench, USB port is connected to an AC power supply. The EUT is operating on Max power. RF emission profile evaluated at the internal antenna connector. Test Setup Photos Page 148 of 170 Report No: FC07-071A Test Plots FCC 15.247(a)(2) -6dB BANDWIDTH - 802.11b LOW FCC 15.247(a)(2) -6dB BANDWIDTH - 802.11b MID Page 149 of 170 Report No: FC07-071A FCC 15.247(a)(2) -6dB BANDWIDTH - 802.11b HIGH FCC 15.247(a)(2) -6dB BANDWIDTH - 802.11g LOW Page 150 of 170 Report No: FC07-071A FCC 15.247(a)(2) -6dB BANDWIDTH - 802.11g MID FCC 15.247(a)(2) -6dB BANDWIDTH - 802.11g HIGH Page 151 of 170 Report No: FC07-071A FCC Part 15.247(b)(3) RF Power Output Test Equipment Equipment Asset # Manufacturer Model Serial # Cal Date Cal Due Spectrum Analyzer 02672 Agilent E4446A US44300438 010307 010309 24” SMA Cable (White) P05183 Pasterneck 35591-48 1-40GHz_white 011107 011109 Test Conditions: The EUT is placed on the test bench, USB port is connected to an AC power supply. The EUT is operating on Max power. RF emission profile evaluated at the internal antenna connector. Test Setup Photos Bluetooth: FHSS 15.247 (b) The maximum peak output power of the intentional radiator shall not exceed the following: (1) For frequency hopping systems operating in the 2400-2483.5 MHz band employing at least 75 non-overlapping hopping channels, and all frequency hopping systems in the 5725-5850 MHz band: 1 watt Setup: The EUT is placed on the test bench, RF output power is evaluated at the internal antenna connector, test method IN ACCORDANCE WITH DA00705, Peak Output power. Power setting at 63 (max), RBW=VBW=3MHz. Page 152 of 170 Report No: FC07-071A Frequency Peak power Peak Power 2402 MHz 3.9 dBm 0.002455 W 2441 MHz 3.9 dBm 0.002455 W 2480 MHz 3.5 dBm 0.002239 W 15.31(e) The supply voltage of the intentional radiator was varied between 85% and 115% of the nominal rated supply voltage. Result: No deviation of output were detected. Test Equipment Equipment Asset # Manufacturer Model Serial # Cal Date Cal Due Spectrum Analyzer 02672 Agilent E4446A US44300438 010307 010309 24” SMA Cable (White) P05183 Pasterneck 35591-48 1-40GHz_white 011107 011109 Programmable Power Source 01695/ 01696 Pacific Power 345AMX / UPC32 250 / 245 051507 051509 RF OUTPUT POWER - BLUETOOTH 2402MHz Page 153 of 170 Report No: FC07-071A RF OUTPUT POWER - BLUETOOTH 2441MHz RF OUTPUT POWER - BLUETOOTH 2480MHz Page 154 of 170 Report No: FC07-071A 802.11 b /g: DSSS 15.247(3) For systems using digital modulation in the 902-928 MHz, 2400-2483.5 MHz, and 5725-5850 MHz bands: 1 Watt. Setup: The EUT is placed on the test bench, RF output power is evaluated at the internal antenna connector, test method in accordance with method 3 of KDB558074 Power option 2, method 3.Power setting = 20 (max). Modulation: 802.11b (11mbps QPSK) Measured -26dB BW = 17.5 MHz BW correction = 10 Log (17.5/1) = 12.4 dB Measured at RBW =1 MHz add 13.8 dB correction., Sample detector turned on, 50/601 point is < 0.5 RBW Frequency Measured power + BW correction Peak power Peak power 2412 MHz 2.0 dBm 12.4 14.4 dBm 0.02754 W 2437 MHz 1.1 dBm 12.4 13.5 dBm 0.02238 W 2462 MHz 0.6 dBm 12.4 13.0 dBm 0.01995 W Modulation: 802.11g ( 54 mbps, OFDM-64QAM ) Measured 26dB BW= 24 MHz. BW correction = 10 Log (24/1) = 13.8 db Measured at RBW =1 MHz add 13.8 dB correction., Sample detector turned on, 50/601 point is < 0.5 RBW Frequency Measured power + BW correction Peak power Peak power 2412 MHz -3.8 dBm 13.8 10.0 dBm 0.01000 W 2437 MHz -3.1dBm 13.8 10.7 dBm 0.01175 W 2462 MHz -3.1 dBm 13.8 10.7 dBm 0.01175 W 15.31(e) The supply voltage of the intentional radiator was varied between 85% and 115% of the nominal rated supply voltage. Result: No deviation of output were detected. Test Equipment Equipment Asset # Manufacturer Model Serial # Cal Date Cal Due Spectrum Analyzer 02672 Agilent E4446A US44300438 010307 010309 24” SMA Cable (White) P05183 Pasterneck 35591-48 1-40GHz_white 011107 011109 Programmable Power Source 01695/ 01696 Pacific Power 345AMX / UPC32 250 / 245 051507 051509 Page 155 of 170 Report No: FC07-071A FCC Part 15.247(e) Power Spectral Density Test Equipment Equipment Asset # Manufacturer Model Serial # Cal Date Cal Due Spectrum Analyzer 02672 Agilent E4446A US44300438 010307 010309 24” SMA Cable (White) P05183 Pasterneck 35591-48 1-40GHz_white 011107 011109 Test Conditions: The EUT is placed on the test bench, USB port is connected to an AC power supply. The EUT is operating on Max power. RF emission profile evaluated at the internal antenna connector. Test Setup Photos Page 156 of 170 Report No: FC07-071A Test Plots POWER SPECTRAL DENSITY - 802.11b LOW - 11.6dBm POWER SPECTRAL DENSITY - 802.11b LOW - SPANNED Page 157 of 170 Report No: FC07-071A POWER SPECTRAL DENSITY - 802.11b MIDDLE - 13.5dBm POWER SPECTRAL DENSITY - 802.11b HIGH - 12.5dBm Page 158 of 170 Report No: FC07-071A POWER SPECTRAL DENSITY - 802.11g LOW - 15dBm POWER SPECTRAL DENSITY - 802.11g LOW - 15dBm SPANNED Page 159 of 170 Report No: FC07-071A POWER SPECTRAL DENSITY - 802.11g MIDDLE - 14.4dBm POWER SPECTRAL DENSITY - 802.11g HIGH …

Text truncated - open the document above for the full version.

Page 161 of 170 Report No: FC07-071A Test Plots BANDEDGE PLOT - 802.11g LOW Page 162 of 170 Report No: FC07-071A BANDEDGE PLOT - 802.11g HIGH BANDEDGE PLOT - 802.11b LOW Page 163 of 170 Report No: FC07-071A BANDEDGE PLOT - 802.11b HIGH BANDEDGE PLOT - BLUETOOTH LOW Page 164 of 170 Report No: FC07-071A BANDEDGE PLOT - BLUETOOTH HIGH Page 165 of 170 Report No: FC07-071A RSS-210 99% Bandwidth Test Equipment Equipment Asset # Manufacturer Model Serial # Cal Date Cal Due Spectrum Analyzer 02672 Agilent E4446A US44300438 010307 010309 24” SMA Cable (White) P05183 Pasterneck 35591-48 1-40GHz_white 011107 011109 Test Conditions: The EUT is placed on the test bench, USB port is connected to an AC power supply. The EUT is operating on Max power. RF emission profile evaluated at the internal antenna connector. Test Setup Photos Page 166 of 170 Report No: FC07-071A Test Plots RSS-210 99% BANDWIDTH - 802.11g LOW - 16.4MHz RSS-210 99% BANDWIDTH - 802.11g MIDDLE - 16.5MHz Page 167 of 170 Report No: FC07-071A RSS-210 99% BANDWIDTH - 802.11g HIGH - 16.5MHz RSS-210 99% BANDWIDTH - 802.11b LOW - 13.6MHz Page 168 of 170 Report No: FC07-071A RSS-210 99% BANDWIDTH - 802.11b MIDDLE - 13.5MHz RSS-210 99% BANDWIDTH - 802.11b HIGH - 13.6MHz Page 169 of 170 Report No: FC07-071A RSS-210 99% BANDWIDTH - BLUETOOTH LOW - 852kHz RSS-210 99% BANDWIDTH - BLUETOOTH MIDDLE - 847kHz Page 170 of 170 Report No: FC07-071A RSS-210 99% BANDWIDTH - BLUETOOTH HIGH - 847kHz

PHOTOGRAPH SHOWING MAINS CONDUCTED EMISSIONS PHOTOGRAPH SHOWING RADIATED EMISSIONS PHOTOGRAPH SHOWING DIRECT CONNECT TEST SETUP
