Dear Lucy, Sorry for your trboule agagin, and please see the revised test report. Thank you.. Best Regards, Amanda Hi Seven, Please address following issues. Q#1: The provided block diagram is not enough. Please provide the electrical block diagram, showing the frequency of all oscillators in the device per Part 21033 specified. Ans: Please have the block diagram. Q#2: Label and theory of operation indicate 4 frequency bands as 429MHz, 434MHz, 439MHz and 444MHz and user manual also indicates user can select these 4 transmit frequency bands by DP switch. Looking into the test report, only a single frequency at 439MHz was investigated. Please provide additional L and H channels test result to demonstrate the compliance. Ans: Sorry for your trouble, this device has 4 frequency bands, and we had re-test Low and High channel, please see the revised test report. (Page 3,6,11,16,22-27 had been revised.) Q#3: Please provide more information about the function of this product. Moreover, according to operational description, this transmitter is used to transmit data. Per 15.231, please confirm a control signal has be sent with data transmitting. Ans:Please have the user manual. Q#4: Test report indicated the test were performed in accordance with ANSI C63.4 (2001). Please revise to version 2003 since it's the current version FCC request. Ans: The test report had been revised to version 2003, please see the page 5. Q#5: The limit of fundamental and harmonics of radiated emission indicates in page 21 are not correct. The formulas for calculating the maximum permitted fundamental field strengths for the band 260-470 MHz, uV/m at 3 meters = 41.6667(439.4) - 7083.3333. Intentional radiators operating under the provisions of this Section shall demonstrate compliance with the limits on the field strength of emissions, as shown in the 15.231(b), based on the average value of the measured emissions. Also, be noted that the limit per 15.231(b), the maximum permitted unwanted emission level is 20 dB below the maximum permitted fundamental level. Please have a check and revise accordingly. <[email protected]> 2007/09/06 08:28 AM <[email protected]> <[email protected]> Ans: The limit of fundamental and harmonics of radiated emission indicates in page 22 had been revised. Q#6: Are there any automatic transmissions or this only transmit when a button is pressed? Ans: Yes, It only transmit when a button is pressed. Best Regards, Lucy The items indicated above must be submitted before processing can continue on the above referenced application. Failure to provide the requested information within 30 days of the original e-mail date may result in application dismissal and forfeiture of the filing fee. Also, please note that partial responses increase processing time and should not be submitted. Any questions about the content of this correspondence should be directed to the e-mail address listed below the name of the sender.

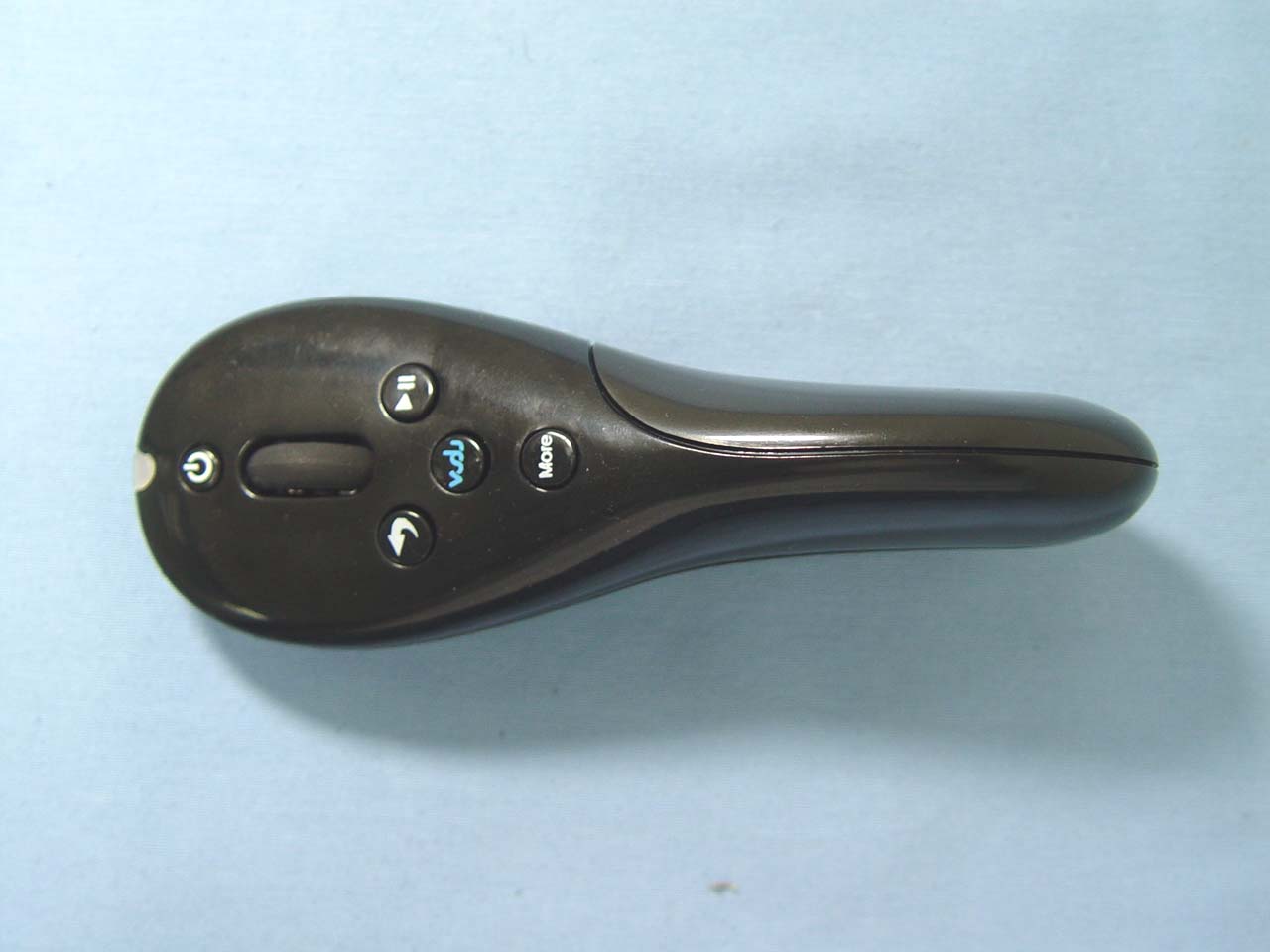

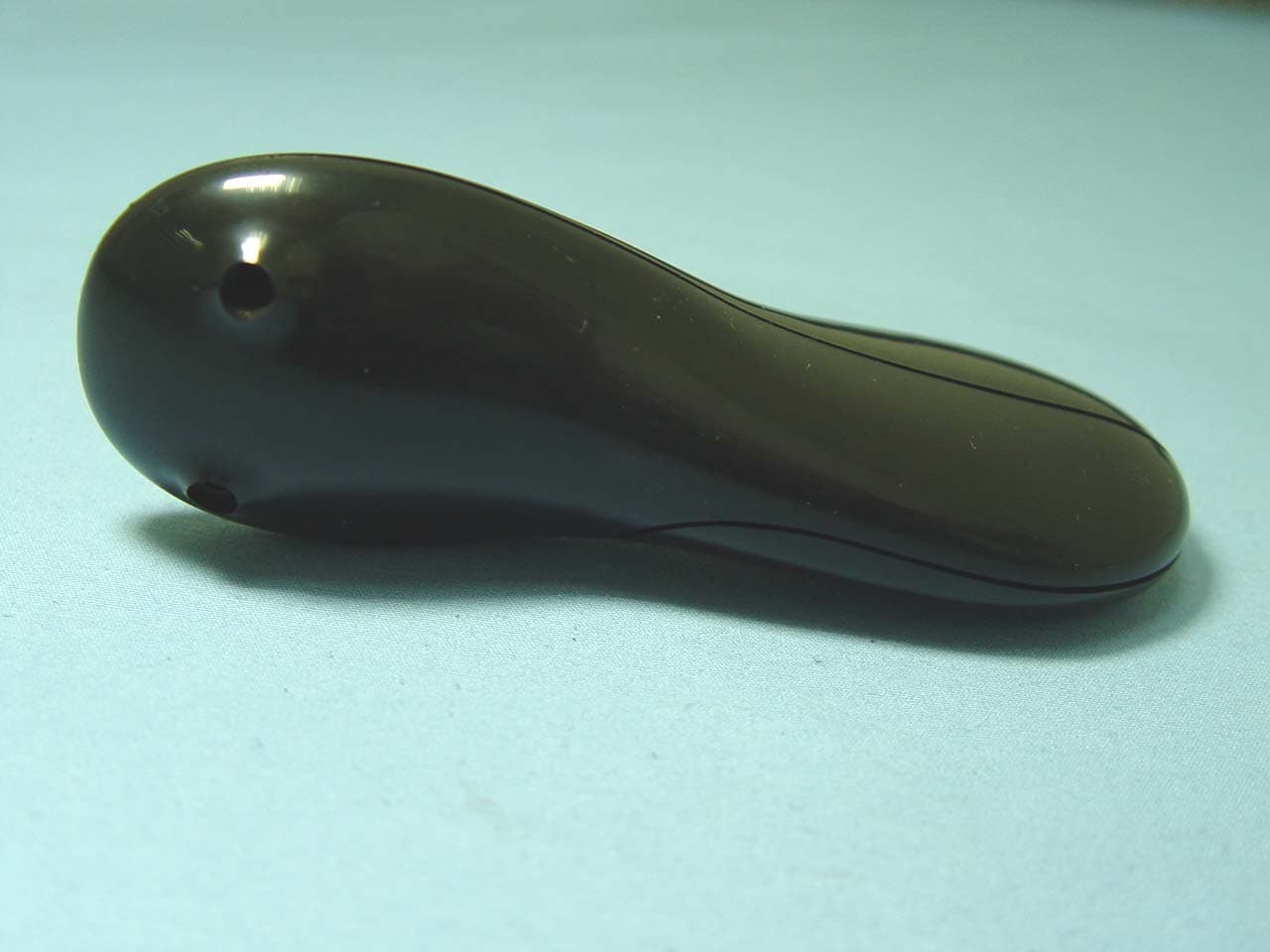

Compliance Certification Services Inc. Report No.: 70821003 Date of Issue: August 31, 2007 Page 1 Total Page: 6 Rev. 00 EXTERNAL PHOTOGRAPHS OF EUT

Sw1Sw2frequency ONON4294MHZ OFFON4344MHZ ONOFF4394MHZ OFFOFF4444MHZ . . . . PartNOSBOM0000400:-- ModelNO:VUDUAC101 SeriesNO0708154B4:- PDF created with pdfFactory trial version www.pdffactory.com

Compliance Certification Services Inc. Report No.: 70821003 Date of Issue: August 31, 2007 Page 2 Rev.00 INTERNAL PHOTOGRAPHS OF EUT Compliance Certification Services Inc. Report No.: 70821003 Date of Issue: August 31, 2007 Page 3 Rev.00 Compliance Certification Services Inc. Report No.: 70821003 Date of Issue: August 31, 2007 Page 4 Rev.00 Compliance Certification Services Inc. Report No.: 70821003 Date of Issue: August 31, 2007 Page 5 Rev.00 Compliance Certification Services Inc. Report No.: 70821003 Date of Issue: August 31, 2007 Page 6 Rev.00 Printed PCB Antenna

Antenna spec ================================= Antenna type : Printed PCB Antenna ANT Gain : –5 dBi

Compliance Certification Services Inc. Report No.: 70821003-RP1 FCC ID: VLTVUDUAC101 Date of Issue: September 12, 2007 Note: This report shall not be reproduced except in full, without the written approval of Compliance Certification Services Inc. This document may be altered or revised by Compliance Certification Services Inc. personnel only, and shall be noted in the revision section of the document. Page 1 Total Page: 27 Rev. 00 FCC 47 CFR PART 15 SUBPART C TEST REPORT For Remote Controller Model: VUDUAC101 Trade Name: WONIX Issued to YOUWON ENTERPRISES CO., LTD. 5F., No. 46, LANE 80, NAN-KANG RD., SEC. 3, TAIPEI, TAIWAN R.O.C. Issued by Compliance Certification Services Inc. No. 81-1, Lane 210, Bade Rd. 2, Luchu Hsiang, Taoyuan Hsien, (338) Taiwan, R.O.C. http://www.ccsemc.com.tw [email protected] Compliance Certification Services Inc. Report No.: 70821003-RP1 FCC ID: VLTVUDUAC101 Date of Issue: September 12, 2007 Page 2 Rev. 00 TABLE OF CONTENTS 1. TEST RESULT CERTIFICATION............................................................................................. 3 2. EUT DESCRIPTION .................................................................................................................... 4 3. TEST METHODOLOGY ............................................................................................................. 5 3.1 EUT CONFIGURATION.............................................................................................................. 5 3.2 EUT EXERCISE......................................................................................................................... 5 3.3 GENERAL TEST PROCEDURES.................................................................................................. 5 3.4 FCC PART 15.205 RESTRICTED BANDS OF OPERATIONS ............................................. 6 3.5 DESCRIPTION OF TEST MODES................................................................................................. 6 4. INSTRUMENT CALIBRATION................................................................................................. 7 4.1 MEASURING INSTRUMENT CALIBRATION........................................................................... 7 4.2 MEASUREMENT EQUIPMENT USED .............................................................................. 7 5. FACILITIES AND ACCREDITATIONS ................................................................................... 8 5.1 FACILITIES.............................................................................................................................. 8 5.2 EQUIPMENT............................................................................................................................. 8 5.3 TABLE OF ACCREDITATIONS AND LISTINGS............................................................................ 9 6. SETUP OF EQUIPMENT UNDER TEST ................................................................................ 10 6.1 SETUP CONFIGURATION OF EUT............................................................................................ 10 6.2 SUPPORT EQUIPMENT............................................................................................................ 10 7. FCC PART 15.231 REQUIREMENTS...................................................................................... 11 7.1 20DB BANDWIDTH ........................................................................................................... 11 7.2 LIMIT OF TRANSMISSION TIME.............................................................................................. 14 7.3 RADIATED EMISSIONS........................................................................................................... 16 7.4 POWERLINE CONDUCTED EMISSIONS.................................................................................... 25 APPENDIX I PHOTOGRAPHS OF TEST SETUP ....................................................................... 26 Compliance Certification Services Inc. Report No.: 70821003-RP1 FCC ID: VLTVUDUAC101 Date of Issue: September 12, 2007 Page 4 Rev. 00 2. EUT DESCRIPTION Product Remote Controller Trade Name WONIX Model Number VUDUAC101 Model Difference N/A Power Supply Powered by 2 * AA Batteries (Rating: DC 3V) Frequency Range 429.40, 434.40, 439.40, 444.40 MHz Number of Channels 4 Channels Modulation Technique FSK Antenna Designation Printed PCB Antenna / Gain: -5 dBi Remark: 1. The sample selected for test was production product and was provided by manufacturer. 2. This submittal(s) (test report) is intended for FCC ID: VLTVUDUAC101 filing to comply with Section 15.207, 15.209 and 15.231 of the FCC Part 15, Subpart C Rules. Compliance Certification Services Inc. Report No.: 70821003-RP1 FCC ID: VLTVUDUAC101 Date of Issue: September 12, 2007 Page 5 Rev. 00 3. TEST METHODOLOGY The tests documented in this report were performed in accordance with ANSI C63.4 (2003) and FCC CFR 47 2.1046, 2.1047, 2.1049, 2.1051, 2.1053, 2.1055, 2.1057, 15.207, 15.209 and 15.231. 3.1 EUT CONFIGURATION The EUT configuration for testing is installed on RF field strength measurement to meet the Commissions requirement and operating in a manner that intends to maximize its emission characteristics in a continuous normal application. 3.2 EUT EXERCISE The EUT was operated in the engineering mode to fix the TX frequency that was for the purpose of the measurements. 3.3 GENERAL TEST PROCEDURES Conducted Emissions The EUT is placed on the turntable, which is 0.8 m above ground plane. According to the requirements in Section 13.1.4.1 of ANSI C63.4. Conducted emissions from the EUT measured in the frequency range between 0.15 MHz and 30MHz using CISPR Quasi-peak and average detector modes. Radiated Emissions The EUT is placed on a turn table, which is 0.8 m above ground plane. The turntable shall rotate 360 degrees to determine the position of maximum emission level. EUT is set 3m away from the receiving antenna, which varied…

Text truncated - open the document above for the full version.

Compliance Certification Services Inc. Report No.: 70821003-RP1 FCC ID: VLTVUDUAC101 Date of Issue: August 31, 2007 Page 24 Rev. 00 APPENDIX I PHOTOGRAPHS OF TEST SETUP CONDUCTED EMISSION SET UP PHOTO Compliance Certification Services Inc. Report No.: 70821003-RP1 FCC ID: VLTVUDUAC101 Date of Issue: August 31, 2007 Page 25 Rev. 00 RADIATED EMISSION SET UP PHOTOS
