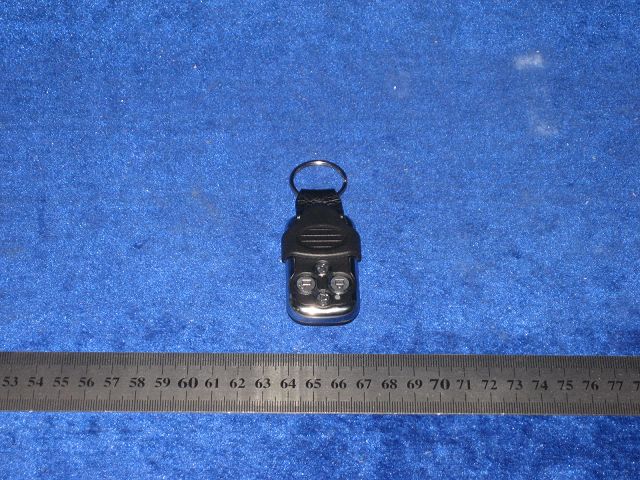

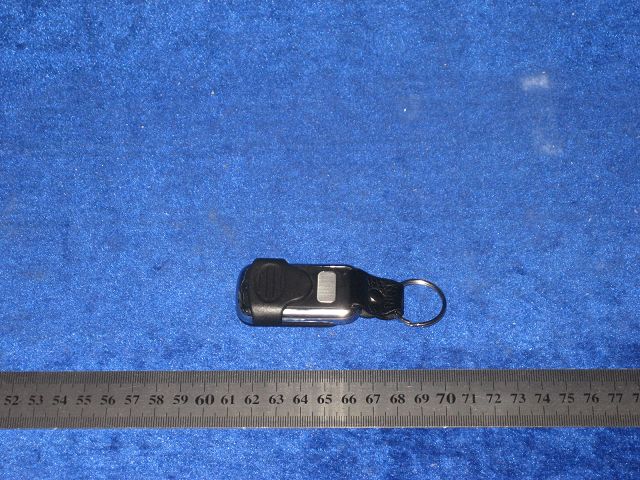

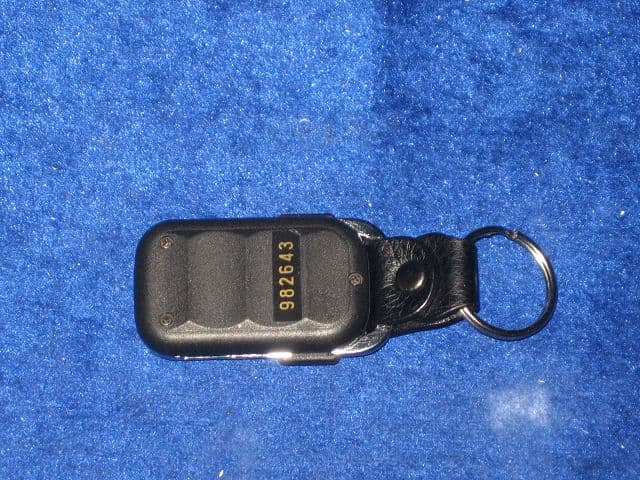

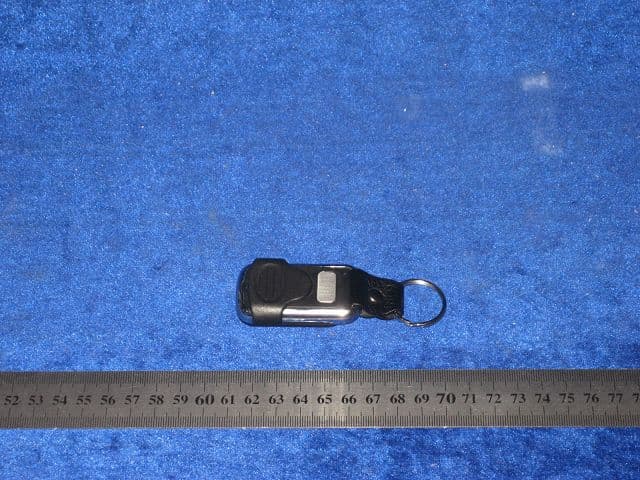

VLZ20122076000000Transmitter of Car Alarm System

FAA076 MANUAL ZHONGSHAN FAMA ELECTRONIC TECHNOLOGY CO.,LTD 1 / 5 FAA076(Aries Plus new with 6 points) Remote Function: BUTTON FUNCTION STATUS Press shortly Lock; Armed ACC OFF Press shortly Silent Armed ACC OFF Press shortly Unlock; Disarmed Armed Keep press for 2 sec. Trunk Release Any Status Press + shortly Shut Shock Sensor Armed Press shortly Lock ACC ON Press shortly Unlock ACC ON Remote Program： Under the condition of disarmed, door be opened, ACC ON: 1) Press for 2sec, siren chirps once mean system with auto arming,central lock will lock after 15sec.Siren chirps twice mean without; 2) Press for 2sec siren chirps once mean system with door delay function.Siren chirps twice mean without;. 3) Press for 2sec siren chirps once mean system with door open alert.Siren chirps twice mean without; 4) Press + for 2sec siren chirps once mean when enable engine start, after 3sec. central lock will lock automatically.Siren chirps twice mean without this function. 5) Press + for 2sec siren chirps once mean start the auto arming(but central lock don’t lock the door) .Siren chirps twice mean without this function. 6) Press + for 2sec. siren chirps once mean the system enter into valet mode.Siren chirps twice to shut the function; FUNCTION SETTING / CHANGE METHOD SIREN CHIRPS ONCE SIREN CHIRPS TWICE Auto Arming with Door Lock Press for 2 sec with ※without Door Delay Press for 2 sec Delay for 20sec. ※without Door Open Alert Press for 2 sec ※with without Central Lock Automation Press + for 2sec ※with without Auto Arming with Door Unlock Press + for 2sec ※with without Valet Mode Press + for 2 secwith ※without Notice: with signal “※” as factory setting before delivery. To exit the remote program: after finish, shut the door or ACC off. CHOICES OF JUMPER FUNCTION： ITEM JUMPER FUNCTION JUMPER FUNCTION S1 Power Lock / Air Lock Power Lock(0.5sec.) Air Lock(4sec.) FAA076 MANUAL ZHONGSHAN FAMA ELECTRONIC TECHNOLOGY CO.,LTD 2 / 5 S2 Unlock of One Pulse or Double Pulses One Pulse Double Pulses S3 Anti-hijack Remote Anti-hijack Auto Anti-hijack S4 Siren / Horn Siren Horn Notice: With as factory setting before delivery. LED INDICATION: ITEN SYSTEM STATUS LED STATUS 1 Armed Flash twice each 2 sec 2 Disarmed Off 3 Auto armed Flash slowly 4 Learning code、valet mode Keep lighting 5 Car be impacted(in disarmed) Flash 3 times each 2 sec 6 Car be opend(in disarmed) Flash 4 times each 2 sec 7 Car be illegally started the engine(in disarmed) Flash 5 times each 2 sec 8 Enter into auto arming Light on 2 sec then off 2 sec 9 Press to exit anti-hijack within 15 sec. of the function work. Flash quickly 10 Press reset switch to exit anti-hijack only after 15 sec.of the function work Flash once each 2 sec SOUND & LIGHT ARMING: Press once, siren chirps once, parking lights flash once, central lock will lock,LED flashes slowly,disable engine starter, meanwhile auxiliary signal outputs 12 sec(negative trigger works), the system will enter into sound and light arming mode. DISARM SOUND & LIGHT ARMING: Press once to disarm sound and light arming.Siren chirps twice,parking lights flash 3 times,central lock will unlock, LED off. SILENT ARMING: Press once, parking lights flash once, central lock will lock, LED flashes slowly, disable engine starter, meanwhile auxiliary signal outputs 12 sec(negative trigger works), The system enter into silent arming mode. DISARM THE SILENT ARMING: Press once to disarm silent arming. Parking lights flash 3 times, central lock will unlock, LED off. CAR FINDER In armed mode, press once to searching car, siren chirps and parking lights flash for 35 sec to locate where is your car,press any button to stop,the system still in arming mode. FAA076 MANUAL ZHONGSHAN FAMA ELECTRONIC TECHNOLOGY CO.,LTD 3 / 5 Manual Override Mode If your transmitter is lost or not work in armed mode, you can use the original car key to open the side door, inserting the key and turn ACC to ON,then pressing the reset switch for 3sec to disarming. Siren chirps twice,parking lights flash 4 time. SHOCK TRIGGERING 1) In armed,if the doors are forced to open or ignite illegally or other abnormal condition, the system will alarming immediately, it will return to the armed mode after siren chirps and parking lights flash for 30 sec. 2) Under the situation of alarming,if the car is collided once, parking lights flash and siren chirps 5 sec, if it is collided twice,siren chirps and parking lights flash 30 sec.After that it stops automatically and return to armed mode. INSTRUSION MEMORY： If the system was triggered in armed mode,after disarm,siren chirps 3 times,parking lights flash 4 times to remind you.The situation show you as below: Triggered LED flash 3 times Opened doors LED flash 4 times Illegally started the engine LED flash 5 times CENTRAL LOCK AUTOMATION:( remote selectable) 1) When it be set as with central lock automation: To open doors and close properly,turn ACC to ON, central lock will lock automatically after 3 sec, put out the key, central lock will unlock automatically. In driving process, press or ,central lock will lock or unlock. 2) When it be set as without central lock automation: doors close properly before driving, turn ACC to ON, central lock will not lock automatically, only press or ,central lock will lock or unlock. REMOTE TRUNK RELEASE： In any status, keep pressing for 3 sec to open the trunk and central lock will unlock, parking lights flash once to remind you. DOOR OPEN ALERT：（remote selectable） When it be set as with door open alert: if the door has not been closed properly, parking lights flashing to warn the car of behind. When it be set as without door open alert: if the door has not been closed properly, parking lights do not flash. DOOR DELAY FUNCTION：（remote selectable） When it be set as with door delay, if door has not close properly, press, siren will chirps 5 sec to stop after 25 sec, armed zone is still protected. When it be set as without door delay, press , siren will chirps 3 times and it will door…

Text truncated - open the document above for the full version.

FCC ID: VLZ20122076000000 This device complies with part 15 of the FCC rules. Operation is subject to the following two conditions (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Proposed Label Location on EUT FCC ID Label Location

ISO/IEC17025 Accredited Lab. Report No: FCC 0708150 File reference No: 2007-09-27 Applicant: ZHONGSHAN FAMA ELECTRONIC TECHNOLOGY CO.,LTD Product: Car Alarm System Model No: FAA076 Trademark: N/A Test Standards: FCC Part 15 Subpart C, Paragraph 15.231 Test result: It is herewith confirmed and found to comply with the requirements set up by ANSI C63.4&FCC Part 15 Subpart C, Paragraph 15.231 regulations for the evaluation of electromagnetic compatibility Approved By Jack Chung Manager Dated: Sep 27,2007 Results appearing herein relate only to the sample tested The technical reports is issued errors and omissions exempt and is subject to withdrawal at SHENZHEN TIMEWAY TECHNOLOGY CONSULTING CO LTD 5/F,Block 4, Anhua Industrial Zone.,No.8 TaiRan Rd.CheGongMiao,FuTian District, Shenzhen,CHINA. Tel (755) 83448688 Fax (755) 83442996 Report No: 0708150 Page 2 of 29 Date: 2007-09-27 TEST REPORT The report refers only to the sample tested and does not apply to the bulk. This report is issued in confidence to the client and it will be strictly treated as such by the Shenzhen Timeway Technology Consulting Co .,Ltd. It may not be reproduced rather in its entirety or in part and it may not be used for adverting. The client to whom the report is issued may, however, show or send it . or a certified copy there of prepared by the Shenzhen Timeway Technology Consulting co .,Ltd to his customer. Supplier or others persons directly concerned. Shenzhen Timeway Technology Consulting co .,Ltd will not, without the consent of the client enter into any discussion of correspondence with any third party concerning the contents of the report. In the event of the improper use of the report. The Shenzhen Timeway Technology Consulting co .,Ltd reserves the rights to withdraw it and to adopt any other remedies which may be appropriate. Special Statement： The testing quality ability of our laboratory meet with "Quality Law of People's Republic of China" Clause 19. The testing quality system of our laboratory meets with ISO/IEC-17025 requirements, which is approved by CNAS. This approval result is accepted by MRA of APLAC. Our test facility is recognized, certified, or accredited by the following organizations: CNAS-LAB Code: L2292 The EMC Laboratory has been assessed and in compliance with CNAS-CL01 accreditation criteria for testing Laboratories (identical to ISO/IEC 17025:1999 General Requirements) for the Competence of testing Laboratories. FCC-Registration No.: 899988 The EMC Laboratory has been registered and fully described in a report filed with the (FCC) Federal Communications commission. The acceptance letter from the FCC is maintained in our files. Registration No.:899988. IC- Registration No.: IC5205A-01 The EMC Laboratory has been registered and fully described in a report filed with the (IC) Industry Canada. The acceptance letter from the IC is maintained in our files. Registration No.: IC 5205. Report No: 0708150 Page 3 of 29 Date: 2007-09-27 TEST REPORT The report refers only to the sample tested and does not apply to the bulk. This report is issued in confidence to the client and it will be strictly treated as such by the Shenzhen Timeway Technology Consulting Co .,Ltd. It may not be reproduced rather in its entirety or in part and it may not be used for adverting. The client to whom the report is issued may, however, show or send it . or a certified copy there of prepared by the Shenzhen Timeway Technology Consulting co .,Ltd to his customer. Supplier or others persons directly concerned. Shenzhen Timeway Technology Consulting co .,Ltd will not, without the consent of the client enter into any discussion of correspondence with any third party concerning the contents of the report. In the event of the improper use of the report. The Shenzhen Timeway Technology Consulting co .,Ltd reserves the rights to withdraw it and to adopt any other remedies which may be appropriate. Test Report Conclusion Content 1.0 General Details ................................................................................................ 4 1.1 Test Lab Details................................................................................................ 4 1.2 Applicant Details.............................................................................................. 4 1.3 Description of EUT .......................................................................................... 4 1.4 Submitted Sample............................................................................................. 4 1.5 Test Duration.................................................................................................... 5 1.6 Test Uncertainty.................................................................................................5 1.7 Test By.......................................................................................................... 5 2.0 List of Measurement Equipment......................................................................... 5 3.0 Technical Details............................................................................................. 7 3.1 Summary of Test Results..................................................................................... 7 3.2 Test Standards.................................................................................................. 7 4.0 EUT Modification............................................................................................. 7 5.0 Power Line Conducted Emission Test...................................................................... 8 5.1 Schematics of the Test........................................................................................ 8 5.2 Test Method and Test Procedure............................................................................ 8 5.3 Configuration of the EUT.................................................................................... 8 5.4 EUT Operating Condition.....................................…

Text truncated - open the document above for the full version.
