VMA-AEC-3500HFLOOD LIGHT

BLOCK DIAGRAM LOAD (LAMP TUBE) INPUT NETWORK DC/AC INVERT FILTER RECTIFICTION EMI PROTECTION FCC ID: VMA-AEC-3500H

FCC ID: VMA-AEC-3500H

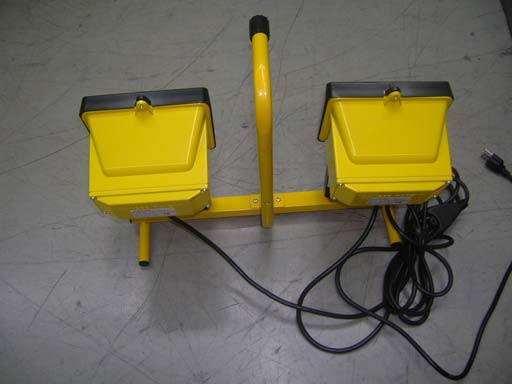

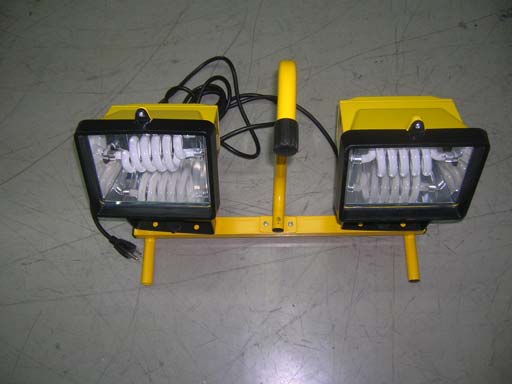

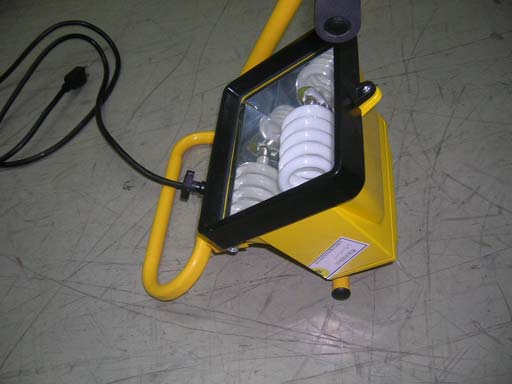

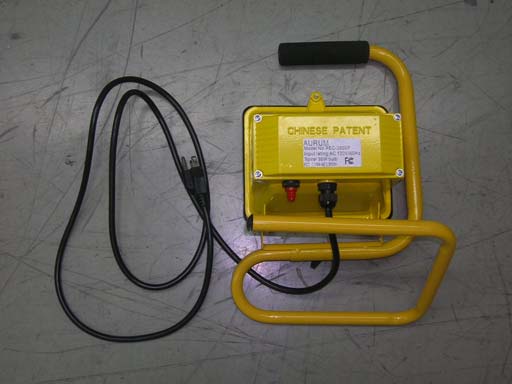

External photograph AEC-3500P FCC ID: VMA-AEC-3500H Page 1 of 3 AEC-3500LT FCC ID: VMA-AEC-3500H Page 2 of 3 AEC-3500LT2 FCC ID: VMA-AEC-3500H Page 3 of 3

Label location FCC ID: VMA-AEC-3500H Page 1 of 1

Internal photograph FCC ID: VMA-AEC-3500H Page 1 of 3 FCC ID: VMA-AEC-3500H Page 2 of 3 FCC ID: VMA-AEC-3500H Page 3 of 3

TECHNICAL DESCRIPTION This energy saving lighting device is specially designed to replace the traditional halide lighting device. Compared to the traditional one, this new lighting device uses the electronic ballast and energy saving compact fluorescent lamp which is more safe and energy saving. EMI The electronic ballast is designed to suppress any EMI(Electro Magnetic Interference) noise generated by the high frequency source to a safe range to avoid the interference to the other electronic devices and the power supplier net work. RECTIFICATION AND FILTER Rectifier converts power supply form AC to DC and it is also a full wave bridge rectifier with larger filter capacitor to protect the circuit again line transient. It also attenuates any EMI (Electro Magnetic Interference) noise generated by high frequency source that feeds the lamp tube. INVERTER Inverter change the DC supply into high frequency AC. It employs the half bridge-voltage fed topology for inverting. It consists of two transistors connected in series across the output of the rectifier circuit. A train of pulses is created for voltage and current by the inverter switch circuit. The power switch is control by a small stature core transformer. OUTPU The energy saving tube is the load of output section. It is in series with a LC resonance circuit. It feeds back the high frequency through the control circuit to synchronize the inverter frequency. The LC resonance circuit provides the high voltage which strikes the lamp tube during startup. Once the lamp tube are on, the LC resonance circuit will generated the lamp tube working voltage which is less than the voltage of startup. PROTECTION The electronic ballast is designed to have the self-protection function which works in the following cases : 1. when the lamp is air leakage which means the load is incorrect; 2.when the voltage of the power supplier is incorrect. FCC ID: VMA-AEC-3500H

For model AEC-3500P and AEC-3500LT For model AEC-3500LT2

Report no: JSH007061048-001 Page 1 of 29 EMC Test Report for FCC On Behalf of Aurum Electronice Corp. Summary The equipment comply with the requirements according to the following standard(s): 47CFR Part 18 (2006): Industrial, Scientific, and Medical Equipment FCC/OET MP-5 (1986): FCC Methods of Measurements of Radio Noise Emissions From Industrial, Scientific, and Medical Equipment ANSI C63.4 (2003): Methods of Measurement of Radio-Noise Emissions from Low-Voltage Electrical and Electronic Equipment in the Range of 9kHz to 40GHz. Description The appliances were tested by Intertek Testing Services ETL SEMKO Shanghai Limited and found compliance with relevant requirements described in FCC Part 18 RF lighting Device. Test results are contained in this test report and Intertek Testing Services ETL SEMKO Shanghai Limited is assumed full responsibility for the accuracy and completeness of these measurements. The test report applies to tested samples only and shall not be reproduced in part without written approval of Intertek Testing Services ETL SEMKO Shanghai Limited. FCC ID: VMA-AEC-3500H Report no: JSH007061048-001 Page 2 of 29 Description of Test Facility Name Intertek Testing Service Shanghai Limited Address Building No.86, 1198 Qinzhou Road(North), Shanghai 200233, P.R. China FCC Registration Number 236597 Telephone 86 21 61278200 Telefax 86 21 64956263 FCC ID: VMA-AEC-3500H Report no: JSH007061048-001 Page 3 of 29 CONTENTS SUMMARY...................................................................................................................................................1 DESCRIPTION............................................................................................................................................1 DESCRIPTION OF TEST FACILITY......................................................................................................2 CONTENTS............................................................................................................................................3 1.APPLICANT INFORMATION...............................................................................................................4 2.INFORMATION OF EQUIPMENT UNDER TEST (EUT).................................................................4 2.1 IDENTIFICATION OF THE EUT................................................................................................................4 2.2 ADDITIONAL INFORMATION ABOUT THE EUT........................................................................................5 2.3 PERIPHERAL EQUIPMENT.......................................................................................................................5 3. CONDUCTED POWERLINE MEASUREMENT................................................................................6 3.1 CONDUCTION LIMIT FOR CONSUMER RF LIGHTING DEVICES.................................................................6 3.2 INSTRUMENTS LIST................................................................................................................................6 3.3 TEST SETUP...........................................................................................................................................7 3.4 TEST CONFIGURATION...........................................................................................................................7 3.5 TEST PROCEDURE.................................................................................................................................. 8 3.6 TEST RESULTS.......................................................................................................................................9 3.7 MEASUREMENT UNCERTAINTY...........................................................................................................12 4. RADIATED EMISSION MEASUREMENT.......................................................................................13 4.1 RADIATED EMISSION LIMIT FOR RF LIGHTING CONSUMER DEVICES....................................................13 4.2 INSTRUMENTS LIST..............................................................................................................................13 4.3 TEST SETUP.........................................................................................................................................14 4.4 TEST CONFIGURATION.........................................................................................................................14 4.5 TEST PROCEDURE................................................................................................................................15 4.6 TEST RESULTS.....................................................................................................................................15 4.7 MEASUREMENT UNCERTAINTY............................................................................................................18 5. PHOTOGRAPH OF TEST SETUP......................................................................................................19 6. PHOTOGRAPH OF EUT......................................................................................................................24 APPENDIX I: COMPONENTS LIST......................................................................................................28 FCC ID: VMA-AEC-3500H Report no: JSH007061048-001 Page 4 of 29 1.Applicant Information Applicant : Aurum Electronice Corp. 4th Industrial area, Her-Shoei-Kou Village Gong-Ming Town, Bao-An District, Shenzhen city, Guang dong Province, China Manufacturer: Shanghai Jinsheng Industry & Trading Co., Ltd. No. 4928, Waiqingsong Road, Qingpu District, Shanghai Description of EUT: The EUT is a Flood light. It has 3 models. Model AEC-3500P and AEC-3500LT are same except the appearance and the tube fitting. AEC-3500LT2 is same with AEC-3500LT but has two lamps. All models use same PCB. Therefore, model AEC-3500P and AEC-3500LT2 are chosen…

Text truncated - open the document above for the full version.

Photograph of test set-up Conducted Powerline Measurement For model: AEC-3500P FCC ID: VMA-AEC-3500H Page 1 of 5 For model: AEC-3500LT2 FCC ID: VMA-AEC-3500H Page 2 of 5 Radiated emission Measurement For model: AEC-3500P FCC ID: VMA-AEC-3500H Page 3 of 5 For model: AEC-3500LT2 FCC ID: VMA-AEC-3500H Page 4 of 5 FCC ID: VMA-AEC-3500H Page 5 of 5
