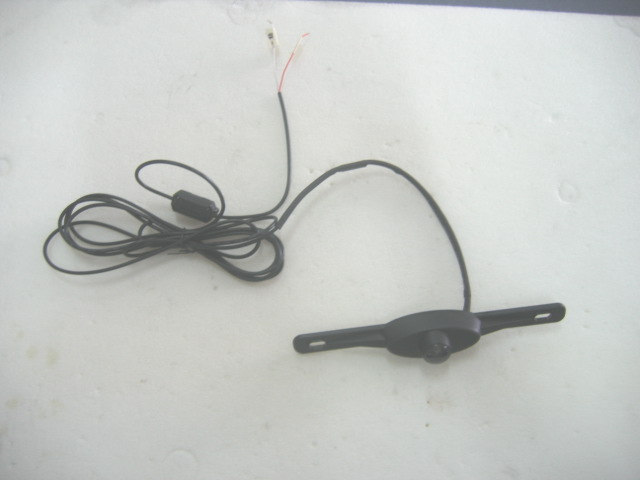

VN2XW20078Wireless back up camera

© 2007 INNOVAGE LLC All Rights Reserved. Project Name: 102372_WirelessBkp_IM_BACKDesigner/Studio: INNOVAGEDate REVISED: 09/10/07Reference No:

American Telecommunications Certification Body Inc. 6731 Whittier Ave, McLean, VA 22101 October 3, 2007 RE: ATCB005485 FCC ID: VN2XW20078 I have a few comments on this application. Depending on your responses, kindly understand there may be additional comments. 1. FCC Logo can be only shown on the label as this device has been tested under Part 15B. This device is not a computer peripheral, therefore it is not required to be test under Part 15B. Please remove the FCC logo from the label. 2. It is required to put the crystal oscillator with frequency value on your block diagram according to the FCC 2.1031. “FCC 2.1031 (5) A block diagram showing the frequency of all oscillators in the device. The signal path and frequency shall be indicated at each block. The tuning range(s) and intermediate frequency(ies) shall be indicated at each block.” 3. The description shown on the photo at page 2 of the test report can not be seen clearly. Please provide a better photo showing description clearly. ~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~ ~ George Chen ~ mailto:[email protected] ~ Taiwan Mobile: +886 930600123 ~ SKYPE: georgeshirley ~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~ The items indicated above must be submitted before processing can continue on the above referenced application. Failure to provide the requested information may result in application termination. Correspondence should be considered part of the permanent submission and may be viewed from the Internet after a Grant of Equipment Authorization is issued. Please do not respond to this correspondence using the email reply button. In order for your response to be processed expeditiously, you must submit your documents through the AmericanTCB.com website. Also, please note that partial responses increase processing time and should not be submitted. Any questions about the content of this correspondence should be directed to the sender.

Client’s buyer insists to show the FCC logo and FCC DOC test is done. The revised block diagram is uploaded to the website. The revised test report is uploaded to the website.

Report No.: SZEMO070902393RFI Page: 1 of 13 FCC ID: VN2XW20078 Authorized Signature: Robinson Lo Manager The manufacturer should ensure that all products in series production are in conformity with the product sample detailed in this report. If the product in this report is used in any configuration other than that detailed in the report, the manufacturer must ensure the new system complies with all relevant standards. Any mention of SGS International Electrical Approvals or testing done by SGS International Electrical Approvals in connection with, distribution or use of the product described in this report must be approved by SGS International Electrical Approvals in writing. The report must not be used by the client to claim product certification, approval, or endorsement by NVLAP, NIST, or any agency of the federal government. All test results in this report can be traceable to National or International Standards. This Test Report is issued by the Company subject to its General Conditions of Service printed overleaf. Attention is drawn to the limitations of liability, indemnification and jurisdictional issues defined therein. The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This Test Report cannot be reproduced, except in full, without prior written permission of the Company. SGS-CSTC Standards Technical Services Ltd. No.198 Kezhu Road, Science Town Economic& Technology Development District Guangzhou, China 510663Telephone: Telephone: +86 (0) 20 82155555 Fax: +86 (0) 20 82075059 Email: [email protected] FEDERAL COMMUNICATIONS COMMISSION Registration number: 282399 TEST REPORT Application No. : SZEMO070902393RF(SGS SZ NO.: SZTYR070902362/EL) Applicant: SUNWAY ELECTRONICS COMPANY FCC ID: VN2XW20078 Fundamental Carrier Frequency : 2.4GHz to 2.4835GHz Equipment Under Test (EUT): Name: Wireless back up camera Standards: FCC PART 15: 2007 Section 15.249 Date of Receipt: 06 September 2007 Date of Test: 11 to 25 September 2007 Date of Issue: 27 September 2007 Test Result : PASS * * In the configuration tested, the EUT complied with the standards specified above. SGS-CSTC Standards Technical Services Ltd. Report No.: SZEMO070902393RFI Page: 2 of 13 FCC ID:VN2XW20078 2 Test Summary Test Test Requirement Stanadard Paragraph Result Flied Strength of Fundamental FCC PART 15 : 2007 Section 15.249 (a) PASS Flied Strength of Harmornics or other Frequency FCC PART 15 : 2007 Section 15.249 (a) Section 15.209 PASS Occupied Bandwidth FCC PART 15 : 2007 Section 15.249 PASS Band Edges Measurement FCC PART 15 : 2007 Section 15.249 (d) PASS Remark: The EUT passed the Tx test after modification: For TX, 1>.Add L=2.2uH inductor between the power’s anode and the “12V” on the bottom PCB 2>Connect the GND of the top PCB to the GND of the bottom PCB with two cables 3>GND of the ANT solder to “GND” of the bottom PCB. please see the detail information as follow photo: SGS-CSTC Standards Technical Services Ltd. Report No.: SZEMO070902393RFI Page: 3 of 13 FCC ID:VN2XW20078 3 Contents Page 1 COVER PAGE...........................................................................................................................................1 2 TEST SUMMARY....................................................................................................................................................2 3 CONTENTS..............................................................................................................................................................3 4 GENERAL INFORMATION....................................................................................................................................4 4.1 CLIENT INFORMATION.......................................................................................................................................4 4.2 GENERAL DESCRIPTION OF E.U.T...................................................................................................................4 4.3 DESCRIPTION OF SUPPORT UNITS...................................................................................................................4 4.4 STANDARDS APPLICABLE FOR TESTING...........................................................................................................4 4.5 TEST LOCATION................................................................................................................................................4 4.6 OTHER INFORMATION REQUESTED BY THE CUSTOMER..................................................................................4 4.7 TEST FACILITY..................................................................................................................................................5 5 TEST RESULTS......................................................................................................................................................6 5.1 TEST INSTRUMENTS..........................................................................................................................................6 5.2 E.U.T. OPERATION...........................................................................................................................................6 5.3 TEST PROCEDURE & MEASUREMENT DATA....................................................................................................7 5.3.1 Radiated Emissions...................................................................................................................................7 5.3.2 Occupied Bandwidth & Band Edge.................................................................................................11-13 SGS-CSTC Standards Technical Services Ltd. Report No.: SZEMO070902393RFI Page: 4 of 13 FCC ID:VN2XW20078 4 General Information 4.1 Client Information Applicant Name: SUNWAY ELECTRONICS COMPANY Applicant Address: Shiting jiankou Township, Putian City, Fujian Province, China 4.2 General Description o…

Text truncated - open the document above for the full version.

Report No.: SZEMO070902393RFI Page: 1 of 13 FCC ID: VN2XW20078 Authorized Signature: Robinson Lo Manager The manufacturer should ensure that all products in series production are in conformity with the product sample detailed in this report. If the product in this report is used in any configuration other than that detailed in the report, the manufacturer must ensure the new system complies with all relevant standards. Any mention of SGS International Electrical Approvals or testing done by SGS International Electrical Approvals in connection with, distribution or use of the product described in this report must be approved by SGS International Electrical Approvals in writing. The report must not be used by the client to claim product certification, approval, or endorsement by NVLAP, NIST, or any agency of the federal government. All test results in this report can be traceable to National or International Standards. This Test Report is issued by the Company subject to its General Conditions of Service printed overleaf. Attention is drawn to the limitations of liability, indemnification and jurisdictional issues defined therein. The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This Test Report cannot be reproduced, except in full, without prior written permission of the Company. SGS-CSTC Standards Technical Services Ltd. No.198 Kezhu Road, Science Town Economic& Technology Development District Guangzhou, China 510663Telephone: Telephone: +86 (0) 20 82155555 Fax: +86 (0) 20 82075059 Email: [email protected] FEDERAL COMMUNICATIONS COMMISSION Registration number: 282399 TEST REPORT Application No. : SZEMO070902393RF(SGS SZ NO.: SZTYR070902362/EL) Applicant: SUNWAY ELECTRONIC INDUSTRIAL CO., LTD. FCC ID: VN2XW20078 Fundamental Carrier Frequency : 2.4GHz to 2.4835GHz Equipment Under Test (EUT): Name: Wireless back up camera Standards: FCC PART 15: 2007 Section 15.249 Date of Receipt: 06 September 2007 Date of Test: 11 to 25 September 2007 Date of Issue: 27 September 2007 Test Result : PASS * * In the configuration tested, the EUT complied with the standards specified above. SGS-CSTC Standards Technical Services Ltd. Report No.: SZEMO070902393RFI Page: 2 of 13 FCC ID:VN2XW20078 2 Test Summary Test Test Requirement Stanadard Paragraph Result Flied Strength of Fundamental FCC PART 15 : 2007 Section 15.249 (a) PASS Flied Strength of Harmornics or other Frequency FCC PART 15 : 2007 Section 15.249 (a) Section 15.209 PASS Occupied Bandwidth FCC PART 15 : 2007 Section 15.249 PASS Band Edges Measurement FCC PART 15 : 2007 Section 15.249 (d) PASS Remark: The EUT passed the Tx test after modification: For TX, 1>.Add L=2.2uH inductor between the power’s anode and the “12V” on the bottom PCB 2>Connect the GND of the top PCB to the GND of the bottom PCB with two cables 3>GND of the ANT solder to “GND” of the bottom PCB. please see the detail information as follow photo: SGS-CSTC Standards Technical Services Ltd. Report No.: SZEMO070902393RFI Page: 3 of 13 FCC ID:VN2XW20078 3 Contents Page 1 COVER PAGE...........................................................................................................................................1 2 TEST SUMMARY....................................................................................................................................................2 3 CONTENTS..............................................................................................................................................................3 4 GENERAL INFORMATION....................................................................................................................................4 4.1 CLIENT INFORMATION.......................................................................................................................................4 4.2 GENERAL DESCRIPTION OF E.U.T...................................................................................................................4 4.3 DESCRIPTION OF SUPPORT UNITS...................................................................................................................4 4.4 STANDARDS APPLICABLE FOR TESTING...........................................................................................................4 4.5 TEST LOCATION................................................................................................................................................4 4.6 OTHER INFORMATION REQUESTED BY THE CUSTOMER..................................................................................4 4.7 TEST FACILITY..................................................................................................................................................5 5 TEST RESULTS......................................................................................................................................................6 5.1 TEST INSTRUMENTS..........................................................................................................................................6 5.2 E.U.T. OPERATION...........................................................................................................................................6 5.3 TEST PROCEDURE & MEASUREMENT DATA....................................................................................................7 5.3.1 Radiated Emissions...................................................................................................................................7 5.3.2 Occupied Bandwidth & Band Edge...................................................................................................11-13 SGS-CSTC Standards Technical Services Ltd. Report No.: SZEMO070902393RFI Page: 4 of 13 FCC ID:VN2XW20078 4 General Information 4.1 Client Information Applicant Name: SUNWAY ELECTRONIC INDUSTRIAL CO., LTD. Applicant Address: Shiting High-tech Development Zone jiangkou township,putian C…

Text truncated - open the document above for the full version.

Report No.: SZEMO070902393RFI Page: 1 of 13 FCC ID: VN2XW20078 Authorized Signature: Robinson Lo Manager The manufacturer should ensure that all products in series production are in conformity with the product sample detailed in this report. If the product in this report is used in any configuration other than that detailed in the report, the manufacturer must ensure the new system complies with all relevant standards. Any mention of SGS International Electrical Approvals or testing done by SGS International Electrical Approvals in connection with, distribution or use of the product described in this report must be approved by SGS International Electrical Approvals in writing. The report must not be used by the client to claim product certification, approval, or endorsement by NVLAP, NIST, or any agency of the federal government. All test results in this report can be traceable to National or International Standards. This Test Report is issued by the Company subject to its General Conditions of Service printed overleaf. Attention is drawn to the limitations of liability, indemnification and jurisdictional issues defined therein. The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This Test Report cannot be reproduced, except in full, without prior written permission of the Company. SGS-CSTC Standards Technical Services Ltd. No.198 Kezhu Road, Science Town Economic& Technology Development District Guangzhou, China 510663Telephone: Telephone: +86 (0) 20 82155555 Fax: +86 (0) 20 82075059 Email: [email protected] FEDERAL COMMUNICATIONS COMMISSION Registration number: 282399 TEST REPORT Application No. : SZEMO070902393RF(SGS SZ NO.: SZTYR070902362/EL) Applicant: SUNWAY ELECTRONIC INDUSTRIAL CO., LTD. FCC ID: VN2XW20078 Fundamental Carrier Frequency : 2.4GHz to 2.4835GHz Equipment Under Test (EUT): Name: Wireless back up camera Standards: FCC PART 15: 2007 Section 15.249 Date of Receipt: 06 September 2007 Date of Test: 11 to 25 September 2007 Date of Issue: 27 September 2007 Test Result : PASS * * In the configuration tested, the EUT complied with the standards specified above. SGS-CSTC Standards Technical Services Ltd. Report No.: SZEMO070902393RFI Page: 2 of 13 FCC ID:VN2XW20078 2 Test Summary Test Test Requirement Stanadard Paragraph Result Flied Strength of Fundamental FCC PART 15 : 2007 Section 15.249 (a) PASS Flied Strength of Harmornics or other Frequency FCC PART 15 : 2007 Section 15.249 (a) Section 15.209 PASS Occupied Bandwidth FCC PART 15 : 2007 Section 15.249 PASS Band Edges Measurement FCC PART 15 : 2007 Section 15.249 (d) PASS Remark: The EUT passed the Tx test after modification: For TX, 1>.Add L=2.2uH inductor between the power’s anode and the “12V” on the bottom PCB 2>Connect the GND of the top PCB to the GND of the bottom PCB with two cables 3>GND of the ANT solder to “GND” of the bottom PCB. please see the detail information as follow photo: SGS-CSTC Standards Technical Services Ltd. Report No.: SZEMO070902393RFI Page: 3 of 13 FCC ID:VN2XW20078 3 Contents Page 1 COVER PAGE...........................................................................................................................................1 2 TEST SUMMARY....................................................................................................................................................2 3 CONTENTS..............................................................................................................................................................3 4 GENERAL INFORMATION....................................................................................................................................4 4.1 CLIENT INFORMATION.......................................................................................................................................4 4.2 GENERAL DESCRIPTION OF E.U.T...................................................................................................................4 4.3 DESCRIPTION OF SUPPORT UNITS...................................................................................................................4 4.4 STANDARDS APPLICABLE FOR TESTING...........................................................................................................4 4.5 TEST LOCATION................................................................................................................................................4 4.6 OTHER INFORMATION REQUESTED BY THE CUSTOMER..................................................................................4 4.7 TEST FACILITY..................................................................................................................................................5 5 TEST RESULTS......................................................................................................................................................6 5.1 TEST INSTRUMENTS..........................................................................................................................................6 5.2 E.U.T. OPERATION...........................................................................................................................................6 5.3 TEST PROCEDURE & MEASUREMENT DATA....................................................................................................7 5.3.1 Radiated Emissions...................................................................................................................................7 5.3.2 Occupied Bandwidth & Band Edge.................................................................................................11-13 SGS-CSTC Standards Technical Services Ltd. Report No.: SZEMO070902393RFI Page: 4 of 13 FCC ID:VN2XW20078 4 General Information 4.1 Client Information Applicant Name: SUNWAY ELECTRONIC INDUSTRIAL CO., LTD. Applicant Address: Shiting High-tech Development Zone jiangkou township,putian Cit…

Text truncated - open the document above for the full version.
