VNCMEDILASTransponder

Mounting assembly at laser device: Cable length: 8cm 14cm Drawing of coil holder Coil (L1), 80Wdg, Ø_cu = 50um Coil Reader Board Laser device (5VDC supply) Reader Board Coil L1 Fibertom detection unit Laser Module Ferrite Type: Würth 74271142 J4/1,2 L1 J4/3,4 J2/1 X4 Vorläufige Version_2 Additional content to Operation Manual of laser device: For device use in the United States of America: FCC Compliance Statement according to FCC §15.19(a)(3) This device complies with Part 15 of the FCC rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. This device contains FCC ID VNCMEDILAS. Information to User according to FCC §15.21: Any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. Type label:

Test Equipment List for Test Report No. 50444-070615 / Page 1 of 1 Page(s) EMI/EMC-Testcenter EMV-Prüfzentrum Test Equipment List with Calibration Data / Test date: Juli 2007 No. Type Inv.-No. Model Serial Number Manufacturer Calibration Organization Date of last calibration Date of next calibration 1 1. Test receiver 1028 ESHS 10 860043/016 Rohde & Schwarz Rohde & Schwarz 04/2007 04/2008 2. Test receiver 1025 ESVP 881120/024 Rohde & Schwarz Rohde & Schwarz 10/2006 10/2007 3. Spectrum analyzer 1078 R 3271 05050023 Advantest Rohde & Schwarz 03/2006 03/2008 4. Spectrum analyzer 1666 FSP 30 100063 Rohde & Schwarz Rohde & Schwarz 02/2006 08/2007 5. EMI test receiver 1569 ESMI 839379/013 839587/006 Rohde & Schwarz Rohde & Schwarz 12/2005 12/2007 6. Preamplifier 1142 R14601 13120026 Advantest Rohde & Schwarz 11/2006 11/2007 Matrix RELAX consists: 1941 7. Preamplifier 1651 CPA9231A1 3393 Schaffner Schaffner 02/2007 02/2008 8. Preamplifier 1684 AFS3-00100800-32-LN 847743 Miteq Senton GmbH 06/2006 06/2007 9. V-network 1060 ESH 3-Z5 862770/021 B1060 Rohde & Schwarz Senton GmbH 01/2007 01/2010 10. V-network 1218 ESH 3-Z5 830952/025 B1218 Rohde & Schwarz Senton GmbH 05/2005 05/2008 11. Loop antenna 1016 HFH2-Z2 882964/0001 Rohde & Schwarz Rohde & Schwarz 01/2006 01/2007 12. Trilog wide band antenna Chamber 2 1722 VULB 9163 9163-188 A1722 Schwarzbeck Schwarzbeck 10/2006 10/2007 13. Trilog wide band antenna Chamber 3 1802 VULB 9163 9163-214 A1802 Schwarzbeck Schwarzbeck 01/2006 07/2007 14. Biconical antenna EG 1 1518 HK 116 842204/001 Rohde & Schwarz Rohde & Schwarz 02/2007 02/2008 15. Log. per. antenna EG 1 1519 HL 223 841516/023 Rohde & Schwarz Rohde & Schwarz 01/2007 01/2008 16. Horn Antenna 1516 3115 9508-4553 Emco ARC-Seibersdorf 05/2005 05/2008 1 Accepted tolerance is ± 6 months.

EMV-Prüfzentrum EMI/EMC-Testcenter Coordinates: Äussere Frühlingstrasse 45 y D-94315 Straubing Telefon (0 94 21) 55 22-0 Telefax (0 94 21) 55 22-99 [email protected] y http://www.senton.de Senton GmbH y Äussere Frühlingstrasse 45 y D-94315 Straubing PHOENIX TEST-LAB GmbH Koenigswinkel 10 D-32825 Blomberg Germany 30 October 2007 In reference to FCC ID VNCMEDILAS Justification for Part 15 Unlicensed Modular Transmitter Approval according to Section 15.212 1. Own RF Shielding Not complied, but subject to limited modular approval. The Grantee can demonstrate that it will retain control over the final installation of the device, such that compliance of the end product is assured. In such a case, an operating condition on the grant of equipment authorization for the module would state that the module is only approved for use when installed in devices produced by a specific manufacturer, typically the Grantee. 2. Buffered Modulation inputs Complied, no direct modulation input. Modulated signals will be buffered by micro controller IC7 and reader chip IC2 3. Own power supply regulation Not complied, but subject to limited modular approval. The Grantee can demonstrate that it will retain control over the final installation of the device, such that compliance of the end product is assured. For details see installation guide. 4. Antenna requirements Complied, antenna permanently attached 5. Test in stand-alone configuration Complied, see test report for details. Cable lengths typical to actual use. 6. Own FCC ID Complied, the exterior label will be "Contains FCC ID VNCMEDILAS" Subject to limited modular approval 7. The Modular Transmitter must comply with any specific rule and the manufacturer must provide adequate instructions The EUT is compliant with all applicable FCC rules. Detail instructions are given in the installation guide. 8. RF Exposure requirements Not applicable since the unit operates under section 15.209 of the FCC rules. The reference guide contains general installation and operation instructions. MPE evaluation not required Johann Roidt Senton GmbH

Ersteller: U. Rodemeier Revision: 03 Erstelldatum: 03.08.01 Datum: 4.10.2006 Seite 1 von 1 Request for Confidentiality PHOENIX TESTLAB GmbH Date: February 6, 2008 Product Certification Königswinkel 10 D 32825 Blomberg RE: Certification Application FCC ID: VNCMEDILAS Confidentiality Request Pursuant to Sections 0.457 and 0.459 of the Commission’s Rule, the applicant hereby requests confidential treatment of information accompanying this application as outlined below: • Schematics • Block Diagram • Technical Description • Parts List The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that pursuant to rule 0.457, disclosure od this application and all accompanying documentation will not be made before the date of the GRANT for this application ́. Thank you for your attention in this matter. Applicant’s Company : Senton GmbH address : Auessere Fruehlingstrasse 45, D-94315 Straubing Signature : Johann Roidt Job Title and Dept. : Technical Director

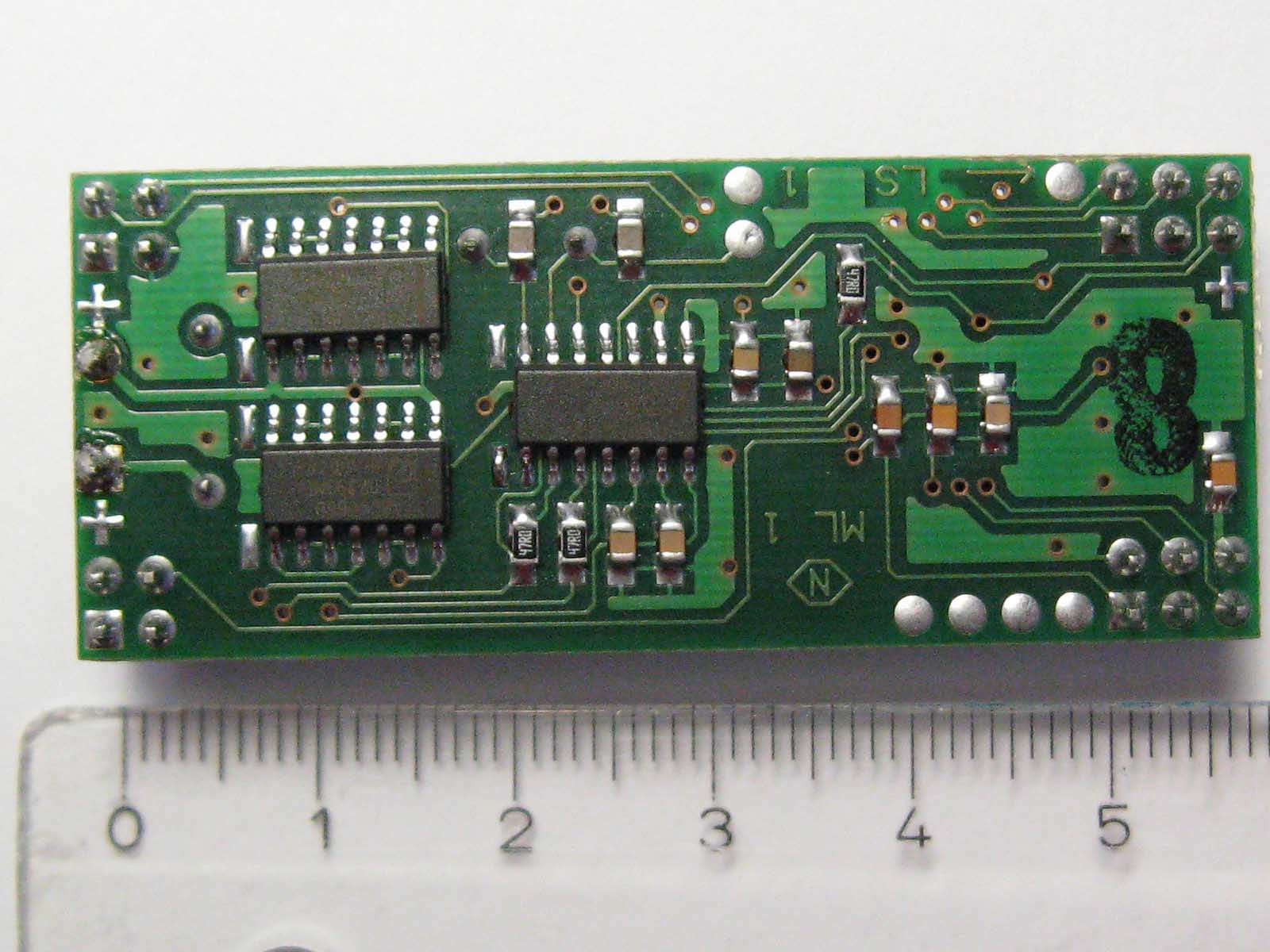

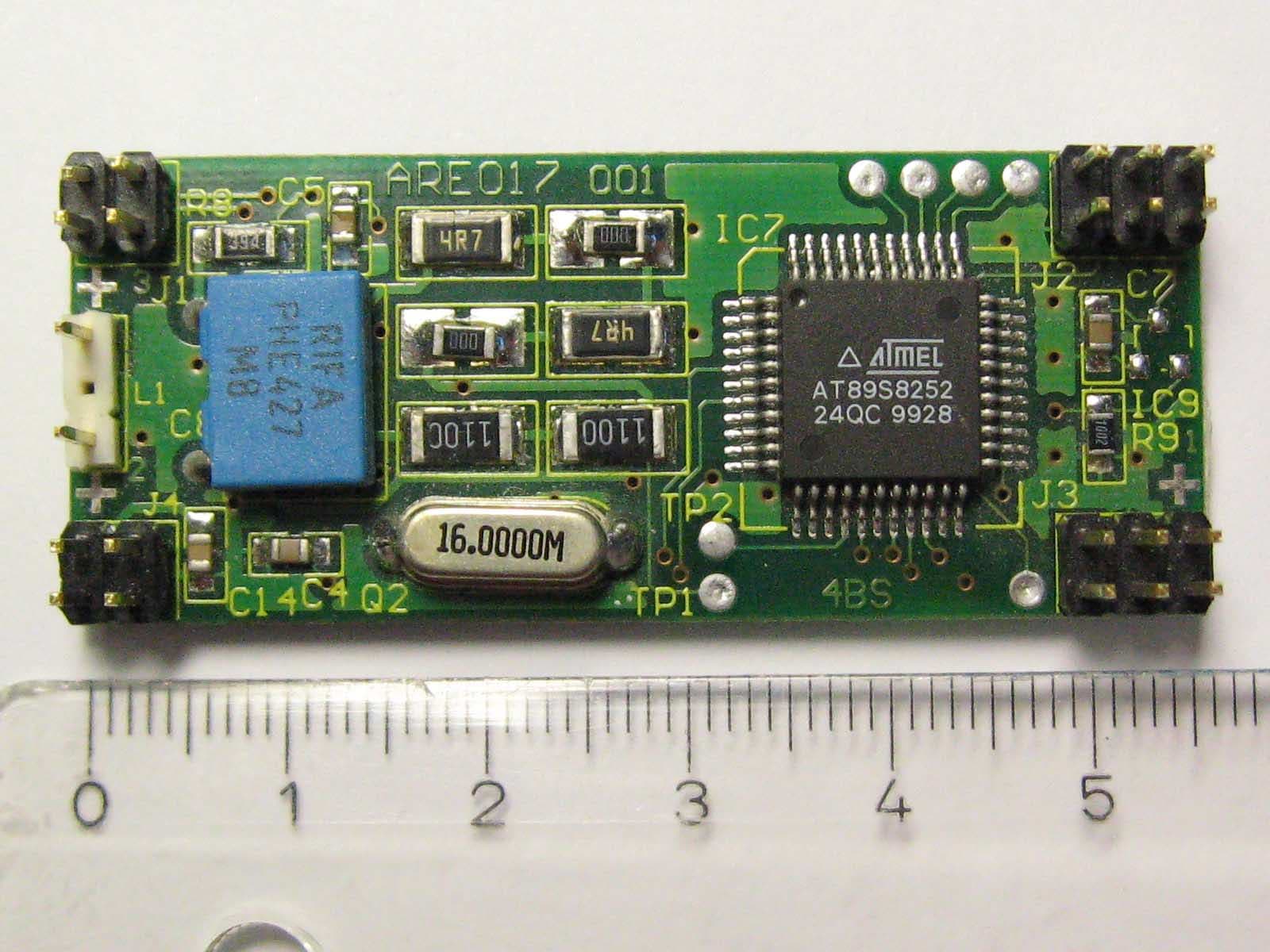

FCC ID VNCMEDILAS FCC ID VNCMEDILAS FCC ID VNCMEDILAS FCC ID VNCMEDILAS

FCC ID VNCMEDILAS FCC ID VNCMEDILAS FCC ID VNCMEDILAS FCC ID VNCMEDILAS

Senton GmbH Aeussere Fruehlingstrasse 45 D-94315 Straubing Note: The test data of this report is related only to the individual item which has been tested. This report shall not be reproduced except in full extent without the written approval of the testing laboratory. Test Report No. 55503-70615-3 (Edition 1) Page 1 of 39 Pages Straubing, August 30, 2007 T E S T - R E P O R T No. 55503-70615-3 (Edition 1) for Transponder module Medilas D (D30/D60) Transponder module Applicant: Dornier MedTech Laser GmbH Test Specifications: FCC Code of Federal Regulations, CFR 47, Part 15, Sections 15.205, 15.207 and 15.209 Industry Canada Radio Standards Specifications RSS-Gen Issue 2, Section 7.2.2 and RSS-210 Issue 7, Sections 2.2, 2.6 (Category I Equipment) Senton GmbH Aeussere Fruehlingstrasse 45 D-94315 Straubing Test Report No. 55503-70615-3 (Edition 1) Page 2 of 39 Pages Table of Contents 1 Description of the Equipment Under Test (EUT) ........................................................ 3 2 Administrative Data..................................................................................................... 4 3 Identification of the Test Laboratory ........................................................................... 5 4 Summary .................................................................................................................... 6 5 Operation Mode and Configuration of EUT................................................................. 7 6 Measurement Procedures........................................................................................... 8 6.1 Bandwidth Measurements .................................................................................... 8 6.2 Conducted AC Powerline Emission .................................................................... 10 6.3 Radiated Emission Measurement 9 kHz to 30 MHz ........................................... 12 6.4 Radiated Emission in Fully or Semi Anechoic Room.......................................... 14 6.5 Radiated Emission at Open Field Test Site........................................................ 16 7 Photographs Taken During Testing .......................................................................... 17 8 Test Results .............................................................................................................. 21 8.1 Occupied Bandwidth........................................................................................... 23 8.2 Designation of Emissions ................................................................................... 27 8.3 Restricted Bands of Operation ........................................................................... 28 8.4 Radiated Emission Measurement 9 kHz to 30 MHz .......................................... 29 8.5 Radiated Emission Measurement 30 MHz to 1 GHz ......................................... 30 8.6 Exposure of Humans to RF Fields...................................................................... 32 9 Referenced Regulations ........................................................................................... 34 10 Revision History ........................................................................................................ 35 11 Charts taken during testing ....................................................................................... 36 Senton GmbH Aeussere Fruehlingstrasse 45 D-94315 Straubing Test Report No. 55503-70615-3 (Edition 1) Page 3 of 39 Pages 1 Description of the Equipment Under Test (EUT) General data of EUT Type designation 1 : Transponder module Medilas D (D30/D60) Parts 2 : --- Serial number(s): Sample no. 1 Manufacturer: Dornier MedTech Laser GmbH Type of equipment: Transponder module Version: With ferrite core Würth WE74271142 on 5 V DC supply FCC ID: VNCMEDILAS Additional parts/accessories: --- Technical data of EUT Application frequency range: Not applicable (general requirements) Frequency range: 125 kHz Operating frequency: 125 kHz Type of modulation: ASK Number of RF-channels: 1 Channel spacing: Wideband Designation of emissions 3 : 19K2A1D Type of antenna: Loop antenna Size/length of antenna: Loop antenna with diameter 37 mm Connection of antenna: detachable not detachable Type of power supply: DC supply Specifications for power supply: nominal voltage: 5.0 V minimum voltage: 4.75 V maximum voltage: 5.25 V 1 Type designation of the system if EUT consists of more than one part. 2 Type designations of the parts of the system, if applicable. 3 Also known as "Class of Emission". Senton GmbH Aeussere Fruehlingstrasse 45 D-94315 Straubing Test Report No. 55503-70615-3 (Edition 1) Page 4 of 39 Pages 2 Administrative Data Application details Applicant (full address): Dornier MedTech Laser GmbH Argelsrieder Feld 7 D-82234 Wessling Germany Contact person: Mr. Rudolf Klein Contract identification: --- Receipt of EUT: July 19, 2007 Date(s) of test: July 19, 2007 Note(s): Mr. Klein representing the applicant attended testing. Report details Report number: 55503-70615-3 Edition: 1 Issue date: August 30, 2007 Senton GmbH Aeussere Fruehlingstrasse 45 D-94315 Straubing Test Report No. 55503-70615-3 (Edition 1) Page 5 of 39 Pages 3 Identification of the Test Laboratory Details of the Test Laboratory Company name: Senton GmbH EMI/EMC Test Center Address: Aeussere Fruehlingstrasse 45 D-94315 Straubing Germany Laboratory accreditation: DAR-Registration No. DAT-P-171/94-02 FCC test site registration number 90926 Industry Canada test site registration: IC 3050 Contact person: Mr. Johann Roidt Phone: (+49) (0)9421 5522-0 Fax: (+49) (0)9421 5522-99 Senton GmbH Aeussere Fruehlingstrasse 45 D-94315 Straubing Test Report No. 55503-70615-3 (Edition 1) Page 6 of 39 Pages 4 Summary Summary of test results The tested sample complies with the requirements set forth in the Code of Federal Regulations CFR 47, Part 15, Sections 15.205, 15.207 and 15.209 of the Federal Communication Commission (FCC) and the Radio Stand…

Text truncated - open the document above for the full version.

Senton GmbH Aeussere Fruehlingstrasse 45 D-94315 Straubing Note: The test data of this report is related only to the individual item which has been tested. This report shall not be reproduced except in full extent without the written approval of the testing laboratory. Annex A to Test Report No. 55503-70615-3 (Edition 1) Page 1 of 12 Pages Straubing, February 19, 2008 A N N E X A to T E S T - R E P O R T No. 55503-70615-3 (Edition 1) for Transponder module Medilas D (D30/D60) Transponder module Applicant: Dornier MedTech Laser GmbH Test Specifications: FCC Code of Federal Regulations, CFR 47, Part 15, Sections 15.205, 15.207 and 15.209 Industry Canada Radio Standards Specifications RSS-Gen Issue 2, Section 7.2.2 and RSS-210 Issue 7, Sections 2.2, 2.6 (Category I Equipment) Senton GmbH Aeussere Fruehlingstrasse 45 D-94315 Straubing Annex A to Test Report No. 55503-70615-3 (Edition 1) Page 2 of 12 Pages Table of Contents 1 Measurement Procedures........................................................................................... 3 1.1 Conducted AC Powerline Emission ...................................................................... 3 2 Photographs Taken During Testing ............................................................................ 5 3 Test Results ................................................................................................................ 7 3.1 Conducted Powerline Emission Measurement 150 kHz to 30 MHz..................... 8 4 Revision History .......................................................................................................... 9 5 Charts taken during testing ....................................................................................... 10 Senton GmbH Aeussere Fruehlingstrasse 45 D-94315 Straubing Annex A to Test Report No. 55503-70615-3 (Edition 1) Page 3 of 12 Pages 1 Measurement Procedures 1.1 Conducted AC Powerline Emission Measurement Procedure: Rules and specifications: CFR 47 Part 15, section 15.207 IC RSS-Gen Issue 2, section 7.2.2 Guide: ANSI C63.4 / CISPR 22 Conducted emission tests in the frequency range 150 kHz to 30 MHz are performed using Line Impedance Stabilization Networks (LISNs). To simplify testing with quasi-peak and average detector the following procedure is used: First the whole spectrum of emission caused by the equipment under test (EUT) is recorded with detector set to peak using CISPR bandwidth of 10 kHz. After that all emission levels having less margin than 10 dB to or exceeding the average limit are retested with detector set to quasi-peak. If average limit is kept with quasi-peak levels no additional scan with average detector is necessary. In cases of emission levels between quasi-peak and average limit an additional scan with detector set to average is performed. According to ANSI C63.4, section 13.1.3.1, testing of intentional radiators with detachable antenna shall be performed using a suitable dummy load connected to the antenna output terminals. Otherwise, the tests shall be made with the antenna connected and, if adjustable, fully extended. Testing with dummy load may be necessary to distinguish (unintentional) conducted emissions on the supply lines from (intentional) emissions radiated by the antenna and coupling directly to supply lines and/or LISN. Usage of dummy load has to be stated in the appropriate test record(s) and notes should be added to clarify the test setup. LISN EUT EMI receiver LISN EUT Shielded room LISN EUT Wooden table Senton GmbH Aeussere Fruehlingstrasse 45 D-94315 Straubing Annex A to Test Report No. 55503-70615-3 (Edition 1) Page 4 of 12 Pages Test instruments used: Used Type Model Serial No. or ID Manufacturer EMI receiver ESHS 10 860043/016 Rohde & Schwarz LISN ESH3-Z5 862770/021 Rohde & Schwarz LISN ESH3-Z5 830952/025 Rohde & Schwarz Artificial mains network ESH 2-Z5 842966/004 Rohde & Schwarz Shielded room No. 1 1451 Albatross Projects Shielded room No. 4 3FD-100 544 Euroshield Senton GmbH Aeussere Fruehlingstrasse 45 D-94315 Straubing Annex A to Test Report No. 55503-70615-3 (Edition 1) Page 5 of 12 Pages 2 Photographs Taken During Testing Senton GmbH Aeussere Fruehlingstrasse 45 D-94315 Straubing Annex A to Test Report No. 55503-70615-3 (Edition 1) Page 6 of 12 Pages Test setup for AC conducted emission measurement 150 kHz – 30 MHz Senton GmbH Aeussere Fruehlingstrasse 45 D-94315 Straubing Annex A to Test Report No. 55503-70615-3 (Edition 1) Page 7 of 12 Pages 3 Test Results FCC CFR 47 Parts 2 and 15 Section(s) Test Page Result 15.207 Conducted AC powerline emission 150 kHz to 30 MHz --- Test passed IC RSS-Gen Issue 2 Section(s) Test Page Result 7.2.2 Transmitter AC power lines conducted emissions 150 kHz to 30 MHz --- Test passed Senton GmbH Aeussere Fruehlingstrasse 45 D-94315 Straubing Annex A to Test Report No. 55503-70615-3 (Edition 1) Page 8 of 12 Pages 3.1 Conducted Powerline Emission Measurement 150 kHz to 30 MHz Rules and specifications: CFR 47 Part 15, section 15.207 IC RSS-Gen Issue 2, section 7.2.2 Guide: ANSI C63.4 / CISPR 22 Limit: Conducted Limit (dBμV) Frequency of Emission (MHz) Quasi-peak Average 0.15 - 0.5 66 to 56 56 to 46 0.5 - 5 56 46 5 - 30 60 50 Measurement procedure: Conducted AC Powerline Emission (1.1) Comment: with FWGB AC/DC adapter FW7650/05 Date of test: 02/18/2008 Test site: Shielded room, cabin no. 4 Test Result: Test passed Tested on: Linecord AC 110 V, Phase L1 FrequencyDetectorReadingCorrectionFinalLimitMargin ValueFactorValue (MHz)(dBμV)(dB)(dBμV)(dBμV)(dB) 0.15 - 30PeakMargin to average limit > 10 dB Tested on: Linecord AC 110 V, Phase N FrequencyDetectorReadingCorrectionFinalLimitMargin ValueFactorValue (MHz)(dBμV)(dB)(dBμV)(dBμV)(dB) 0.15 - 30PeakMargin to average limit > 10 dB Sample calculation of final values: Final Value (dBμV) = Reading Value (dBμV) + Correction Factor (dB) Senton GmbH Aeussere Fruehlingstrasse 45 D-94315 Straubing Annex A to Test Report No. 55503-70615-3 (Edition 1) Page 9 of 12 Pages 4 …

Text truncated - open the document above for the full version.

Test Equipment List for Test Report No. 50444-070615 / Page 1 of 1 Page(s) EMI/EMC-Testcenter EMV-Prüfzentrum Test Equipment List with Calibration Data / Test date: Juli 2007 No. Type Inv.-No. Model Serial Number Manufacturer Calibration Organization Date of last calibration Date of next calibration 1 1. Test receiver 1028 ESHS 10 860043/016 Rohde & Schwarz Rohde & Schwarz 04/2007 04/2008 2. Test receiver 1025 ESVP 881120/024 Rohde & Schwarz Rohde & Schwarz 10/2006 10/2007 3. Spectrum analyzer 1078 R 3271 05050023 Advantest Rohde & Schwarz 03/2006 03/2008 4. Spectrum analyzer 1666 FSP 30 100063 Rohde & Schwarz Rohde & Schwarz 02/2006 08/2007 5. EMI test receiver 1569 ESMI 839379/013 839587/006 Rohde & Schwarz Rohde & Schwarz 12/2005 12/2007 6. Preamplifier 1142 R14601 13120026 Advantest Rohde & Schwarz 11/2006 11/2007 Matrix RELAX consists: 1941 7. Preamplifier 1651 CPA9231A1 3393 Schaffner Schaffner 02/2007 02/2008 8. Preamplifier 1684 AFS3-00100800-32-LN 847743 Miteq Senton GmbH 06/2006 06/2007 9. V-network 1060 ESH 3-Z5 862770/021 B1060 Rohde & Schwarz Senton GmbH 01/2007 01/2010 10. V-network 1218 ESH 3-Z5 830952/025 B1218 Rohde & Schwarz Senton GmbH 05/2005 05/2008 11. Loop antenna 1016 HFH2-Z2 882964/0001 Rohde & Schwarz Rohde & Schwarz 01/2006 01/2007 12. Trilog wide band antenna Chamber 2 1722 VULB 9163 9163-188 A1722 Schwarzbeck Schwarzbeck 10/2006 10/2007 13. Trilog wide band antenna Chamber 3 1802 VULB 9163 9163-214 A1802 Schwarzbeck Schwarzbeck 01/2006 07/2007 14. Biconical antenna EG 1 1518 HK 116 842204/001 Rohde & Schwarz Rohde & Schwarz 02/2007 02/2008 15. Log. per. antenna EG 1 1519 HL 223 841516/023 Rohde & Schwarz Rohde & Schwarz 01/2007 01/2008 16. Horn Antenna 1516 3115 9508-4553 Emco ARC-Seibersdorf 05/2005 05/2008 1 Accepted tolerance is ± 6 months.

Senton GmbH Aeussere Fruehlingstrasse 45 D-94315 Straubing Test Report No. 55503-70615-3 (Edition 1) Page 18 of 39 Pages Test setup for radiated emission measurement 9 kHz – 30 MHz Note: Same test setup used as for radiated emission measurement 30 MHz - 1GHz Senton GmbH Aeussere Fruehlingstrasse 45 D-94315 Straubing Test Report No. 55503-70615-3 (Edition 1) Page 19 of 39 Pages Test setup for radiated emission measurement 30 MHz - 1GHz (open field test site) Senton GmbH Aeussere Fruehlingstrasse 45 D-94315 Straubing Test Report No. 55503-70615-3 (Edition 1) Page 20 of 39 Pages Test setup for radiated emission measurement (open field test site) - continued -
