VNG-AI01BRobotic Toy

SetupHow to use the Remote Control How to Throw a Pass Setting Up the Robot to be a Receiver / Lineman Switch on the remote control’s power button. Don’t touch the joystick while turning on the remote. This will cause the remote (and robot) to malfunction until you turn off/turn on again. Turn on the robot using the power switch on the robot’s back panel. You will see lights come on and the robot will say “RFL”. Remote battery insertion: place 4 AAA batteries into the remote compartment on back of remote. Place the included traction bands onto wheels com- pletely as shown. Insert battery with cable arranged to side as shown. Connect battery cable to robot’s power cable. To insert battery: lay robot face-down and remove battery key by pushing it toward the robot’s head and then pulling it out. JOYSTICK - drives the robot forward, backward, and turns. Joystick control is PROPORTIONAL. This means the further you push the joystick in one direction, the FASTER it goes. Small motions on the joystick get small controlled motions on the robot. BURST button - when you hold down this button, the robot drives at BURST speed (about 2x normal speed). HIKE - used to start a play when using two or more robots (see Advanced Operation section). THROW - press this key to use the throwing arm. Press, hold, then release to throw. The longer you hold the button down, the longer the throw. A brief touch of the button makes a short throw. Press and hold for 2 seconds and it throws automatically at longest range. As you hold down the THROW button, LEDs light up on the remote. This shows the power of the throw. The more LEDs that light up, the more powerful the throw. SWITCH - press this button to change remote control between multiple robots (see Advanced Operation section). Load the ball onto the throwing hand as shown. Note that the ball fits between the two fingers. Then just press the THROW button on the remote. Remember to hold down the throw button longer before releasing to throw farther. Slide the claw hands and the receiver plate onto the arms and fasten with screws. Install the shoulder bolt into the center hole of the robot's right arm, then remove the 2 outside screws. You cannot use the receiver hands if the 2 outside screws are left in. Remove the screws from the QB hand pieces. Remove the hand pieces and store them. UP and DOWN arm buttons - raises and lowers the non-throwing arm (left side arm). The non- throwing arm will rotate through about 180 degrees. The robot comes with a 9.6V rechargable battery pack. This should be fully charged before use. The robot will run best on a level surface like a wood floor or short carpet. The four casters allow the robot to drive over cracks easily. Joystick Switch Throw Hike Burst Power Switch Up Down Do not operate the robot if the battery is hot. Allow battery to cool down before operating. For notifications about upgrades and accessories for the robot and remote control, go to: www.Active-Innovations.com www.RoboticFootballLeague.com

AI-01 Back Panel Controls Remotes and robots must be on the same CHANNEL for the robot to respond to remote control commands. There are 12 separate channels available. The channel is defined by two pieces: the robot number (1-6) and the team number (1 or 2). The channel is displayed on the LED window of both remote and robot for about 2 seconds when you switch them on. The yellow LEDs show the robot number. #1-3 on top left to right LEDs, and #4-6 on bottom. The team number is 1 when the red LED is lit, and 2 when Green. Note that remote and robot come shipped in DEMO CHANNEL so that a robot in demo mode does not interfere with robots on normal channels. DEMO channel shows as Robot 1, but Team is both 1 and 2. TO SET CHANNEL ON THE ROBOT: Turn off robot, then hold down both Offense and Defense play buttons and turn robot power switch ON while holding both buttons. The channel will be displayed briefly, then after about 3 seconds a yellow LED and either a red or green LED will flash. The robot is now in SETUP mode where you set the channel. Press the Offense button to change the robot number, and Defense button to change team number. When you have set the channel that you want, press both buttons at the same time and hold for about 3 seconds. LEDs stop flashing when robot exits setup mode. TO SET CHANNEL ON THE REMOTE: Similar to the robot. Turn off remote, but now hold down the SWITCH and THROW buttons. Use SWITCH to change robot number setting. THROW changes team number. Press and hold both for 3 seconds to lock in your channel. Once you have set robot and remote channel, set the robot's MODE selector. If you want to have one robot a receiver running a play, and one robot a QB that throws a pass, set QB to MODE A, and receiver to MODE B. Have you ever wanted to practice your passing but had no one to practice with? With the AI-01, this problem is solved. The AI-01 has an AUTONOMOUS mode that allows you to select a play pattern to run on one robot, which it does by itself with no direction, while you control the quarterback robot by remote. There are four things you must understand to control more than one robot: the MODE selector switch on the robot, the robot/remote CHANNEL, the robot PLAYS, and the remote control use of SWITCH and HIKE buttons. The MODE selector on the robot's back panel is a 3 position switch. The positions are A, B, and X. Used to control 1 robot on one channel 1 robot under remote control, 1 (or more) acting autonomously. And you can change which robot is under remote control at will. Used to set robot(s) to only run autonomous instructions. Mode X robots ignore remote commands except HIKE. Remote only Mixed remote and autonomous Autonomous only Now that you have the robot and remote set up, it's time to run some PLAYS. On the robot's back panel there are displayed the preprogrammed play patterns avail- able. There are 6 offensive patterns and 2 defensive patterns. Offensive Plays: Fly, Button-hook, Slant Left, Ladder Right, Ladder Left, and Slant Right. When in offensive patterns, the robot will attempt to evade another robot if it detects one in the path. Defensive Play: Close and Scan (runs forward a short distance then scans for an opponent) or Zone (stay in a zone scanning for opponent). If another robot is detected in defensive mode, robot will move to tackle. Select Offensive plays by pressing the Offense button. Pressing Defense button toggles between defense patterns. On the remote, the HIKE button starts and stops a play. When in play, the red or green LED on remote will flash to indicate that play is in progress. A steady LED means that you are in huddle. A robot in MODE B will execute an autonomous play when you press HIKE, while robot in MODE A will respond to Joystick and other button controls. Pressing SWITCH (for instance, if you complete a pass to a receiver robot in MODE B) changes control to Robot B, and Robot A then executes its autonomous play. When in Robot A command mode, the remote's red LED will be on (and flashing if play has been started). The green LED is on if in Robot B command mode. With practice this becomes easy. FCC Notification: FCC ID VNG-AI01. This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. The user is warned that any modifications to the electrical circuitry of the robot or remote could void the user's ability to operate them within FCC rules. A B C RFL and all related material © 2007 Active Innovations Inc. All rights reserved. AUX port MODE switch Offensive LEDs Offense Button Defensive LEDs Defense Button Power Switch Trim Control

Active Innovations Inc 9763 S Goldfinch Ln. Highlands Ranch, CO 80129 Phone: 303 884 9424 Attention: Application Examiner, Reviewing Engineer Re: Request for confidentiality per Section 0.457 and 0.459 of FCC Rules Applicant: Active Innovations Inc. FCC ID: VNG-AI01B To whom it may concern, Request is hereby submitted by Active Innovations Inc., to withhold from public review certain portions of the application for equipment certification for the referenced FCC identifier. In particular, the following sections of the application and report are requested to be kept confidential: Schematics Detailed Block diagrams Detailed Operational/Functional Description Rationale for request for confidentiality: Active Innovations Inc. wishes to keep these items confidential to maintain a competitive advantage in the marketplace. The $145 fee for confidentiality has been submitted along with the fee for certification. If you have questions or need further information, please contact the undersigned. Sincerely, Kerwin Lumkins Chief Engineer Active Innovations Inc.

Non-Conformities FCC ID: VNG-AI01B (CKC CS Ref # E07-000101-FCC-01) The items listed below represent requests for information followi ng review of this application for certification under United States (FCC) regulations. . Further question may arise pending review of responses to these items. OK # Non-Conformity or Comment Submitted Response Respondent / Date of Response x 1 The provided FRN Number is for a company “Applied Innovations” however the application is for “Active Innovations.” Please confirm which entry is correct. Please note that it is the responsibility of the applicant to update the Federal Governing in the event of changes of any information. As necessary, please update the FRN or Grantee information using the FCC (Grantee registration website) or CORES (FRN Database website). FRN number updated. C Grasso 10/22/07 X 2 The FCC ID supplied via the CKC CS website does not match that provided in the Label exhibit or in the Confidentiality letter. Plea se confirm which is correct: VNGAI01B or VNG-AI01B? Confirmed, website updated. C Grasso 10/22/07 X 3 The supplied FCC ID label is missing a required semi-colon “:”. Please provide an updated label in accordance with 2.925 using the FCC ID: XXXYYYYYYYYYYY format. Updated label provided. C Grasso 10/22/07 X 4 Confidentiality letter: In accordance with 0.457 and 0.459, a request to hold internal photos confidential for a Updated letter provided. C Grasso 10/24/07 consumer product must be just ified. Proper justification may be that the equipment is potted and any attempt to view the PCB would destroy the equipment. Either provide further justification for holding internal photos confidential or remove this item from your request. X 5 Please confirm frequency range of equipment. The application lists 2400-2483.5, however the operational description lists 2410 and 2480. Does the device only operate on the two distinct frequencies? Please list the frequency range from the center frequency of the low and high channels. If there are no other channels used, please indicate so. Confirmed, 2410 and 2480 C Grasso 10/22/07

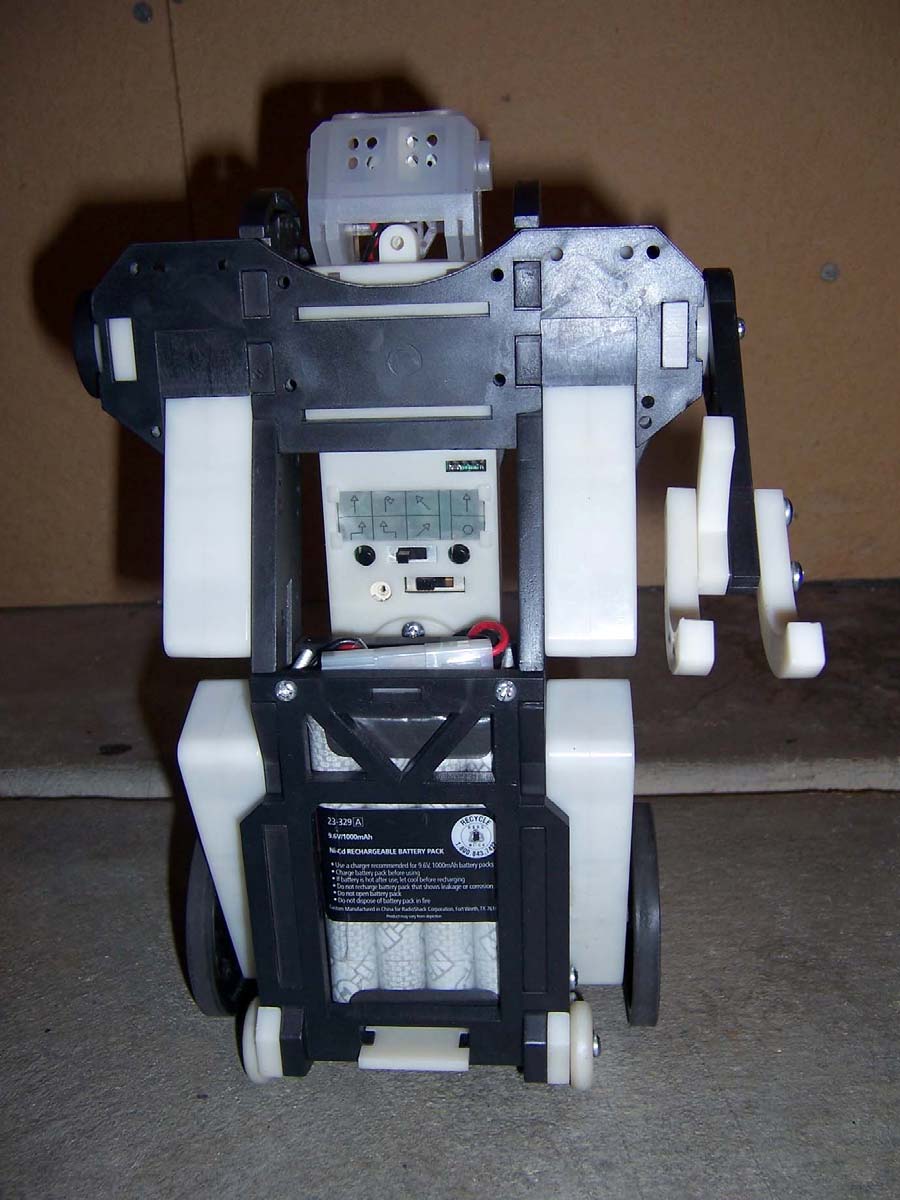

External Photos robot_Front robot_Back

1 FCC ID Label Definition and Usage on the VNG- AI01B Robot Date: 10/15/2007 Author: Kerwin Lumpkins, Chief Technical Officer 2 Date: 10/10/2007 FCC ID Label appearance and usage. Below is a copy of the FCC ID label used on the AI-01 Robot. Label is a vinyl material 41 x 11.5 mm in size with a permanent adhesive backing. Figure 1: Robot Label (approx actual size) Larger view of the label Figure 2: Larger view of robot label Mounting on robot: Below is an illustration showing placement of the label on the robot. The label is affixed on the back of robot, just above the control panel. The label is easily visible if the user tilts the robot upward while looking at the back panel.

Internal Photos RobotMainBoardFront RobotMainBoardBack RobotMainwPlastics

EMC EMISSIONS - TEST REPORT (Full) Test Report No. 3134545DEN-002 Issue Date: Fri 12/October/2007 Model / Serial No. MN: VNG-AI01B Robot and VNG-AI01RM Remote/SN: NA Product Type Wireless Robot and Remote Client Active Innovations LLC Manufacturer Active Innovations LLC License holder Active Innovations LLC 9763 Goldfinch Ln Address Highlands Ranch, CO 80129 Test Criteria Applied FCC CFR47 Part 15.249 Test Result PASS Test Project Number References 3134545 Total Pages Including Appendices: 36 Title 47 CFR 15: RADIO FREQUENCY DEVICES Tested By : Michael Spataro Reviewed By : Robert Cresswell REVISION SUMMARY - The following changes have been made to this Report: Rev. Revision Statement Author Revision Date Initial Release of Document See above See above This report is for the exclusive use of Intertek's Client and is provided pursuant to the agreement between Intertek and its Client. Intertek's responsibility and liability are limited to the terms and conditions of the agreement. Intertek assumes no liability to any party, other than to the Client in accordance with the agreement, for any loss, expense or damage occasioned by the use of this report. Only the Client is authorized to copy or distribute this report and then only in its entirety. Any use of the Intertek name or one of its marks for the sale or advertisement of the tested material, product or service must first be approved in writing by Intertek. The observations and test results in this report are relevant only to the sample tested. This report by itself does not imply that the material, product, or service is or has ever been under an Intertek certification program. Lab Code:200264-0 The entity logos above are for reference only and may not apply to this test report. Project File: 3134545 Page 2 of 36 Intertek 5541 Central Avenue, Suite 110 Boulder, Colorado 80301 Voice: 303 786 7999 Fax: 303 449 6160 Rev.No 1 D I R E C T O R Y Documentation Page(s) Test report 1 - 36 Directory 2 Test Regulations 3 General Remarks 4 Test-setup Photographs 5 - 11 Appendix A Test Data Sheets and Test Equipment Used 12 - 24 Appendix B Test Plan/Constructional Data Form 25 - 31 Appendix C Measurement Protocol/Test Procedures 32 - 36 STATEMENT OF MEASUREMENT UNCERTAINTY The data and results referenced in this document are true and accurate. The measurement uncertainty for Conducted Emissions in the frequency range of 150kHz – 30MHz is calculated to be ±2.30dB and for Radiated Emissions is calculated to be ±3.60dB in the frequency range of 30MHz – 200MHz and ±3.38dB in the frequency range of 200MHz – 1000MHz. EUT Received Date: 19-Sept-2007 Testing Start Date: 19-Sept-2007 Testing End Date: 25-Sept-2007 Project File: 3134545 Page 3 of 36 Intertek 5541 Central Avenue, Suite 110 Boulder, Colorado 80301 Voice: 303 786 7999 Fax: 303 449 6160 Rev.No 1 The tests were performed according to following regulations : 1. FCC CFR47 Part 15 subpart C 2. FCC CFR47 Part 15 subpart B Emission Test Results: Conducted Emissions, Powerline 15.207 - NA Test Result Minimum limit margin 0.0 dB at 0.0 MHz Remarks: EUT is battery powered. Radiated Emissions 15.209/15.109 - PASS Test Result Minimum limit margin -11.3 dB at 1000.00 MHz Remarks: Radiated Emissions 15.249 (a) Fundamental - PASS Test Result Minimum limit margin -1.0 dB at 2479.98 MHz Remarks: Robot High Channel Radiated Emissions 15.249 (a) Harmonics of the Fundamental - PASS Test Result Minimum limit margin -5.8 dB at 7231.04 MHz Remarks: Robot Low Channel Project File: 3134545 Page 4 of 36 Intertek 5541 Central Avenue, Suite 110 Boulder, Colorado 80301 Voice: 303 786 7999 Fax: 303 449 6160 Rev.No 1 GENERAL REMARKS: The following remarks are to be considered as “where applicable“ and are taken into account while completing any FCC/IC/ETSI radio tests at Intertek. Testing was performed in 3 different orthogonal axis to determine the worst case emissions from the device. The worst case emissions measurements are shown in this report. FCC CFR47 Part 15.31: Measurement Standards: In any case where the device is powered off a battery, a fresh battery was used during test. In cases where the device is powered off an AC supply, voltage was varied per Part 15.31 to find worst case emissions. FCC CFR47 Part 15.35: Measurement Detector Functions and Bandwidths: FCC Part 15.35 was utilized when performing the measurements within this report. Sample: Production Prototype See RFQ Modifications required to pass : None Test Specification Deviations: Additions to or Exclusions from: None Project File: 3134545 Page 5 of 36 Intertek 5541 Central Avenue, Suite 110 Boulder, Colorado 80301 Voice: 303 786 7999 Fax: 303 449 6160 Rev.No 1 Test-setup photo(s): Conducted Emissions Not Applicable Project File: 3134545 Page 6 of 36 Intertek 5541 Central Avenue, Suite 110 Boulder, Colorado 80301 Voice: 303 786 7999 Fax: 303 449 6160 Rev.No 1 Test-setup photo(s): Radiated Emissions: Remote Project File: 3134545 Page 7 of 36 Intertek 5541 Central Avenue, Suite 110 Boulder, Colorado 80301 Voice: 303 786 7999 Fax: 303 449 6160 Rev.No 1 Test-setup photo(s): Radiated Emissions: Remote Project File: 3134545 Page 8 of 36 Intertek 5541 Central Avenue, Suite 110 Boulder, Colorado 80301 Voice: 303 786 7999 Fax: 303 449 6160 Rev.No 1 Test-setup photo(s): Radiated Emissions: Robot Project File: 3134545 Page 9 of 36 Intertek 5541 Central Avenue, Suite 110 Boulder, Colorado 80301 Voice: 303 786 7999 Fax: 303 449 6160 Rev.No 1 Test-setup photo(s): Radiated Emissions: Robot Project File: 3134545 Page 10 of 36 Intertek 5541 Central Avenue, Suite 110 Boulder, Colorado 80301 Voice: 303 786 7999 Fax: 303 449 6160 Rev.No 1 Test-setup photo(s): Radiated Emissions: Unintentional Emissions Project File: 3134545 Page 11 of 36 Intertek 5541 Central Avenue, Suite 110 Boulder, Colorado 80301 Voice: 303 786 7999 Fax: 303 449 6160 Rev.No 1 Test-setup photo(s): Radiated Emissions: Unintentional Emissions Project File: 3134545 Page 12 of 36 Intertek 5541 Central Avenue…

Text truncated - open the document above for the full version.

Project File: 3134545 Page 6 of 36 Intertek 5541 Central Avenue, Suite 110 Boulder, Colorado 80301 Voice: 303 786 7999Fax: 303 449 6160 Rev.No 1 Test-setup photo(s): Radiated Emissions: Remote Project File: 3134545 Page 7 of 36 Intertek 5541 Central Avenue, Suite 110 Boulder, Colorado 80301 Voice: 303 786 7999Fax: 303 449 6160 Rev.No 1 Test-setup photo(s): Radiated Emissions: Remote Project File: 3134545 Page 8 of 36 Intertek 5541 Central Avenue, Suite 110 Boulder, Colorado 80301 Voice: 303 786 7999Fax: 303 449 6160 Rev.No 1 Test-setup photo(s): Radiated Emissions: Robot Project File: 3134545 Page 9 of 36 Intertek 5541 Central Avenue, Suite 110 Boulder, Colorado 80301 Voice: 303 786 7999Fax: 303 449 6160 Rev.No 1 Test-setup photo(s): Radiated Emissions: Robot Project File: 3134545 Page 10 of 36 Intertek 5541 Central Avenue, Suite 110 Boulder, Colorado 80301 Voice: 303 786 7999Fax: 303 449 6160 Rev.No 1 Test-setup photo(s): Radiated Emissions: Unintentional Emissions Project File: 3134545 Page 11 of 36 Intertek 5541 Central Avenue, Suite 110 Boulder, Colorado 80301 Voice: 303 786 7999Fax: 303 449 6160 Rev.No 1 Test-setup photo(s): Radiated Emissions: Unintentional Emissions
