VNMWR-100SRWIRELESS CONTROLLER

1 JJC WR-100 WIRELESS CONTROLLER Thank you for purchasing JJC WR-100 series wireless controller. For the best performance, please read this instruction carefully before use. Remove the remote control socket cap of the camera. Take out the JJC WR-100 wireless controller receiver and plug it into the remote control socket of the camera. Slide the function button in the W Mode. The receiver is active. Under this condition, the receiver can receive the signal from the transmitter; the receiver consumes the power of the battery. User can uses the Shutter button of the transmitter and Focus button to control the Camera’s shutter and Focus. Press the transmitter’s shutter button to take a photo. Press the transmitter’s focus button to focus. Slide the function button in the O Mode. The receiver is turnoff. Under this condition, the transmitter can not active the receiver to control the camera. The receiver will not consume any power of the battery. User can use the shutter button of the receiver to take photos. Press the shutter button halfway to focus. Press it fully to take a photo. Slide the function button in the L Mode and turn on the camera to BULB mode. Under this condition, the transmitter opens the lens; Slid the function button in the O Mode, the transmitter closes the lens. 2 When the camera is under no-Bulb mode and taking the photo, the transmitter will lock the shutter button, and the camera will implement continues shooting. Under L mode, the transmitter can not control the receiver. Operating range Maximum operating range 100m. (The operating range may be obstructions or interference with other electronic equipment to reduce the distance) Charging The WR-100 inbuilt High Capacity Li-ion battery. Take out the power adapter, plug it into the power socket of the transmitter and then plug the power adapter to the power outlet. When the transmitter is under charging, the light of transmitter is on. There are 5 lights, each light represent 20% of battery power. When all of the lights are on, which mean the battery is full, please take off the power adapter. WR-100A compatible with Canon EOS 5D EOS 1D EOS 1Ds EOS 1D Mark II EOS 1Ds Mark II EOS 1Ds Mark II Digital EOS 1D Mark II N Digital EOS 1D Mark III EOS 1DS Mark III EOS 400D Digital EOS 30D EOS 20D EOS 10D EOS D60 EOS D30 EOS 40D EOS 1V EOS 3 EOS D2000 WR-100B compatible with Nikon/ Kodak/ Fuji D2H D1x D1h D1 D2x D100* D200 F5 D2Xs D300 D3 Nikon F6 F100 F90 F90x Kodak DCS-14n Fuji Finepix S3pro Finepix S5pro *MB-D100 Vertical Grip/Battery Holder Needed WR-100C compatible with Canon/ Pentax/ Contax/ Samsung K100D K110D K10D *ist DS2 K100D Super *ist D *ist Ds *ist *ist DL PENTAX MZ-6 ZX-L MZ-L *ist DL2 645 N N1 NX CONTAX N Digital 3 Samsung GX-1L, GX-1S GX-10 EOS 30 EOS 33 EOS 50E EOS 300 EOS 300V EOS 300D EOS 350D EOS 3000 EOS 50 EOS 500 EOS 55 EOS 500N EOS 300X EOS Kiss EOS New Kiss EOS Kiss 7 EOS Kiss III EOS 7 EOS 7s EOS400D EOS Digital Rebel EOS Digital Rebel XT EOS Digital Rebel XTi Kiss Digital Kiss Digital N ELAN 7N ELAN II ELAN DATE ELAN 7 ELAN 7NE ELAN 7N ELAN IIE Rebel 2000 Rebel G Rebel T2 Rebel Ti Rebel X CANON Rebel XS WR-100D compatible with Panasonic DMC-FZ20 DMC-FZ20k DMC-FZ20S DMC-FZ30 DMC-FZ30K DMC-FZ30S DMC-FZ50K DMC-FZ50S DMC-FZ50 LC-1 L1 DIGILUX 2 Panasonic DIGILUX 3 WR-100E compatible with Olympus E1 E10 E20 E20N E300 * E100RS C8080 * C7070 * Olympus C5060 * C2500L *via the Power Battery Holder WR-100F compatible with Sony/ KonicaMinolta Sony DSLR-A100 DSLR-A100K Maxxum 7D Maxxum 5D Dynax 7D Dynax 5D Maxxum 9 Maxxum 7 Maxxum 4 Maxxum 3 Dynax 9 Dynax 7 Dynax 4 Dynax 3 Maxxum 807si Maxxum 700si Maxxum 600si Maxxum 505si Maxxum 500si Dynax 505si Dynax 500si Dynax Sweets Maxxum 9000 Maxxum 7000 Maxxum 5000 Dynax 9000 Maxxum 800si Dynax 807si Dynax 800si Dynax 600si Dynax 7000 Dynax 5000 DiMAGE 7Hi Dynax 700si DiMAGE 7 DiMAGE 5 Maxxum Sweets Maxxum Sweets KonicaMinolta DiMAGE 7i Dynax Sweet WR-100G compatible with Nikon Nikon D70S D80 WR-100H compatible with Sigma Sigma SD-9 SD-10 4 WR-100I compatible with Sigma Sigma SD14 WR-100J compatible with Olympus SP-510 UZ SP-550 UZ E400 E410 Olympus E510 Copyright of JJC Technology CO., Ltd 5 FCC Caution: This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. FCC Notes: The manufacturer is not responsible for and radio or TV interference caused by unauthorized modifications to this equipment. Such modifications could void the user's authority to operate the equipment.

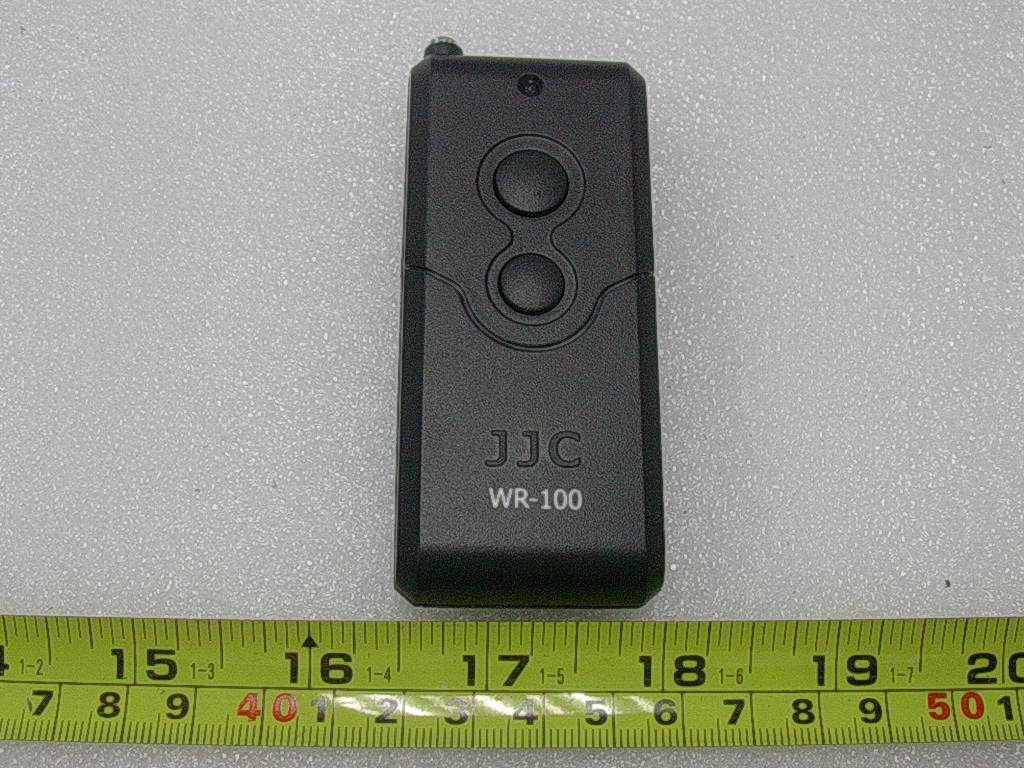

SHENZHEN JIN JIA CHENG TECHNOLOGY CO., LTD. MODEL: WR-100A REPORT NO.: STR07098025I FCC PART 15.231 EXHIBIT 2 - EUT EXTERNAL PHOTOGRAPHS EUT View 1 EUT View 2

SHENZHEN JIN JIA CHENG TECHNOLOGY CO., LTD. MODEL: WR-100A REPORT NO.: STR07098025I FCC PART 15.231 EXHIBIT 1- PRODUCT LABELING Proposed FCC ID Label Format FCC ID: VNMWR-100SR This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Specifications : Text is Black in color and is left justified. Labels are printed in indelible ink on permanent adhesive silk-screened onto the EUT or shall be affixed at a conspicuous location on the EUT. Proposed Label Location on EUT FCC ID Label Location

SHENZHEN JIN JIA CHENG TECHNOLOGY CO., LTD. MODEL: WR-100A REPORT NO.: STR07098025I FCC PART 15.231 EXHIBIT 1- PRODUCT LABELING Proposed FCC ID Label Format FCC ID: VNMWR-100SR This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Specifications : Text is Black in color and is left justified. Labels are printed in indelible ink on permanent adhesive silk-screened onto the EUT or shall be affixed at a conspicuous location on the EUT. Proposed Label Location on EUT FCC ID Label Location

SHENZHEN JIN JIA CHENG TECHNOLOGY CO., LTD. MODEL: WR-100A REPORT NO.: STR07098025I FCC PART 15.231 EXHIBIT 3 - EUT INTERNAL PHOTOGRAPHS EUT Housing and Board View Solder Board-Component View 1 SHENZHEN JIN JIA CHENG TECHNOLOGY CO., LTD. MODEL: WR-100A REPORT NO.: STR07098025I FCC PART 15.231 Solder Board-Component View 2

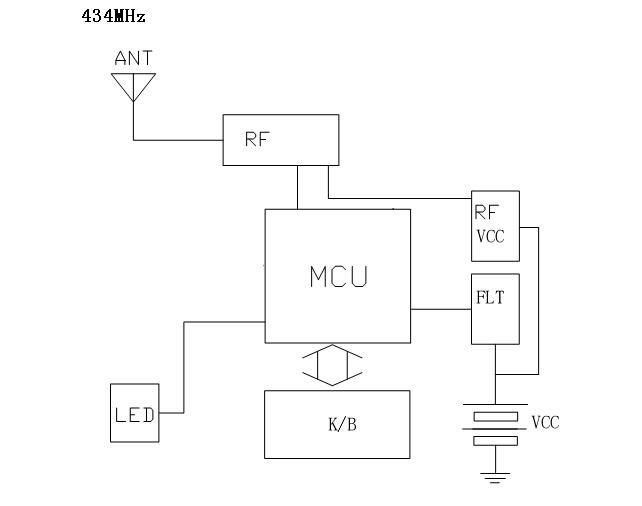

CIRCUIT DESCRIPTION The Keyboard signal sending to the MCU, MCU deal with the signal analyzers, then out to the RF Module, coupling with the modulator, as the RF power Amplifier and filter, then transmitting out by carrying CW with 434 MHz frequency by the ANTENNA.

1 2 34 ABCD 4 3 2 1 D CBA 原理图 名称拟制 审核 批准 型号 日期 日期 日期 NT-XJ01A A0 1 A1 2 A2 3 A3 4 A4 5 A5 6 A6 7 A7 8 GND 9 D3 10 D2 11 D1 12 D0 13 DATA IN 14 OSCO 15 OSCI 16 VT 17 VCC 18 U3PT2272-M4 DATA DATA R17820K +5 VCC 1 GND 2 A7 3 A6 4 A5 5 A4 6 A3 7 A2 8 A1 9 A0 10 A1 三态八位拨码开关 R18 1K C2104P 12345 JP1NT-R03C Y118CM +5 R11 100R R12 100R R910K Q2 2N7002 D1 D1IN5817 L147UH SW KEY1 LX 3 GND 1 OUT 2 U4501C C1104P + C447UF/10 + C547UF/10 +5 VCC P2 D0 D2IN5817 Q12N7002 Q32N7002 Q62N7002 R810K R19470R P1 P2 DC1 D1 LCOM 1 SEG1/PROG1 2 SEG2/PROG2 3 SEG3/PROG3 4 SEG4/PROG4 5 SEG5/PROG5 6 CFC 7 GND 8 SR 9 DISP 10 SB 11 RB 12 HDQ 13 PSTAT 14 REF 15 VCC 16 U2BQ2050H LED1 LED LED2 LED LED3 LED LED4 LED LED5 LED R13331R R14331R R15331R + C8 47UF/10V R10100K C7104P SB DISP SNS 1 BAT 2 VCC 3 TS 4 STAT 5 GND 6 CC 7 COMP 8 U1BQ2057C R39.1KR416K R647K R2331R R1331R TWINLED7LED +5 C9104P R23 0R5 R5 1K Q42SB1204 R7100R R20200K R21100K C3104P C6104P F1 自恢复保险丝 123456 J3 电源输入 VDDP1P2 1234 JP1 外接主机端 ANT18CM P1P2 VDD VDD 12 BT1 电池接口 R220R1 BAT BAT CC CC SNS VDD 12345678 S1 拔动开关 DC2DC1VCC DC1 SB LLED3LED SNS R16 2K Q52N7002 PU2-16 PU2-16 VCC DISP DC2 DC2 BAT 123 JP2CON3 P1 P2 1 2 34 ABCD 4 3 2 1 D CBA 原理图 名称拟制 审核 批准 型号 日期 日期 日期 NT-XJ01A A0 1 A1 2 A2 3 A3 4 A4 5 A5 6 A6 7 A7 8 GND 9 D3 10 D2 11 D1 12 D0 13 DATA IN 14 OSCO 15 OSCI 16 VT 17 VCC 18 U3PT2272-M4 DATA DATA R17820K +5 VCC 1 GND 2 A7 3 A6 4 A5 5 A4 6 A3 7 A2 8 A1 9 A0 10 A1 三态八位拨码开关 R18 1K C2104P 12345 JP1NT-R03C ANT 434MHz +5 R11 100R R12 100R R910K Q2 2N7002 D1 D1IN5817 L147UH SW KEY1 LX 3 GND 1 OUT 2 U4501C C1104P + C447UF/10 + C547UF/10 +5 VCC P2 D0 D2IN5817 Q12N7002 Q32N7002 Q62N7002 R810K R19470R P1 P2 DC1 D1 LCOM 1 SEG1/PROG1 2 SEG2/PROG2 3 SEG3/PROG3 4 SEG4/PROG4 5 SEG5/PROG5 6 CFC 7 GND 8 SR 9 DISP 10 SB 11 RB 12 HDQ 13 PSTAT 14 REF 15 VCC 16 U2BQ2050H LED1 LED LED2 LED LED3 LED LED4 LED LED5 LED R13331R R14331R R15331R + C8 47UF/10V R10100K C7104P SB DISP SNS 1 BAT 2 VCC 3 TS 4 STAT 5 GND 6 CC 7 COMP 8 U1BQ2057C R39.1KR416K R647K R2331R R1331R TWINLED7LED +5 C9104P R23 0R5 R5 1K Q42SB1204 R7100R R20200K R21100K C3104P C6104P F1 自恢复保险丝 123456 J3 电源输入 VDDP1P2 1234 JP1 外接主机端 ANT18CM P1P2 VDD VDD 12 BT1 电池接口 R220R1 BAT BAT CC CC SNS VDD 12345678 S1 拔动开关 DC2DC1VCC DC1 SB LLED3LED SNS R16 2K Q52N7002 PU2-16 PU2-16 VCC DISP DC2 DC2 BAT 123 JP2CON3 P1 P2

SHENZHEN JIN JIA CHENG TECHNOLOGY CO., LTD. MODEL: WR-100A REPORT NO.: STR07098025I PAGE 1 OF 14 FCC PART 15.231 FCC PART 15.231 MEASUREMENT AND TEST REPORT FOR Shenzhen Jin Jia Cheng Technology Co., Ltd. 1521 Main Building ,ChangFengYuan, ChunFeng Rd, LuoHu District, Shenzhen, China FCC ID: VNMWR-100SR Report Concerns: Original Report Equipment Type: Wireless Controller Model: WR-100A Report No.: STR07098025I Test/Witness Engineer: Lahm Peng Test Date: 2007-09-12 Prepared By: Shenzhen SEM.Test Compliance Service Co., Ltd. Room 609-610, Baotong Building, Baomin 1 st Road, Baoan District, Shenzhen, Guangdong, P.R.C. (518133) Approved & Authorized By: Jandy So / PSQ Manager Note: This test report is limited to the above client company and the product model only. It may not be duplicated without prior permitted by SEM.Test Compliance Service Co., Ltd . SHENZHEN JIN JIA CHENG TECHNOLOGY CO., LTD. MODEL: WR-100A REPORT NO.: STR07098025I PAGE 2 OF 14 FCC PART 15.231 TABLE OF CONTENTS 1. GENERAL INFORMATION ...................................................................................................................................3 1.1 PRODUCT DESCRIPTION FOR EQUIPMENT UNDER TEST (EUT)...............................................................................3 1.2 TEST STANDARDS...................................................................................................................................................3 1.3 RELATED SUBMITTAL(S)/GRANT(S) .......................................................................................................................3 1.4 TEST METHODOLOGY.............................................................................................................................................4 1.5 TEST FACILITY.......................................................................................................................................................4 1.6 EUT EXERCISE SOFTWARE....................................................................................................................................4 1.7 ACCESSORIES EQUIPMENT LIST AND DETAILS.......................................................................................................4 1.8 EUT CABLE LIST AND DETAILS.............................................................................................................................4 2. SUMMARY OF TEST RESULTS ...........................................................................................................................5 3. §15.203 - ANTENNA REQUIREMENT..................................................................................................................6 3.1 STANDARD APPLICABLE.........................................................................................................................................6 3.2 TEST RESULT..........................................................................................................................................................6 4. §15.205, §15.209, §15.231 (B)- RADIATED EMISSION........................................................................................7 4.1 MEASUREMENT UNCERTAINTY..............................................................................................................................7 4.2 STANDARD APPLICABLE.........................................................................................................................................7 4.4 TEST PROCEDURE...................................................................................................................................................8 4.5 CORRECTED AMPLITUDE & MARGIN CALCULATION..............................................................................................8 4.6 ENVIRONMENTAL CONDITIONS..............................................................................................................................9 4.7 SUMMARY OF TEST RESULTS/PLOTS......................................................................................................................9 5. §15.231(C) 20DB BANDWIDTH TESTING .........................................................................................................11 5.1 STANDARD APPLICABLE.......................................................................................................................................11 5.2 TEST EQUIPMENT LIST AND DETAILS...................................................................................................................11 5.3 TEST PROCEDURE.................................................................................................................................................11 5.4 ENVIRONMENTAL CONDITIONS............................................................................................................................11 5.5 SUMMARY OF TEST RESULTS/PLOTS....................................................................................................................11 6. §15.231(A)-DEACTIVATION TESTING .............................................................................................................13 6.1 STANDARD APPLICABLE.......................................................................................................................................13 6.2 TEST EQUIPMENT LIST AND DETAILS...................................................................................................................13 6.3 TEST PROCEDURE.................................................................................................................................................13 6.4 ENVIRONMENTAL CONDITIONS............................................................................................................................13 6.5 SUMMARY OF TEST RESULTS/PLOTS....................................................................................................................13 SHENZHEN JIN JIA CHENG TE…

Text truncated - open the document above for the full version.

SHENZHEN JIN JIA CHENG TECHNOLOGY CO., LTD. MODEL: WR-100A REPORT NO.: STR07098025I FCC PART 15.231 EXHIBIT 1- PRODUCT LABELING Proposed FCC ID Label Format FCC ID: VNMWR-100SR This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Specifications : Text is Black in color and is left justified. Labels are printed in indelible ink on permanent adhesive silk-screened onto the EUT or shall be affixed at a conspicuous location on the EUT. Proposed Label Location on EUT FCC ID Label Location SHENZHEN JIN JIA CHENG TECHNOLOGY CO., LTD. MODEL: WR-100A REPORT NO.: STR07098025I FCC PART 15.231 EXHIBIT 2 - EUT EXTERNAL PHOTOGRAPHS EUT View 1 EUT View 2 SHENZHEN JIN JIA CHENG TECHNOLOGY CO., LTD. MODEL: WR-100A REPORT NO.: STR07098025I FCC PART 15.231 EXHIBIT 3 - EUT INTERNAL PHOTOGRAPHS EUT Housing and Board View Solder Board-Component View 1 SHENZHEN JIN JIA CHENG TECHNOLOGY CO., LTD. MODEL: WR-100A REPORT NO.: STR07098025I FCC PART 15.231 Solder Board-Component View 2 SHENZHEN JIN JIA CHENG TECHNOLOGY CO., LTD. MODEL: WR-100A REPORT NO.: STR07098025I FCC PART 15.231 EXHIBIT 4 - TEST SETUP PHOTOGRAPHS Radiation Emission Test Setup
