VNP-ME1300SONNET Me1310 / Me1320

User Manual for SONNET audio processor (Me1310) AW31902_1.0 (English US) Cochlear Implants Table of contents 1 1. Table of contents 1. TABLE OF CONTENTS 1 2. INTRODUCTION 3 3. INTENDED USE – INDICATIONS – CONTRA-INDICATIONS 4 Intended use 4 Indications 4 Contra-indications 5 4. SONNET AUDIO PROCESSOR 6 The parts of the system 6 ON/OFF switch 8 FineTuner 11 Battery pack 15 Coil 18 Coil cable 21 Earhook 23 Microphone cover 26 Connecting assistive listening devices 27 5. SPECIAL CONSIDERATIONS FOR YOUNG CHILDREN 30 6. GENERAL PRECAUTIONS AND WARNINGS 31 General precautions for your MED-EL Cochlear Implant System 32 7. CARE AND MAINTENANCE 47 Maintenance 47 Weekly maintenance of your audio processor 48 Batteries 48 8. TROUBLESHOOTING 53 Speech Processor Test Device 54 FineTuner 55 SONNET indicator light 56 Private alert 58 FineTuner indicator functions 59 Table of contents 2 9. TECHNICAL DATA 60 Audio processor 60 FineTuner 62 Regulatory statements 63 Symbols 64 Speech Processor Test Device 65 Guidance and manufacturer’s declaration 66 10. APPENDICES 70 Warranty, guarantee and registration card 70 Manufacturer address 70 11. CONTACT MED-EL 71 Introduction 3 2. Introduction This user manual provides information and instructions regarding the MED-EL Cochlear Implant (CI) System with the SONNET audio processor (Me1310). It includes descriptions of available parts, wearing options, and accessories for the SONNET, as well as instructions for troubleshooting and proper care of the external cochlear implant equipment. Your MED-EL Cochlear Implant System consists of the Mi1200 SYNCHRONY (hereafter referred to as SYNCHRONY), Mi1000 MED-EL CONCERT (hereafter referred to as MED-EL CONCERT), PULSARci 100 , SONATAti 100 , C40+ or C40 implants, the external SONNET audio processor (including FineTuner and D Coil), the external components and accessories, and any external hardware and software used by your audiologist. This symbol indicates information that is particularly relevant for parents of implanted children. IMPORTANT You are the operator of your / your child‘s SONNET audio processor, therefore we recommend that you read this manual in its entirety. Do not perform any maintenance activities other than those described in this manual (e.g. changing batteries). When performing these maintenance activities, always remove the audio processor from the ear. The adjustment to a cochlear implant and adequate fitting of the device are gradual processes that occur over time. It is important to remember that your ability to hear with your new MED-EL system may take a little time while you become accustomed to this new method of hearing. You may choose to work with an aural rehabilitation specialist or other clinician to help you maximize your communication skills using the device. The audio processor can be activated for the first time after the surgical incision has completely healed and any remaining swelling has gone away. The implant cannot provide any sound information until the audio processor has been programmed by your audiologist, turned on, and placed on the head over the implant. After your initial fitting, you will need to return to your CI center on a regular basis for reprogramming. Frequent reprogramming may be required during the first year of implant use. This is normal and necessary, and it reflects a learning process that occurs as you become more and more accustomed to stimulation through the implant. As more time passes, you will likely find that you may require fewer and fewer sessions. Most patients continue to require occasional adjustments for as long as they use their implant. Please contact your CI center or MED-EL with any additional questions you may have. Intended use – Indications – Contra-indications 4 3. Intended use – Indications – Contra-indications INTENDED USE The SONNET audio processor is an external part of the MED-EL Cochlear Implant System. The MED-EL Cochlear Implant System is intended to evoke auditory sensation via electrical stimulation of the auditory pathways for severely to profoundly hearing impaired individuals who obtain little or no benefit from acoustic amplification in the best aided condition. INDICATIONS The SONNET audio processor is an external component of the MAESTRO Cochlear Implant System and is indicated for use on patients who have been implanted with SYNCHRONY, MED-EL CONCERT, PULSARci 100 , SONATAti 100 or C40+ cochlear implants. The MAESTRO Cochlear Implant System is indicated for: • Adults eighteen (18) years of age or older who have bilateral, sensorineural hearing impairment and obtain limited benefit from appropriately fitted binaural hearing aids. These individuals typically demonstrate bilateral severe to profound sensorineural hearing loss determined by a pure tone average of 70 dB or greater at 500 Hz, 1000 Hz, and 2000 Hz. Limited benefit from amplification is defined by test scores of 40 % correct or less in the best aided listening condition on CD recorded tests of open-set sentence recognition (Hearing In Noise Test [HINT] sentences). • Children aged twelve (12) months to seventeen (17) years eleven (11) months must demonstrate a profound, bilateral sensorineural hearing loss with thresholds of 90 dB or greater at 1000 Hz and above. In younger children, little or no benefit is defined by lack of progress in the development of simple auditory skills in conjunction with appropriate amplification and participation in intensive aural habilitation over a three (3) to six (6) month period. In older children, lack of aided benefit is defined as <20 % correct on the Multi-syllabic Lexical Neighborhood Test (MLNT) or Lexical Neighborhood Test (LNT), depending upon the child‘s cognitive ability and linguistic skills. A three (3) to six (6) month hearing aid trial is required for children without previous experience with hearing aids. Radiological evidence of cochlear ossification may justify a shorter trial with amplification. The SONNET is int…

Text truncated - open the document above for the full version.

Care and maintenance 48 WEEKLY MAINTENANCE OF YOUR AUDIO PROCESSOR Thoroughly wipe the external parts of your audio processor with a tissue and let them dry completely. Drying your audio processor The audio processor system includes a drying kit (electrical drying kit or drying box with drying capsules). For detailed information, please read the respective drying kit user manual. The audio processor need not be completely disassembled. The batteries may remain in the battery pack frame but the battery pack cover should be removed from your audio processor. We recommend that you dry your audio processor once a day (preferably overnight); although how often you will need to dry your equipment depends on the humidity in your environment. Excessive perspiration or high humidity in the air will require more frequent use of the drying kit. Never swallow any drying capsules which may be included in the drying kit! BATTERIES The SONNET audio processor requires two 675 zinc air batteries. These batteries supply the external and internal components of the MED-EL Cochlear Implant System with energy. If you want to get more information on batteries, please contact your local MED-EL representative or CI center. The battery pack cover has air inlets on its outer side. Do not cover these inlets as this may shorten battery life. If the inlets are contaminated, carefully clean them with the enclosed cleaning brush. If the contamination cannot be removed with the cleaning brush, replace the entire battery pack cover with a new one. NOTE: It is recommended to only use high power zinc air batteries to power the SONNET. Care and maintenance 49 IMPORTANT • Wash your hands after handling disposable batteries. • Do not try to recharge disposable batteries. • Do not disassemble, deform, immerse in water or incinerate batteries. • Avoid mix-up of old and new batteries or batteries of different types of brands. • Do not short-circuit batteries, e.g. by allowing the terminals of batteries to touch, carrying batteries loose in your pockets, wallet or purse or touching the battery terminals with metals (coins, wires, keys, etc.). • Store unused batteries in their original packaging, in a cool and dry place. • Do not expose batteries to heat (e.g. never leave batteries in direct sunlight, behind a window or in a car). • Do not use damaged, deformed batteries or leaking batteries. If any kind of substance leaks out of a battery, avoid direct skin contact with that substance. Such a substance could cause a chemical burn. In case of eye contact, rinse with copious amounts of water and seek medical attention immediately. • If you are not going to use your audio processor for an extended period of time, you should remove the batteries and store them separately. Cover the air openings on the top with adhesive tape when storing the batteries to avoid discharge. • Always remove used batteries immediately to avoid leakage and possible damage to the device. • Used batteries should be disposed of according to local regulations. Generally, batteries are collected separately and not disposed of with the household garbage. To prevent children from swallowing or choking on batteries, always keep new and used batteries out of the reach of children. Children shall be instructed not to swallow or put any components of their MED-EL Cochlear Implant System into their mouths or to play with any components. In young children, the battery pack cover lock must always be turned clockwise into the locked position (see Fig. 7-2), once the cover has been moved completely over the frame, to prevent the child from disassembling the audio processor. Do not allow children to replace batteries without adult supervision. Care and maintenance 50 Changing the batteries of your SONNET audio processor When the indicator light on the control unit blinks red continuously ( ), the battery set must be replaced (see also chapter 8, Troubleshooting). To change the batteries, proceed as follows: 1. Remove the SONNET and the coil from your head. 2. Make sure that the battery pack cover lock is in the unlocked position, as shown in Fig. 7-1. When it is not in the unlocked position, use the screwdriver provided with your SONNET kit to turn it counter-clockwise into the unlocked position. 3. Pull back and completely remove the battery pack cover. 4. Replace the used battery set by removing the two batteries with the coil magnet. To do so, move the center of the bottom part of the coil over each battery separately. Try not to touch the battery contacts (see Fig. 22). IMPORTANT Be careful not to place the coil on the SONNET control unit. 5. Before inserting the new battery set, make sure that the battery contacts are clean and dry. Remove the foil stickers covering the zinc air batteries before use. Check for correct polarity when inserting the new batteries. The positive pole must face outward, i.e. the sign is still visible after the batteries have been inserted. 6. Make sure that the battery pack cover lock is in the unlocked position as shown in Fig. 7-1. When it is not in the unlocked position, use the screwdriver provided with your SONNET kit to turn it counter-clockwise into the unlocked position. 7. Slide the battery pack cover completely over the battery pack frame to switch on the SONNET (see Fig. 4). Mind the correct orientation of the battery pack cover when sliding it over the frame and do not use excessive force. The orientation is correct when the air inlets on the battery pack cover are on the same side as the coil cable socket in the control unit. Care and maintenance 51 In young children, the battery pack cover lock must always be turned clockwise into the locked position (see Fig. 7-2), once the cover has been moved completely over the frame, to prevent the child from disassembling the audio processor. Fig. 22 Changing the batteries of your audio processor Care and maintenance 52 Changing the battery of your FineTuner When your FineTuner generates a…

Text truncated - open the document above for the full version.

MED*TL Request for Confidentiality Date': 18.07.2014 Subject: Confidentiality Request for: FCC ID: VNP-ME1300. lC: I1986A-MEl300 Pursuant to FCC 47 CRF 0.457(d) and 0.459 and IC RSP-100, Section 10, the applicant requests that apart of the subject FCC application be held confidential. Type of Confidentiality Requested Exhibit f| Snort Term X Strort Term X Strort Term E Strort Term n Snort Term ! Strort Term I Strort Term X Strort Term X Strort Term I Permanent ! Permanent*r I Permanent [l Permanent ! Permanent I Permanent f Permanent* Block Diagrams External Photos Internal Photos Operation Descri ption/Theory of Operation Parts List & Placement/BoM Tune-Up Procedure Schematics Test Setup Photos User's Manual Bernhard Stöbich *Note:@ MED-EL Elektromedizinische ceräte c.m.b.H. has spent substantial effort in developing this product and it is one ofthe first of its kind in industry. Having the subject information easily available to "competition" would negate the advantage they have achieved by developing this product. Not protecting the details ofthe design will result in financial hardship. Permanent Confidentiality: The applicant requests the exhibits listed above as permanently confidential be permanently withheld from public review due to materials that contain trade secrets and proprietary information not customarily released to the public. Short-Tern Confi dentiality: The applicant requests the exhibits selected above as short term confidential be withheld from public view for a period of 150 days from the date of the Crant of Equipment Authorization and prior to marketing. This is to avoid prernature release ofsensitive information prior to marketing or release ofthe product to the public. Applicant is also aware that they are responsible to notify ACB in the event information regarding the product or the product is made available to the public. ACB will then release the documents listed above for public disclosure pursuant to FCC Public Notice DA 04-1705. NOTE for Industry Canada Applications: The applicant understands that until such time that lC distinguishes between Short Term and Permanent Contidentiality, either type of marked exhibit above will simply be marked Confidential when submitted to lC. Sincerely, By' W-ream (Print name) ' - The asterisked items (+) require furtherjustification before permanent confidentiality will be allowed. These also currently require review by the FCC under their Permit-But-Ask policy before the grant is issued and can delay completion ofan appjication. Furtherjustification should be added to the note above. One such example fora potted device would be: "The EU'l' is FULLY potted using a non-removable epoxy based material. Removal ofpotting material causes irreparable " damage to intemal circuitry. See photographs exhibits that outline the device before and after potting." ' - Must be signed by applicant contact given fbr applicanr on the FCC site. or by the authorized agent ifan appropriatc authorized agent letter has been provided. Leners should be placed on appropriate lenerhead.

MEDgEL Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 2L046 Aprif 2), zav.l To whom it may concern: We the undersigned, hereby authorize CSA Group Bayern 6mbH, Mr. Thomas Ring, Ohmstrasse L-4, 94342 Strasskirchen, Germany to act on our behalf in all manners relating to application for equipment authorization, including signing of all documents relating to these matters. Any and all acts carried out by CSA Group Bayern GmbH on our behalf shall have the same affect as acts of our own. This authorization is valid until f urther written notice f rom MED-EL Elektromedizi nische Ceräte C.m.b.H. Sincerely, za€'- -- tFritz Ender, Corporate Director, RAIOAI / ,ry,/I o(L '/ (lzor-V.,nä5'töb;clt,'Tee"-La'dezpvclro.,;cQes'5-'949)

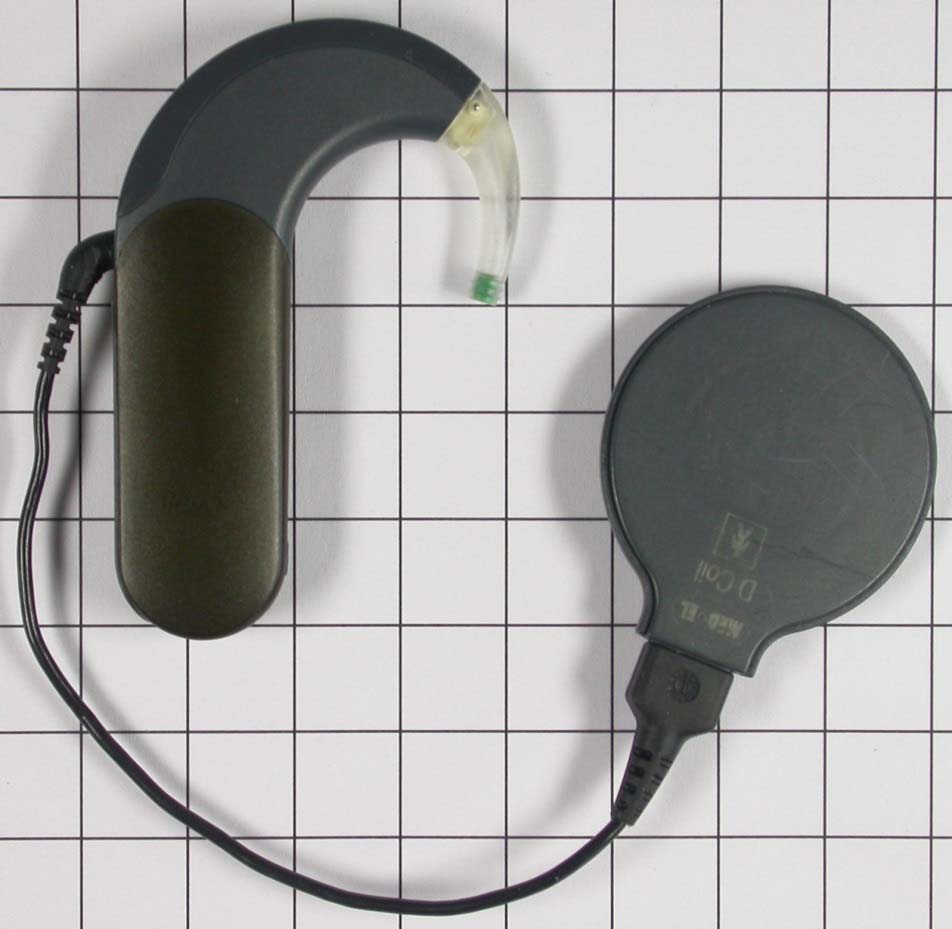

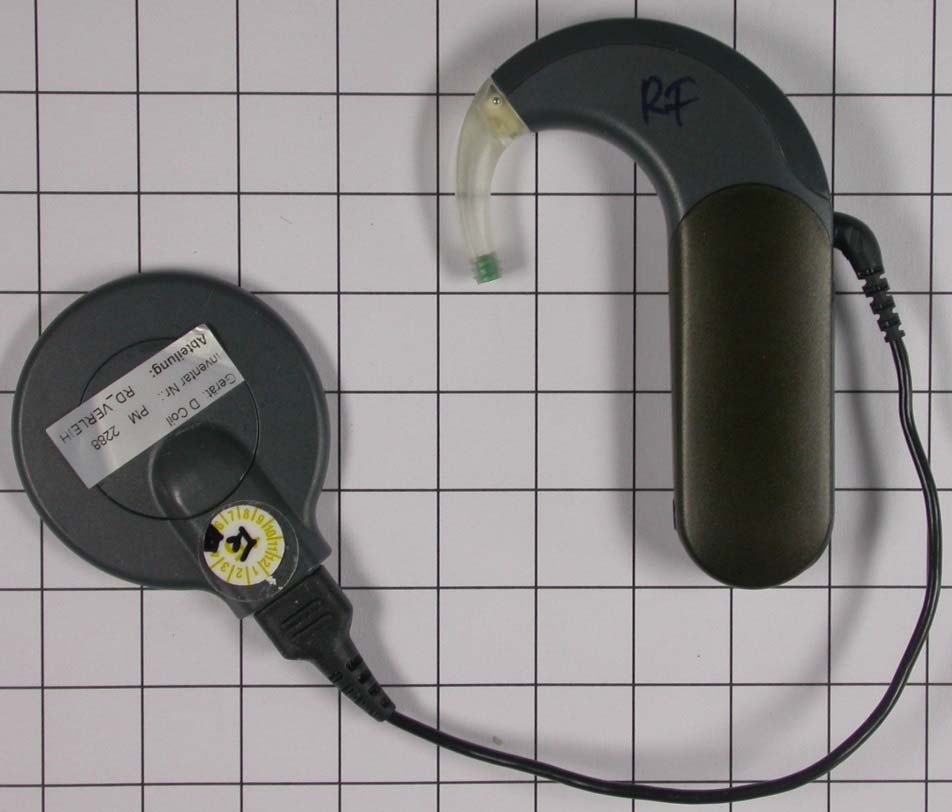

FCC ID: VNP-ME1300 IC: 11986A-ME1300 CSA Group Bayern GmbH Attachment A, page 1 of 9 Ohmstrasse 1-4  94342 STRASSKIRCHEN  GERMANY Tel.:+49(0)9424-94810  Fax:+49(0)9424-9481440 Rev. No. 3.0, 2014-01-30 Attachment A Photo documentation of the EUT – external photos of the EuT System left view System right view FCC ID: VNP-ME1300 IC: 11986A-ME1300 CSA Group Bayern GmbH Attachment A, page 2 of 9 Ohmstrasse 1-4  94342 STRASSKIRCHEN  GERMANY Tel.:+49(0)9424-94810  Fax:+49(0)9424-9481440 Rev. No. 3.0, 2014-01-30 Coil top view Coil bottom view Coil connector / front view FCC ID: VNP-ME1300 IC: 11986A-ME1300 CSA Group Bayern GmbH Attachment A, page 3 of 9 Ohmstrasse 1-4  94342 STRASSKIRCHEN  GERMANY Tel.:+49(0)9424-94810  Fax:+49(0)9424-9481440 Rev. No. 3.0, 2014-01-30 Audio processor Left view Right view FCC ID: VNP-ME1300 IC: 11986A-ME1300 CSA Group Bayern GmbH Attachment A, page 4 of 9 Ohmstrasse 1-4  94342 STRASSKIRCHEN  GERMANY Tel.:+49(0)9424-94810  Fax:+49(0)9424-9481440 Rev. No. 3.0, 2014-01-30 Top view Bottom view FCC ID: VNP-ME1300 IC: 11986A-ME1300 CSA Group Bayern GmbH Attachment A, page 5 of 9 Ohmstrasse 1-4  94342 STRASSKIRCHEN  GERMANY Tel.:+49(0)9424-94810  Fax:+49(0)9424-9481440 Rev. No. 3.0, 2014-01-30 Left view (without battery cover) Right view (without battery cover) FCC ID: VNP-ME1300 IC: 11986A-ME1300 CSA Group Bayern GmbH Attachment A, page 6 of 9 Ohmstrasse 1-4  94342 STRASSKIRCHEN  GERMANY Tel.:+49(0)9424-94810  Fax:+49(0)9424-9481440 Rev. No. 3.0, 2014-01-30 Rear view audio processor Bottom / connector view

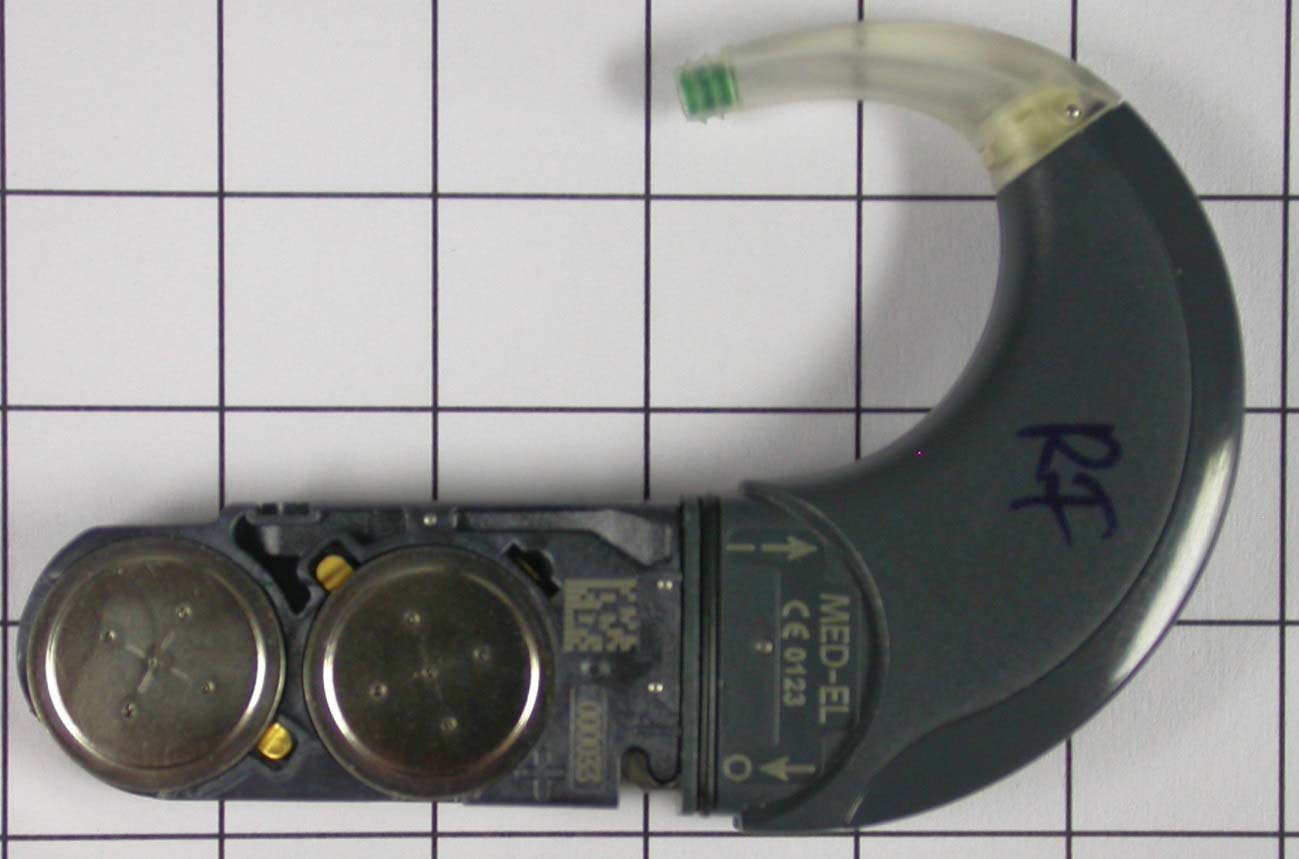

FCC ID: VNP-ME1300 IC: 11986A-ME1300 CSA Group Bayern GmbH Attachment A, page 7 of 9 Ohmstrasse 1-4  94342 STRASSKIRCHEN  GERMANY Tel.:+49(0)9424-94810  Fax:+49(0)9424-9481440 Rev. No. 3.0, 2014-01-30 Photo documentation of the EUT – internal photos of the EuT PCB top view (right side)

FCC ID: VNP-ME1300 IC: 11986A-ME1300 CSA Group Bayern GmbH Attachment A, page 8 of 9 Ohmstrasse 1-4  94342 STRASSKIRCHEN  GERMANY Tel.:+49(0)9424-94810  Fax:+49(0)9424-9481440 Rev. No. 3.0, 2014-01-30 PCB top view (left side)

FCC ID: VNP-ME1300 IC: 11986A-ME1300 CSA Group Bayern GmbH Attachment A, page 9 of 9 Ohmstrasse 1-4  94342 STRASSKIRCHEN  GERMANY Tel.:+49(0)9424-94810  Fax:+49(0)9424-9481440 Rev. No. 3.0, 2014-01-30 PCB bottom / antenna view (left side)

FCC ID: VNP-ME1300 IC: 11986A-ME1300 CSA Group Bayern GmbH File No. T38450-00-00KJ, page 1 of 34 Ohmstrasse 1-4  94342 STRASSKIRCHEN  GERMANY Tel.:+49(0)9424-94810  Fax:+49(0)9424-9481440 Rev. No. 3.0, 2014-01-30 EMI − T E S T R E P O R T - FCC Part 15.249, RSS210 - Test Report No. : T38450-00-00KJ 31. July 2014 ______________________________________________________________________________________________ Date of issue Type / Model Name : SONNET (market name) / OPUS 3 (internal development name) Me1310 / Me1320 (product code) Product Description : Audio processor for cochlear implant including an inductive remote control receiver and a 2.4 GHz transceiver with integral antenna Applicant : MED-EL Elektromedizinische Geraete GmbH Address : Fuerstenweg 77a 6020 INNSBRUCK, AUSTRIA Manufacturer : MED-EL Elektromedizinische Geraete GmbH Address : Fuerstenweg 77a 6020 INNSBRUCK, AUSTRIA Licence holder : MED-EL Elektromedizinische Geraete GmbH Address : Fuerstenweg 77a 6020 INNSBRUCK, AUSTRIA Test Result according to the standards listed in clause 1 test standards: POSITIVE The test report merely corresponds to the test sample. It is not permitted to copy extracts of these test results without the written permission of the test laboratory. FCC ID: VNP-ME1300 IC: 11986A-ME1300 CSA Group Bayern GmbH File No. T38450-00-00KJ, page 2 of 34 Ohmstrasse 1-4  94342 STRASSKIRCHEN  GERMANY Tel.:+49(0)9424-94810  Fax:+49(0)9424-9481440 Rev. No. 3.0, 2014-01-30 Contents 1 T E S T S T A N D A R D S 3 2 S U M M A R Y 4 2.1 GENERAL REMARKS: 4 2.2 Test result summery 5 2.3 FINAL ASSESSMENT: 5 3 E Q U I P M E N T U N D E R T E S T 6 3.1 Photo documentation of the EUT – Please see attachment A 6 3.2 Power supply system utilised 6 3.3 Short description of the equipment under test (EUT) 6 4 T E S T E N V I R O N M E N T 7 4.1 Address of the test laboratory 7 4.2 Environmental conditions 7 4.3 Statement of the measurement uncertainty 7 4.4 Measurement protocol for FCC and IC 8 5 T E S T C O N D I T I O N S A N D R E S U L T S 9 5.1 AC power line conducted emissions 9 5.2 Field strength of fundamental 10 5.3 Out-of-band emission, radiated 12 5.4 EBW and OBW 16 5.5 Correction for pulse operation (duty cycle) 21 5.6 Antenna application 29 5.7 Receiver radiated emissions 30 6 U S E D T E S T E Q U I P M E N T A N D A C C E S S O R I E S 34 FCC ID: VNP-ME1300 IC: 11986A-ME1300 CSA Group Bayern GmbH File No. T38450-00-00KJ, page 3 of 34 Ohmstrasse 1-4  94342 STRASSKIRCHEN  GERMANY Tel.:+49(0)9424-94810  Fax:+49(0)9424-9481440 Rev. No. 3.0, 2014-01-30 1 T E S T S T A N D A R D S The tests were performed according to following standards: FCC Rules and Regulations Part 15, Subpart A - General (September, 2013) Part 15, Subpart A, Section 15.31 Measurement standards Part 15, Subpart A, Section 15.33 Frequency range of radiated measurements Part 15, Subpart A, Section 15.35 Measurement detector functions and bandwidths FCC Rules and Regulations Part 15, Subpart B - Unintentional Radiators (September, 2013) Part 15, Subpart B, Section 15.109 Radiated emission limits FCC Rules and Regulations Part 15, Subpart C – Intentional Radiators (September, 2013) Part 15, Subpart C, Section 15.203 Antenna requirement Part 15, Subpart C, Section 15.204 External radio frequency power amplifiers and antenna modifications Part 15, Subpart C, Section 15.205 Restricted bands of operation Part 15, Subpart C, Section 15.207 Conducted limits Part 15, Subpart C, Section 15.209 Radiated emission limits, general requirements Part 15, Subpart C, Section 15.249 Operation within the bands 902 – 928 MHz, 2400 – 2483.5 MHz, 5725 – 5875 MHz, and 24.0 – 24.25 GHz ANSI C63.4: 2009 Methods of Measurement of Radio-Noise Emissions from Low- Voltage Electrical and Electronic Equipment in the Range of 9 kHz to 40 GHz. ANSI C95.1:2005 IEEE Standard for Safety Levels with respect to Human Exposure to Radio Frequency Electromagnetic Fields, 3 kHz to 300 GHz CISPR 16-4-2: 2003 Uncertainty in EMC measurement CISPR 22: 2005 Information technology equipment EN 55022: 2006 FCC ID: VNP-ME1300 IC: 11986A-ME1300 CSA Group Bayern GmbH File No. T38450-00-00KJ, page 4 of 34 Ohmstrasse 1-4  94342 STRASSKIRCHEN  GERMANY Tel.:+49(0)9424-94810  Fax:+49(0)9424-9481440 Rev. No. 3.0, 2014-01-30 2 S U M M A R Y 2.1 GENERAL REMARKS: The EUT contains a 2.4 GHz transceiver with integral antenna. The radio frequency of the 2.4 GHz transceiver operates in the frequency band 2.400 MHz – 2.4835 MHz. 2.1.1 Antennas The following antenna is used with the EUT: Number Type Certification name Plug f-range Gain (dBi) 1 Chip antenna Fractus FR05-S1-N-0-110 none 2.4 – 2.5 GHz 0.2 2.1.2 Transmit operating modes The EUT use GFSK and provide following data rate: 2 Mbps (Mbps = Megabits per second) The test software for the EUT provides the special test mode TX continuous mode, modulated and the channel setting. The EUT is set with test modulation to transmit data during the tests with a max duty cycle (x) of assumed x = 13.6 % (-17.4 dB). As worst case the following channels and test modes are selected for the final test: Standard Available channel Tested channels Power setting Modulation Modulation type Data rate Proprietary 1 to 39 1, 19, 39 max GFSK digital 2 Mbps 2.1.3 Operation frequency and channel plan The operating frequency is 2400 MHz to 2483.5 MHz. Channel Nof [MHz] Channel Nof [MHz] Channel Nof [MHz] 12404142430272456 22406152432282458 32408162434292460 42410172436302462 52412182438312464 62414192440322466 72416202442332468 82418212444342470 92420222446352472 102422232448362474 112424242450372476 122426252452382478 132428262454392480 FCC ID: VNP-ME1300 IC: 11986A-ME1300 CSA Group Bayern GmbH File No. T38450-00-00KJ, page 5 of 34 Ohmstrasse 1-4  94342 STRASSKIRCHEN  GERMANY Tel.:+49(0)9424-94810  Fax:+49(0)9424-9481440 Rev. No. 3.0, 2014-01-30 2.2 Test result summery Operating in the 2400 MHz – 2483.5 MHz band: FCC Rule Part RSS Rule Part Description Result 15.35(c) RSS-Gen, 4.5…
