Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 Re: Compliance Statement in Fork-Lift Truck Manual / FCC ID: VNQ-0200201 Dear Sirs, Our client’s products with the above FCC ID code are low frequency transmitters. The products will be installed in fork-lift trucks before they will be placed into the market. Hereby our client assures that the following caution statement as per CFR 47, Part 15, § 15.21 will be included in the owner’s manual of the cars: The title “CAUTION TO USERS” or “FCC Warning:” “NOTE:” or relevant title and “Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment.” In addition our client also assures that the following statement will be included in the manual as per CFR 47, Part 15, § 15.19 (a) (3). This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Strasskirchen, 04.10.2007 Sincerely, Thomas Ring Manager Certification mikes-testingpartners gmbh Ohmstrasse 2-4 94342 Strasskirchen, Germany Phone: ++49 9424 9481 0 Fax: ++49 9424 9481 240 FCC Notice Model JXP-HPS Model JXP-HPS has been granted the following certification numbers: FCC-ID: VNQ-0200201 IC: 7350A-0200201 FCC conditions This device complies with part 15 of the FCC Rules. Operation is subject to the following conditions: (1) This device may not cause harmful interference. (2) This device must accept any interference received, including interference that may cause undesired operation. Any changes or modifications not expressly approved by the party responsible for compliance would void the user’s authority to operate the equipment.

Date: 04.10.2007 Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 Re: Request of Confidentiality Pursuant to Sections 0.457(d)(1)(ii) and 0.459 of the Commission’s Rules, the Applicant hereby requests confidential treatment of information accompanying as outlined below for the following FCC ID: VNQ-0200201 Schematics, Parts List, Operating Description, Block Diagram The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. The Applicant understands that pursuant to Rule 0.457(d)(1)(ii), disclosure of this Application and all accompanying documentation will not be made before the date of the Grant for this Application. Sincerely, Thomas Ring Manager: Certification mikes-testingpartners gmbh ohmstrasse 2-4 94342 Strasskichen, Germany Phone: 0049 9424 9481 0 Fax: 0049 9424 9481 240

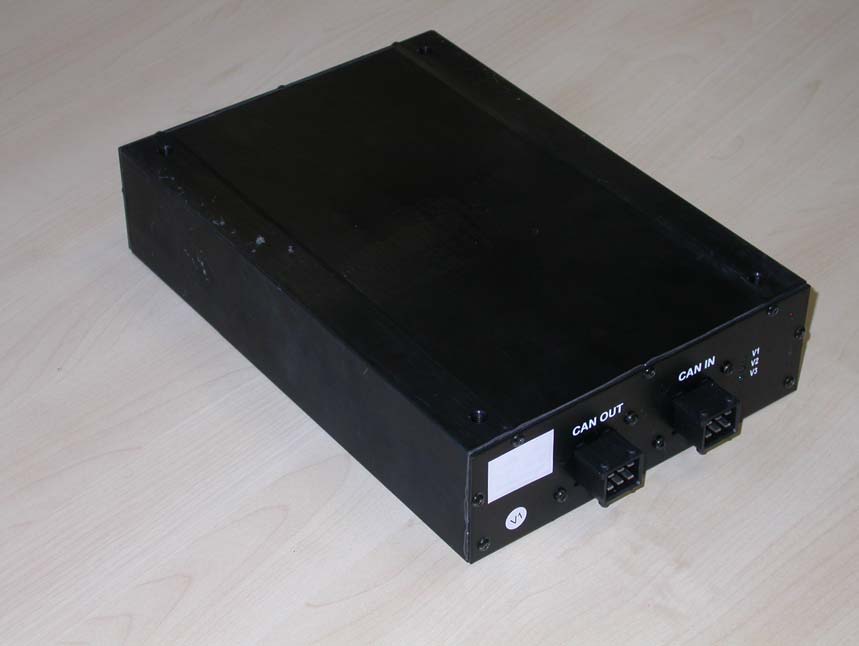

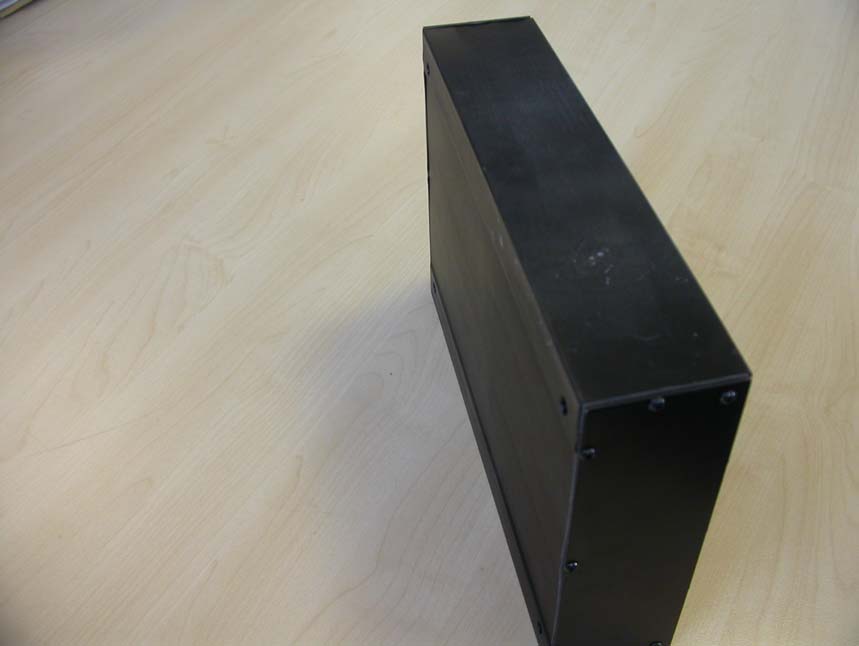

FCC ID: VNQ-0200201 mikes-testingpartners gmbh File No. T31962-00-02HS, page 4 of 25 Ohmstrasse 2-4 x 94342 Strasskirchen Tel.:+49(0)9424-94810 x Fax:+49(0)9424-9481240 Rev. No. 1.1 3 EQUIPMENT UNDER TEST 3.1 Photo documentation of the EuT External Views Top Front FCC ID: VNQ-0200201 mikes-testingpartners gmbh File No. T31962-00-02HS, page 5 of 25 Ohmstrasse 2-4 x 94342 Strasskirchen Tel.:+49(0)9424-94810 x Fax:+49(0)9424-9481240 Rev. No. 1.1 Back Internal Views Top View PCB

FCC ID: VNQ-0200201 IC: 7350A-0200201 S0414 41/07 16638 20-450 TYP: JXP-HPS 24VDC / 0,27A FCC ID: VNQ-0200201 IC: 7350A-0200201 S0415 41/07 16638 20-450 TYP: JXP-HPS 24VDC / 0,27A

ID Lable Location

FCC ID: VNQ-0200201 mikes-testingpartners gmbh File No. T31962-00-02HS, page 6 of 25 Ohmstrasse 2-4 x 94342 Strasskirchen Tel.:+49(0)9424-94810 x Fax:+49(0)9424-9481240 Rev. No. 1.1 Antenna FCC ID: VNQ-0200201 mikes-testingpartners gmbh File No. T31962-00-02HS, page 7 of 25 Ohmstrasse 2-4 x 94342 Strasskirchen Tel.:+49(0)9424-94810 x Fax:+49(0)9424-9481240 Rev. No. 1.1 Back View PCB + Antenna FCC ID: VNQ-0200201 mikes-testingpartners gmbh File No. T31962-00-02HS, page 8 of 25 Ohmstrasse 2-4 x 94342 Strasskirchen Tel.:+49(0)9424-94810 x Fax:+49(0)9424-9481240 Rev. No. 1.1 Top View PCB

FCC ID: VNQ-0200201 mikes-testingpartners gmbh File No. T31962-00-02HS, page 1 of 24 Ohmstrasse 2-4 x 94342 Strasskirchen Tel.:+49(0)9424-94810 x Fax:+49(0)9424-9481240 Rev. No. 1.1 EMI -- T E S T R E P O R T Test Report No. : T31962-00-02HS 12. October 2007 ____ Date of issue __________________________________________________________________________________________ Type / Model Name :jxp-HPS Product Description :RFID reading and writing device Applicant : INRO Elektrotechnik GmbH Address :Leiderer Str. 12 D-63811 Stockstadt Manufacturer : INRO Elektrotechnik GmbH Address :Leiderer Str. 12 D-63811 Stockstadt Licence holder : INRO Elektrotechnik GmbH Address :Leiderer Str. 12 D-63811 Stockstadt Test Result according to the standards listed in clause 1 test standards: POSITIVE The test report merely corresponds to the test sample. It is not permitted to copy extracts of these test results without the written permission of the test DAT-P-207/05-00 laboratory. FCC ID: VNQ-0200201 mikes-testingpartners gmbh File No. T31962-00-02HS, page 2 of 24 Ohmstrasse 2-4 x 94342 Strasskirchen Tel.:+49(0)9424-94810 x Fax:+49(0)9424-9481240 Rev. No. 1.1 Contents 1 TEST STANDARDS 3 2 SUMMARY 3 3 EQUIPMENT UNDER TEST 4 3.1 PHOTO DOCUMENTATION OF THE EUT 4 3.2 POWER SUPPLY SYSTEM UTILISED 10 3.3 SHORT DESCRIPTION OF THE EQUIPMENT UNDER TEST (EUT) 10 4 TEST ENVIRONMENT 11 4.1 ADDRESS OF THE TEST LABORATORY 11 4.2 ENVIRONMENTAL CONDITIONS 11 4.3 STATEMENT OF THE MEASUREMENT UNCERTAINTY 11 4.4 MEASUREMENT PROTOCOL FOR FCC, VCCI AND AUSTEL 11 5 TEST CONDITIONS AND RESULTS 13 5.1 CONDUCTED EMISSIONS 13 5.2 FIELD STRENGTH OF THE FUNDAMENTAL WAVE 17 5.3 SPURIOUS EMISSIONS (MAGNECTIC FIELD) 9 KHZ – 30 MHZ 19 5.4 RADIATED EMISSIONS (ELECTRIC FIELD) 30 MHZ – 1 GHZ 21 5.5 EMISSION BANDWIDTH 22 6 USED TEST EQUIPMENT AND ACCESSORIES 24 FCC ID: VNQ-0200201 mikes-testingpartners gmbh File No. T31962-00-02HS, page 3 of 24 Ohmstrasse 2-4 x 94342 Strasskirchen Tel.:+49(0)9424-94810 x Fax:+49(0)9424-9481240 Rev. No. 1.1 1 TEST STANDARDS The tests were performed according to following standards: FCC Rules and Regulations Part 15 Subpart C- Intentional Radiators (October 01, 2006) Part 15, Subpart C, Section 15.209(a) Radiated emissions, general requirements 2 SUMMARY GENERAL REMARKS: FINAL ASSESSMENT: The equipment under test fulfills the EMI requirements cited in clause 1 test standards. Date of receipt of test sample : 03 September 2007 Testing commenced on : 03 September 2007 Testing concluded on : 13 September 2007 Checked by: Tested by: Klaus Gegenfurtner Dipl.-Ing.(FH) Manager: Radio Group Hermann Smetana Dipl.-Ing.(FH) FCC ID: VNQ-0200201 mikes-testingpartners gmbh File No. T31962-00-02HS, page 4 of 24 Ohmstrasse 2-4 x 94342 Strasskirchen Tel.:+49(0)9424-94810 x Fax:+49(0)9424-9481240 Rev. No. 1.1 3 EQUIPMENT UNDER TEST 3.1 Photo documentation of the EuT External Views Top Front FCC ID: VNQ-0200201 mikes-testingpartners gmbh File No. T31962-00-02HS, page 5 of 24 Ohmstrasse 2-4 x 94342 Strasskirchen Tel.:+49(0)9424-94810 x Fax:+49(0)9424-9481240 Rev. No. 1.1 Back Internal Views Top View PCB FCC ID: VNQ-0200201 mikes-testingpartners gmbh File No. T31962-00-02HS, page 6 of 24 Ohmstrasse 2-4 x 94342 Strasskirchen Tel.:+49(0)9424-94810 x Fax:+49(0)9424-9481240 Rev. No. 1.1 Antenna FCC ID: VNQ-0200201 mikes-testingpartners gmbh File No. T31962-00-02HS, page 7 of 24 Ohmstrasse 2-4 x 94342 Strasskirchen Tel.:+49(0)9424-94810 x Fax:+49(0)9424-9481240 Rev. No. 1.1 Back View PCB + Antenna FCC ID: VNQ-0200201 mikes-testingpartners gmbh File No. T31962-00-02HS, page 8 of 24 Ohmstrasse 2-4 x 94342 Strasskirchen Tel.:+49(0)9424-94810 x Fax:+49(0)9424-9481240 Rev. No. 1.1 Top View PCB FCC ID: VNQ-0200201 mikes-testingpartners gmbh File No. T31962-00-02HS, page 9 of 24 Ohmstrasse 2-4 x 94342 Strasskirchen Tel.:+49(0)9424-94810 x Fax:+49(0)9424-9481240 Rev. No. 1.1 DC Power Line and CAN Communication Interface FCC ID: VNQ-0200201 mikes-testingpartners gmbh File No. T31962-00-02HS, page 10 of 24 Ohmstrasse 2-4 x 94342 Strasskirchen Tel.:+49(0)9424-94810 x Fax:+49(0)9424-9481240 Rev. No. 1.1 3.2 Power supply system utilised Power supply voltage : 24 V / DC 3.3 Short description of the Equipment under Test (EuT) RFID reading and writing device for vehicular use especially for fork-lift trucks. Number of tested samples: 1 Serial number: Prototype EuT operation mode: The equipment under test was operated during the measurement under the following conditions: - Continuous mode at 125 kHz - - EuT configuration: (The CDF filled by the applicant can be viewed at the test laboratory.) The following peripheral devices and interface cables were connected during the measurements: DC-Power Line Supplied by the Customer - DC-Power Supply Model : Agilent E3641A - Model : - Model : - Model : - Model : FCC ID: VNQ-0200201 mikes-testingpartners gmbh File No. T31962-00-02HS, page 11 of 24 Ohmstrasse 2-4 x 94342 Strasskirchen Tel.:+49(0)9424-94810 x Fax:+49(0)9424-9481240 Rev. No. 1.1 4 TEST ENVIRONMENT 4.1 Address of the test laboratory mikes-testingpartners gmbh Ohmstrasse 2-4 94342 Strasskirchen Germany 4.2 Environmental conditions During the measurement the environmental conditions were within the listed ranges: Temperature: 15-35 ° C Humidity: 30-60 % Atmospheric pressure: 86-106 kPa 4.3 Statement of the measurement uncertainty The data and results referenced in this document are true and accurate. The reader is cautioned that there may be errors within the calibration limits of the equipment and facilities. The measurement uncertainty was calculated for all measurements listed in this test report acc. to CISPR 16-4-2 /11.2003 „Uncertainties, statistics and limit modelling – Uncertainty in EMC measurements“ and is documented in the quality system acc. to DIN EN ISO/IEC 17025. Furthermore, component and process variability of devices similar to that tested may result in additional deviation. The manufacturer has the sole responsibility of continued complia…

Text truncated - open the document above for the full version.

FCC ID: VNQ-0200201 mikes-testingpartners gmbh File No. T31962-00-02HS, page 17 of 25 Ohmstrasse 2-4 x 94342 Strasskirchen Tel.:+49(0)9424-94810 x Fax:+49(0)9424-9481240 Rev. No. 1.1 5.2 Field strength of the fundamental wave For test instruments and accessories used see section 6 Part CPR 1. 5.2.1 Description of the test location Test location: OATS1 Test distance: 3 metres 5.2.2 Photo documentation of the test set-up FCC ID: VNQ-0200201 mikes-testingpartners gmbh File No. T31962-00-02HS, page 20 of 25 Ohmstrasse 2-4 x 94342 Strasskirchen Tel.:+49(0)9424-94810 x Fax:+49(0)9424-9481240 Rev. No. 1.1 5.3 Spurious emissions (Magnectic field) 9 kHz – 30 MHz For test instruments and accessories used see section 6 Part SER 1. 5.3.1 Description of the test location Test location: OATS1 Test distance: 3 metres 5.3.2 Photo documentation of the test set-up
