VO2SUNB6907O9Mobile Phone

B69 Handset Manual Version: V1.16 Date: 2007-9-14 Referrence software: V1.16 B69 Handset Manual 2 / 25 Table of Contents ATTENTIONS.................................................................................................................................................... 4 HANDSET SPECIFICATION LIST................................................................................................................. 6 HANDSET BRIEF INTRODUCTION.............................................................................................................. 7 SKETCH FIGURE.......................................................................................................................................... 7 KEY FUNCTIONS.......................................................................................................................................... 7 SCREEN LAYOUT......................................................................................................................................... 8 BEGIN TO USE................................................................................................................................................. 8 INSTALL SIM CARD...................................................................................................................................... 8 CHARGE BATTERY....................................................................................................................................... 9 POWER ON/OFF............................................................................................................................................ 9 GENERAL OPERATION...............................................................................................................................10 OUTGOING CALL........................................................................................................................................ 10 RECEIVER VOLUME CONTROL................................................................................................................... 10 END CALL................................................................................................................................................. 10 ANSWER CALL.......................................................................................................................................... 10 EMERGENCY CALLS.................................................................................................................................. 11 LAST DIALED NUMBERS............................................................................................................................ 11 CALL MENU............................................................................................................................................... 11 READ MESSAGE........................................................................................................................................ 11 MISSED CALL............................................................................................................................................. 11 MUTE MODE............................................................................................................................................... 11 MAIN MENU OPERATION............................................................................................................................ 11 MESSAGES..................................................................................................................................................... 11 WRITE SMS............................................................................................................................................... 12 INBOX......................................................................................................................................................... 12 OUTBOX..................................................................................................................................................... 12 SENT ITEMS............................................................................................................................................... 13 MEMORY STATUS...................................................................................................................................... 13 DELETE ALL............................................................................................................................................... 13 SETTINGS................................................................................................................................................... 13 BROADCAST.............................................................................................................................................. 13 VOICE MAIL................................................................................................................................................ 14 CONTACTS..................................................................................................................................................... 14 SEARCH..................................................................................................................................................... 14 ADD ENTRY................................................................................................................................................ 15 MY NUMBER.............................................................................................................................................. 15 MEMORY STATUS...................................................................................................................................... 15 DELETE ALL............................................................................................................................................... 16 RECENT CALLS..............…

Text truncated - open the document above for the full version.

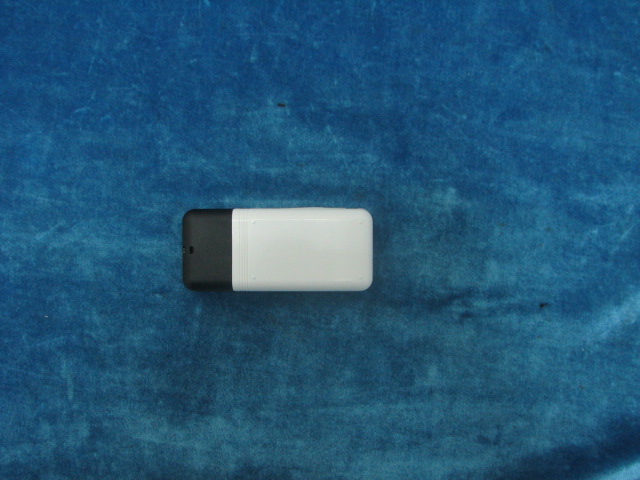

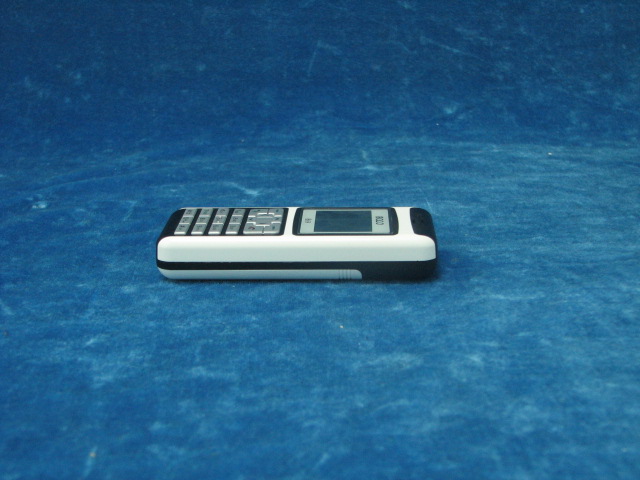

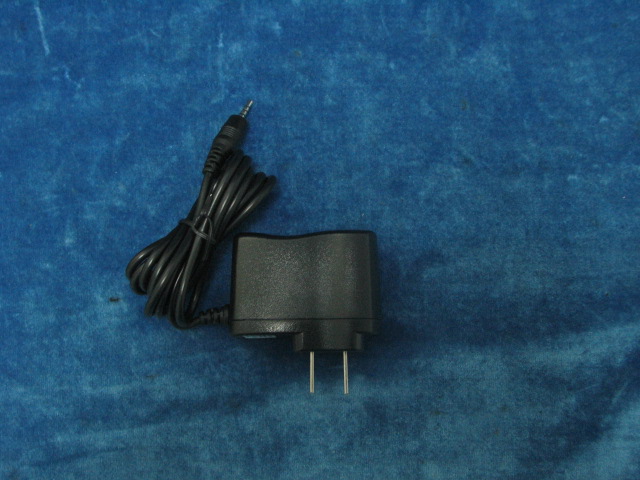

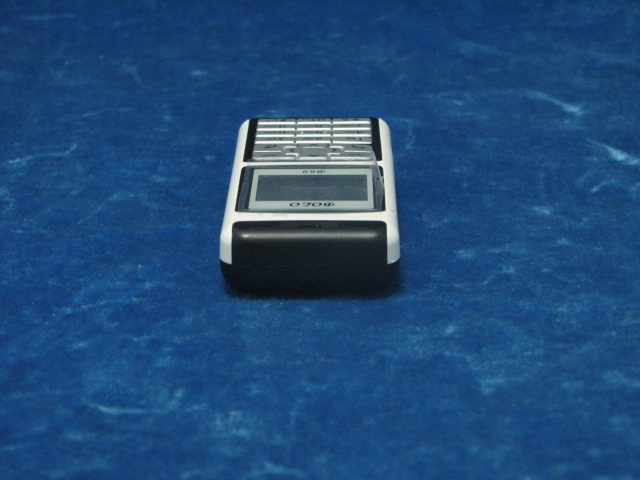

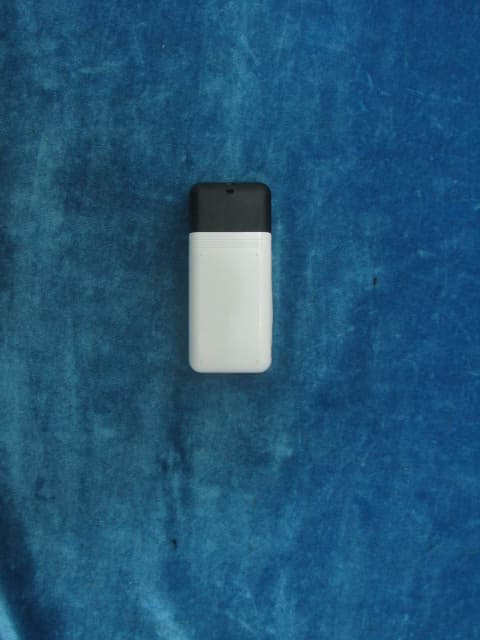

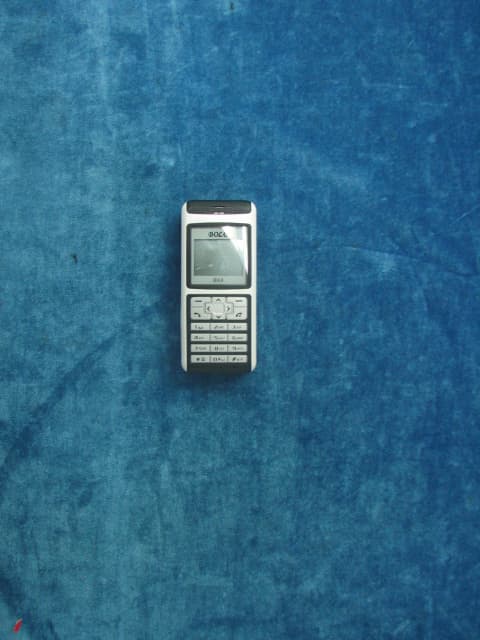

Compliance Certification Services (Kunshan) Inc. Report No: KS070924A01 Date of Issue: October 5, 2007 EXTERNAL PHOTOGRAPHS OF EUT Compliance Certification Services (Kunshan) Inc. Report No: KS070924A01 Date of Issue: October 5, 2007 Compliance Certification Services (Kunshan) Inc. Report No: KS070924A01 Date of Issue: October 5, 2007 Compliance Certification Services (Kunshan) Inc. Report No: KS070924A01 Date of Issue: October 5, 2007 AC to DC charger

LABEL LOCATION

Compliance Certification Services (Kunshan) Inc. Report No: KS070924A01 Date of Issue: October 5, 2007 INTERNAL PHOTOGRAPHS OF EUT Compliance Certification Services (Kunshan) Inc. Report No: KS070924A01 Date of Issue: October 5, 2007 Compliance Certification Services (Kunshan) Inc. Report No: KS070924A01 Date of Issue: October 5, 2007 Compliance Certification Services (Kunshan) Inc. Report No: KS070924A01 Date of Issue: October 5, 2007 Antenna connected point Antenna connected point Compliance Certification Services (Kunshan) Inc. Report No: KS070924A01 Date of Issue: October 5, 2007 Compliance Certification Services (Kunshan) Inc. Report No: KS070924A01 Date of Issue: October 5, 2007 Compliance Certification Services (Kunshan) Inc. Report No: KS070924A01 Date of Issue: October 5, 2007

Tune up procedure The equipment under test is the transmitter of B69, a Dual-band (850/1900) GSM/GPRS phone. GSM850： PCL =05, PWR = 30±1.5 dBm PCL =06, PWR = 28.5 ±1.5 dBm PCL =07, PWR = 27 ±1.5 dBm PCL =08, PWR = 25 ±1.5 dBm PCL =09, PWR = 23 ±1.5 dBm PCL =10, PWR =21 ±1.5 dBm PCL =11, PWR = 19 ±1.5 dBm PCL =12, PWR = 17 ±1.5 dBm PCL =13, PWR = 15 ±1.5 dBm PCL =14, PWR = 13 ±1.5 dBm PCL =15, PWR = 11 ±1.5 dBm PCL =16, PWR = 09 ±1.5 dBm PCL =17, PWR = 07 ±1.5 dBm PCL =18, PWR = 05 ±1.5 dBm PCL =19, PWR = 03 ±1.5 dBm PCS1900： PCL =00, PWR = 26 ±1.5 dBm PCL =01, PWR = 25 ±1.5dBm PCL =02, PWR = 24 ±1.5 dBm PCL =03, PWR = 22 ±1.5 dBm PCL =04, PWR = 20 ±1.5 dBm PCL =05, PWR = 18 ±1.5dBm PCL =06, PWR = 16 ±1.5 dBm PCL =07, PWR = 14 ±1.5 dBm PCL =08, PWR = 12 ±1.5 dBm PCL =09, PWR = 10 ±1.5dBm PCL =10, PWR = 08 ±1.5 dBm PCL =11, PWR = 06 ±1.5 dBm PCL =12, PWR = 04 ±1.5 dBm PCL =13, PWR = 02 ±1.5 dBm PCL =14, PWR = 00 ±1.5 dBm PCL =15, PWR = -02 ±1.5 dBm Then these appropriate gain settings are stored in each phone individually. The user has no possibility to change these settings later on, and during manufacturing each phone will be individual calibrated. The measurement is done in fully calibrated setup, which is based on a Rohde& Schwarz CMU200 base station simulator. Furthermore, the highest power level is verified afterwards in a call measurement on three channels (low, middle and high).

1700.0MHz1710.0MHz1720.0MHz1730.0MHz1740.0MHz1750.0MHz1760.0MHz -3.82 -3.97 -3.77 -3.00 -2.08 -1.54 -1.02 14.13 13.31 13.16 15.12 18.41 20.79 23.28 1.111.111.101.091.071.051.04 -3.82 -3.97 -3.77 -3.00 -2.08 -1.54 -1.02 -16.05 -16.39 -16.81 -16.41 -16.07 -15.78 -15.34 -8.50 -8.76 -8.81 -8.20 -7.35 -6.82 -6.33 Directivity Max Gain(dB) Min Gain(dB) Ave Gain(dB) Test Freqency Gain(dB) Efficiency (%) 1770.0MHz1780.0MHz1790.0MHz1800.0MHz1810.0MHz1820.0MHz1830.0MHz1840.0MHz1850.0MHz -0.220.190.541.171.912.132.552.823.23 26.87 28.44 30.20 34.83 41.91 43.86 47.73 49.8454.60 1.010.990.980.940.890.870.830.810.75 -0.220.190.541.171.912.132.552.823.23 -14.47 -14.32 -14.40 -14.43 -14.10 -14.49 -15.01 -15.94-16.79 -5.71 -5.46 -5.20 -4.58 -3.78 -3.58 -3.21 -3.02-2.63 1860.0MHz1870.0MHz1880.0MHz1890.0MHz1900.0MHz1910.0MHz1920.0MHz1930.0MHz1940.0MHz 3.053.323.353.443.132.842.422.111.64 52.63 56.18 56.50 57.51 53.50 50.87 48.42 49.78 50.89 0.780.740.730.720.770.800.840.850.88 3.053.323.353.443.132.842.422.111.64 -18.20 -19.02 -19.93 -20.11 -19.20 -17.16 -14.86 -15.50 -15.26 -2.79 -2.50 -2.48 -2.40 -2.72 -2.94 -3.15 -3.03 -2.93 1950.0MHz1960.0MHz1970.0MHz1980.0MHz1990.0MHz 1.441.401.341.190.95 53.62 53.55 53.68 53.23 51.14 0.880.890.890.910.93 1.441.401.341.190.95 -13.37 -11.86 -10.94 -10.99 -11.29 -2.71 -2.71 -2.70 -2.74 -2.91 1700-1990

Compliance Certification Services (Kunshan) Inc. Report No: KS070924A01 FCC ID: VO2SUNB6907O9 Date of Issue: October 26, 2007 Page 1 Totle 31 FCC SAR EVALUATION REPORT In accordance with the requirements of FCC Report and Order: ET Docket 93-62, and OET Bulletin 65 Supplement C ANSI/IEEE Std. C95.1-1992 For Mobile phone Model: B69 Tra d e Na me: TOC S Prepared for Mobileden Room 1303,13/F,West Block,Tian'an Hight-Tech Plaza Phase2,Tian'an Cyber Park,Futian District,Shenzhen,China. 518040 Prepared by Compliance Certification Services (Kunshan) Inc. No.10, Weiye Rd., Innovation Park, Eco & Tec. Development Part, Kunshan City, Jiangsu Province, PRC. TEL: 86-512-57355888 FAX: 86-512-57370818 http://www.ccsemc.com.cn Note: This report shall not be reproduced except in full, without the written approval of Compliance Certification Services Inc. This document may be altered or revised by Compliance Certification Services Inc. personnel only, and shall be noted in the revision section of the document. Compliance Certification Services (Kunshan) Inc. Report No: KS070924A01 FCC ID: VO2SUNB6907O9 Date of Issue: October 26, 2007 Page 2 Totle 31 TABLE OF CONTENTS 1. EUT DESCRIPTION .............................................................................................................. 3 2. REQUIREMENTS FOR COMPLIANCE TESTING DEFINED BY THE FCC ............. 4 3. DOSIMETRIC ASSESSMENT SYSTEM ............................................................................ 4 MEASUREMENT SYSTEM DIAGRAM ................................................................................................ 5 SYSTEM COMPONENTS ....................................................................................................................... 6 4. EVALUATION PROCEDURE.............................................................................................. 8 DATA EVALUATION ............................................................................................................................. 8 SAR EVALUATION PROCEDURES.................................................................................................... 10 SPATIAL PEAK SAR EVALUATION .................................................................................................. 11 5. MEASUREMENT UNCERTAINTY .................................................................................. 12 6. EXPOSURE LIMIT .............................................................................................................. 13 7. EUT ARRANGEMENT........................................................................................................ 13 7.1 ANTHROPOMORPHIC HEAD PHANTOM......................................................................................... 13 8. MEASUREMENT RESULTS .............................................................................................. 13 TEST LIQUID CONFIRMATION ......................................................................................................... 13 EUT TUNE-UP PROCEDURE............................................................................................................... 13 EUT SETUP PHOTOS............................................................................................................................ 13 SAR MEASUREMENT RESULT .......................................................................................................... 13 9. EQUIPMENT LIST & CALIBRATION ............................................................................ 13 10. FACILITIES .......................................................................................................................... 13 11. REFERENCES ......................................................................................................................13 12. ATTACHMENT .................................................................................................................... 13 CONTENT................................................................................................................................................. 13 Compliance Certification Services (Kunshan) Inc. Report No: KS070924A01 FCC ID: VO2SUNB6907O9 Date of Issue: October 26, 2007 Page 4 Totle 31 2. REQUIREMENTS FOR COMPLIANCE TESTING DEFINED BY THE FCC The US Federal Communications Commission has released the report and order “Guidelines for Evaluating the Environmental Effects of RF Radiation", ET Docket No. 93-62 in August 1996. The order requires routine SAR evaluation prior to equipment authorization of portable transmitter devices, including portable telephones. For consumer products, the applicable limit is 1.6 mW/g for an uncontrolled environment and 8.0 mW/g for an occupational/controlled environment as recommended by the ANSI/IEEE standard C95.1-1992. According to the Supplement C of OET Bulletin 65 “Evaluating Compliance with FCC Guide-lines for Human Exposure to Radio frequency Electromagnetic Fields", released on Jun 29, 2001 by the FCC, the device should be evaluated at maximum output power (radiated from the antenna) under “worst-case” conditions for normal or intended use, incorporating normal antenna operating positions, device peak performance frequencies and positions for maximum RF energy coupling. 3. DOSIMETRIC ASSESSMENT SYSTEM These measurements were performed with the automated near-field scanning system OPENSAR from ANTENNESSA.The system is based on a high precision robot (working range greater than 0.9 m), which positions the probes with a positional repeatability of better than ± 0.02 mm. Special E- and H-field probes have been developed for measurements close to material discontinuity, the sensors of which are directly loaded with a Schottky diode and connected via highly resistive lines to the data acquisition unit. The SAR measurements were conducted with the dosimetric probe EP740807 (manufactured by ANTENNESSA), designed in the classical triangular configuration and opti…

Text truncated - open the document above for the full version.

Project name: KS070924A01 10/4/2007 10:55:00 AM Page 1 SAR MEASUREMENT REPORT Project name : KS070924A01 Project name: KS070924A01 10/4/2007 10:55:00 AM Page 2 I. RESULTS TYPE BAND PAR AM E TE RS Noise -- -- Validation -- -- Phone GSM850 Measurement 1: Validation Plane with Body device position on Low Channel in GMSK mode Measurement 2: Validation Plane with Body device position on Middle Channel in GMSK mode Measurement 3: Validation Plane with Body device position on High Channel in GMSK mode Modulation type: GMSK Duty cycle: 25% Ambient temperature:19C Liquid Temperature:20C Project name: KS070924A01 10/4/2007 10:55:00 AM Page 3 MEASUREMENT 1 Type: Phone measurement (Complete) Date of measurement: 26/10/2007 Measurement duration: 6 minutes 30 seconds Mobile Phone IMEI number: -- A. Experimental conditions. Phantom File surf_sam_plan.txt, Adaptative 2 max Phantom Validation plane Device Position Body Band GSM850 Channels Low Signal GMSK B. Instrumentations. Project name: KS070924A01 10/4/2007 10:55:00 AM Page 4 PC HP (Pentium(R) V3.06GHz, SN:375052-AA1) Network Emulator R&S (CMU200, SN:B23-03291) Vo l t m e t e r Keithley (2000, SN:1015843) Synthetizer Agilent (E8257C, SN:MY43321570) Amplifier Mini-Circuits (ZHL-42, SN:110405) Power Meter Agilent (E4416A, SN:QB41292714) Probe Antennessa (SN:SN_0807_EP_74) Phantom Antennessa (SN:SN41_05_SAM29) Liquid Antennessa (Last Calibration:02/2006) Project name: KS070924A01 10/4/2007 10:55:00 AM Page 5 C. SAR Measurement Results Lower Band SAR (Channel 128): Frequency (MHz) 824.200012 Relative permitivity (real part) 41.455979 Relative permitivity (imaginary part) 19.523134 Conductivity (S/m) 0.883562 Variation (%) -0.920000 SURFACE SAR VOLUME SAR Project name: KS070924A01 10/4/2007 10:55:00 AM Page 6 Maximum location: X=8.00, Y=2.00 SAR 10g (W/Kg) 0.235720 SAR 1g (W/Kg) 0.627403 Project name: KS070924A01 10/4/2007 10:55:00 AM Page 7 Z Axis Scan Project name: KS070924A01 10/4/2007 10:55:00 AM Page 8 MEASUREMENT 2 Type: Phone measurement (Complete) Date of measurement: 26/10/2007 Measurement duration: 6 minutes 32 seconds Mobile Phone IMEI number: -- A. Experimental conditions. Phantom File surf_sam_plan.txt, Adaptative 2 max Phantom Validation plane Device Position Body Band GSM850 Channels Middle Signal GMSK B. Instrumentations. Project name: KS070924A01 10/4/2007 10:55:00 AM Page 9 PC HP (Pentium(R) V3.06GHz, SN:375052-AA1) Network Emulator R&S (CMU200, SN:B23-03291) Vo l t m e t e r Keithley (2000, SN:1015843) Synthetizer Agilent (E8257C, SN:MY43321570) Amplifier Mini-Circuits (ZHL-42, SN:110405) Power Meter Agilent (E4416A, SN:QB41292714) Probe Antennessa (SN:SN_0807_EP_74) Phantom Antennessa (SN:SN41_05_SAM29) Liquid Antennessa (Last Calibration:02/2006) Project name: KS070924A01 10/4/2007 10:55:00 AM Page 10 C. SAR Measurement Results Middle Band SAR (Channel 189): Frequency (MHz) 836.400024 Relative permitivity (real part) 41.436569 Relative permitivity (imaginary part) 19.534131 Conductivity (S/m) 0.913614 Variation (%) -1.550000 SURFACE SAR VOLUME SAR Project name: KS070924A01 10/4/2007 10:55:00 AM Page 11 Maximum location: X=8.00, Y=5.00 SAR 10g (W/Kg) 0.167538 SAR 1g (W/Kg) 0.409267 Project name: KS070924A01 10/4/2007 10:55:00 AM Page 12 Z Axis Scan Project name: KS070924A01 10/4/2007 10:55:00 AM Page 13 MEASUREMENT 3 Type: Phone measurement (Complete) Date of measurement: 26/10/2007 Measurement duration: 6 minutes 13 seconds Mobile Phone IMEI number: -- A. Experimental conditions. Phantom File surf_sam_plan.txt, Adaptative 2 max Phantom Validation plane Device Position Body Band GSM850 Channels High Signal GMSK B. Instrumentations. Project name: KS070924A01 10/4/2007 10:55:00 AM Page 14 PC HP (Pentium(R) V3.06GHz, SN:375052-AA1) Network Emulator R&S (CMU200, SN:B23-03291) Vo l t m e t e r Keithley (2000, SN:1015843) Synthetizer Agilent (E8257C, SN:MY43321570) Amplifier Mini-Circuits (ZHL-42, SN:110405) Power Meter Agilent (E4416A, SN:QB41292714) Probe Antennessa (SN:SN_0807_EP_74) Phantom Antennessa (SN:SN41_05_SAM29) Liquid Antennessa (Last Calibration:02/2006) Project name: KS070924A01 10/4/2007 10:55:00 AM Page 15 C. SAR Measurement Results Higher Band SAR (Channel 250): Frequency (MHz) 848.599976 Relative permitivity (real part) 41.312341 Relative permitivity (imaginary part) 19.567201 Conductivity (S/m) 0.913443 Variation (%) -0.850000 SURFACE SAR VOLUME SAR Project name: KS070924A01 10/4/2007 10:55:00 AM Page 16 Maximum location: X=3.00, Y=3.00 SAR 10g (W/Kg) 0.209441 SAR 1g (W/Kg) 0.422646 Project name: KS070924A01 10/4/2007 10:55:00 AM Page 17 Z Axis Scan

Project name: KS070924A01 Page 1 SAR MEASUREMENT REPORT Project name : KS070924A01 Test date: 10/26/2007 Project name: KS070924A01 Page 2 I. RESULTS TYPE PAR AM E TE RS Noise -- Validation Measurement 1: Validation Plane with Dipole device position on Middle Channel in CW mode GSM850 Phone -- Noise -- Validation -- GSM900 Phone -- Noise -- Validation -- GSM1800 Phone -- Noise -- Validation -- GSM1900 Phone -- Noise -- Validation -- IMT2000 Phone -- Project name: KS070924A01 Page 3 Noise -- Validation -- CUSTOM Phone -- Ambient temperature:19C Liquid Temperature:20C Project name: KS070924A01 Page 4 MEASUREMENT 1 KS070924A01 850BODY VALIDATION Type: Validation measurement (Complete) Date of measurement: 26/10/2007 Measurement duration: 6 minutes 51 seconds Mobile Phone IMEI number: -- A. Experimental conditions. Phantom File surf_sam_plan.txt, Adaptative 2 max Phantom Validation plane Device Position Dipole Band GSM850 Channels Middle Signal CW B. Instrumentations. Project name: KS070924A01 Page 5 PC HP (Pentium(R) V 3.06GHz375052-AA1, SN:375052-AA1) Network Emulator Agilent (E5071B, SN:B23-03291) Vo l t m e t e r Keithley (2000, SN:1015843) Synthetizer Agilent (E8257C, SN:MY43321570) Amplifier Mini-Circuits (ZHL-42, SN:110405) Power Meter Agilent (E4416A, SN:QB41292714) Probe Antennessa (SN:SN_0807_EP_74) Phantom Antennessa (SN:SN41_05_SAM29) Liquid Antennessa (Last Calibration:02/2006) Project name: KS070924A01 Page 6 C. SAR Measurement Results Middle Band SAR (Channel 189): Frequency (MHz) 836.400024 Relative permitivity (real part) 52.316201 Relative permitivity (imaginary part) 22.061681 Conductivity (S/m) 1.013247 Variation (%) 0.290000 SURFACE SAR VOLUME SAR Project name: KS070924A01 Page 7 Maximum location: X=1.00, Y=-2.00 SAR 10g (W/Kg) 5.536053 SAR 1g (W/Kg) 9.053860 Project name: KS070924A01 Page 8 Z Axis Scan

Project name: KS070924A01 10/26/2007 9:59:00 AM Page 1 SAR MEASUREMENT REPORT Project name : KS070924A01 Project name: KS070924A01 10/26/2007 9:59:00 AM Page 2 I. RESULTS TYPE BAND PAR AM E TE RS Noise -- -- Validation -- -- Phone GSM850 Measurement 1: Right Head with Cheek device position on Low Channel in GMSK mode Measurement 2: Right Head with Cheek device position on Middle Channel in GMSK mode Measurement 3: Right Head with Cheek device position on High Channel in GMSK mode Measurement 4: Right Head with Tilt device position on Low Channel in GMSK mode Measurement 5: Right Head with Tilt device position on Middle Channel in GMSK mode Measurement 6: Right Head with Tilt device position on High Channel in GMSK mode Measurement 7: Left Head with Cheek device position on Low Channel in GMSK mode Measurement 8: Left Head with Cheek device position on Middle Channel in GMSK mode Measurement 9: Left Head with Cheek device position on High Channel in GMSK mode Measurement 10: Left Head with Tilt device position on Low Channel in GMSK mode Measurement 11: Left Head with Tilt device position on Middle Channel in GMSK mode Measurement 12: Left Head with Tilt device position on High Channel in GMSK mode Ambient temperature:19C Liquid Temperature:20C Project name: KS070924A01 10/26/2007 9:59:00 AM Page 3 MEASUREMENT 1 Type: Phone measurement (Complete) Date of measurement: 26/10/2007 Measurement duration: 19 minutes 23 seconds Mobile Phone IMEI number: -- A. Experimental conditions. Phantom File zinf15.txt, Adaptative 2 max Phantom Right head Device Position Cheek Band GSM850 Channels Low Signal GMSK B. Instrumentations. Project name: KS070924A01 10/26/2007 9:59:00 AM Page 4 PC HP (Pentium(R) V3.06GHz, SN:375052-AA1) Network Emulator R&S (CMU200, SN:B23-03291) Vo l t m e t e r Keithley (2000, SN:1015843) Synthetizer Agilent (E8257C, SN:MY43321570) Amplifier Mini-Circuits (ZHL-42, SN:110405) Power Meter Agilent (E4416A, SN:QB41292714) Probe Antennessa (SN:SN_0807_EP_74) Phantom Antennessa (SN:SN41_05_SAM29) Liquid Antennessa (Last Calibration:02/2006) Project name: KS070924A01 10/26/2007 9:59:00 AM Page 5 C. SAR Measurement Results Lower Band SAR (Channel 128): Frequency (MHz) 824.200012 Relative permitivity (real part) 41.466999 Relative permitivity (imaginary part) 19.511101 Conductivity (S/m) 0.893392 Variation (%) 1.180000 SURFACE SAR VOLUME SAR Project name: KS070924A01 10/26/2007 9:59:00 AM Page 6 Maximum location: X=-10.00, Y=-5.00 SAR 10g (W/Kg) 0.514359 SAR 1g (W/Kg) 0.759035 Project name: KS070924A01 10/26/2007 9:59:00 AM Page 7 Z Axis Scan Project name: KS070924A01 10/26/2007 9:59:00 AM Page 8 MEASUREMENT 2 Type: Phone measurement (Complete) Date of measurement: 26/10/2007 Measurement duration: 19 minutes 23 seconds Mobile Phone IMEI number: -- A. Experimental conditions. Phantom File zinf15.txt, Adaptative 2 max Phantom Right head Device Position Cheek Band GSM850 Channels Middle Signal GMSK B. Instrumentations. Project name: KS070924A01 10/26/2007 9:59:00 AM Page 9 PC HP (Pentium(R) V3.06GHz, SN:375052-AA1) Network Emulator R&S (CMU200, SN:B23-03291) Vo l t m e t e r Keithley (2000, SN:1015843) Synthetizer Agilent (E8257C, SN:MY43321570) Amplifier Mini-Circuits (ZHL-42, SN:110405) Power Meter Agilent (E4416A, SN:QB41292714) Probe Antennessa (SN:SN_0807_EP_74) Phantom Antennessa (SN:SN41_05_SAM29) Liquid Antennessa (Last Calibration:02/2006) Project name: KS070924A01 10/26/2007 9:59:00 AM Page 10 C. SAR Measurement Results Middle Band SAR (Channel 189): Frequency (MHz) 836.400024 Relative permitivity (real part) 41.466999 Relative permitivity (imaginary part) 19.511101 Conductivity (S/m) 0.906616 Variation (%) 1.180000 SURFACE SAR VOLUME SAR Project name: KS070924A01 10/26/2007 9:59:00 AM Page 11 Maximum location: X=-10.00, Y=-5.00 SAR 10g (W/Kg) 0.683275 SAR 1g (W/Kg) 0.994934 Project name: KS070924A01 10/26/2007 9:59:00 AM Page 12 Z Axis Scan Project name: KS070924A01 10/26/2007 9:59:00 AM Page 13 MEASUREMENT 3 Type: Phone measurement (Complete) Date of measurement: 25/10/2007 Measurement duration: 19 minutes 23 seconds Mobile Phone IMEI number: -- A. Experimental conditions. Phantom File zinf15.txt, Adaptative 2 max Phantom Right head Device Position Cheek Band GSM850 Channels High Signal GMSK B. Instrumentations. Project name: KS070924A01 10/26/2007 9:59:00 AM Page 14 PC HP (Pentium(R) V3.06GHz, SN:375052-AA1) Network Emulator R&S (CMU200, SN:B23-03291) Vo l t m e t e r Keithley (2000, SN:1015843) Synthetizer Agilent (E8257C, SN:MY43321570) Amplifier Mini-Circuits (ZHL-42, SN:110405) Power Meter Agilent (E4416A, SN:QB41292714) Probe Antennessa (SN:SN_0807_EP_74) Phantom Antennessa (SN:SN41_05_SAM29) Liquid Antennessa (Last Calibration:02/2006) Project name: KS070924A01 10/26/2007 9:59:00 AM Page 15 C. SAR Measurement Results Higher Band SAR (Channel 250): Frequency (MHz) 848.599976 Relative permitivity (real part) 41.262001 Relative permitivity (imaginary part) 19.598200 Conductivity (S/m) 0.923946 Variation (%) 1.180000 SURFACE SAR VOLUME SAR Project name: KS070924A01 10/26/2007 9:59:00 AM Page 16 Maximum location: X=-10.00, Y=-5.00 SAR 10g (W/Kg) 0.783368 SAR 1g (W/Kg) 1.166634 Project name: KS070924A01 10/26/2007 9:59:00 AM Page 17 Z Axis Scan Project name: KS070924A01 10/26/2007 9:59:00 AM Page 18 MEASUREMENT 4 Type: Phone measurement (Complete) Date of measurement: 25/10/2007 Measurement duration: 19 minutes 48 seconds Mobile Phone IMEI number: -- A. Experimental conditions. Phantom File zinf15.txt, Adaptative 2 max Phantom Right head Device Position Tilt Band GSM850 Channels Low Signal GMSK B. Instrumentations. Project name: KS070924A01 10/26/2007 9:59:00 AM Page 19 PC HP (Pentium(R) V3.06GHz, SN:375052-AA1) Network Emulator R&S (CMU200, SN:B23-03291) Vo l t m e t e r Keithley (2000, SN:1015843) Synthetizer Agilent (E8257C, SN:MY43321570) Amplifier Mini-Circuits (ZHL-42, SN:110405) Power Meter Agilent (E4416A, SN:QB41292714) Probe Antennessa (SN:SN_0807_EP_74) Phantom Anten…

Text truncated - open the document above for the full version.

Project name: KS070924A01 Page 1 SAR MEASUREMENT REPORT Project name : KS070924A01 Test date: 10/26/2007 Project name: KS070924A01 Page 2 I. RESULTS TYPE PAR AM E TE RS Noise -- Validation Measurement 1: Validation Plane with Dipole device position on Middle Channel in CW mode GSM850 Phone -- Noise -- Validation -- GSM900 Phone -- Noise -- Validation -- GSM1800 Phone -- Noise -- Validation -- GSM1900 Phone -- Noise -- Validation -- IMT2000 Phone -- Project name: KS070924A01 Page 3 Noise -- Validation -- CUSTOM Phone -- Ambient temperature:19C Liquid Temperature:20C Project name: KS070924A01 Page 4 MEASUREMENT 1 VALIDATION Type: Validation measurement (Complete) Date of measurement: 26/10/2007 Measurement duration: 6 minutes 41 seconds Mobile Phone IMEI number: -- A. Experimental conditions. Phantom File surf_sam_plan.txt, Adaptative 2 max Phantom Validation plane Device Position Dipole Band GSM850 Channels Middle Signal CW B. Instrumentations. Project name: KS070924A01 Page 5 PC HP (Pentium(R) V 3.06GHz375052-AA1, SN:375052-AA1) Network Emulator Agilent (E5071B, SN:B23-03291) Vo l t m e t e r Keithley (2000, SN:1015843) Synthetizer Agilent (E8257C, SN:MY43321570) Amplifier Mini-Circuits (ZHL-42, SN:110405) Power Meter Agilent (E4416A, SN:QB41292714) Probe Antennessa (SN:SN_0807_EP_74) Phantom Antennessa (SN:SN41_05_SAM29) Liquid Antennessa (Last Calibration:02/2006) Project name: KS070924A01 Page 6 C. SAR Measurement Results Middle Band SAR (Channel 189): Frequency (MHz) 836.400024 Relative permitivity (real part…

Text truncated - open the document above for the full version.
