VO8-BS-3Bluetooth Stereo Speaker

FCC STATEMENT 1. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference. (2) This device must accept any interference received, including interference that may cause undesired operation. 2. Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: ǂ Reorient or relocate the receiving antenna. ǂ Increase the separation between the equipment and receiver. ǂ Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. ǂ Consult the dealer or an experienced radio/TV technician for help.

Guangzhou Liwei Electronics Co.,LTD FCC Authorization Letter Number: CF304 Version: V03 Date: 01-08-2011 We, (the approval holder) Company name Guangzhou Liwei Electronics Co.,LTD. Address NO.33 ZhenZhong North Rd.,ShenShan Ind.Park BaiYun District City GuangZhou Country China declare that the following representative (agent): Name (person) Edmund Company name Engineer Address Shenzhen Laker Testing Technology Co.,Ltd City 4D, Block 1, Sunshine Huayi Building, Nanhai West Road, Nanshan, Shenzhen, China Country China is hereby authorized to apply the following equipment for certification on our behalf: Product Description Bluetooth Speaker Type or Model(s) BS-3, BS-2, CS-4, CS-4+, AS, US, J1, SS Tradename or Brand(s) We also authorize Teleconformity (Mr. M. Koop, Manager Certification, Address: Rietven 31, 7534NH Enschede, the Netherlands) to apply and sign this application for certification, registration or filing on our behalf (as representative agent or certifier). Attestation: City and Country: Date: Name: (this must be a person) Function:Signature: (or official company stamp) GuangZhou, China 2015-07-05 JiaWei Yang Manager

Guangzhou Liwei Electronics Co.,LTD. FCC Confidentiality Request Number: CF303 Version: V02 Date:17-06-2011 To: Federal Communications Commission Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 Pursuant to 47 CFR Section 0.459(a) & (b), we, (the applicant / grantee) Company name Guangzhou Liwei Electronics Co.,LTD. Address NO.33 ZhenZhong North Rd.,ShenShan Ind.Park BaiYun District City GuangZhou Country China request for this certification filing under: Grantee Code Product Number FCC ID: VO8 -BS-3 to maintain permanent confidentiality for the following documents submitted within this application: (please cross what is applicable, or add other documents, provide the file name and description) Exhibit File Name Description Operational Description VO8-BS-3_Operational Description Block Diagrams VO8-BS-3_Block Diagram Schematics Diagrams VO8-BS-3_Schematic Diagram Bill of Materials Above materials contain secrets, proprietary and technical information, which would customarily be guarded from competitors under 47 CFR, section 0.457(d)(2). Disclosure or publication or any portion of this company confidential material to other parties could cause substantial competitive harm and provide unjustified benefits for competitors. We understand that pursuant to 47 CFR section 0.457(d)(1)(ii) disclosure of the applicant and all accompanying documentation will not be made before the date of the grant. The documents indicated as confidential above, are not publicly available elsewhere. Attestation: City and Country: Date: Name: (this must be a person) Function:Signature: (or official company stamp) GuangZhou, China 2015-07-05 JiaWei Yang Manager

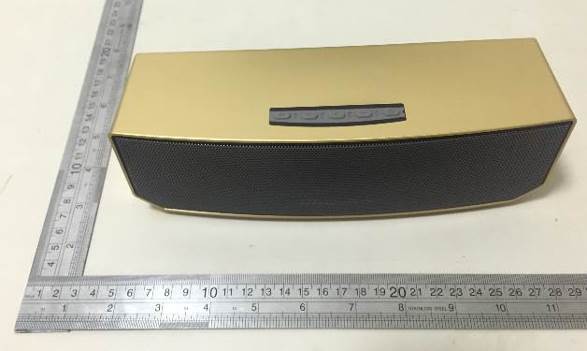

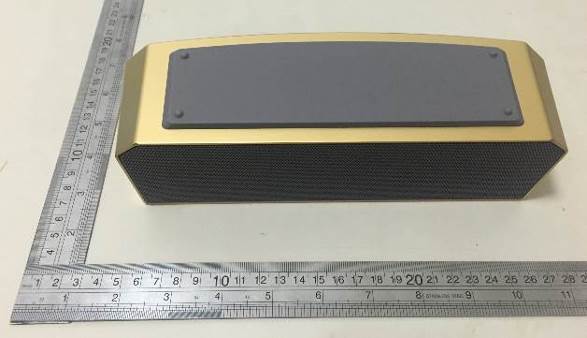

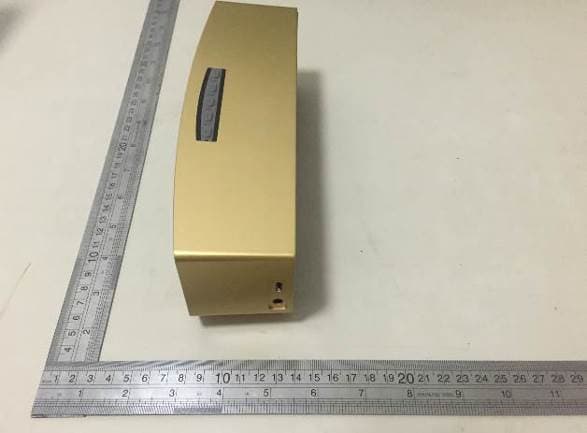

External Photographs EUT –External Photos

FCC Label Sample

Internal Photographs EUT –PCB View

Report No. : LK15FR-0523E-2 Page 1 of 2 Shenzhen Laker Testing Technology Co.,Ltd 4D，Block 1,Sunshine Huayi Building,Nanhai West Road,Nanshan, Shenzhen, China TEL：0755-86307736 FAX：0755-86307356 RF Exposure MPE Report RF Exposure Compliance Requirement 1. Standard Requirement 15.247(b)(4) requirement: The conducted output power limit specified in paragraph (b) of this section is based on the use of antennas with directional gains that do not exceed 6dBi. Except as shown in paragraph (c) of this section. if transmitting antennas of directional gain greater than 6dBi are used. the conducted output power from the intentional radiator shall be reduced below the stated values in paragraphs (b)(1). (b)(2). and (b)(3) of this section. as appropriate. by the amount in dB that the directional gain of the antenna exceeds 6dBi. 2. Limits According to KDB447498 General RF Exposure Guidance v05 Report No. : LK15FR-0523E-2 Page 2 of 2 Shenzhen Laker Testing Technology Co.,Ltd 4D，Block 1,Sunshine Huayi Building,Nanhai West Road,Nanshan, Shenzhen, China TEL：0755-86307736 FAX：0755-86307356 3. EUT RF Exposure The Max Conducted Peak Output Power is 3.45dBm(2.21mW) in middle channel, and the Max Conducted Average Output Power is less than 2.21mW. The best case gain of the antenna is 0dBi. 0 dBi logarithmic terms convert to numeric result is nearly 1. According to the formula. calculate the EIRP test result: EIRP< P x G = 2.21mW x 1 = 2.21mW ① SAR requirement: Limit = 10mW @ 5mm ② ; ① < ②. So the SAR report is not required.

Test Report of FCC Part 15 C for FCC Certificate On Behalf of Guangzhou Liwei Electronics Co.,LTD. FCC ID: VO8-BS-3 Product Description: Bluetooth Stereo Speaker Test Model: BS-3 Supplement Model: BS-2, CS-4, CS-4+, AS, US, J1, SS Brand: Applicant: Guangzhou Liwei Electronics Co.,LTD. Guotang Industrial Zone, Shenshan, Baiyun District, Guangzhou City, Guangdong Province, P.R.China Manufacturer: Guangzhou Liwei Electronics Co.,LTD. Guotang Industrial Zone, Shenshan, Baiyun District, Guangzhou City, Guangdong Province, P.R.China Prepared by: Shenzhen Laker Testing Technology Co.,Ltd 4D, Block 1, Sunshine Huayi Building,Nanhai West Road, Nanshan, Shenzhen, China Tel: 86-755-86307736 Fax: 86-755-86307356 Report No.: LK15FR-0523E-1 Issue Date: July 5, 2015 Test Date: July 1, 2015~ July 5, 2015 Test by: Reviewed By: Owen Li Edmund Zou Report No.: LK15FR-0523E-1 Page 2 of 42 FCC ID: VO8-BS-3 TABLE OF CONTENTS 1. GENERAL INFORMATION .................................................................................................................................... 4 1.1 PRODUCT DESCRIPTION FOR EQUIPMENT UNDER TEST (EUT) ......................................................................... 4 1.2TEST FACILITY ....................................................................................................................................................... 5 1.3 RELATED SUBMITTAL(S) / GRANT (S) ................................................................................................................... 5 1.4 MEASUREMENT UNCERTAINTY ............................................................................................................................. 5 2. SYSTEM TEST CONFIGURATION ...................................................................................................................... 6 2.1 EUT CONFIGURATION .......................................................................................................................................... 6 2.2 EUT EXERCISE ..................................................................................................................................................... 6 2.3 GENERAL TEST PROCEDURES ............................................................................................................................. 6 2.4 LIST OF MEASURING EQUIPMENTS ....................................................................................................................... 7 2.5 LIST OF AUXILIARY DEVICE .................................................................................................................................... 7 3. SUMMARY OF TEST RESULTS ......................................................................................................................... 10 4. CONDCUTED EMISSION TEST ......................................................................................................................... 11 4.1 APPLICABLE STANDARD ..................................................................................................................................... 11 4.2 LIMITS.................................................................................................................................................................. 11 4.3 EUT TEST SETUP .............................................................................................................................................. 11 4.4 PROCEDURE OF CONDUCTED EMISSION TEST ................................................................................................. 12 4.5 TEST RESULT ...................................................................................................................................................... 12 5. POWER SPECTRAL DENSITY MEASUREMENT ........................................................................................... 15 5.1 APPLICABLE STANDARD ..................................................................................................................................... 15 5.2 EUT SETUP ........................................................................................................................................................ 15 5.3 TEST EQUIPMENT LIST AND DETAILS ................................................................................................................. 15 5.4 TEST PROCEDURE .............................................................................................................................................. 15 5.5 TEST RESULT ...................................................................................................................................................... 15 6. 6 DB SPECTRUM BANDWIDTH MEASUREMENT ........................................................................................ 18 6.1 APPLICABLE STANDARD ..................................................................................................................................... 18 6.2 EUT SETUP ........................................................................................................................................................ 18 6.3 TEST EQUIPMENT LIST AND DETAILS ................................................................................................................. 18 6.4 TEST PROCEDURE .............................................................................................................................................. 18 6.5 TEST RESULT ...................................................................................................................................................... 18 7. OCCUPIED BANDWIDTH .................................................................................................................................... 21 7.1 APPLICABLE STANDARD ..................................................................................................................................... 21 7.2 EUT SETUP ...…

Text truncated - open the document above for the full version.

TEST SETUP PHOTOGRAPHS Conduted Emission Radiated Emission
