Ralink USB Wireless LAN Adapter User’s Manual 1 Install the driver a Insert the installation CD into your CD-ROM driver, Double click the icon to start setup b c Choose Ralink Configuration Tool and click next to go on d Choose Optimize for WiFi mode and click next to go on e f Click Finish to end the setup 2 Plug in your usb wireless LAN adapter, it will be recognized and auto installed. Just confirmed it like below: 3 Make infrastructure connection ¾ Double click the icon in red circle ¾ You will see: ¾ You can click the button Rescan to find which AP is in range, they will show on the window, choice one you want to connect, and click the button connect, and click ok to finish the connection operation. ¾ An infrastructure connection is accomplished. ¾ Note, please choose correct channel setting up to your law, for example, ch13 is permitted in your country, and you set your router at ch13, while you choose ch1-ch11 (default setting), you will never find the AP, and you will have to choose ch1-ch13 setting in Advanced page as below 4 Some help information in Rlink Wireless Utility z How to find out your IP address: z How to find out which a WIFI environment you are inside 5 Make Ad-Hoc mode connection z 5.1 Make an Ad-Hoc SSID ¾ A ¾ B ¾ C ¾ D z 5.2 Setup static IP address for the Ad-Hoc link ¾ A At its property page, double click item Internet Protocol (TCP/IP) ¾ B You will get ¾ C Fill the IP address blank, example as below: ¾ D Click ok to finish the setup z 5.3 Ad-Hoc setup for one point accomplished z 5.4 Setup another Ad-Hoc point as step A,B,C,D. z 5.5 Ad-Hoc mode link accomplished. And you can visit each other. Note: To make an Ad-Hoc mode link, Do remember to choice the same channel, its static IP address should be in the same netsub, and the SSID should be the same too. FEDERAL COMMUNICATIONS COMMISSION (FCC) STATEMENT This equipment has been tested and found to comply with the limits for a class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: ---Reorient or relocate the receiving antenna. ---Increase the separation between the equipment and receiver. ---Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. ---Consult the dealer or an experienced radio/TV technician for help. Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1)This device may not cause harmful interference. (2)This device must accept any interference received, including interference that may cause undesired operation. FCC RF RADIATION EXPOSURE STATEMENT: This equipment complies with FCC RF radiation exposure limits set forth for an uncontrolled environment. This device and its antenna must not be co-located or operating in conjunction with any other antenna or transmitter. IMPORTANT NOTE: This device has been tested for compliance with FCC RF Exposure (SAR) limits in the typical laptop computer configuration and this device can be used in desktop or laptop computers with side mounted USB slots. This device and its antenna must not be co-located or operated in conjunction with any other antenna or transmitter.

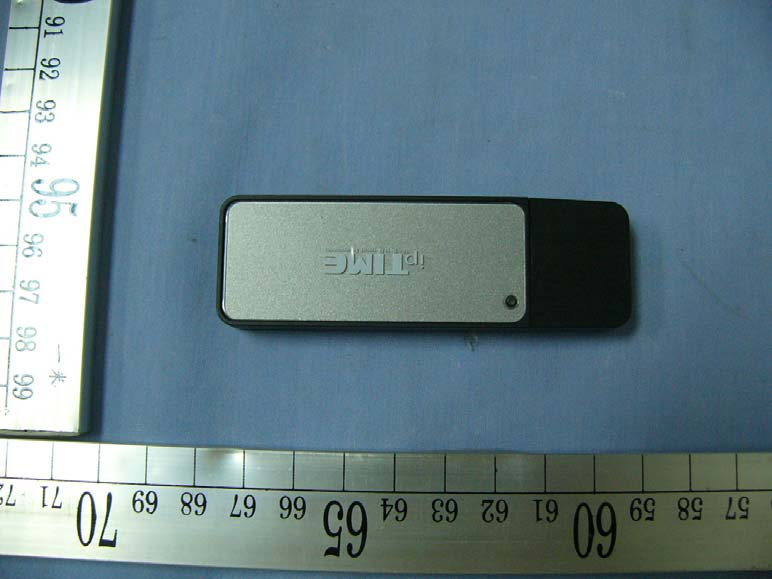

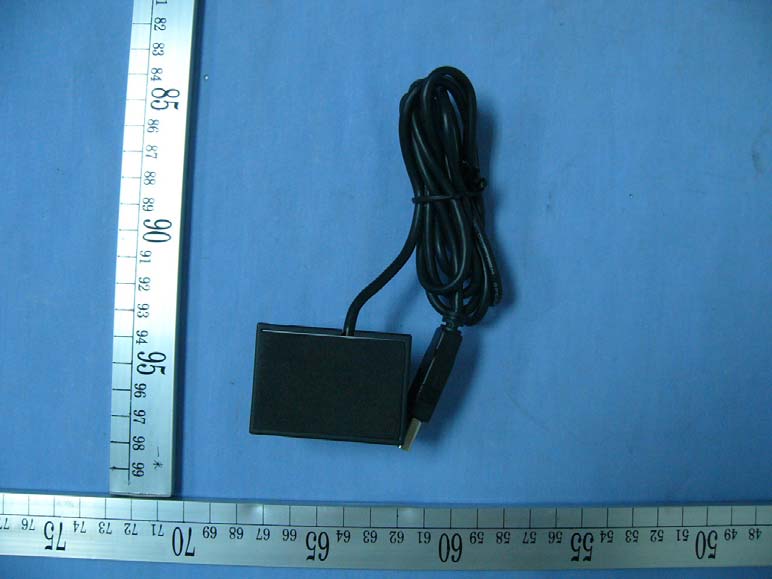

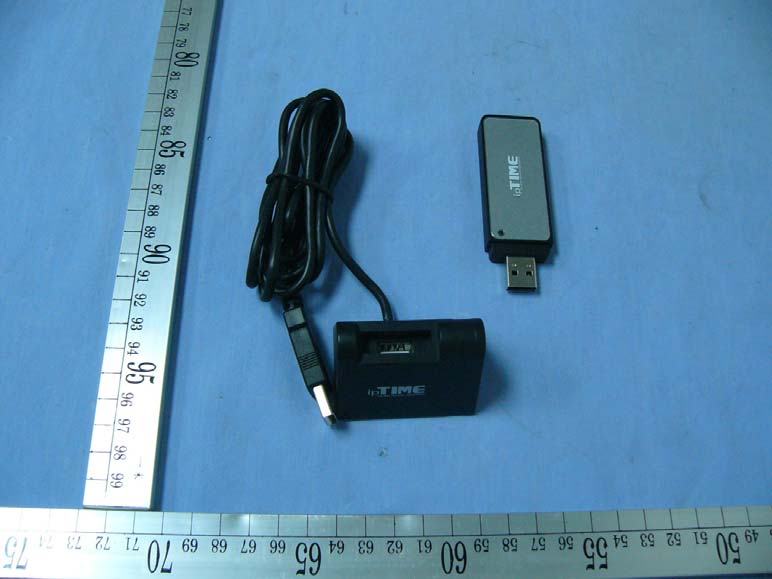

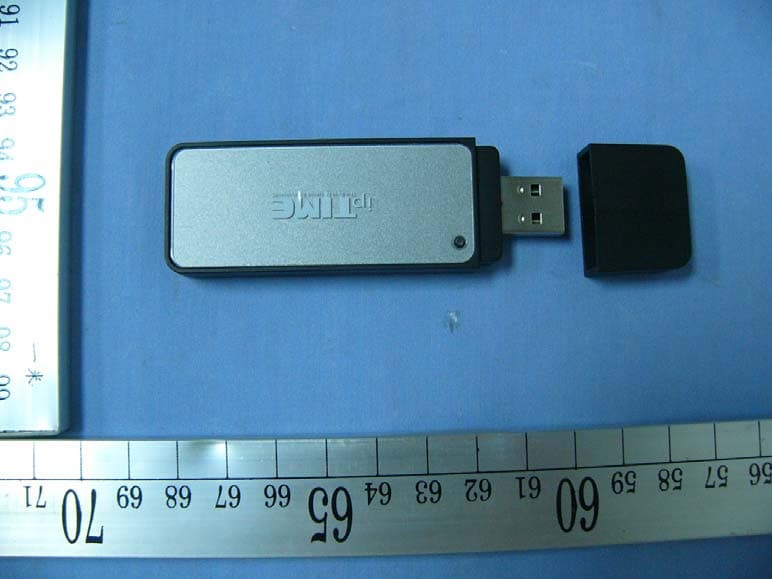

Zioncom (Hong Kong) Technology Limited ZC-WL0115 Uses Omni PIFA Antenna, The Max Gain Is 2dBi

American Telecommunications Certification Body Inc. 6731 Whittier Ave, McLean, VA 22101 September 26, 2007 RE: ATCB005475 FCC ID: VOEZCWL0115 I have a few comments on this application. Depending on your responses, kindly understand there may be additional comments. 1. It is required to provide a MPE report showing that the power density of this portable device operates at a distance of 2.5cm does not exceed 1mW/cm 2 limit. 2. Please put information to user into user manual according to part 15.21 as follows: “ Section 15.21 Information to user. The users manual or instruction manual for an intentional or unintentional radiator shall caution the user that changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.” 3. FCC Logo can be only shown on the label as this device has been tested under Part 15B. “FYI – This is for your information only and does not require a response to ATCB. Please note that a DoC can only be applied to certain types of equipment as specified in 15.101 of the FCC rules. Please note that a DoC report may only be done by a properly accredited test lab in a country that has a current and active MRA with the US. Please note that the applicability of the DoC and its proper use on an FCC label is the responsibility of the grantee. ATCB recommends that the applicant address all associated DoC labeling issues and that such DoC labeling be strictly in accordance with the following: 47CFR 2.906, 2.803, 2.901, 2.906, 2.909, 2.948, 2.1071 through 2.1077, 15.19, 15.25, 15.31, 15.37, 15.101, 15.102 and any other DoC requirements not specified above ~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~ ~ George Chen ~ mailto:[email protected] ~ Taiwan Mobile: +886 930600123 ~ SKYPE: georgeshirley ~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~ The items indicated above must be submitted before processing can continue on the above referenced application. Failure to provide the requested information may result in application termination. Correspondence should be considered part of the permanent submission and may be viewed from the Internet after a Grant of Equipment Authorization is issued. Please do not respond to this correspondence using the email reply button. In order for your response to be processed expeditiously, you must submit your documents through the AmericanTCB.com website. Also, please note that partial responses increase processing time and should not be submitted. Any questions about the content of this correspondence should be directed to the sender.

Compliance Certification Services (Kunshan) Inc. No.10, Weiye Rd., Innovation Park, Eco & Tec. Development Part, Kunshan City, Jiangsu Province, PRC. TEL: 86-512-57355888 FAX: 86-512-57370818 http://www.ccsemc.com.cn This product is USB Wireless Lan Card(FCCID:VOEZCWL0115),we tested the average power is 13.04dBm, it's less than low threshold limit 60/2.442=24.57MW=13.9dBM, so we do not provide the SAR report.

Compliance Certification Services (Shenzhen) Inc. Report No: SZ070905B06-RP FCC ID: VOEZCWL0115 Date of Issue: September 17, 2007 Note: This report shall not be reproduced except in full, without the written approval of Compliance Certification Services Inc. This document may be altered or revised by Compliance Certification Services Inc. personnel only, and shall be noted in the revision section of the document. Page 1 of 1 FCC 47 CFR PART 15 SUBPART C TEST REPORT For USB Wireless Lan Card Model: ZC-WL0115 Trade Name: N/A Prepared for ZIONCOM (HONGKONG) TECHNOLOGY LIMITED LANTIAN SCIENCE AND TECHNOLOGY PARK, XINYU ROAD, XINQIAO HENGGANG BLOCK, SHAJING STREET, BAOAN DISTRICT, SHENZHEN CHINA. Prepared by COMPLIANCE CERTIFICATION SERVICES (SHENZHEN) INC. (aka COMPLIANCE ENGINEERING SERVICE (CHINA)) NO. 5, JINAO INDUSTRIAL PARK, NO. 35 JUKENG ROAD, DASHUIKENG VILLAGE, GUANLAN TOWN, BAOAN DISTRICT, SHENZHEN, CHINA TEL: 86-755-28055000 FAX: 86-755-28055221 LAB CODE:200577-0 Compliance Certification Services (Shenzhen) Inc. Report No: SZ070905B06-RP FCC ID: VOEZCWL0115 Date of Issue: September 17, 2007 Page 2 TABLE OF CONTENTS 1. TEST RESULT CERTIFICATION....................................................................................................3 2. EUT DESCRIPTION ...........................................................................................................................4 3. TEST METHODOLOGY ....................................................................................................................5 3.1 EUT CONFIGURATION........................................................................................................................5 3.2 EUT EXERCISE....................................................................................................................................5 3.3 GENERAL TEST PROCEDURES.............................................................................................................5 3.4 FCC PART 15.205 RESTRICTED BANDS OF OPERATIONS........................................................6 3.5 DESCRIPTION OF TEST MODES...........................................................................................................6 4. INSTRUMENT CALIBRATION........................................................................................................7 5. FACILITIES AND ACCREDITATIONS ..........................................................................................8 5.1 FACILITIES ........................................................................................................8 5.2 EQUIPMENT........................................................................................................................................8 5.3 LABORATORY ACCREDITATIONS AND LISTING..................................................................................8 6. SETUP OF EQUIPMENT UNDER TEST .........................................................................................9 6.1 SETUP CONFIGURATION OF EUT.........................................................................................................9 6.2 SUPPORT EQUIPMENT .................................................................................................................9 7. FCC PART 15.247 REQUIREMENTS.............................................................................................10 7.1 6DB BANDWIDTH.............................................................................................................................10 7.2 PEAK POWER....................................................................................................................................16 7.3 BAND EDGES MEASUREMENT ................................................................................................22 7.4 PEAK POWER SPECTRAL DENSITY....................................................................................................31 7.5 RADIO FREQUENCY EXPOSURE.............................................................................37 7.6 SPURIOUS EMISSIONS ................................................................................................................37 7.7 POWERLINE CONDUCTED EMISSIONS..............................................................................................54 APPENDIX 1 PHOTOGRPHS OF TEST SETUP .................................................................................58 Compliance Certification Services (Shenzhen) Inc. Report No: SZ070905B06-RP FCC ID: VOEZCWL0115 Date of Issue: September 17, 2007 Page 3 1. TEST RESULT CERTIFICATION Applicant: ZIONCOM (HONGKONG) TECHNOLOGY LIMITED LANTIAN SCIENCE AND TECHNOLOGY PARK, XINYU ROAD, XINQIAO HENGGANG BLOCK, SHAJING STREET, BAOAN DISTRICT, SHENZHEN CHINA. Equipment Under Test: USB Wireless Lan Card Trade Name: N/A Model: ZC-WL0115 Date of Test: September 05~13, 2007 APPLICABLE STANDARDS STANDARD TEST RESULT FCC Part 15 Subpart C No non-compliance noted We hereby certify that: The above equipment was tested by Compliance Certification Services (Shenzhen) Inc. The test data, data evaluation, test procedures, and equipment configurations shown in this report were made in accordance with the procedures given in ANSI C63.4: 2003 and the energy emitted by the sample EUT tested as described in this report is in compliance with the requirements of FCC Rules Part 15.207, 15.209, 15.247. The test results of this report relate only to the tested sample EUT identified in this report. Approved by: Tested By: Maya You Reviewed By: Clinton Kao/ Manager Vincent Yao / Assistant manager COMPLIANCE CERTIFICATION COMPLIANCE CERTIFICATION SERVICES (SHENZHEN) INC. SERVICES (SHENZHEN) INC. Compliance Certification Services (Shenzhen) Inc. Report No: SZ070905B06-RP FCC ID: VOEZCWL0115 Date of Issue: September 17, 2007 Page 4 2. EUT DESCRIPTION Product USB Wireless Lan Card Trade Name N/A Model Number ZC-WL0115 Model Difference N/A Power Supply Powered by Notebook …
